RCSS

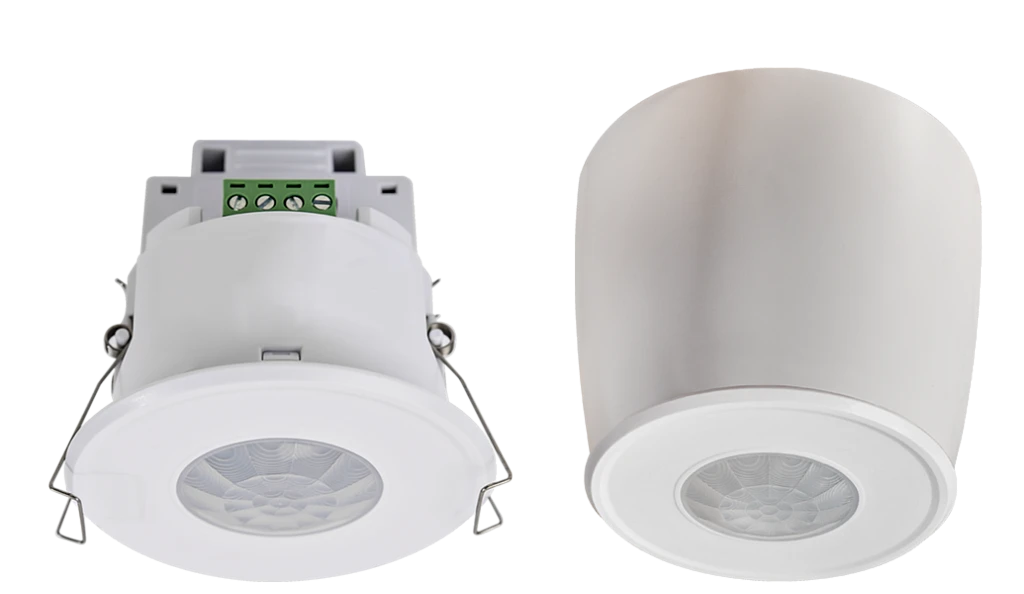

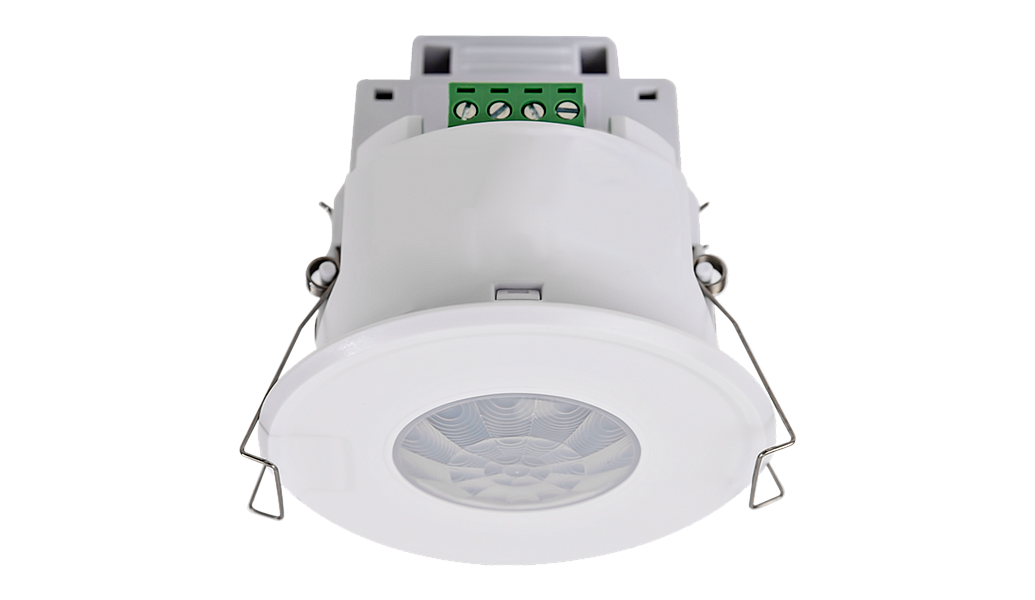

The Reacta Control Standalone Sensor is a recessed flush mounted standalone passive infrared sensor with daylight regulation, presence detection and wireless connectivity for use with our Reacta-Control wireless system. Optional surface mount cans are available where installations do not allow recessed mounting.
Introduction
The Reacta Control Standalone Sensor is a recessed flush mounted standalone passive infrared sensor with daylight regulation, presence detection and wireless connectivity for use with our Reacta-Control wireless system. Optional surface mount cans are available where installations do not allow recessed mounting.
Features & Benefits
- Mounting Type: Recessed
- Wireless: Yes

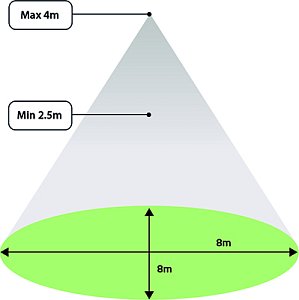

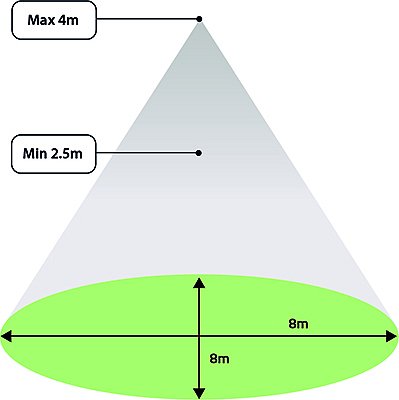

- Maximum Mounting Height: 5m
- Occupancy Detection: PIR
- Daylight Control: Daylight Regulation
- Output: Wireless
- Supply Power Source: 230V
- IP Rating: IP20
- Programmer: 4Remote BT app
Adjustable Parameters
- Occupied mode: Presence/Absence/Manual
- Occupied Level: 1-100%
- Occupied Time: up to 24 hours
- Transition Time: up to 24 hours
- Transition Level: 1-100%
- Daylight Regulation: Enabled/Disabled
- Daylight Regulation level: up to 4000Lux
- Grouping: Enabled/Disabled
- More parameters available on programmer
Ordering
| Code | Description |
|---|---|
| RCSS | Reacta-Control Standalone Sensor, Recessed Flush Mounted, PIR, Daylight Regulation |

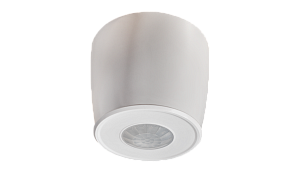

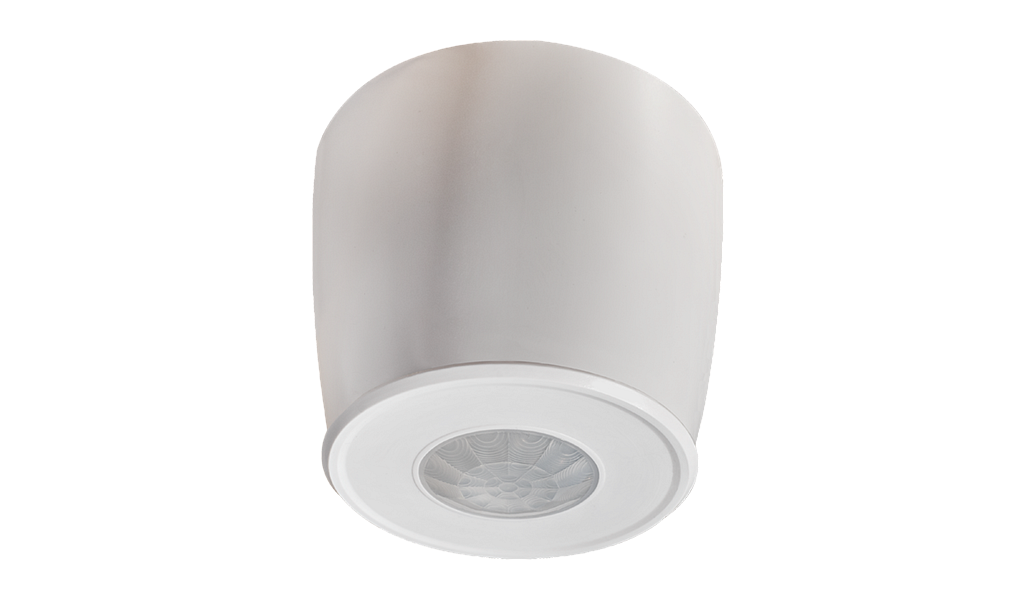

| RCSS SURFACE CAN | Reacta-Control Standalone Sensor Surface Mount Housing |
