RASSD

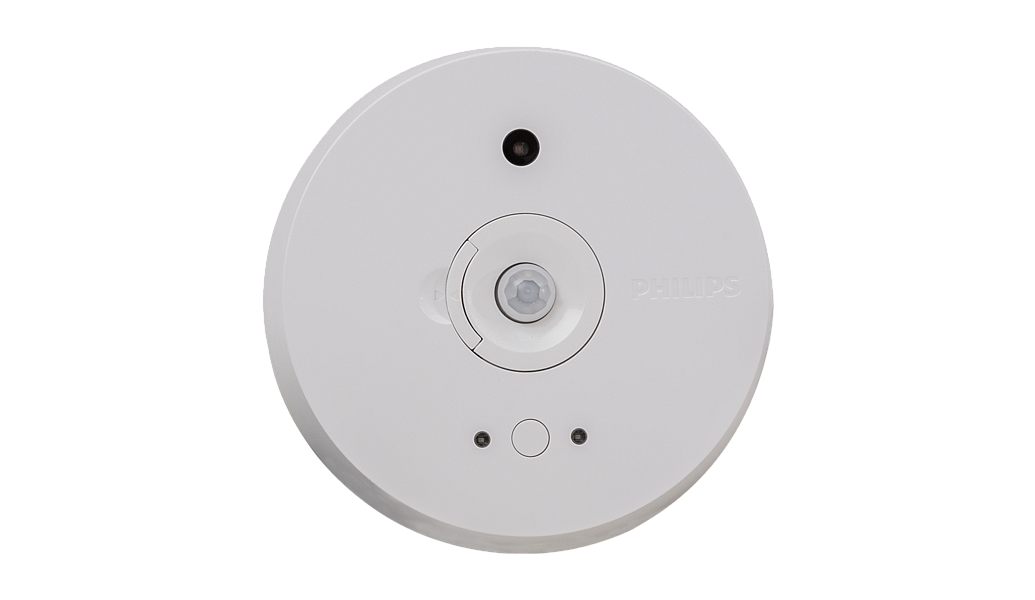

The Reacta-Air Standalone Sensor is a surface standalone passive infrared sensor offering presence detection and wireless connectivity, or both presence detection and daylight regulation for wireless connection to Reacta-Air wireless drivers. Please note this sensor is unable to group with RAS sensors mounted in luminaires, it will only connect with luminaires with RAD built in wireless drivers.
Introduction
The Reacta-Air Standalone Sensor is a surface standalone passive infrared sensor offering presence detection and wireless connectivity, or both presence detection and daylight regulation for wireless connection to Reacta-Air wireless drivers. Please note this sensor is unable to group with RAS sensors mounted in luminaires, it will only connect with luminaires with RAD built in wireless drivers.
Features & Benefits
- Mounting Type: Surface
- Wireless: Yes
- Maximum Mounting Height: 4m
- Occupancy Detection: PIR
- Daylight Control: Daylight Regulation
- Output: Wireless
- Supply Power Source: Battery
- IP Rating: IP20
- Programmer: MasterConnect app
Adjustable Parameters
- Occupied mode: Presence/Absence
- Occupied Time: up to 100 minutes
- Transition Time: up to 100 minutes or forever
- Transition Level: 1-100%
- Daylight Regulation: Enabled/Disabled
- Grouping: Enabled/Disabled
- More parameters available on programmer
