R43 SENSOR
The Reacta 43 - R43 sensor is a recessed flush mounted standalone passive infrared sensor with bright out function, presence or absence detection to control fixed output (non dimmable) high frequency luminaires. Please note that the REA-R43 programmer is required to adjust settings with this sensor.
Introduction
The Reacta 43 - R43 sensor is a recessed flush mounted standalone passive infrared sensor with bright out function, presence or absence detection to control fixed output (non dimmable) high frequency luminaires. Please note that the REA-R43 programmer is required to adjust settings with this sensor.
Features & Benefits
- Mounting Type: Recessed
- Wireless: No
- Maximum Mounting Height: 5m
- Occupancy Detection: PIR
- Daylight Control: Bright Out
- Output: On/Off
- Supply Power Source: 230V
- IP Rating: IP20
- Programmer: REA AP
- Programmer: REA-R43 programmer
Adjustable Parameters
- Occupied mode: Presence/Absence
- Occupied Time: Up to 30 minutes
- Bright Out Mode: Enabled/Disabled
- More parameters available on programmer

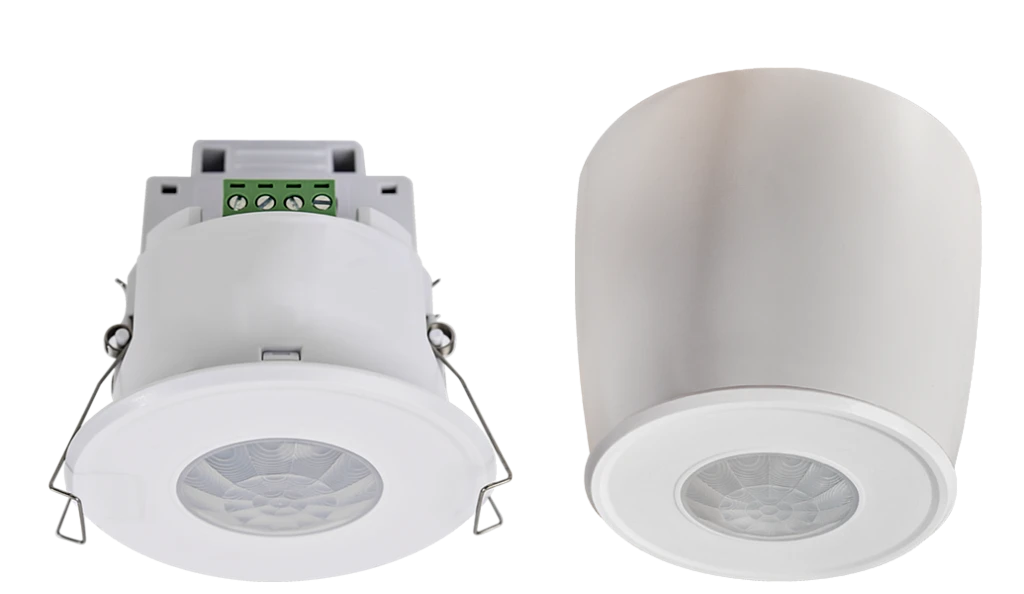

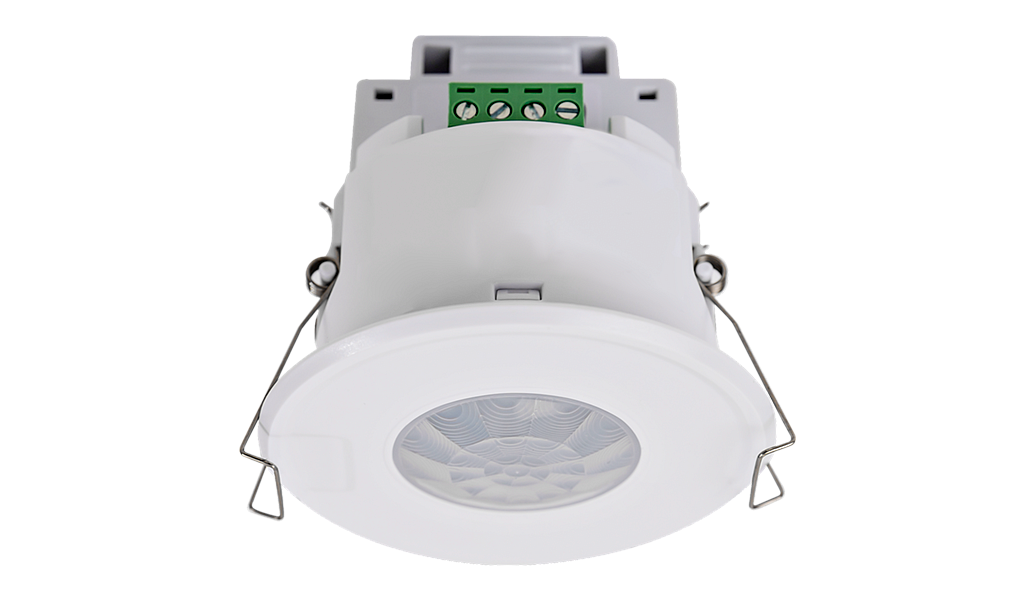

Product Images
Diagrams

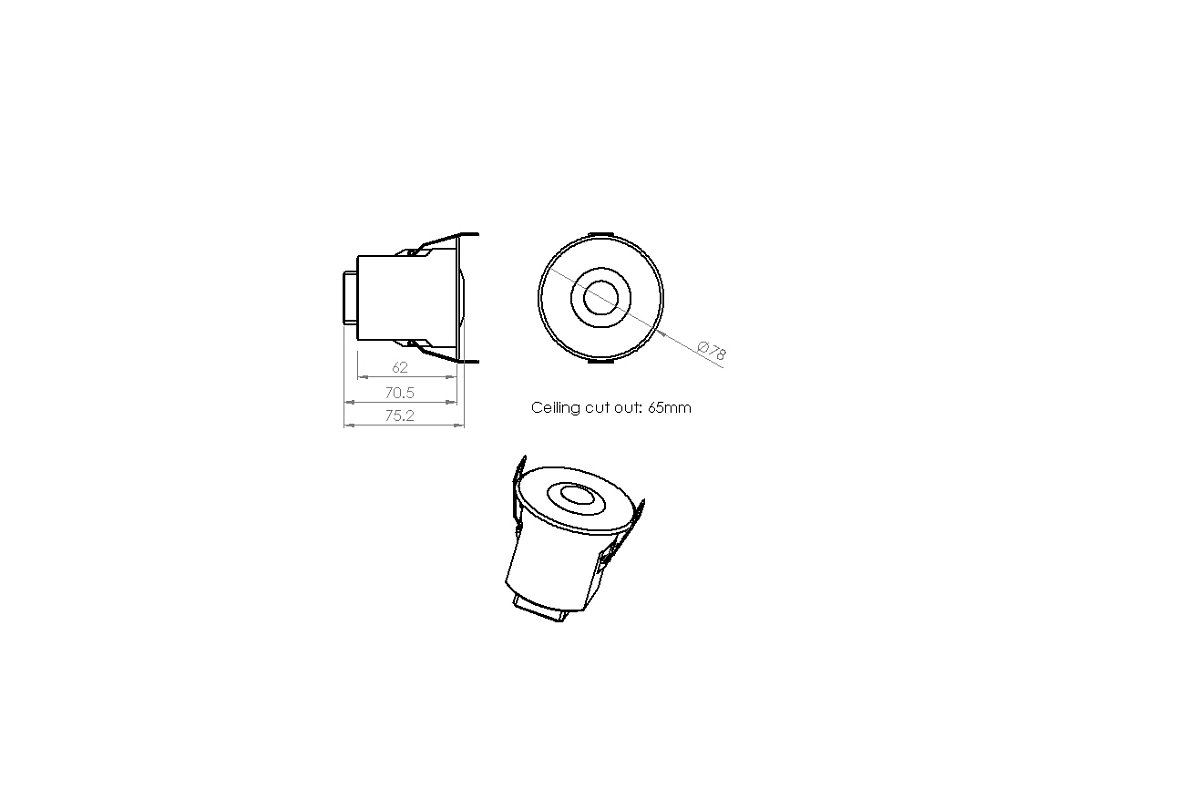

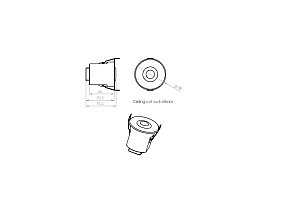

R43

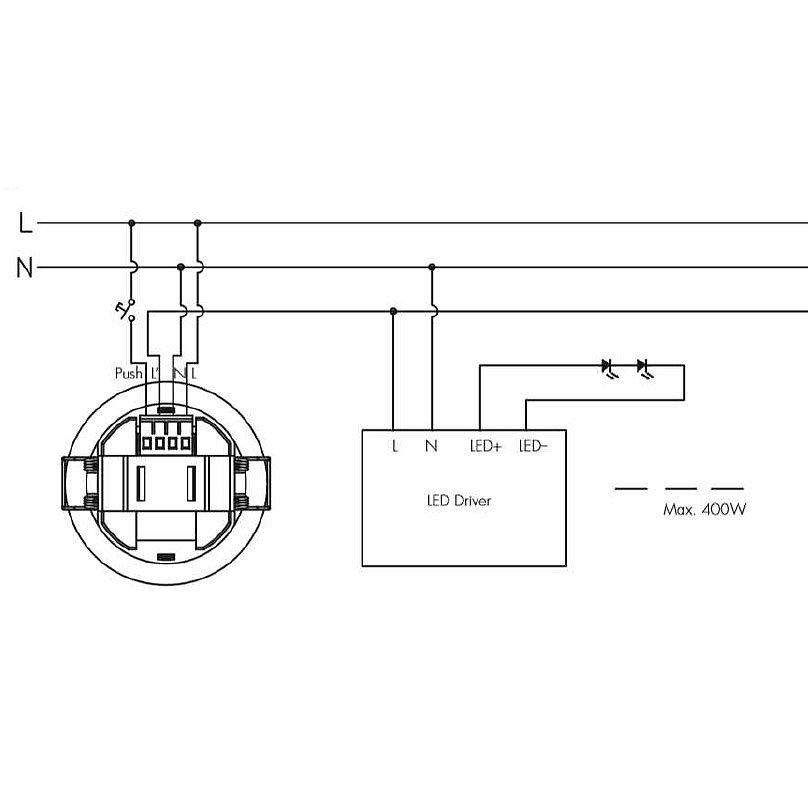

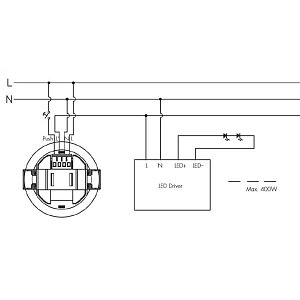

R43-Wiring-Diagram-2
Sensor Detection

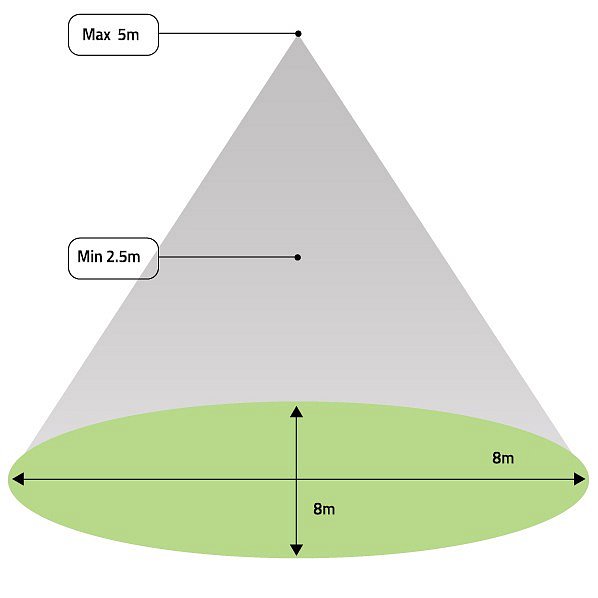

R43 Sensor Detection
Ordering
| Code | Description |
|---|---|
| R43 | Reacta 43 Sensor, Recessed Flush Mounted Standalone, PIR, Bright Out Function, On/Off Relay |

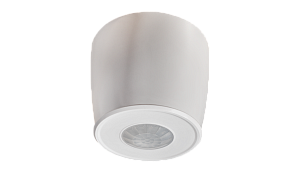

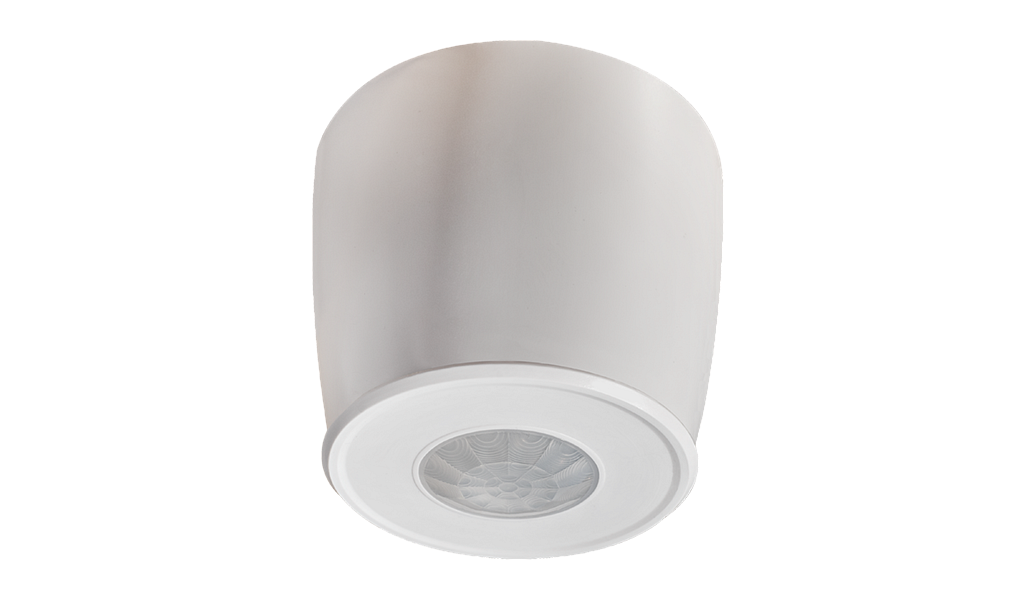

| R43 SURFACE CAN | Surface mounting can for use with R43 recessed sensor |
