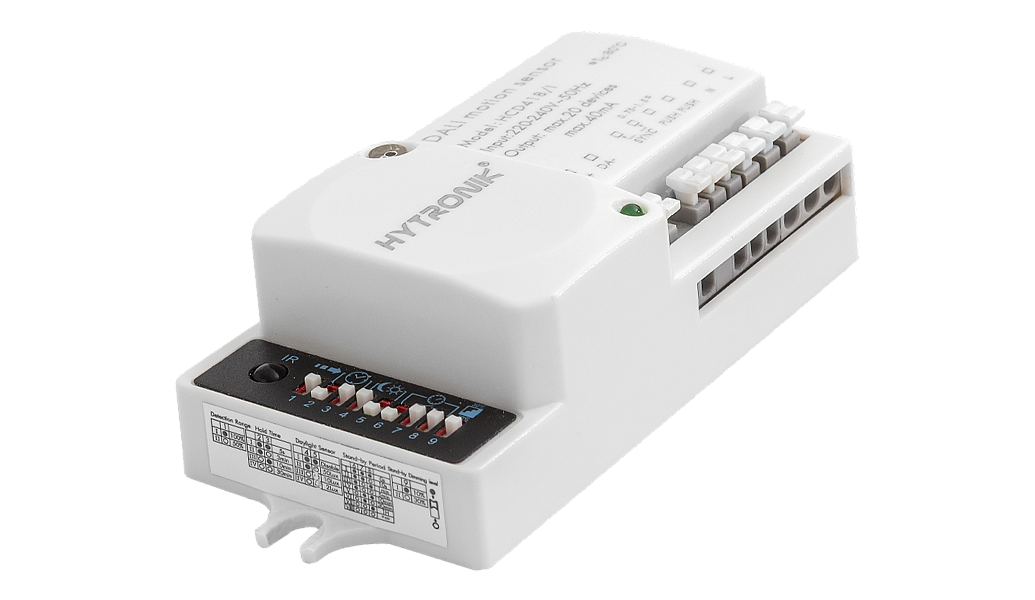

R25A
The R25A Sensor is an integrally mounted microwave sensor used in our bollard luminaire offering both microwave presence detection and bright out. Set through dipswitches the R25A offers adjustable time delays during occupancy, and low light levels in absence. Low light level time delays can be set up to one hour with dimmed levels ranging from 5% to 50% output.
Introduction
The R25A Sensor is an integrally mounted microwave sensor used in our bollard luminaire offering both microwave presence detection and bright out. Set through dipswitches the R25A offers adjustable time delays during occupancy, and low light levels in absence. Low light level time delays can be set up to one hour with dimmed levels ranging from 5% to 50% output.
Features & Benefits
- Mounting Type: Integral
- Wireless: No
- Maximum Mounting Height: 5m
- Occupancy Detection: Microwave
- Daylight Control: Bright Out
- Output: DALI
- IP Rating: IP20
- Programmer: Manual
Adjustable Parameters
- Occupied Time: Up to 30 minutes
- Bright Out Threshold: Disabled/2-50Lux
- Low time: Up to 1 Hour
- Low light level: 5% / 10% / 20% / 50%
Product Images

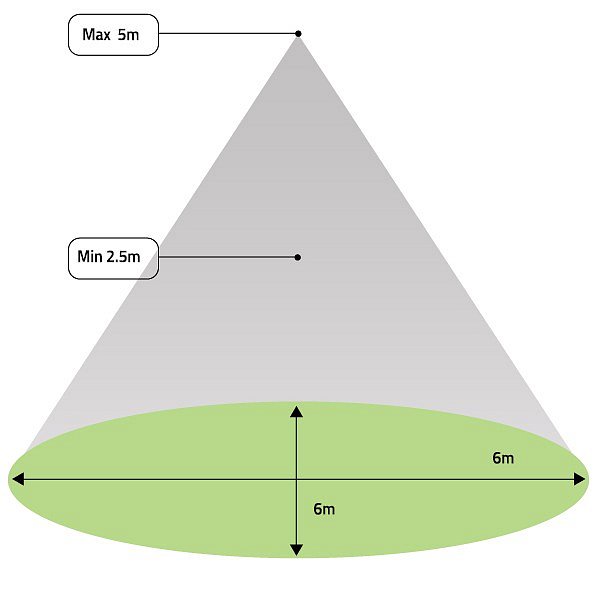

Sensor Detection
Downloads
Find out more about
R25A
For Sales and Technical Enquires call 01747 858100
