DTS SENF
The DTS SENF is a recessed flush mounted passive infrared occupancy and daylight sensor for use with the DexTest Addressable DALI system.
Introduction
The DTS SENF is a recessed flush mounted passive infrared occupancy and daylight sensor for use with the DexTest Addressable DALI system.
Features & Benefits
- Mounting Type: Recessed
- Wireless: No
- Maximum Mounting Height: 5m
- Occupancy Detection: PIR
- Daylight Control: Daylight Regulation
- Output: DALI addressable
- Supply Power Source: 12V-24V DC
- IP Rating: IP30
- DALI consumption: 10mA
- Programmer: Commissioning Software
- Programmer: DexTest Software
- Voltage: 13V to 22.2V DC
- Detection Diameter: 6.6m x 5.6m at 2.5M mounting height
- Colour: White
Adjustable Parameters
- Occupied mode: Presence/Absence
- Occupied Level: 1-100%
- Occupied Time: up to 18 hours
- Transition Time: up to 18 hours
- Transition Level: 1-100%
- Daylight Regulation: Enabled/Disabled
- Grouping: Enabled/Disabled
- More parameters available on programmer

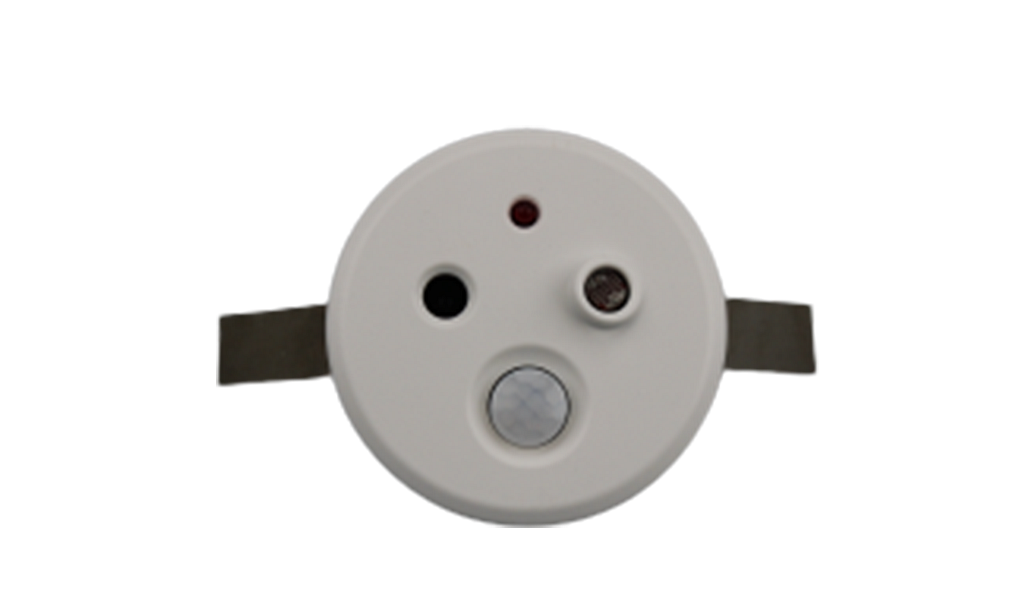

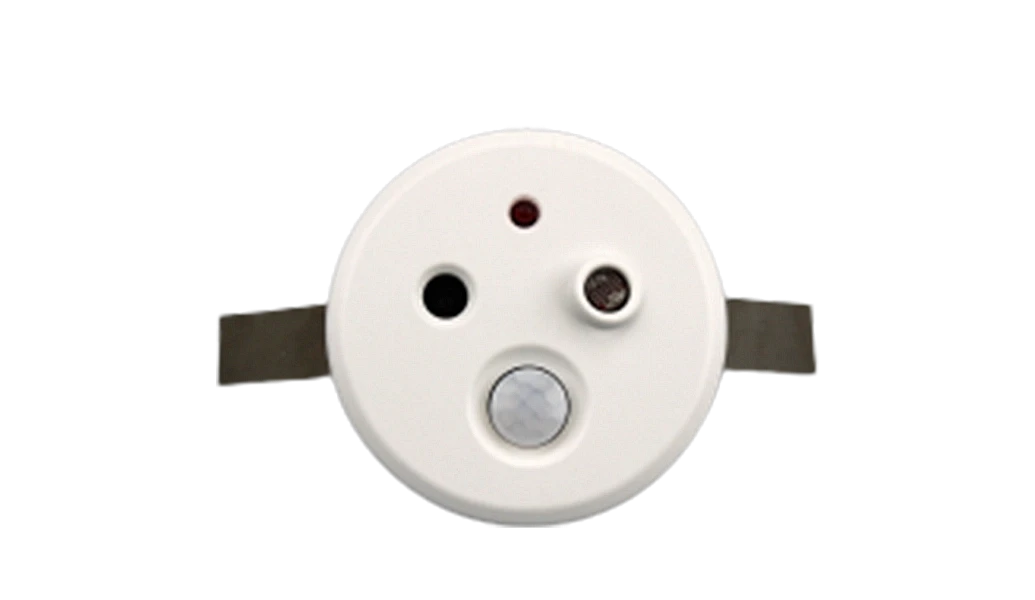

Product Images

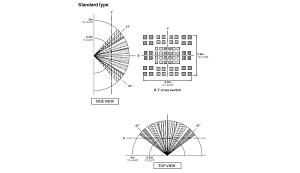

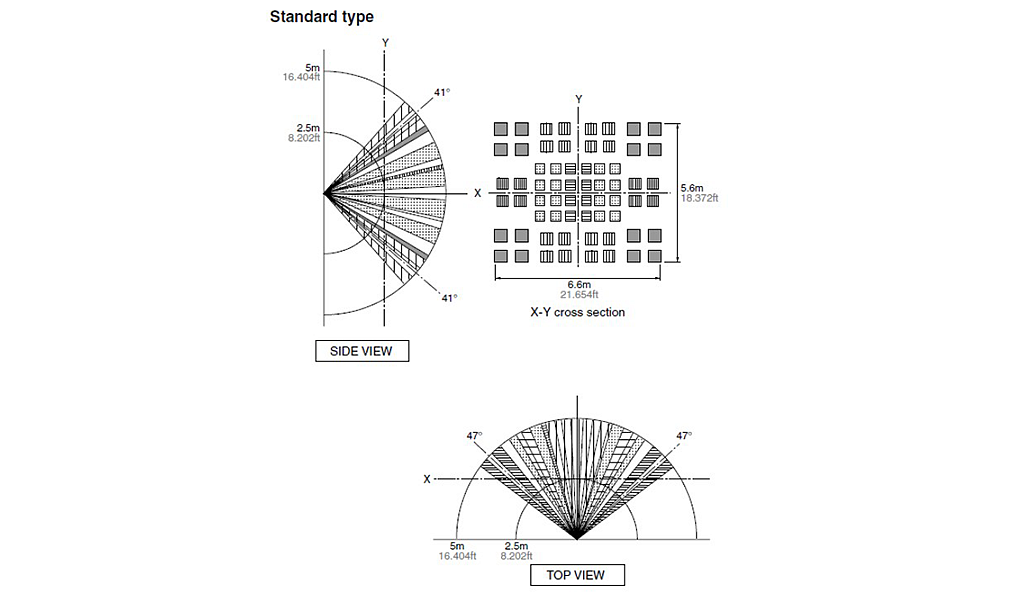

Sensor Detection
Ordering
| Code | Description |
|---|---|
| DTS SENF | DexTest Flush Multisensor |
