DTS INPT
The DTS INPT is a DALI input unit designed to fit inside a switch backbox. To be used to convert inputs from switches or other volt-free interfaces into to a DALI command. For use with the DexTest Addressable DALI system.
Introduction
The DTS INPT is a DALI input unit designed to fit inside a switch backbox. To be used to convert inputs from switches or other volt-free interfaces into to a DALI command. For use with the DexTest Addressable DALI system.
Features & Benefits
- Wireless: No
- Output: DALI addressable
- IP Rating: IP20
- DALI consumption: 10mA
- Programmer: DexTest Software
- Voltage: 13V to 22.2V DC
- 4 or 8 programmable inputs
Adjustable Parameters
- Grouping: Enabled/Disabled
- More parameters available on programmer
Ordering
| Code | Description |
|---|---|

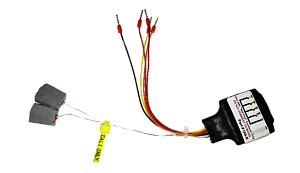

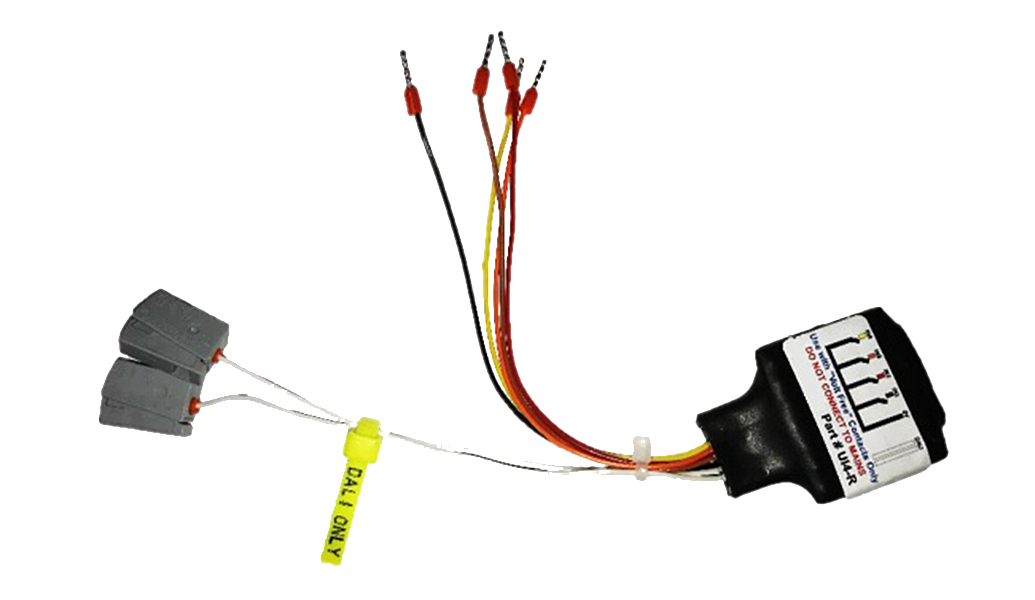

| DTS INPT4 | DexTest 4 way input unit |

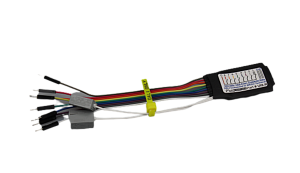

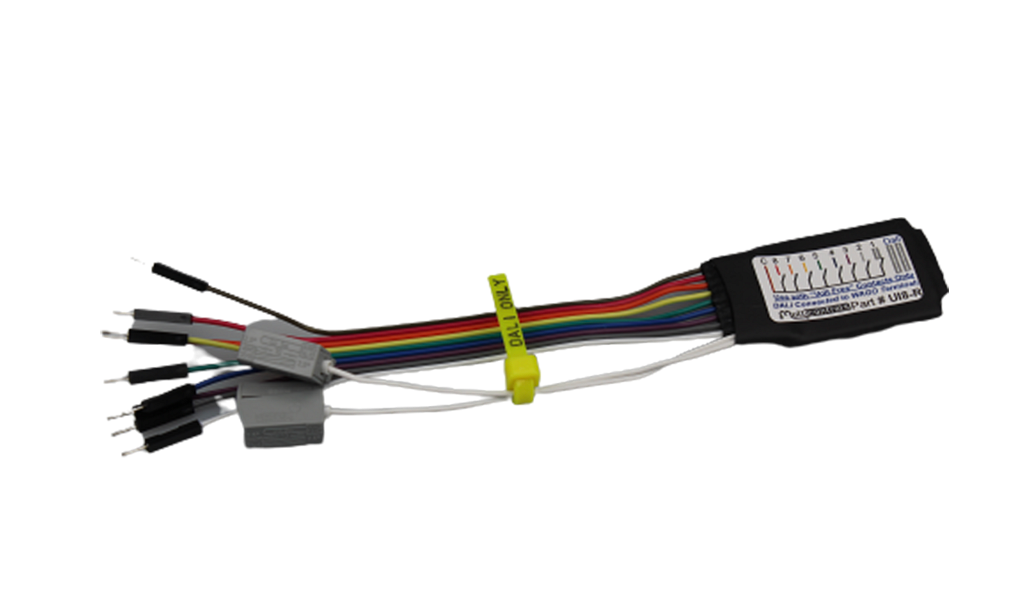

| DTS INPT8 | DexTest 8 way input unit |
