TORRENT
The Torrent offers an LED solution capable of operating in areas with temperatures up to 50° with an IP65 rating and smooth curved design minimising the risk of dirt accumulating on the luminaire.
Introduction
Food production areas have always presented a unique challenge for luminaire designers to ensure both effective thermal management in high ambient temperatures and to address the critical issues of cleanliness and IP protection with minimal dirt and dust traps. As a result of these difficulties, options for lighting such arduous applications have been limited and do not always provide optimal energy efficiency and a high quality lit environment for employees. The Torrent offers an LED solution capable of operating in areas with temperatures up to 50°C with an IP65 rating and smooth curved design minimising the risk of dirt accumulating on the luminaire. The Torrent is constructed with die-cast aluminium end caps and extruded aluminium heat sink with high transmission opal diffuser providing a robust construction to give a long life luminaire despite high temperatures and repeated wash-downs.
The LED source not only provides excellent energy efficiency but also eliminates glass and mercury from food environments minimising contamination risk in case of an accident. These benefits are combined with excellent energy efficiency and minimal maintenance ensuring that a quick return on investment can be achieved in most applications. With a wide range of lumen outputs for both 50°C and 25°C ambient temperatures in triple pod variants for high level applications and single pod variants to replace traditional non corrosive style luminaires in lower level applications the Torrent can be tailored to suit the needs of your application whilst offering excellent energy saving against HID and fluorescent luminaires.
Complies with:
UKCA | CE | IP65 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Food Production | Industrial / Manufacturing | Warehousing
Specification
Construction
- Housing: Extruded aluminium
- Finish: Mill finish aluminium
- Endcaps: High pressure die cast aluminium
- Diffuser: 2mm extruded high transmission opal polycarbonate
- IP65
- Curved design with no dirt or dust traps for food production applications.
- Includes a range of variants suited for operation at 50°C ambient temperatures.
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 129 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
Installation
- Suitable for suspended installation
- Suitable for surface installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs

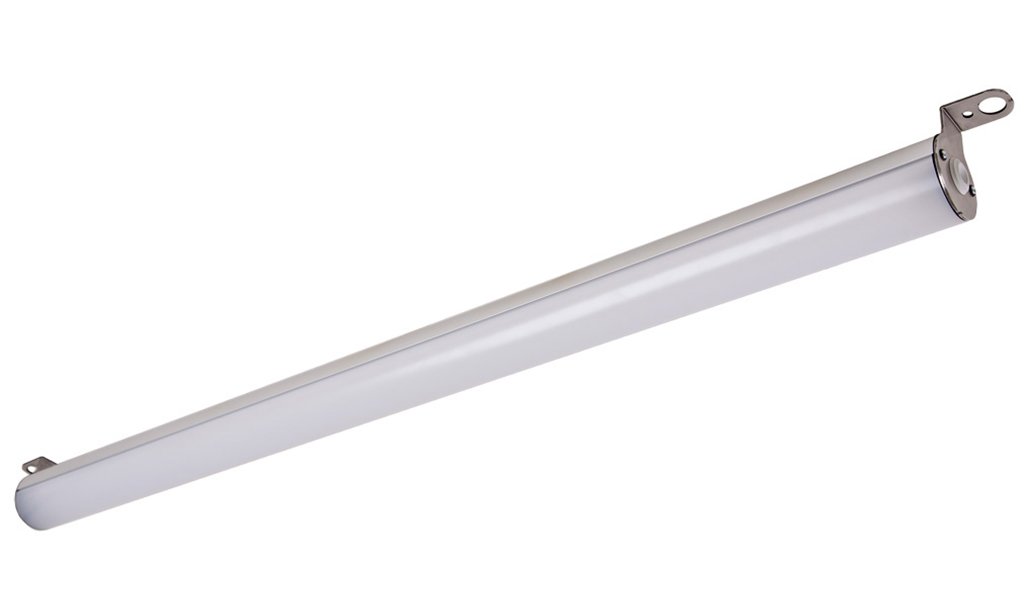

Product Images
Case studies
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
| Triple Pod | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| Single Pod | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| All emergency variants are only suitable for ambient temperatures of 25°C. | |
| Triple pod Torrents only available in emergency in 1150mm variants | |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| LSF | Low Smoke Zero Halogen |
