Introduction

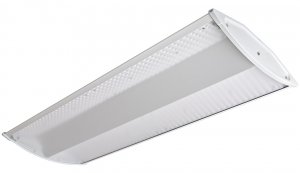

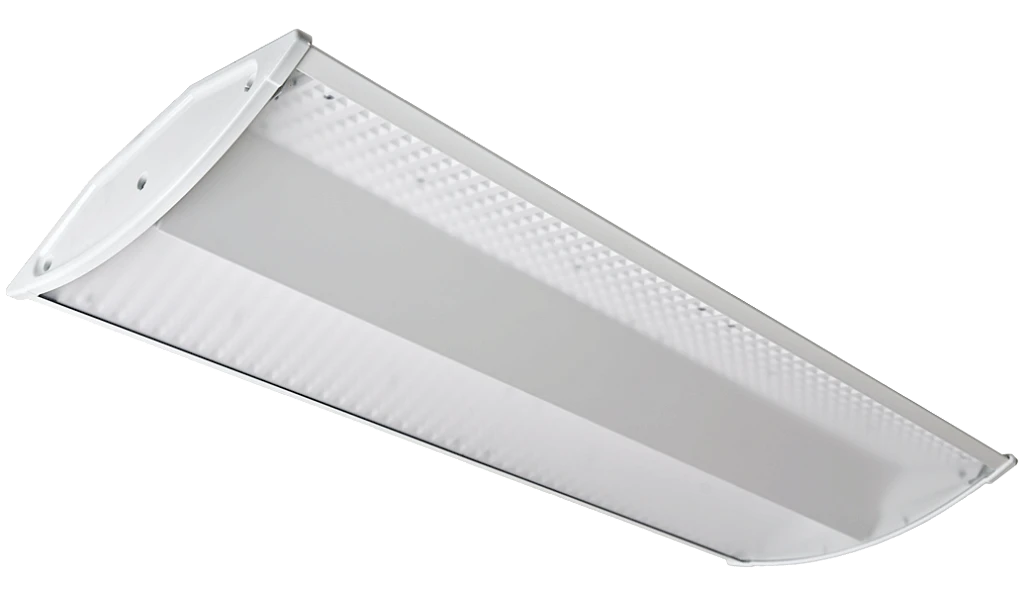

In any sporting application high quality lighting is critical to ensure a satisfactory player experience. The Prosport offers a range of distributions and up to 38,592llm luminaire lumens output allowing your scheme to be designed to give optimum light levels and uniformity whilst offering excellent energy efficiency and low maintenance compared to fluorescent and HID sources. The Prosport is IK10 rated and manufactured with a steel housing, injection moulded polycarbonate end caps and a curved clear polycarbonate diffuser ensuring that the luminaire is robust, durable and able to withstand ball strikes from most sports whilst eliminating the risk of shattered lamps which can occur with fluorescent or HID luminaires. The angled housing is designed to be both aesthetically pleasing and to minimise the risk of balls or shuttlecocks lodging on the rear. The Prosport is available with a wide range dimming options as well as integral lithium emergency. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

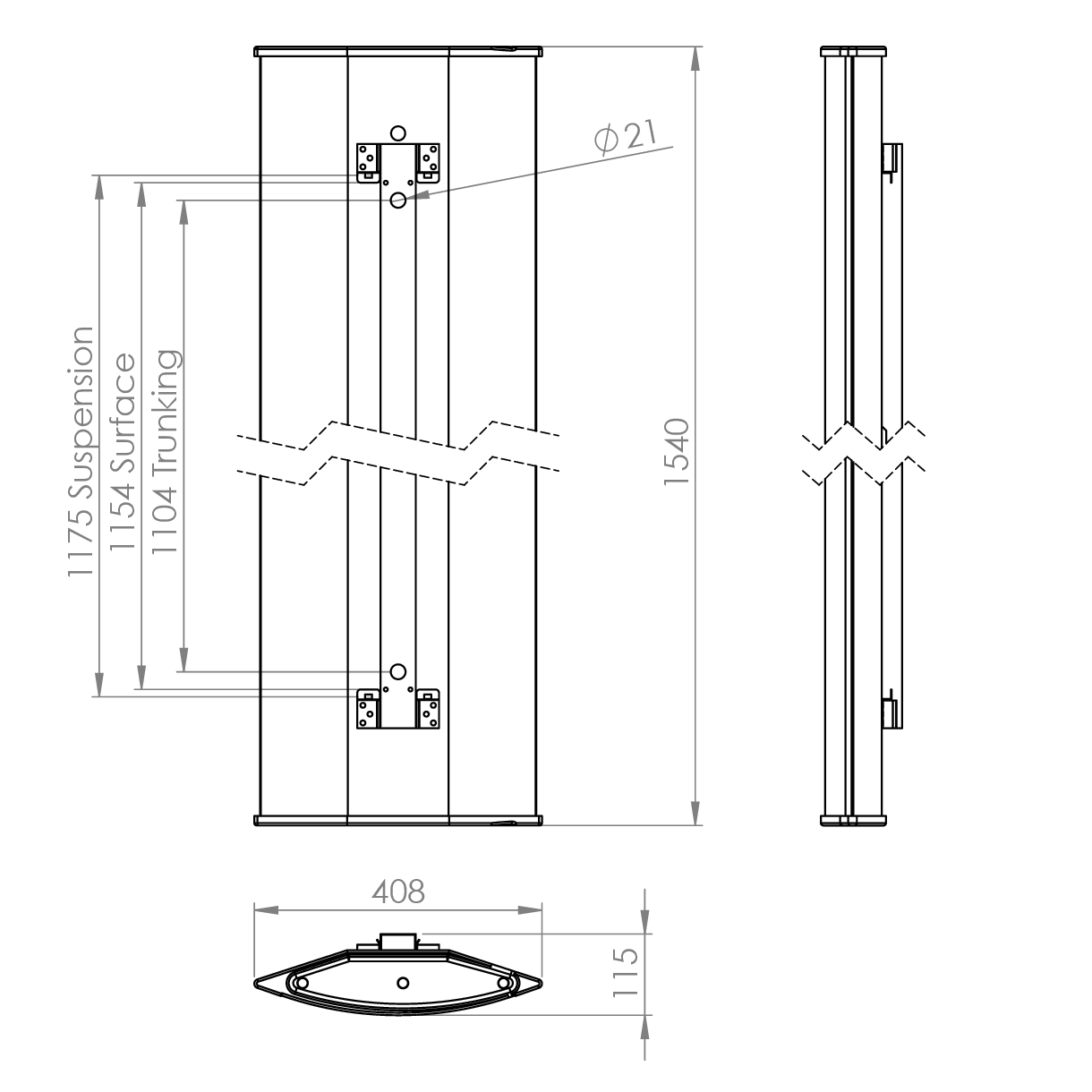

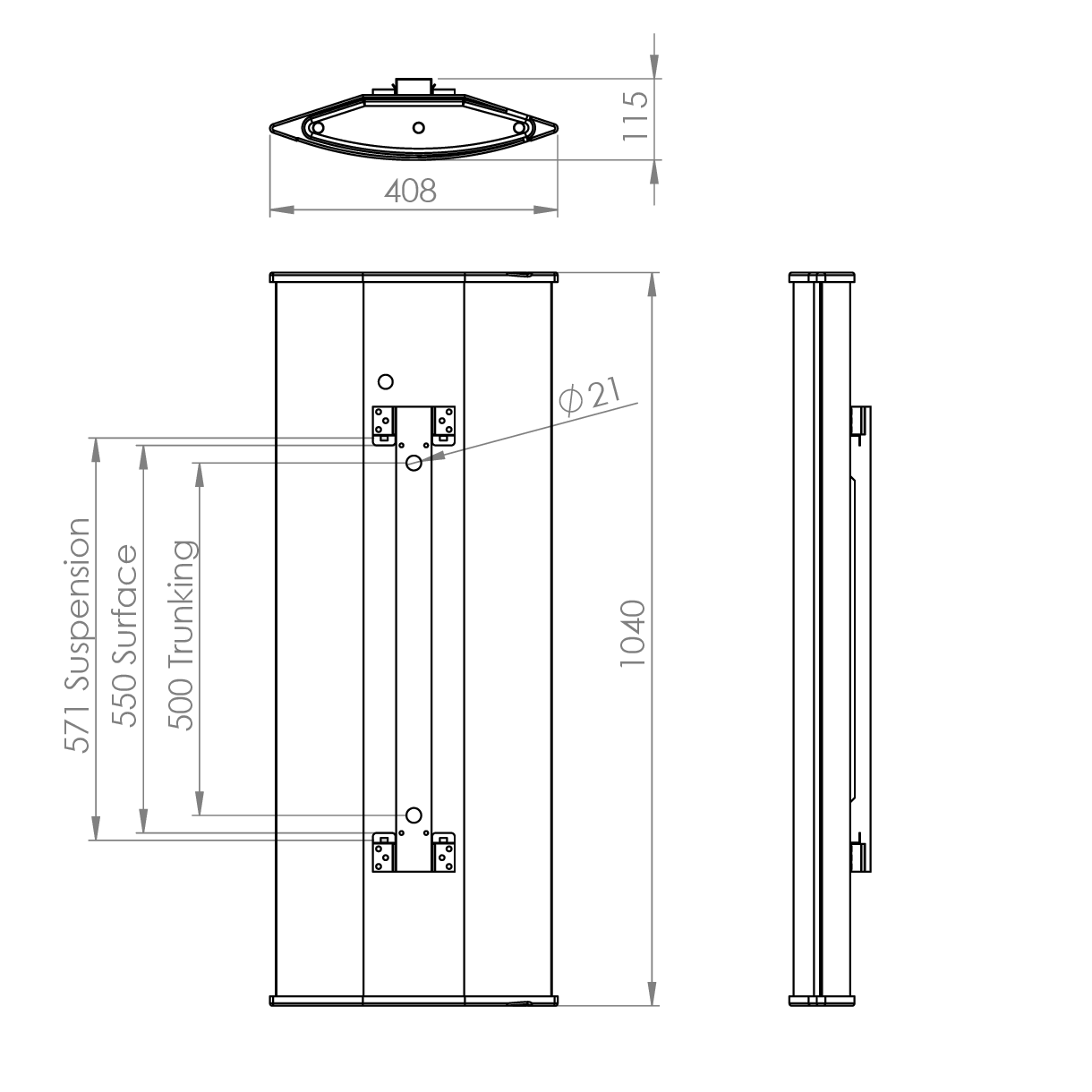

Two body sizes are available, 1500mm and 1000mm in a range of lumen outputs in both symmetrical and asymmetrical versions allowing the luminaire to be used for general sports hall lighting or for court sports such as tennis and badminton.
PROSPORT complies with:
UKCA | CE | IP40 | IK10 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Education | Hotel / Leisure | Sports Hall
Specification
Construction
- Housing: 0.8mm HC220 steel
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Endcaps: Injection moulded polycarbonate
- Diffuser: 2mm clear polycarbonate
- IK10
- IP40
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 149 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation

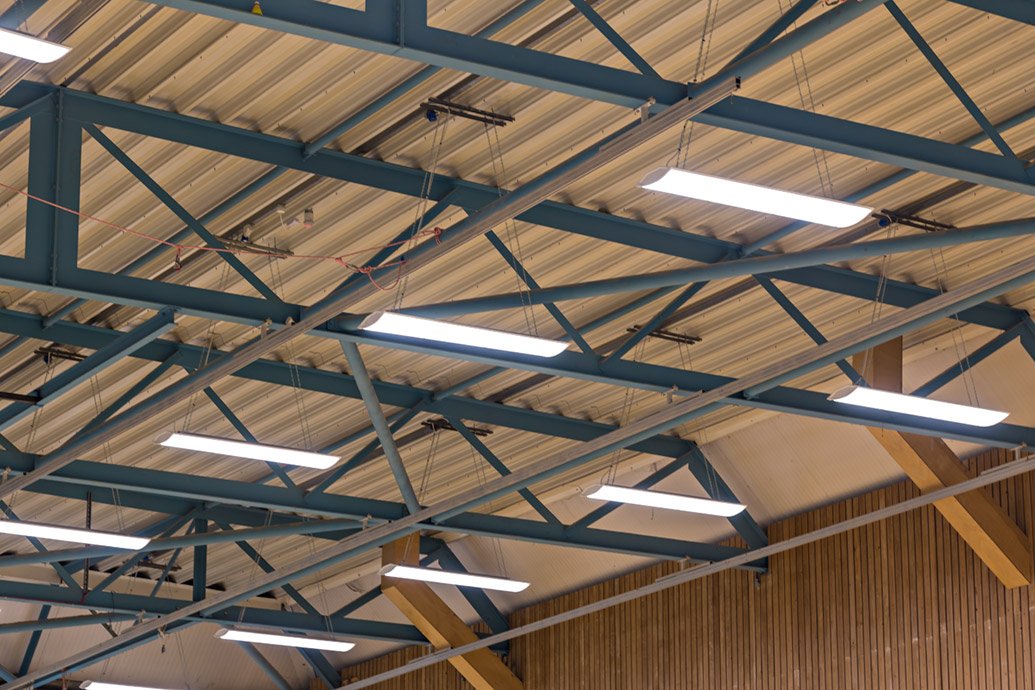

- Suitable for suspended installation
- Suitable for trunking installation
- Rigid suspension is required in areas where ball strikes may occur.

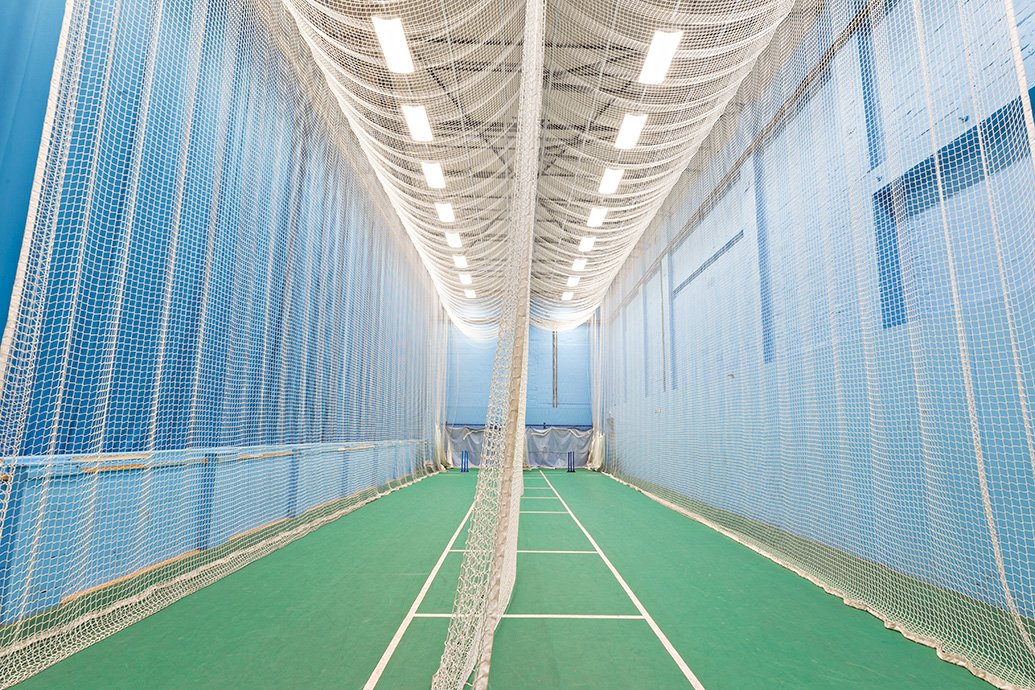

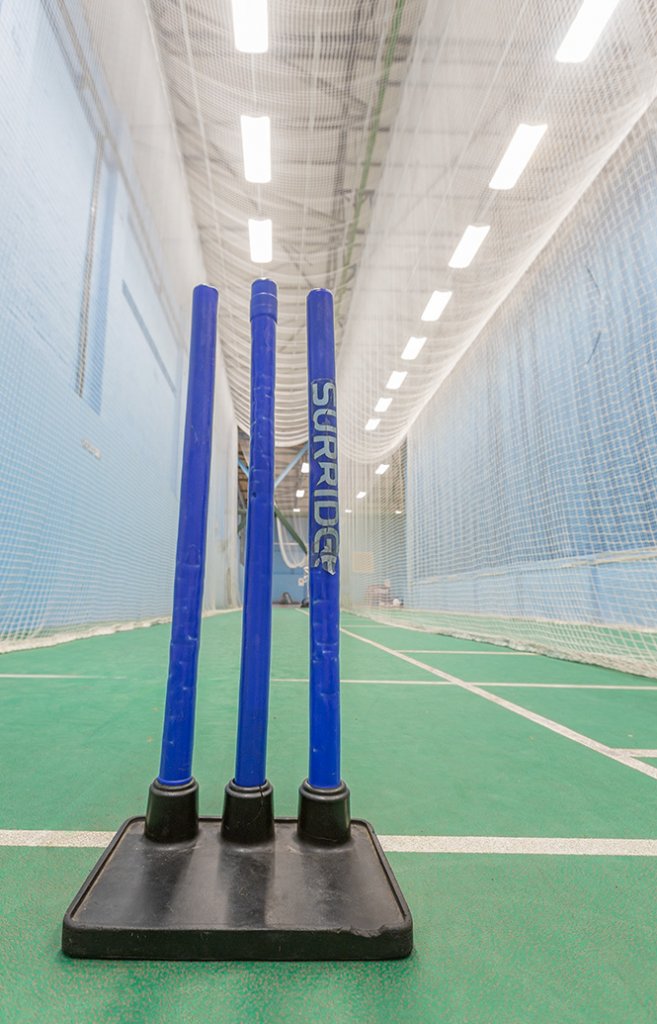

- Please note that the cricket applications should use protective netting to prevent ball strikes to the Prosport LED.
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
Product Images

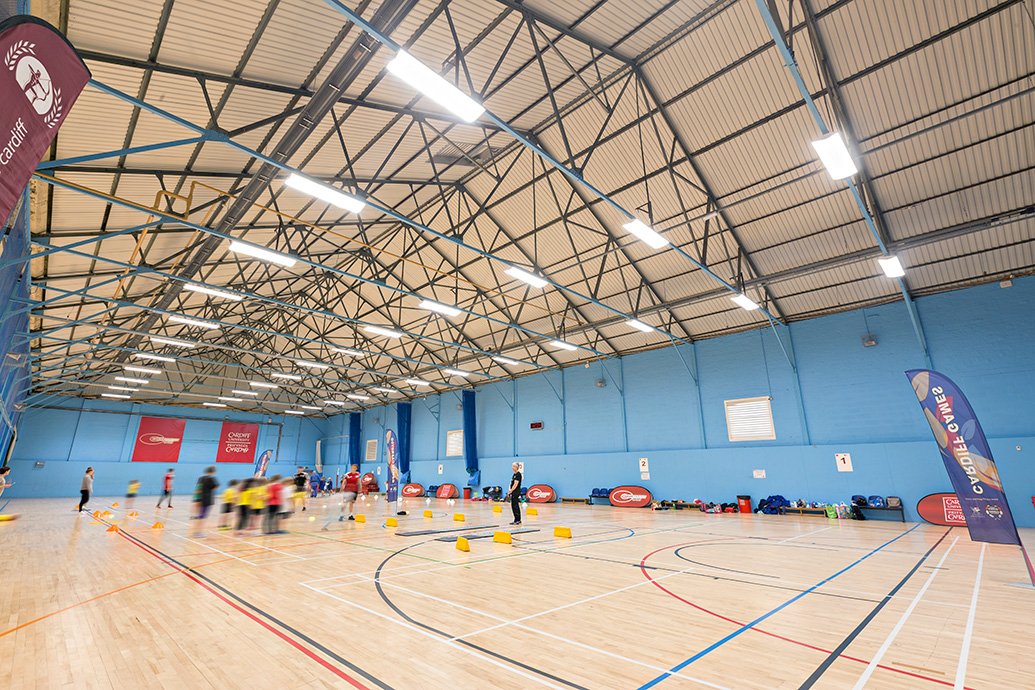

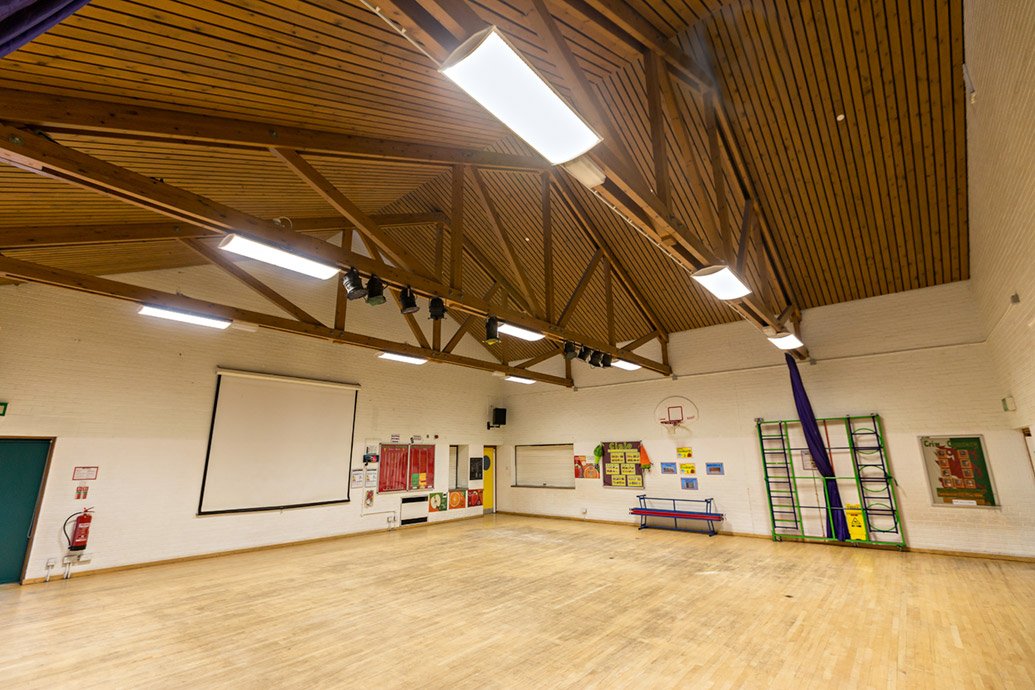

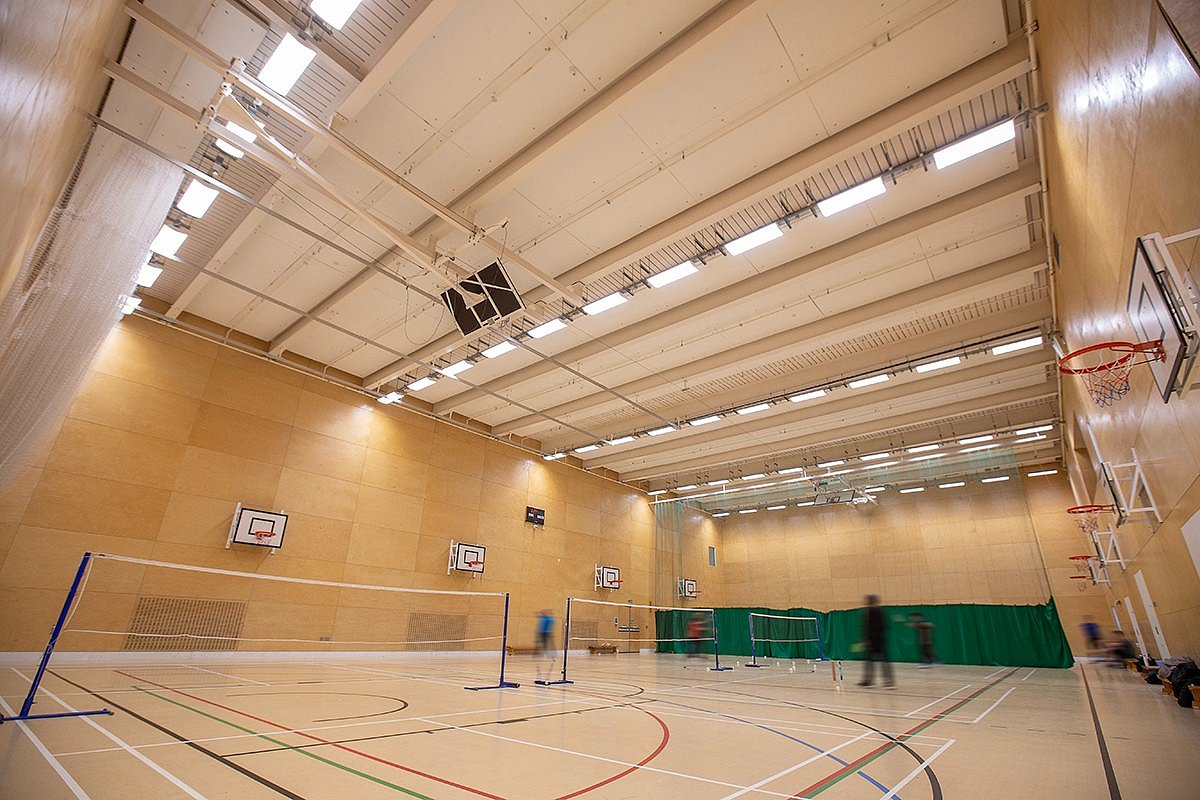

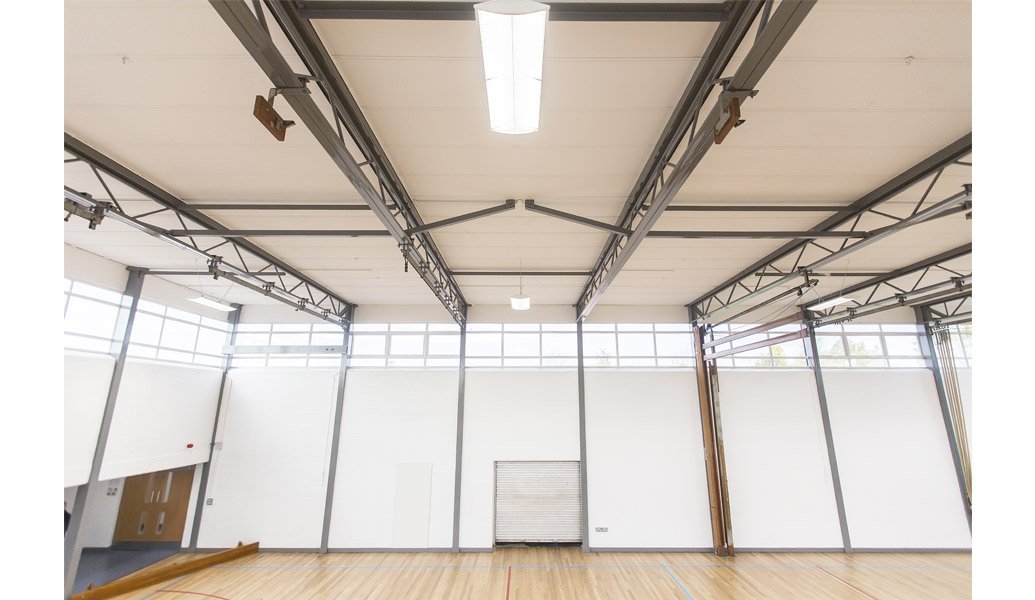

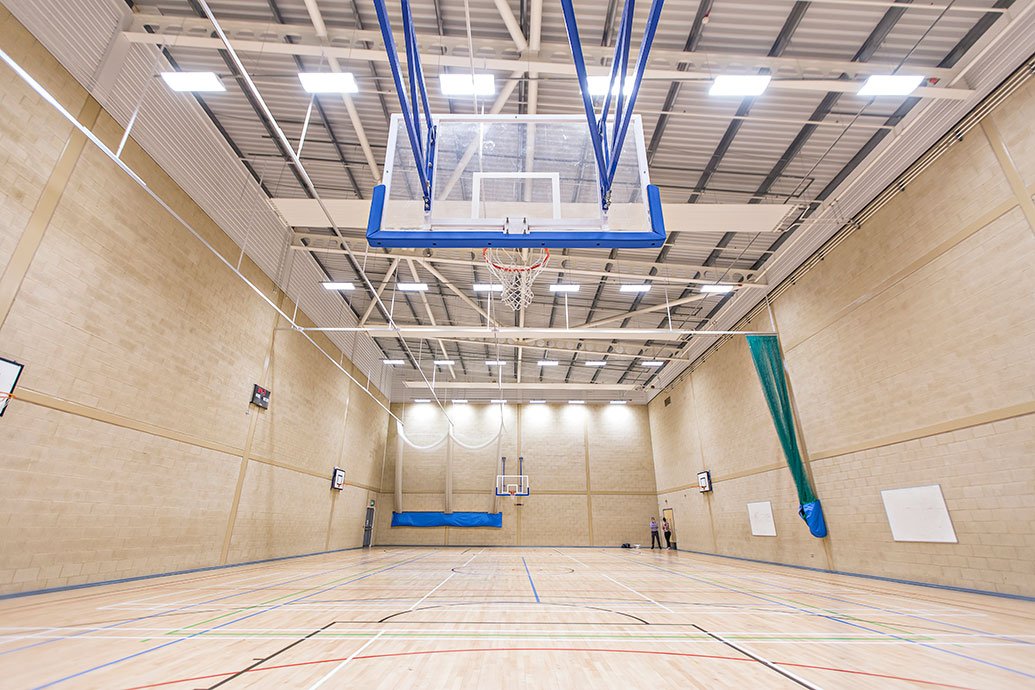

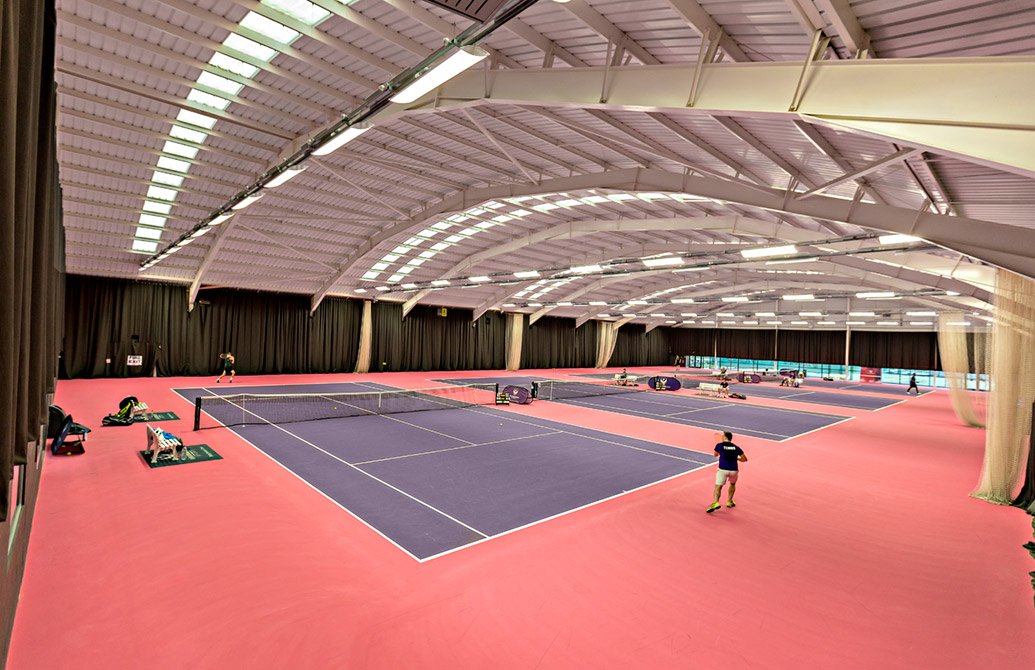

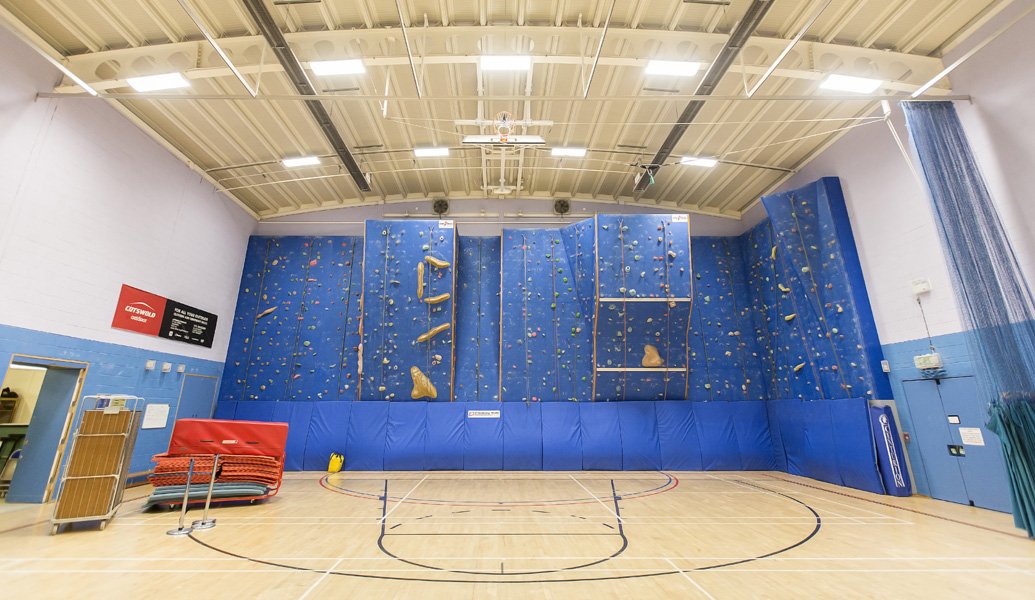

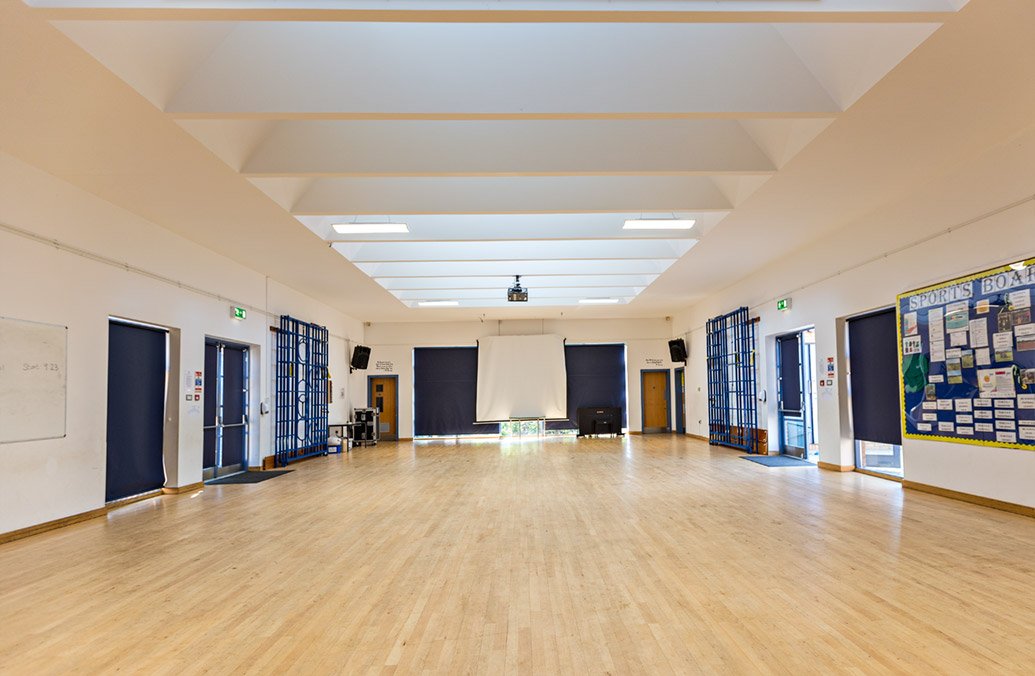

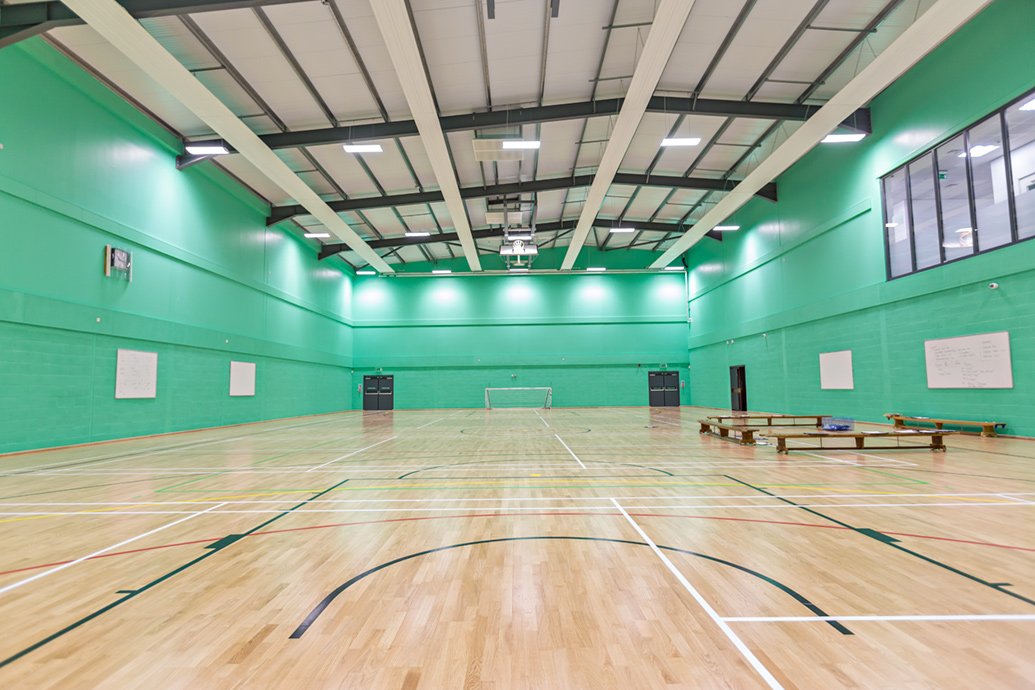

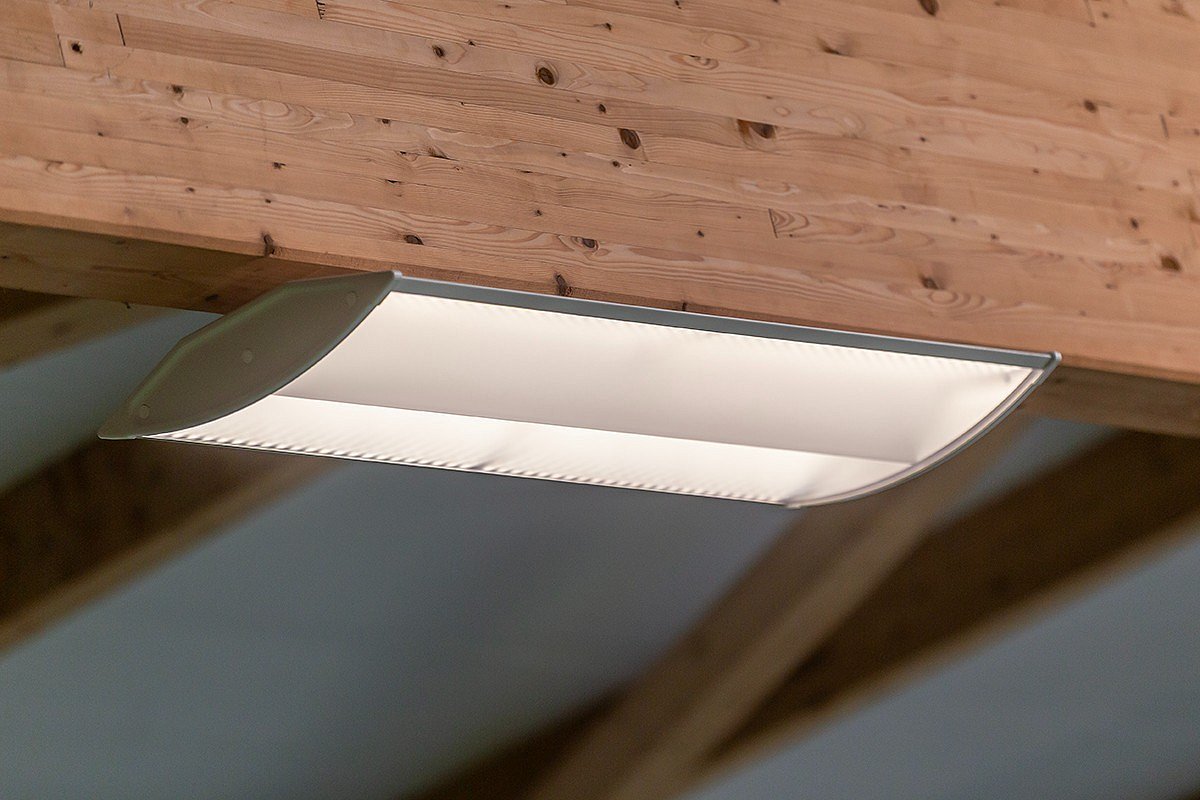

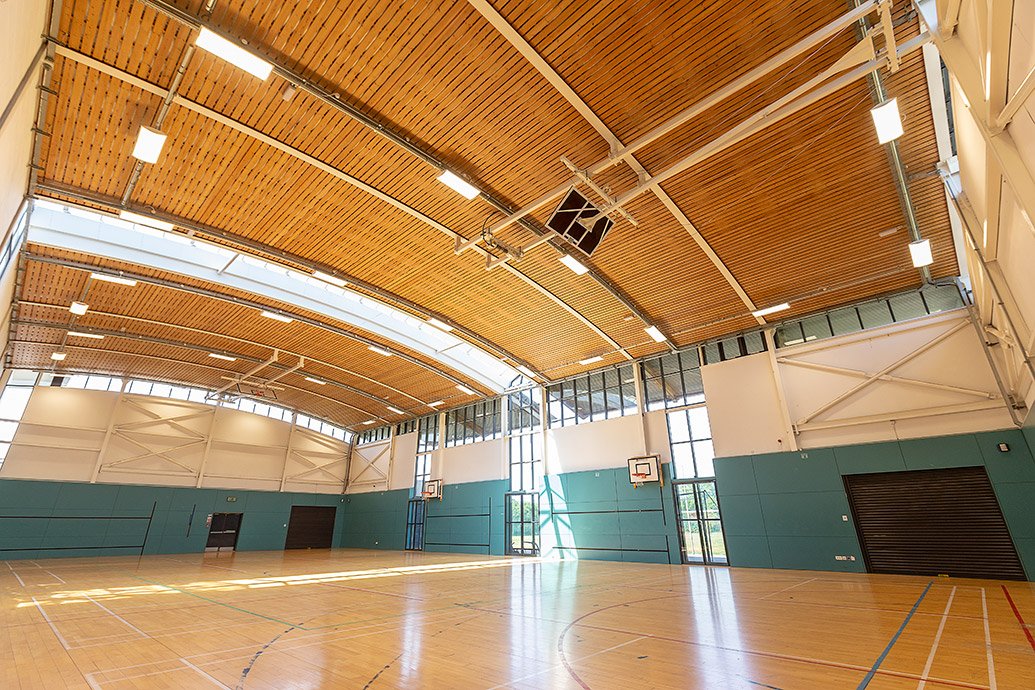

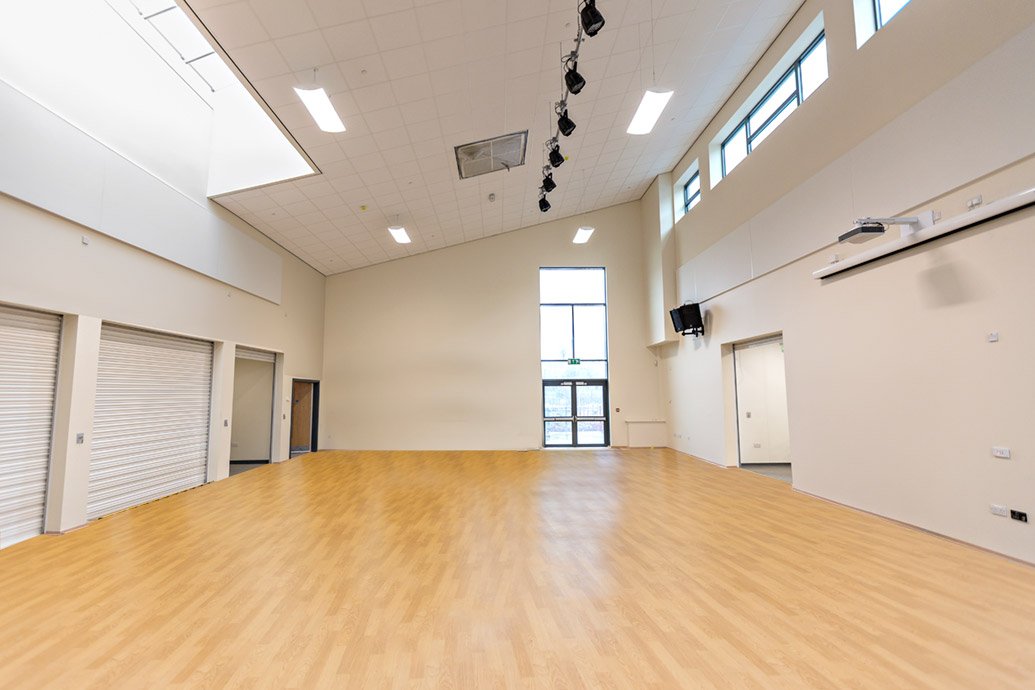

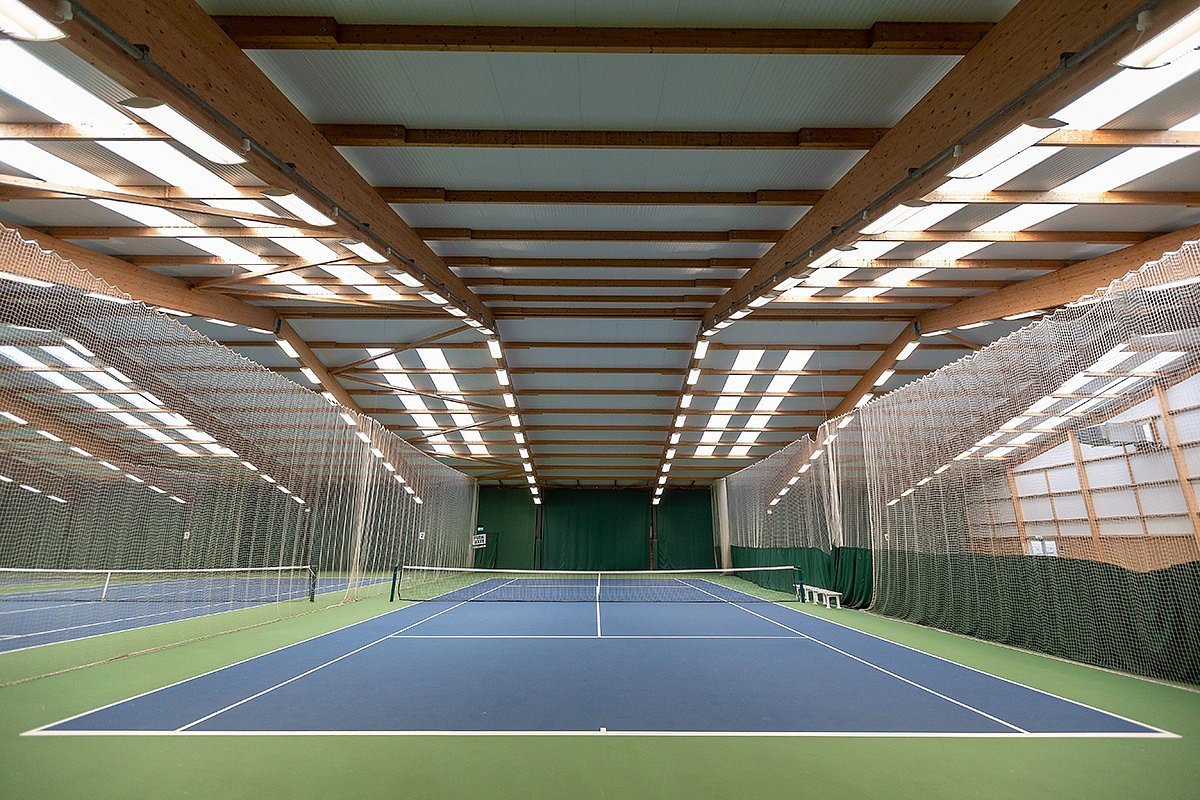

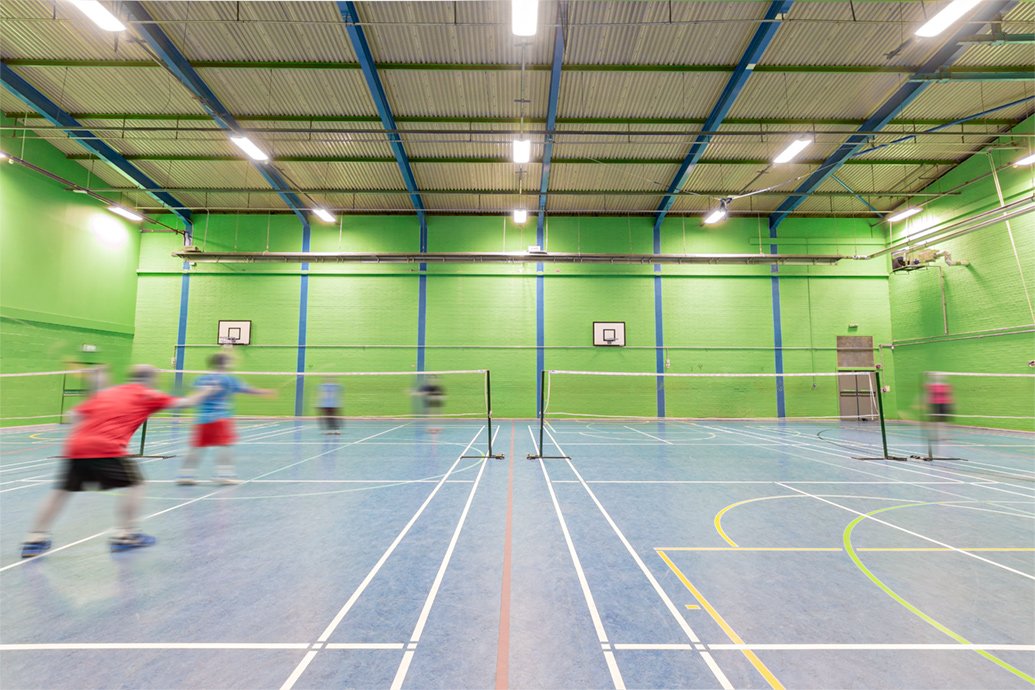

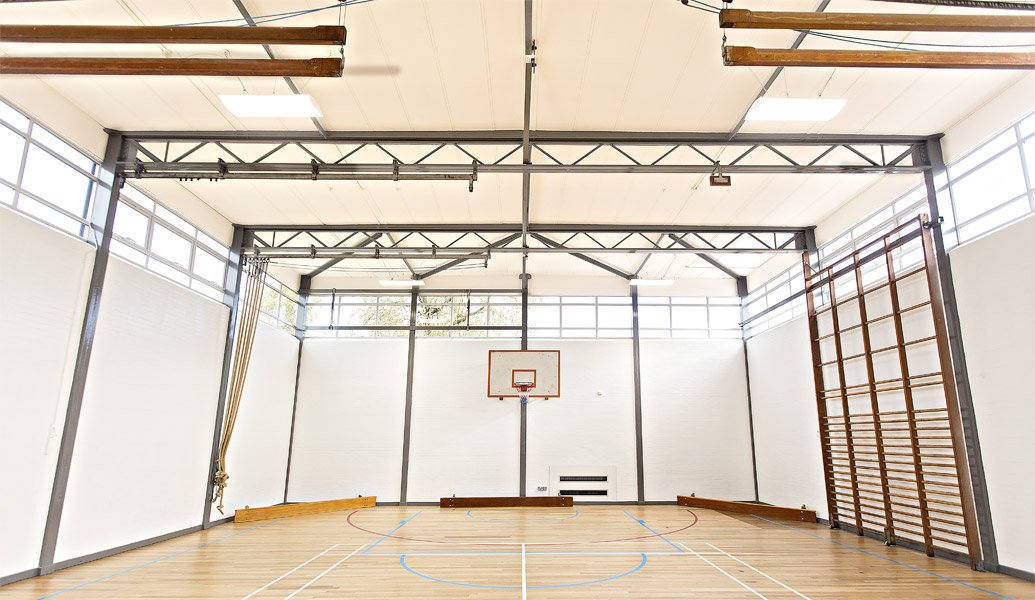

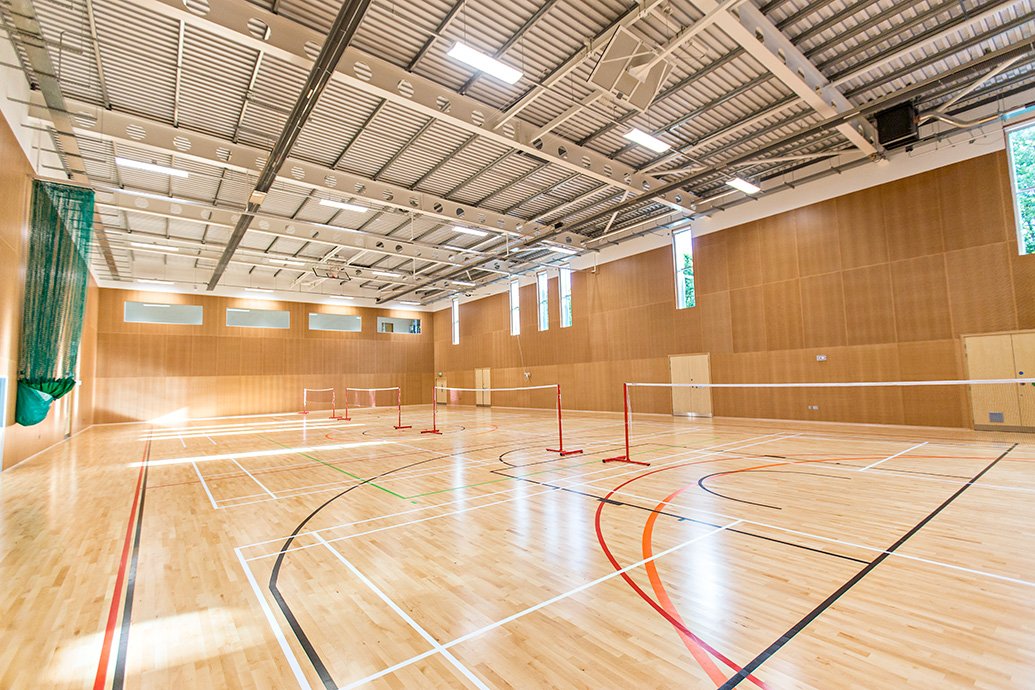

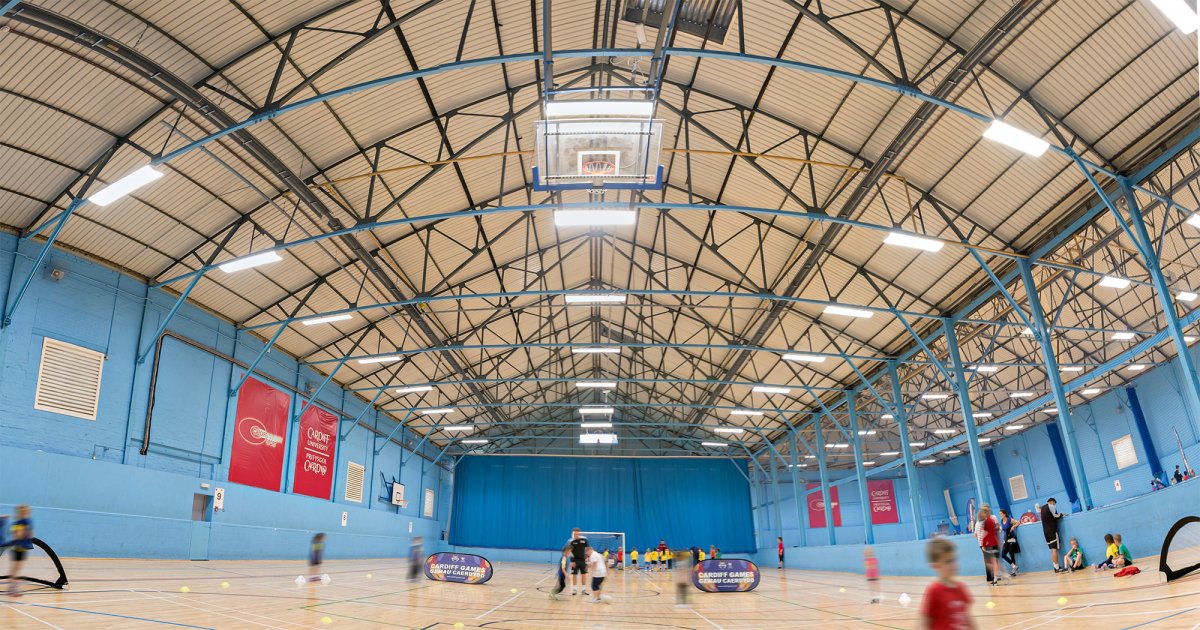

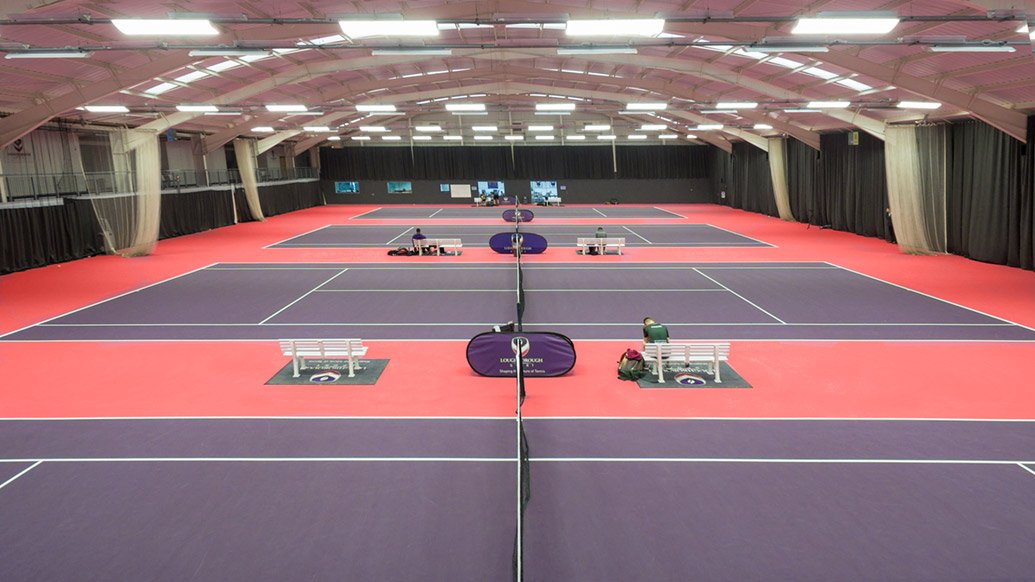

PROSPORT in action
Ordering
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
| The Prosport L345 and L480 use two drivers per luminaire requiring two addresses on the DALI network. | |
Control
| Code | Description |
|---|---|
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C83, C85, C865, C93, C94 |
| LSF | Low Smoke Zero Halogen |
| AS | Asymmetric 20° Bracket (Not suitable for suspension) |
| SUSP PRO 5M LO X2 | 5M Loop Over Suspension Kit (Two Drops) (Not suitable for sports applications) |
