OPUS 360
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

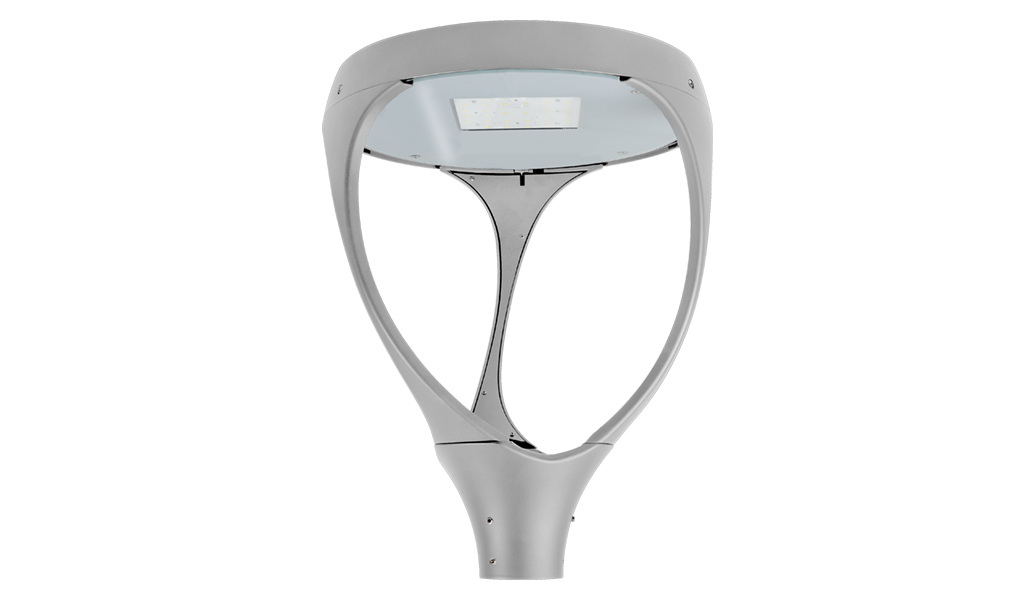

The Opus 360 compliments our Opus Column range with a 360 degree distribution, ideal for car parks and similar applications where a base mounted luminaire is required. The Opus360 is also available in asymmetric versions for perimeter areas to minimise light wastage into adjacent areas.
The Opus 360 is manufactured from high pressure die cast aluminium with a toughened glass cover, sealed to IP65 and finished with a matt grey weather resistant paint finish. This range has been designed to sit alongside the Opus Column to ensure that both ranges can be used in the same area with a complimentary appearance.
With three lumen outputs up to 20,000 lumens the Opus 360 can be specified to suit a range of column heights and spaces ensuring that compliant lux levels can be achieved. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
OPUS 360 complies with:
UKCA | CE | IP65 | TM21: L90>80K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education | Exterior | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Parking / Exterior | Retail | Transport
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9006 matt grey

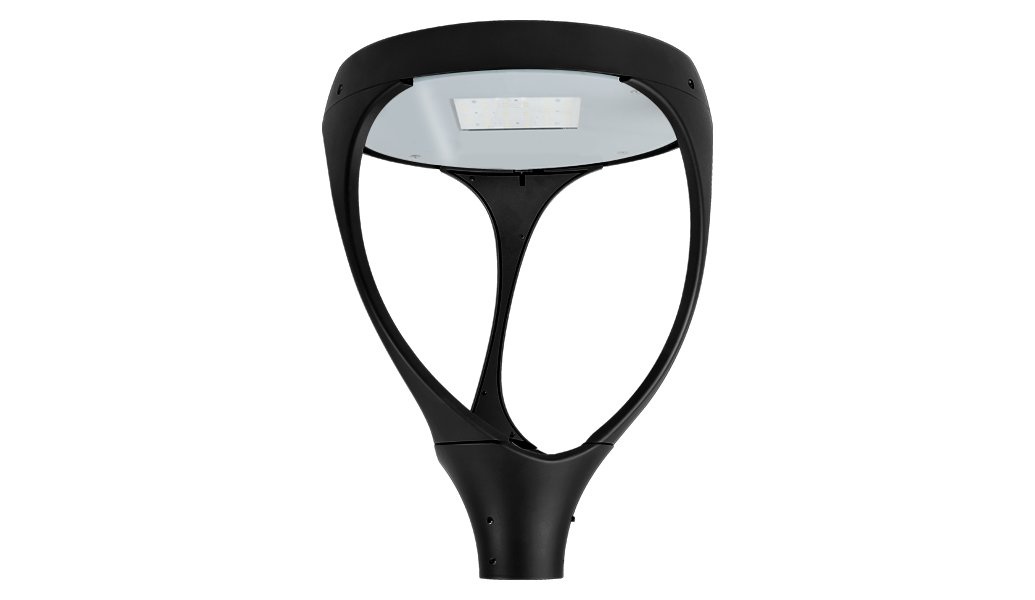

- Finish: Polyester powder painted RAL 9005 matt black
- Diffuser: 5mm toughened glass
- Diffuser: Injection moulded clear polycarbonate
- IP65
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90 at >80,000 Operating Hours
- Up to 125 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Installation
- Suitable for column installation, please specify spigot size required.
- Supplied with 10M prewired lead
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs

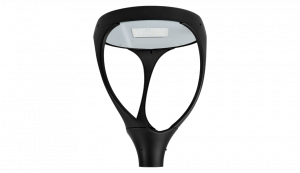

- Available in grey or black finishes

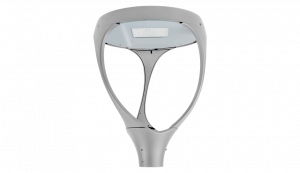

Product Images

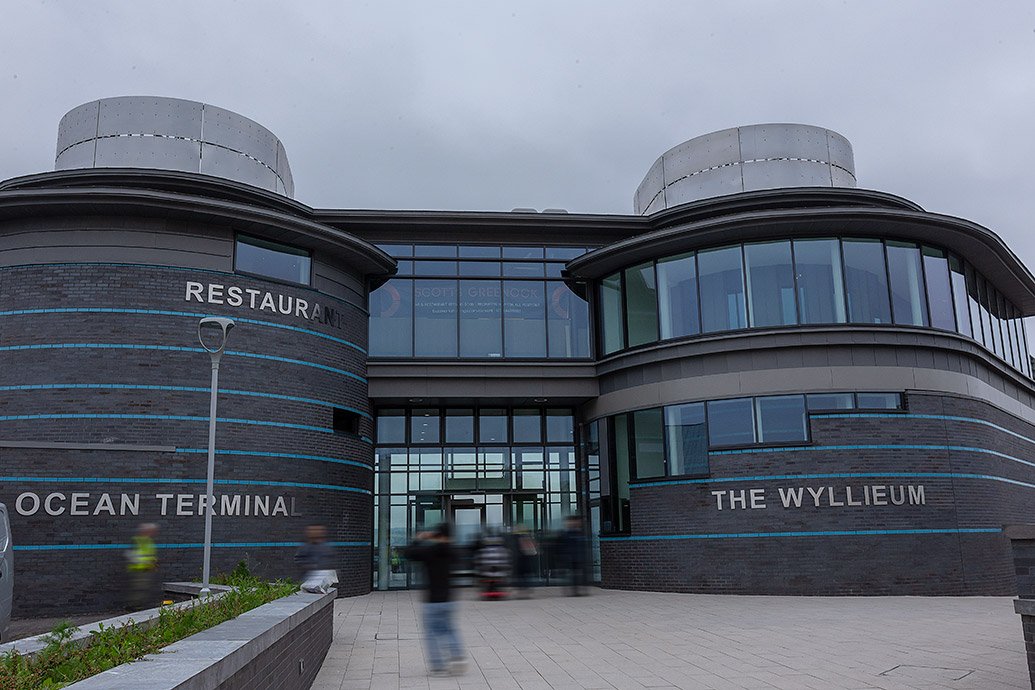

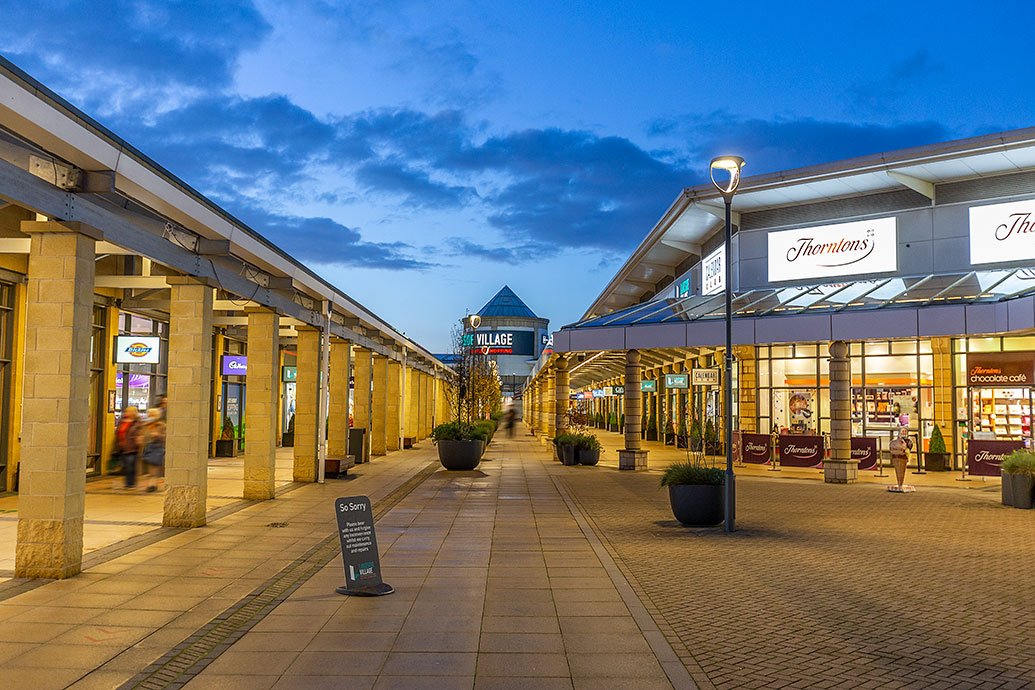

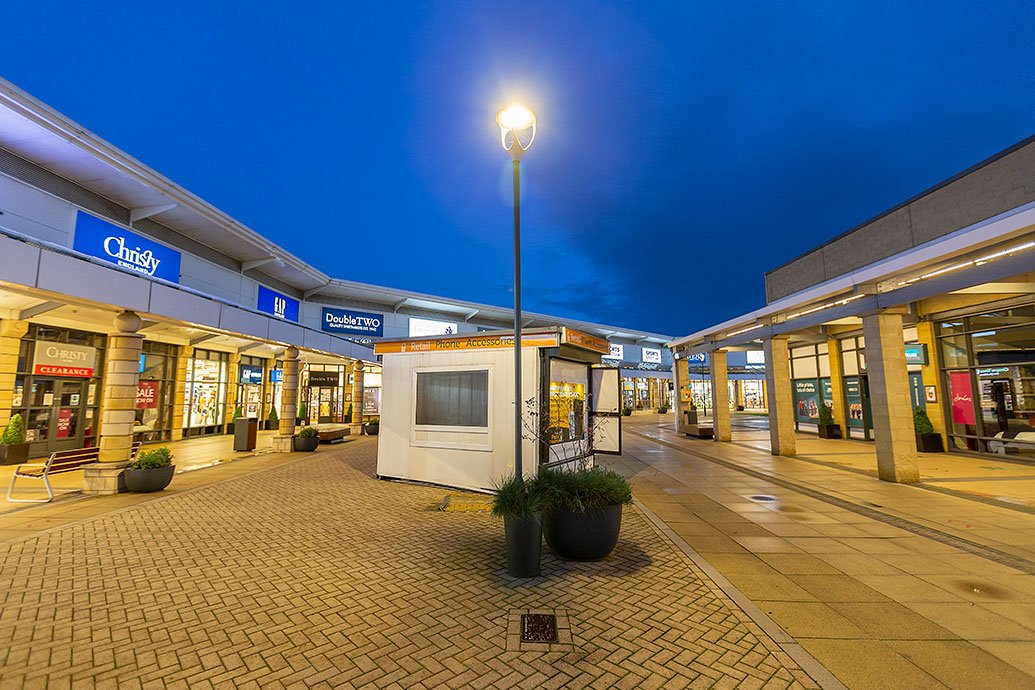

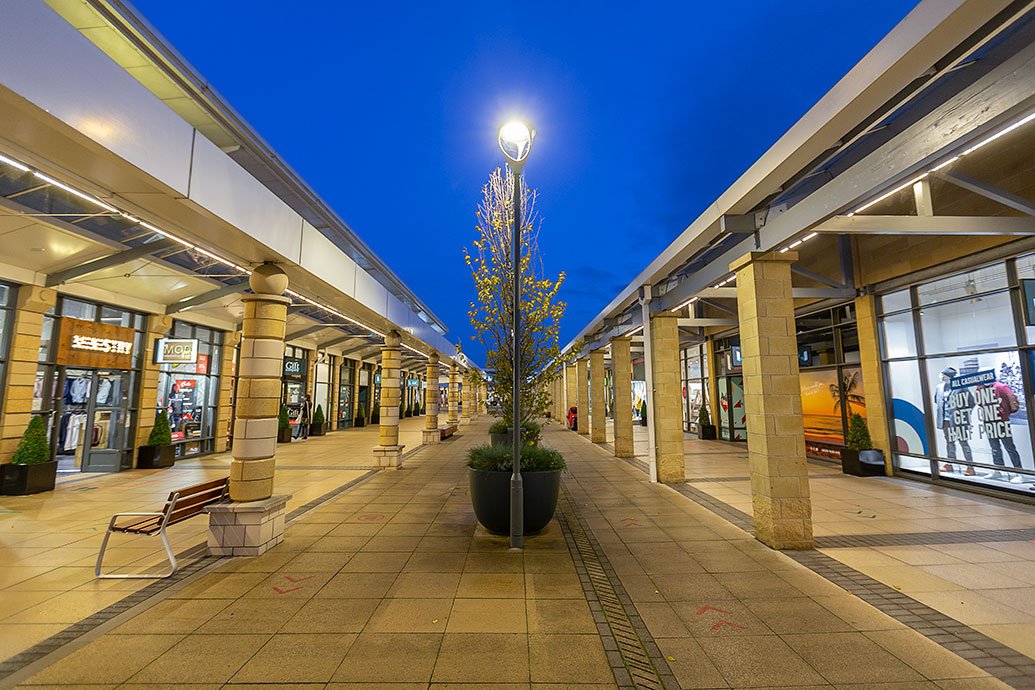

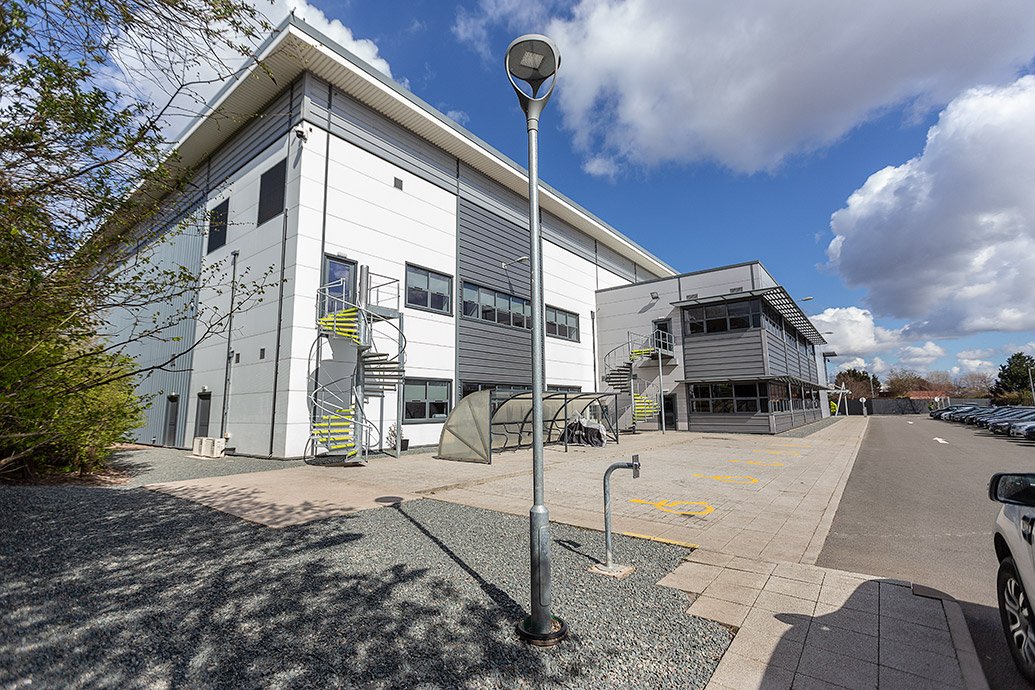

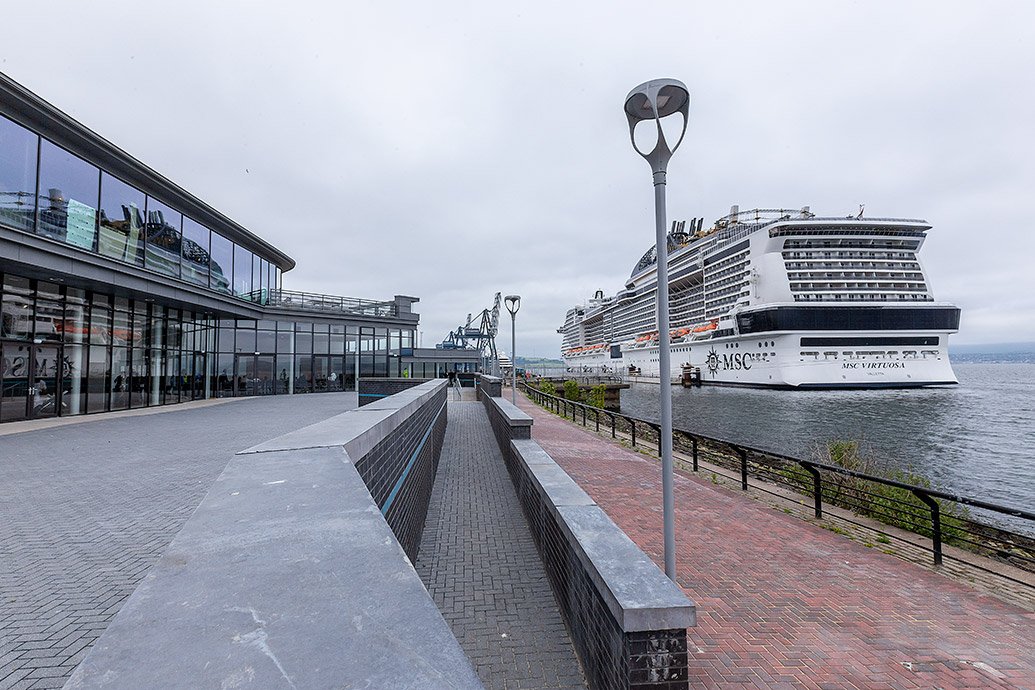

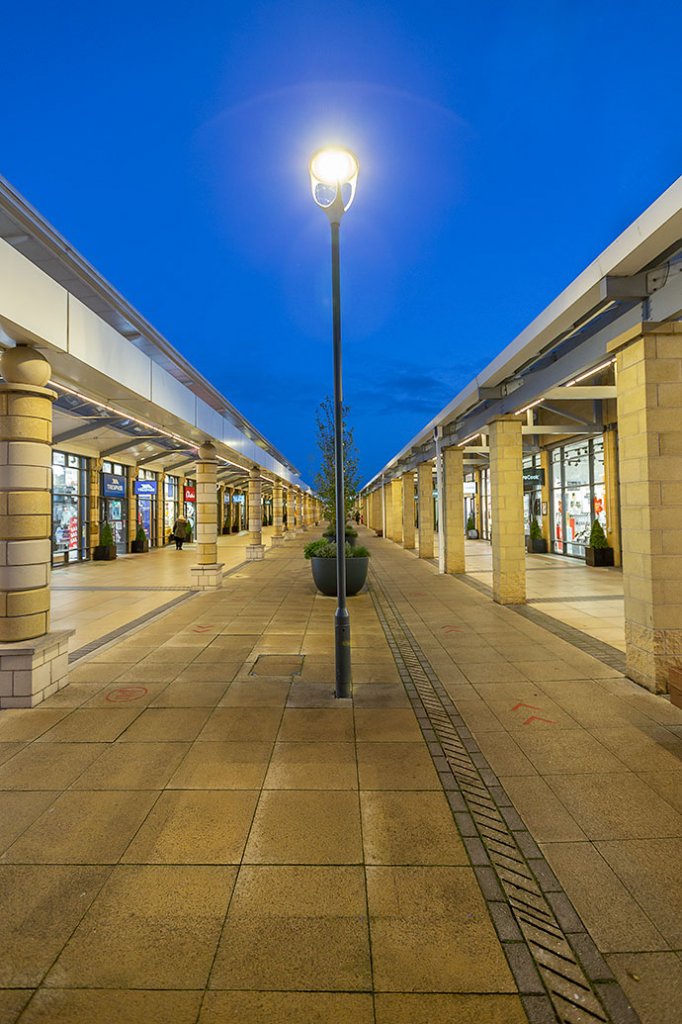

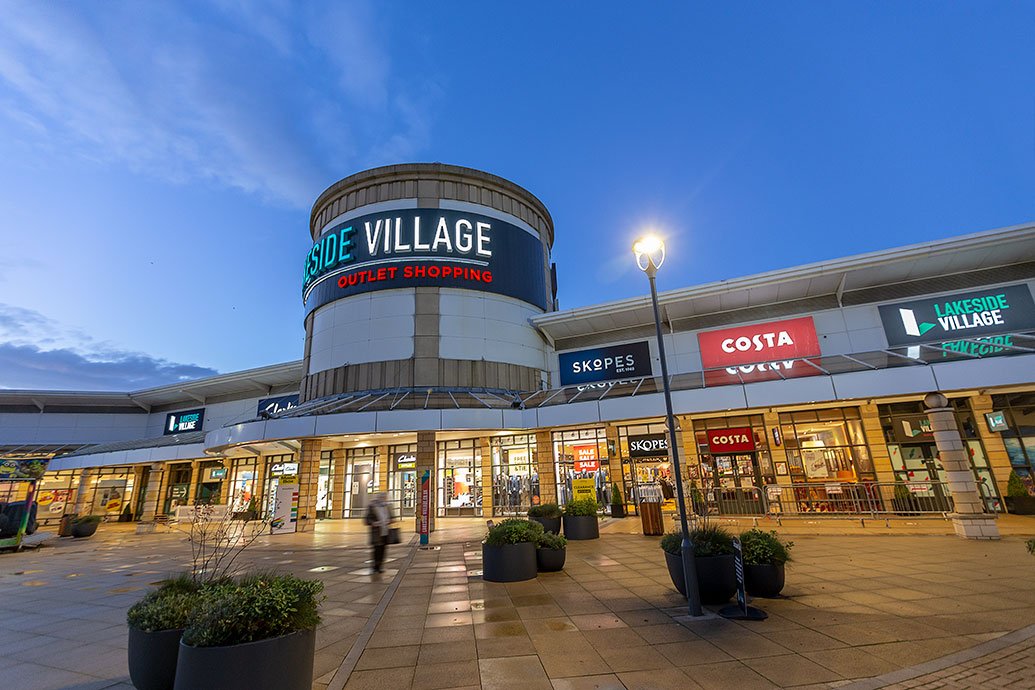

OPUS 360 in action

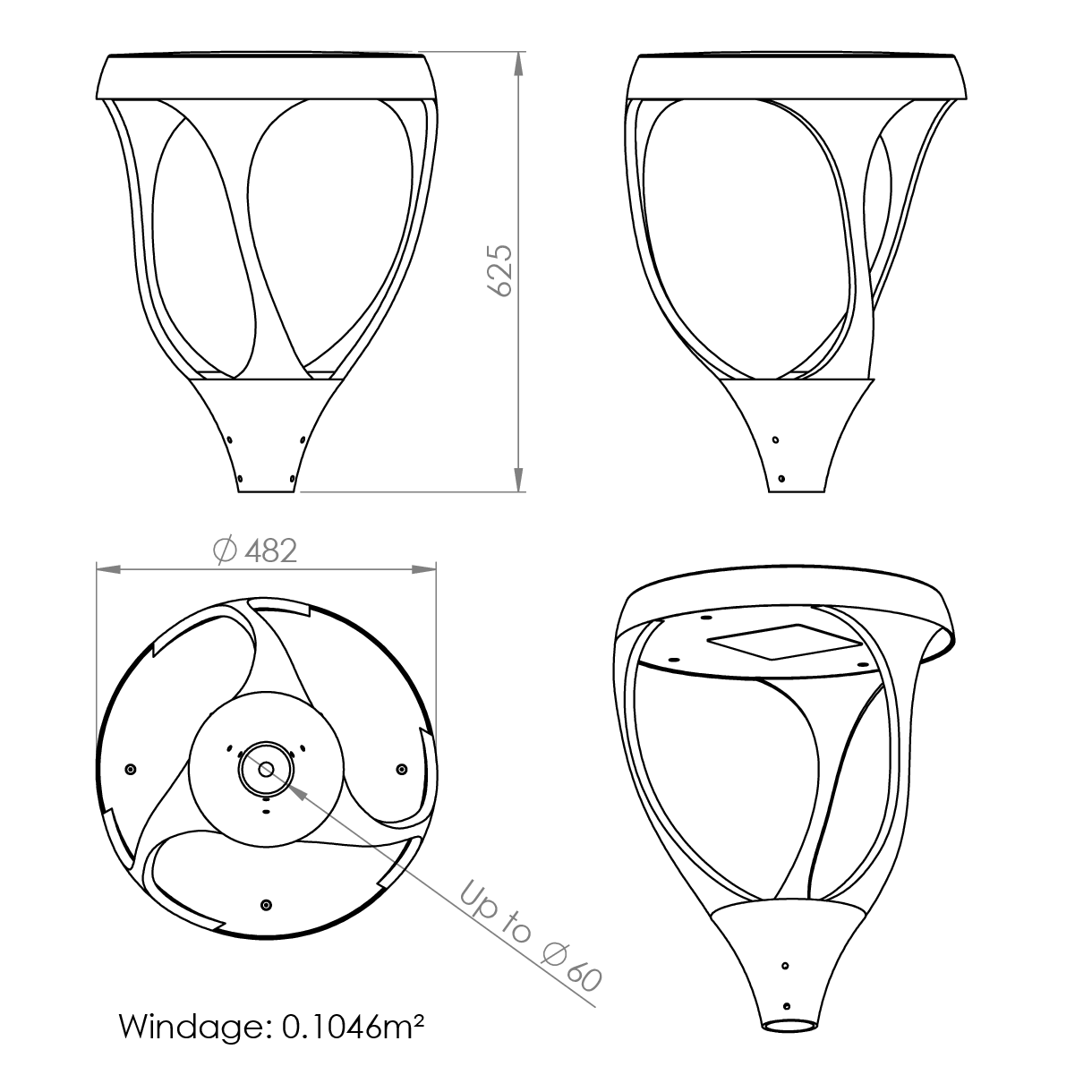

Technical
Opus 360
Ordering
Luminaires
|
Spigot
| Code | Description |
|---|---|
| OPU36 60MM ADAPTOR | Opus360 60-76mm Spigot. |
Miscellaneous
| Code | Description |
|---|---|
| C** | C727, C73 |
| BL | Black Finish |
| LSF | Low Smoke Zero Halogen |
