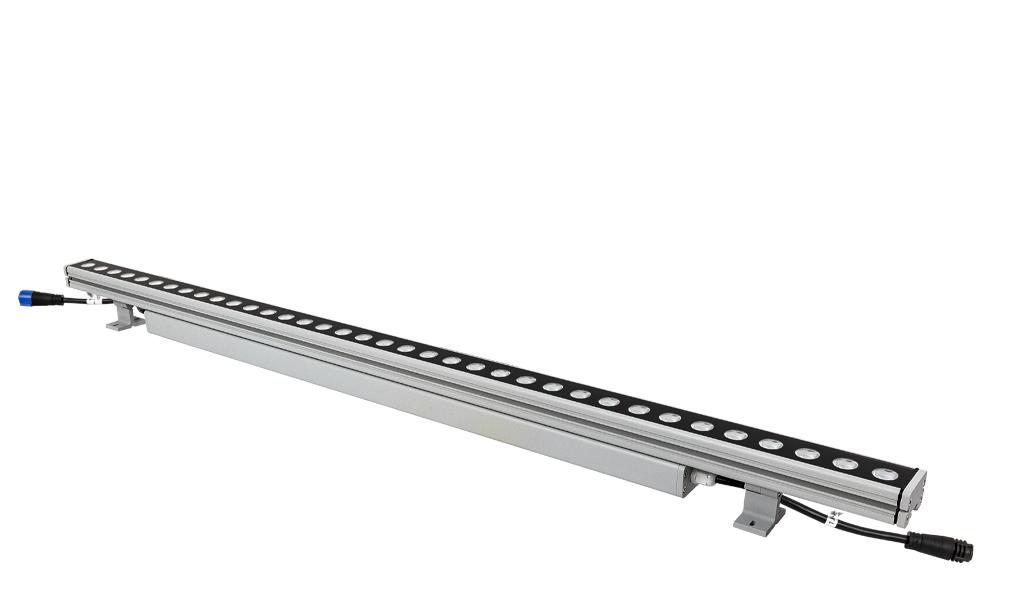

Glide Power 1190mm

Introduction

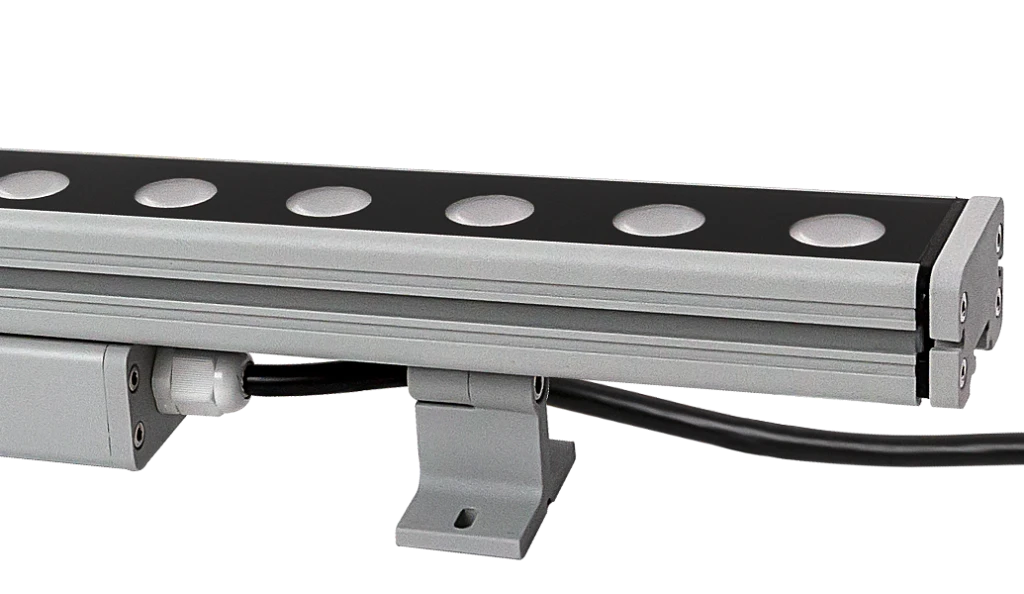

The Glide Power combines wall grazing lensed optics with high lumen outputs. With a weather resistant RAL 9006 grey paint finish, fully potted construction, extruded aluminium housing and toughened glass cover with IP66 rating the Glide Power is suitable for both internal and external applications yet maintains a discreet and compact design. With 10×40° and 50×50° beam angles available as standard the Glide Power is ideal for wall grazing applications at 3-6m, however a wide range of alternative beam angles are available on request. The Glide Power is supplied complete with IP66 rated plug and socket connectors allowing for quick and simple installation as well as optional wall brackets. DMX drivers are supplied as standard providing complete control of your lighting installation. Where required to suit your architectural theme the Glide Power can be specified in custom housing colours.

GLIDE POWER complies with:

UKCA | CE | IP66 | IK08 | 230V

Recommended applications:

Façade Lighting | Hotel / Leisure | Parking / Exterior | Retail | Shop Front

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Housing: Extruded aluminium
  • Toughened glass cover
  • IK08
  • IP66 housing and electrical connectors

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Installation

  • Supplied complete with angle adjustable mounting brackets
  • Supplied with prewired leads for rapid low cost installation

Variations

  • Available in a range of lumen outputs and lens options offering multiple beam angles
  • RAL9006 Grey as standard, other colours available on request

Performance

  • 50,000 operating hours
5 year extended warranty available on most products.
Arrow right

Product Images

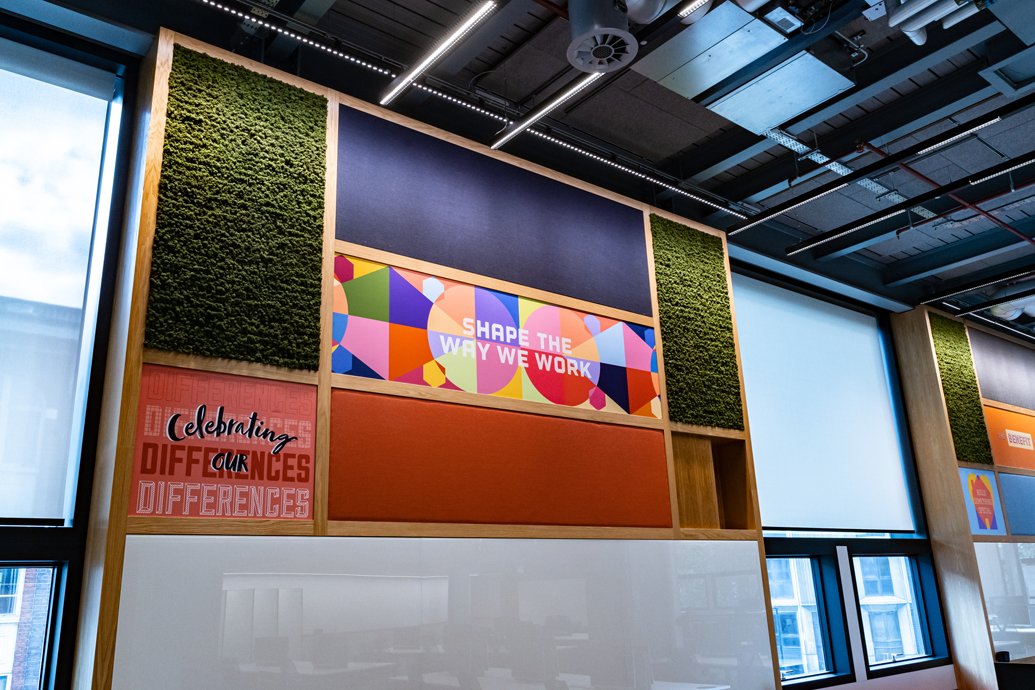

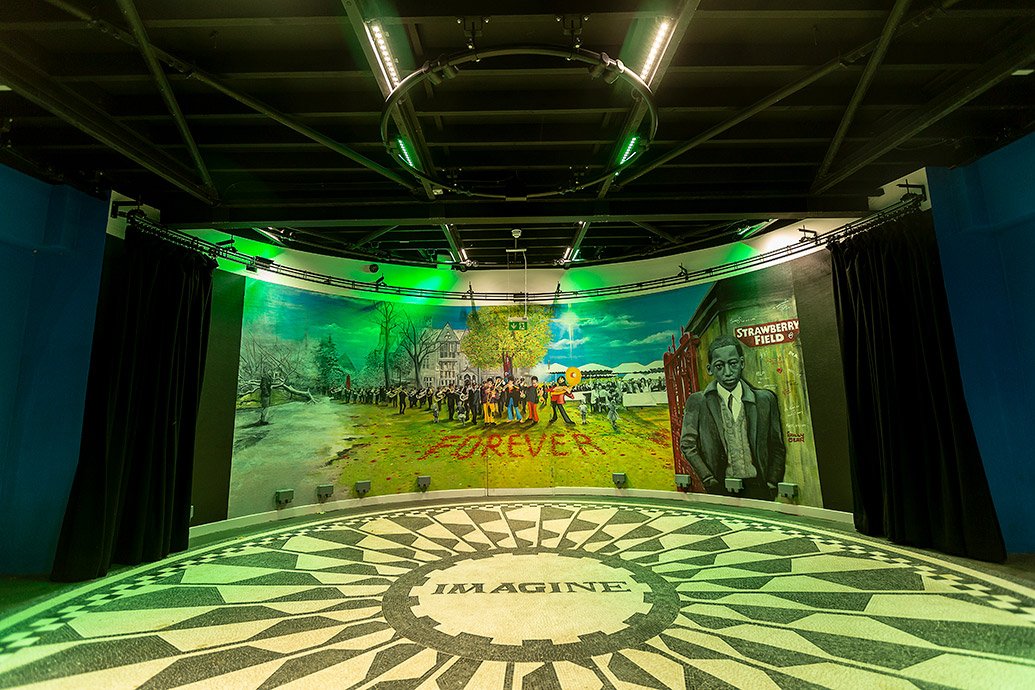

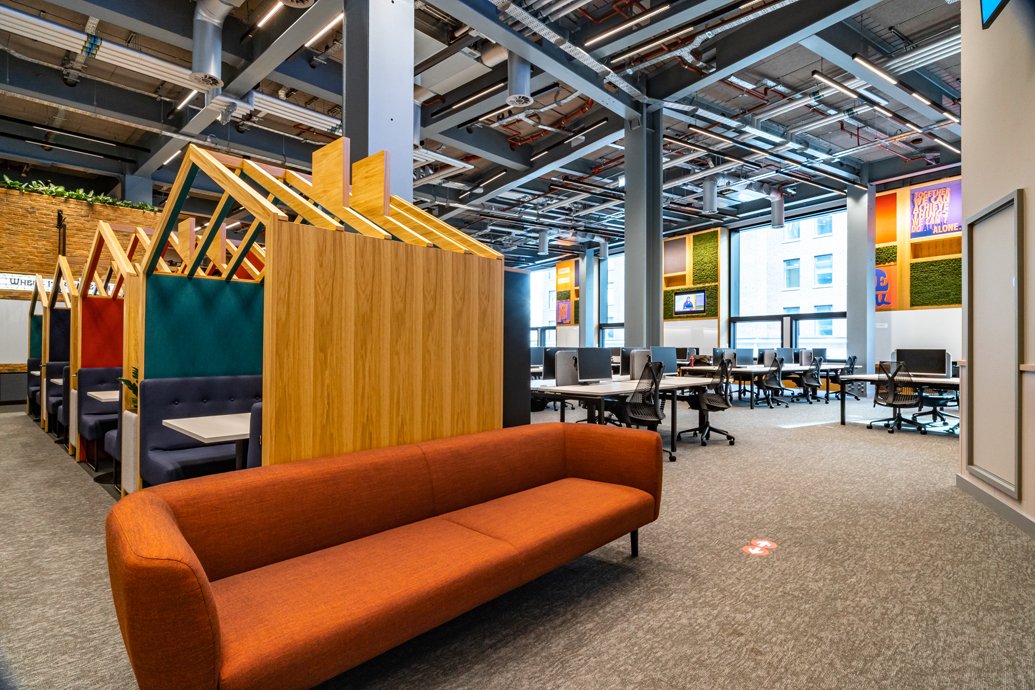

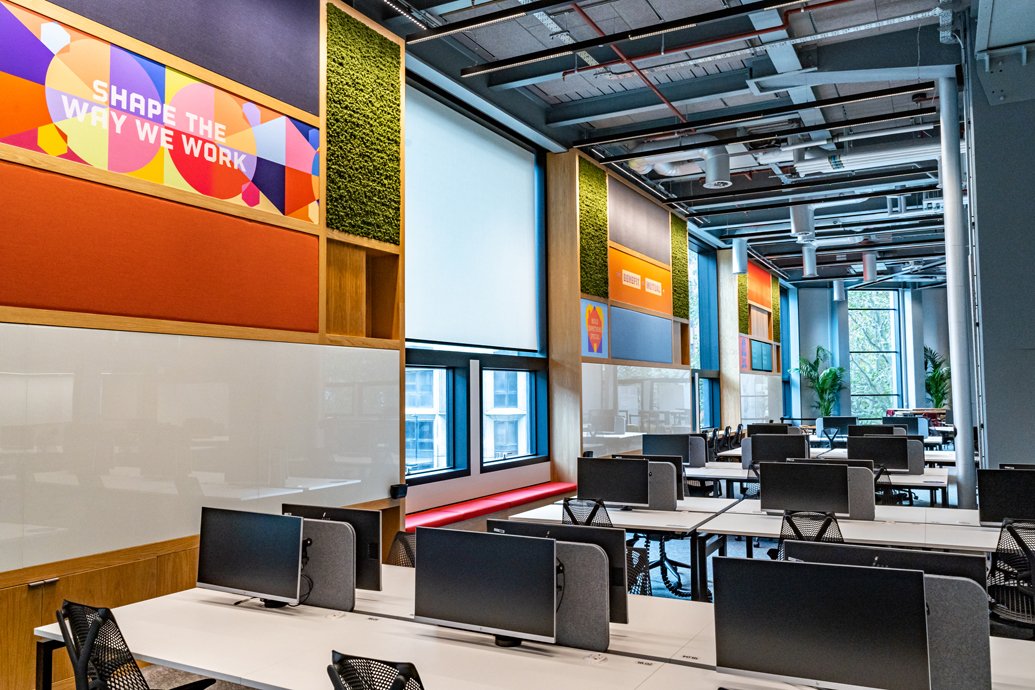

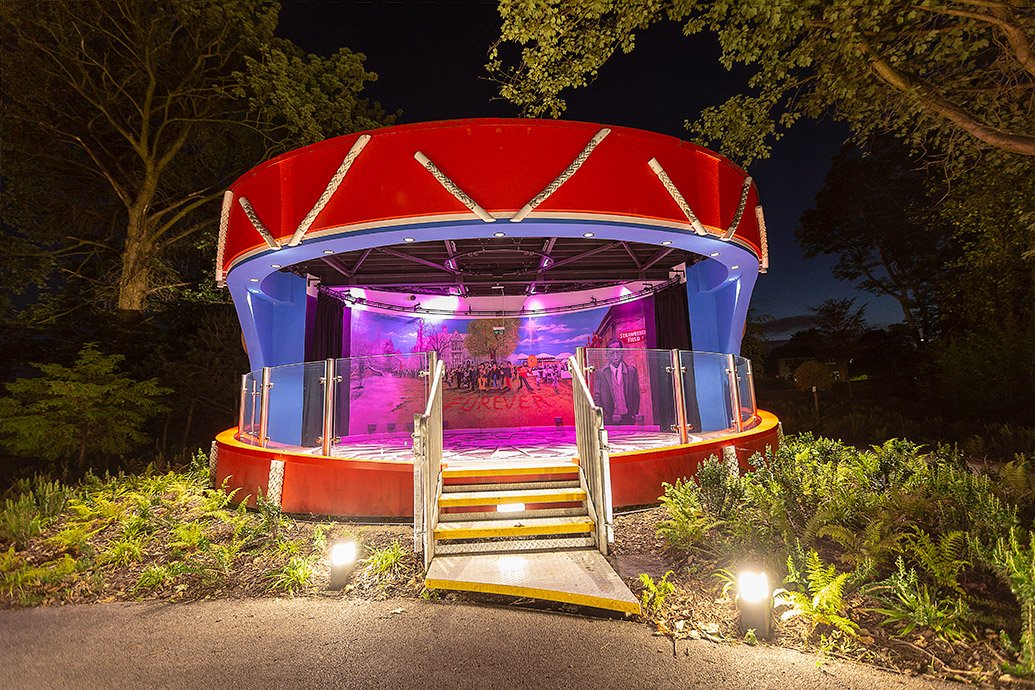

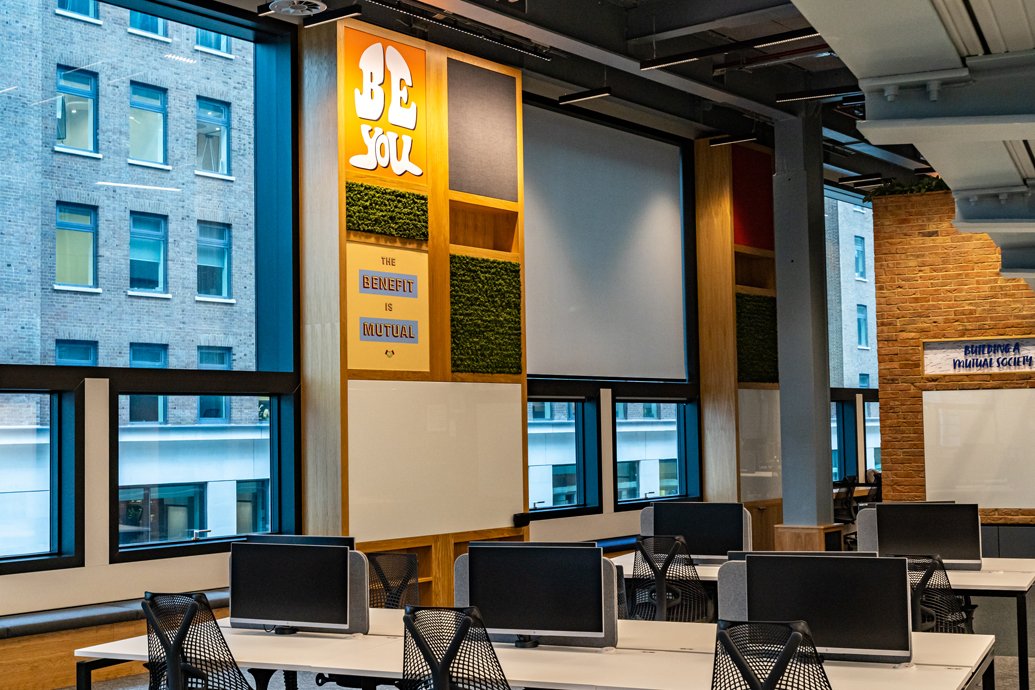

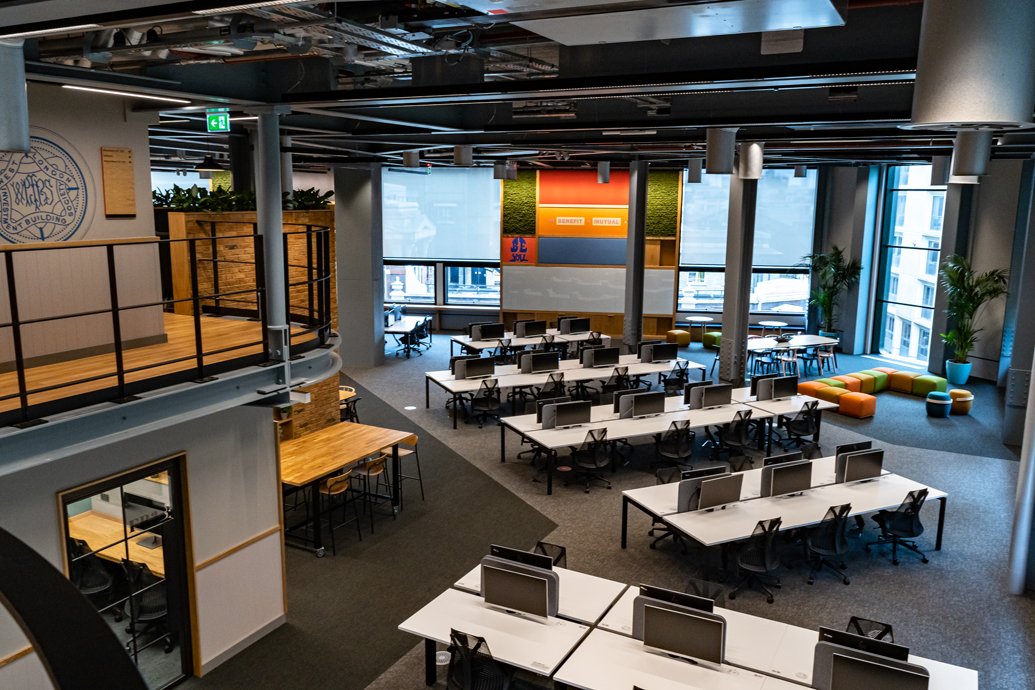

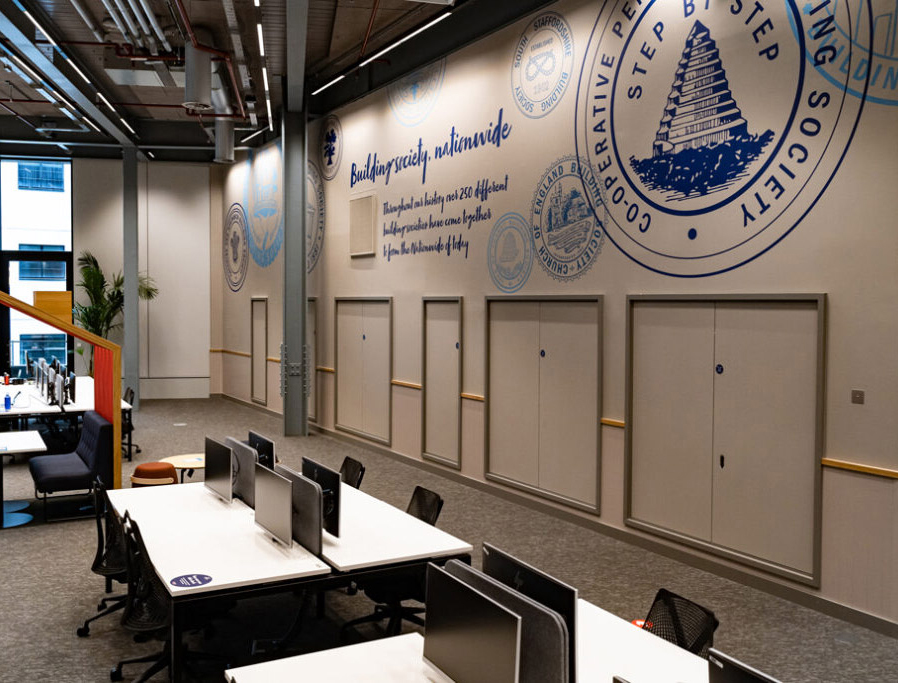

GLIDE POWER in action

Technical

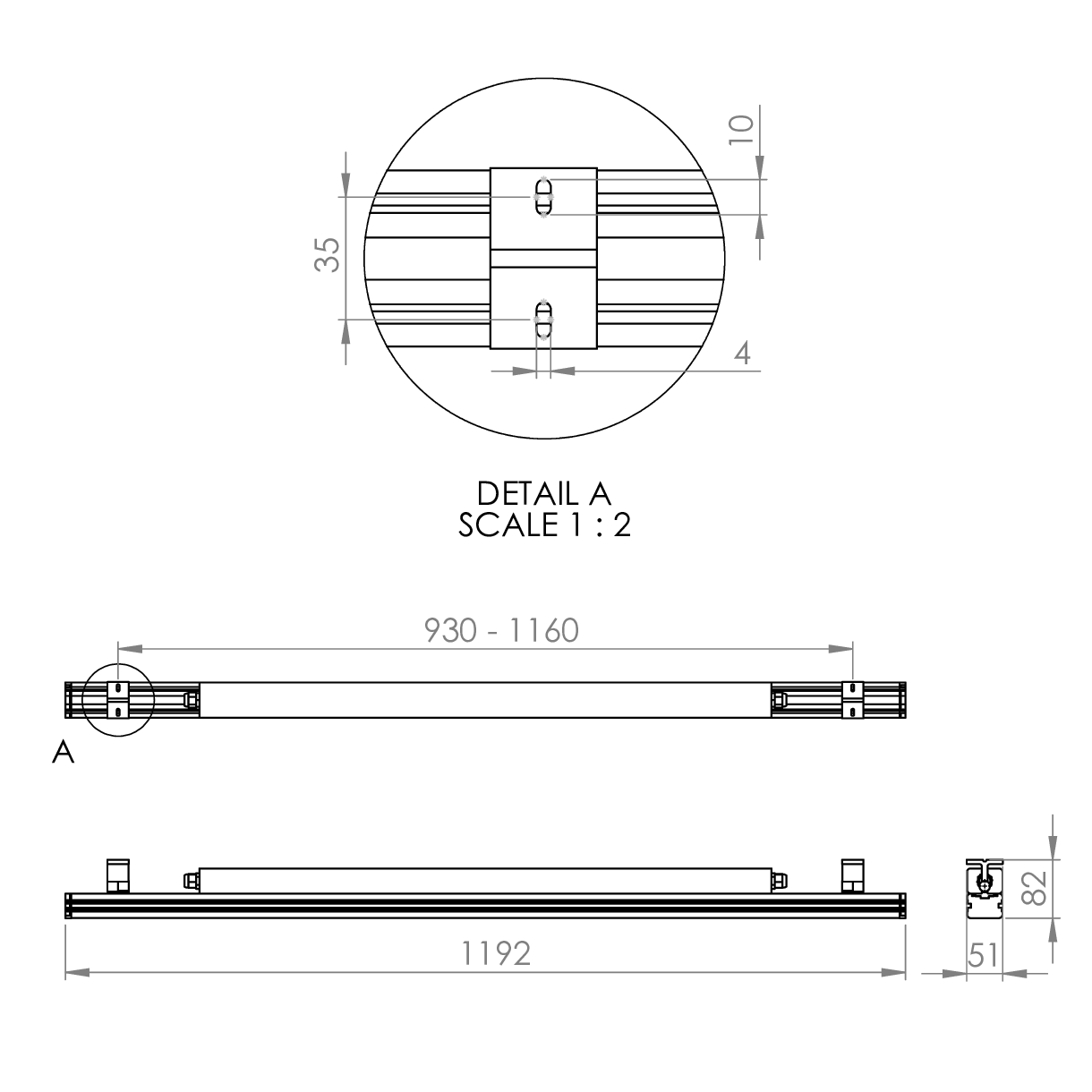

Glide Power 1190mm

Glide Power 1190mm

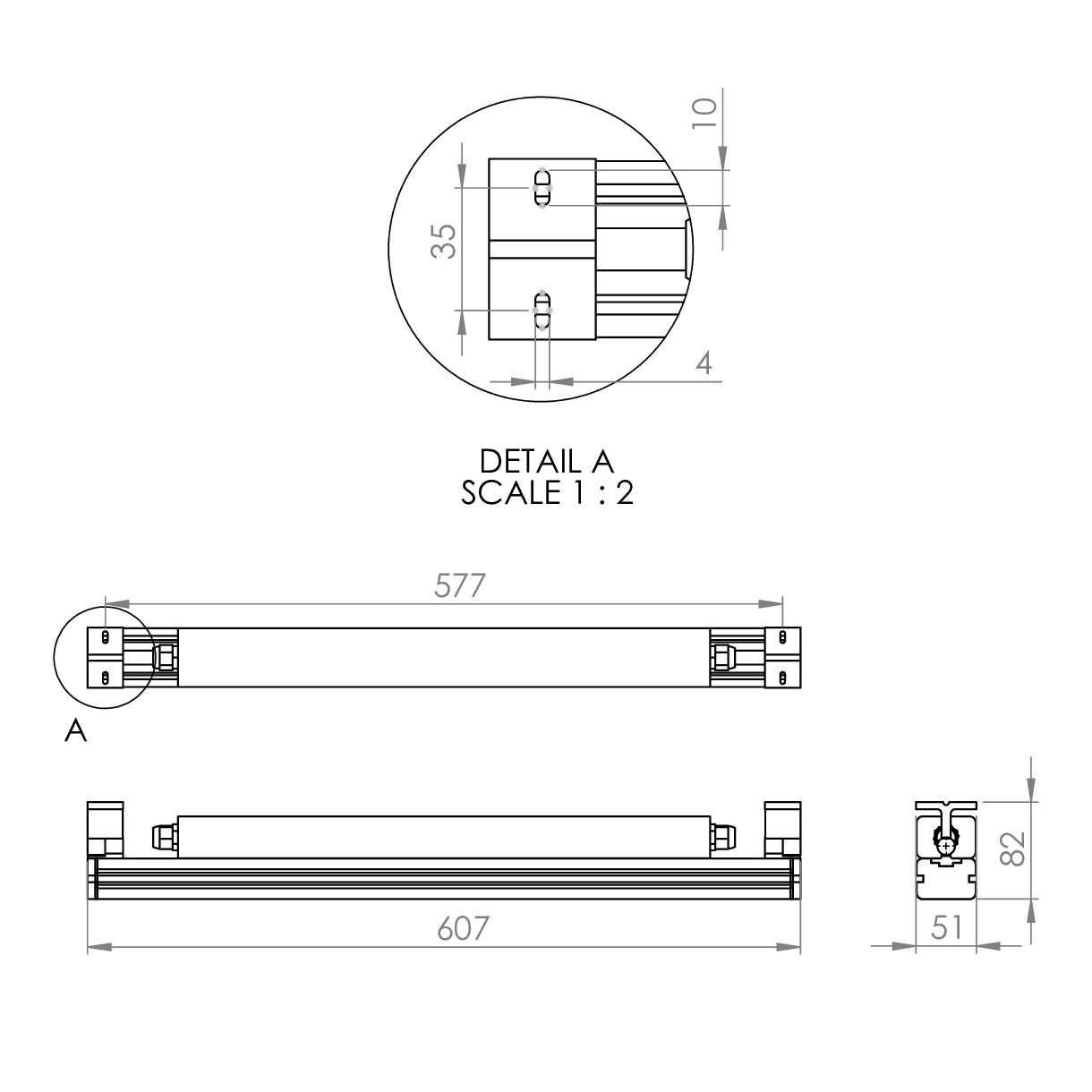

Glide Power 605mm

Glide Power 605mm

Ordering

Luminaires

Code Description Power Llm/W
GEP L27 1040 DMX C84 Glide Power, 605mm, 2,808llm, 10x40°, IP66, DMX, Colour 84 31.7W 89
GEP L27 1040 DMX C83 Glide Power, 605mm, 2,808llm, 10x40°, IP66, DMX, Colour 83 31.7W 89
GEP L27 5050 DMX C84 Glide Power, 2,100llm, 605mm, 50x50°, IP66, DMX, Colour 84 26.7W 79
GEP L27 5050 DMX C83 Glide Power, 2,100llm, 605mm, 50x50°, IP66, DMX, Colour 83 26.7W 79
GEP L54 1040 DMX C84 Glide Power, 1190mm, 6,481llm, 10x40°, IP66, DMX, Colour 84 67.5W 96
GEP L54 1040 DMX C83 Glide Power, 1190mm, 6,481llm, 10x40°, IP66, DMX, Colour 83 67.5W 96
GEP L54 5050 DMX C84 Glide Power, 1190mm, 7,021llm, 50x50°, IP66, DMX, Colour 84 67.5W 104
GEP L54 5050 DMX C83 Glide Power, 1190mm, 7,021llm, 50x50°, IP66, DMX, Colour 83 67.5W 104

Miscellaneous

Code Description
GLIDE WB Glide Wall Bracket - 350mm - 410mm

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
