EXI
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

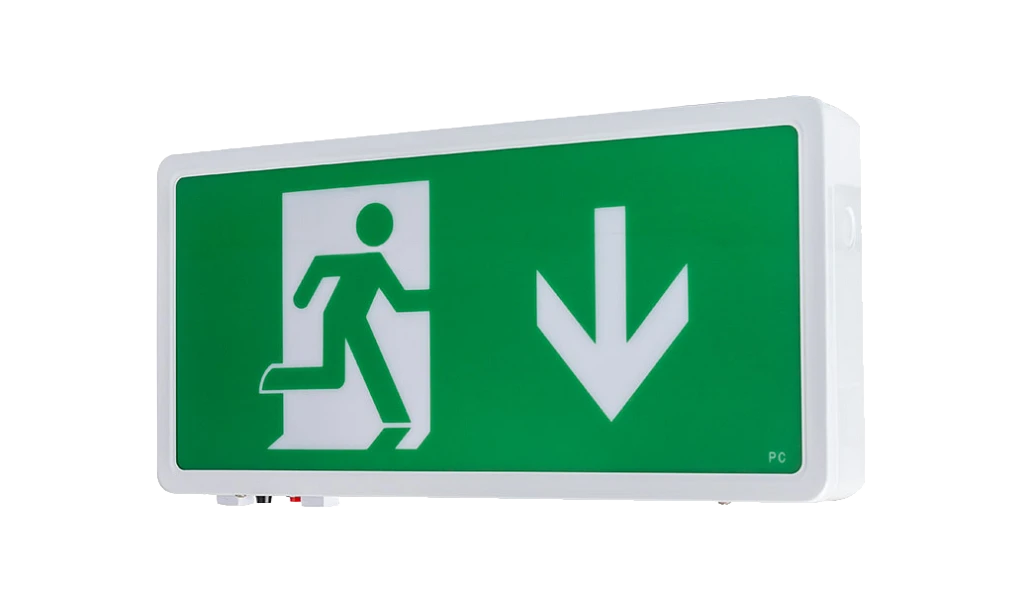

The EXI is a versatile emergency exit sign suitable for a wide variety of installation methods and is supplied with lithium batteries as standard for extended lifetime and warranty. Manufactured with a white powder painted steel housing the EXI can be installed with conduit entry to the sides or BESA box to the rear. Self test and Autotest variants are also available in this range to minimise the cost of testing. The EXI Wireless offers further savings by automating emergency testing and reporting test results and failures through our Reacta-Link system. All EXI legends are available in both ISO 7010 and Safety Signs directive 92/58/EEC formats.
EXI complies with:
UKCA | CE | IP20
Recommended applications:
Canteen | Commercial / Offices | Corridor | Education | Food Production | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Kitchen | Office | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Matt white

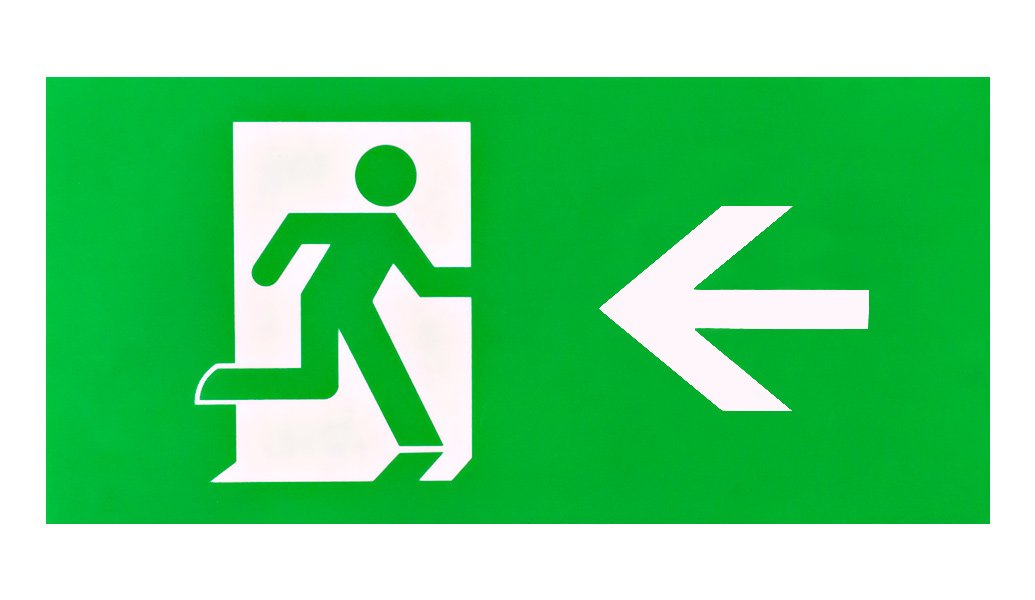

- ISO 7010 or Euro Norm Legends with all directional arrow options.
- IP20
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- All critical components are mounted on a single tray for simple end of life repair or upgrade.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
Installation
- Suitable for conduit installation
- Suitable for surface installation

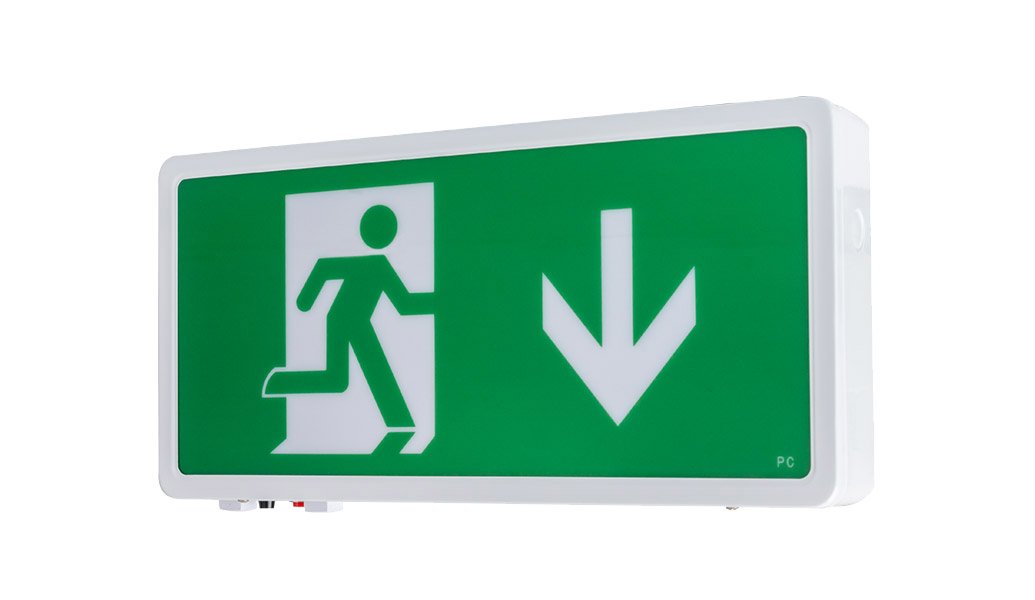

Product Images

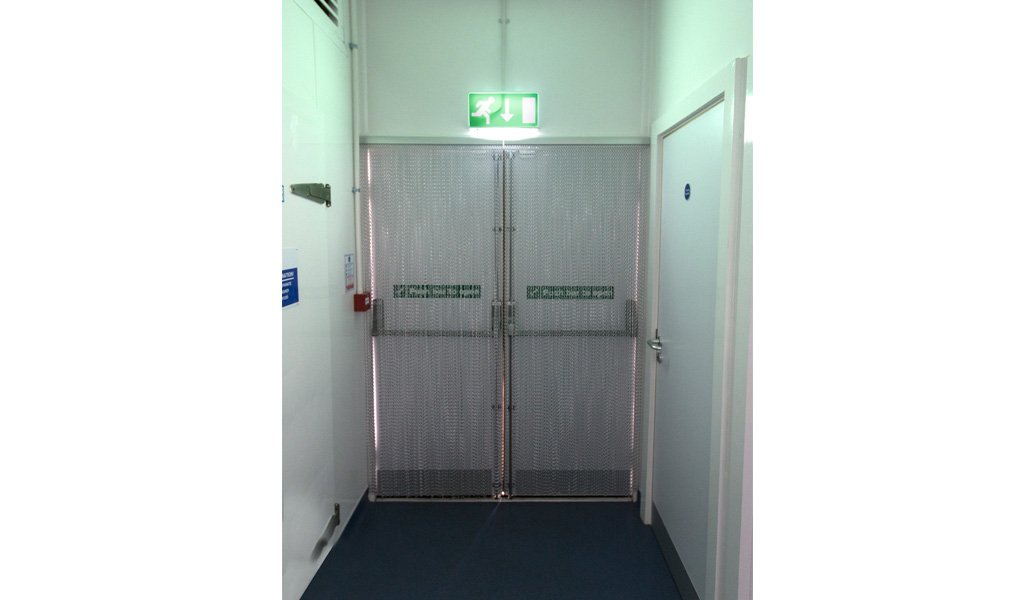

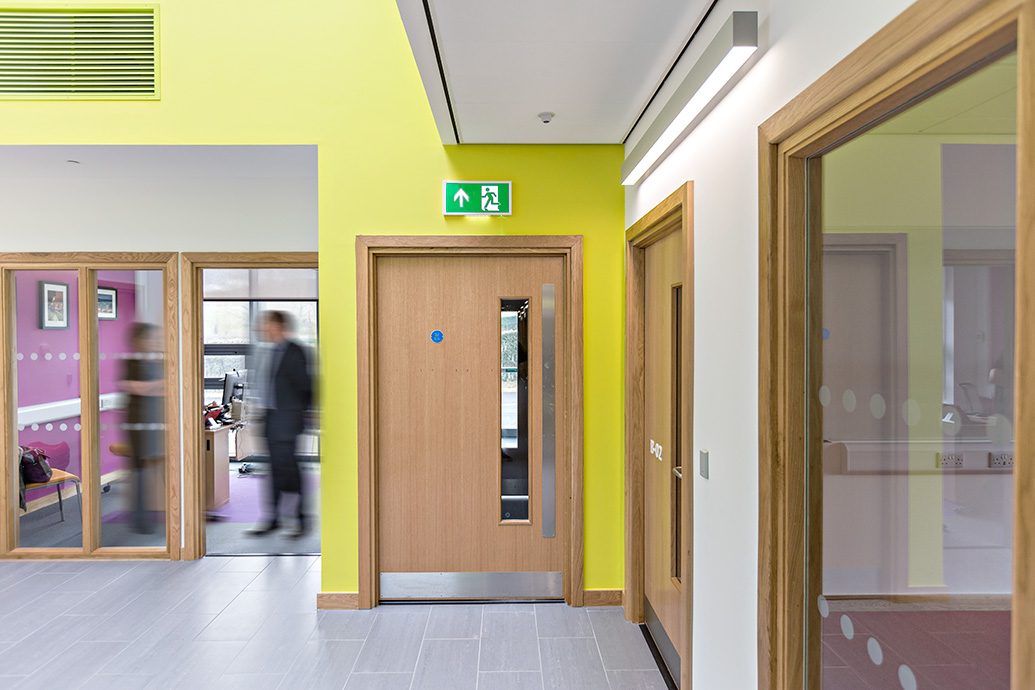

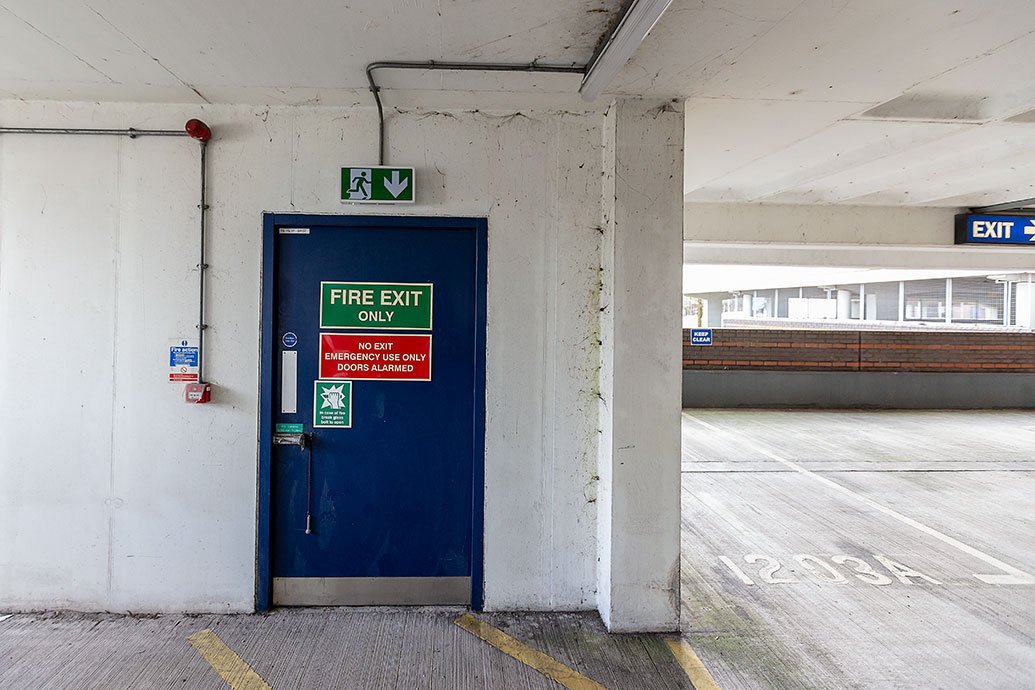

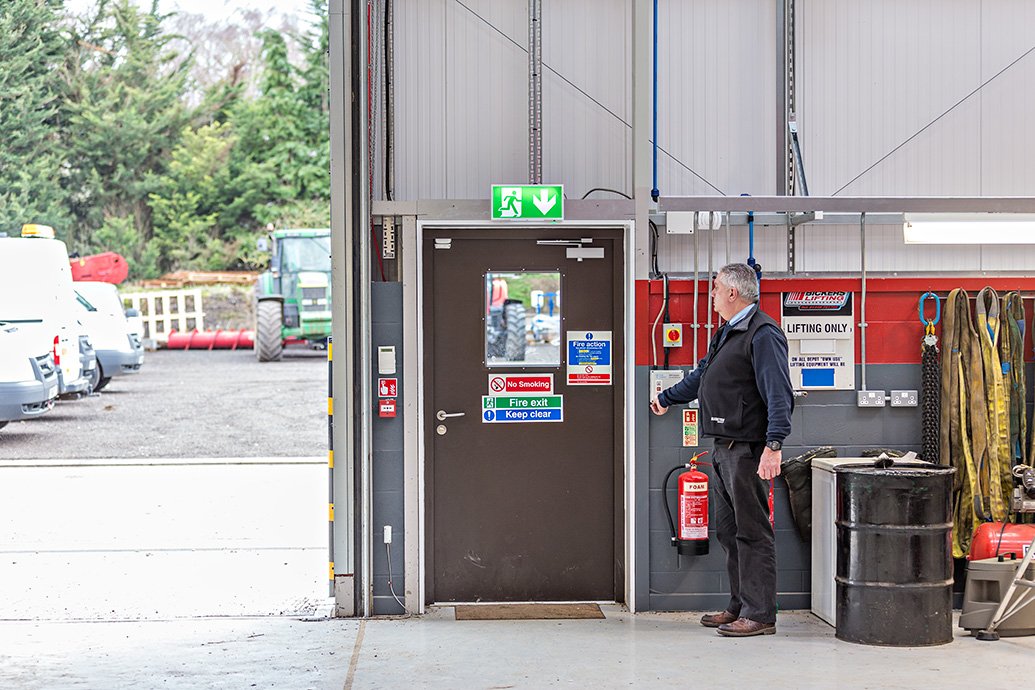

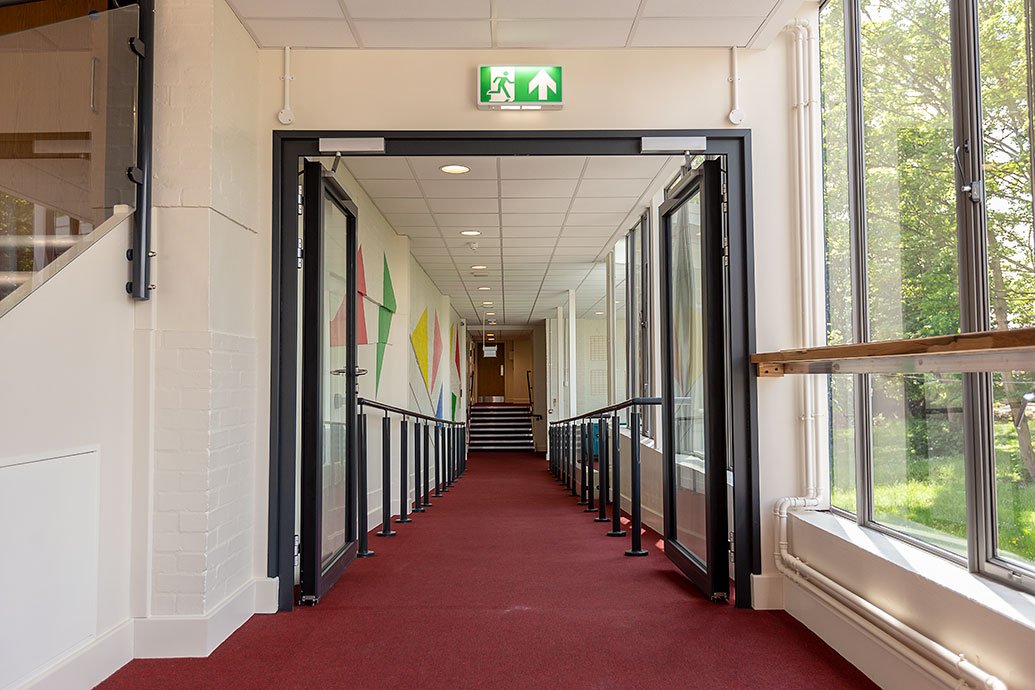

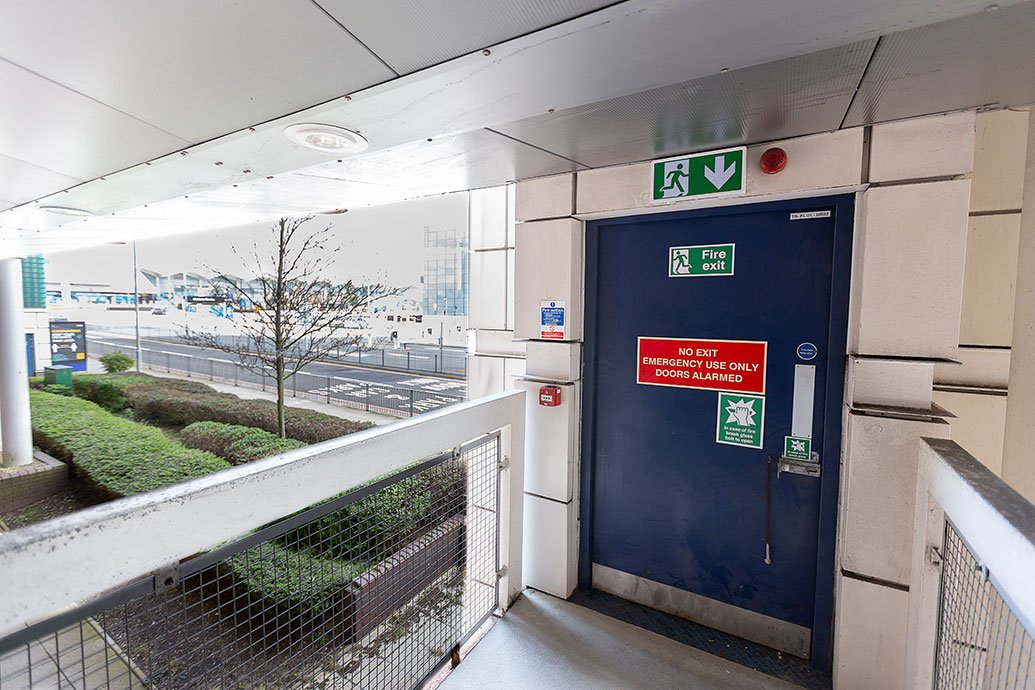

EXI in action

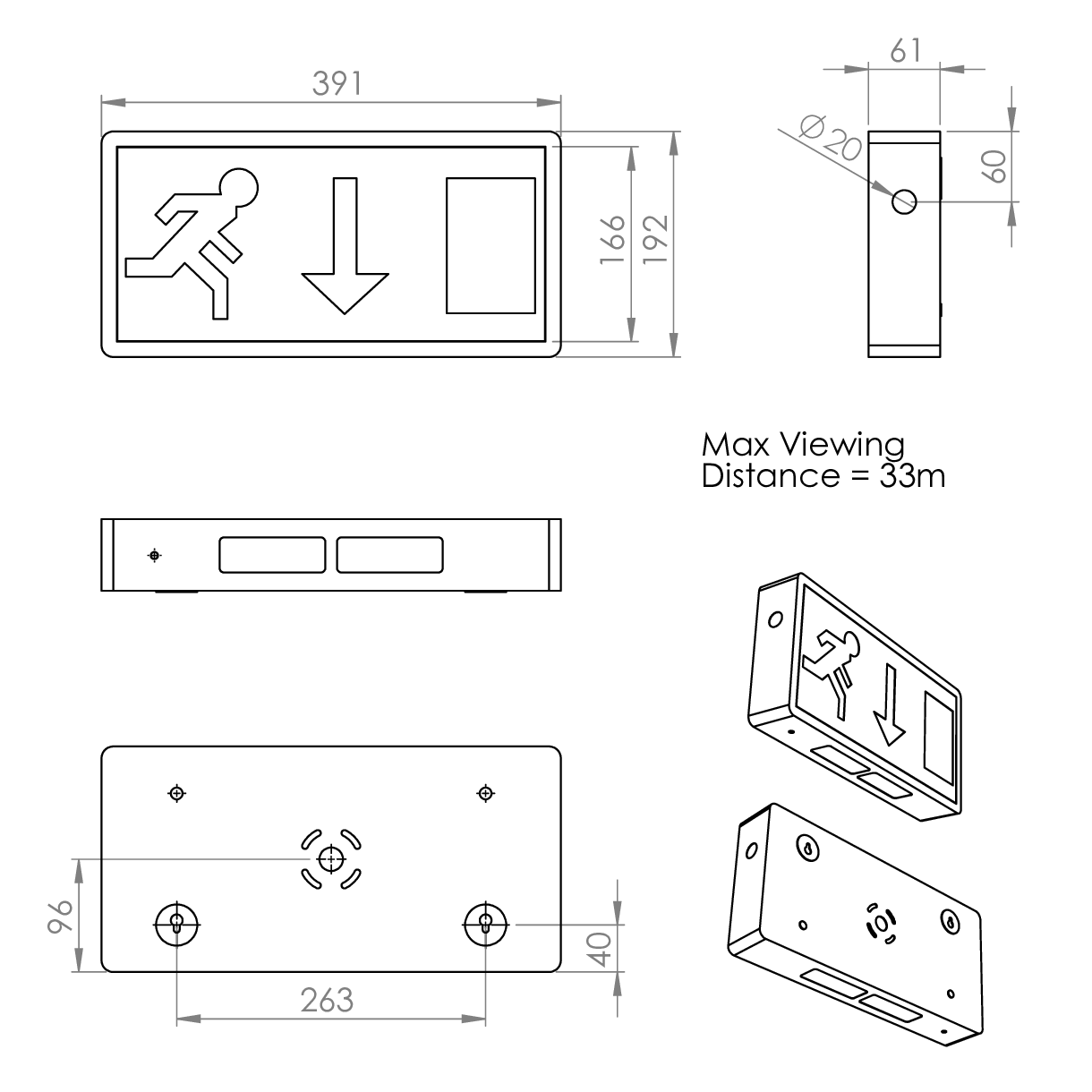

Technical

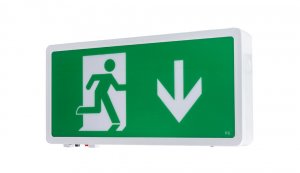

EXI
Ordering
Luminaires
|
||||||||||||||
Emergency
| Code | Description |
|---|---|
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| BL | Black Finish |
| GY | Grey Finish |
| LSF | Low Smoke Zero Halogen |

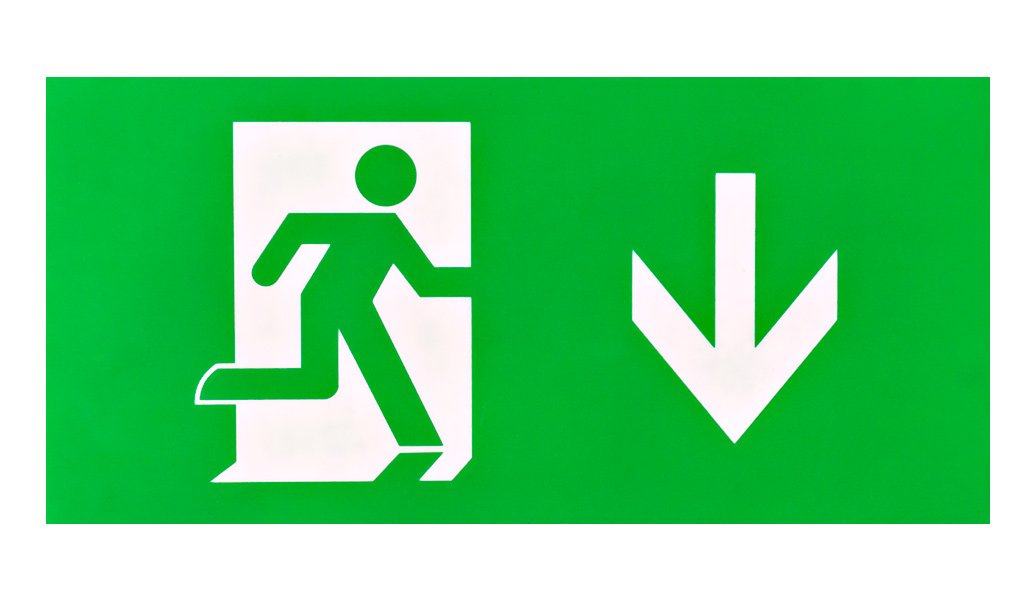

| EXI DL ISO7010 | Arrow Down Legend ISO7010 |
| EXI LL ISO7010 | Arrow Left Legend ISO7010 |
| EXI RL ISO7010 | Arrow Right Legend ISO7010 |
| EXI UL ISO7010 | Arrow Up Legend ISO7010 |
| EXI DL | Arrow Down Legend |
| EXI LL | Arrow Left Legend |
| EXI RL | Arrow Right Legend |
| EXI UL | Arrow Up Legend |
Downloads
