COULIS 70

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.

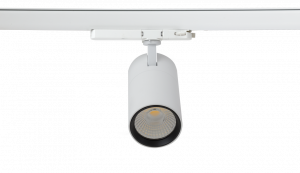

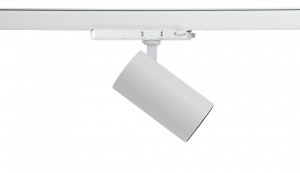

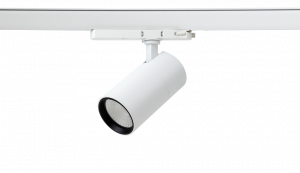

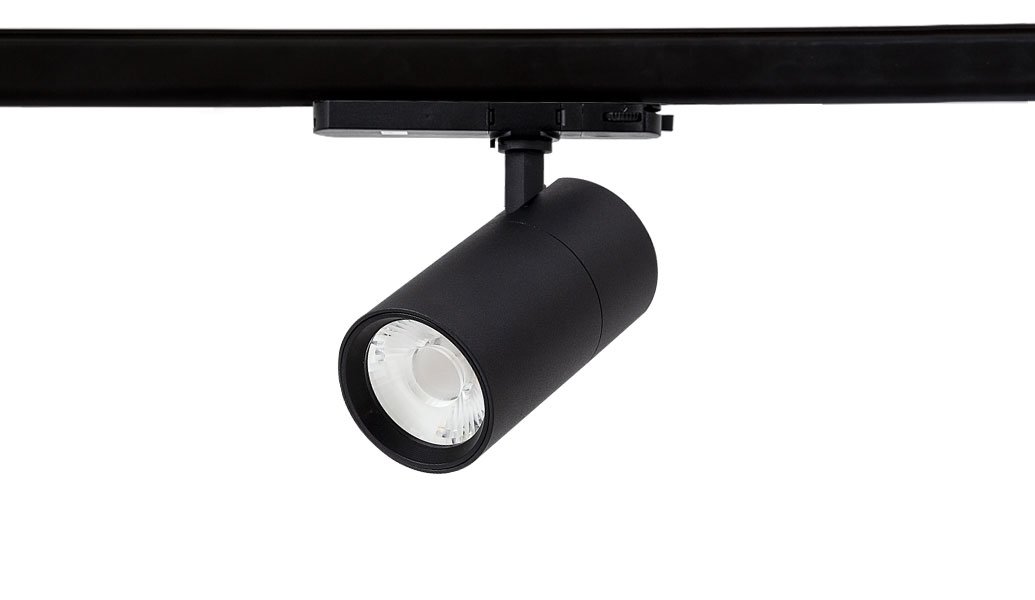

Coulis 70 White

Introduction

The Coulis 70 is an attractive track mounted spot light that has been developed for clients that require a high quality finish with superb colour rendition. This is the latest addition to our popular Coulis family of track spots and comes as standard with a discreet low profile in-track driver and CRI90 chip on board source. The powder coated die cast aluminium body is coupled with PMMA lens optics to maintain optimum performance. This range is available in either white or black with three beam angles and two lumen outputs.

COULIS 70 complies with:

UKCA | CE | IP20

Recommended applications:

Accent Lighting | Display Lighting | Retail

Specification

Construction

  • Housing: High pressure die cast aluminium
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Finish: Polyester powder painted RAL 9005 matt black
  • Lens: Injection moulded PMMA lens
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 89 luminaire lumens per circuit Watt.
  • CRI 90+

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Not available with emergency

Installation

  • Suitable for three circuit track installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs

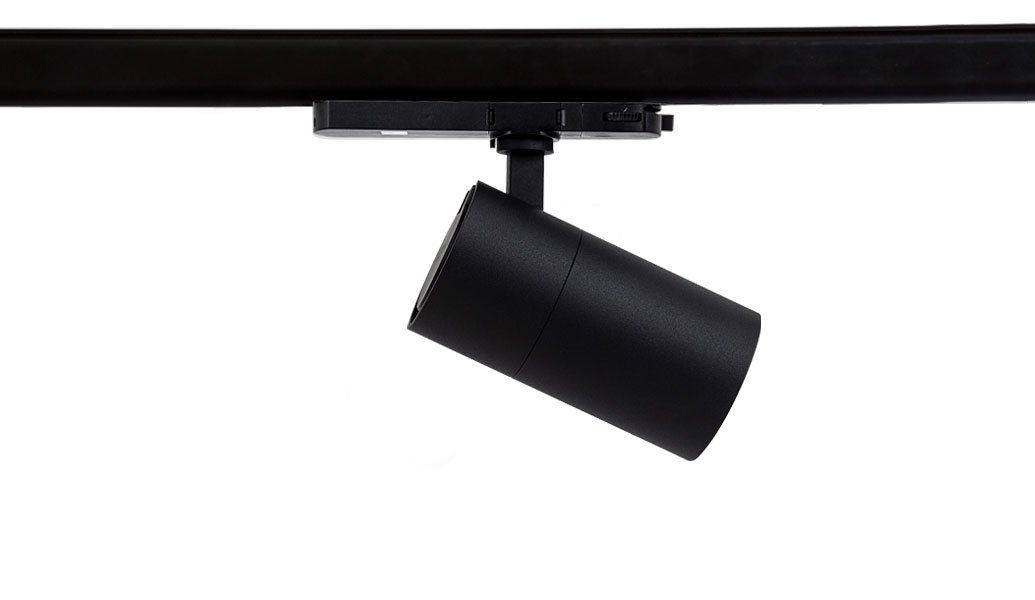

  • Available in white or black finishes
5 year extended warranty available on most products.
Arrow right

Product Images

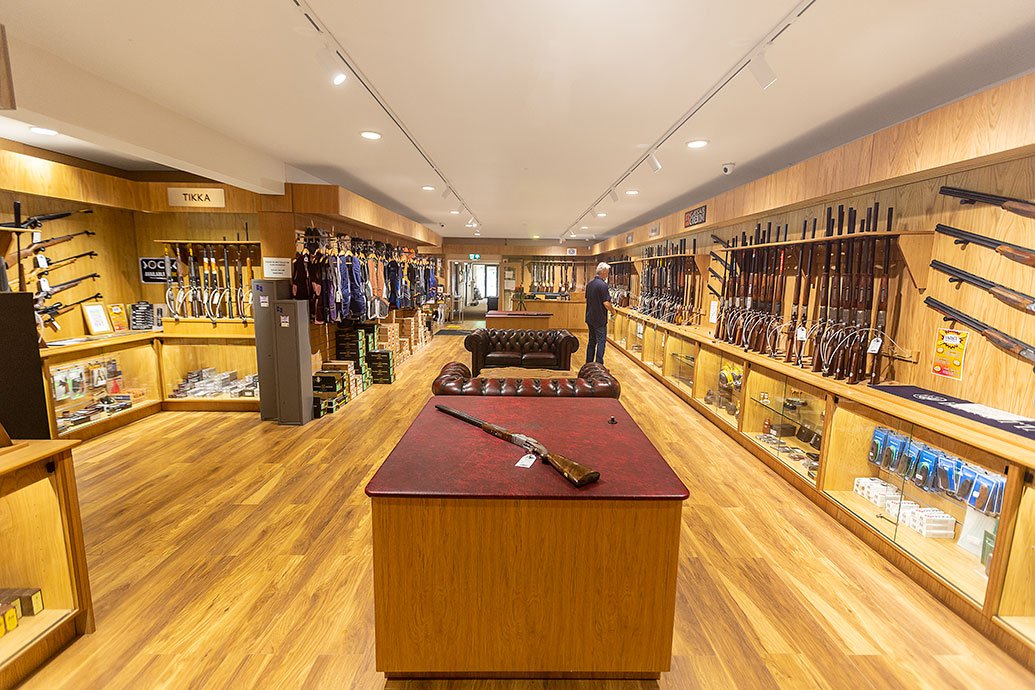

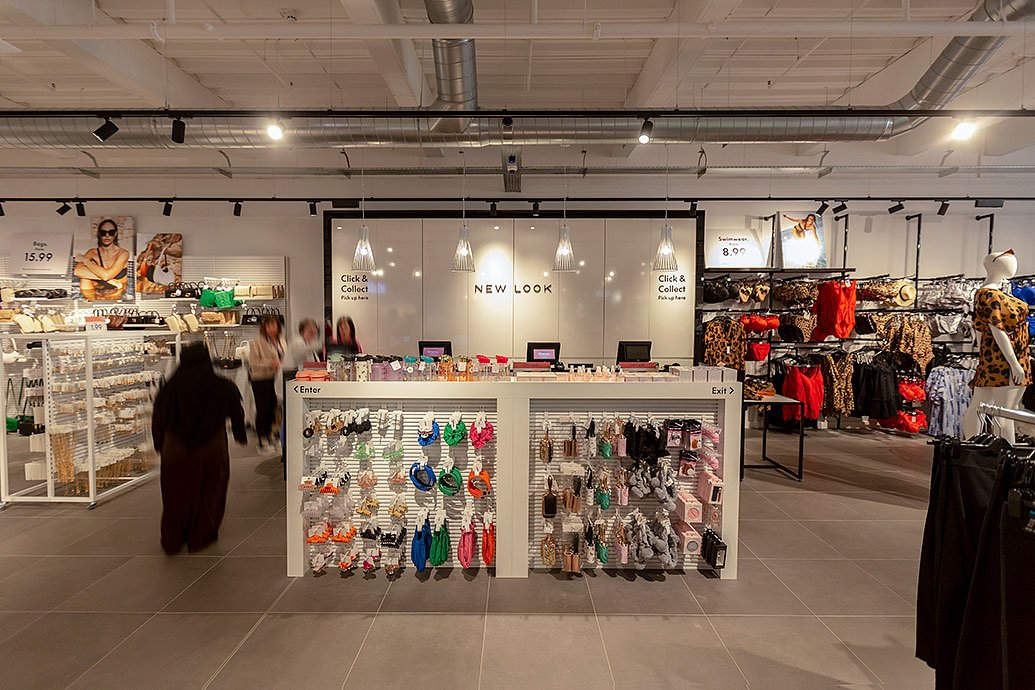

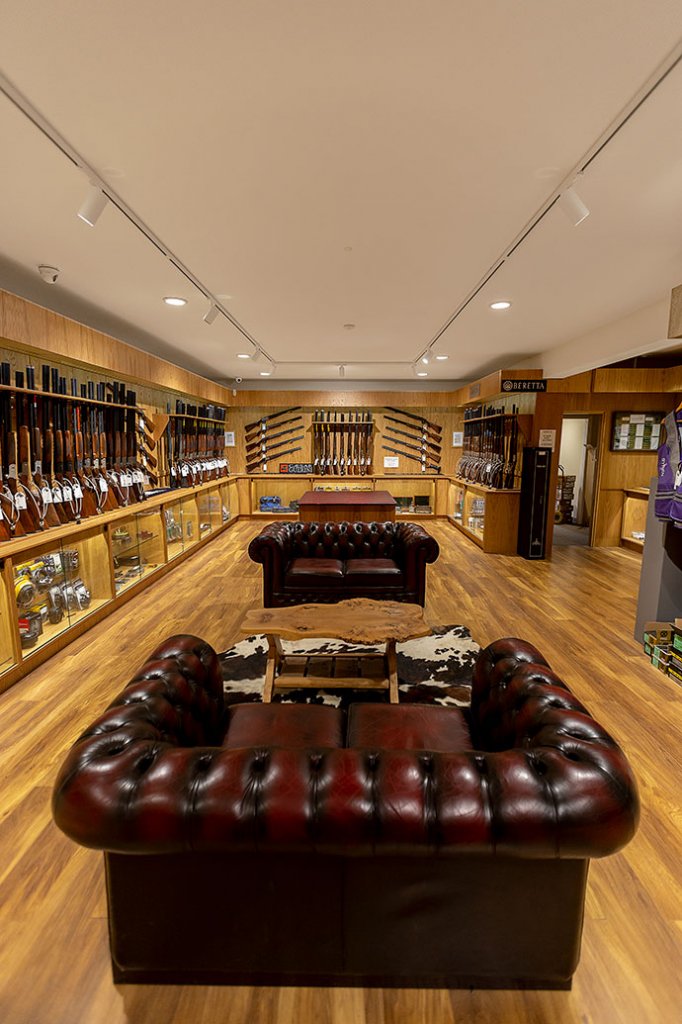

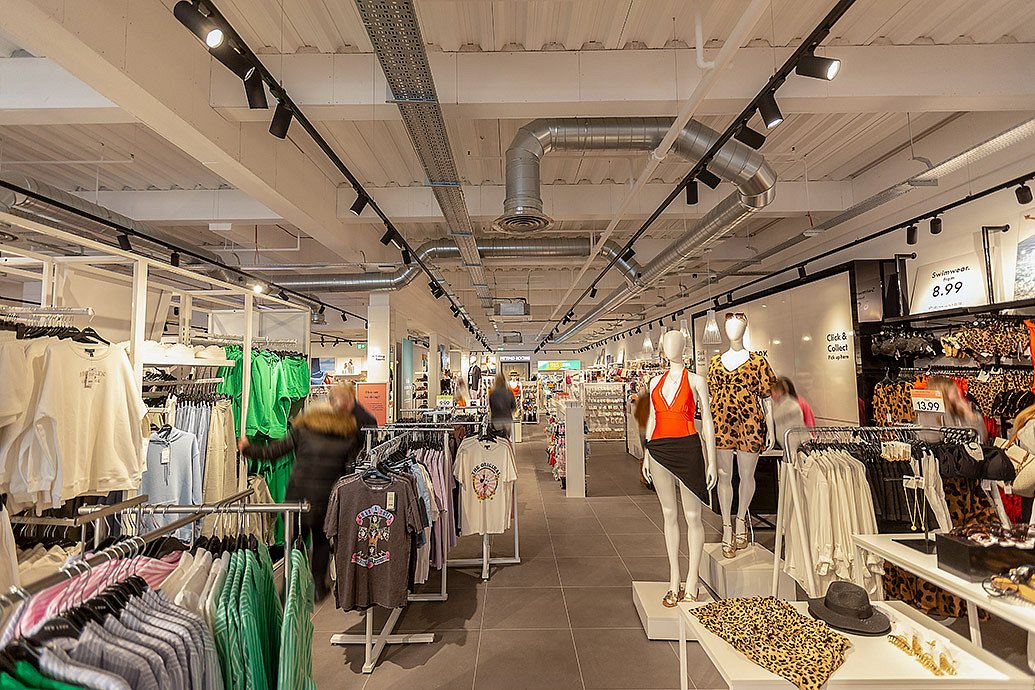

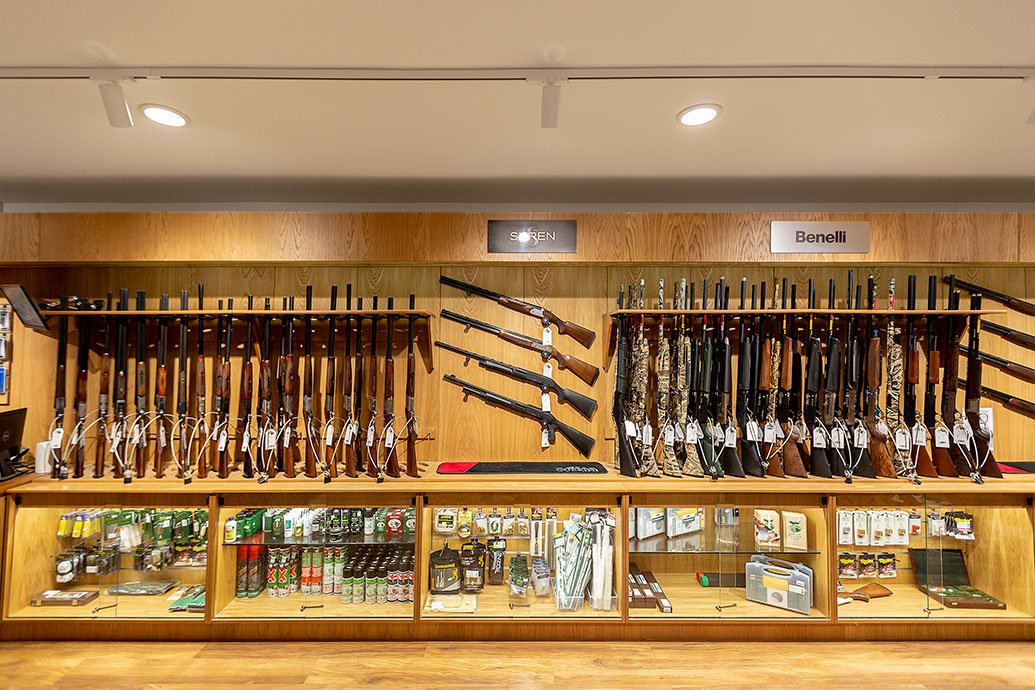

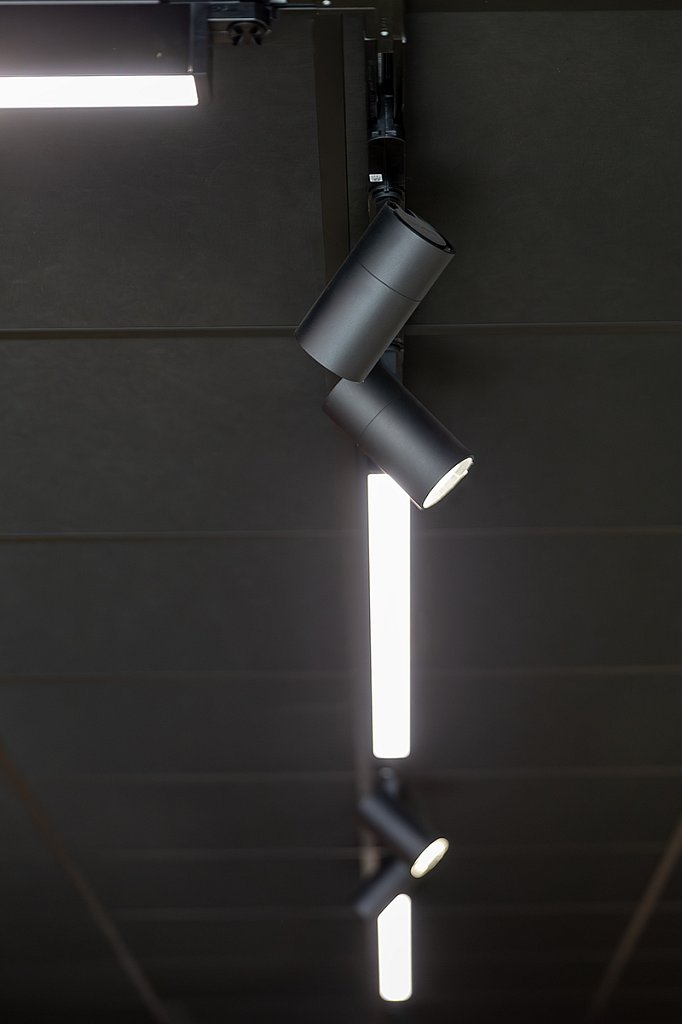

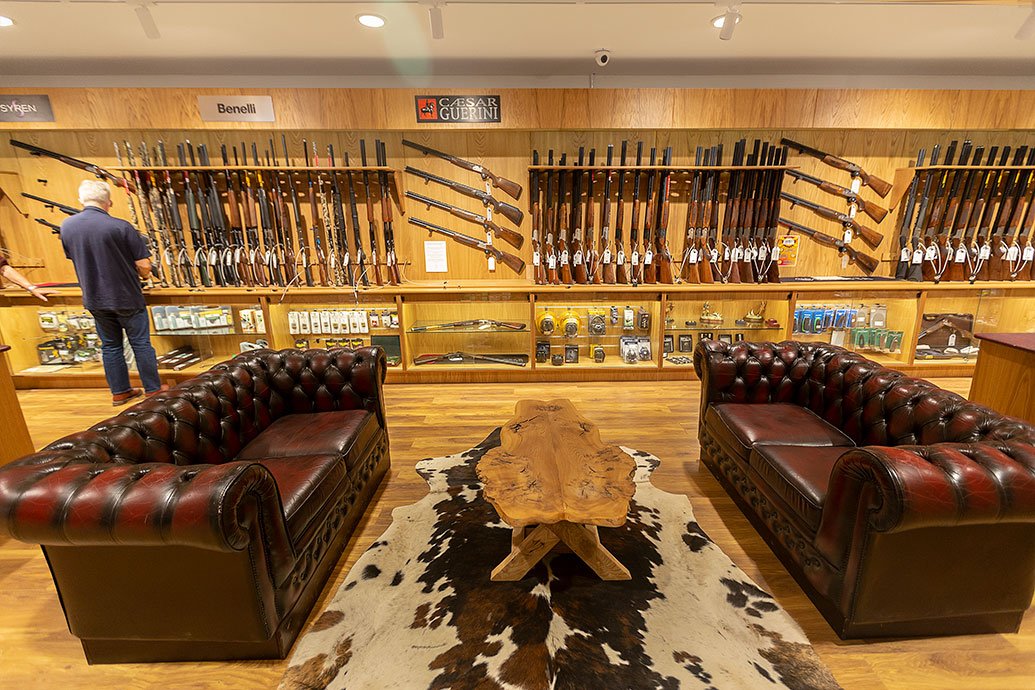

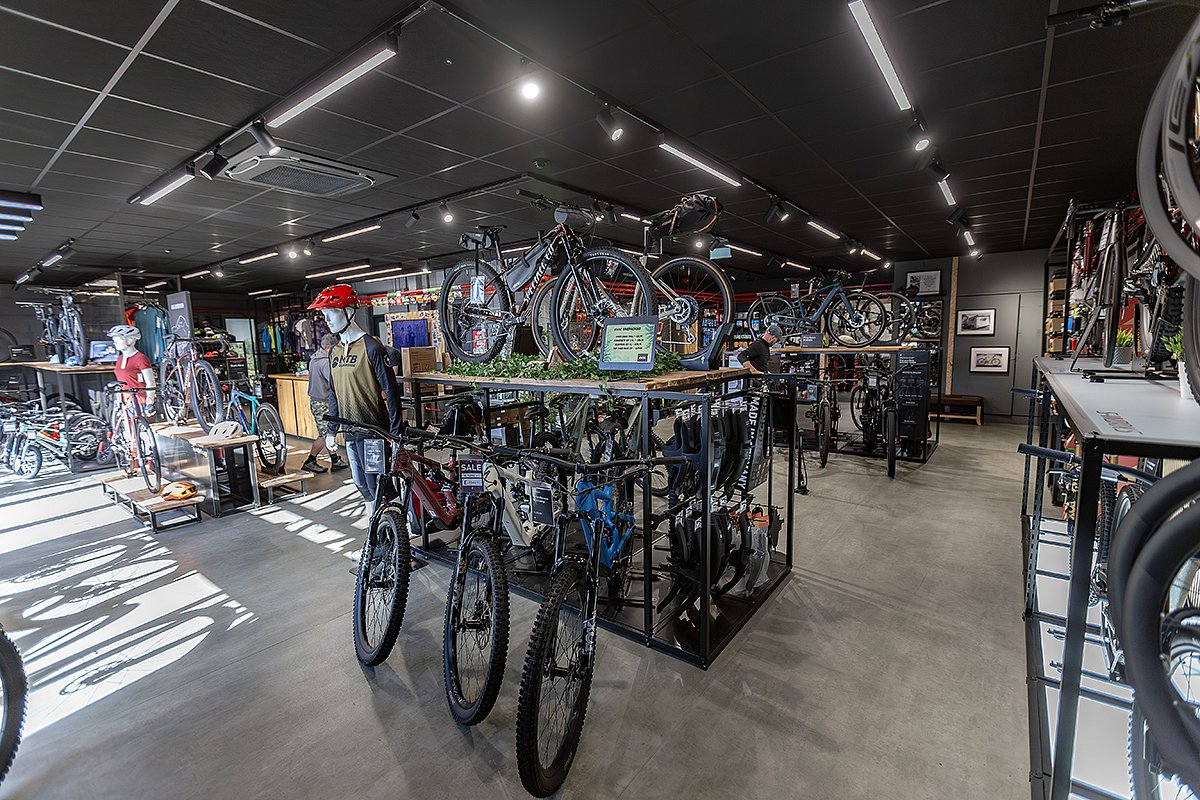

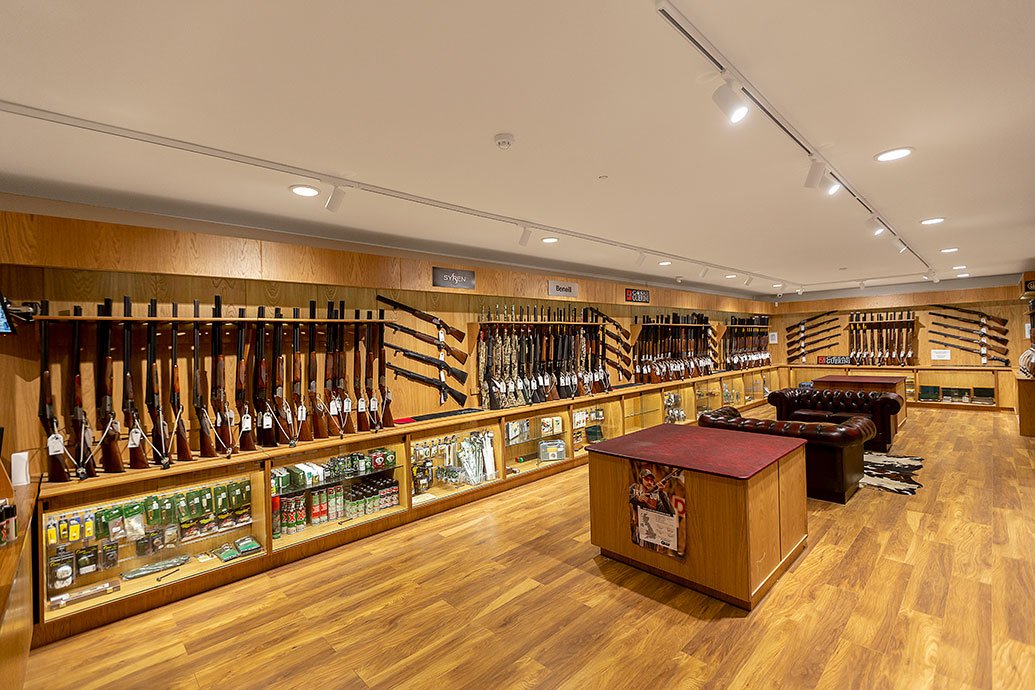

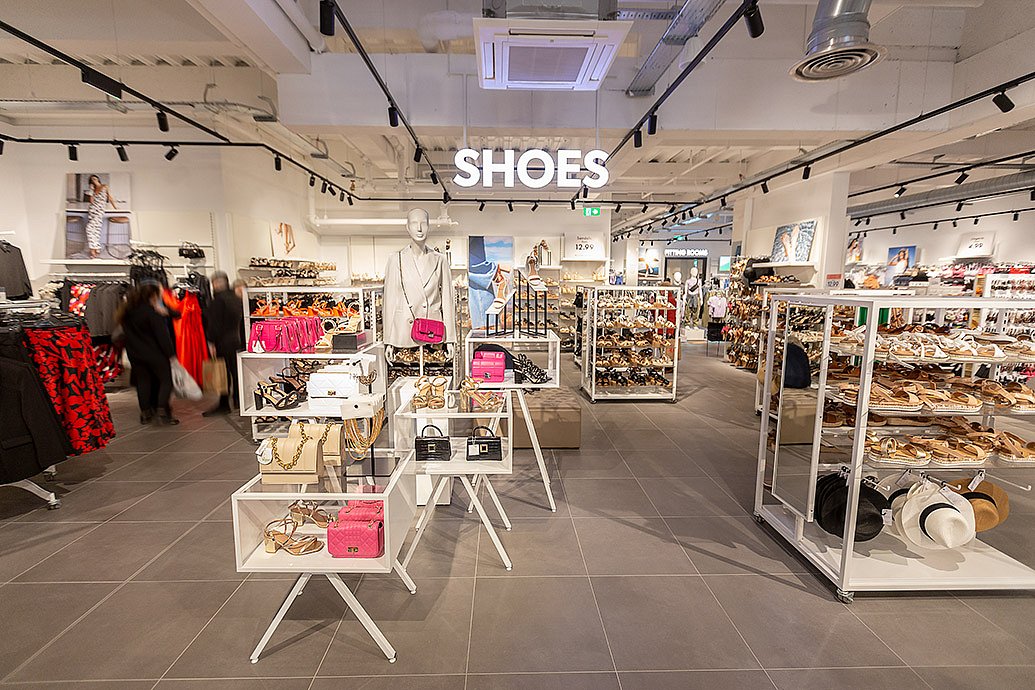

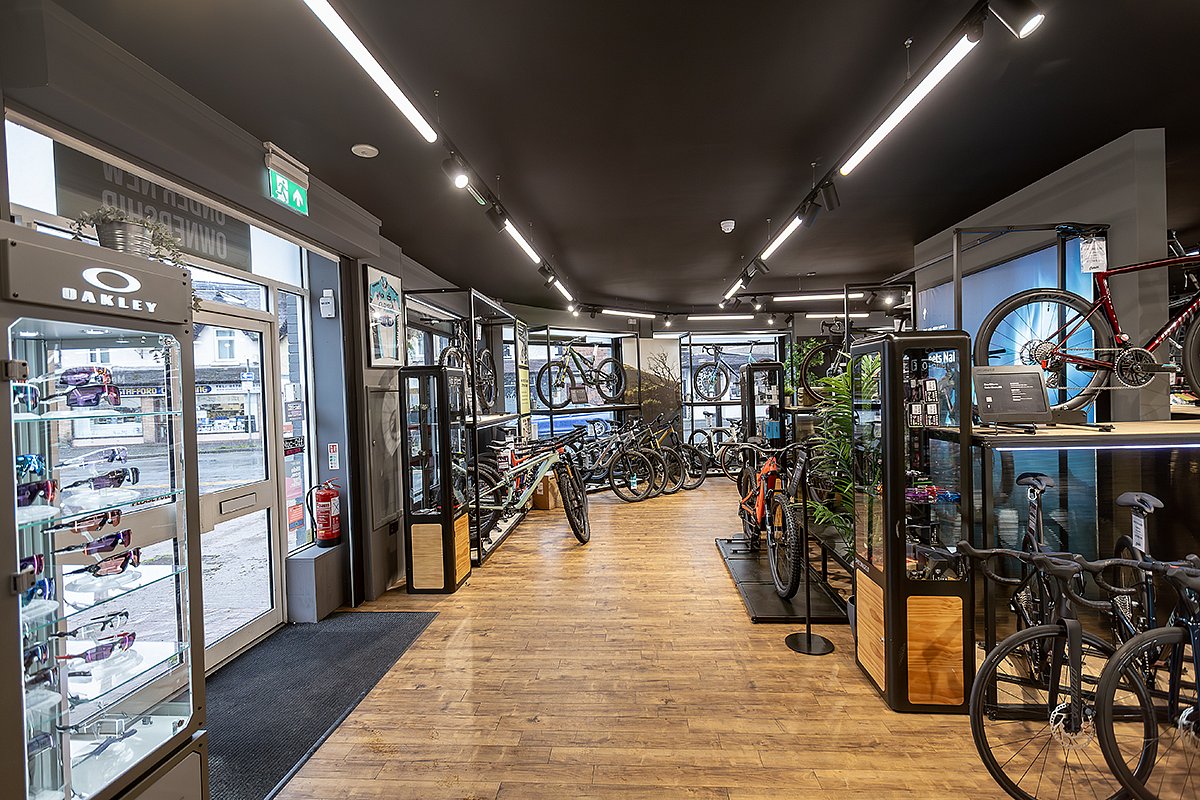

COULIS 70 in action

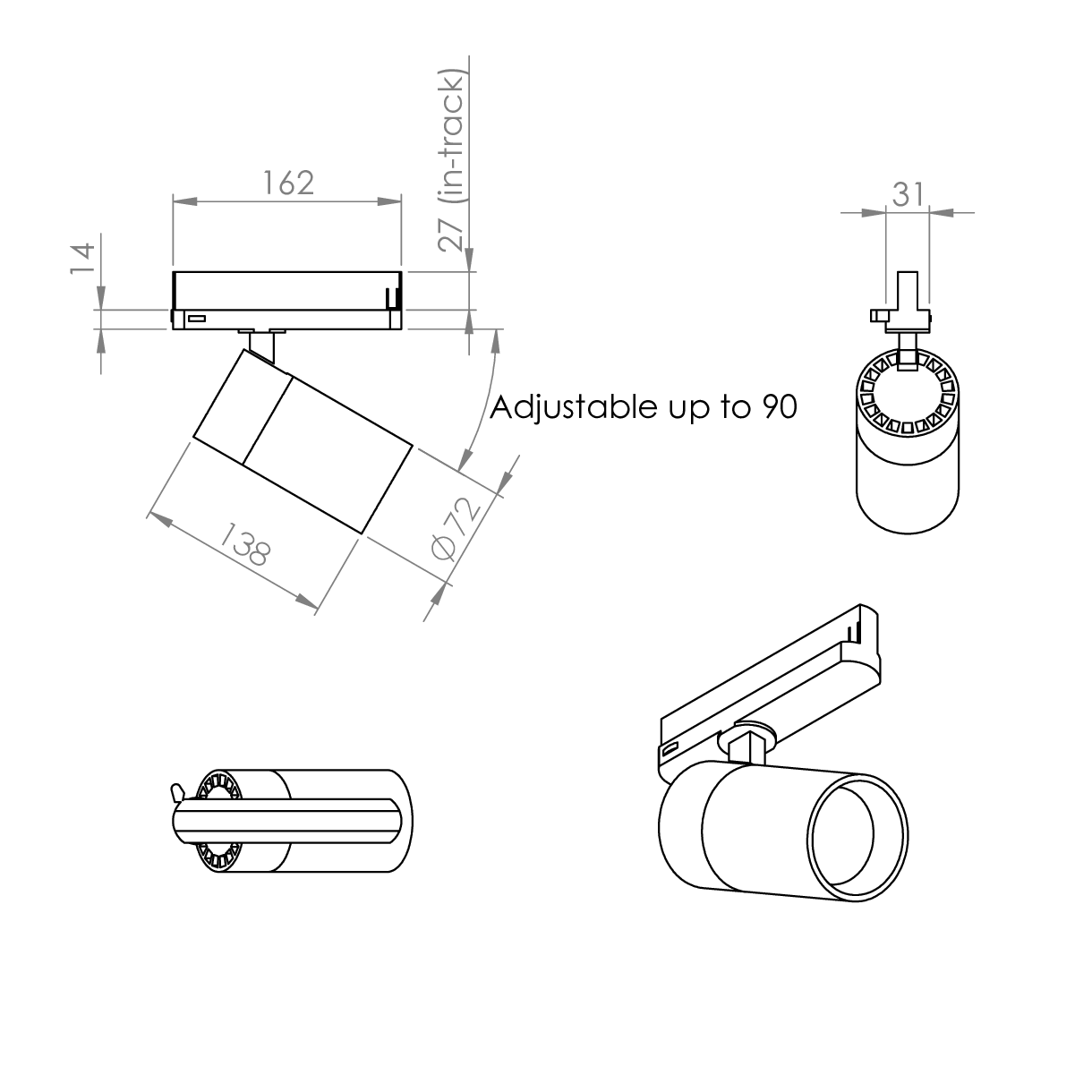

Technical

Coulis 70

Coulis 70

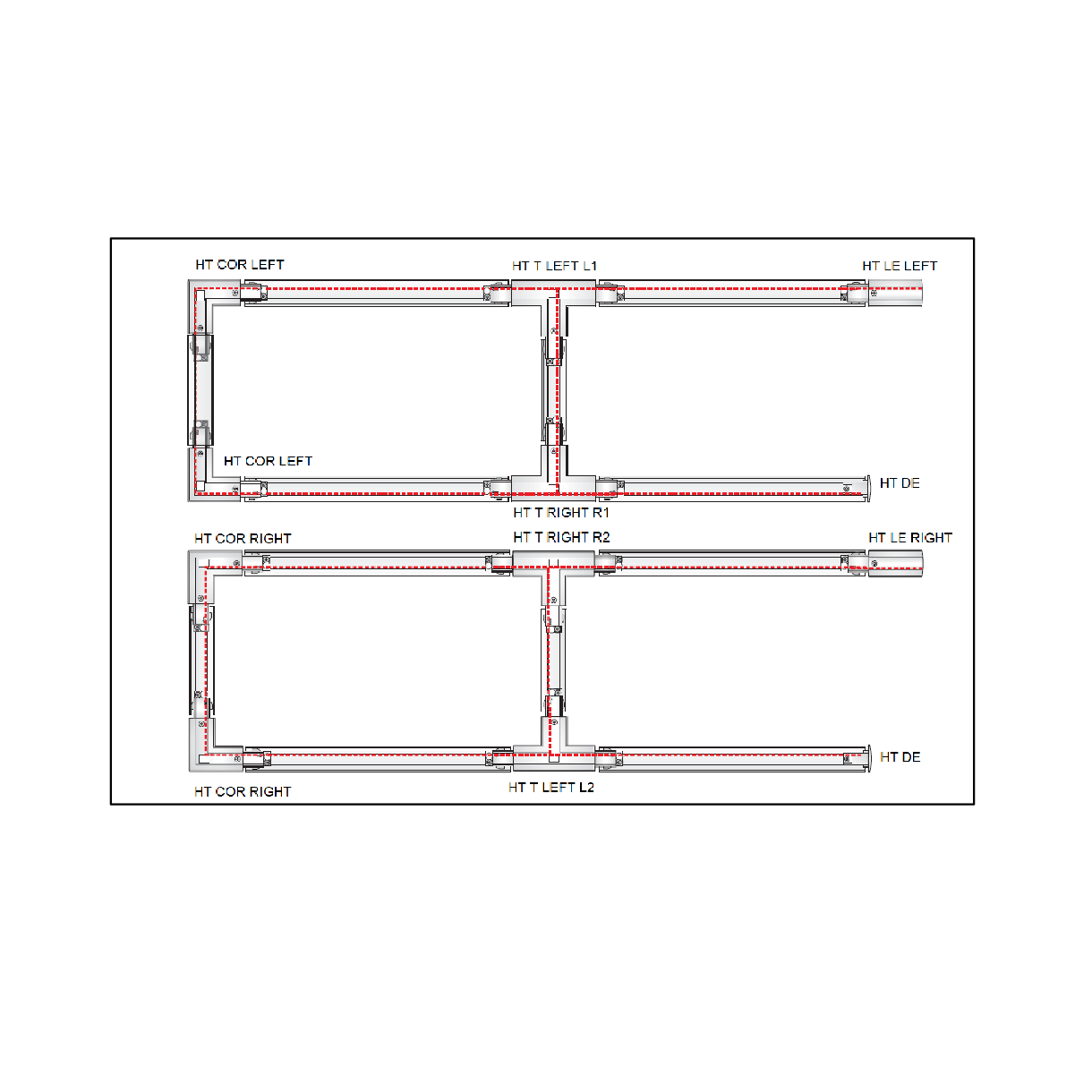

Track Polarity

Track Polarity

Ordering

Luminaires

Code Description Power Llm/W
COU70 L20 C93 GB Coulis 70, 1,840llm, White Body, Colour C93 20.7W 88
COU70 L30 C93 GB Coulis 70, 2,402llm, White Body, Colour C93 27.7W 87
COU70 L22 C94 GB Coulis 70, 2,047llm, White Body, Colour C94 20.6W 99
COU70 L32 C94 GB Coulis 70, 2,620llm, White Body, Colour C94 27.1W 97
COU70 L20 C93 BL GB Coulis 70, 1,840llm, Black Body, Colour C93 20.7W 88
COU70 L30 C93 BL GB Coulis 70, 2,402llm, Black Body, Colour C93 27.7W 87
COU70 L22 C94 BL GB Coulis 70, 2,047llm, Black Body, Colour C94 20.6W 99
COU70 L32 C94 BL GB Coulis 70, 2,620llm, Black Body, Colour C94 27.1W 97
Lumen values based on 60° Lens variants.

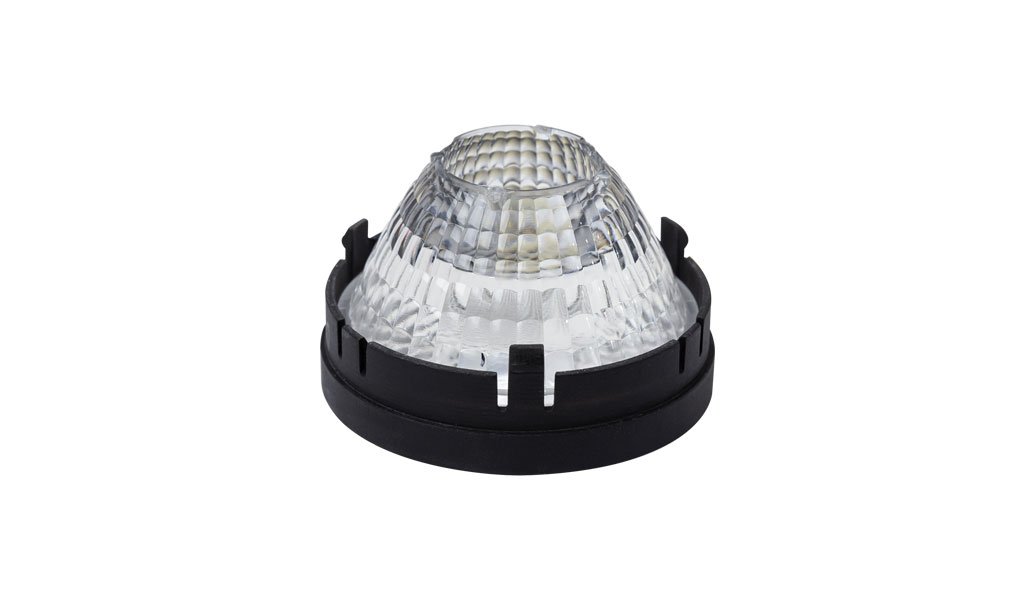

Optic

Code Description
COU70 20D LENS Coulis 70 20° Lens
COU70 40D LENS Coulis 70 40° Lens
COU70 60D LENS Coulis 70 60° Lens

Downloads

Installation guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
