AME2 LED

Introduction

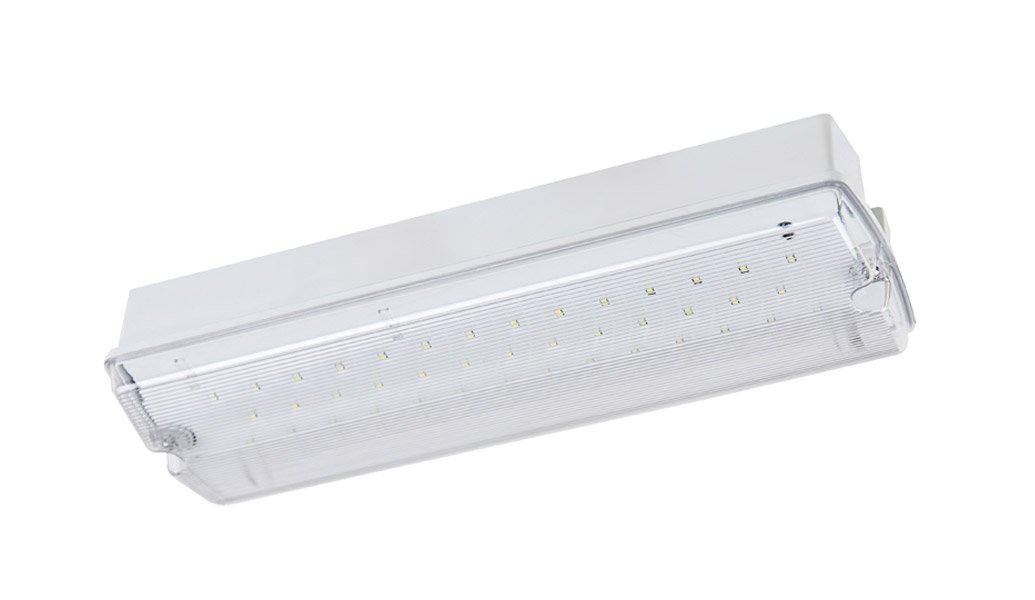

The AME is an LED emergency bulk head emergency luminaire incorporating lithium batteries for extended lifetime. With a white polycarbonate housing and clear polycarbonate diffuser the AME is both IP65 rated to protect from dust and water and able to withstand light impact. The AME is also available with adhesive legends to ensure that it can be used either for general emergency illumination or for emergency signage and is also available in wireless emergency Reacta-Link variants as well as Autotest and central battery versions.

AME complies with:

UKCA | CE | IP65 | IK07

Recommended applications:

Commercial / Offices | Corridor | Education | Exterior | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Parking / Exterior | Retail | Stairwell | Transport | Warehousing

Specification

Construction

  • Housing: Injection moulded polycarbonate
  • Finish: Matt white
  • Diffuser: Injection moulded clear polycarbonate
  • ISO 7010 or Euro Norm Legends with all directional arrow options.
  • IK07
  • IP65

Environmental

  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming

Installation

  • Suitable for conduit installation
  • Suitable for surface installation
  • Supplied with rear mounting points and side conduit entry.
5 year extended warranty available on most products.
Arrow right

Product Images

Technical

AME LED NM3/M3

AME LED NM3/M3

Ordering

Luminaires

Code Description
AME LED NM3 LE3 Amenity LED, Non Maintained, Lithium Standard Emergency 3 Hour
AME LED M3 LE3 Amenity LED, Maintained, Lithium Standard Emergency 3 Hour
AME LED NM3 LS3 Amenity LED, Non Maintained, Lithium Self Test Emergency 3 Hour
AME LED M3 LS3 Amenity LED, Maintained, Lithium Self Test Emergency 3 Hour
AME LED NM3 LA3 Amenity LED, Non Maintained, Lithium AutoTest Emergency 3 Hour
AME LED M3 LA3 Amenity LED, Maintained, Lithium AutoTest Emergency 3 Hour
All products are supplied with a 5 year battery warranty

Emergency

Code Description
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
AME ELK Emergency Legend Kit
AME ELK ISO Emergency Legend Kit, ISO 7010

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
