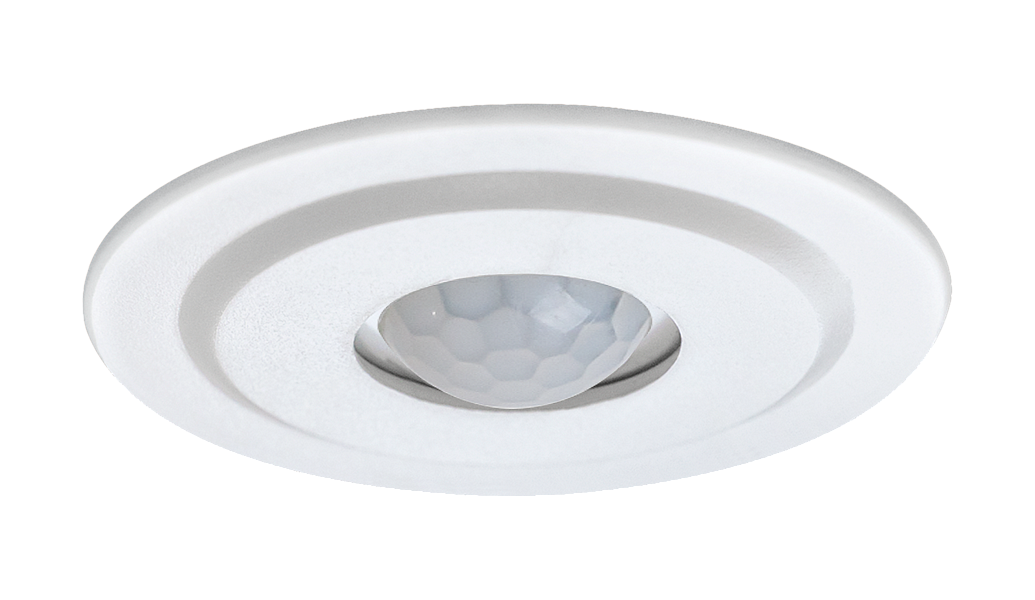

RLS10 (REACTA LINK SENSOR)
The Reacta-Link RLS10 Sensor offers presence detection up to 10M mounting heights and is compatible with our Reacta-Link wireless control system allowing grouping of sensors and with wireless wall switches.
Introduction
The Reacta-Link RLS10 Sensor offers presence detection up to 10M mounting heights and is compatible with our Reacta-Link wireless control system allowing grouping of sensors and with wireless wall switches.
Features & Benefits
- Mounting Type: Integral
- Wireless: Yes

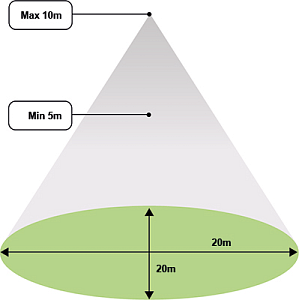

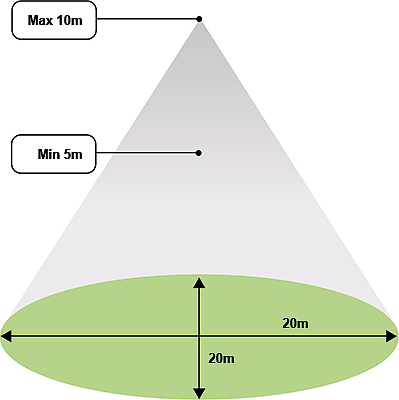

- Maximum Mounting Height: 10m
- Occupancy Detection: PIR
- Daylight Control: None
- Output: DALI
- Output: Wireless
- IP Rating: IP20
- Programmer: Commissioning Software
Adjustable Parameters
- Occupied mode: Presence/Absence/Manual
- Occupied Level: 1-100%
- Occupied Time: up to 2 hours
- Transition Time: up to 2 hours
- Transition Level: 1-100%
- Grouping: Enabled/Disabled
- More parameters available on programmer
