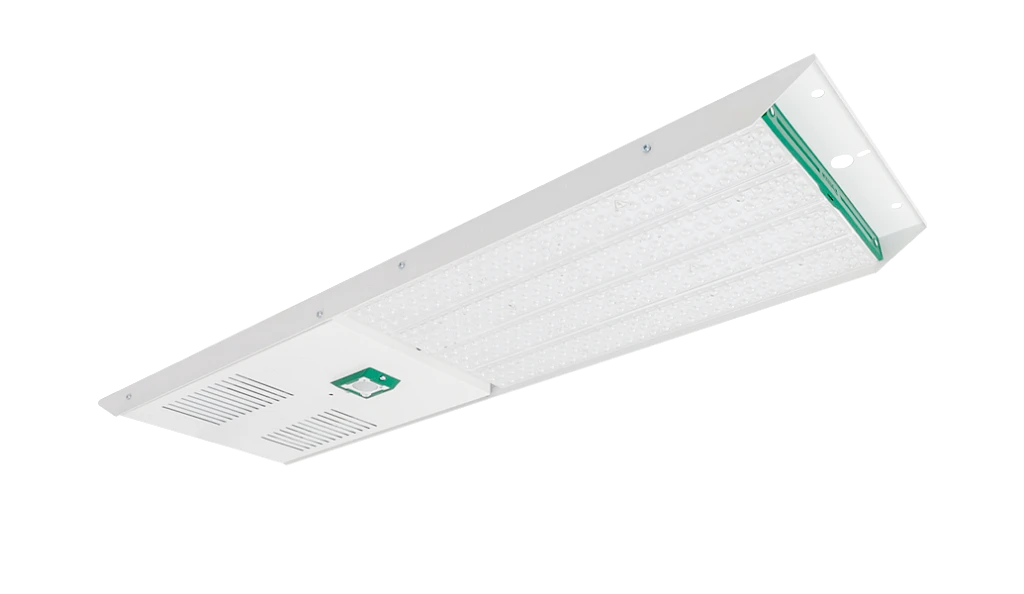

VERTECO 4
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The Verteco 4 is the latest generation in the Verteco family, designed to provide the ultimate lighting solution for warehousing, logistics and manufacturing applications. The Verteco 4 includes the same tried and tested features of previous generations including three lens options, quick and simple installation, our integral Reacta 18 sensor with ground level programming and a wide selection of dimming, lithium emergency and wireless control options with our Reacta-Link and Reacta-Air systems. The Verteco 4 also includes our latest generation of lenses with premium mid power LEDs offering state of the art efficiency.
The Verteco 4 has also been designed to minimise embodied carbon, whilst also encompassing the requirements of CIBSE TM66 to allow for simple upgrade and repair over lifetime. All key components are easily accessible and can be replaced with basic tools and the product is designed with two dedicated trays, one for the drivers, sensor, emergency module and battery and another for the LED circuits and lenses. At end of life these trays can be easily replaced allowing the luminaire housing to be reused for multiple life cycles and allowing efficiency upgrades to be easily gained with minimum cost and environmental impact.
VERTECO 4 complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Food Production | Industrial / Manufacturing | Retail | Transport | Warehousing
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Endcaps: Injection moulded polycarbonate
- Lens: Injection moulded polycarbonate lens
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
- All control gear components are mounted on an easily replaceable tray, whilst the LED circuits and lenses are mounted on a separate replaceable tray allowing modular repair and upgrade of the luminaire.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional DALI dimming
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional Integral R18 presence and daylight sensor
- Optional Integral Reacta-Air wireless presence and daylight regulations sensor
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Ground level commissioning with REA-AP controller allows quick and simple setting and adjustment of sensors without the need for costly commissioning.
- R18 Integral sensor control provides daylight regulation and presence detection combined with optional wireless linking for Dexeco’s predictive lighting system.
Installation
- Suitable for suspended installation
- Suitable for trunking installation
- Suitable for surface installation
- Rear housing contains fixings for range of installation methods.
- Side mounted plug and socket connector for quick electrical connection with no need to access the luminaire.
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs

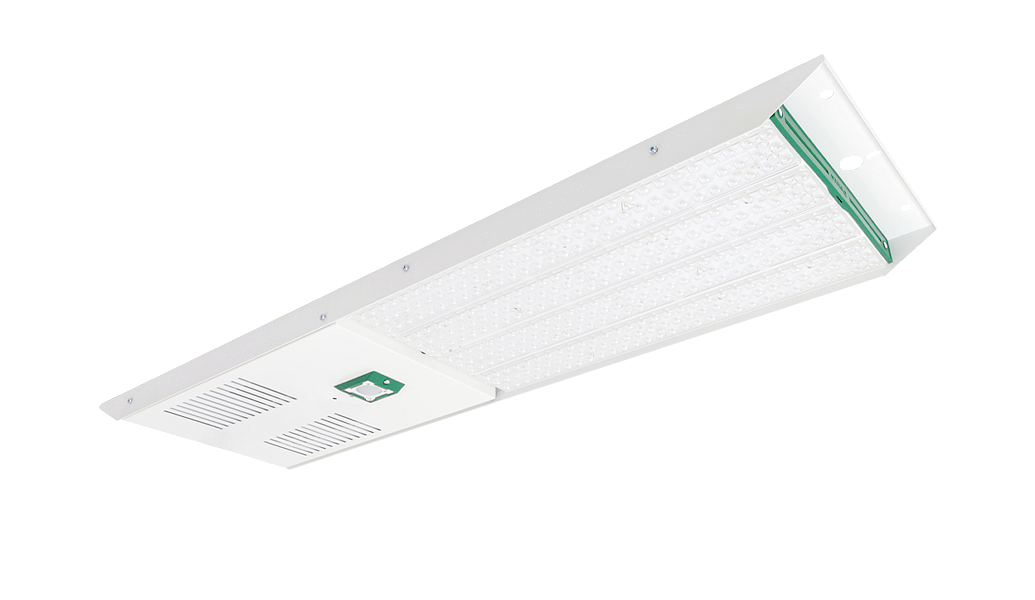

Product Images
Technical

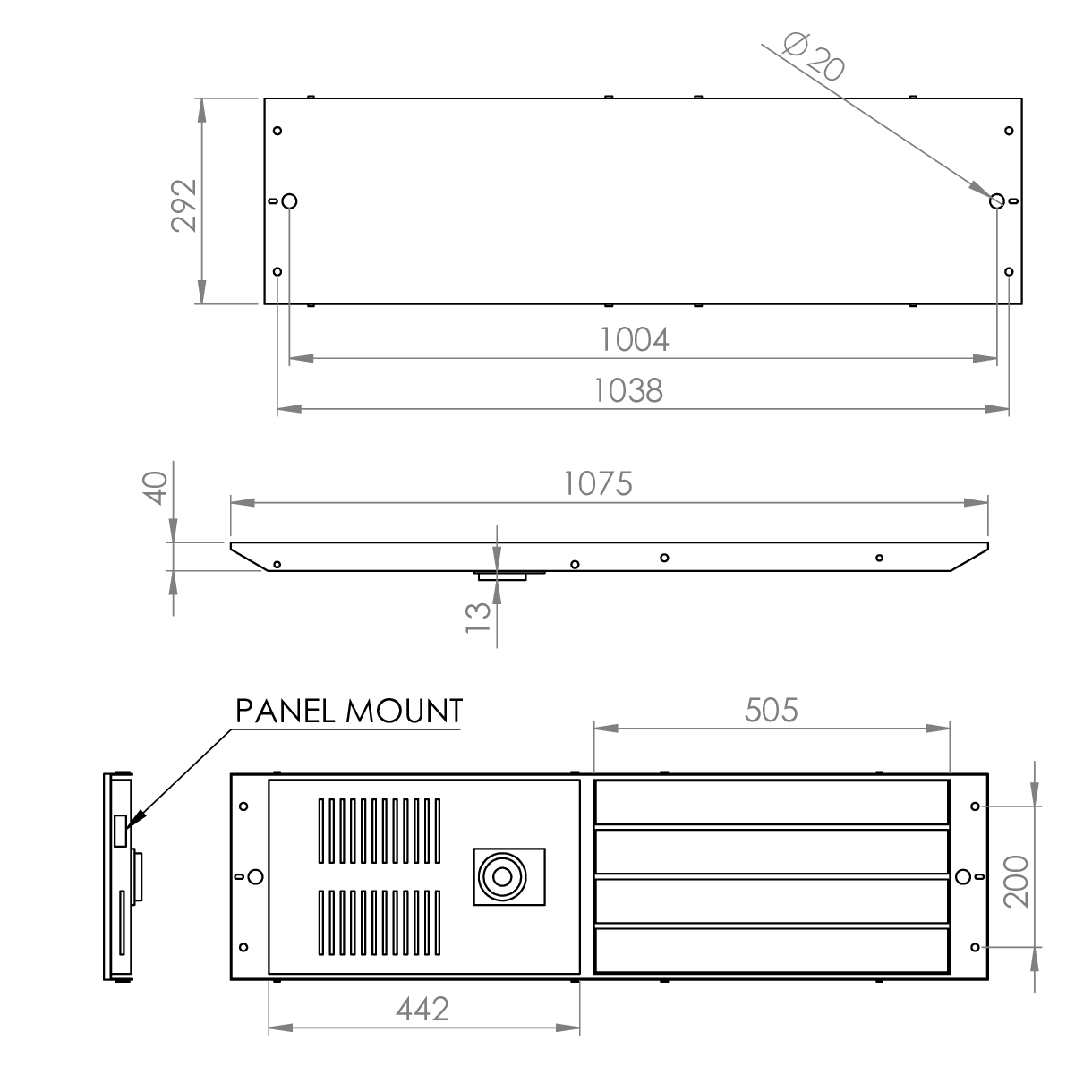

Verteco 4 - 4 Circuit 1000mm

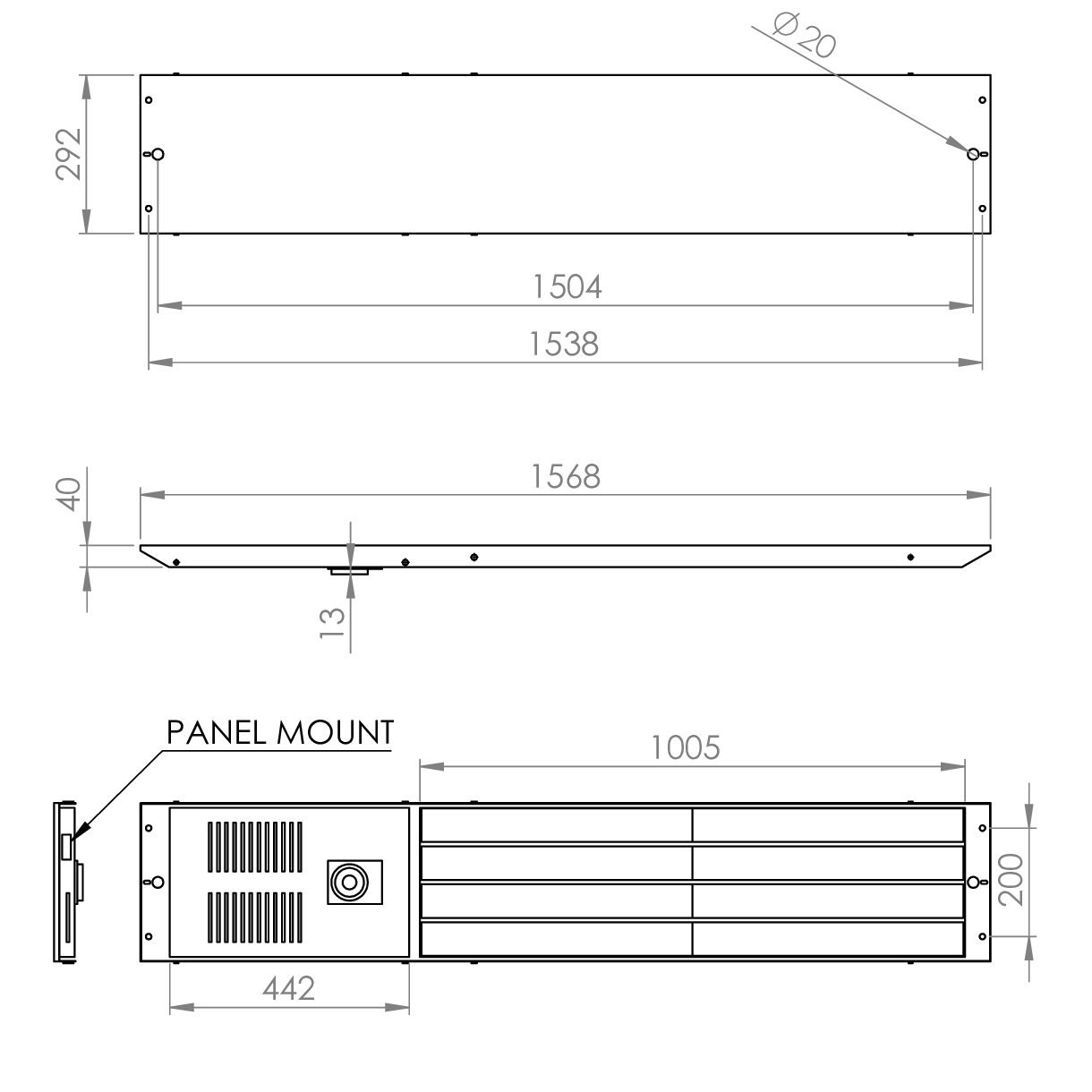

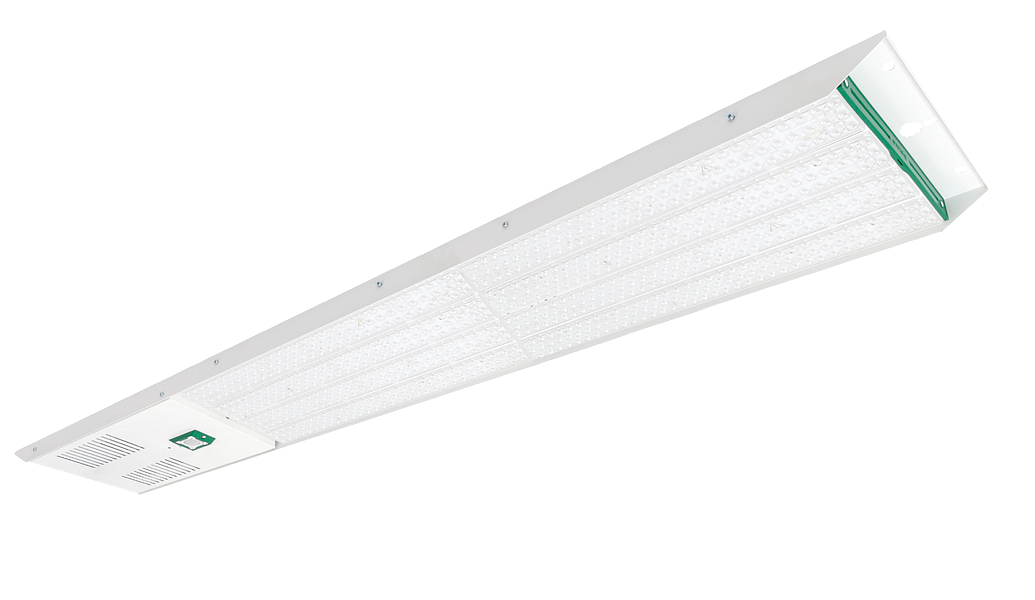

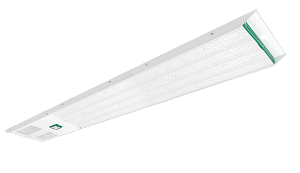

Verteco 4 - 8 Circuit 1500mm
Ordering
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
Control
| Code | Description |
|---|---|
| R18U | Reacta 18, Ultra Wide, Presence & Daylight, 4-7M |
| R18W | Reacta 18, Wide, Presence & Daylight, 7-18M |
| R18H | Reacta 18, Narrow, Presence & Daylight, 7-18M |
| R18WRF | Reacta 18, Wireless, Wide, Presence & Daylight, 7-18M |
| R18HRF | Reacta 18, Wireless, Narrow, Presence & Daylight, 7-18M |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RLS10 | Reacta-Link Wireless, Presence, 5-10M |
| RLS15 | Reacta-Link Wireless, Presence, 10-15M |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RC18 | Reacta 18 IP65, Presence and Daylight, 8-18M |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LE3H | Lithium Standard Emergency 3 Hour High Output |
| LS3H | Lithium Selftest Emergency 3 Hour High Output |
| LA3H | Lithium Autotest Emergency 3 Hour High Output |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| LSF | Low Smoke Zero Halogen |
