Sky-Light 1500mm

Introduction

The Sky-Light LED range has been developed to offer retailers an aesthetically pleasing energy efficient solution for high level open store lighting. The product utilises the high transmission opal diffusers to provide maximum efficiency whilst ensuring that the point source of the individual LED chips are not visible from below. The bespoke waveform diffusers ensure that the product appears lit when viewed from any angle across the store and the fitting can be supplied in a range of end cap colours to allow you to customise its appearance to match your corporate identity. These features coupled with a wide range of lumen outputs combine to make the Sky-Light LED the most advanced, energy efficient, high level LED luminaire in its class and the ideal choice for the modern retail environment. The Sky-Light 2 is also compatible with a range of wireless controls allowing for basic dimming and control through to centralised web based reporting for energy and emergency reporting with our Reacta-Link system as well as integral lithium emergency helping to ensure the safety of your installation.

We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

SKY-LIGHT complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Hotel / Leisure | Retail

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Endcaps: Injection moulded polycarbonate
  • Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 150 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations

Installation

  • Suitable for suspended installation
  • Suitable for conduit installation
  • Can be supplied with M6 captive cage nuts for direct mounting to trunking.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
5 year extended warranty available on most products.
Arrow right

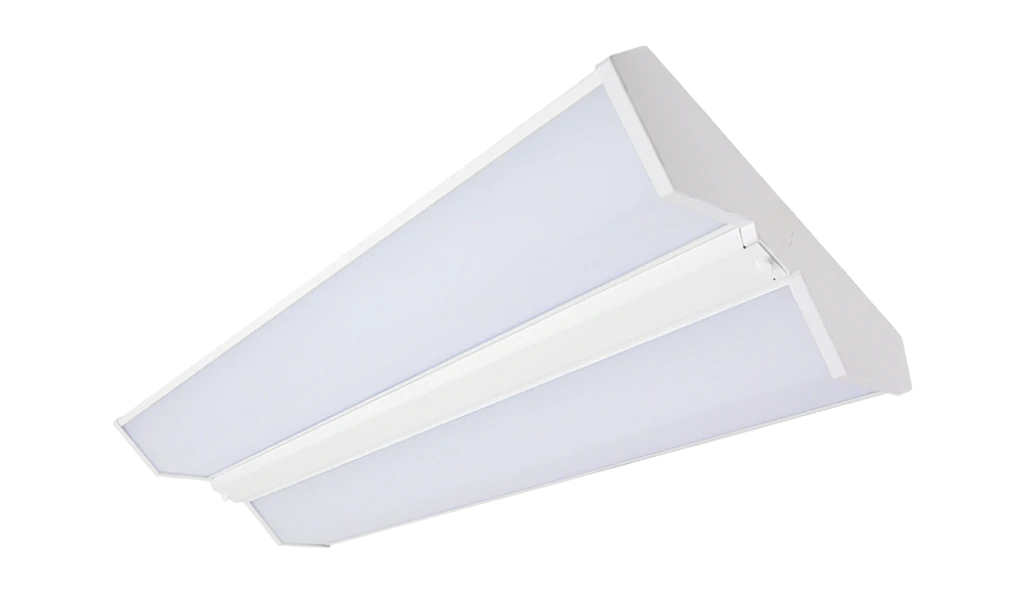

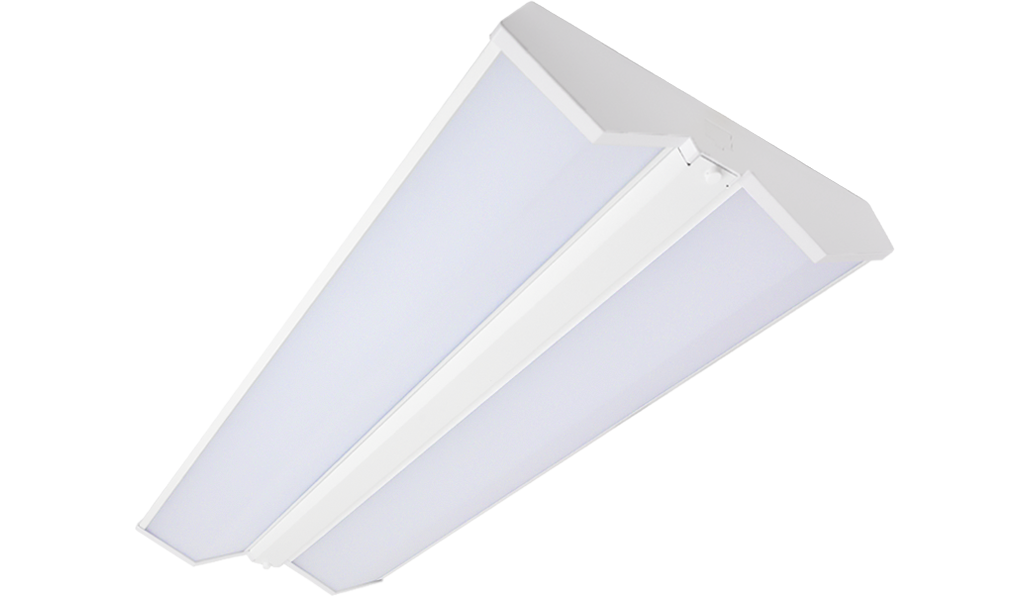

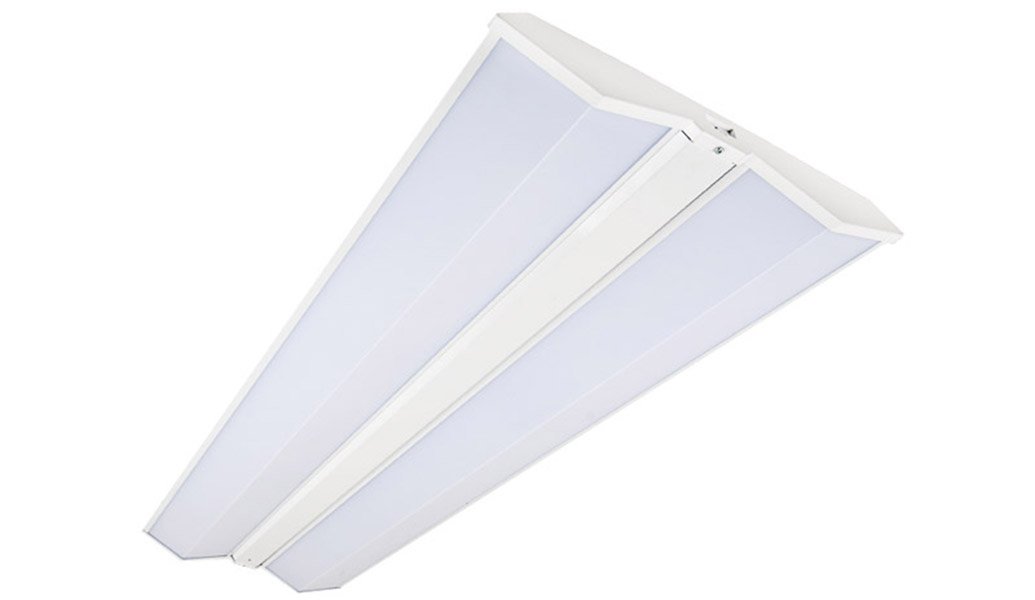

Product Images

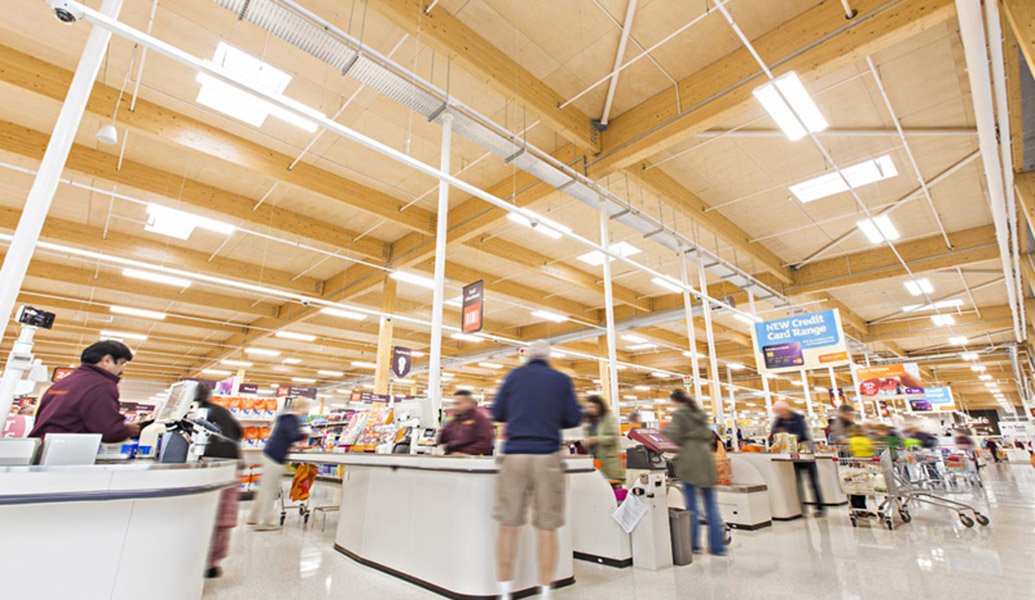

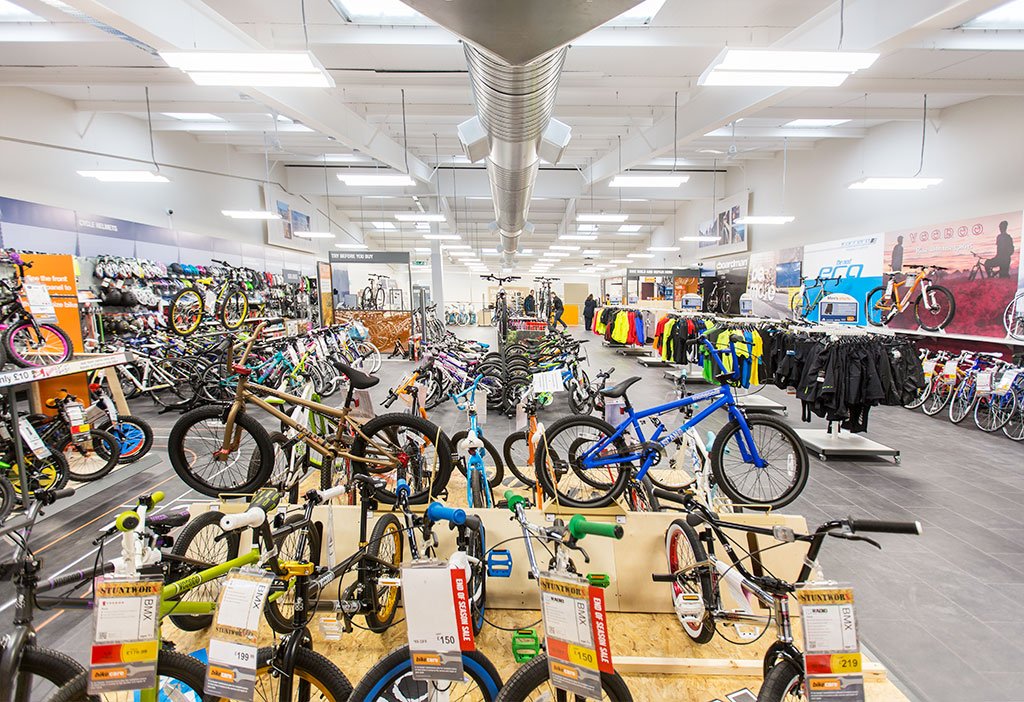

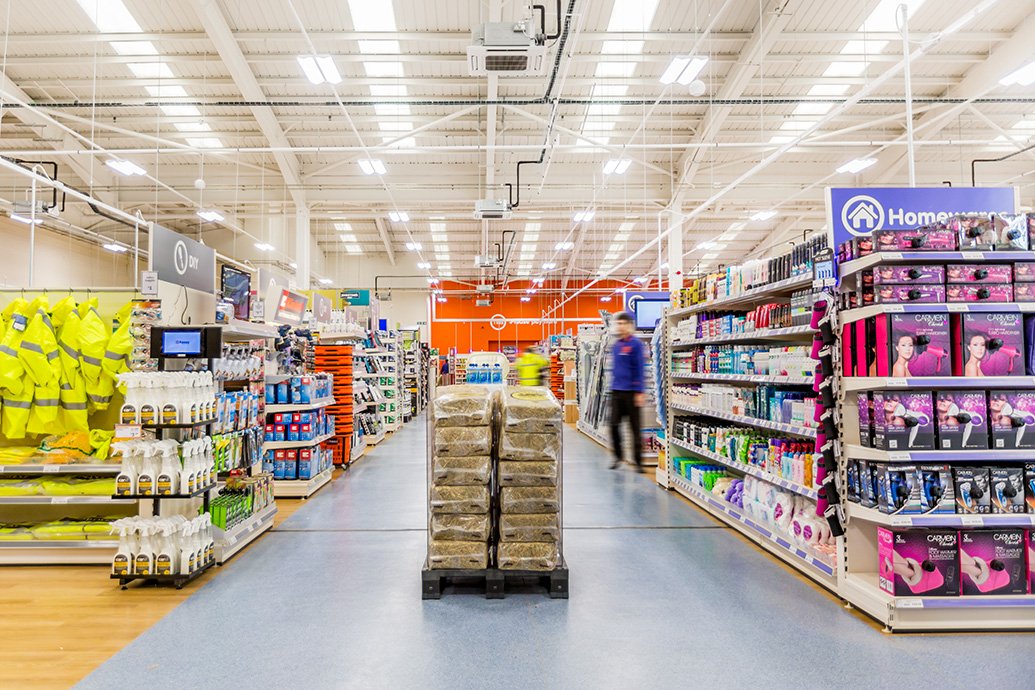

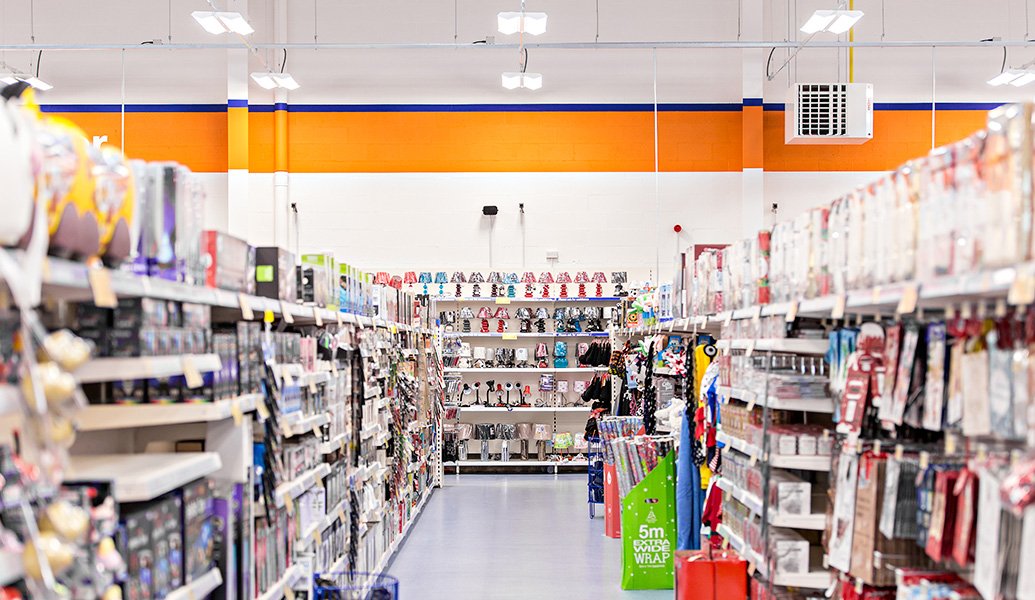

SKY-LIGHT in action

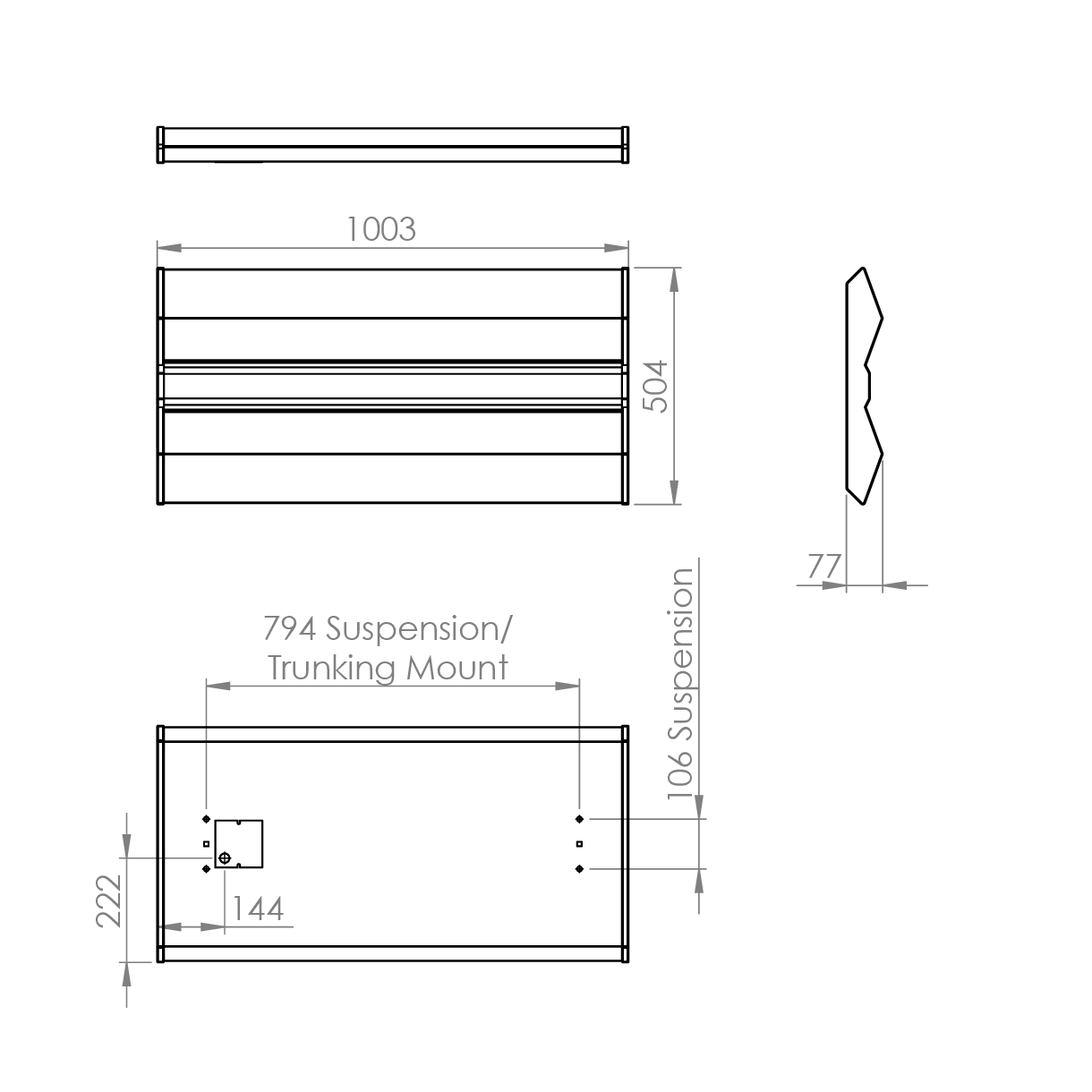

Technical

Sky-Light

Sky-Light

Ordering

Luminaires

Code Description Power Llm/W
SKY L132 OP WH Skylight, 10,718llm C84, 1000mm, Opal Diffuser 75.7W 141
SKY L170 OP WH Skylight, 13,804llm C84, 1000mm, Opal Diffuser 96.6W 142
SKY L192 OP WH Skylight, 15,590llm C84, 1000mm, Opal Diffuser 107.8W 144
SKY L222 OP WH Skylight, 18,025llm C84, 1000mm, Opal Diffuser 128.2W 140
SKY L255 OP WH Skylight, 20,451llm C84, 1000mm, Opal Diffuser 135.6W 150
SKY L300 OP WH Skylight, 24,060llm C84, 1000mm, Opal Diffuser 173.9W 138
SKY L340 OP WH Skylight, 27,283llm C84, 1000mm, Opal Diffuser 193.3W 141

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire
RLS10 Reacta-Link Wireless, Presence, 5-10M
RLS15 Reacta-Link Wireless, Presence, 10-15M
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
RCS18 Reacta-Control Wireless, Presence, Daylight, 8-18M
Please click here for full details on our wireless controls.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
4PM 4 Pole Panel Mount
6PM 6 Pole Panel Mount

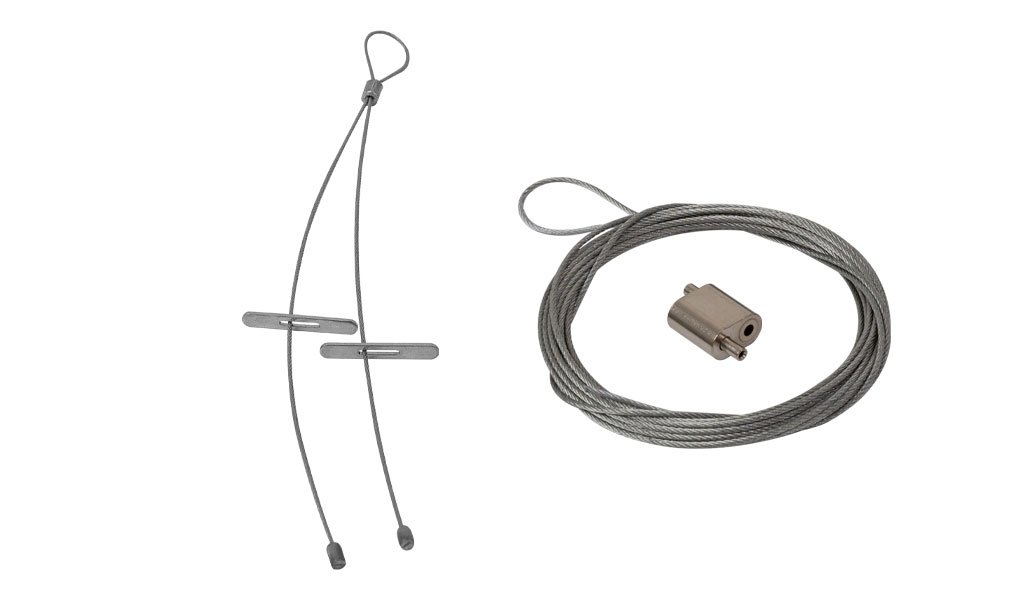

SUSP SKY 5M BF X2 5M Suspension Kit Barrel Fix
LSF Low Smoke Zero Halogen
SUSP SKY 5M LO X2 5M Loop Over Suspension Kit (Two Drops)
SUSP SKY 10M LO X2 10M Loop Over Suspension Kit (Two Drops)

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
