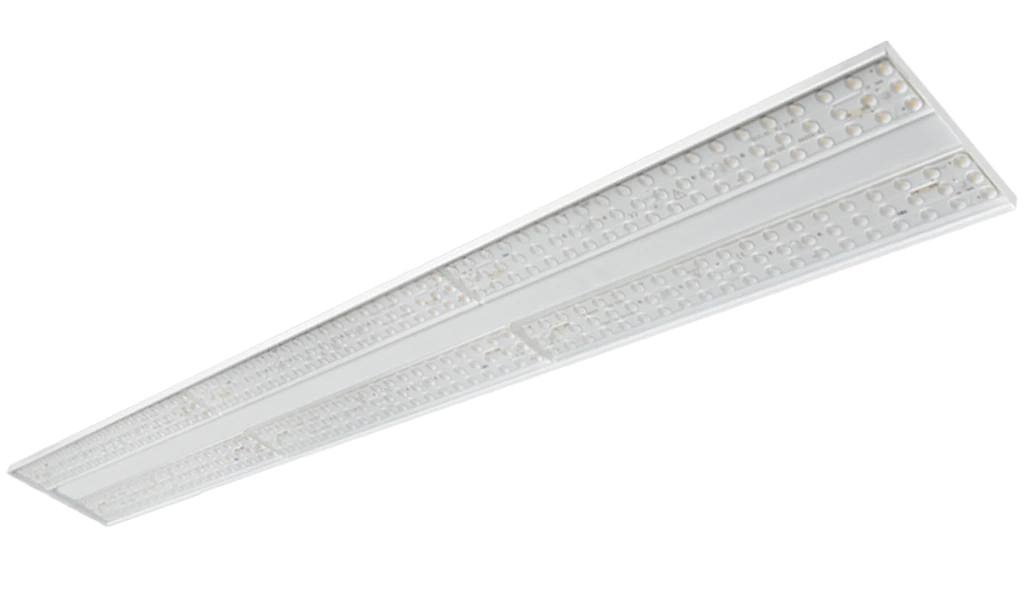

SKY-LIGHT 2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The Sky-Light 2 offers a highly efficient lens controlled solution for a wide range of applications from retail through to light industry, manufacturing and logistics. The lensed optic provides excellent efficiency and precise control ensuring light is cast exactly where required. The minimalist steel housing ensures that the Sky-Light 2 is unobtrusive whilst allowing cool operation of LEDs maximising life time.
With a 90° beam angle as standard the Sky-Light 2 is optimised for retail applications ensuring gondolas and merchandise are lit to optimal effect creating an attractive environment for customers whilst minimising glare. Other lens options can be offered ensuring the Sky-Light 2 can be tailored to a multitude of applications. The Sky-Light 2 can also be offered with all common dimming and lithium emergency variants. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored..
SKY-LIGHT 2 complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Hotel / Leisure | Industrial / Manufacturing | Retail | Transport | Warehousing
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Lens: Injection moulded polycarbonate lens
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 184 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
Installation
- Suitable for suspended installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
Technical

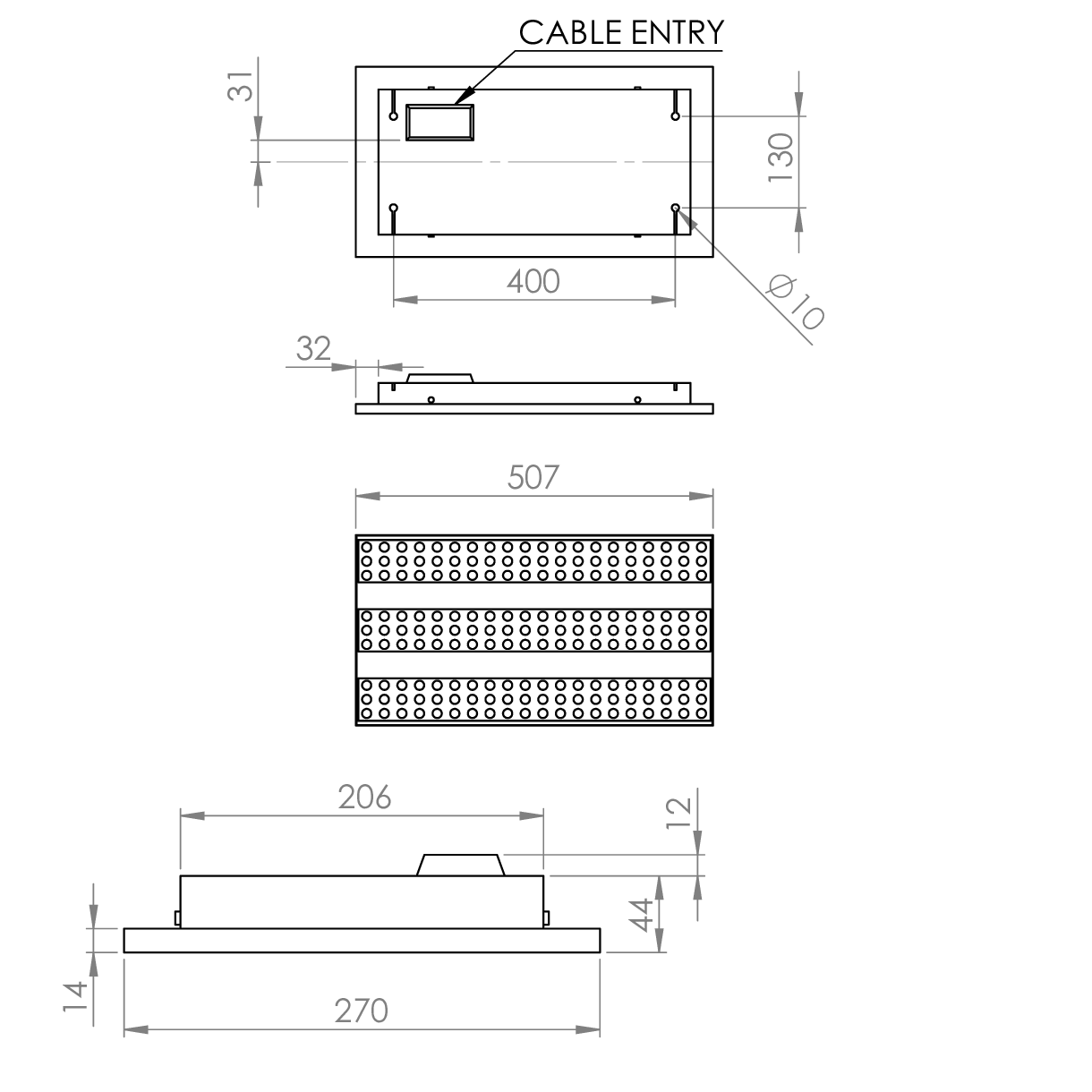

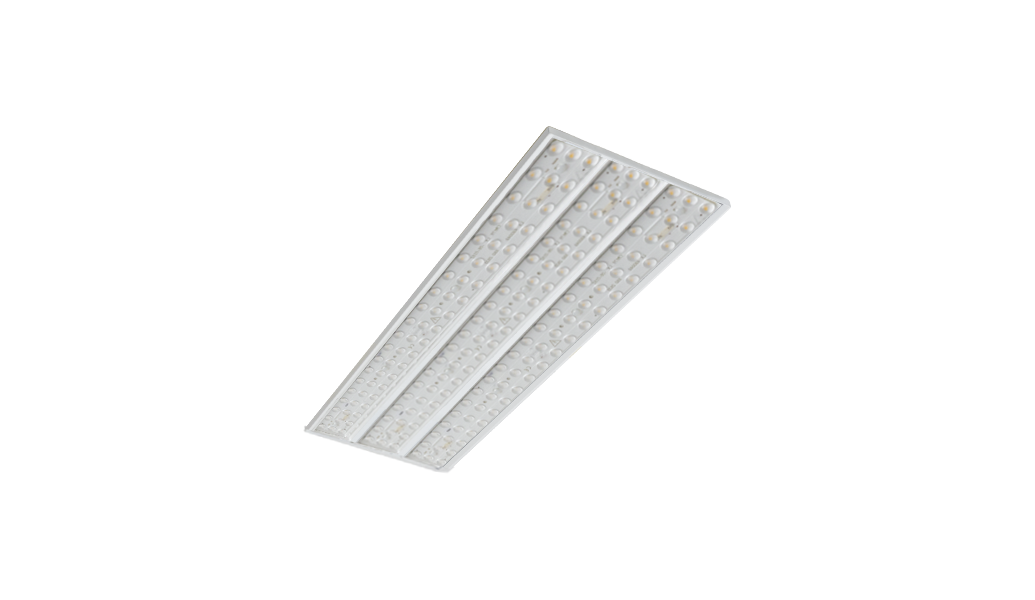

Sky-Light 2 3 Circuit 500mm

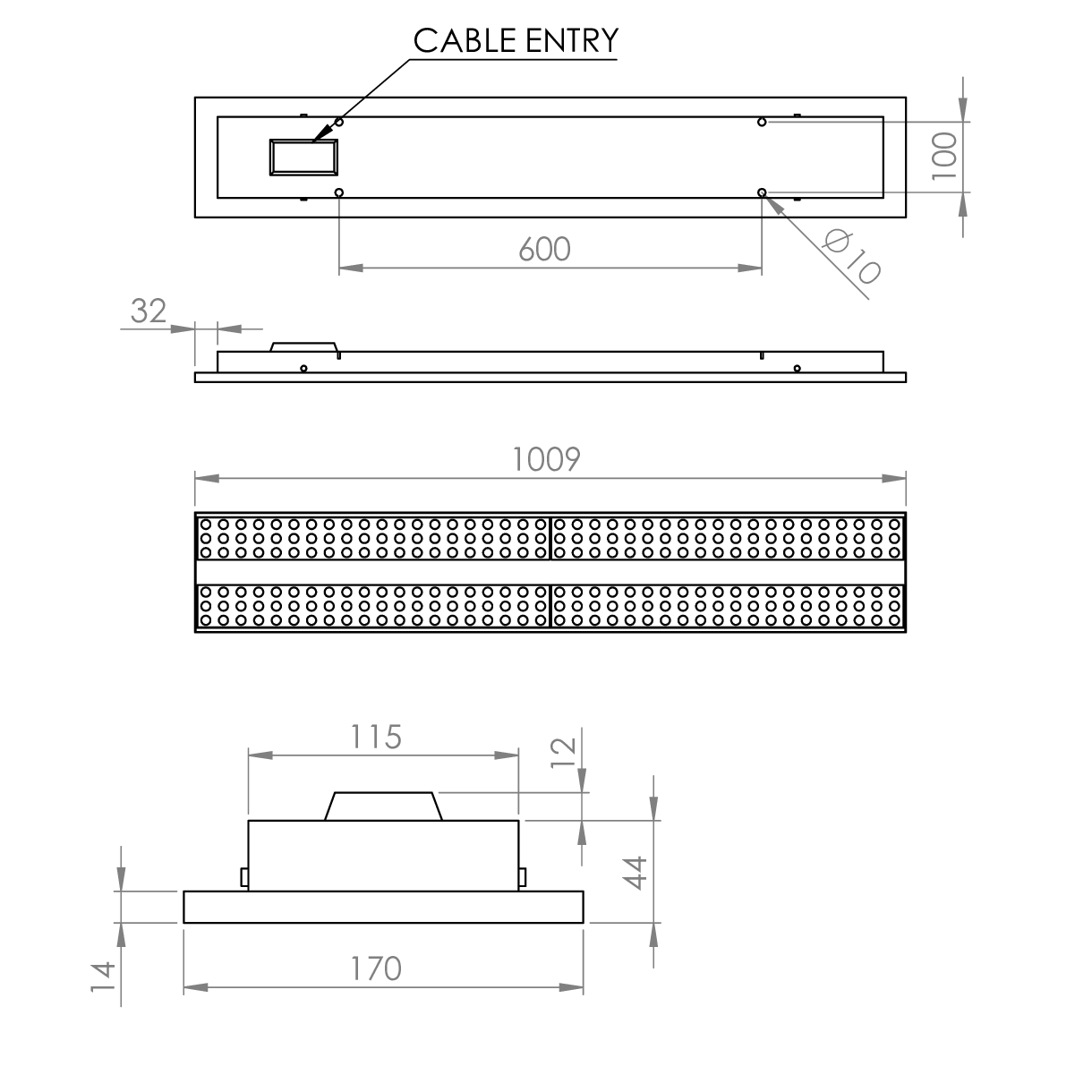

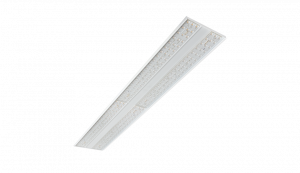

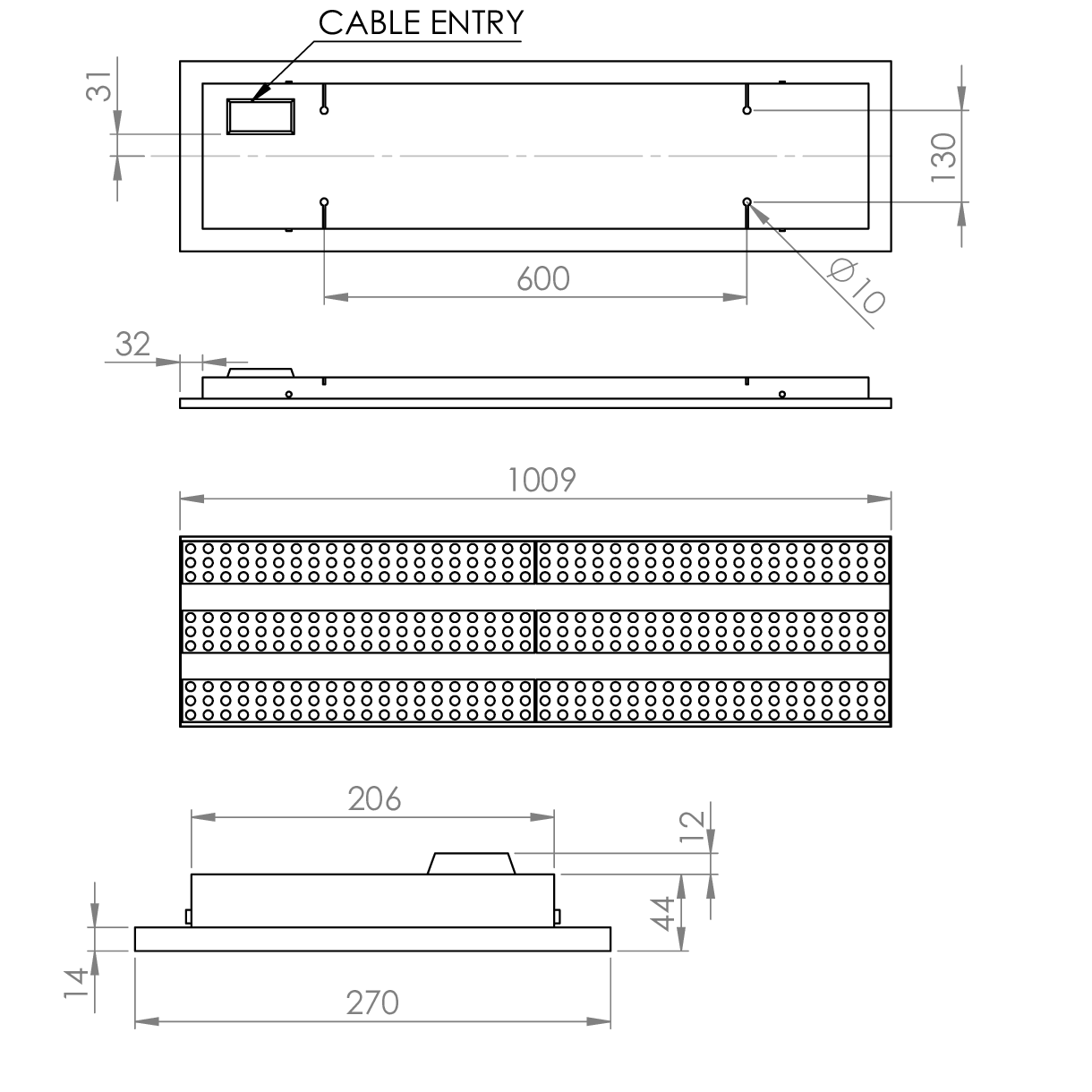

Sky-Light 2 4 Circuit 1000mm

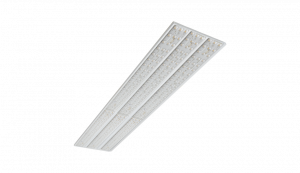

Sky-Light 2 6 Circuit 1000mm

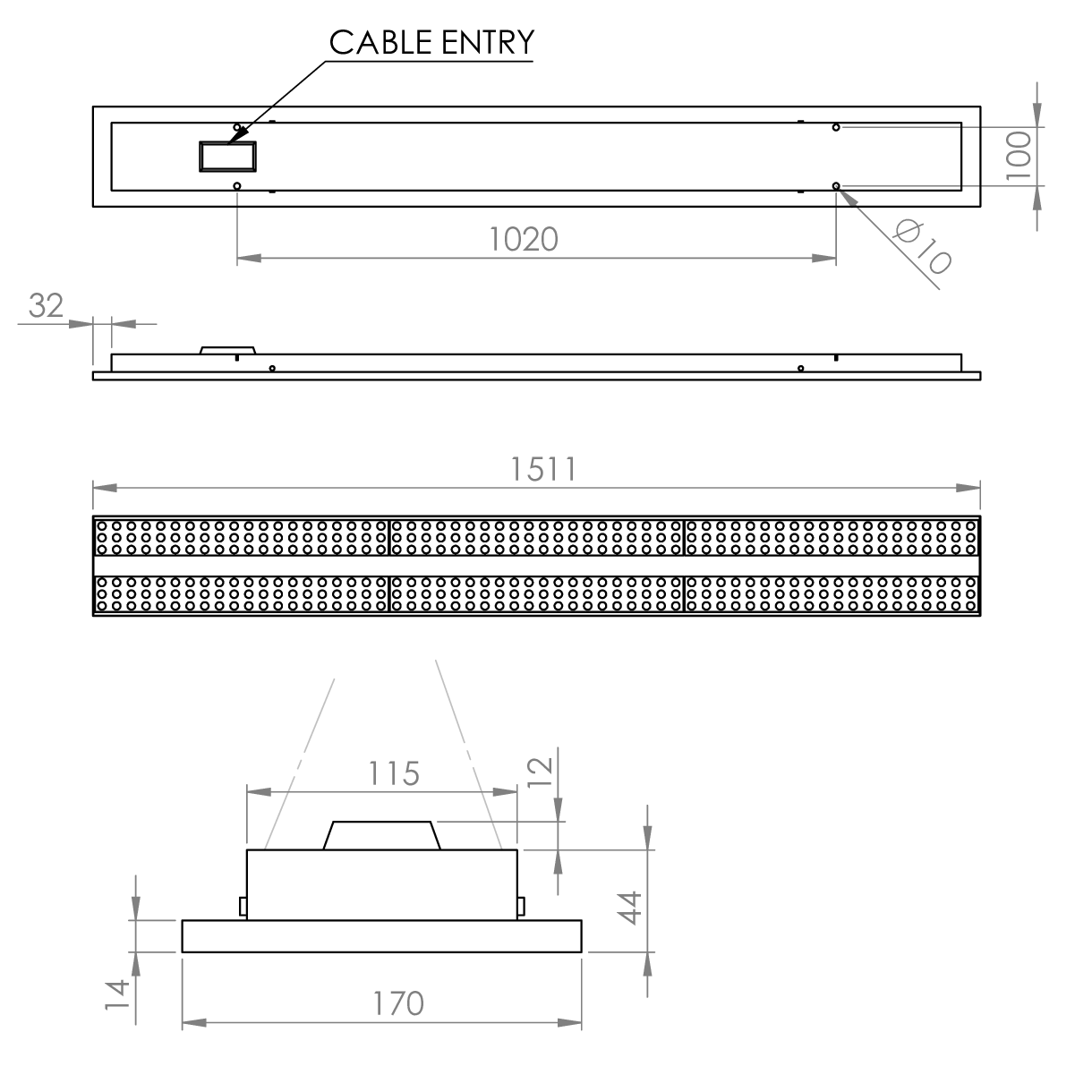

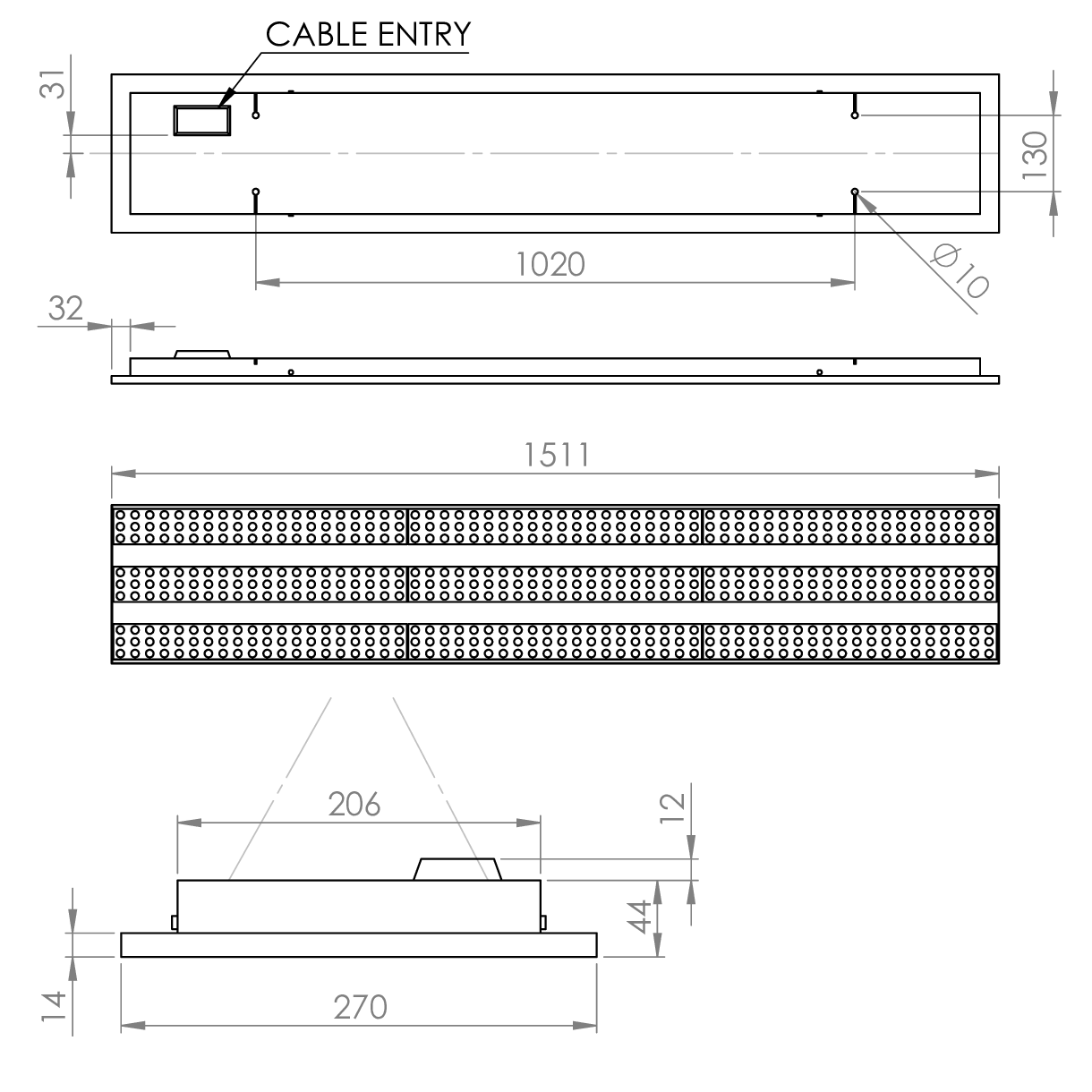

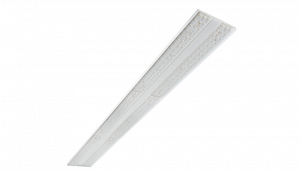

Sky-Light 2 6 Circuit 1500mm
Sky-Light 2 9 Circuit 1500mm
Ordering
Luminaires
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optic
| Code | Description |
|---|---|
| UW | Ultra Wide 110° |
| OA | Open Area |
| HR | High Rack |
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
Control
| Code | Description |
|---|---|
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| SUSP SKY 5M BF X2 | 5M Suspension Kit Barrel Fix |
| LSF | Low Smoke Zero Halogen |
| SUSP SKY 5M LO X2 | 5M Loop Over Suspension Kit (Two Drops) |
| SUSP SKY 10M LO X2 | 10M Loop Over Suspension Kit (Two Drops) |
