RUNWAY CURVE

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.

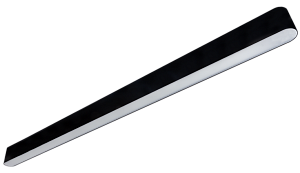

Runway Curve - Black

Introduction

Where lighting must fulfil both architectural and practical purposes the Runway Curve Surface Suspended provides a slim lit effect with curved decorative ends available in three colour options, black, grey and white. The Runway Curve is available in lengths up to 4M lengths with a single housing for a seamless effect and offers a wide range of lumen outputs, bi-directional variants as well as dimming, wireless, white tunable, sensor controlled and integral lithium emergency options.

RUNWAY CURVE complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Education | Office | Retail

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Finish: Polyester powder painted RAL 9006 matt grey
  • Finish: Polyester powder painted RAL 9005 matt black
  • Endcaps: High pressure die cast aluminium
  • Diffuser: 2mm extruded high transmission opal polycarbonate
  • Diffuser: Combined 2mm extruded clear polycarbonate and 2mm microprism anti glare PMMA
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 141 luminaire lumens per circuit Watt

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • All critical components are mounted on a single tray for simple end of life repair or upgrade.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional White tunable
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for suspended installation
  • Suitable for surface installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white, black or grey finishes
5 year extended warranty available on most products.
Arrow right

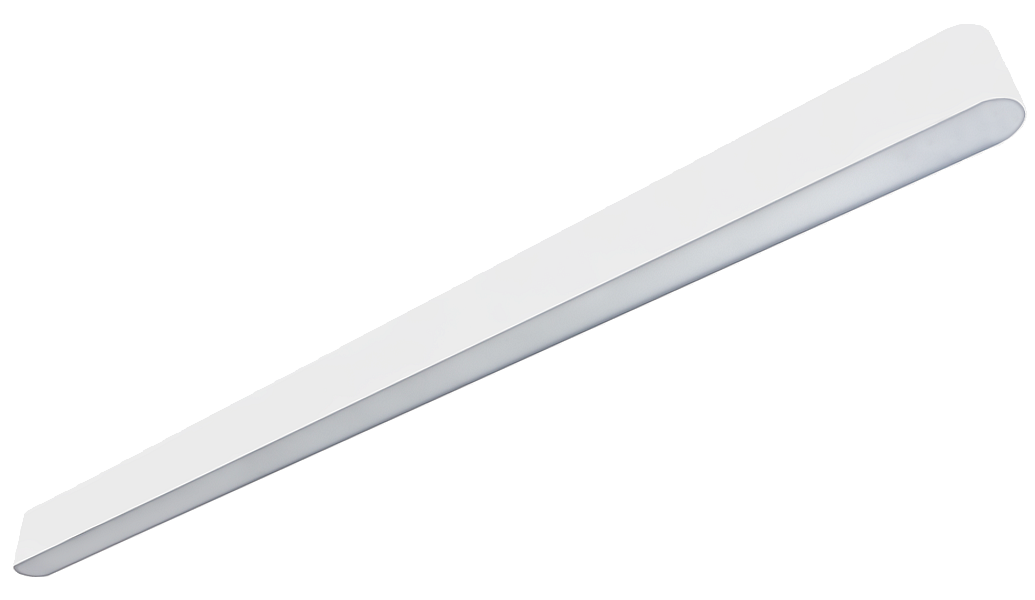

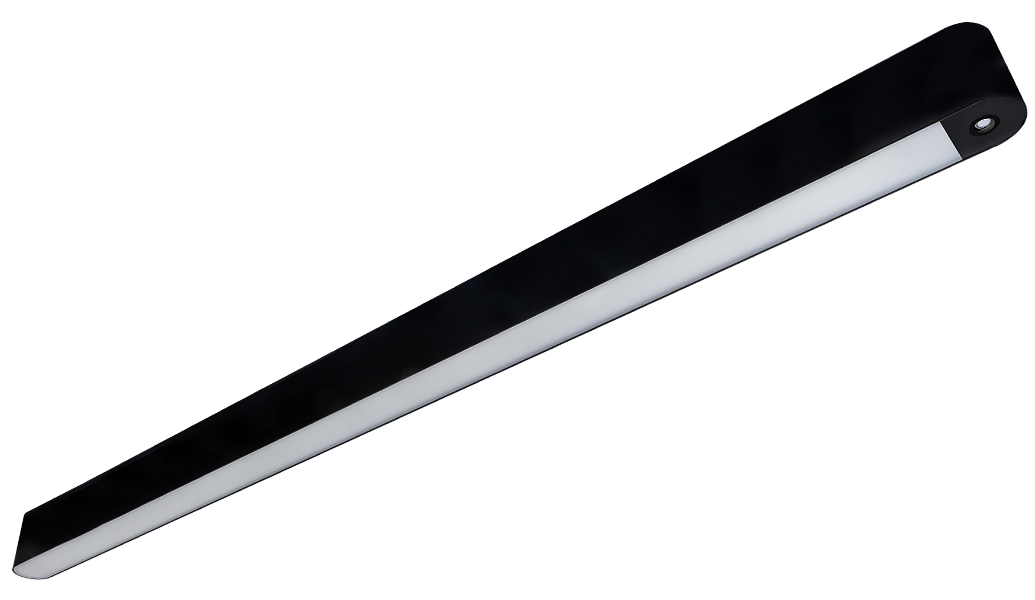

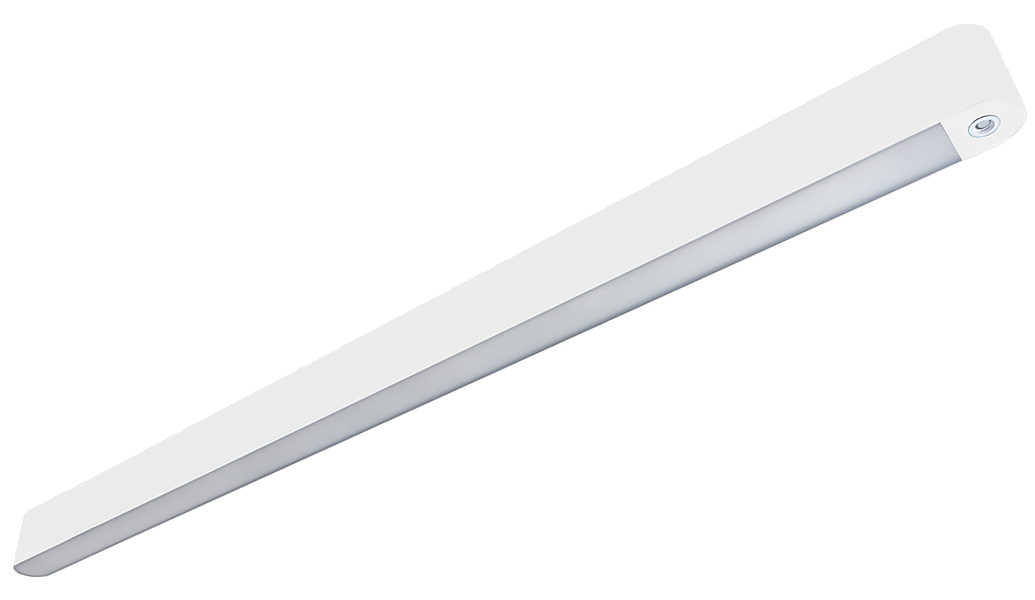

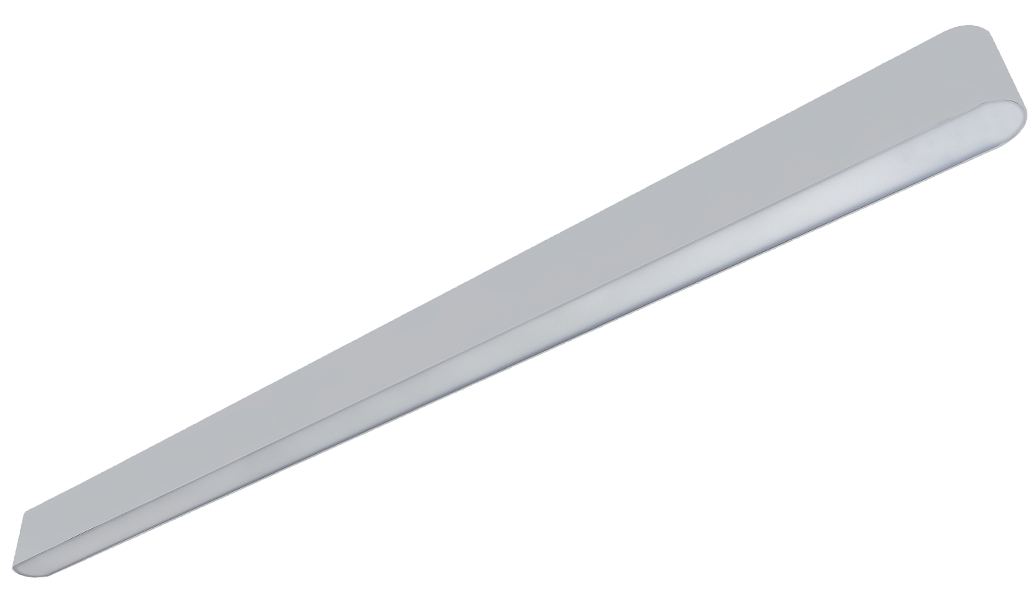

Product Images

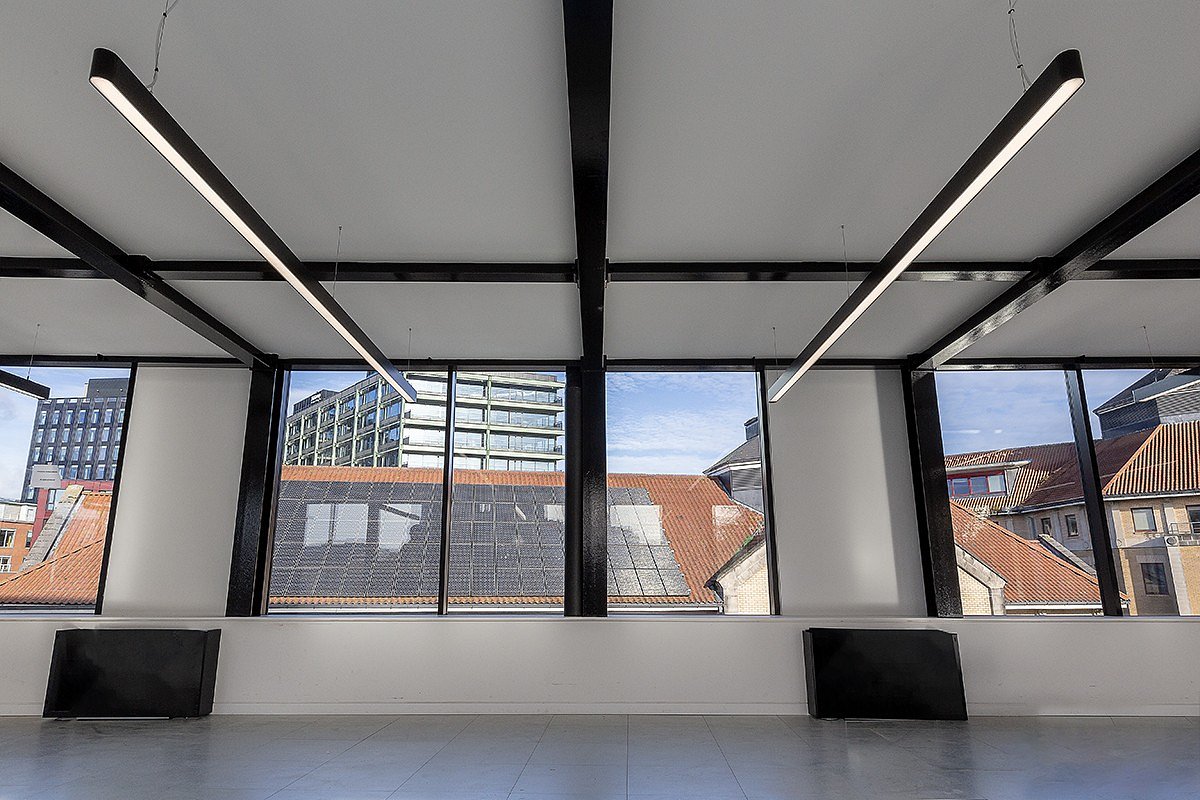

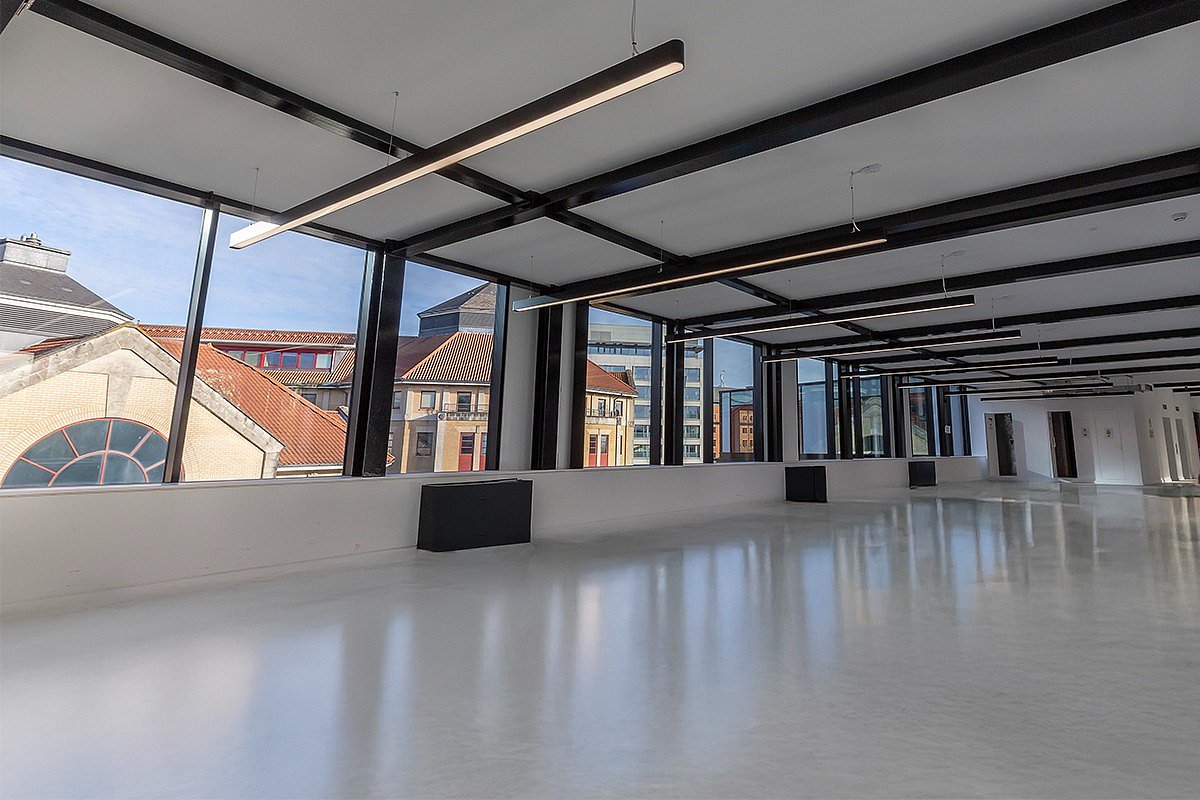

RUNWAY CURVE in action

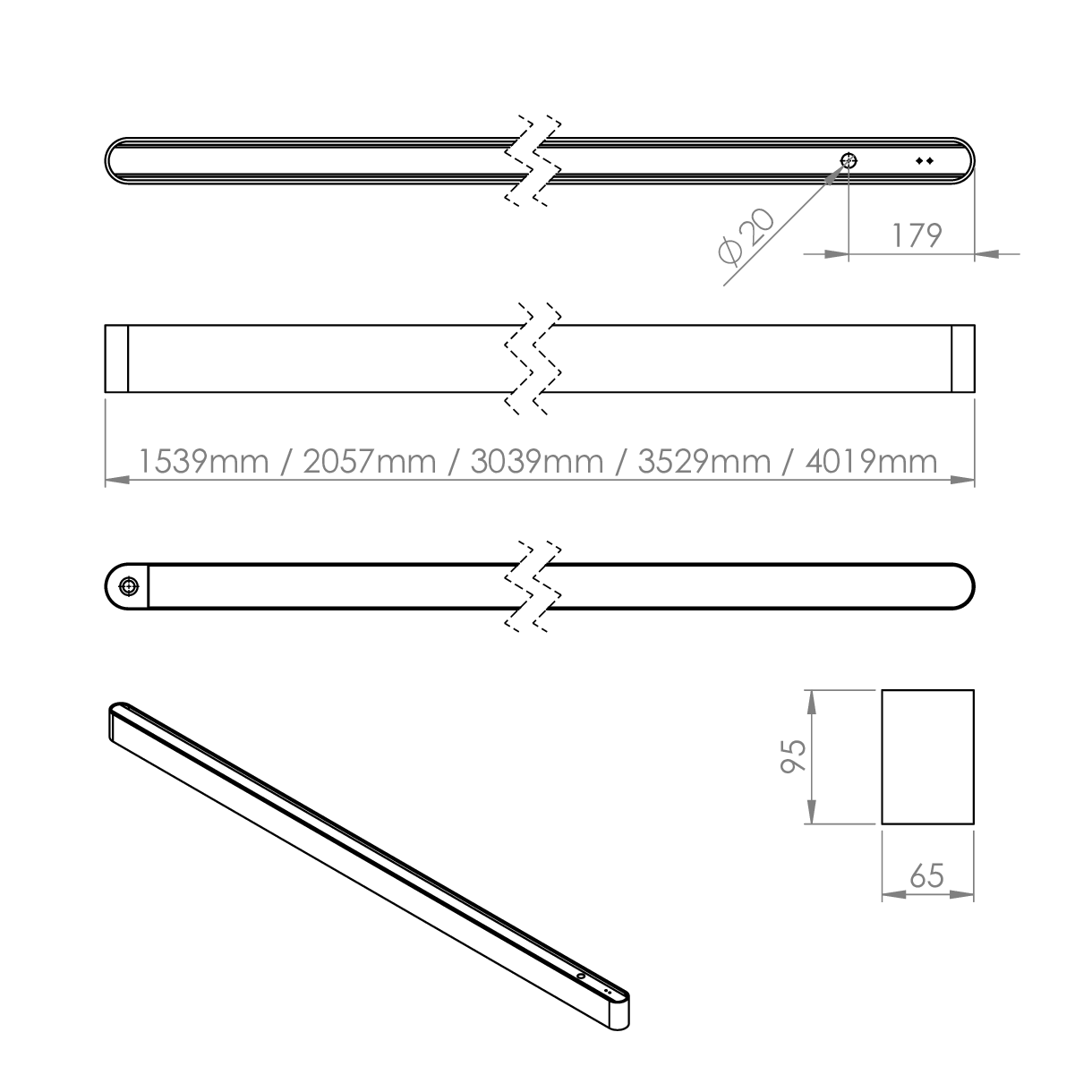

Technical

Runway Curve

Runway Curve

Ordering

Luminaires

Code Description Power Llm/W
RWYC 1500 L22 MP GY Runway Curve, 1500mm, 1,589llm, Microprism, Grey, Colour 84 12.0W 132
RWYC 1500 L22 OP GY Runway Curve, 1500mm, 1,368llm, Opal, Grey, Colour 84 12.0W 114
RWYC 1500 L30 OP GY Runway Curve, 1500mm, 1,862llm, Opal, Grey, Colour 84 17.2W 108
RWYC 1500 L30 MP GY Runway Curve, 1500mm, 2,167llm, Microprism, Grey, Colour 84 17.2W 126
RWYC 1500 L45 OP GY Runway Curve, 1500mm, 2,658llm, Opal, Grey, Colour 84 27.3W 97
RWYC 1500 L45 MP GY Runway Curve, 1500mm, 3,250llm, Microprism, Grey, Colour 84 27.3W 119
RWYC 1500 L96 OP GY Runway Curve, 1500mm, 5,671llm, Opal, Grey, Colour 84 55.6W 102
RWYC 1500 L96 MP GY Runway Curve, 1500mm, 6,394llm, Microprism, Grey, Colour 84 55.6W 115
RWYC 1500 L127 BD OP GY Runway Curve, 1500mm, 9,563llm, Bi-Directional, Opal, Grey, Colour 84 73.6W 130
RWYC 1500 L127 BD MP GY Runway Curve, 1500mm, 8,950llm, Bi-Directional, Microprism, Grey, Colour 84 73.6W 122
RWYC 1500 L29 BD OP GY Runway Curve, 1500mm, 2,184llm, Bi-Directional, Opal, Grey, Colour 84 16.3W 134
RWYC 1500 L29 BD MP GY Runway Curve, 1500mm, 2,043llm, Bi-Directional, Microprism, Grey, Colour 84 16.3W 125
RWYC 1500 L40 BD OP GY Runway Curve, 1500mm, 3,012llm, Bi-Directional, Opal, Grey, Colour 84 22.2W 136
RWYC 1500 L40 BD MP GY Runway Curve, 1500mm, 2,819llm, Bi-Directional, Microprism, Grey, Colour 84 22.2W 127
RWYC 1500 L60 BD OP GY Runway Curve, 1500mm, 4,518llm, Bi-Directional, Opal, Grey, Colour 84 35.5W 127
RWYC 1500 L60 BD MP GY Runway Curve, 1500mm, 4,228llm, Bi-Directional, Microprism, Grey, Colour 84 35.5W 119
RWYC 2000 L29 OP GY Runway Curve, 2000mm, 2,284llm, Opal, Grey, Colour 84 16.3W 140
RWYC 2000 L29 MP GY Runway Curve, 2000mm, 2,095llm, Microprism, Grey, Colour 84 16.3W 126
RWYC 2000 L40 OP GY Runway Curve, 2000mm, 3,150llm, Opal, Grey, Colour 84 22.2W 142
RWYC 2000 L40 MP GY Runway Curve, 2000mm, 2,889llm, Microprism, Grey, Colour 84 22.2W 130
RWYC 2000 L60 OP GY Runway Curve, 2000mm, 4,762llm, Opal, Grey, Colour 84 35.5W 134
RWYC 2000 L60 MP GY Runway Curve, 2000mm, 4,332llm, Microprism, Grey, Colour 84 35.5W 122
RWYC 2000 L38 BD OP GY Runway Curve, 2000mm, 2,890llm, Bi-Directional, Opal, Grey, Colour 84 21.3W 136
RWYC 2000 L38 BD MP GY Runway Curve, 2000mm, 2,692llm, Bi-Directional, Microprism, Grey, Colour 84 21.3W 126
RWYC 2000 L53 BD OP GY Runway Curve, 2000mm, 4,031llm, Bi-Directional, Opal, Grey, Colour 84 29.6W 136
RWYC 2000 L53 BD MP GY Runway Curve, 2000mm, 3,755llm, Bi-Directional, Microprism, Grey, Colour 84 29.6W 127
RWYC 2000 L80 BD OP GY Runway Curve, 2000mm, 6,080llm, Bi-Directional, Opal, Grey, Colour 84 45.1W 135
RWYC 2000 L80 BD MP GY Runway Curve, 2000mm, 5,667llm, Bi-Directional, Microprism, Grey, Colour 84 45.1W 126
RWYC 3000 L44 MP GY Runway Curve, 3000mm, 3.038llm, Microprism, Grey, Colour 84
RWYC 3000 L44 OP GY Runway Curve, 3000mm, 3.038lm, Opal, Grey, Colour 84
RWYC 3000 L60 OP GY Runway Curve, 3000mm, 4,442llm, Opal, Grey, Colour 84
RWYC 3000 L60 MP GY Runway Curve, 3000mm, 4,144llm, Microprism, Grey, Colour 84
RWYC 3000 L90 OP GY Runway Curve, 3000mm, 6,662llm, Opal, Grey, Colour 84
RWYC 3000 L90 MP GY Runway Curve, 3000mm, 6,216llm, Microprism, Grey, Colour 84
RWYC 3000 L192 OP GY Runway Curve, 3000mm, 14,208llm, Opal, Grey, Colour 84
RWYC 3000 L192 MP GY Runway Curve, 3000mm, 13,260llm, Microprism, Grey, Colour 84
RWYC 3000 L254 BD OP GY Runway Curve, 3000mm, 17,952llm, Bi-Directional, Opal, Grey, Colour 84
RWYC 3000 L254 BD MP GY Runway Curve, 3000mm, 16,892llm, Bi-Directional, Microprism, Grey, Colour 84
RWYC 3000 L58 BD OP GY Runway Curve, 3000mm, 4,292llm, Bi-Directional, Opal, Grey, Colour 84
RWYC 3000 L58 BD MP GY Runway Curve, 3000mm, 3,858llm, Bi-Directional, Microprism, Grey, Colour 84
RWYC 3000 L80 BD OP GY Runway Curve, 3000mm, 5,658llm, Bi-Directional, Opal, Grey, Colour 84
RWYC 3000 L80 BD MP GY Runway Curve, 3000mm, 5,320llm, Bi-Directional, Microprism, Grey, Colour 84
RWYC 3000 L120 BD OP GY Runway Curve, 3000mm, 8,288llm, Bi-Directional, Opal, Grey, Colour 84
RWYC 3000 L120 BD MP GY Runway Curve, 3000mm, 7,980llm, Bi-Directional, Microprism, Grey, Colour 84
RWYC 3500 L51 MP GY Runway Curve, 3500mm, 3.544llm, Microprism, Grey, Colour 84
RWYC 3500 L70 OP GY Runway Curve, 3500mm, 4,442llm, Opal, Grey, Colour 84
RWYC 3500 L70 MP GY Runway Curve, 3500mm, 5,182llm, Microprism, Grey, Colour 84
RWYC 3500 L105 OP GY Runway Curve, 3500mm, 7,772llm, Opal, Grey, Colour 84
RWYC 3500 L105 MP GY Runway Curve, 3500mm, 7,252llm, Microprism, Grey, Colour 84
RWYC 3500 L224 OP GY Runway Curve, 3500mm, 16,576llm, Opal, Grey, Colour 84
RWYC 3500 L224 MP GY Runway Curve, 3500mm, 15,470llm, Microprism, Grey, Colour 84
RWYC 4000 L58 OP GY Runway Curve, 4000mm, 4,292llm, Opal, Grey, Colour 84
RWYC 4000 L58 MP GY Runway Curve, 4000mm, 4,002llm, Microprism, Grey, Colour 84
RWYC 4000 L80 OP GY Runway Curve, 4000mm, 5,920llm, Opal, Grey, Colour 84
RWYC 4000 L80 MP GY Runway Curve, 4000mm, 5,520llm, Microprism, Grey, Colour 84
RWYC 4000 L120 OP GY Runway Curve, 4000mm, 8,880llm, Opal, Grey, Colour 84
RWYC 4000 L120 MP GY Runway Curve, 4000mm, 8,280llm, Microprism, Grey, Colour 84
RWYC 4000 L76 BD OP GY Runway Curve, 4000mm, 5,974llm, Bi-Directional, Opal, Grey, Colour 84
RWYC 4000 L76 BD MP GY Runway Curve, 4000mm, 5,374llm, Bi-Directional, Microprism, Grey, Colour 84
RWYC 4000 L106 BD OP GY Runway Curve, 4000mm, 8,332llm, Bi-Directional, Opal, Grey, Colour 84
RWYC 4000 L106 BD MP GY Runway Curve, 4000mm, 7,494llm, Bi-Directional, Microprism, Grey, Colour 84
RWYC 4000 L160 BD OP GY Runway Curve, 4000mm, 11,312llm, Bi-Directional, Opal, Grey, Colour 84
RWYC 4000 L160 BD MP GY Runway Curve, 4000mm, 10,640llm, Bi-Directional, Microprism, Grey, Colour 84
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Supplied with white prewired flex as standard, black available on request.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
C Bi-Level Dimming For Standalone Switched Sensor
WT White Tunable (Lumen Outputs Vary from Standard)
Please click here for full details on our white tunable offer.

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please click here for full details on our wireless controls.
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH White Finish
BL Black Finish
GY Grey Finish
RWY SMK Runway Surface Mount Kit
SUSP RWY 3M BF X1 Runway 3M suspension Kit One Drop
LSF Low Smoke Zero Halogen
RWYC INSTALL KIT Runway Curve Installation Kit
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
