RUNWAY CONTINUOUS SURFACE/SUSPENDED

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.

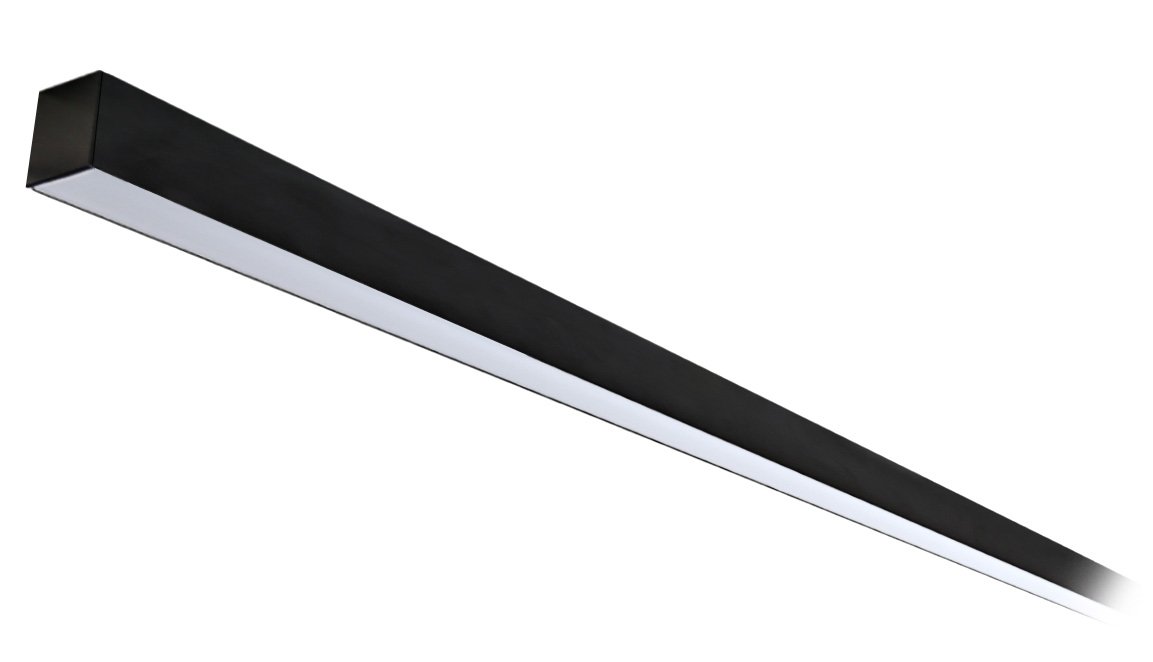

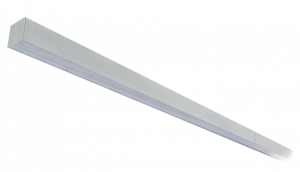

Runway Grey

Introduction

Where lighting must fulfil both architectural and practical purposes the Runway Continuous Surface Suspended provides a seamless appearance that can be infinitely reconfigured to dramatic effect. With an extruded slim line aluminium housing available in grey, black or white options the Runway can be either surface mounted or suspended in continuous runs combined with corner sections, a range of lengths and lumen outputs and with optional bi-directional distribution ensuring that you can create a layout that enhances any space creating an attractive environment for workers or to entice customers.

This flexibility is further enhanced with optional integral emergency, white tunable, dimming, integral sensors and two optic styles, a minimalist opal finish or microprism for glare compliance for use in office and school areas. The Runway also incorporates the latest mid power LEDs ensuring optimal energy efficiency with minimal need for maintenance over the course of its lifetime. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

The Runway is also available in a wide range of variants including standalone, recessed and pendant cross or square shapes.

RUNWAY CONTINUOUS SURFACE/SUSPENDED complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Education | Office | Retail

Specification

Construction

  • Housing: High pressure die cast aluminium
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Finish: Polyester powder painted RAL 9006 matt grey
  • Finish: Polyester powder painted RAL 9005 matt black
  • Endcaps: High pressure die cast aluminium
  • Diffuser: 2mm extruded high transmission opal polycarbonate
  • Diffuser: Combined 2mm extruded clear polycarbonate and 2mm microprism anti glare PMMA
  • IP20
  • Supplied with 6 pole 1.5mm loom.
  • Trunking supplied in 1500mm, 2000mm, 3000mm or 4000mm lengths.
  • Gear Trays available in 1000mm, 1500mm or 2000mm lengths.

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 118 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • All critical components are mounted on a single tray for simple end of life repair or upgrade.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional White tunable
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for suspended installation
  • Suitable for surface installation
  • Through Wire variants are supplied with 6 pole 1.5mm loom

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white, black or grey finishes
5 year extended warranty available on most products.
Arrow right

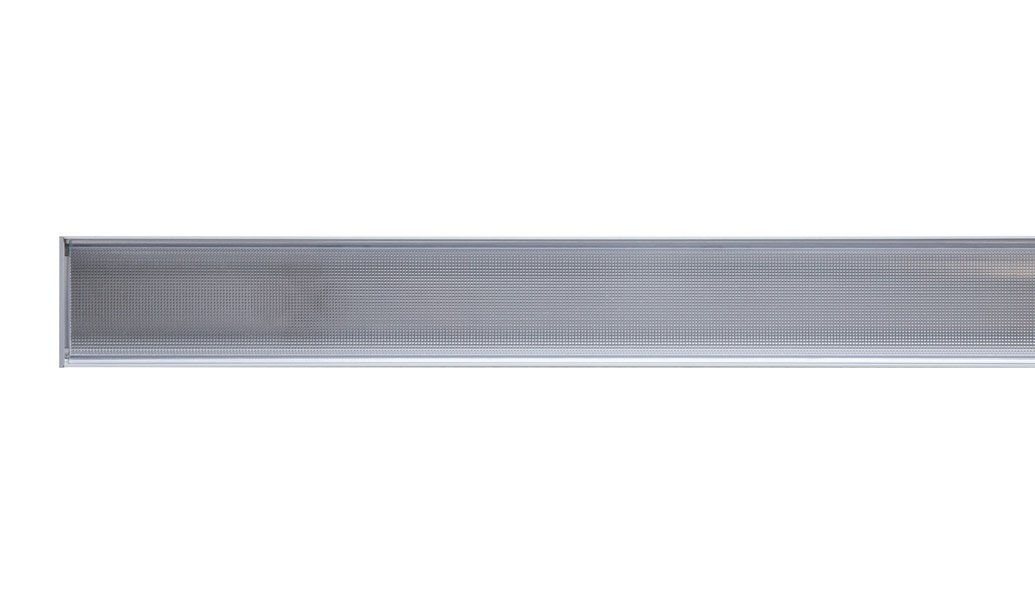

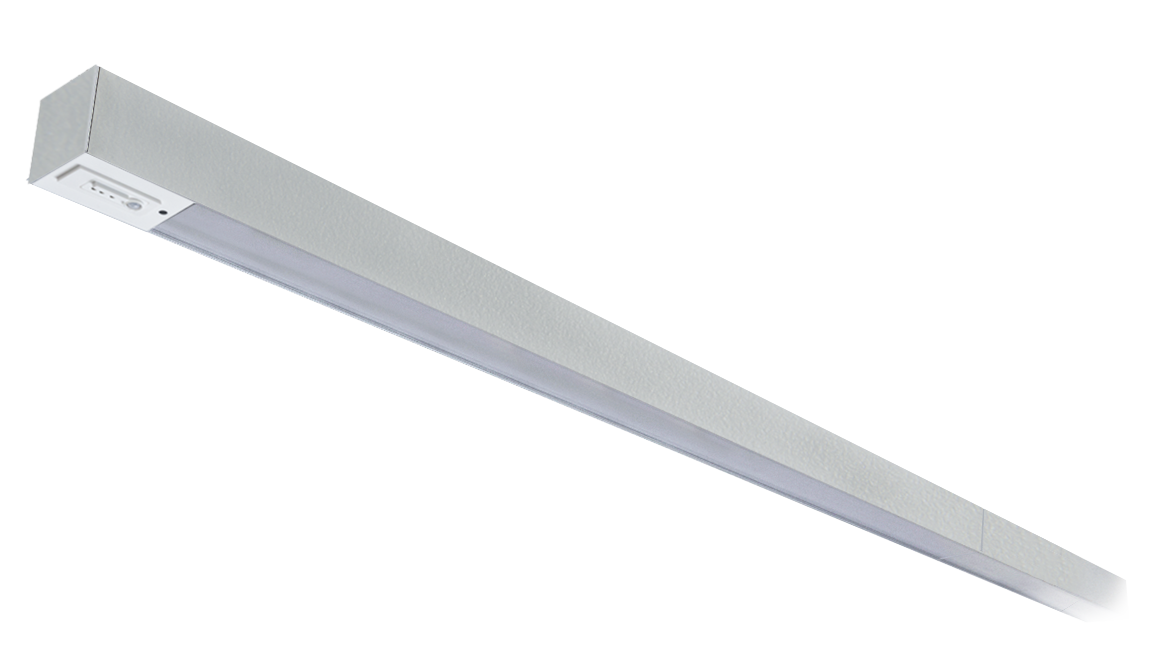

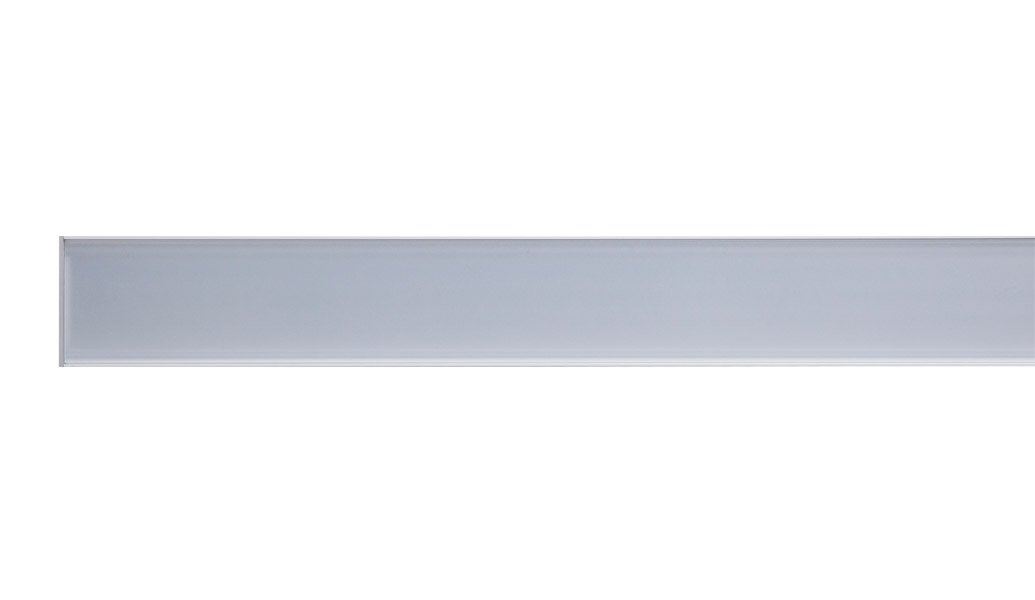

Product Images

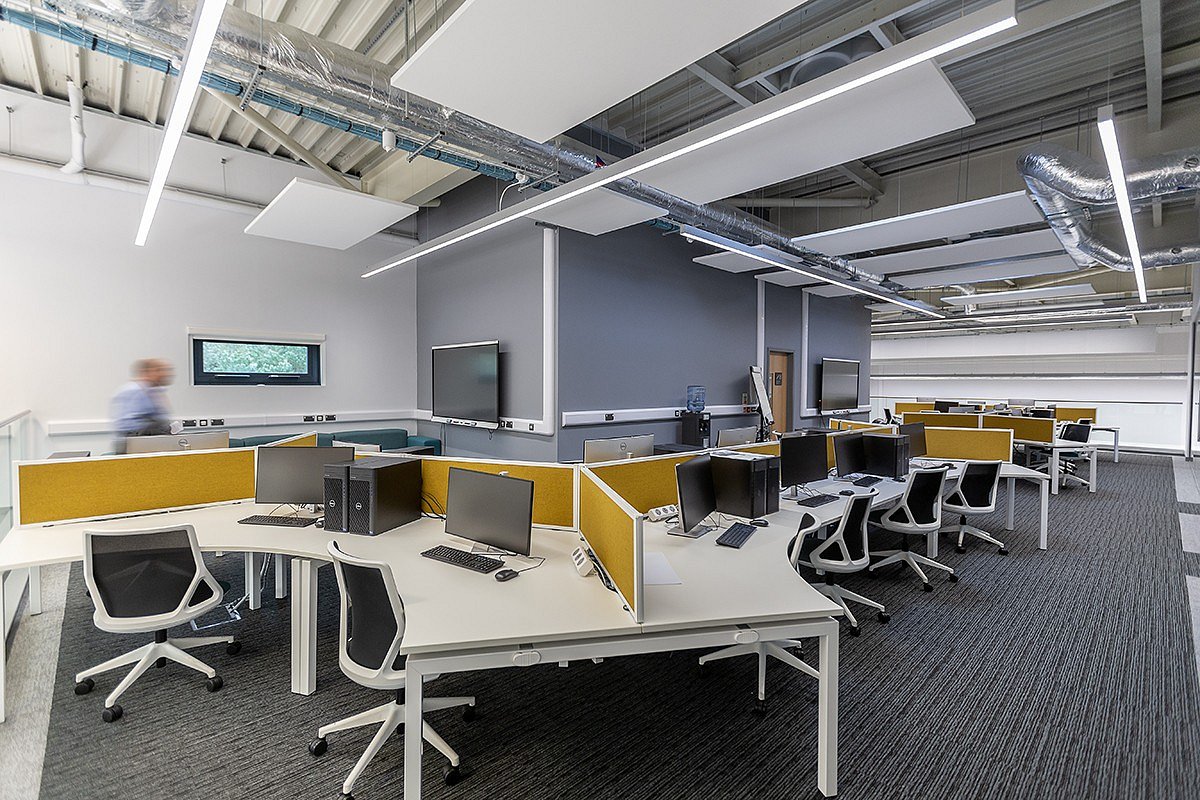

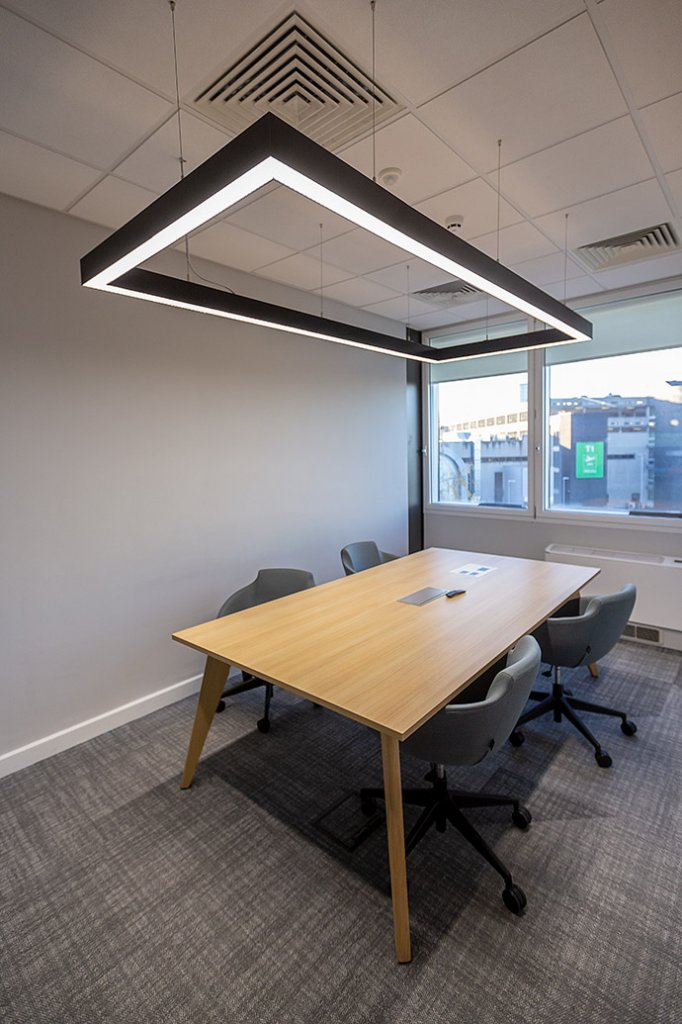

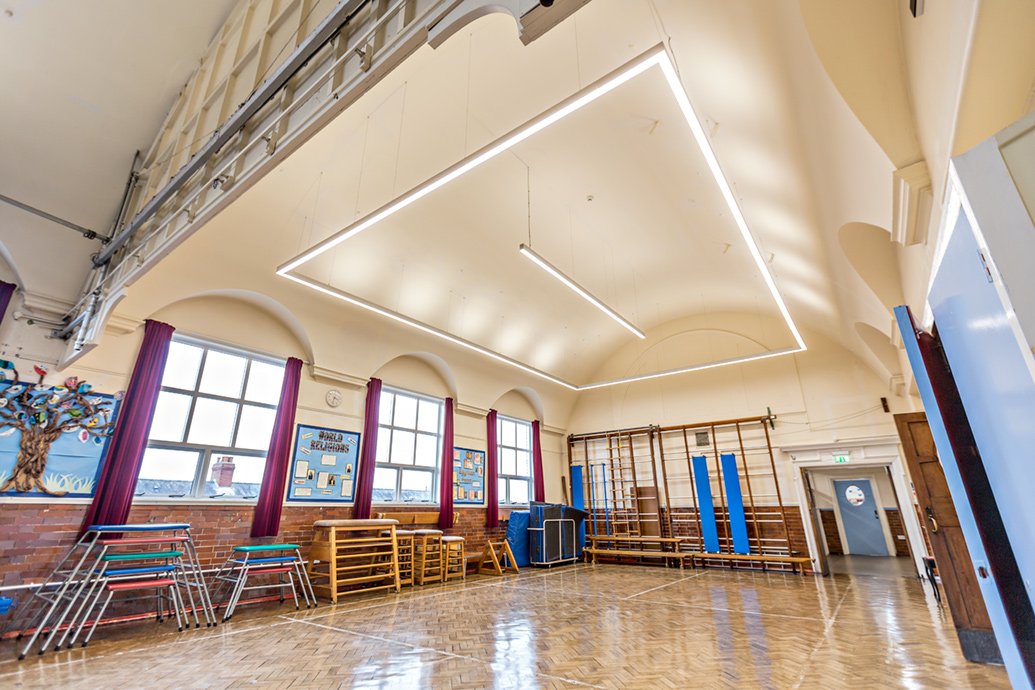

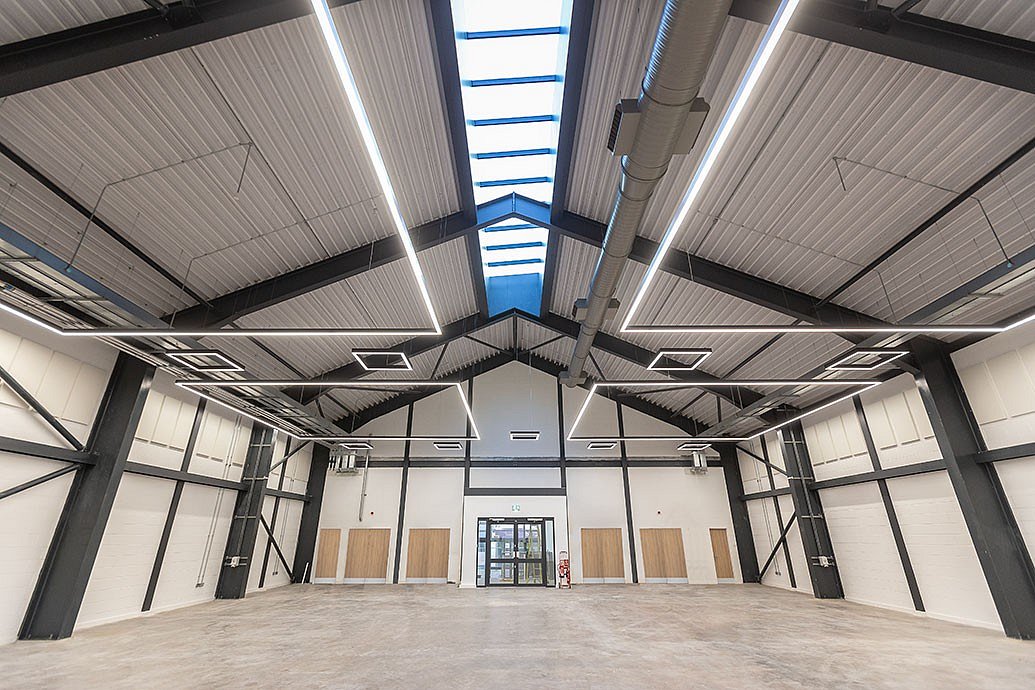

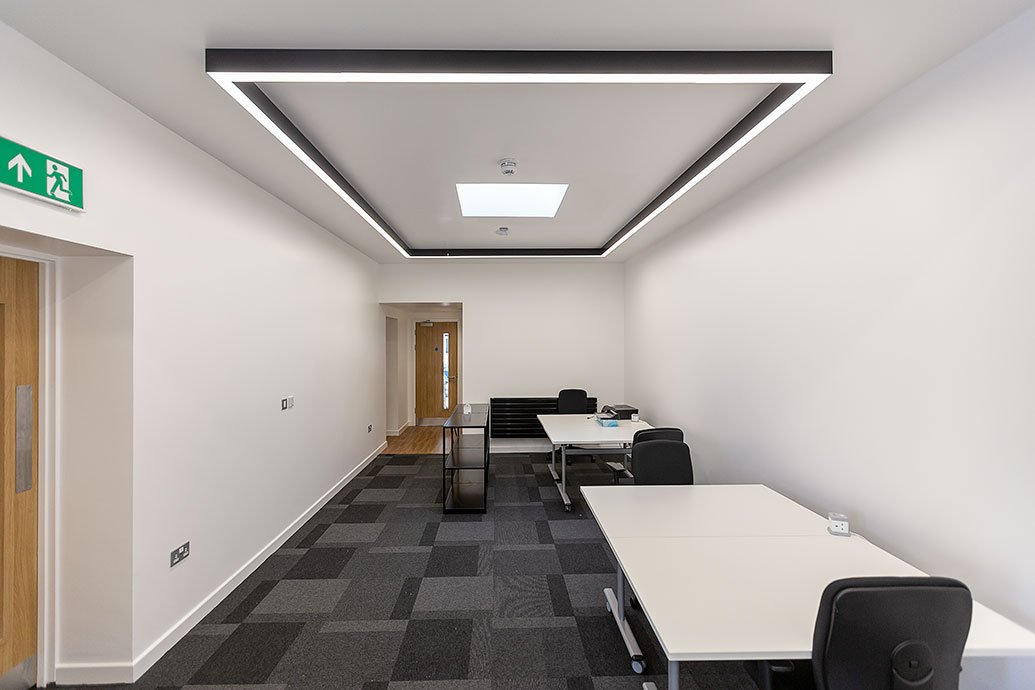

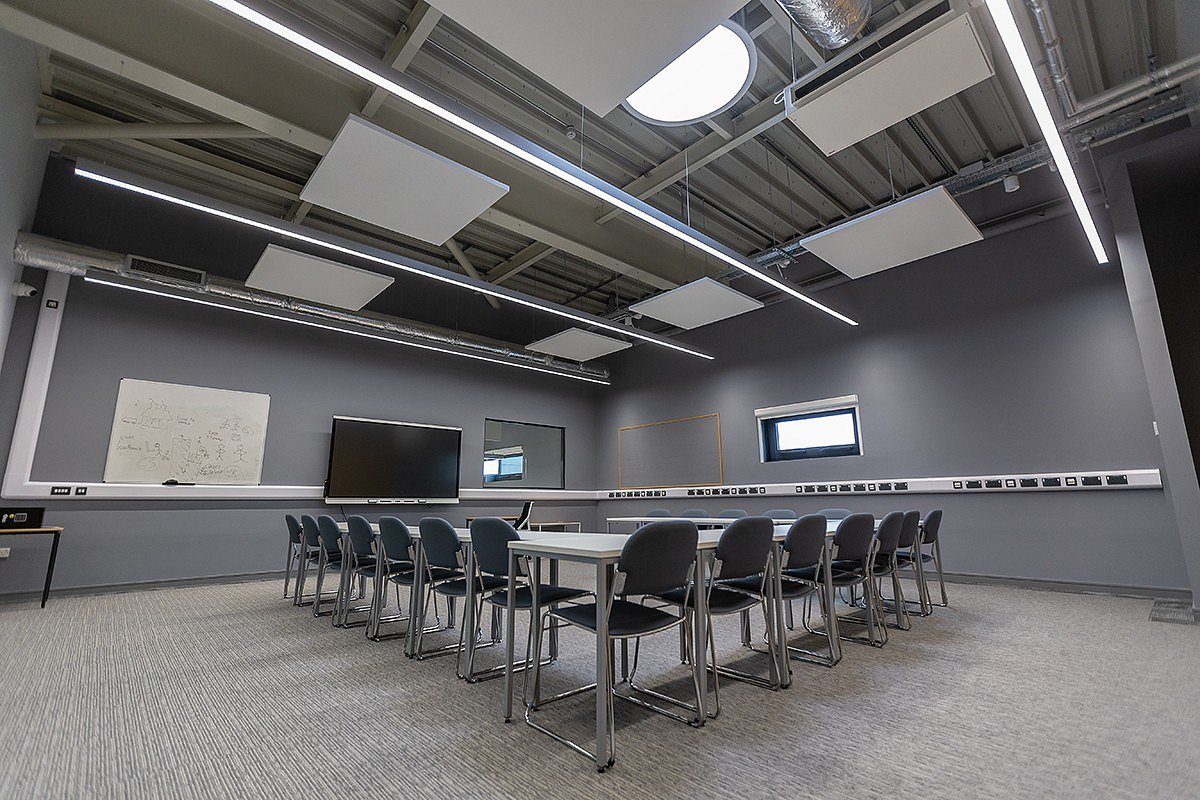

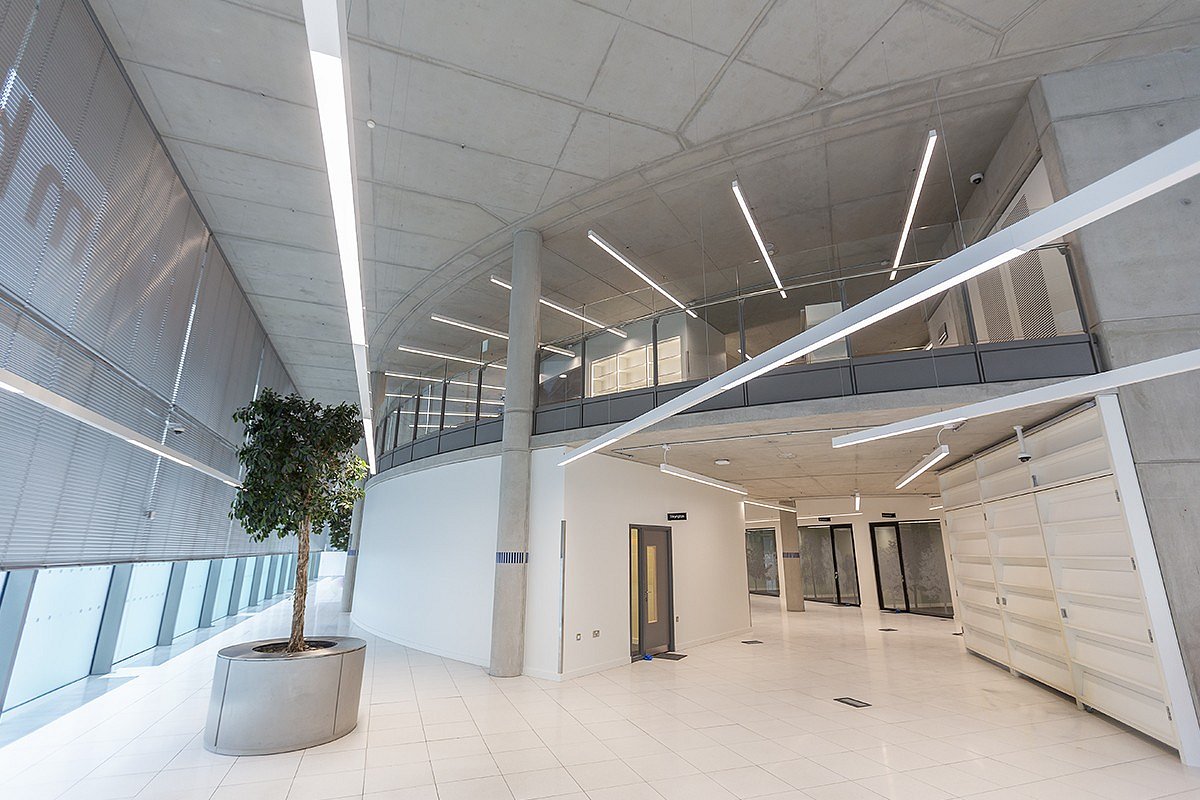

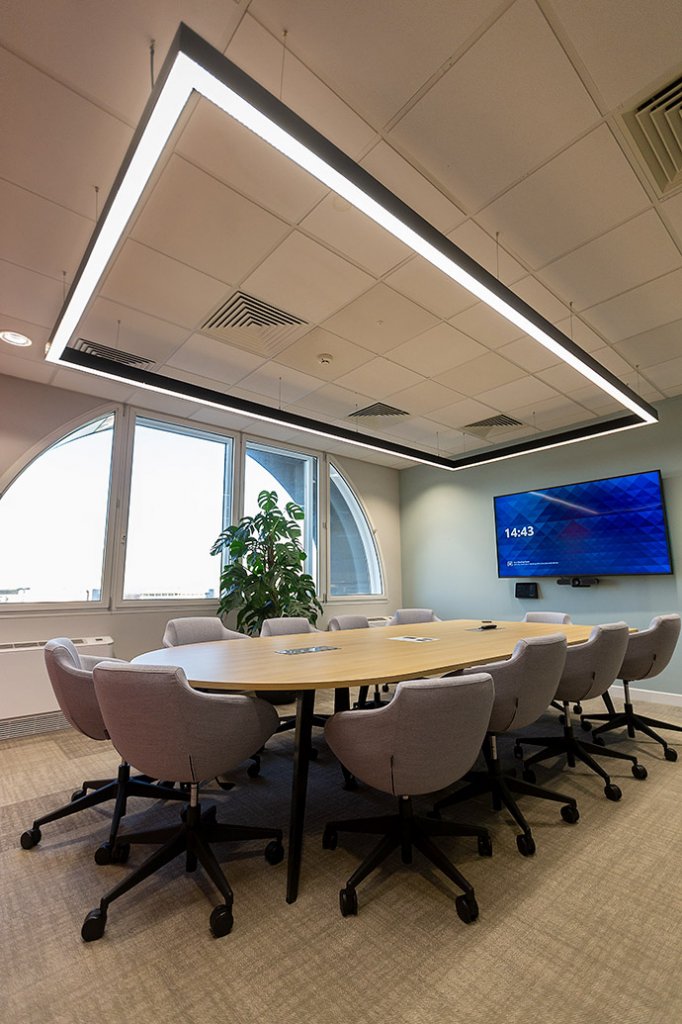

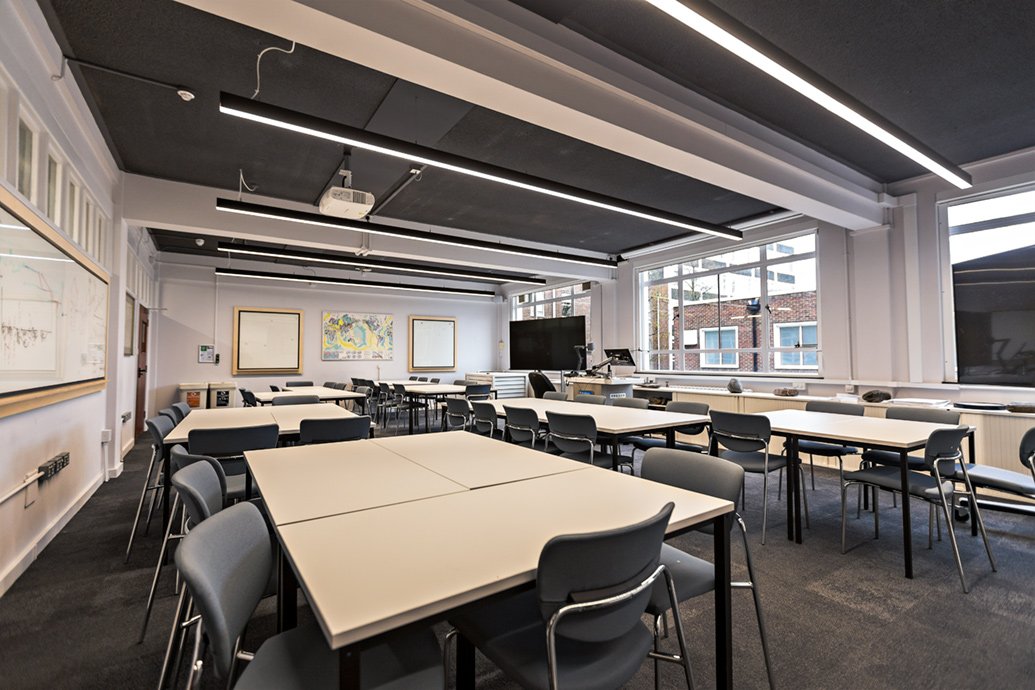

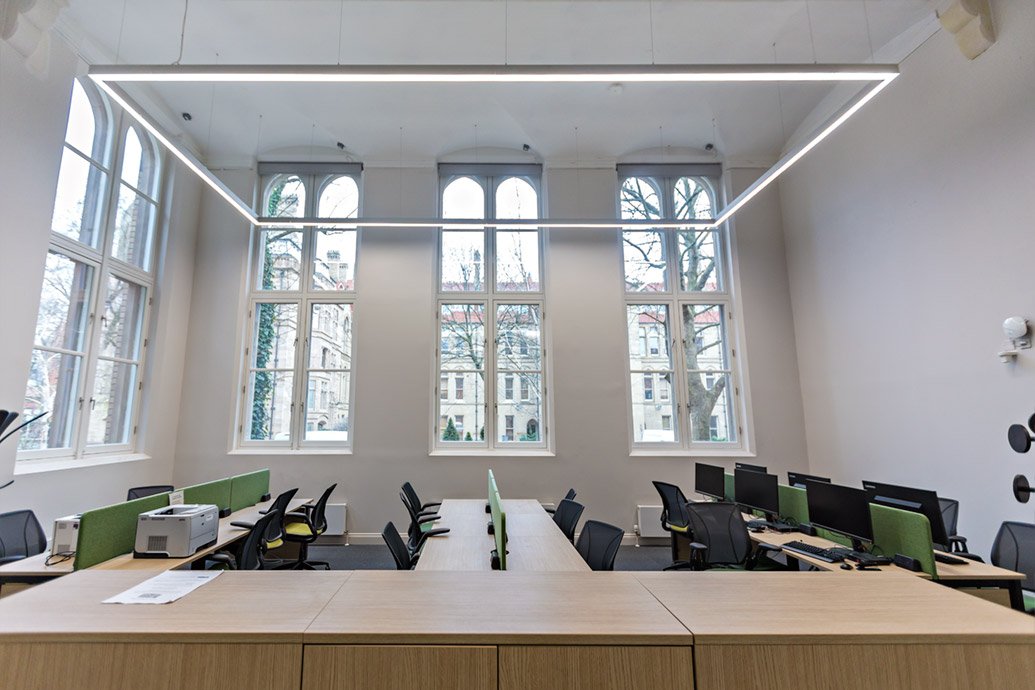

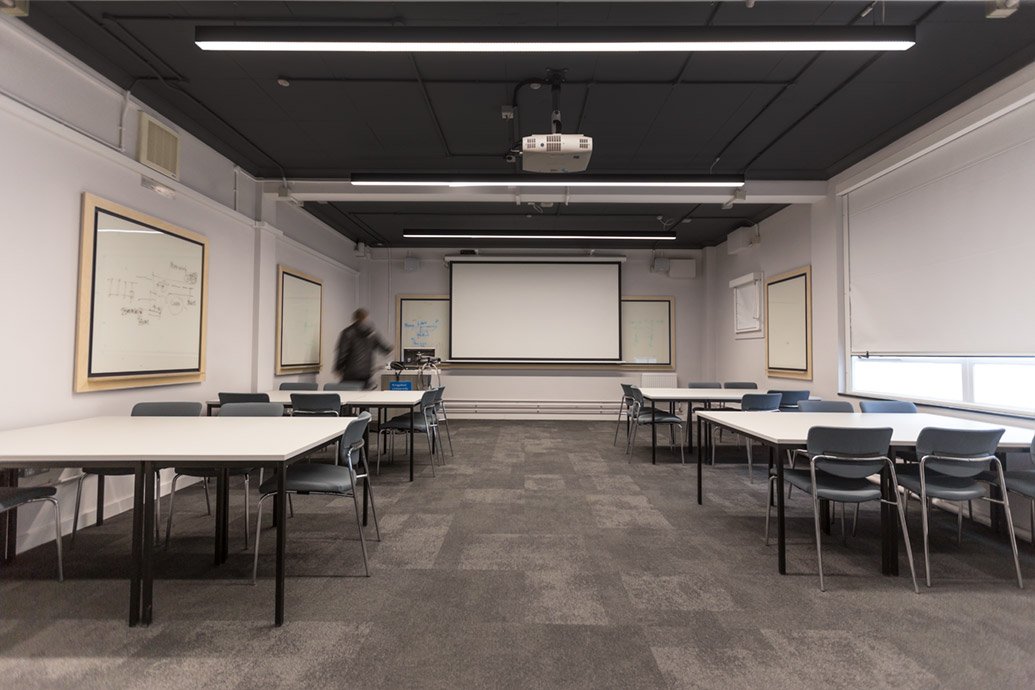

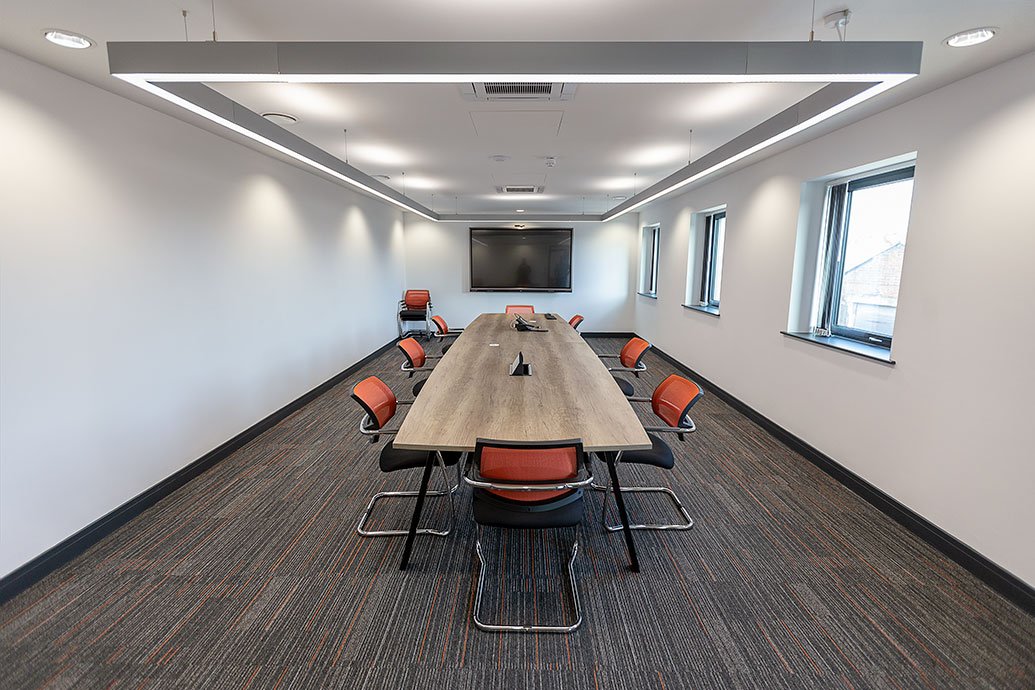

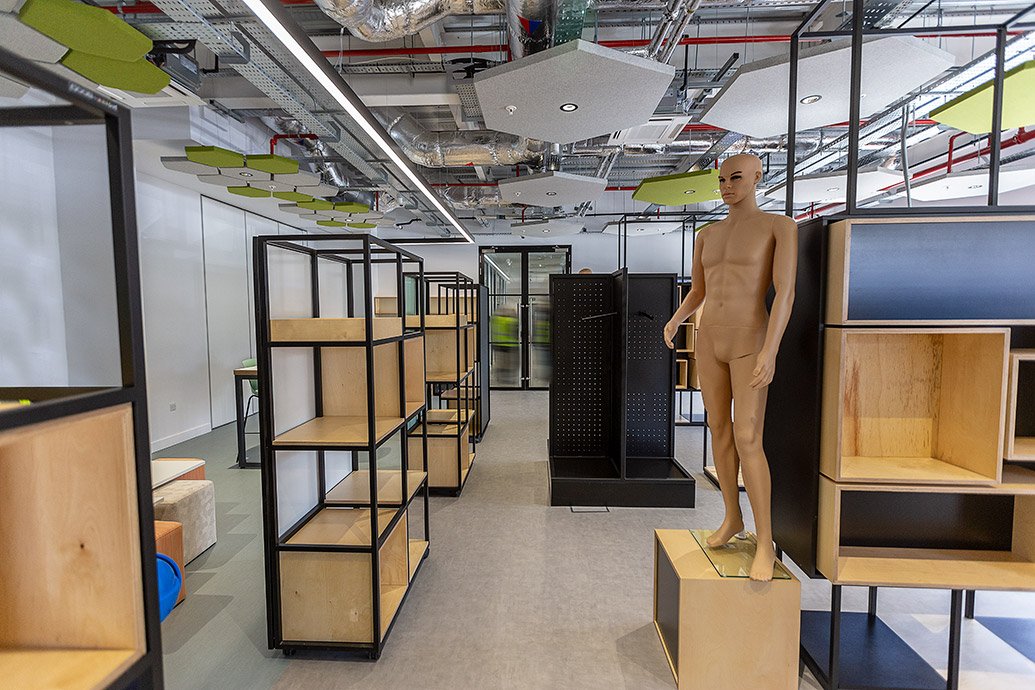

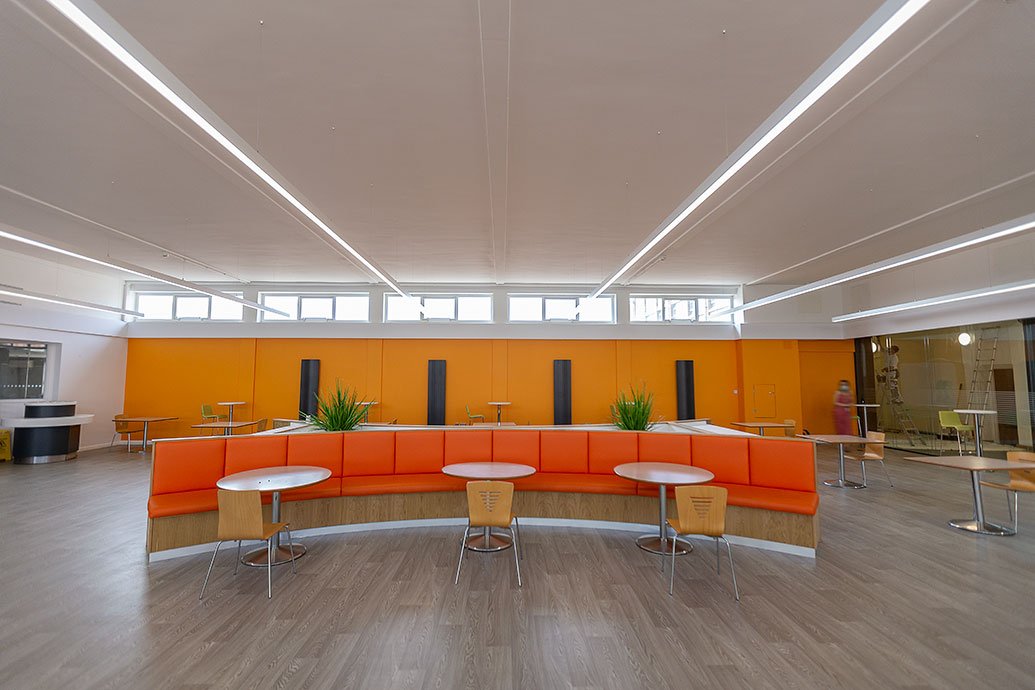

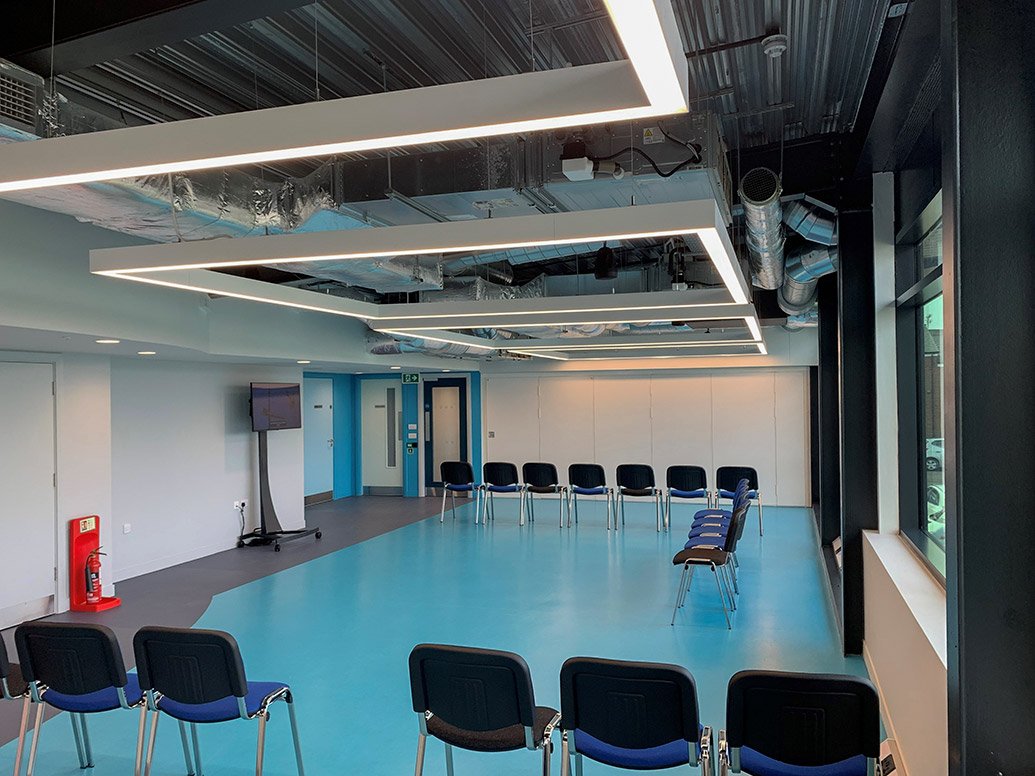

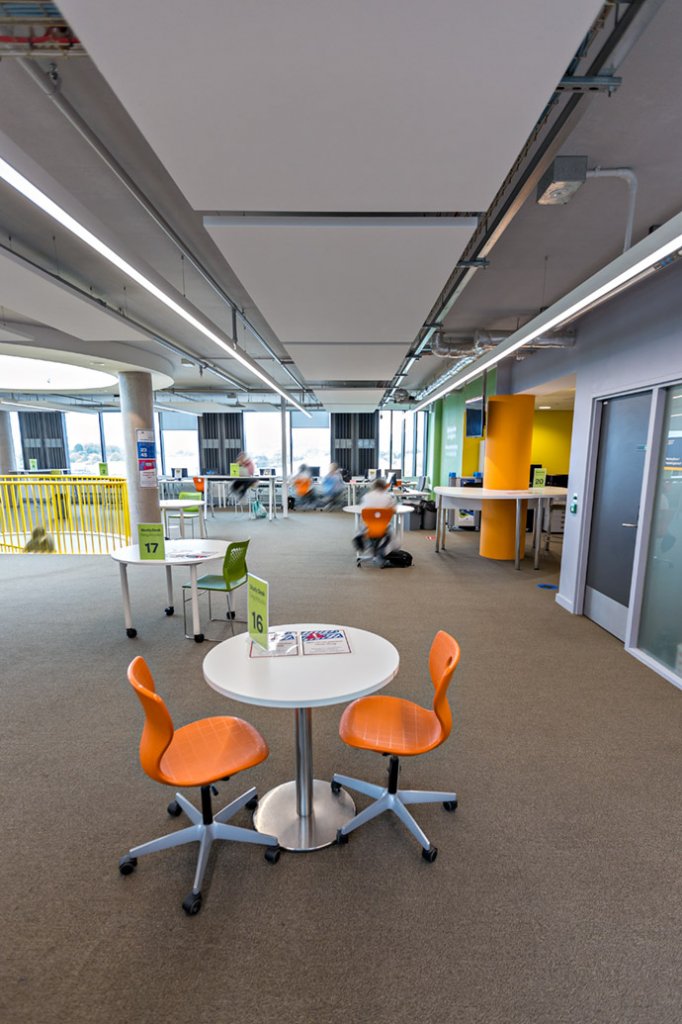

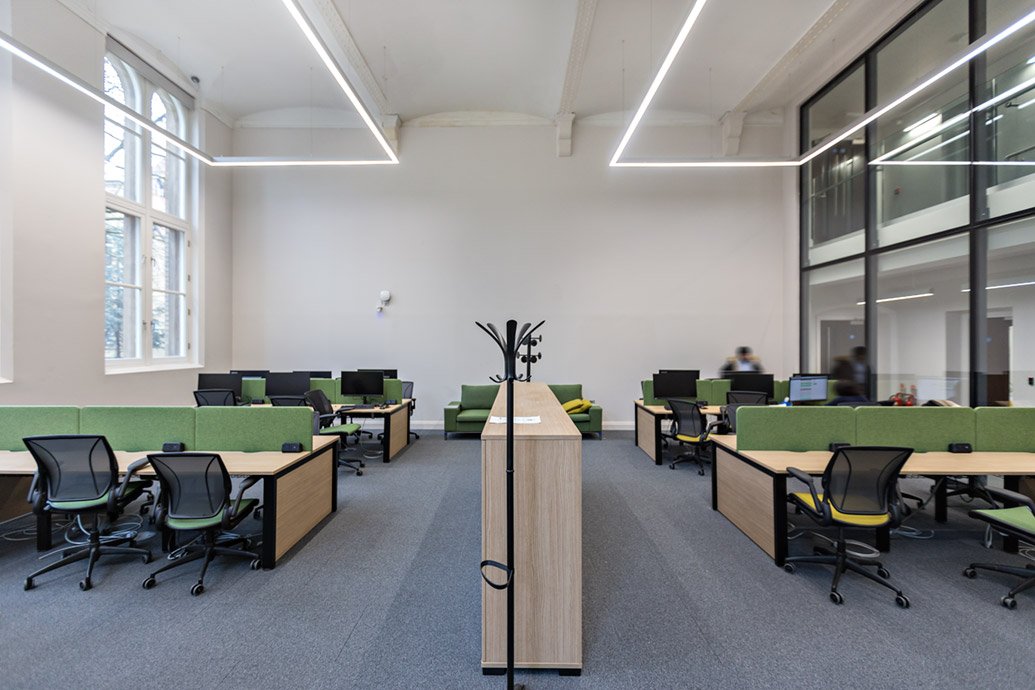

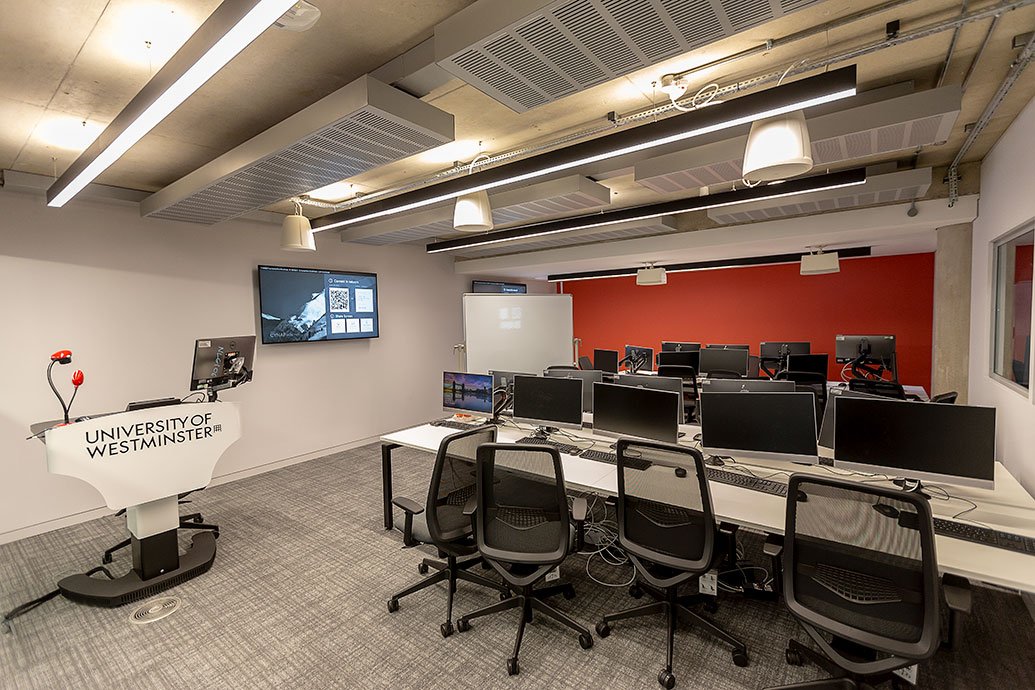

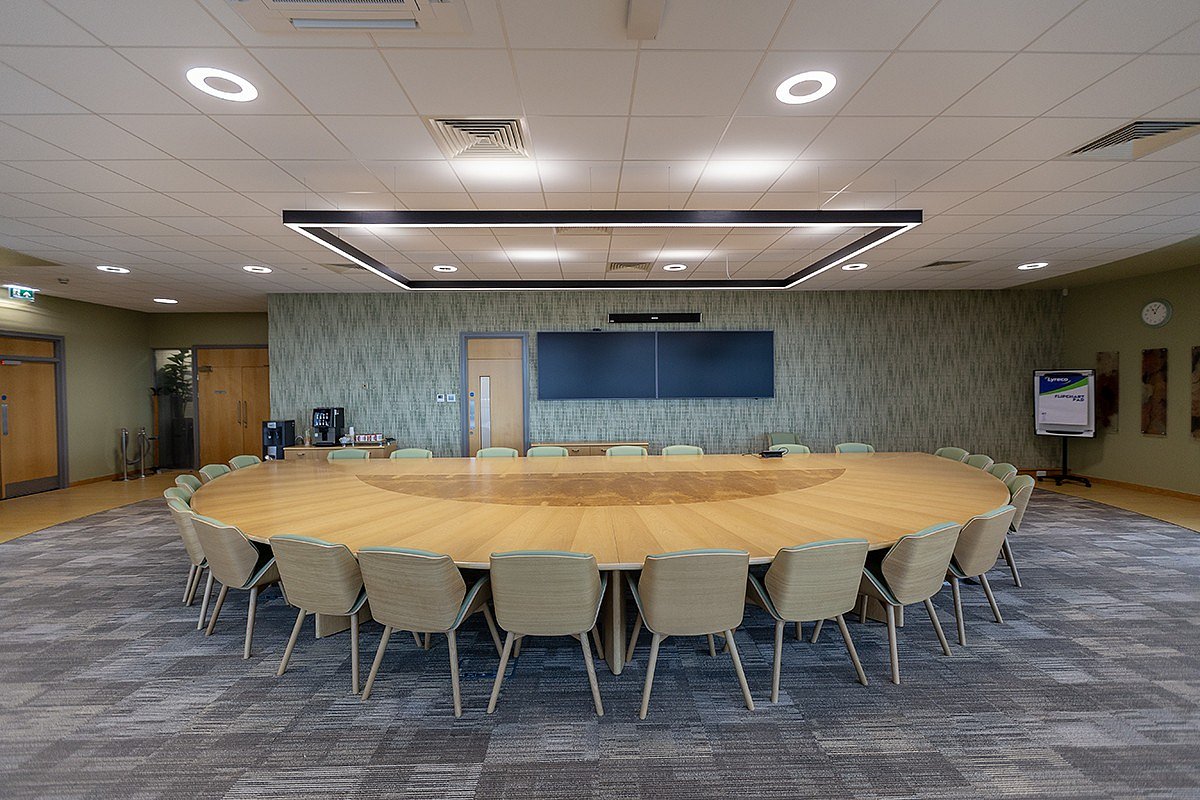

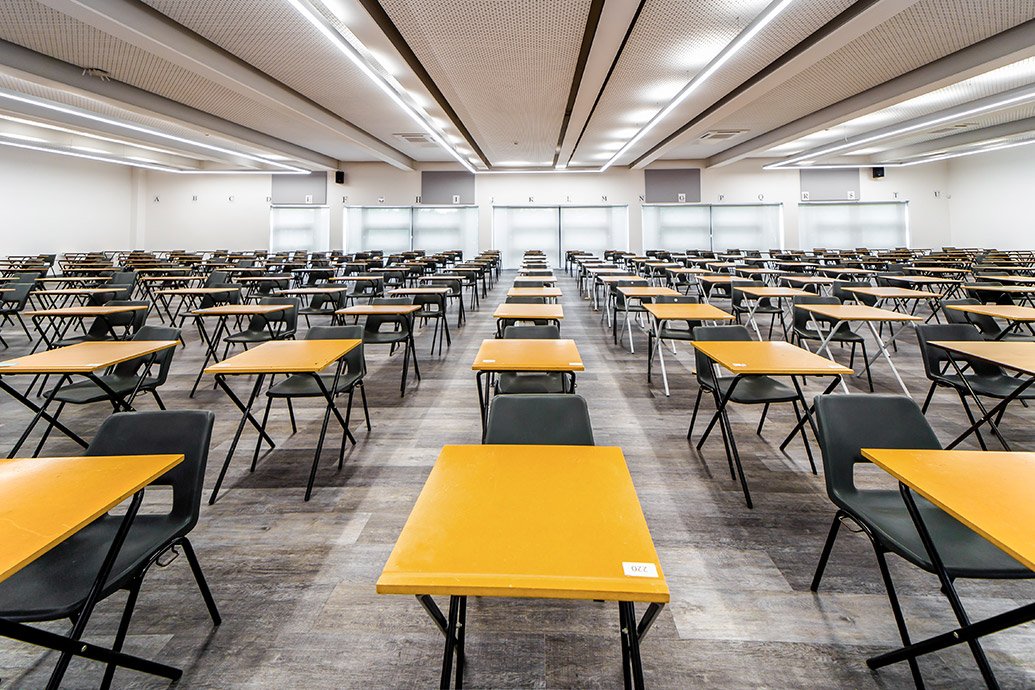

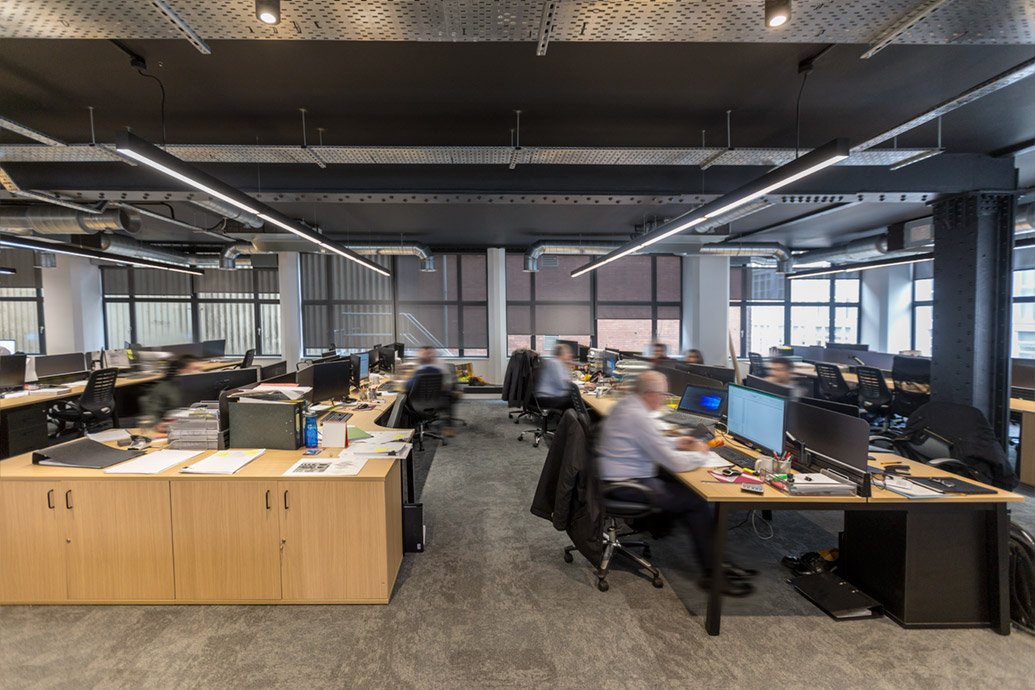

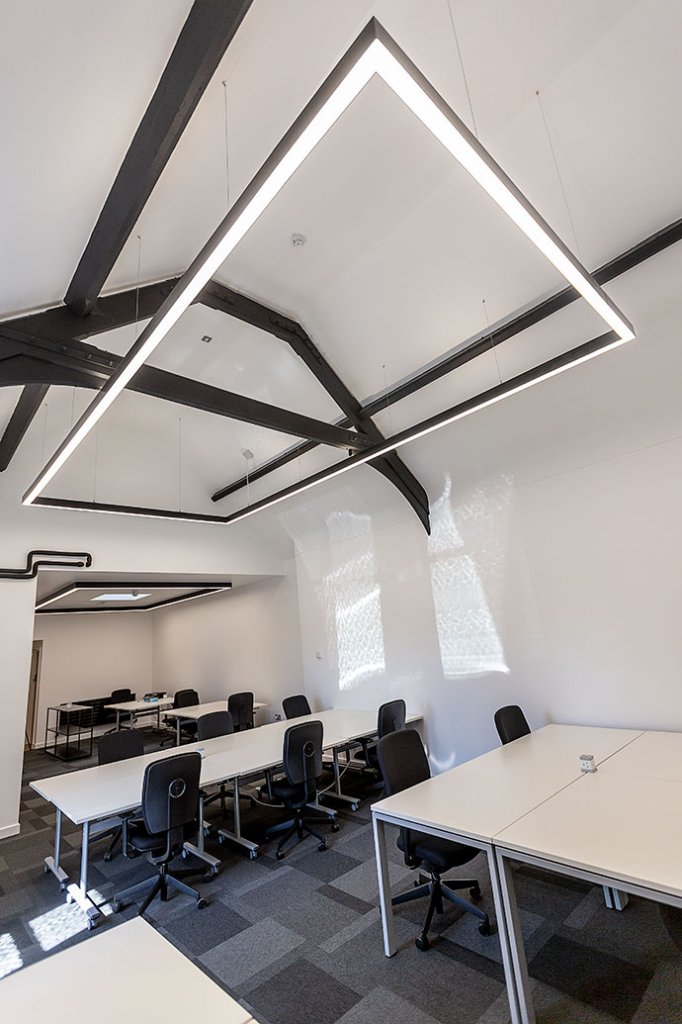

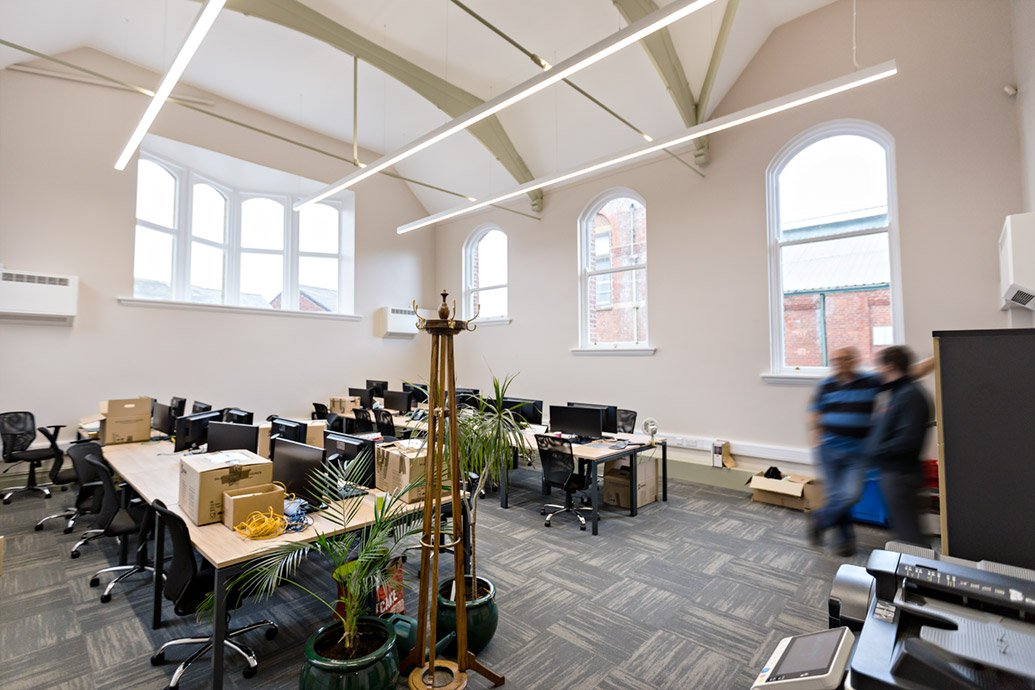

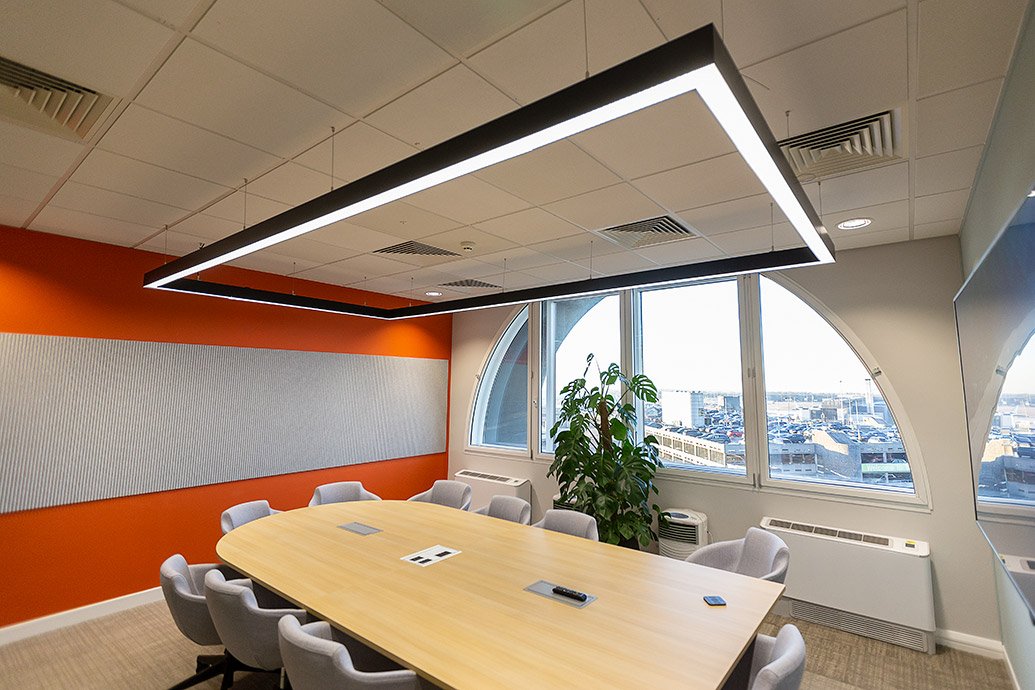

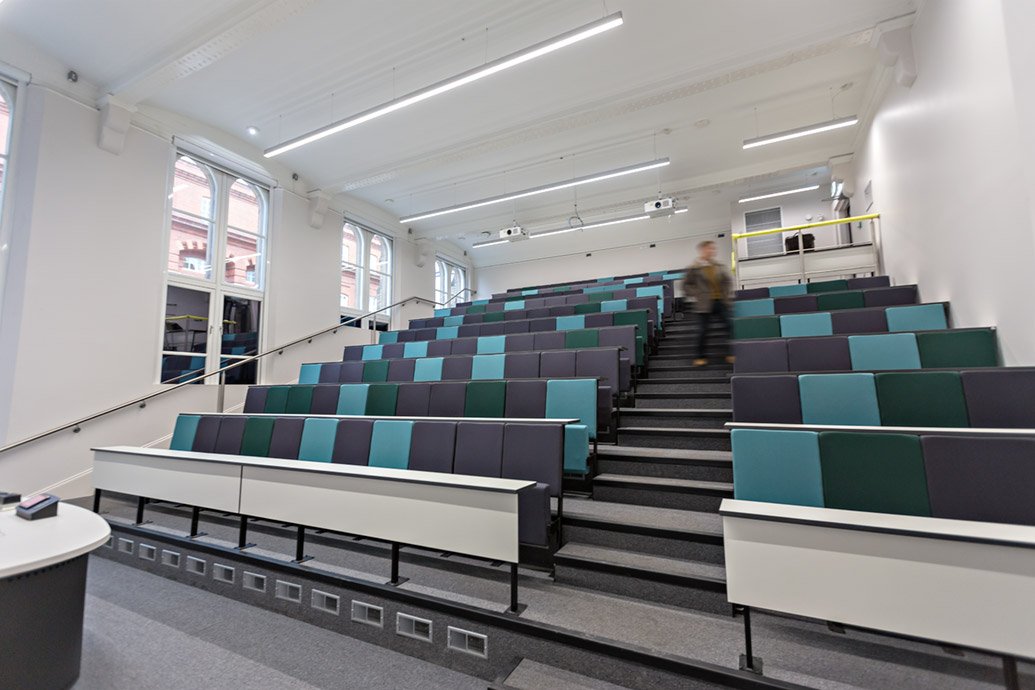

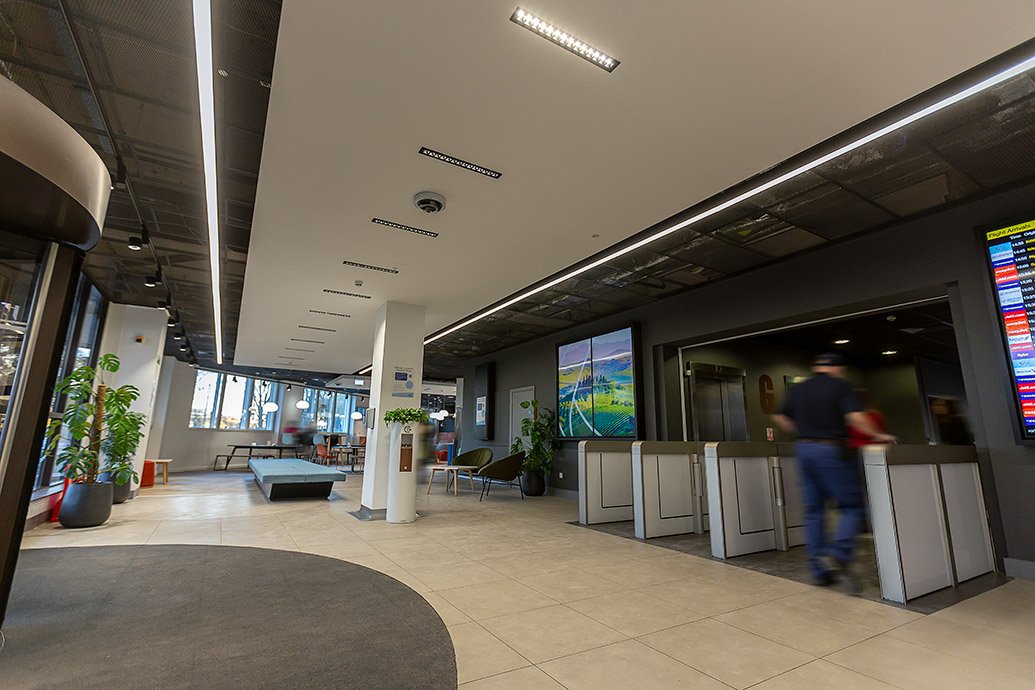

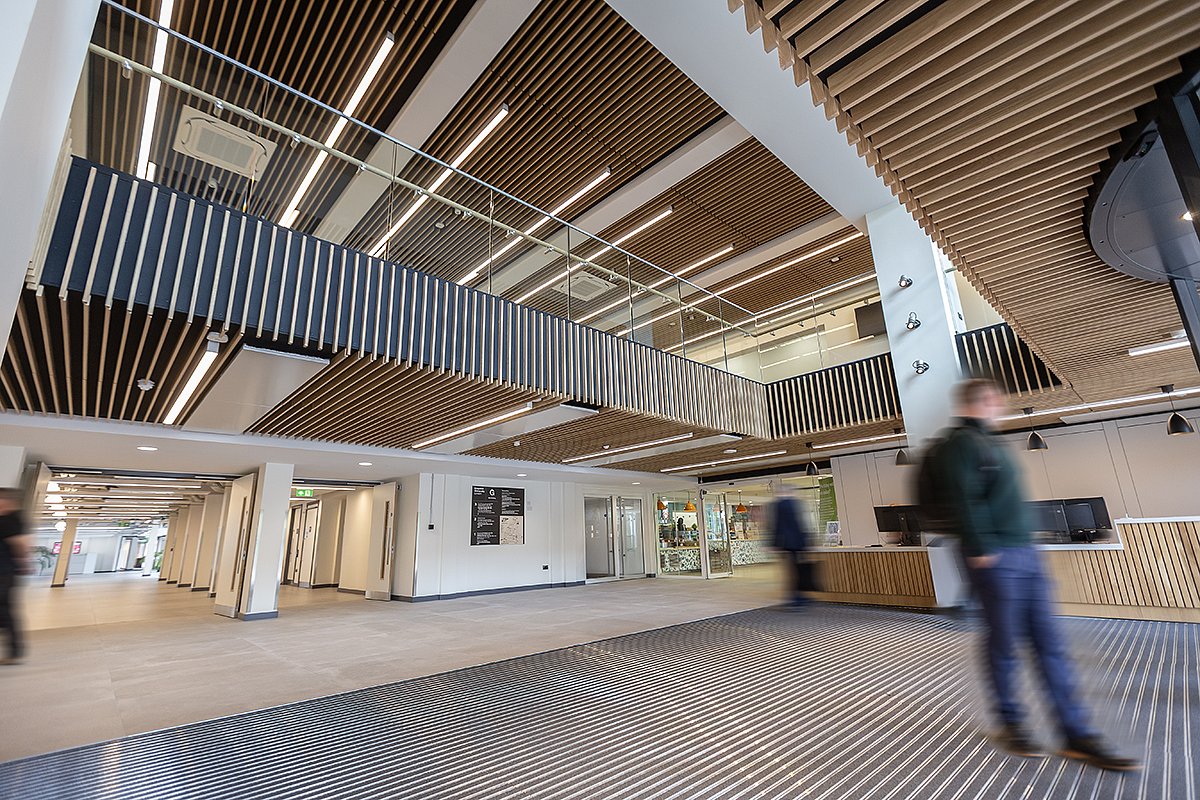

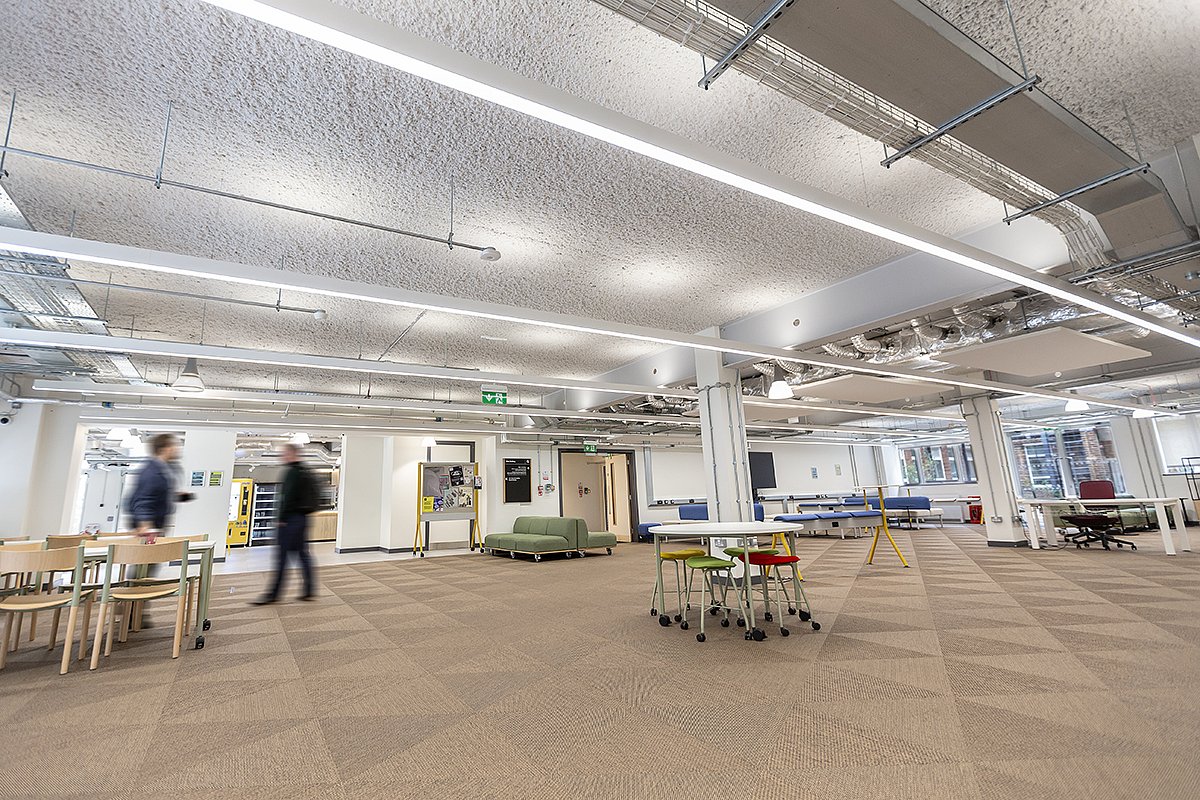

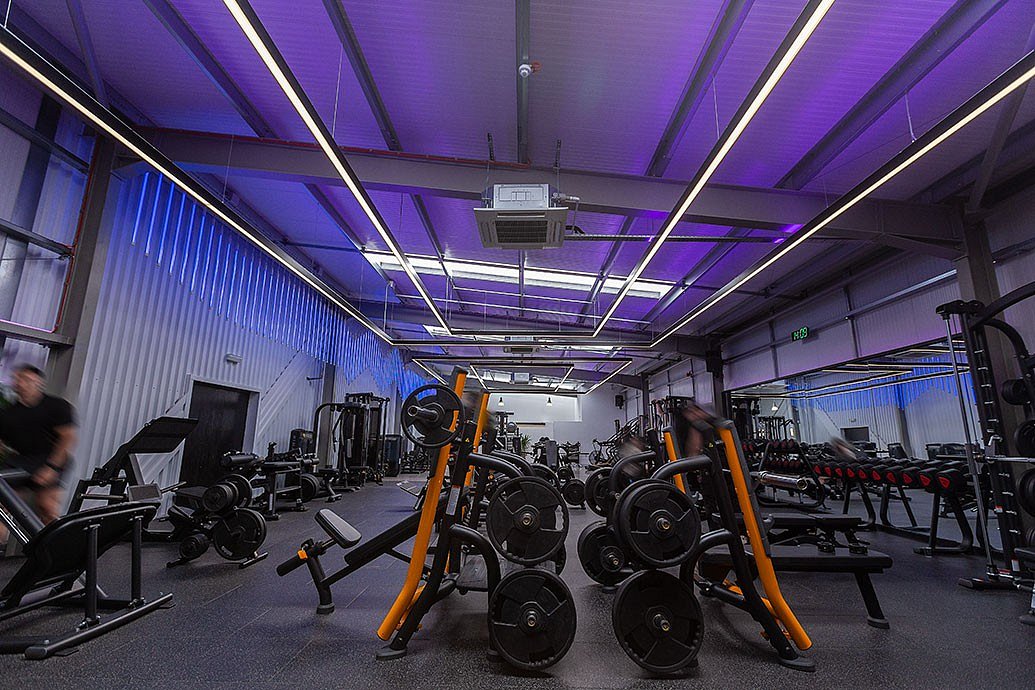

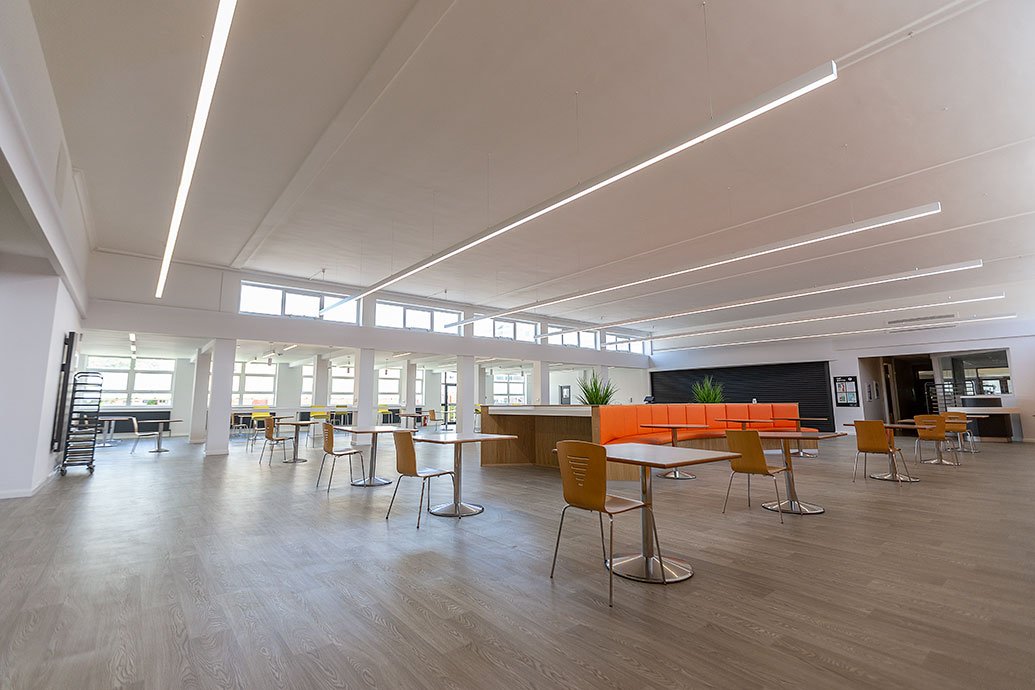

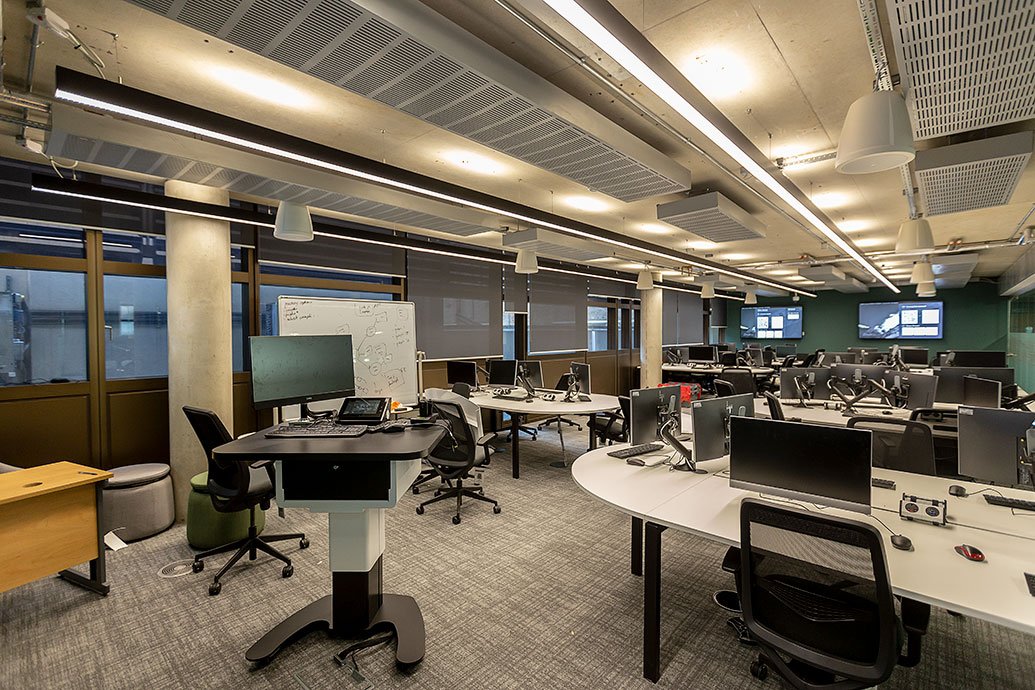

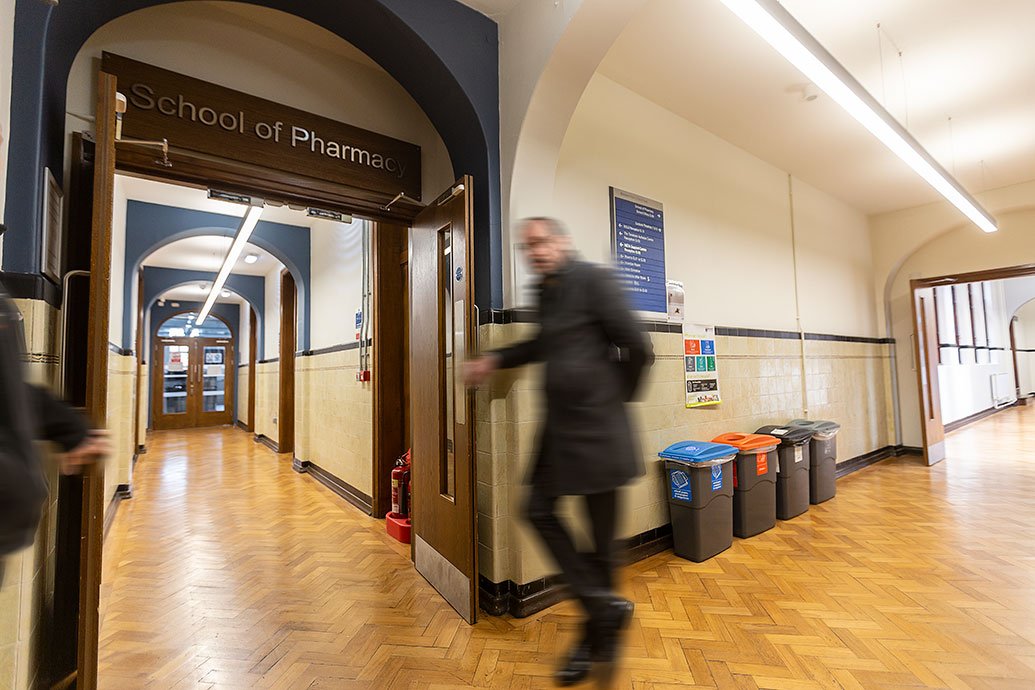

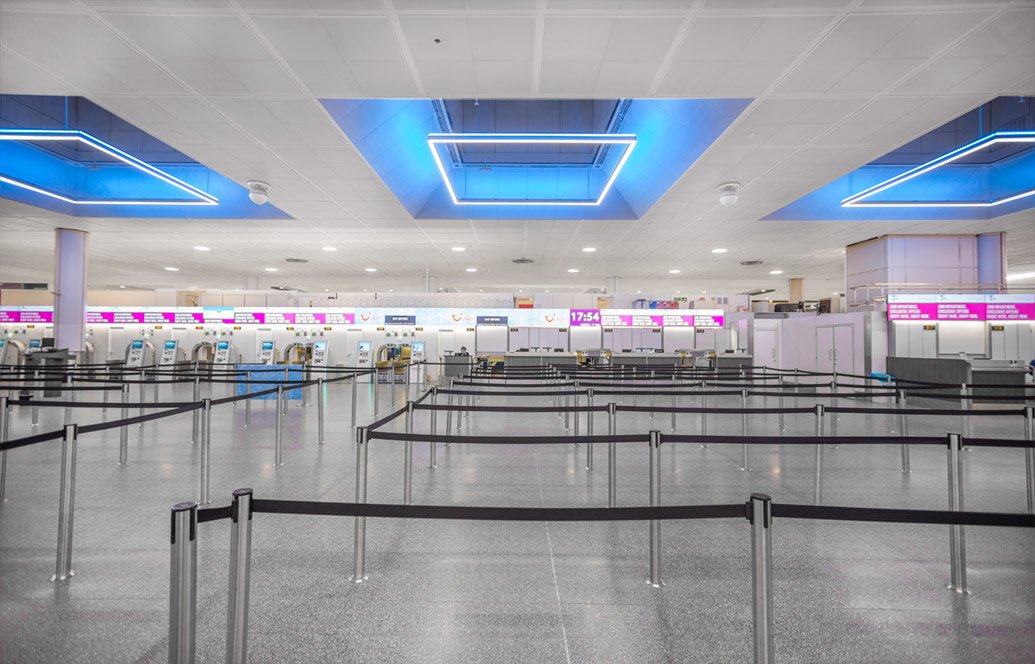

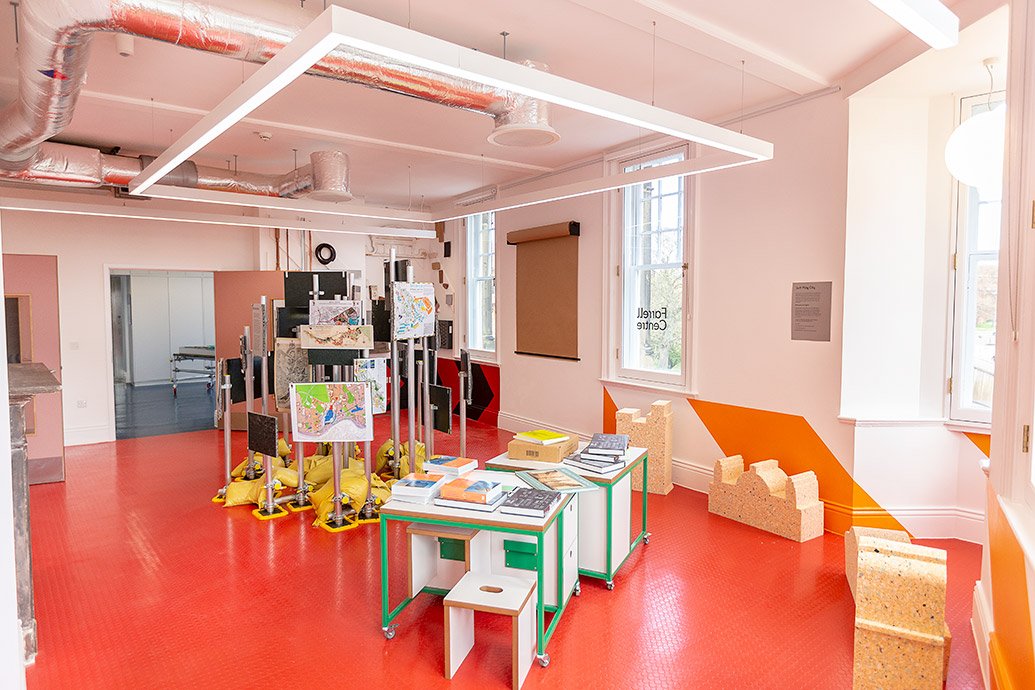

RUNWAY CONTINUOUS SURFACE/SUSPENDED in action

Technical

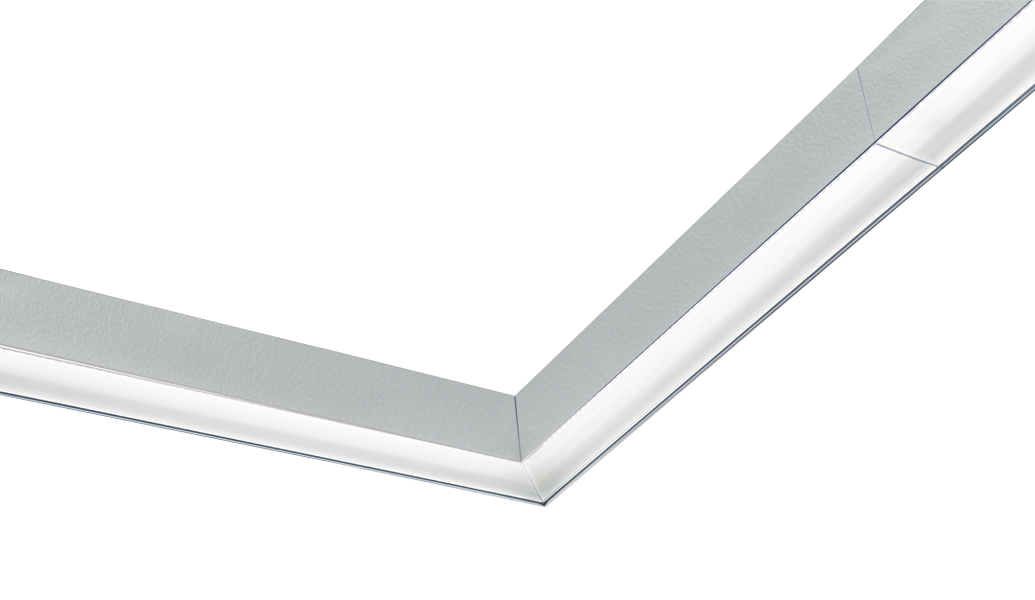

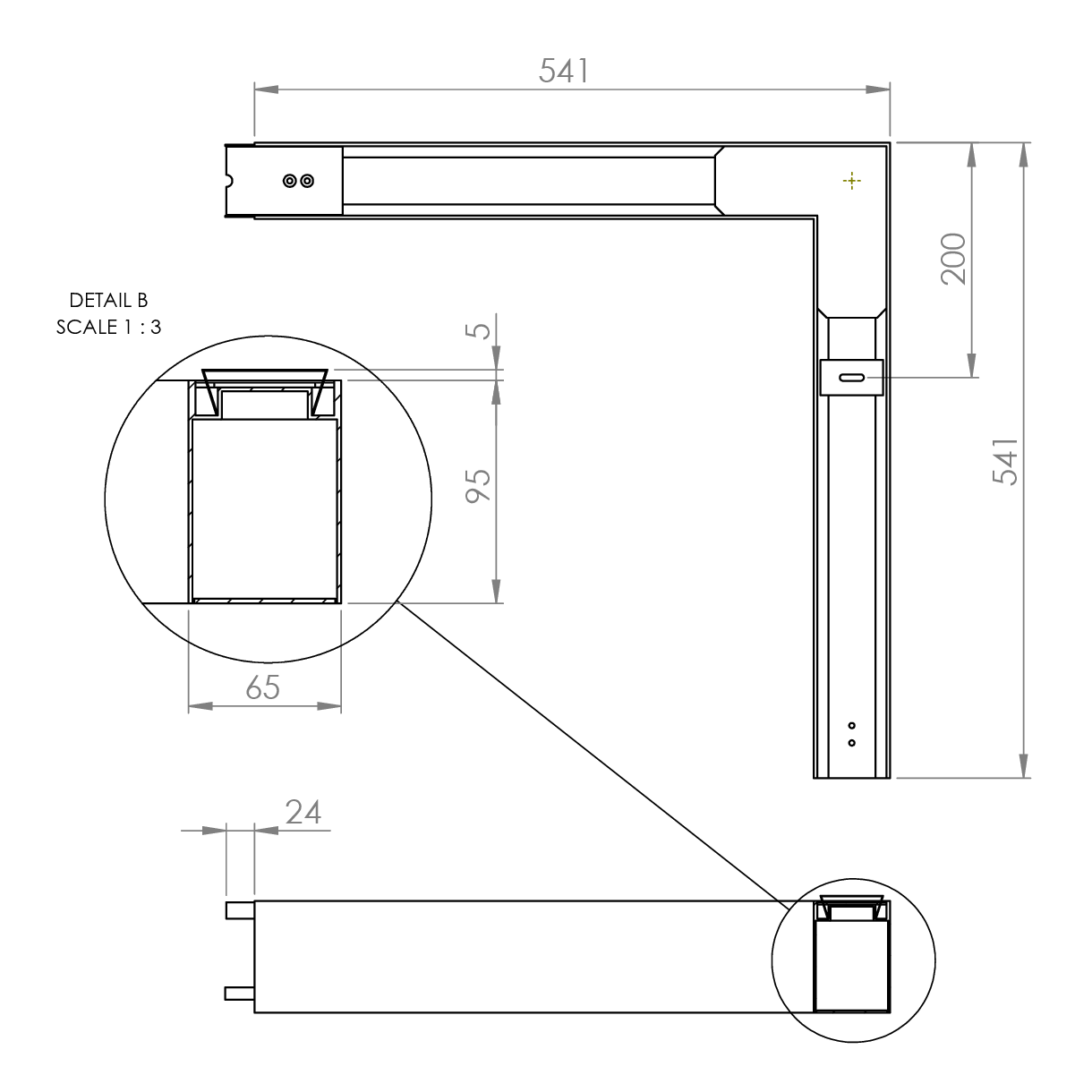

Runway Corner

Runway Corner

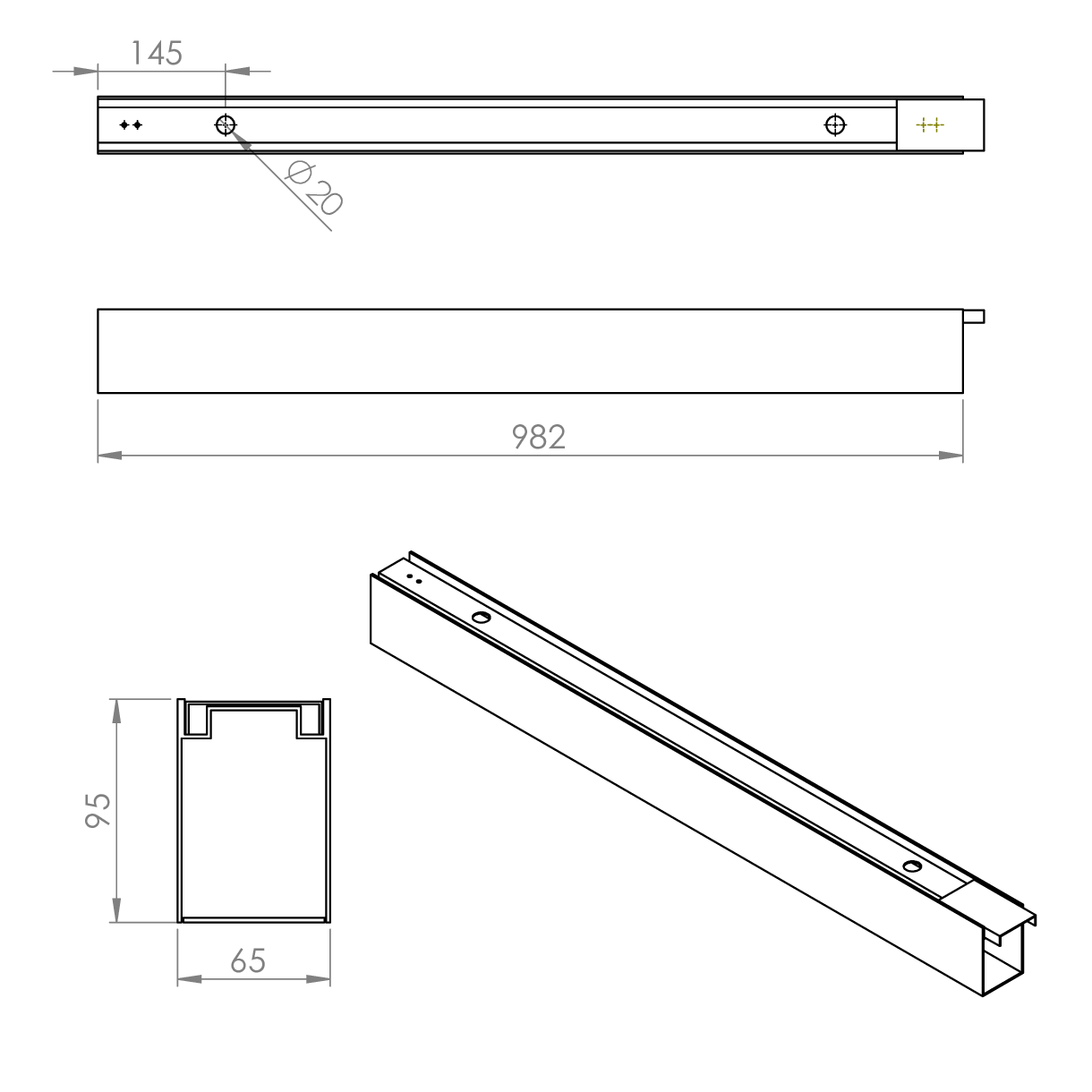

Runway Surface Trunking 1000mm

Runway Surface Trunking 1000mm

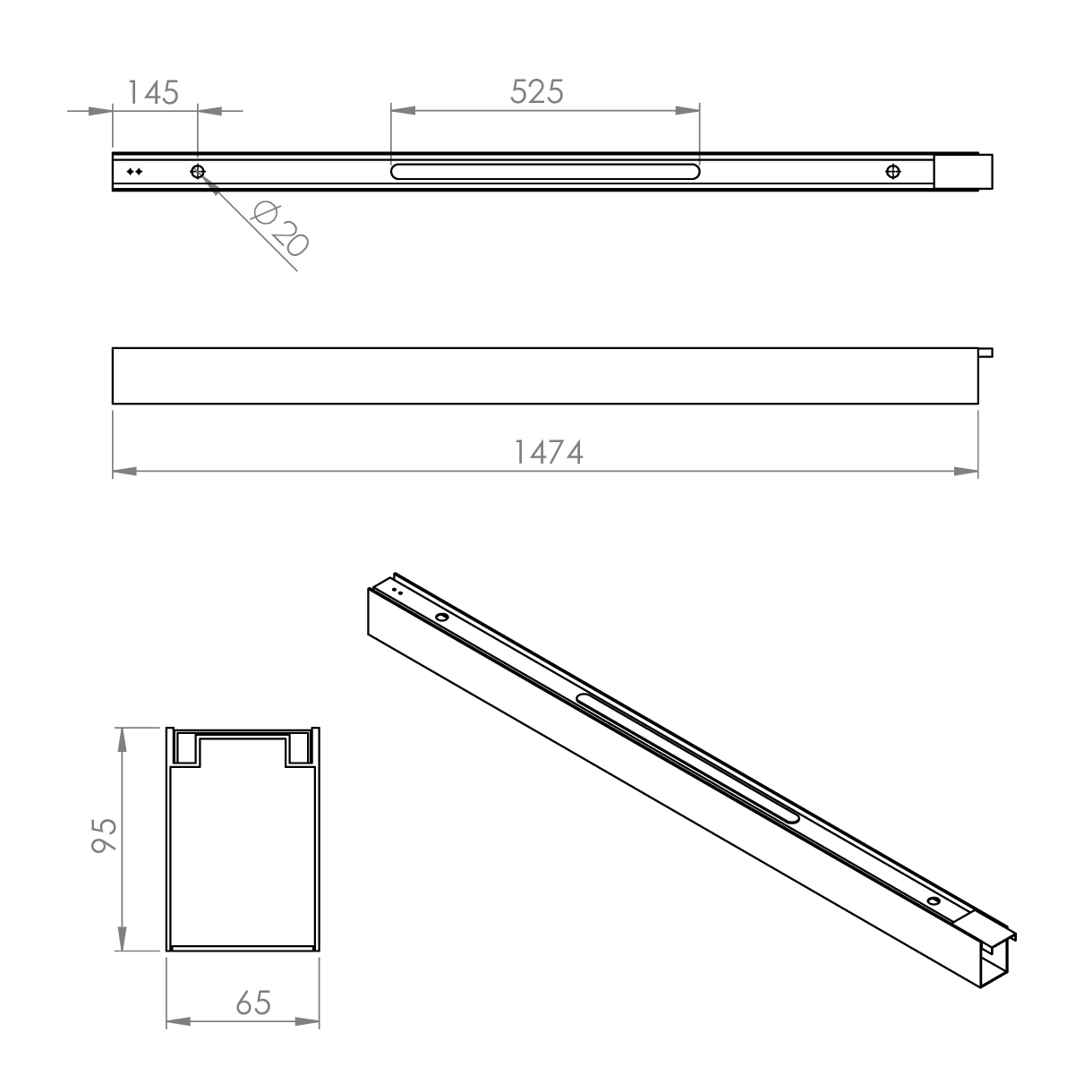

Runway Surface Trunking 1500mm

Runway Surface Trunking 1500mm

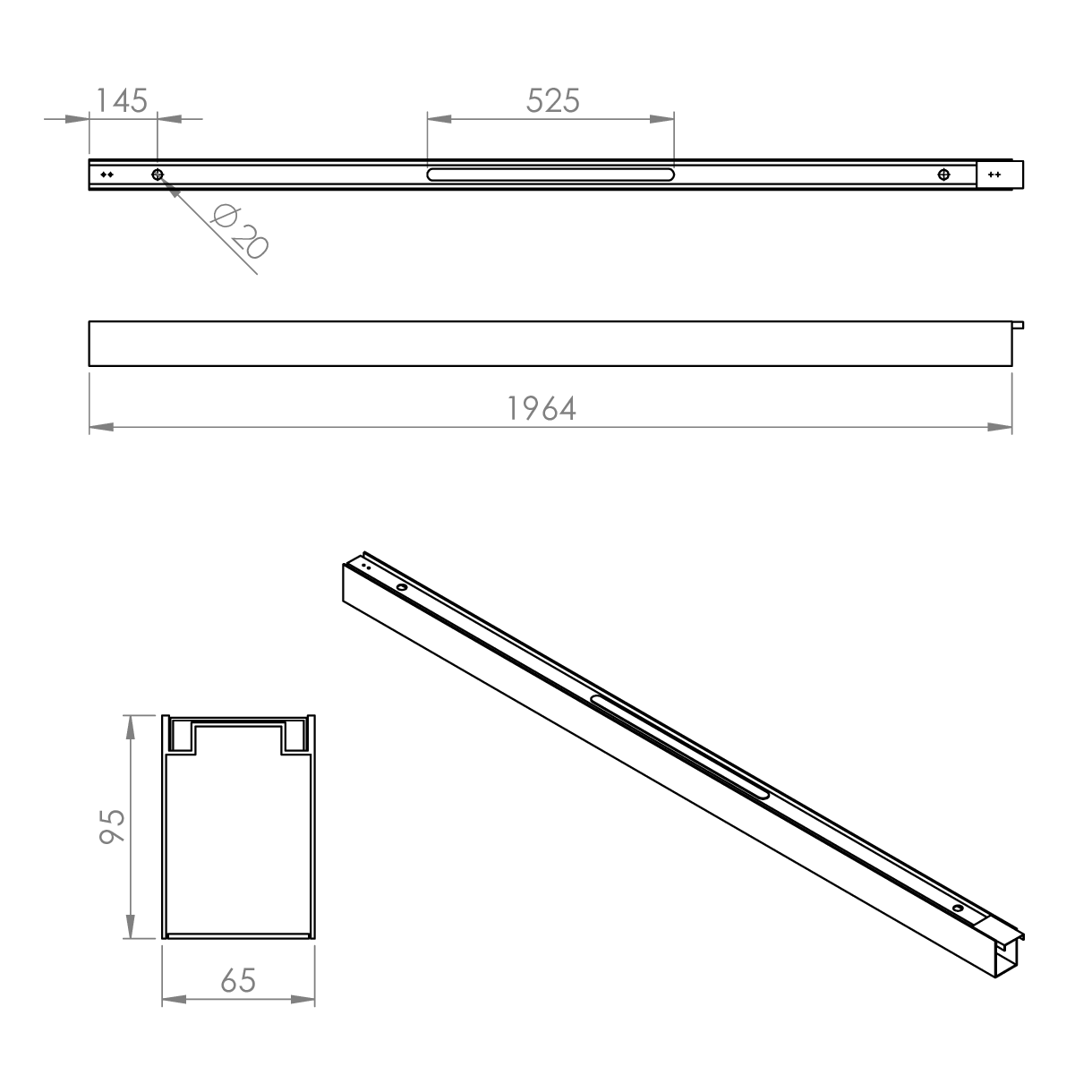

Runway Surface Trunking 2000mm

Runway Surface Trunking 2000mm

Runway Surface Trunking 3000mm

Runway Surface Trunking 3000mm

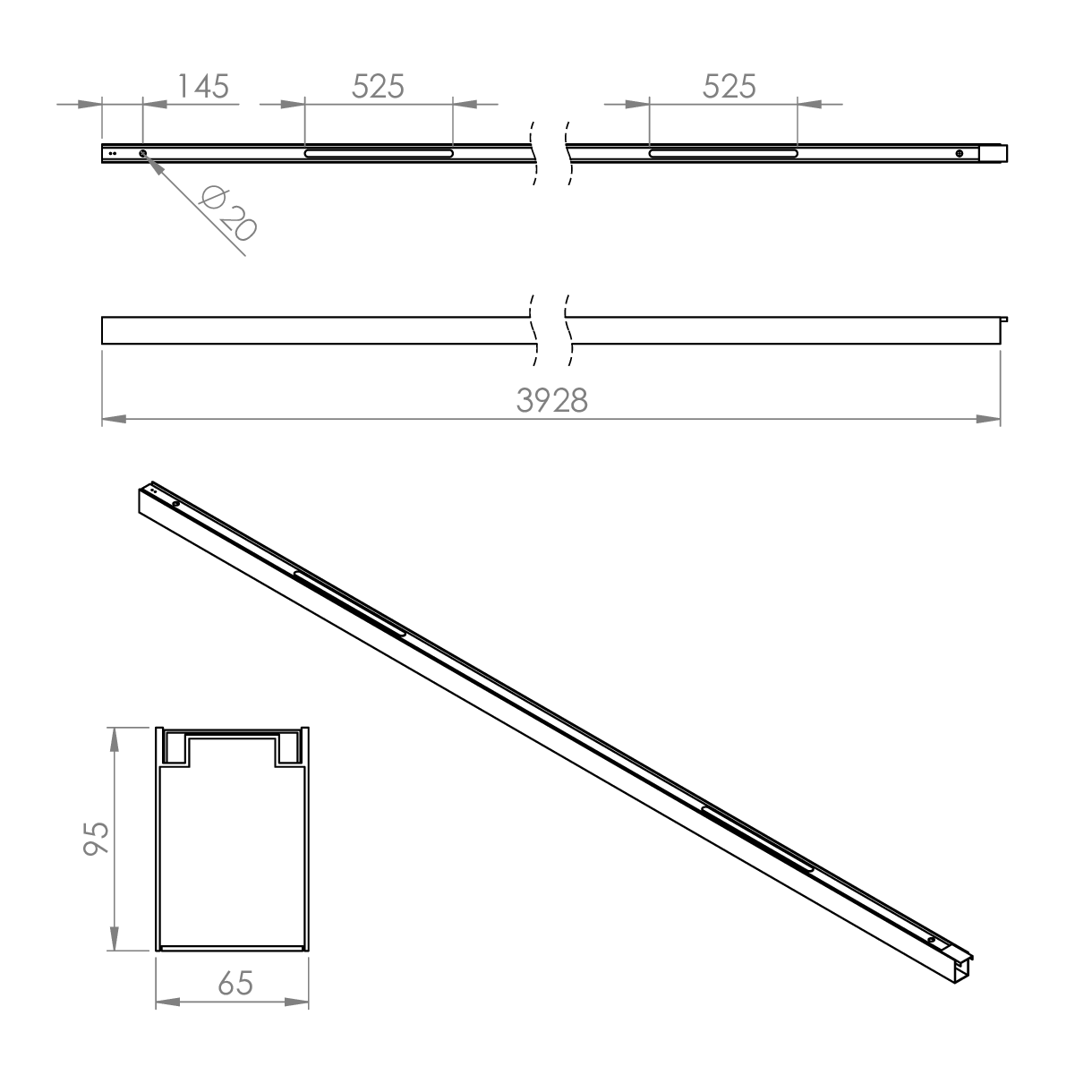

Runway Surface Trunking 4000mm

Runway Surface Trunking 4000mm

Ordering

Luminaires

SURFACE/SUSPENDED CONTINUOUS RUN TRUNKING
Code Description
RWY 1000 ST Runway Trunking 1000mm, Surface / Suspended, Downlight, Start,
RWY 1000 TW Runway Trunking 1000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RWY 1500 ST Runway Trunking 1500mm, Surface / Suspended, Downlight, Start
RWY 1500 TW Runway Trunking 1500mm, Surface / Suspended, Downlight, Through Wire and End of Run
RWY 2000 ST Runway Trunking 2000mm, Surface / Suspended, Downlight, Start
RWY 2000 TW Runway Trunking 2000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RWY 3000 ST Runway Trunking 3000mm, Surface / Suspended, Downlight, Start
RWY 3000 TW Runway Trunking 3000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RWY 4000 ST Runway Trunking 4000mm, Surface / Suspended, Downlight, Start
RWY 4000 TW Runway Trunking 4000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RWY 1500 ST BD Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Start
RWY 1500 TW BD Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RWY 2000 ST BD Runway Trunking 2000mm, Surface / Suspended, B-Directional, Downlight, Start
RWY 2000 TW BD Runway Trunking 2000mm, Surface / Suspended, Bi-Directional, Downlight, Through Wire and End of Run
RWY 3000 ST BD Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Start
RWY 3000 TW BD Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RWY 4000 ST BD Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Start
RWY 4000 TW BD Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
CONTINUOUS RUN GEAR TRAY - Low Output
Code Description Power Llm/W
RWY 1000 L14 TW Runway Tray, 1000mm, 938llm, Through Wire, Colour 84 9.6W 98
RWY 1000 L14 ER Runway Tray, 1000mm, 938llm, End of Run, Colour 84 9.6W 98
RWY 1500 L22 TW Runway Tray, 1500mm, 1,628llm, Through Wire, Colour 84 13.9W 117
RWY 1500 L22 ER Runway Tray, 1500mm, 1,628llm, End of Run, Colour 84 13.9W 117
RWY 1500 L29 TW BD Runway Tray, 1500mm, 2,146llm, Through Wire, Bi-Directional, Colour 84 17.1W 125
RWY 1500 L29 ER BD Runway Tray, 1500mm, 2,146llm, End of Run, Bi-Directional, Colour 84 17.1W 125
RWY 2000 L29 TW Runway Tray, 2000mm, 2,146llm, Through Wire, Colour 84 17.1W 124
RWY 2000 L29 ER Runway Tray, 2000mm, 2,146llm, End of Run, Colour 84 17.1W 124
RWY 2000 L38 TW BD Runway Tray, 2000mm, 2,987llm, Through Wire, Bi-Directional, Colour 84 23.4W 128
RWY 2000 L38 ER BD Runway Tray, 2000mm, 2,987llm, End of Run, Bi-Directional, Colour 84 23.4W 128
RWY COR L14 TW OP Runway Corner 90°, 931llm, Opal, Through Wire, Colour 84 9.9W 94
RWY COR L14 ER OP Runway Corner 90°, 931llm, Opal, End of Run, Colour 84 9.9W 94
RWY COR L14 TW MP Runway Corner 90°, 868llm, Microprism, Through Wire, Colour 84 9.5W 91
RWY COR L14 ER MP Runway Corner 90°, 868llm, Microprism, End of Run, Colour 84 9.5W 91
CONTINUOUS RUN GEAR TRAY - Medium Output
Code Description Power Llm/W
RWY 1000 L20 TW Runway Tray, 1000mm, 1,331llm, Through Wire, Colour 84 13.2W 101
RWY 1000 L20 ER Runway Tray, 1000mm, 1,331llm, End of Run, Colour 84 13.2W 101
RWY 1500 L30 TW Runway Tray, 1500mm, 2,221llm, Through Wire, Colour 84 18.9W 118
RWY 1500 L30 ER Runway Tray, 1500mm, 2,221llm, End of Run, Colour 84 18.9W 118
RWY 1500 L40 TW BD Runway Tray, 1500mm, 2,829llm, Through Wire, Bi-Directional, Colour 84 24.5W 115
RWY 1500 L40 ER BD Runway Tray, 1500mm, 2,829llm, End of Run, Bi-Directional, Colour 84 24.5W 115
RWY 2000 L40 TW Runway Tray, 2000mm, 2,960llm, Through Wire, Colour 84 24.5W 121
RWY 2000 L40 ER Runway Tray, 2000mm, 2,960llm, End of Run, Colour 84 24.5W 121
RWY 2000 L53 TW BD Runway Tray, 2000mm, 4,166llm, Through Wire, Bi-Directional, Colour 84 30.7W 136
RWY 2000 L53 ER BD Runway Tray, 2000mm, 4,166llm, End of Run, Bi-Directional, Colour 84 30.7W 136
RWY COR L20 TW OP Runway Corner 90°, 1,330llm, Opal, Through Wire, Colour 84 13.6W 97
RWY COR L20 ER OP Runway Corner 90°, 1,330llm, Opal, End of Run, Colour 84 13.6W 97
RWY COR L20 TW MP Runway Corner 90°, 1,235llm, Microprism, Through Wire, Colour 84 13.6W 90
RWY COR L20 ER MP Runway Corner 90°, 1,235llm, Microprism, End of Run, Colour 84 13.6W 90
CONTINUOUS RUN GEAR TRAY - High Output
Code Description Power Llm/W
RWY 1000 L30 TW Runway Tray, 1000mm, 2,000llm, Through Wire, Colour 84 20.0W 100
RWY 1000 L30 ER Runway Tray, 1000mm, 2,000llm, End of Run, Colour 84 20.0W 100
RWY 1500 L45 TW Runway Tray, 1500mm, 3,331llm, Through Wire, Colour 84 27.3W 122
RWY 1500 L45 ER Runway Tray, 1500mm, 3,331lm, End of Run, Colour 84 27.3W 122
RWY 1500 L60 TW BD Runway Tray, 1500mm, 4,244llm, Through Wire, Bi-Directional, Colour 84 34.6W 123
RWY 1500 L60 ER BD Runway Tray, 1500mm, 4,244llm, End of Run, Bi-Directional, Colour 84 34.6W 123
RWY 2000 L60 TW Runway Tray, 2000mm, 4,440llm, Through Wire, Colour 84 34.6W 128
RWY 2000 L60 ER Runway Tray, 2000mm, 4,440llm, End of Run, Colour 84 34.6W 128
RWY 2000 L80 TW BD Runway Tray, 2000mm, 5,656llm, Through Wire, Bi-Directional, Colour 84 40.1W 141
RWY 2000 L80 ER BD Runway Tray, 2000mm, 5,656llm, End of Run, Bi-Directional, Colour 84 40.1W 141
RWY COR L30 TW OP Runway Corner 90°, 1,999llm, Opal, Through Wire, Colour 84 20.0W 100
RWY COR L30 ER OP Runway Corner 90°, 1,999llm, Opal, End of Run, Colour 84 20.0W 100
RWY COR L30 TW MP Runway Corner 90°, 1,857llm, Microprism, Through Wire, Colour 84 20.0W 93
RWY COR L30 ER MP Runway Corner 90°, 1,857llm, Microprism, End of Run, Colour 84 20.0W 93
CONTINUOUS RUN GEAR TRAY - Very High Output
Code Description Power Llm/W
RWY 1500 L96 TW Runway Tray, 1500mm, 7,104llm, Through Wire, Colour 84 54.4W 131
RWY 1500 L96 ER Runway Tray, 1500mm, 7,104llm, End of Run, Colour 84 54.4W 131
RWY 1500 L127 BD TW Runway Tray, 1500mm, 8,976llm, Through Wire, Bi-Directional, Colour 84 72.8W 123
RWY 1500 L127 BD ER Runway Tray, 1500mm, 8,976llm, End of Run, Bi-Directional, Colour 84 72.8W 123
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Optic

Code Description

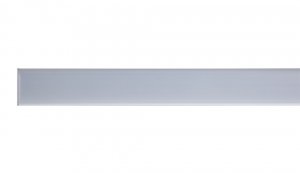

RWY 1000 OP Runway 1000mm Diffuser, Opal, for surface & suspended
RWY 1000 MP Runway 1000mm Diffuser, Microprism, for surface & suspended
RWY 1000 R44 OP Runway 1000mm Diffuser, R44 Sensor, Opal
RWY 1000 R44 MP Runway 1000mm Diffuser, R44 Sensor, Microprism
RWY 1000 RAS OP Runway 1000mm Diffuser, Reacta-Air Bluetooth, Opal
RWY 1000 RAS MP Runway 1000mm Diffuser, Reacta-Air Bluetooth, Microprism
RWY 1000 RCS OP Runway 1000mm Diffuser, RCS Sensor, Opal
RWY 1000 RCS MP Runway 1000mm Diffuser, RCS Sensor, Microprism
RWY 1000 RCS OP Runway 1000mm Diffuser, RCS Sensor, Opal
RWY 1000 RLS MP Runway 1000mm Diffuser, RLS Sensor, Mircoprism
RWY 1000 RLS OP Runway 1000mm Diffuser, RLS Sensor, Opal
RWY 1000 INFILL TW Runway 1000mm Infill, Through Wire
RWY 1500 OP Runway 1500mm Diffuser, Opal, for surface & suspended
RWY 1500 MP Runway 1500mm Diffuser, Microprism, for surface & suspended
RWY 1500 R44 OP Runway 1500mm Diffuser, R44 Sensor, Opal
RWY 1500 R44 MP Runway 1500mm Diffuser, R44 Sensor, Microprism
RWY 1500 RAS OP Runway 1500mm Diffuser, Reacta-Air Bluetooth, Opal
RWY 1500 RAS MP Runway 1500mm Diffuser, Reacta-Air Bluetooth, Microprism
RWY 1500 RCS OP Runway 1500mm Diffuser, RCS Sensor, Opal
RWY 1500 RCS MP Runway 1500mm Diffuser, RCS Sensor, Microprism
RWY 1500 RLS OP Runway 1500mm Diffuser, RLS Sensor, Opal
RWY 1500 RLS MP Runway 1500mm Diffuser, RLS Sensor, Microprism
RWY 1500 INFILL TW Runway 1500mm Infill, Through Wire
RWY 2000 OP Runway 2000mm Diffuser, Opal, for surface & suspended
RWY 2000 MP Runway 2000mm Diffuser, Microprism, for surface & suspended
RWY 2000 R44 OP Runway 2000mm Diffuser, R44 Sensor, Opal
RWY 2000 R44 MP Runway 2000mm Diffuser, R44 Sensor, Microprism
RWY 2000 RAS OP Runway 2000mm Diffuser, Reacta-Air Bluetooth, Opal
RWY 2000 RAS MP Runway 2000mm Diffuser, Reacta-Air Bluetooth, Microprism
RWY 2000 RCS OP Runway 2000mm Diffuser, RCS Sensor, Opal
RWY 2000 RCS MP Runway 2000mm Diffuser, RCS Sensor, Microprism
RWY 2000 RLS OP Runway 2000mm Diffuser, RLS Sensor, Opal
RWY 2000 RLS MP Runway 2000mm Diffuser, RLS Sensor, Microprism
RWY 2000 INFILL TW Runway 2000mm Infill, Through Wire
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor
WT White Tunable (Lumen Outputs Vary from Standard)
Please click here for full details on our white tunable offer.
Analogue dimming only available in L18 variants
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH White Finish
BL Black Finish
GY Grey Finish
RWY SMK CONTINUOUS Runway Continuous Surface Mount Kit
SUSP RWY 3M BF X1 Runway 3M suspension Kit One Drop
RWY INSTALL KIT Runway Installation Kit
RWY EC 95 Runway End Cap (Pair)
LSF Low Smoke Zero Halogen
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Downloads

Installation Guide - Standalone (Download PDF) Installation Guide - Continuous Run (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files

Find out more about

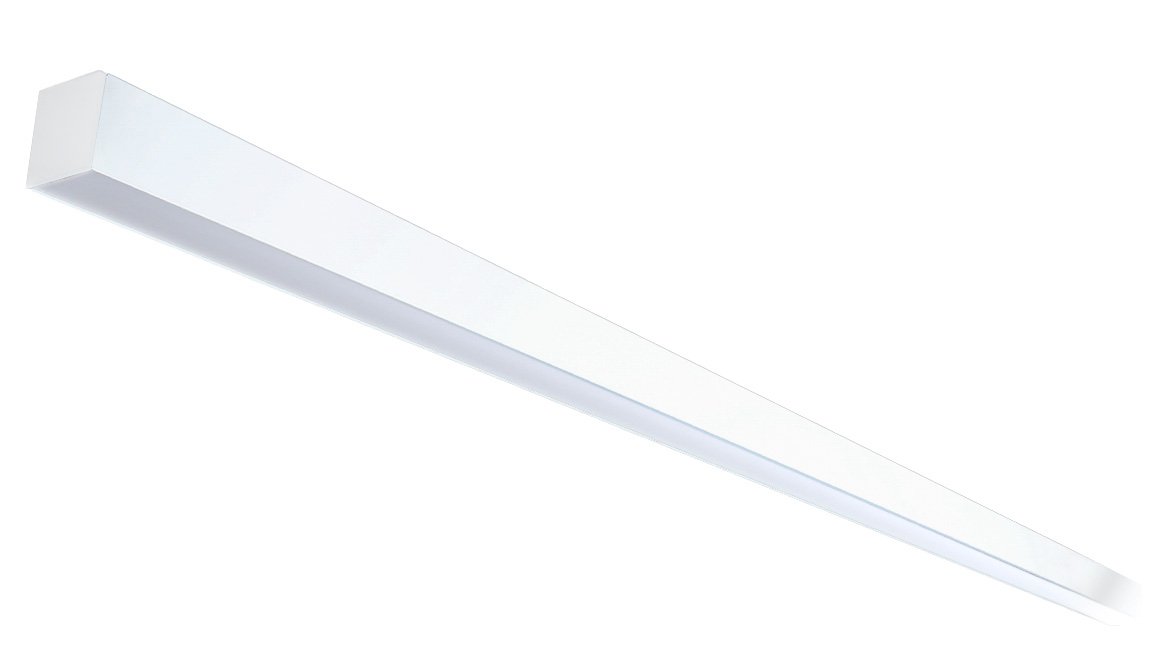

RUNWAY CONTINUOUS SURFACE/SUSPENDED

For Sales and Technical Enquires call 01747 858100

Submit enquiry
