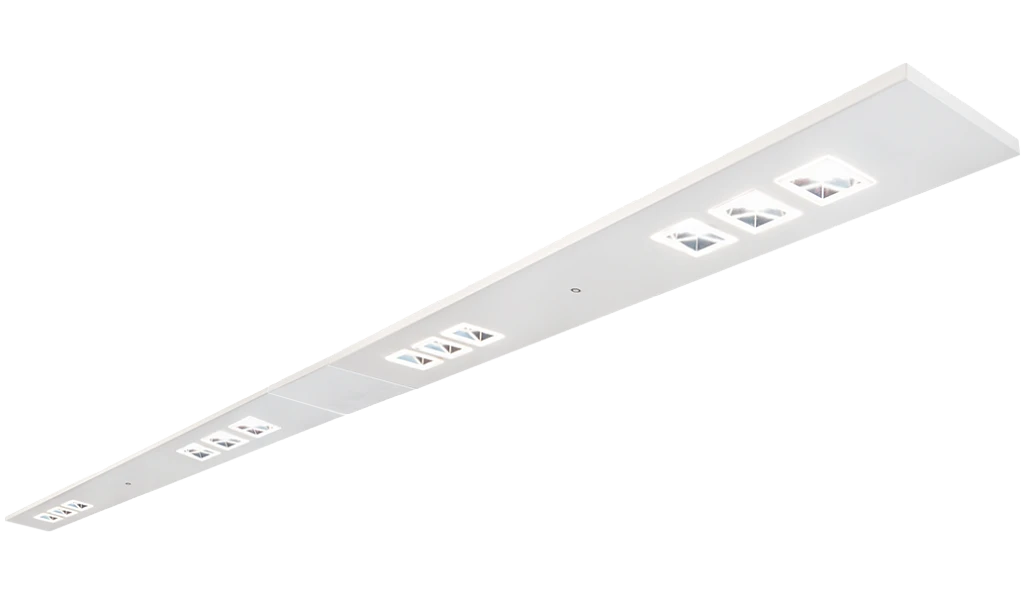

RUBIX BI-DIRECTIONAL CONTINUOUS SUSPENDED
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
Utilising the same optic design as the recessed and surface family the Rubix Suspended offers glare compliance to BSEN12464 and UGR19 or below ensuring it can be used in applications such as offices and classrooms whilst matching with the Rubix family allowing a common luminaire design to be used across entire installations. In common with other members of the Rubix family the optic frame is available in a range of colours and the housing can be supplied in either white or black allowing the appearance to be tailored to suit any corporate theme.
With bi-directional output as standard the Rubix Bi-Directional Continuous Suspended ensures that both the working area and the ceiling is effectively lit providing an attractive space. A balanced design also allows for a two point suspension that is both discreet and quick to install.
With both 6 cell 1500mm options, 4 cell 1200mm and continuous run options the performance and appearance of the Rubix is easily customised to a wide range of applications. Continuous run variants are supplied complete with a 6 pole through wiring loom for quick and easy plug and socket connection and are also available with a range of blind units.
As with all members of the Rubix family the Rubix Bi-Directional Continuous Suspended is available with a range of sensors and integral lithium emergency and dimming variants as well as a range of lumen outputs ensuring that the performance and function can be tailored to suit your application. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
RUBIX BI-DIRECTIONAL CONTINUOUS SUSPENDED complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Finish: Polyester powder painted RAL 9006 matt grey
- Finish: Polyester powder painted RAL 9005 matt black
- Endcaps: High pressure die cast aluminium
- Diffuser: Injection moulded high transmission opal polycarbonate cell with miro silver aluminium inserts and injection moulded clip on bezel
- IP20
- Through Wire variants supplied with 6 pole 1.5mm loom.
Performance
- Part L2 compliant
- BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Bi-Directional 50% up 50% down
- Up to 127 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional Integral R44 presence and daylight sensor
- Optional Integral Reacta-Air wireless presence and daylight regulations sensor
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for suspended installation
- Suitable for two point suspension
- Available with adjustable corners
- Through Wire variants are supplied with 6 pole 1.5mm loom
- Suitable for two point installation.
- Available with adjustable corner sections allowing continuous runs to be customised to suit room layout.
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
- Available in white, black or grey finishes
- Available with a range of cell colours

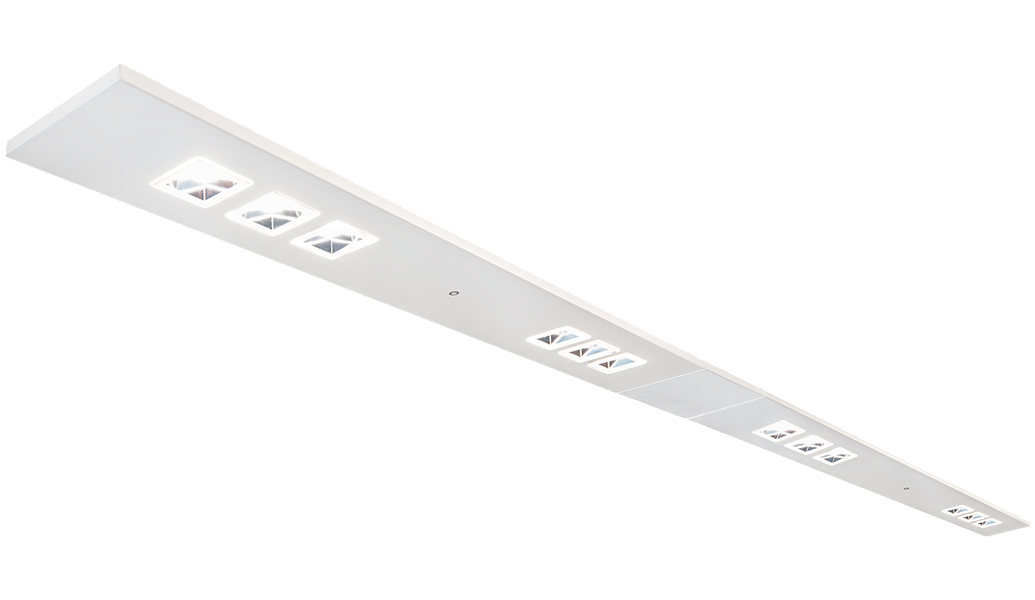

Product Images

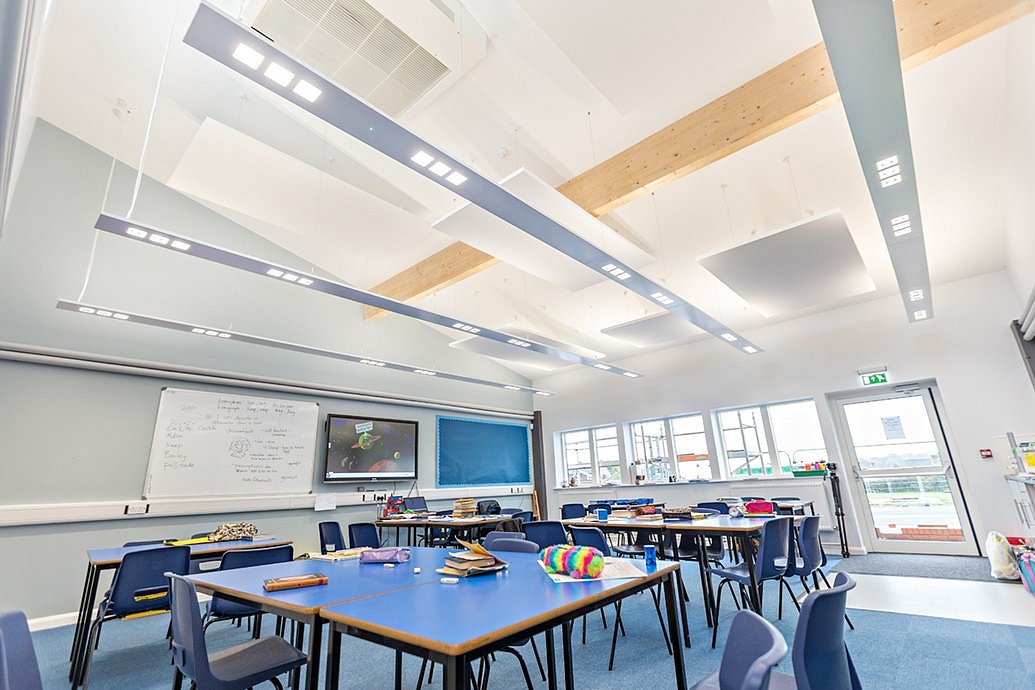

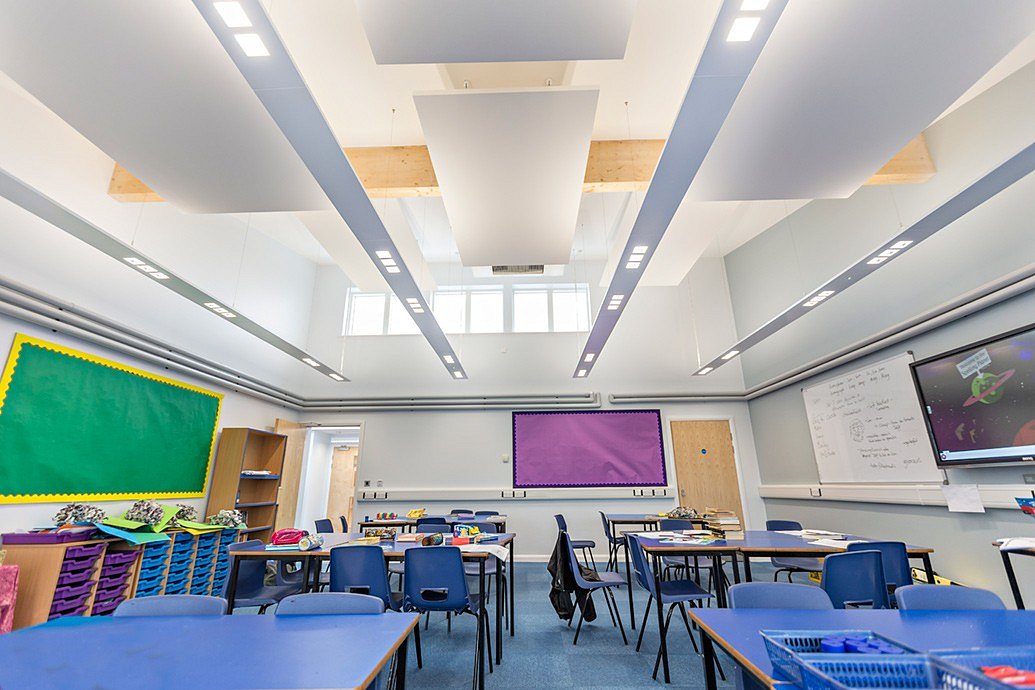

RUBIX BI-DIRECTIONAL CONTINUOUS SUSPENDED in action
.jpg)
.jpg)
Technical

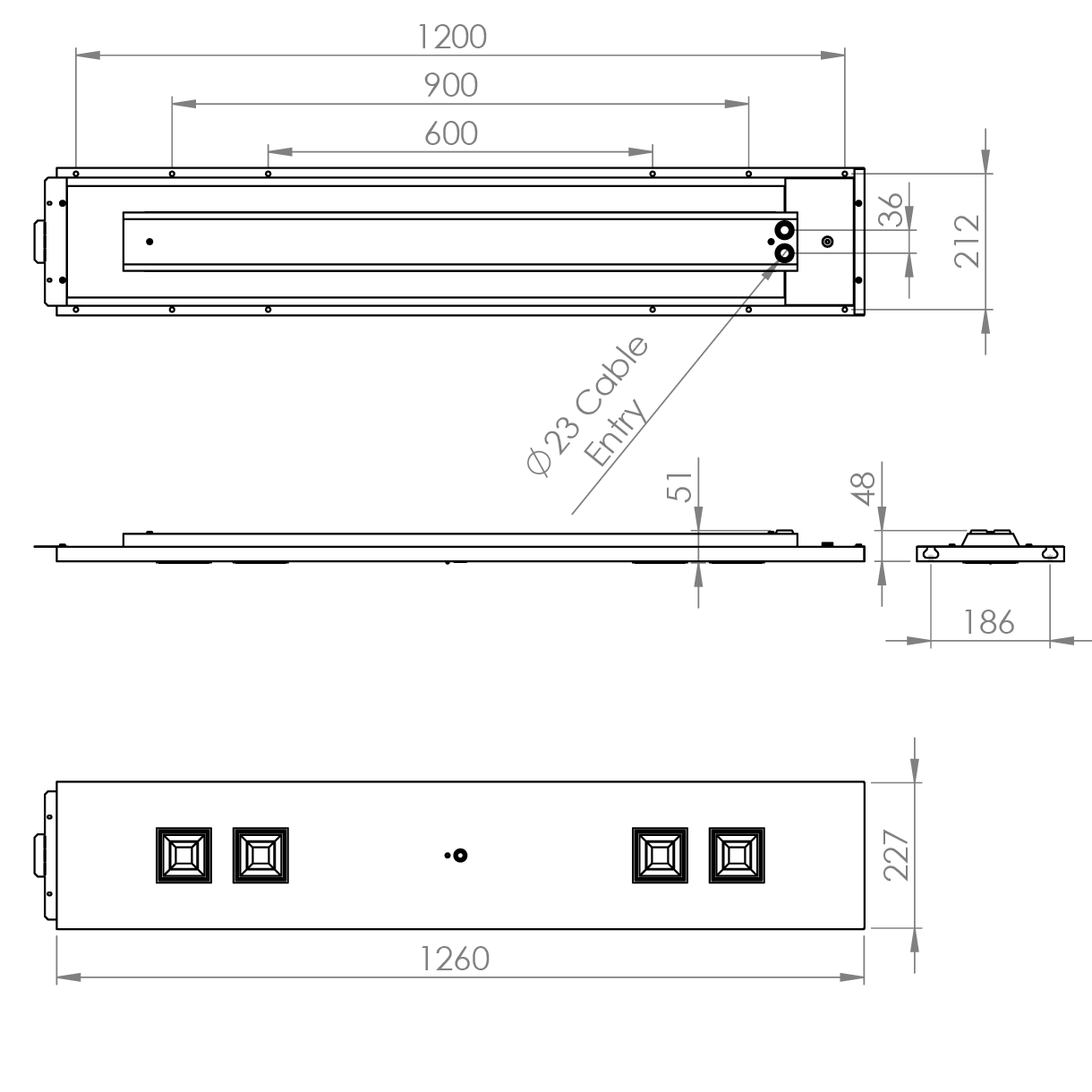

Rubix Suspended Through Wire 1200mm

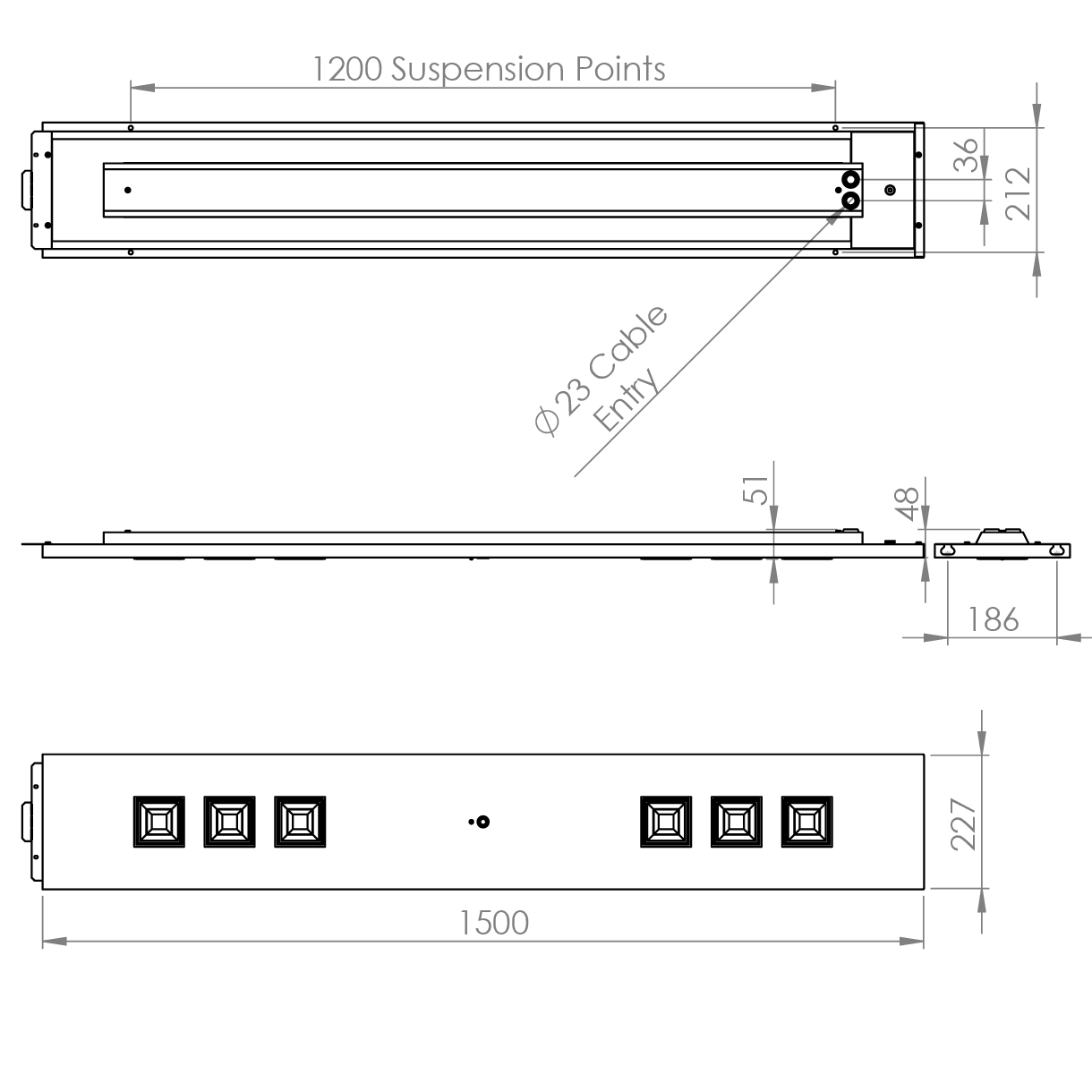

Rubix Suspended Through Wire 1500mm

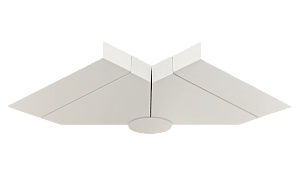

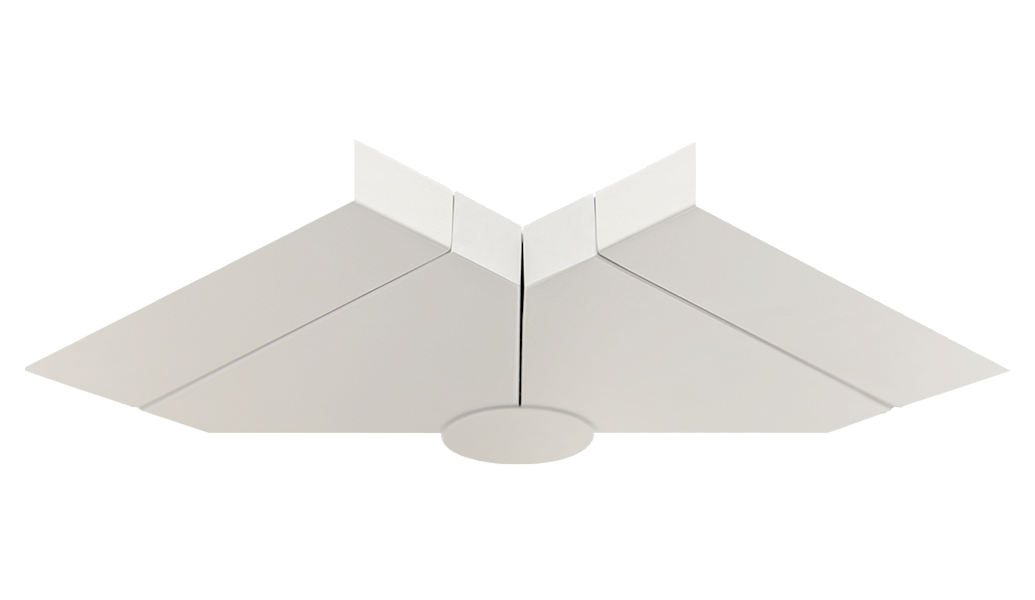

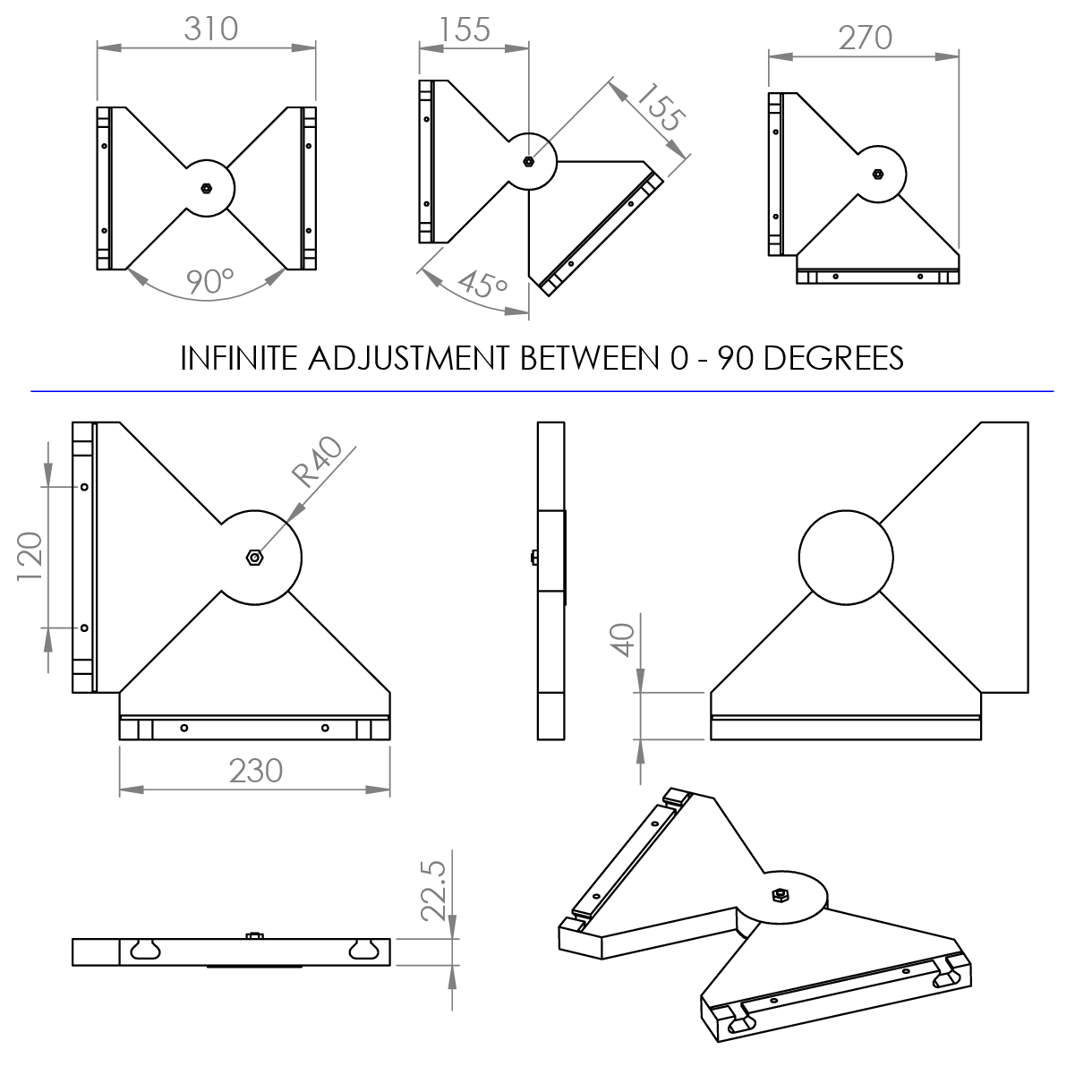

Rubix Suspended Adjustable Corner
Ordering
Luminaires
| Rubix Suspended Bi-Directional Continuous Run | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
Optic
| Code | Description |
|---|---|
| BLK | Black Cell |
| BLE | Blue Cell |
| ORA | Orange Cell |
| RED | Red Cell |
| Please refer to the Rubix Bi-Directional Design Consideration notes in the Technical section prior to placing your order. | |
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
| Please refer to the Rubix Bi-Directional Design Consideration notes in the Technical section prior to placing your order. | |
Control
| Code | Description |
|---|---|
| R44 | Reacta 44, Presence & Daylight, 2.5-7M |
| RAS | Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RLS | Reacta-Link Wireless, Presence & Daylight, 2.5M-5M |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RCS | Reacta-Control Wireless, Presence & Daylight, 2.5-4M |
| Please click here for full details on our wireless controls. | |
| Please refer to the Rubix Bi-Directional Design Consideration notes in the Technical section prior to placing your order. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| Please refer to the Rubix Bi-Directional Design Consideration notes in the Technical section prior to placing your order. | |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| BL | Black Finish |
| GY | Grey Finish |
| SUSP RBX SIR ELL 3M BF X2 | 3M Suspension Kit |
| RBXBD COR TW | Rubix adjustable corner |
| RBXBD BLIND 300 TW | Rubix Continuous Run, 300mm 6 pole through wire blind unit |
| RBXBD BLIND 600 TW | Rubix Continuous Run, 600mm 6 pole through wire blind unit |
| RBXBD BLIND 1000 TW | Rubix Continuous Run, 1000mm 6 pole through wire blind unit |
| RBXBD BLIND 1260 TW | Rubix Continuous Run, 1260mm, 6 pole through wire blind unit |
| RBXBD BLIND 1500 TW | Rubix Continuous Run, 1500mm, 6 pole through wire blind unit |
| RBXBD BLIND 1800 TW | Rubix Continuous Run, 1800mm 6 pole through wire blind unit |
| RBXBD EC | Rubix End Cap (please specify one set per run of luminaires). |
| RBXBD JOINER | Rubix Joining Kit (Used mid run where new power feeds are required) |
| LSF | Low Smoke Zero Halogen |
| Please refer to the Rubix Bi-Directional Design Consideration notes in the Technical section prior to placing your order. | |
