Rubini Suspended Pendant

Introduction

Where lighting must be both discreet and attractive, the Rubini Suspended Pendant provides the optimum solution with its small form factor combined with a modern and attractive cellular design. With excellent glare control of UGR 16 and cutting edge efficiency in excess of 160 luminaire lumens per watt, the Rubini Suspended Pendant offers superb efficiency and architectural appeal. With an extruded aluminium housing, injection moulded cellular baffle, front bezel and lensed optic to ensure consistent optical performance with excellent glare control and efficiency the Rubini Suspended Pendant has been designed without compromise in materials or performance.

The Rubini Suspended Pendant is suspended in a range of lengths, ideally suited to task lighting. White or black housing and white, black or copper cellular baffle options are available ensuing that the Rubini can blend into a range of architectural styles, and is available in a range of lengths and cell combinations, bi-directional variants as well.

RUBINI SUSPENDED PENDANT complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Commercial / Offices | Education | Hotel / Leisure | Office | Retail

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Finish: Polyester powder painted RAL 9006 matt grey
  • Finish: Polyester powder painted RAL 9005 matt black
  • Lens: Injection moulded PMMA 80° with baffle in RAL9005 matt black, RAL 9016 matt white or copper
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 161 luminaire lumens per circuit Watt.
  • UGR 16

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Not available with emergency

Control

  • Fixed output only.

Installation

  • Suitable for suspended installation
  • Supplied complete with 1M suspension cable.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • 5 variants of length and cell combinations.
5 year extended warranty available on most products.
Arrow right

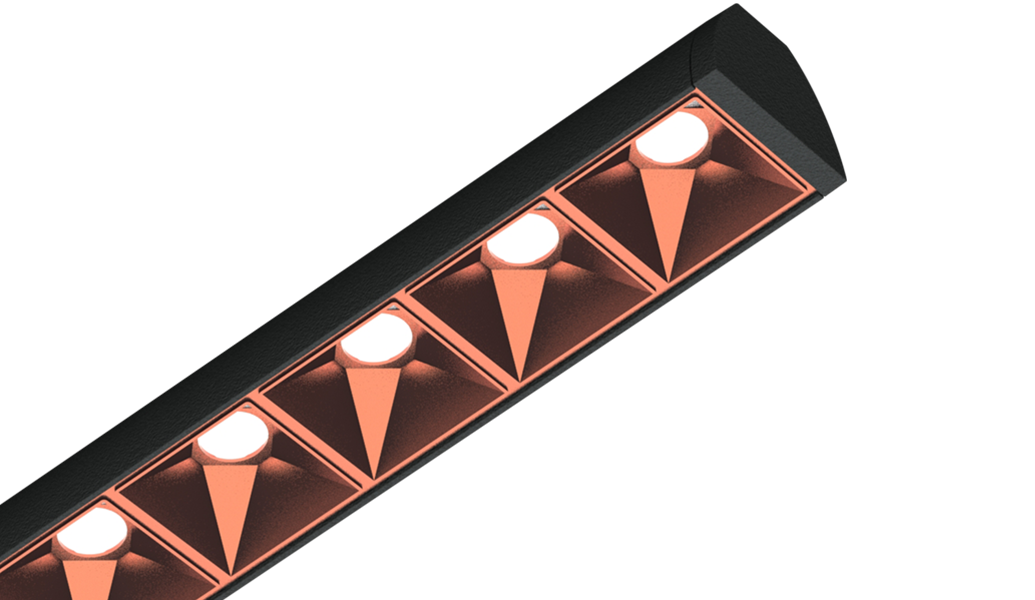

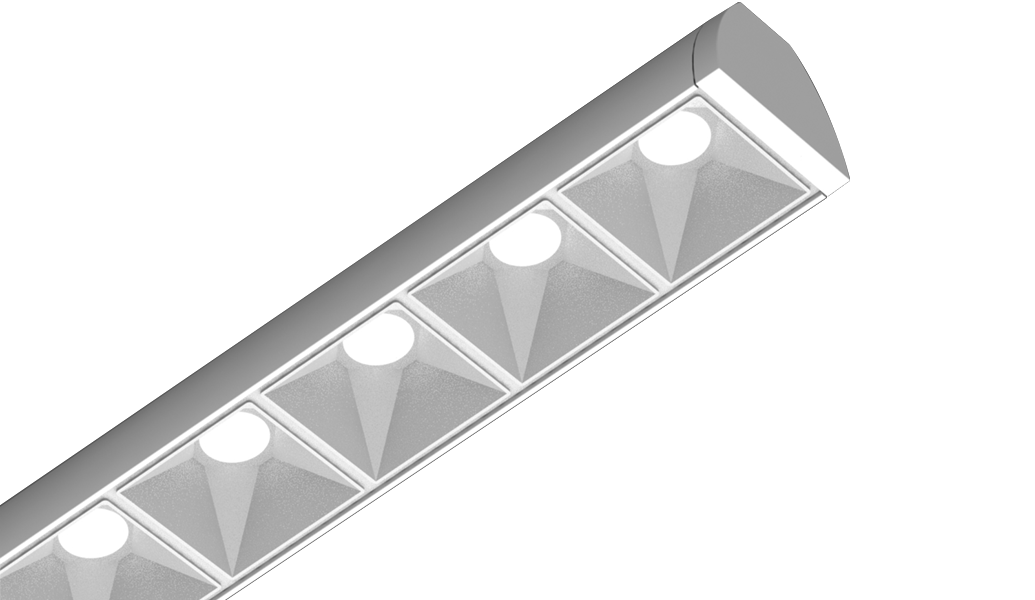

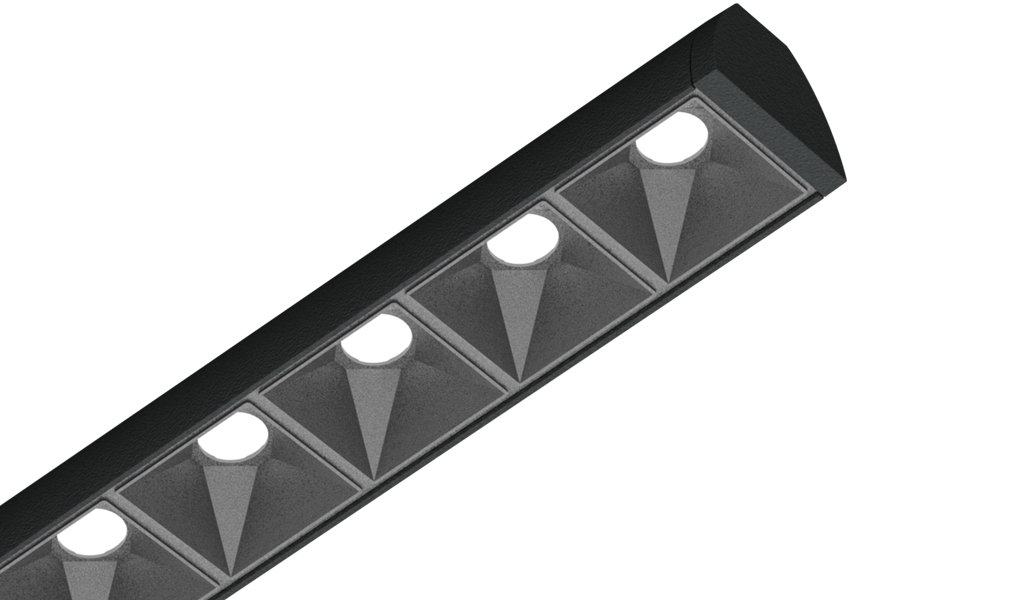

Product Images

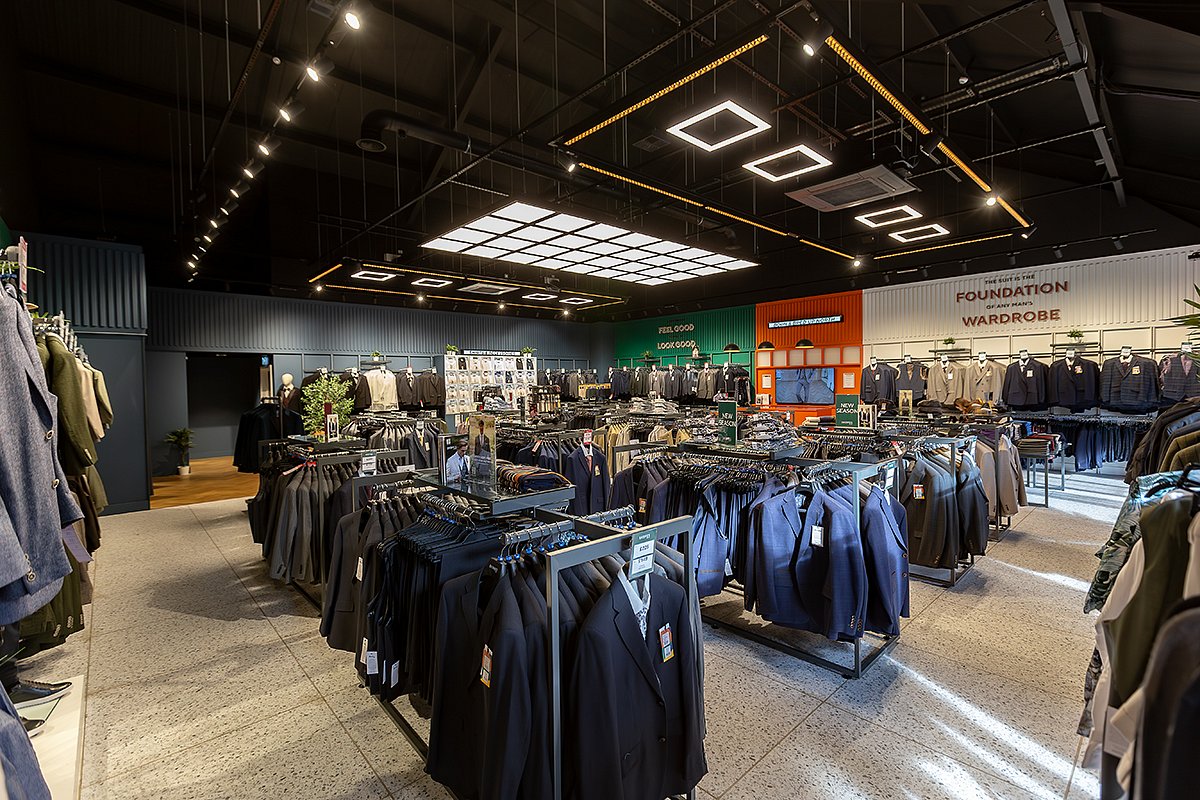

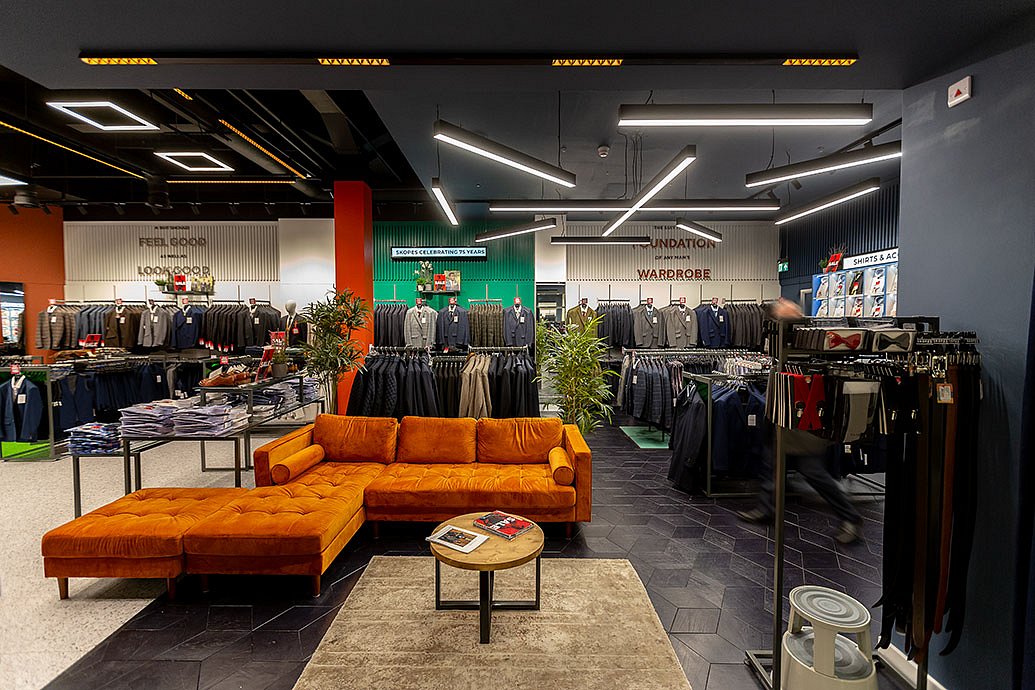

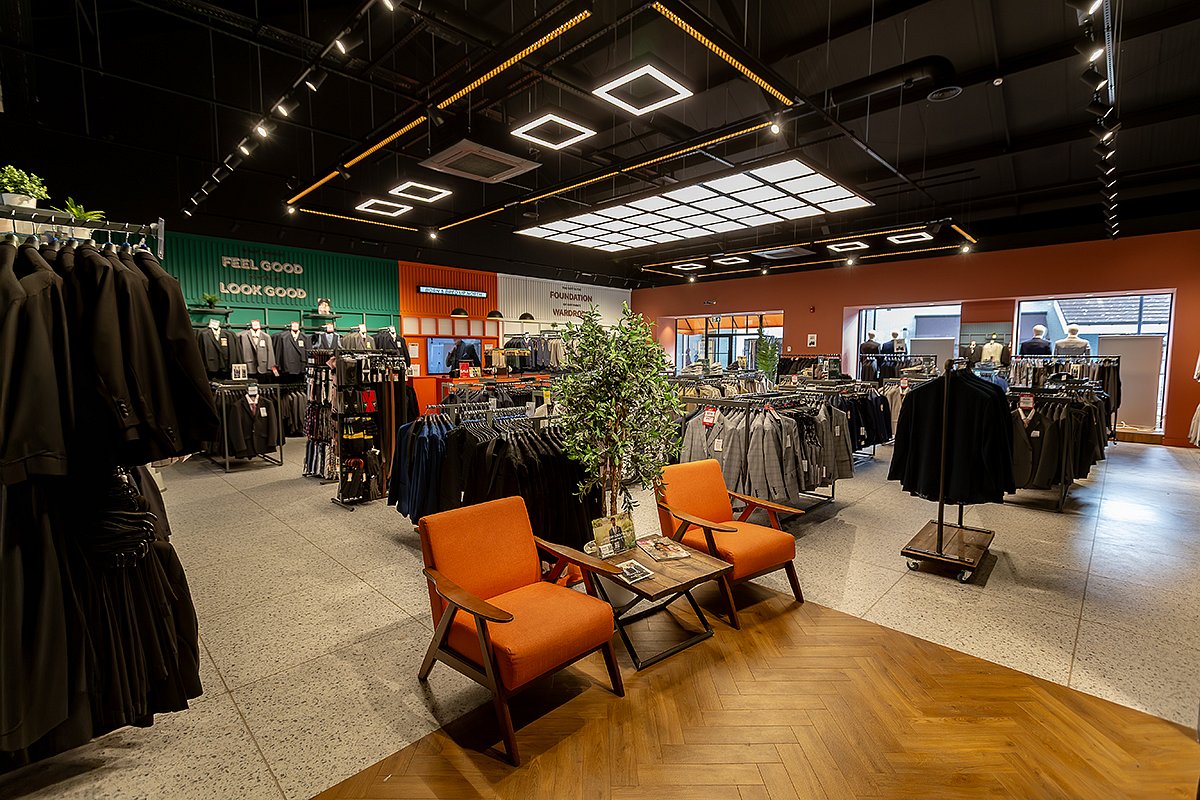

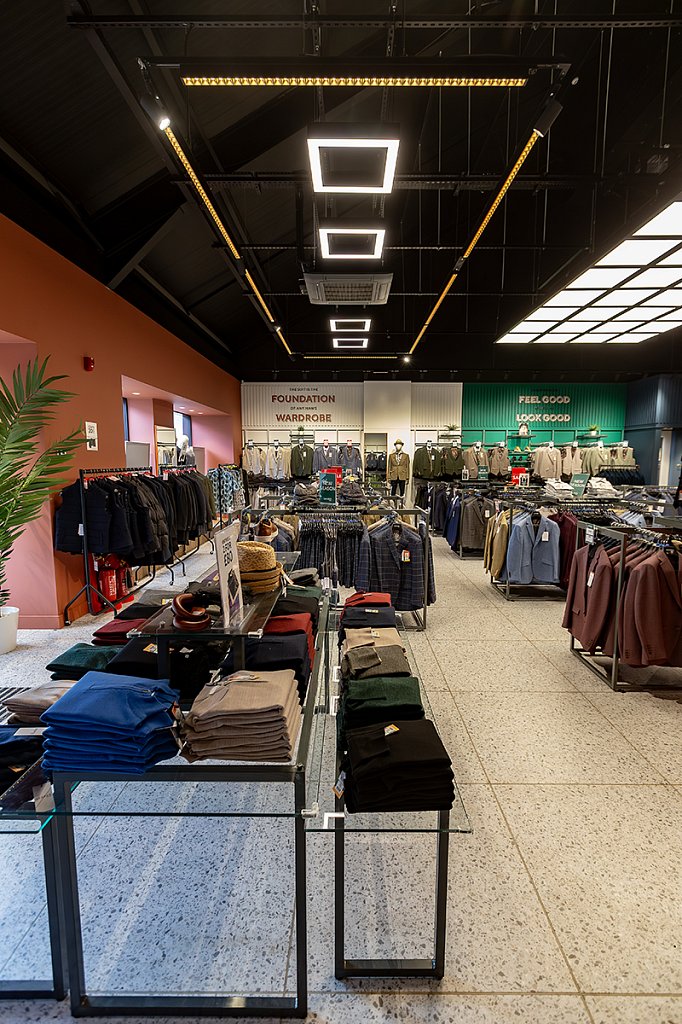

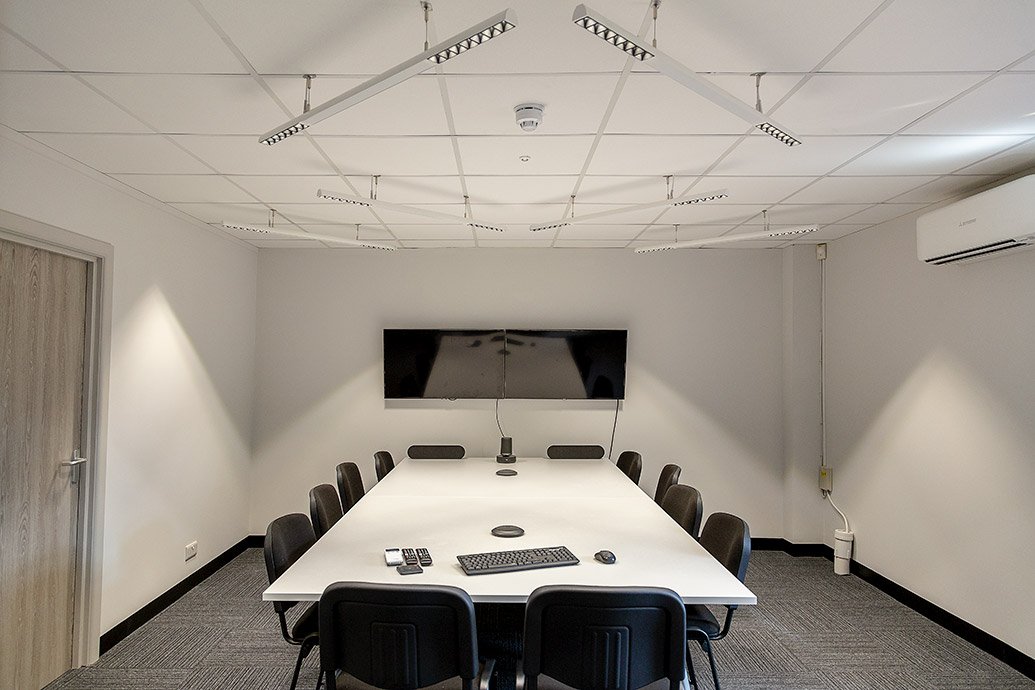

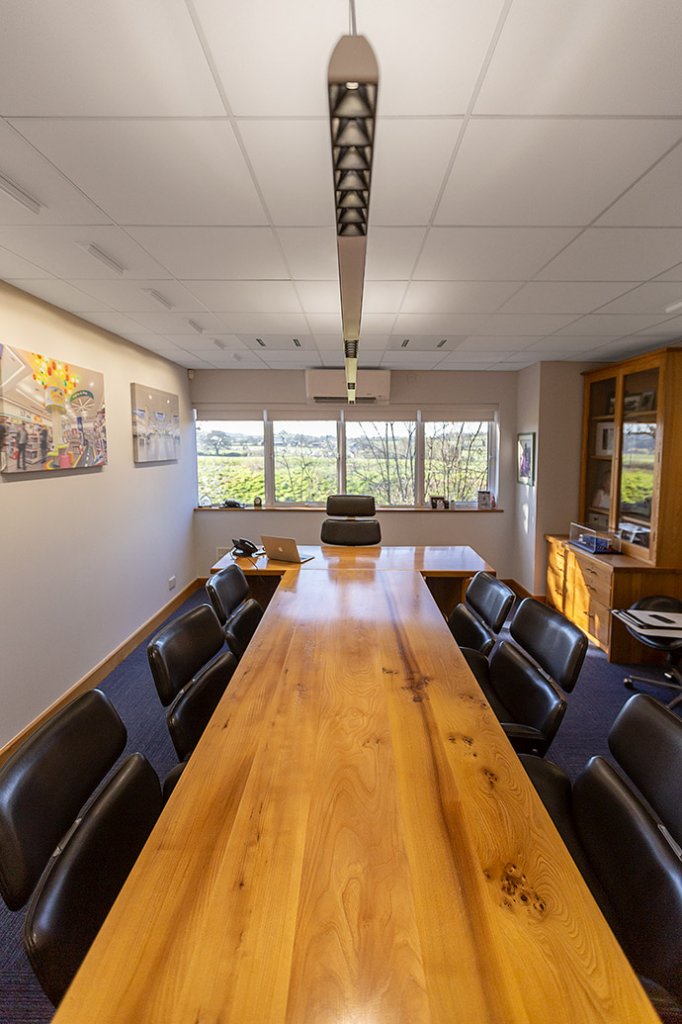

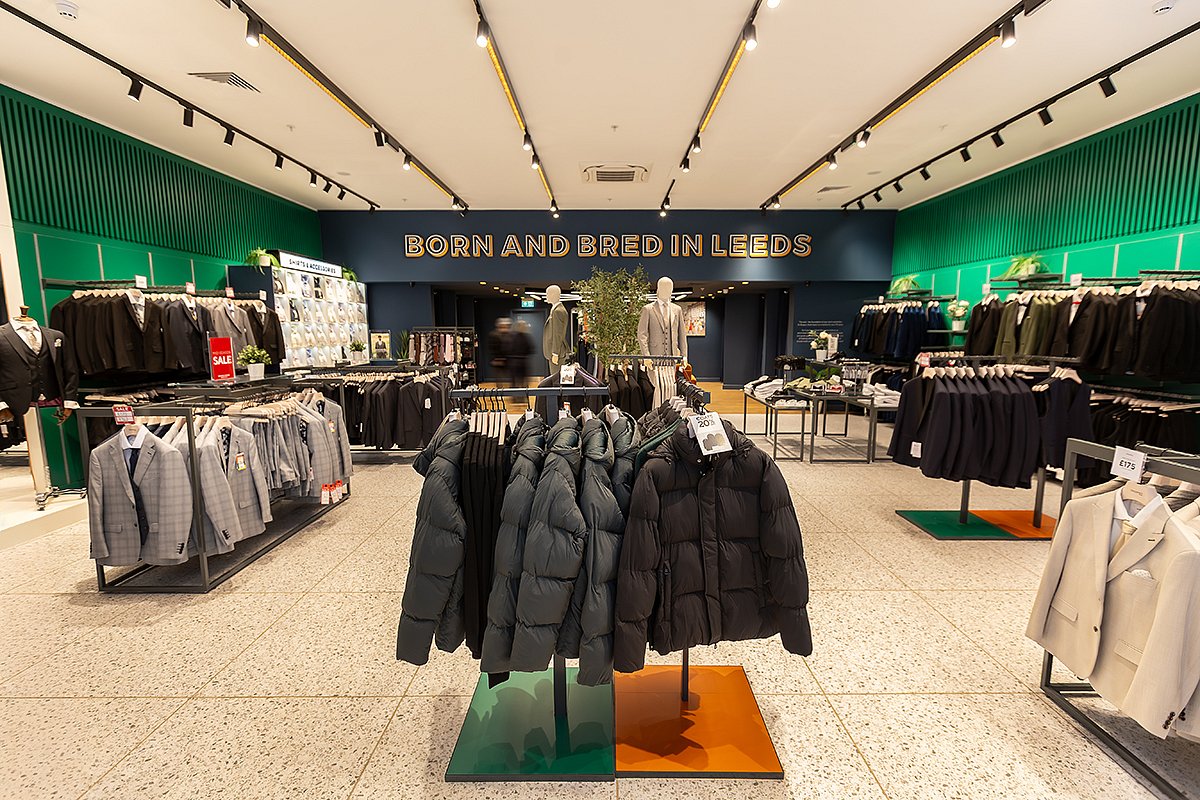

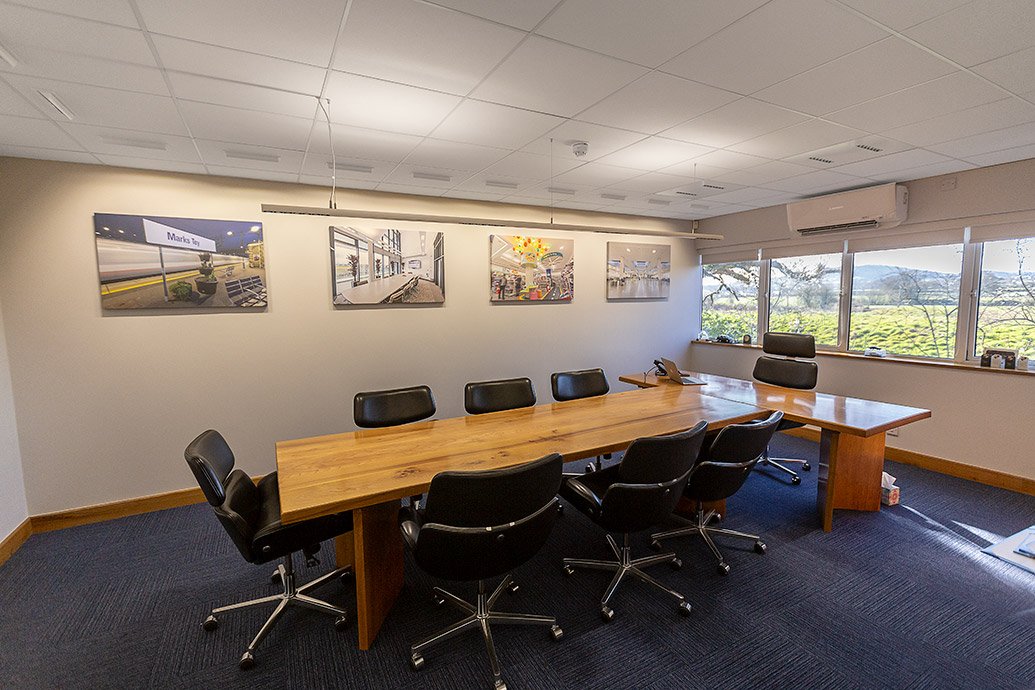

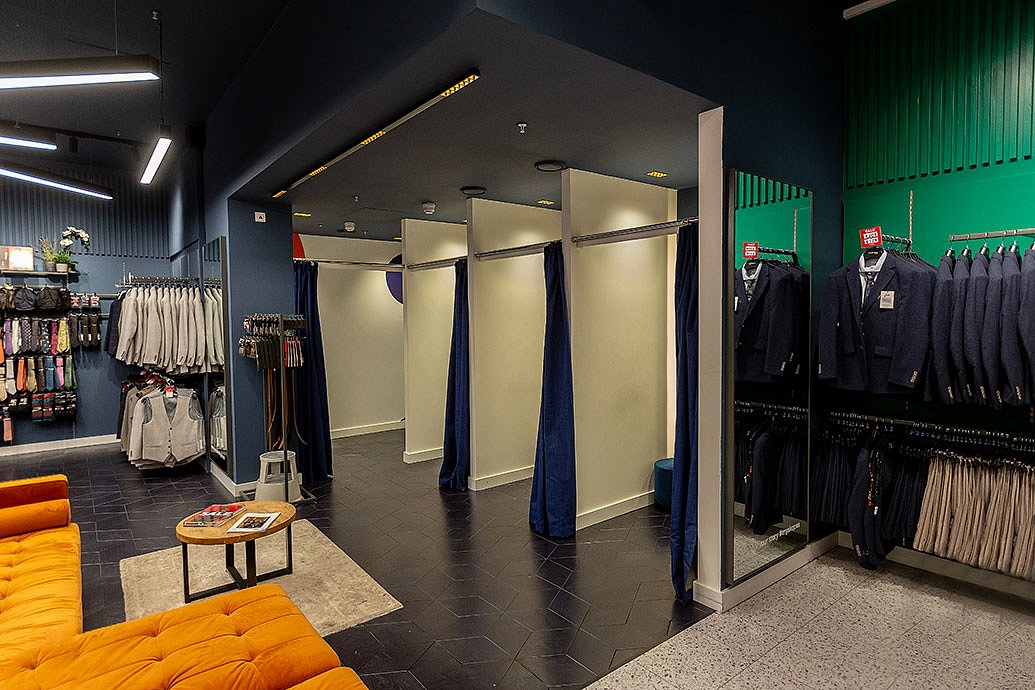

RUBINI SUSPENDED PENDANT in action

Technical

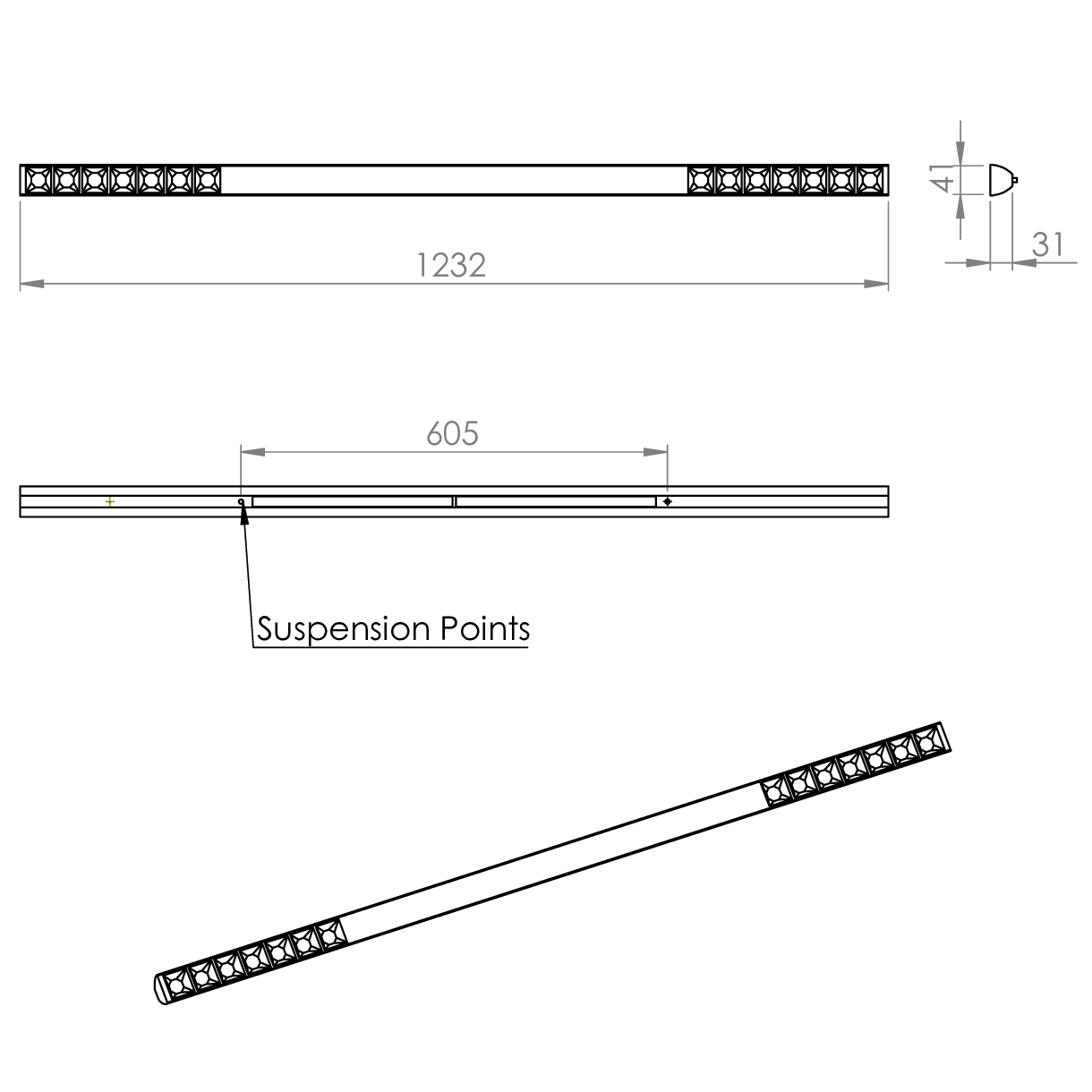

Rubini Suspended Pendant 14 Cell 1232mm

Rubini Suspended Pendant 14 Cell 1232mm

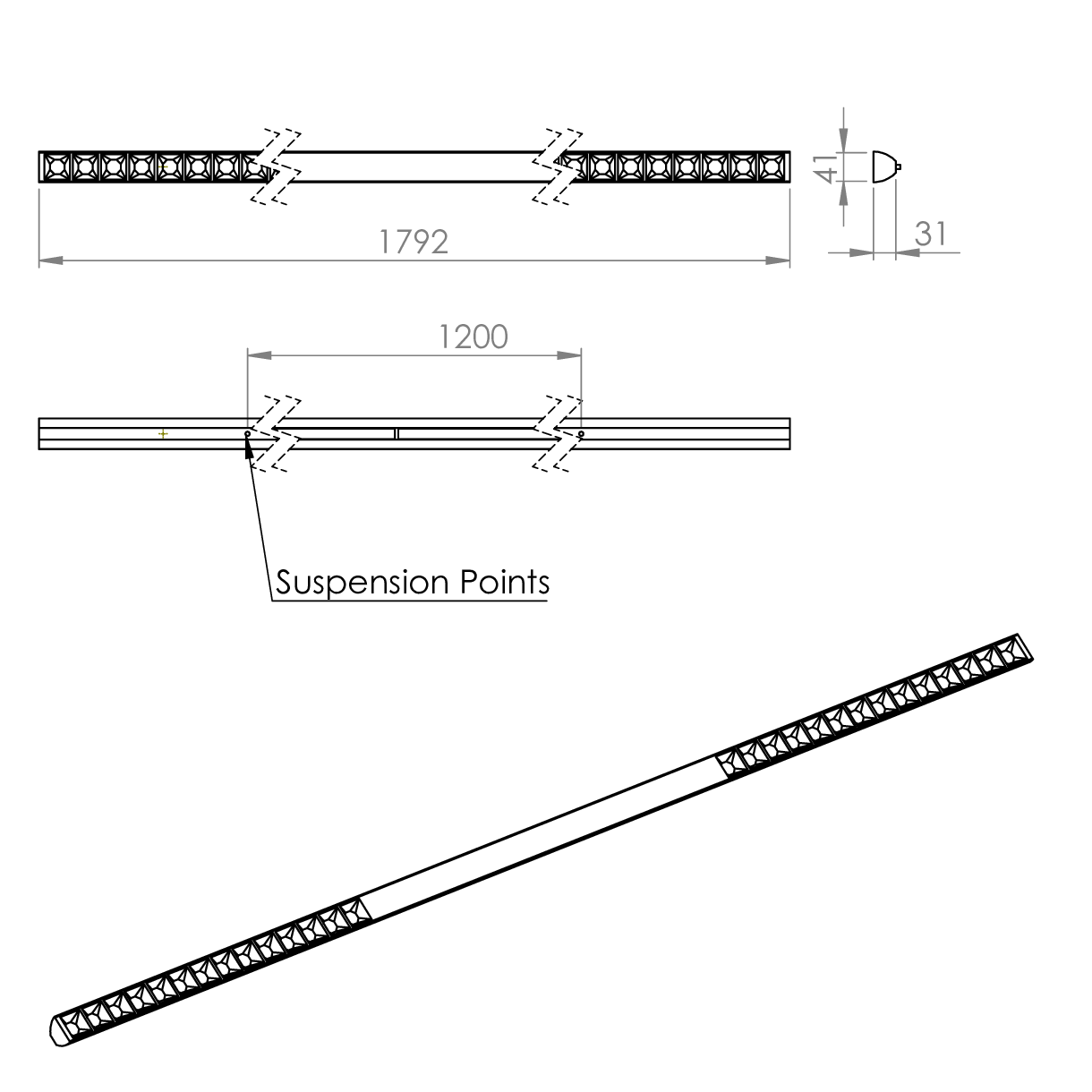

Rubini Suspended Pendant 28 Cell 1792mm

Rubini Suspended Pendant 28 Cell 1792mm

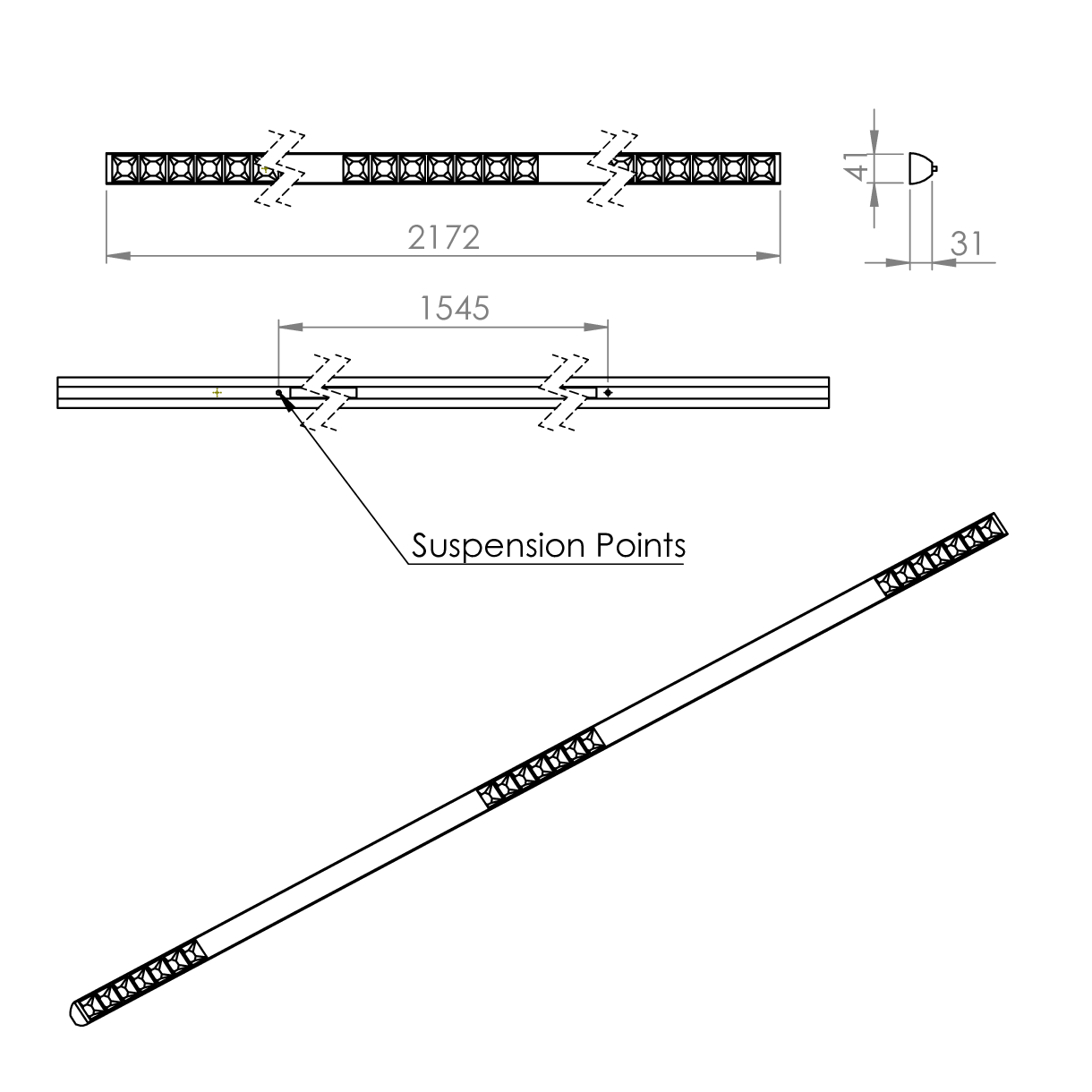

Rubini Suspended Pendant 21 Cell 2172mm

Rubini Suspended Pendant 21 Cell 2172mm

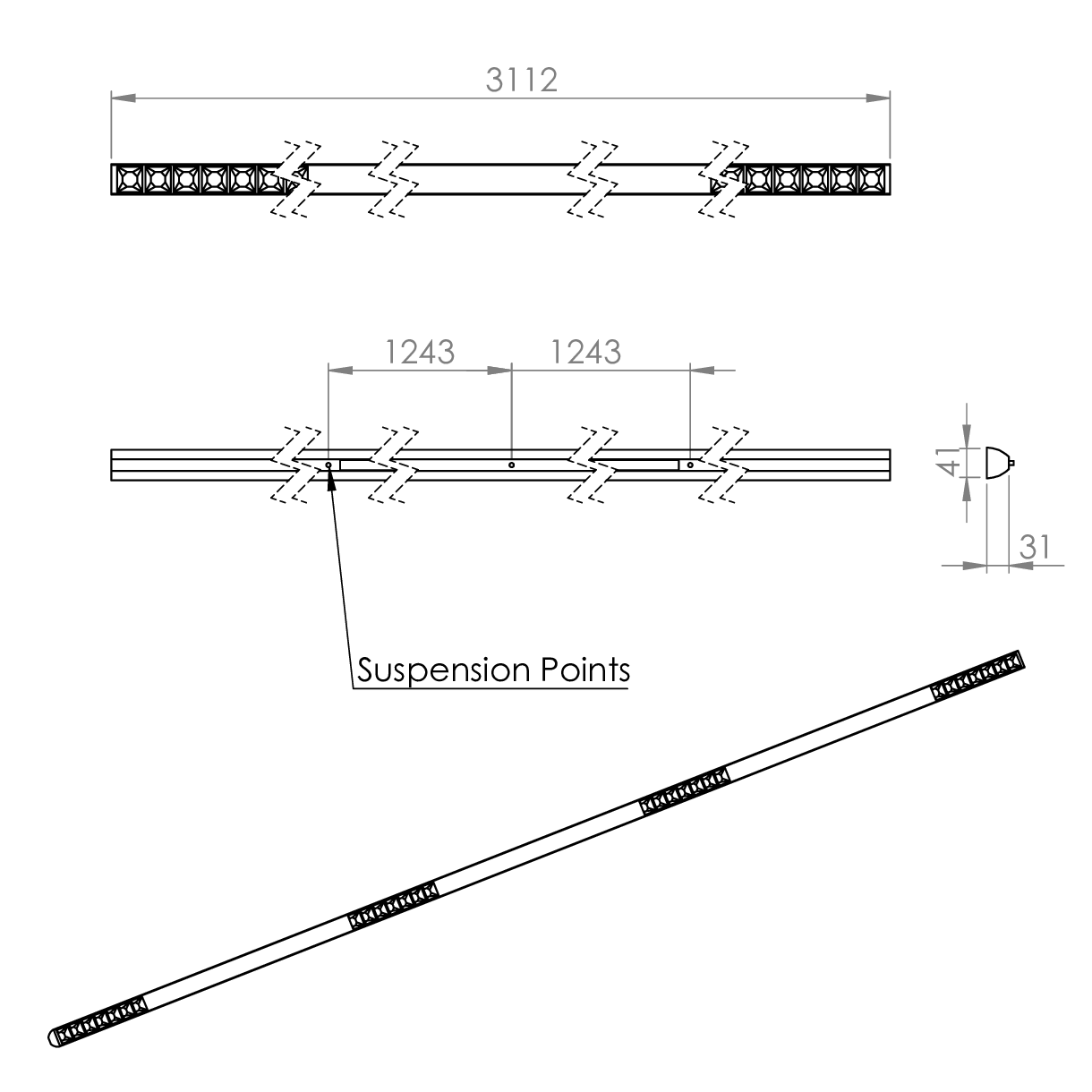

Rubini Suspended Pendant 28 Cell 3112mm

Rubini Suspended Pendant 28 Cell 3112mm

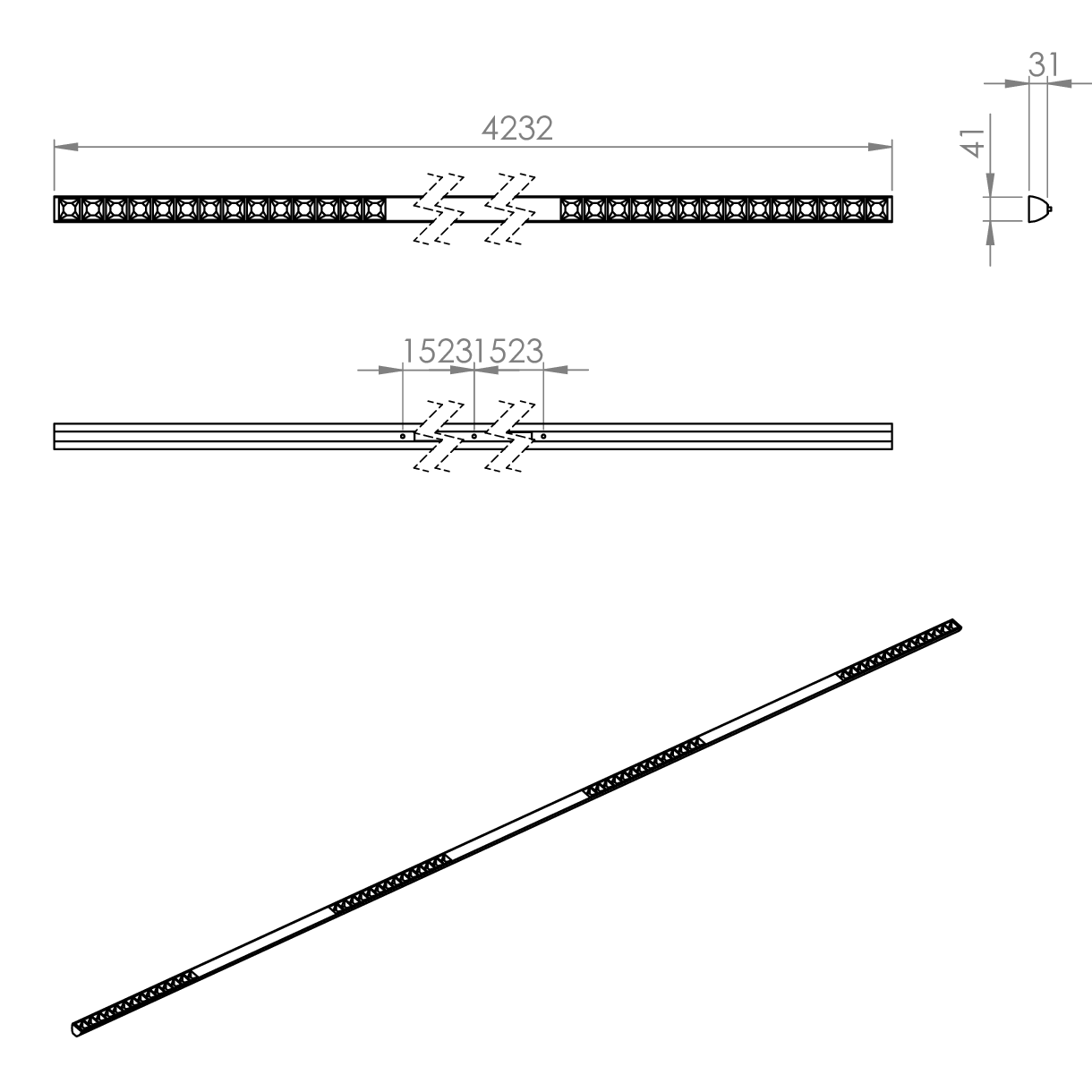

Rubini Suspended Pendant 56 Cell 4232mm

Rubini Suspended Pendant 56 Cell 4232mm

Ordering

Luminaires

Code Description Power Llm/W
RBNSP 12 14 L23 ** Rubini Suspended Pendant, 1,232mm, 14 Cell, 2,063llm, Colour 84 14.3W 144
RBNSP 17 28 L46 ** Rubini Suspended Pendant, 1,792mm, 28 Cell, 4,126llm, Colour 84 26.5W 155
RBNSP 21 21 L34 ** Rubini Suspended Pendant, 2,172mm, 21 Cell, 3,095llm, Colour 84 20.6W 150
RBNSP 31 28 L46 ** Rubini Suspended Pendant, 3,112mm, 28 Cell, 4,006llm, Colour 84 26.6W 150
RBNSP 42 56 L92 ** Rubini Suspended Pendant, 4,232mm, 56 Cell, 8,012llm, Colour 84 49.5W 161

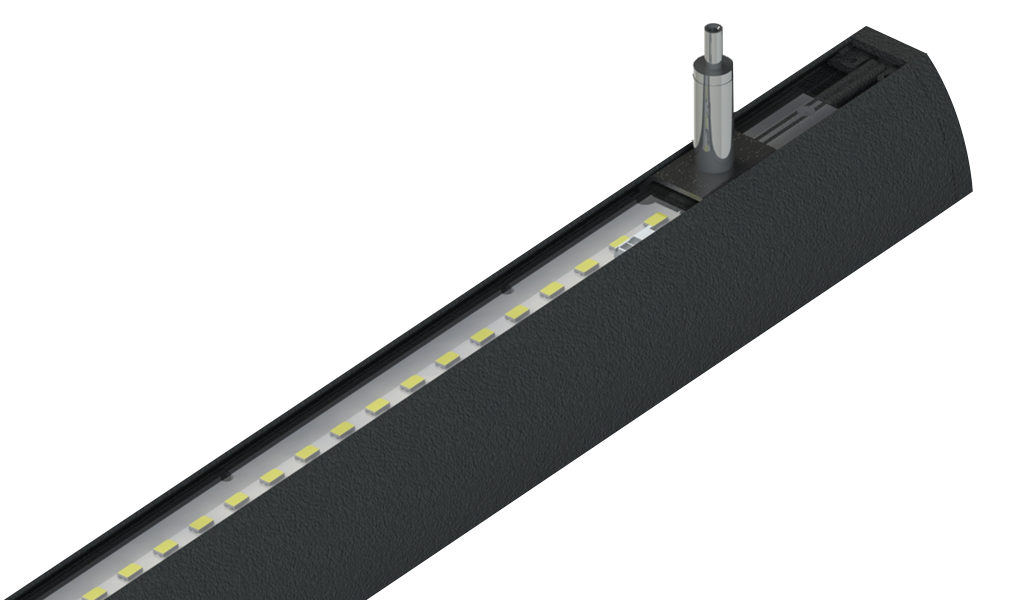

RBNSP 12 14 L33 BD ** Rubini Suspended Pendant Bi Directional, 1,232mm, 2,974llm, Colour 84 19.7W 150
RBNSP 17 28 L56 BD ** Rubini Suspended Pendant Bi Directional, 1,792mm, 5,034llm, Colour 84 32.6W 154
RBNSP 21 21 L55 BD ** Rubini Suspended Pendant Bi Directional, 2,172mm, 4,917llm, Colour 84 31.7W 155
RBNSP 31 28 L67 BD ** Rubini Suspended Pendant Bi Directional, 3,112mm, 5,828llm, Colour 84 39.4W 147
RBNSP 42 56 L113 BD ** Rubini Suspended Pendant Bi Directional, 4,232mm, 9,834llm, Colour 84 65.2W 150
** Select housing and baffle colour from Options.

Supplied with lead and suspension kit. Not available in emergency or dimming variants.

Supplied with white prewired flex as standard, black available on request.

Llm figures relate to white baffle variants.

Colour

Code Description
WW White Housing / White Baffle
WB White Housing / Black Baffle

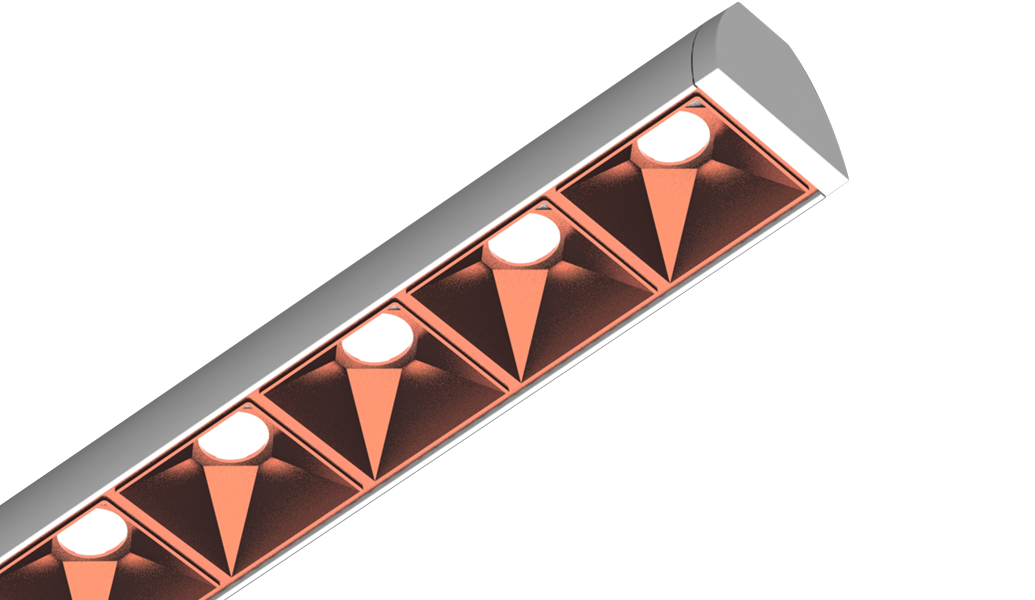

WC White Housing / Copper Baffle

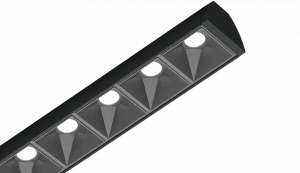

BB Black Housing / Black Baffle

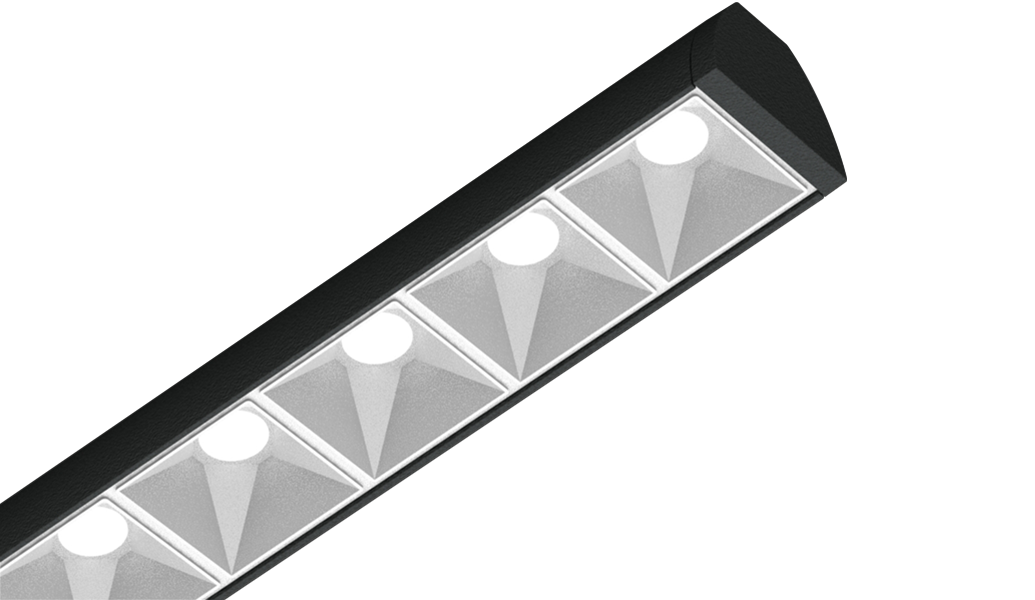

BW Black Housing / White Baffle
BC Black Housing / Copper Baffle

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen
