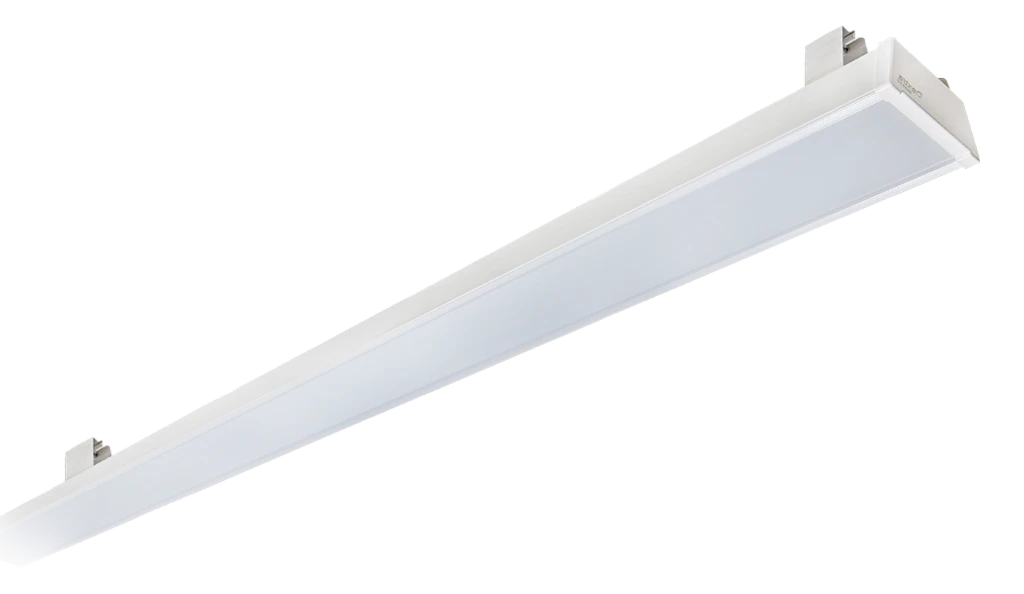

RETRO-LINE
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

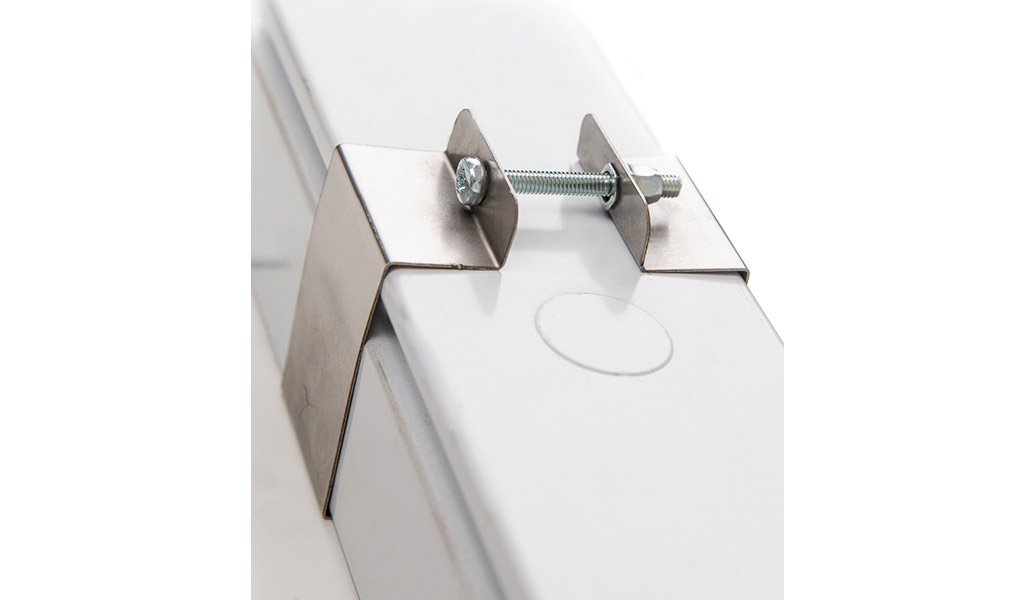

The Retro-Line has been designed as a retro-fit LED solution to enable retailers to upgrade their existing fluorescent trunking systems without the expense of replacing the trunking itself. The contractor simply removes the old lamps and reflectors before clamping the new LED luminaire over the existing trunking. To minimise installation costs the retro-fit luminaires are manufactured in 2m lengths and are supplied fully assembled out the box with a pre-fitted wiring loom, diffuser optic and fixing clamps. They are available with either a 4 pole, 6 pole or 9 pole 2.5mm square male/female wiring loom allowing for dual switching, emergency and dimming control. The bespoke extruded diffuser optic offers maximum light transmission whilst shielding the point source of the LED chips to minimise glare from below. Available in a variety of lumen outputs and with optional integral lithium emergency this innovative product range incorporates the latest LED technology with cutting edge design to deliver a sustainable retro-fit solution that’s tailored to the demands of the modern retail environment.
RETRO-LINE complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Hotel / Leisure | Retail
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Endcaps: Injection moulded polycarbonate
- Diffuser: 2mm extruded high transmission opal polycarbonate
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 112 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Retrofit in existing luminaires
- Supplied with 4, 6 or 9 pole 2.5mm loom
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs

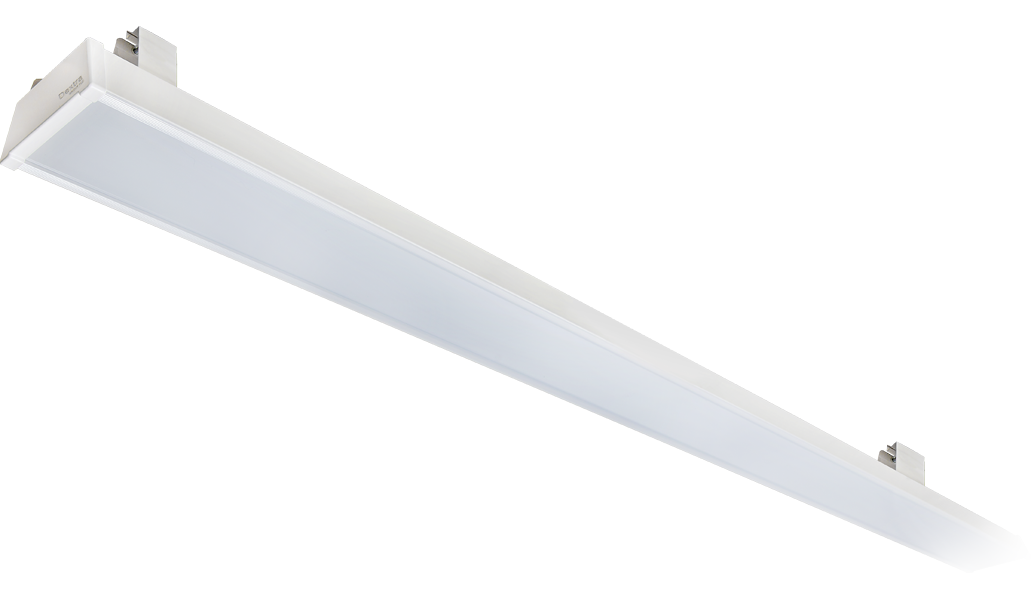

Product Images

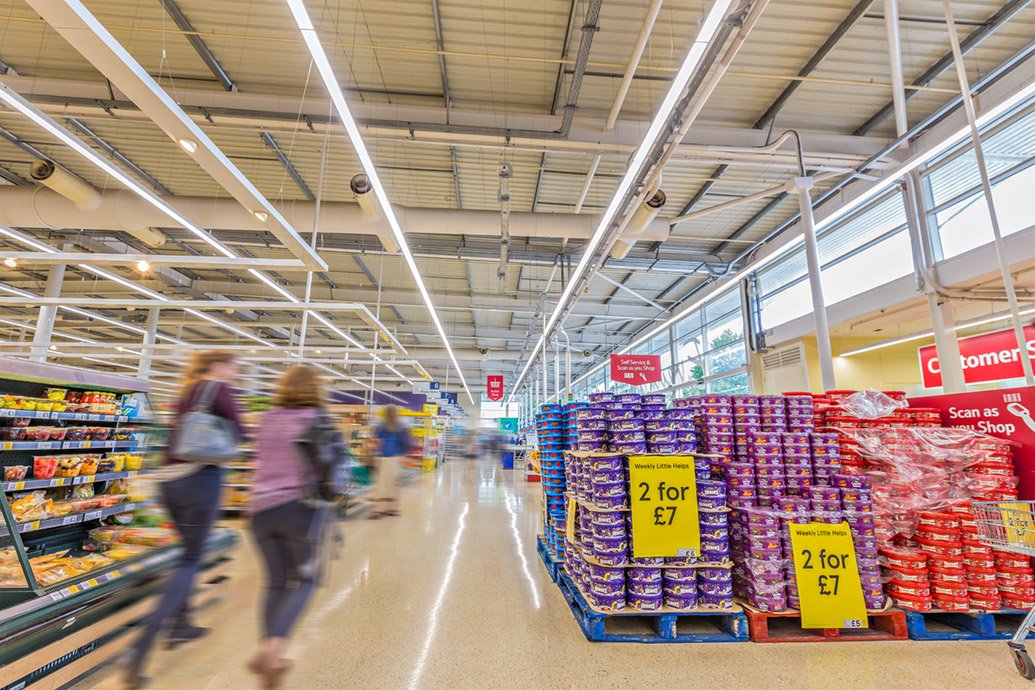

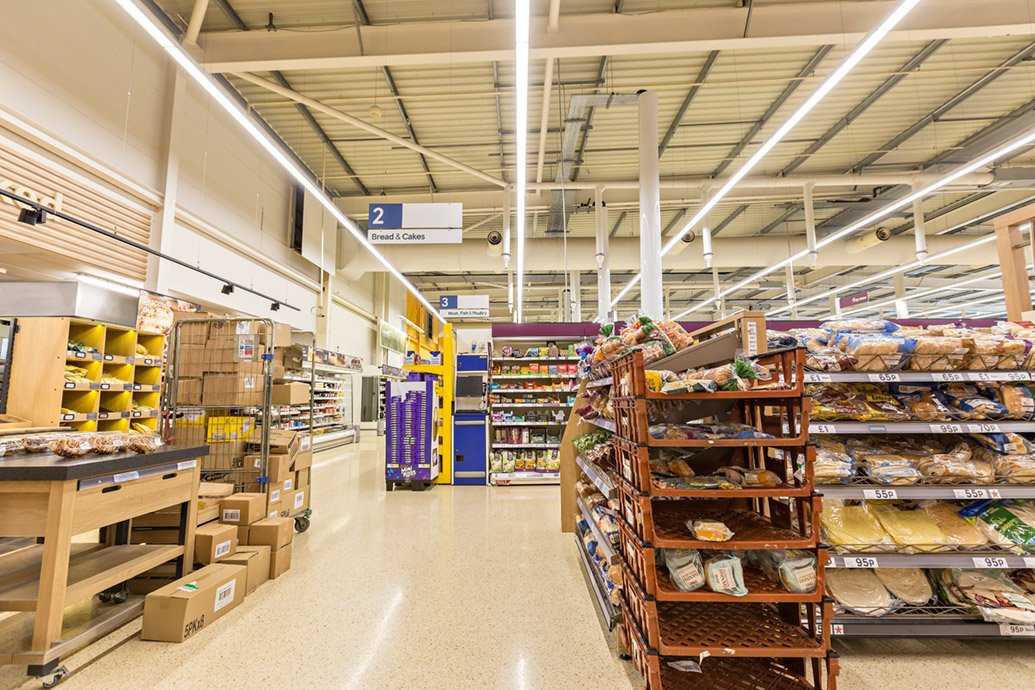

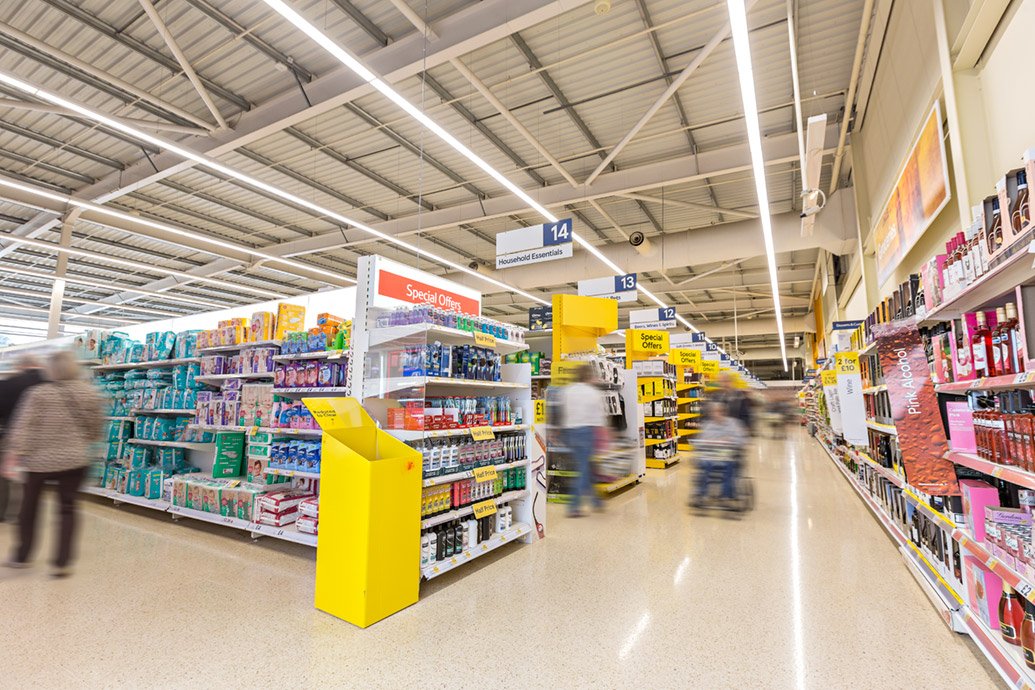

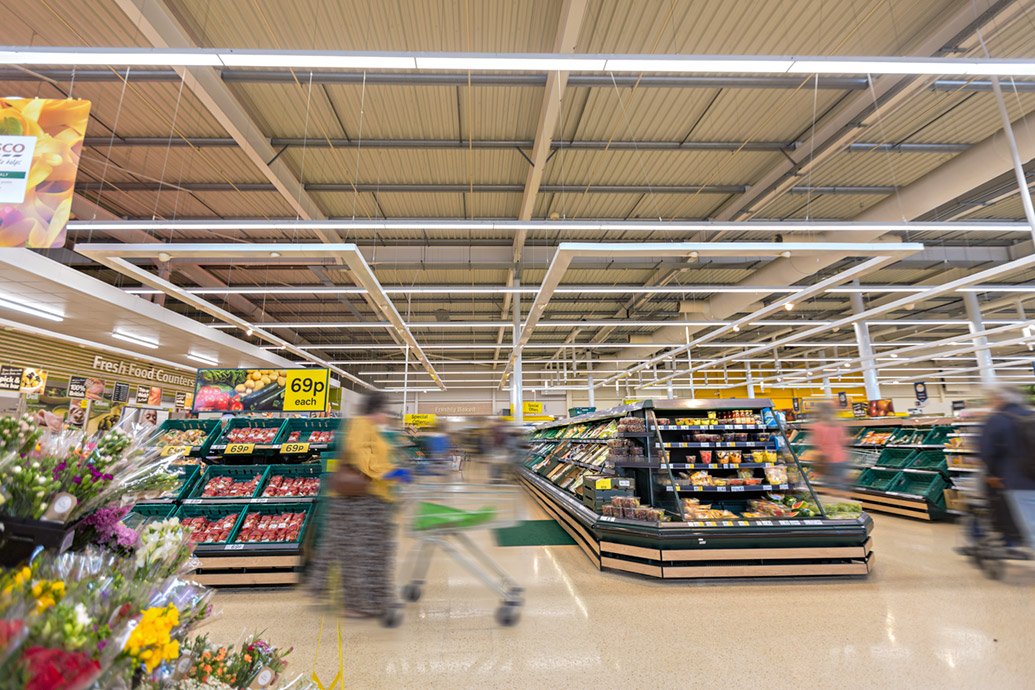

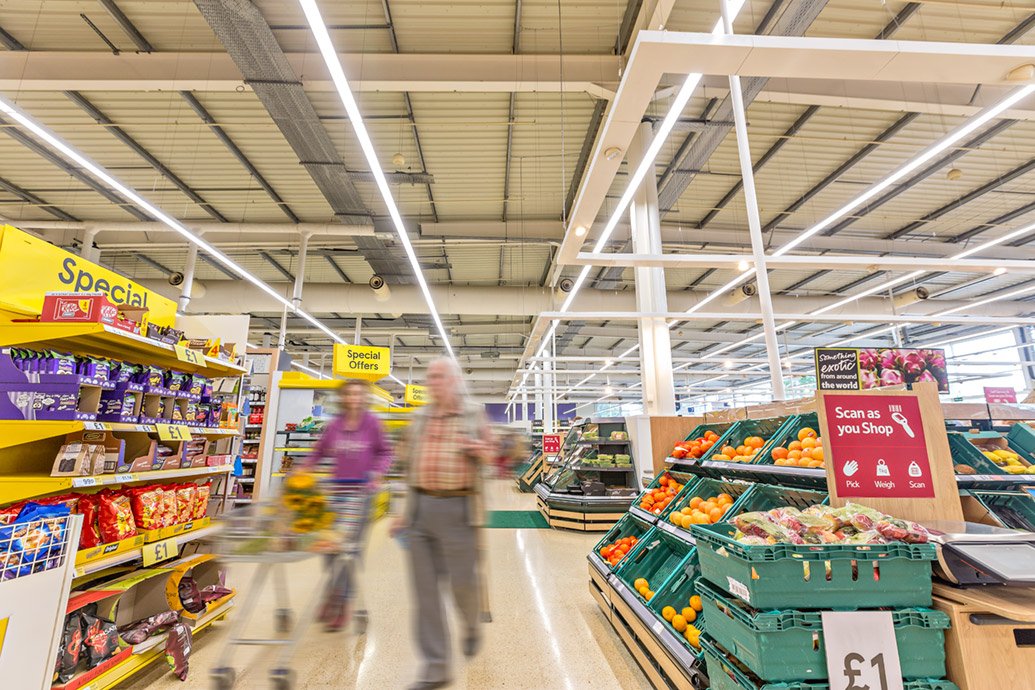

RETRO-LINE in action

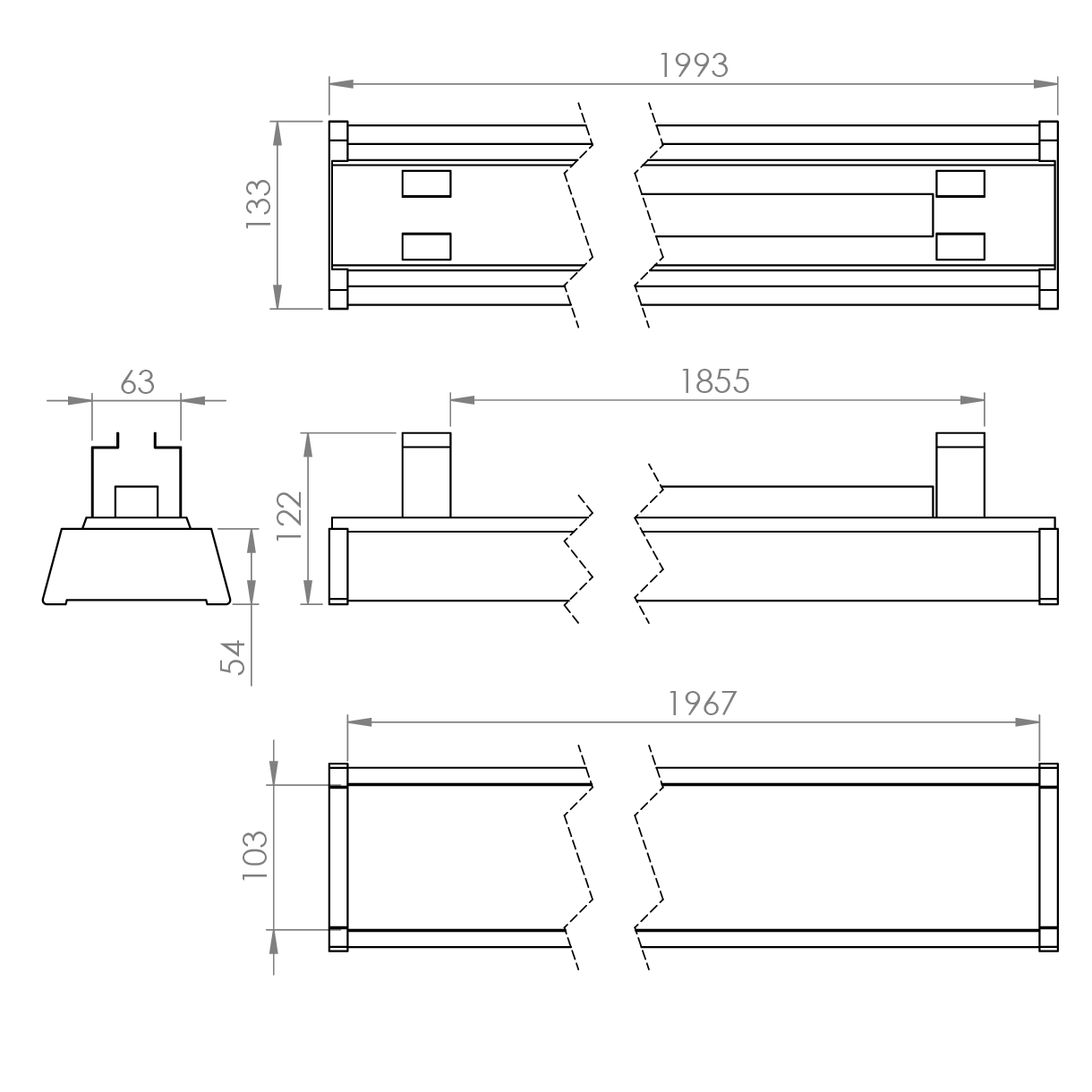

Technical

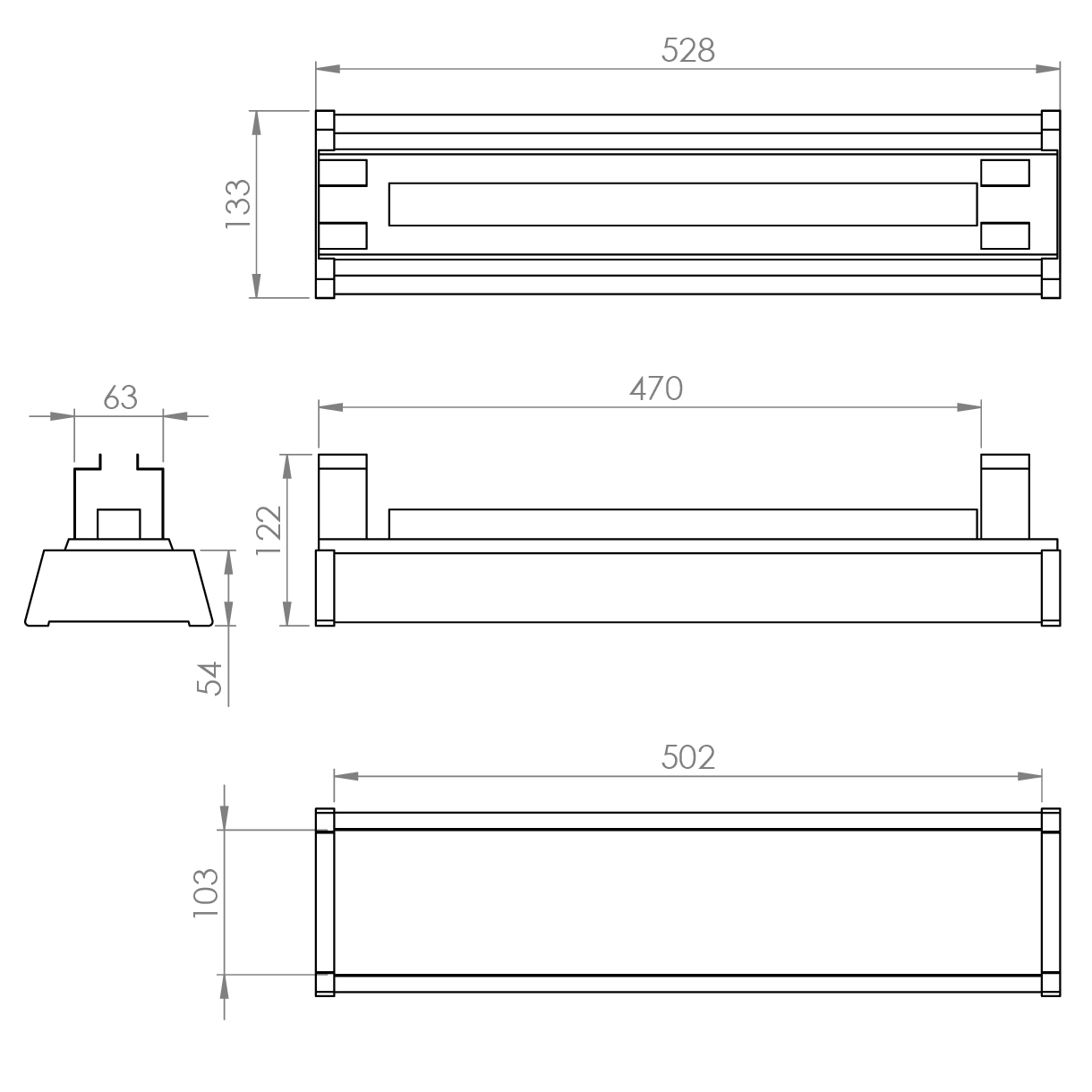

Retro-Line 500mm

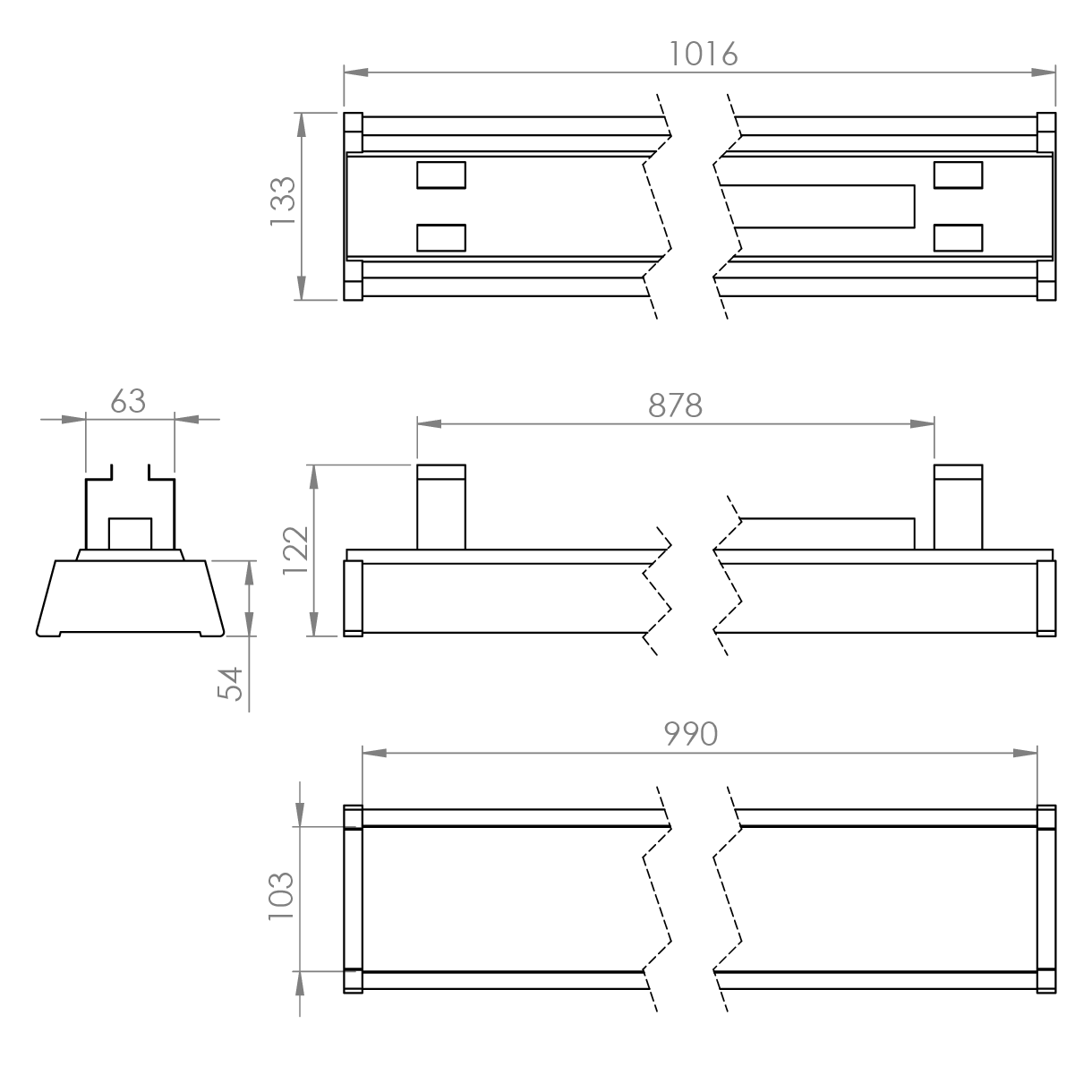

Retro-Line 1000mm

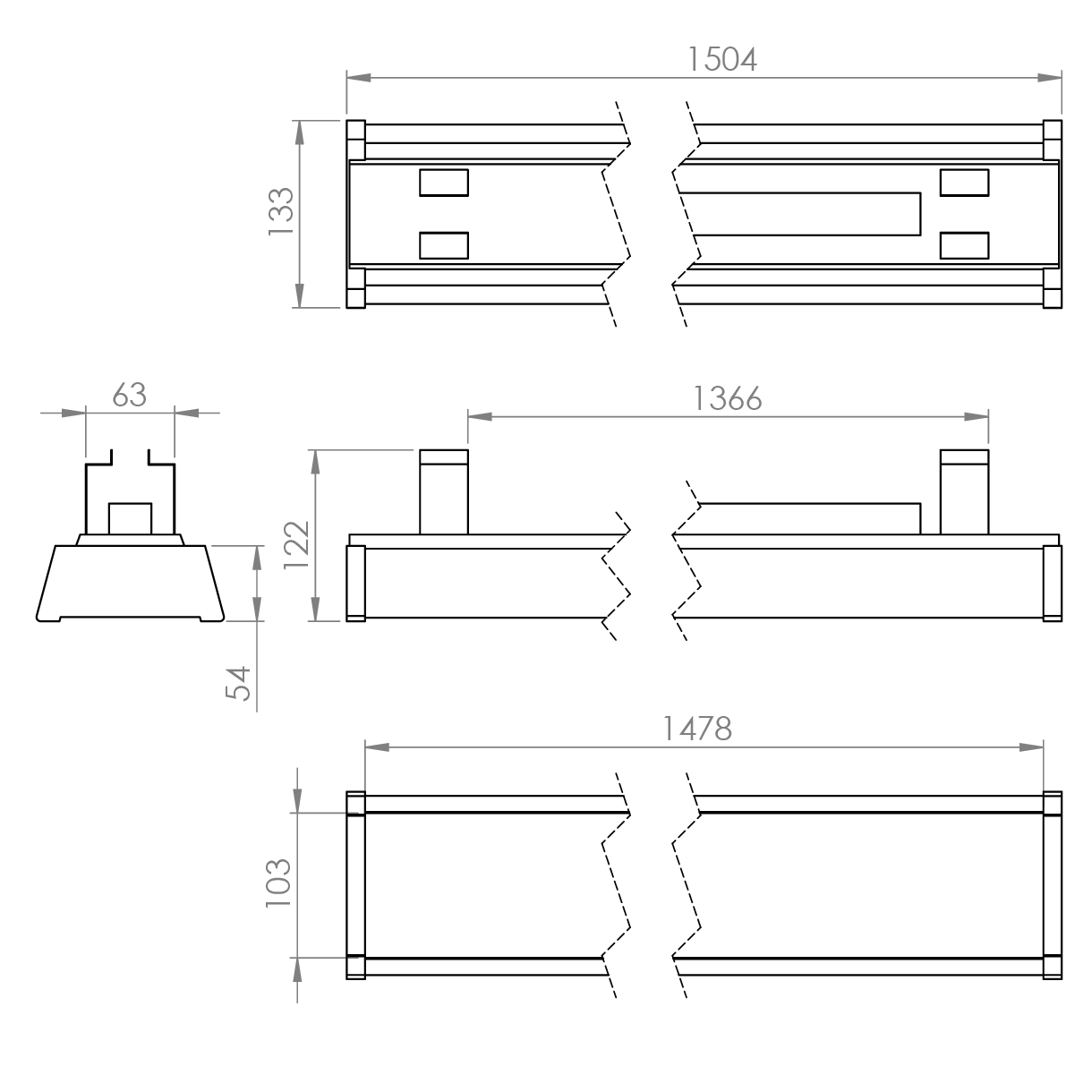

Retro-Line 1500mm
Retro-Line 2000mm
Ordering
Luminaires
| Continuous Run | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| End of Run | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
Control
| Code | Description |
|---|---|
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| LSF | Low Smoke Zero Halogen |

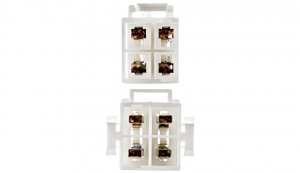

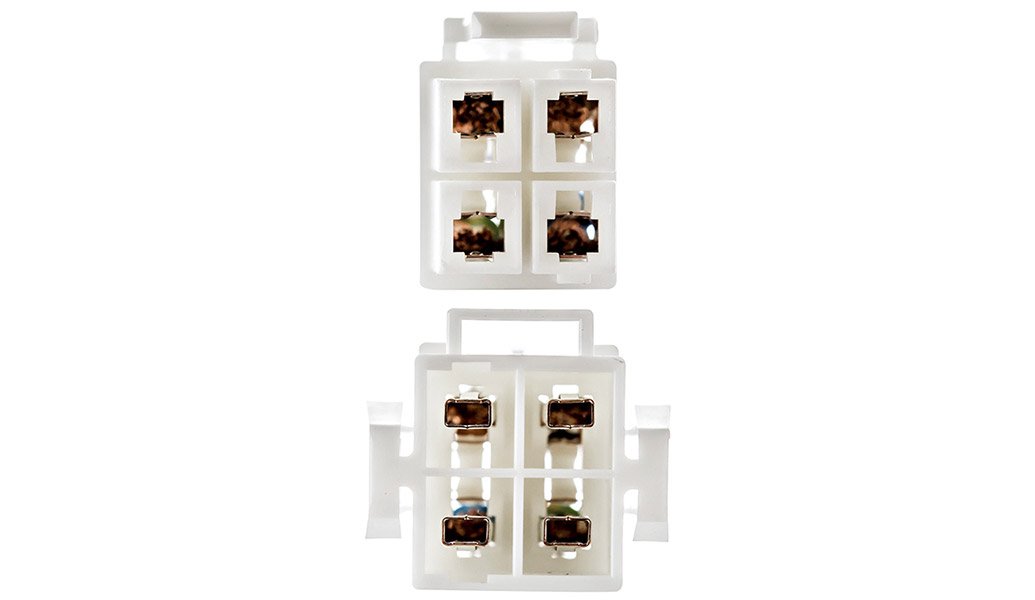

| 4TW | 4 Pole 2.5mm square Wiring Loom c/w Male/Female Connectors |

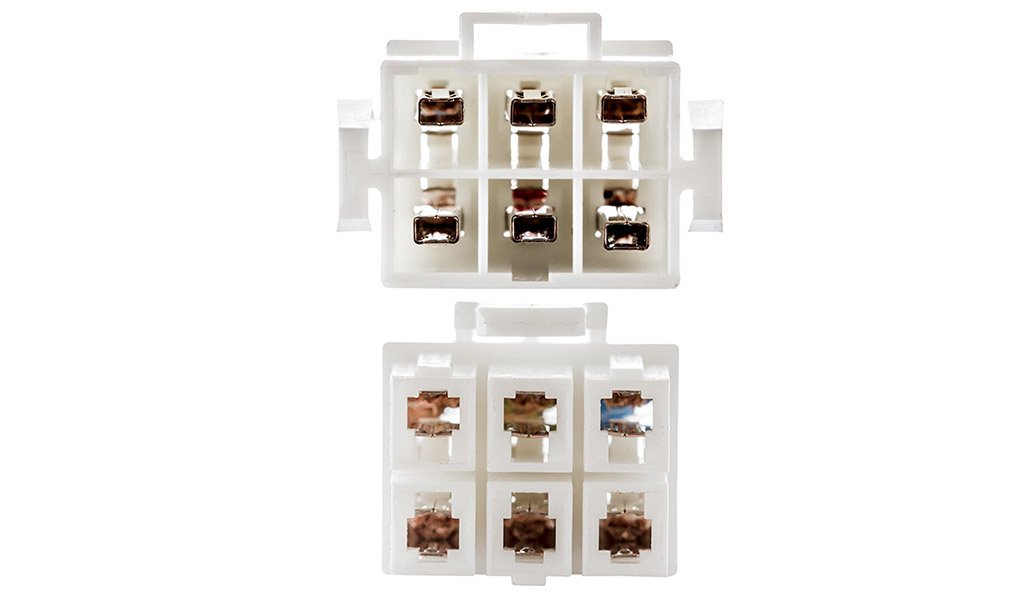

| 6TW | 6 Pole 2.5mm square Wiring Loom c/w Male/Female Connectors |

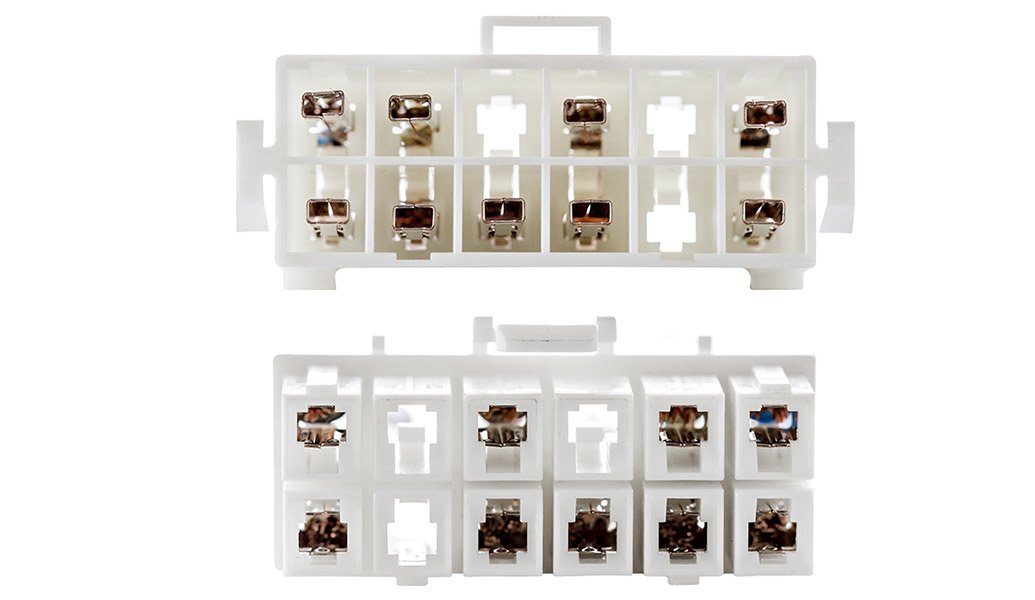

| 9TW | 9 Pole 2.5mm square Wiring Loom c/w Male/Female Connectors |
| RTL 4P 5M START | 4 Pole 5m 2.5mm square Starter Lead |
| RTL 6P 5M START | 6 Pole 5m 2.5mm square Starter Lead |
| RTL 9P 5M START | 9 Pole 5m 2.5mm square Starter Lead |
