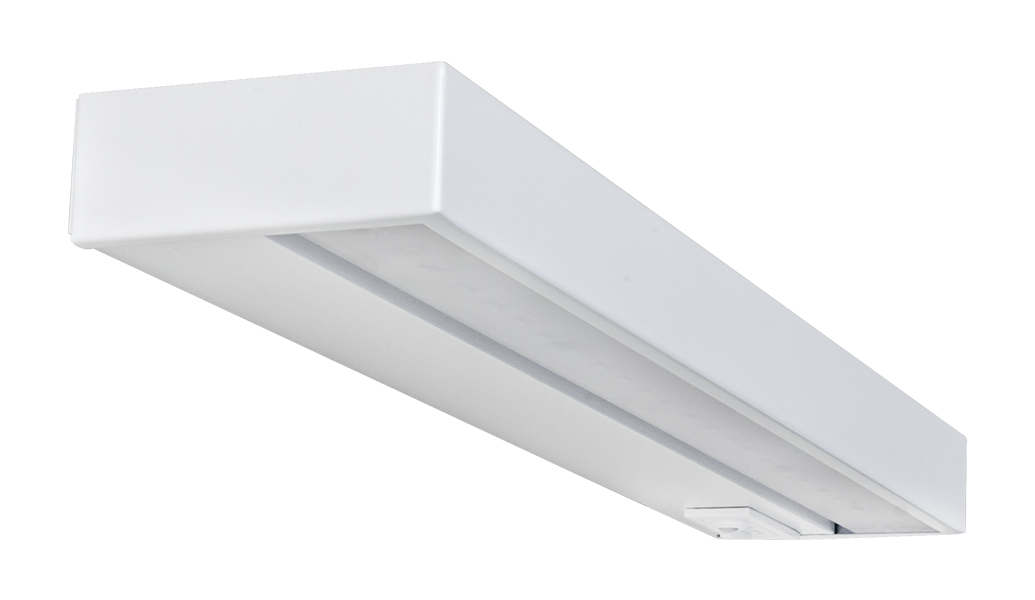

Planum

Introduction

 The Planum provides a slim line aesthetically attractive, wall mounted, bi-directional luminaire ideally suited for reception areas, corridors, stairways and applications where installation of ceiling mounted luminaires is impractical. Offering a 50% up 50% down light distribution with lensed optics for precise beam control, the Planum provides a highly efficient solution in three housing lengths that can be tailored to suit your installation. The Planum is also available in uplight and downlight only variants where required.

For ease of installation the Planum is supplied with a two part powder painted steel housing with a separate chassis which can quickly and easily be installed prior to attachment of the main housing. The Planum is supplied in white as standard but can be offered in a range of colours on request and is also available with all common dimming variants and integral sensor options to maximise energy savings. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

PLANUM complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Office | Retail

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Finish: Polyester powder painted RAL 9006 matt grey
  • Finish: Polyester powder painted RAL 9005 matt black
  • Diffuser: Injection moulded clear polycarbonate
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Bi-Directional 50% up 50% down
  • Up to 130 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Not available with emergency

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for surface installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white, black or grey finishes
5 year extended warranty available on most products.
Arrow right

Product Images

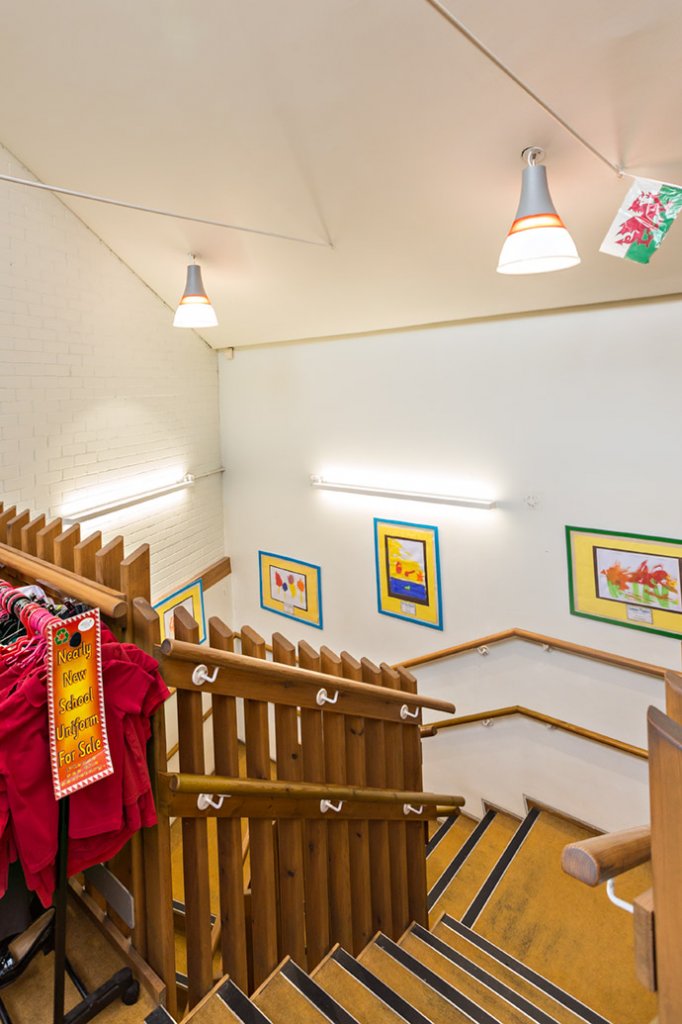

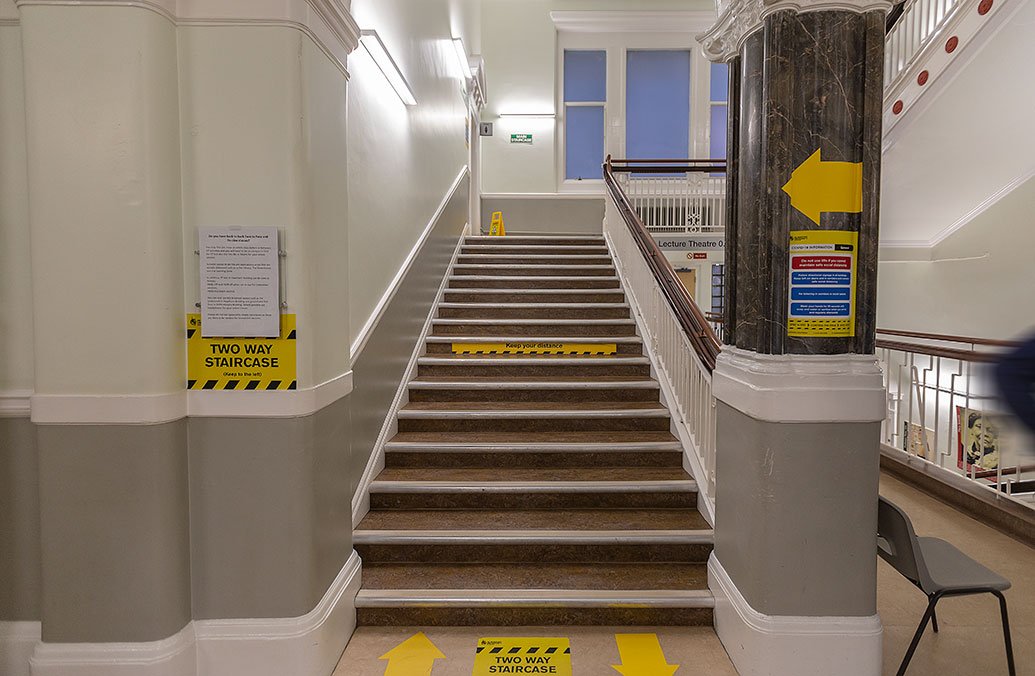

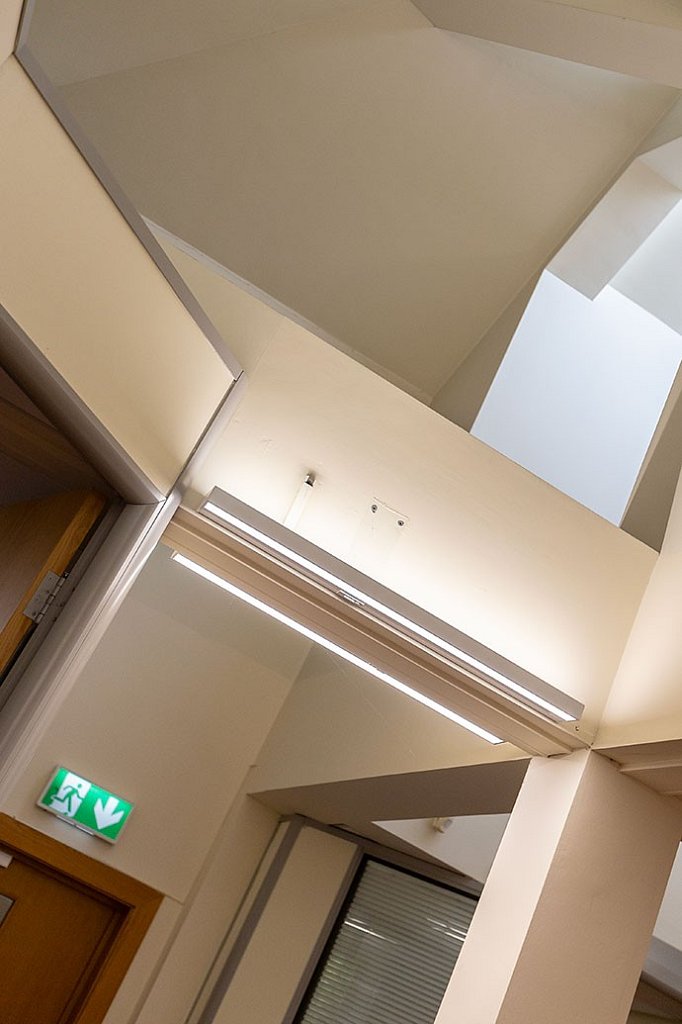

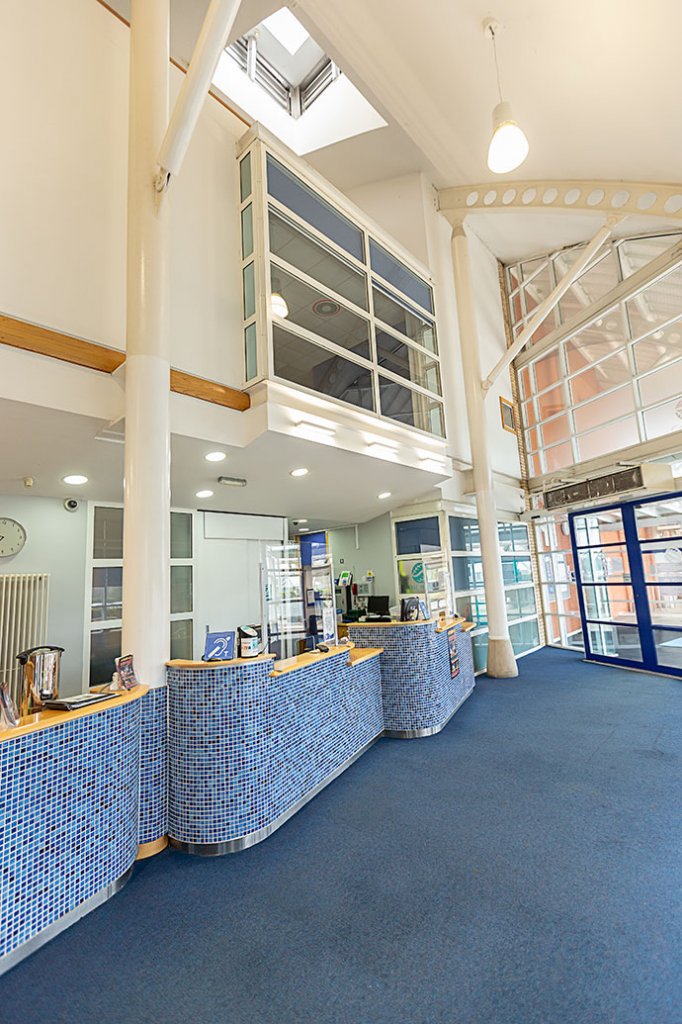

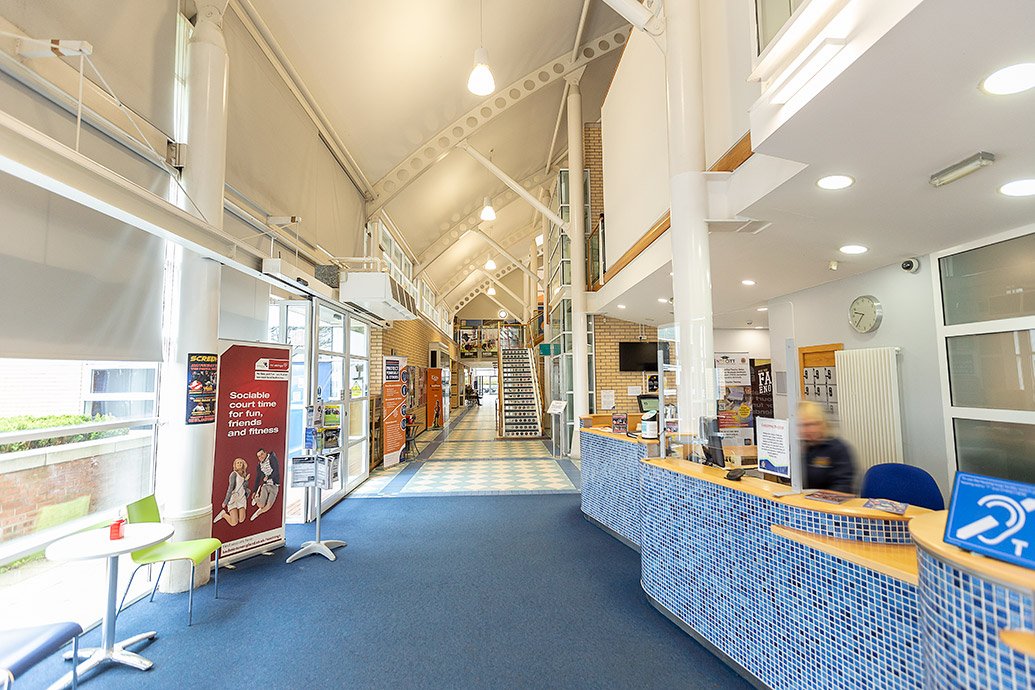

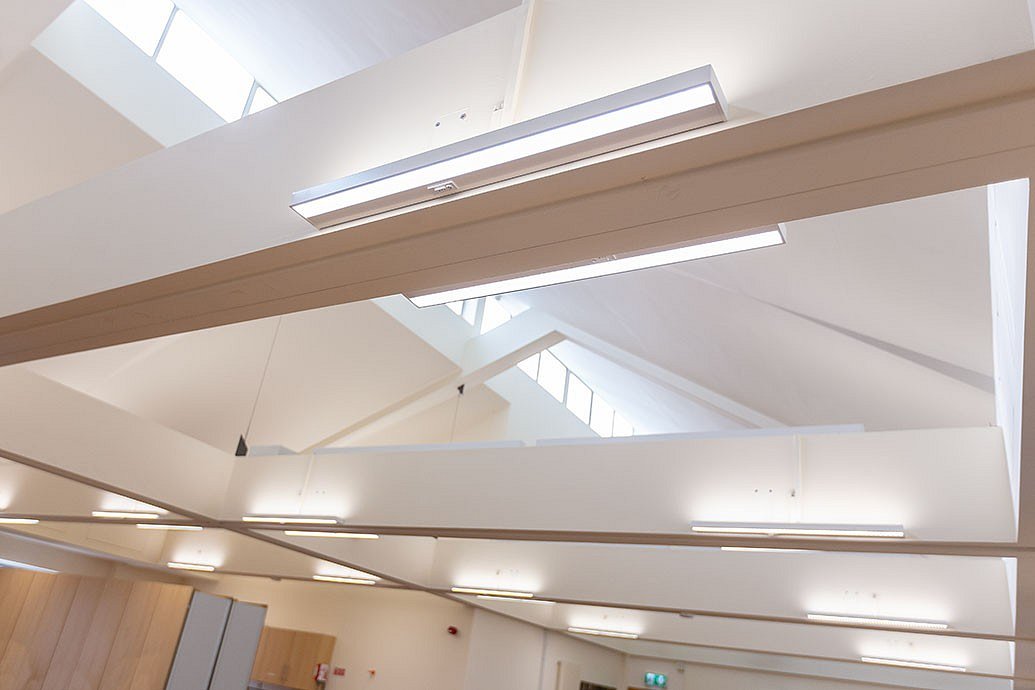

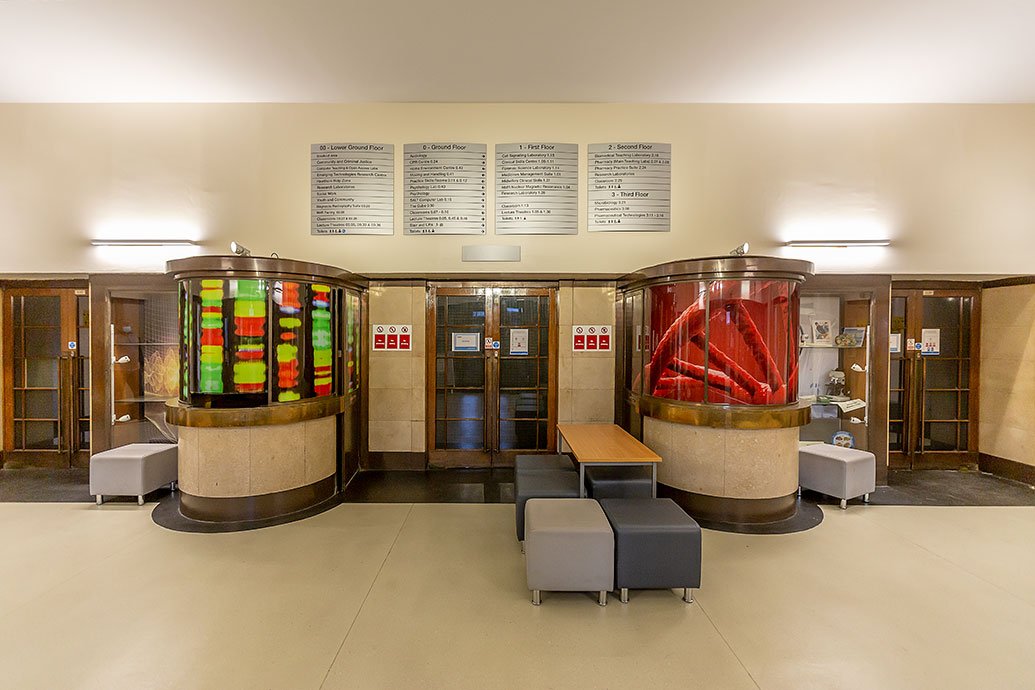

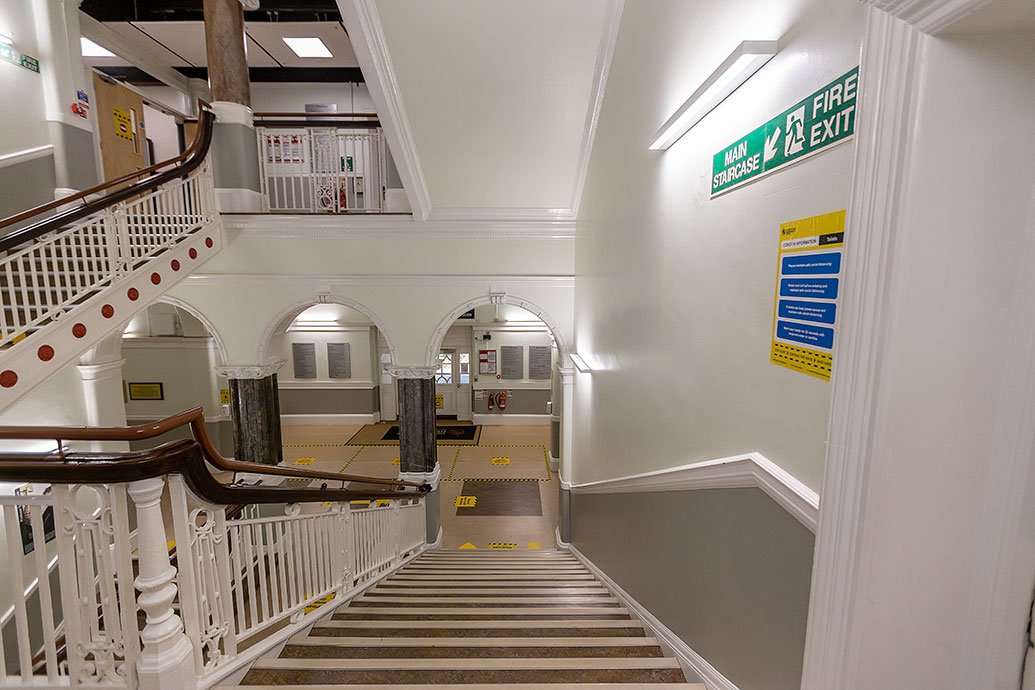

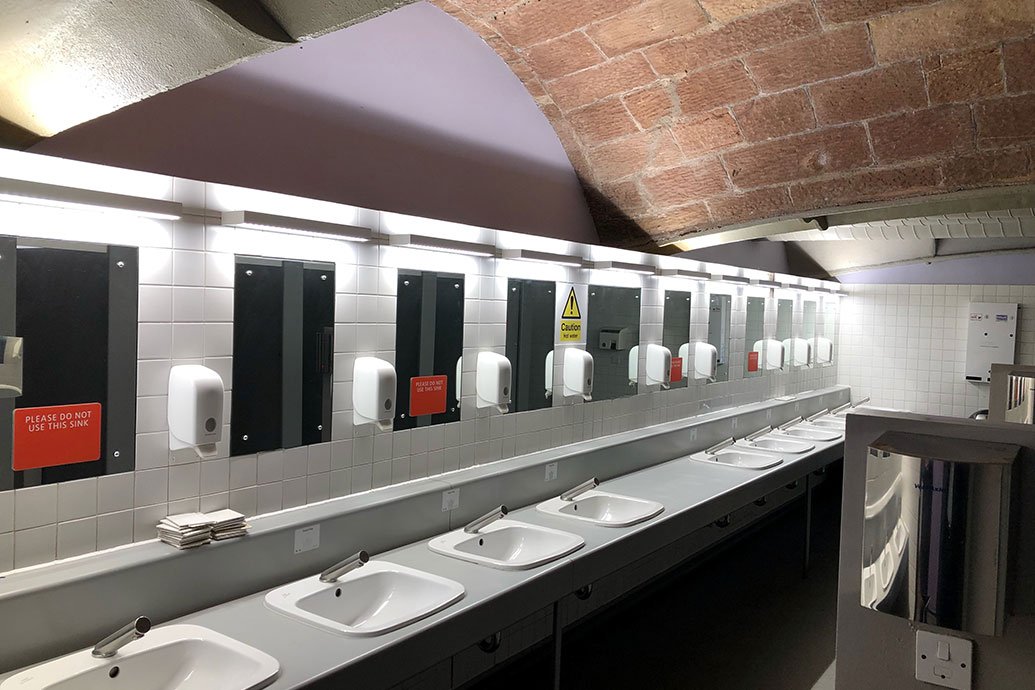

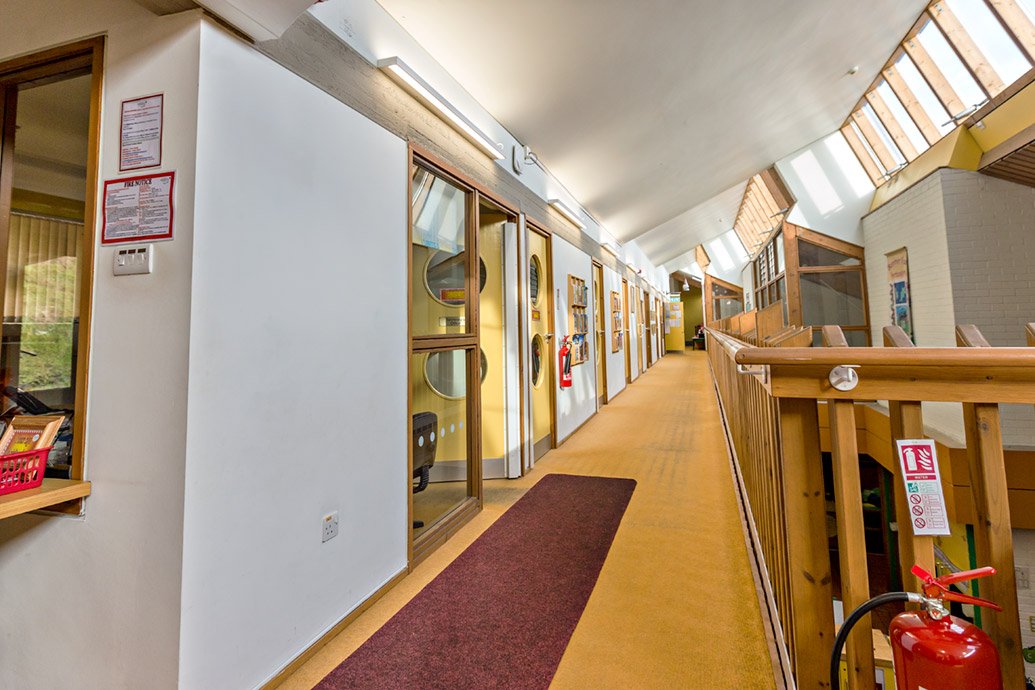

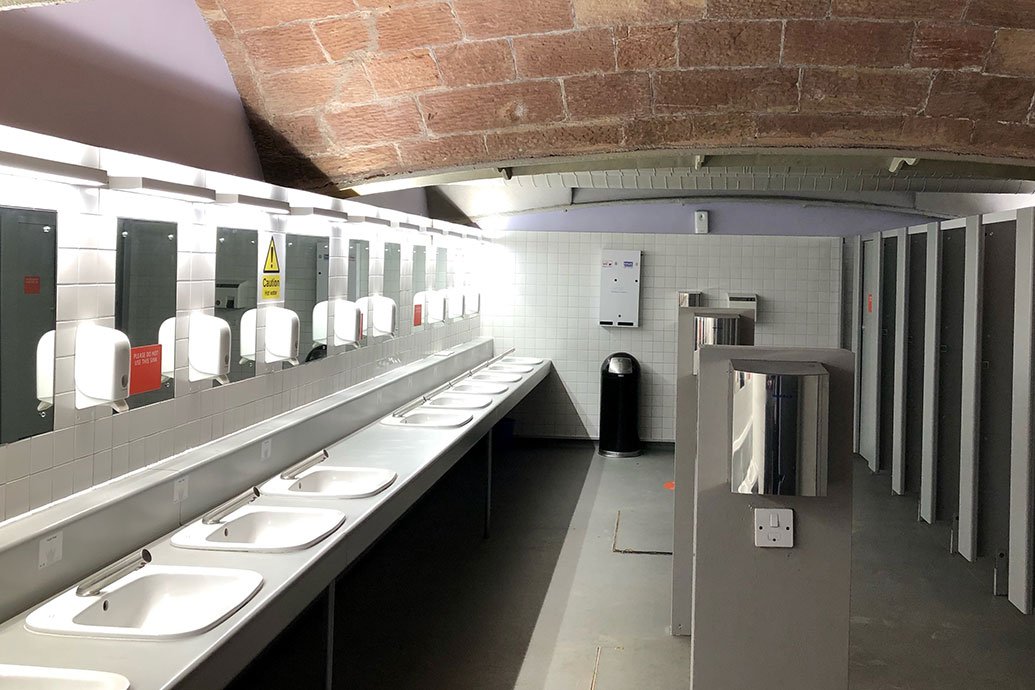

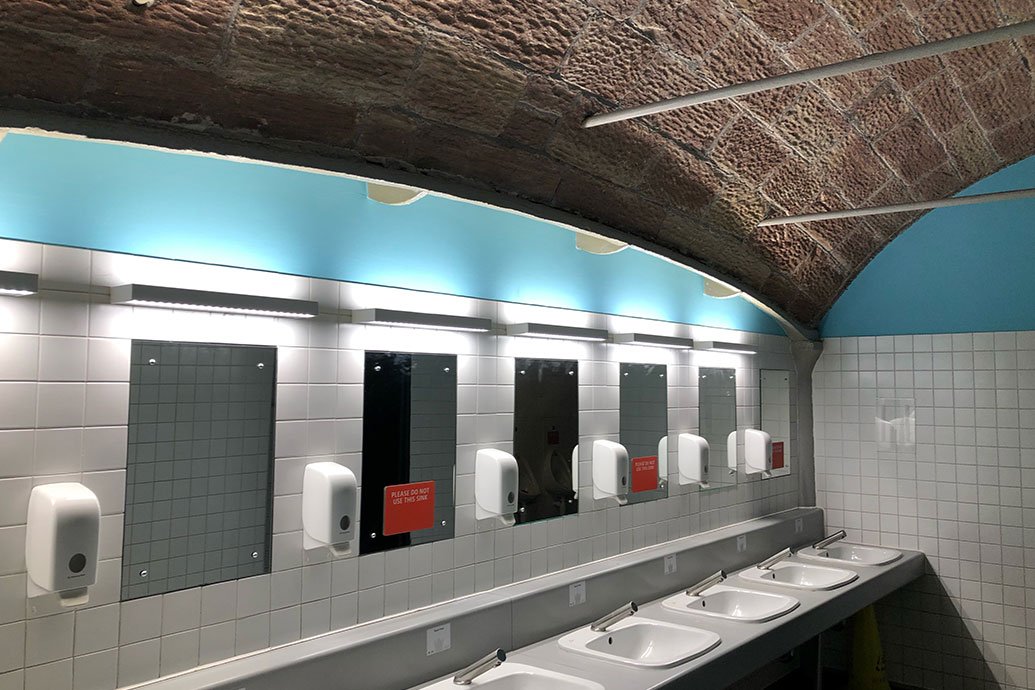

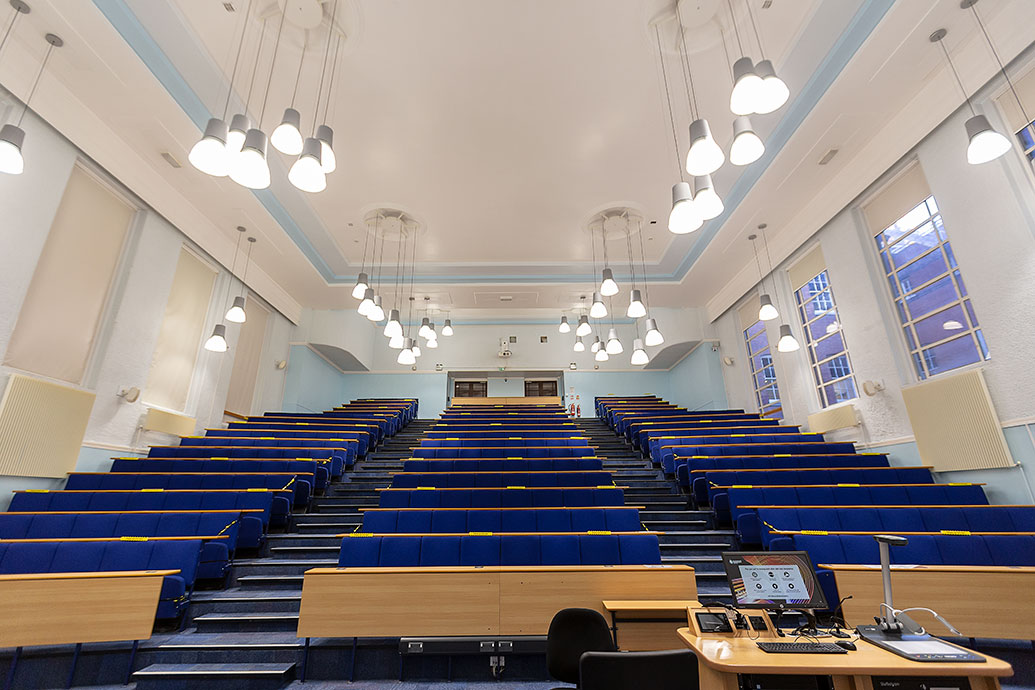

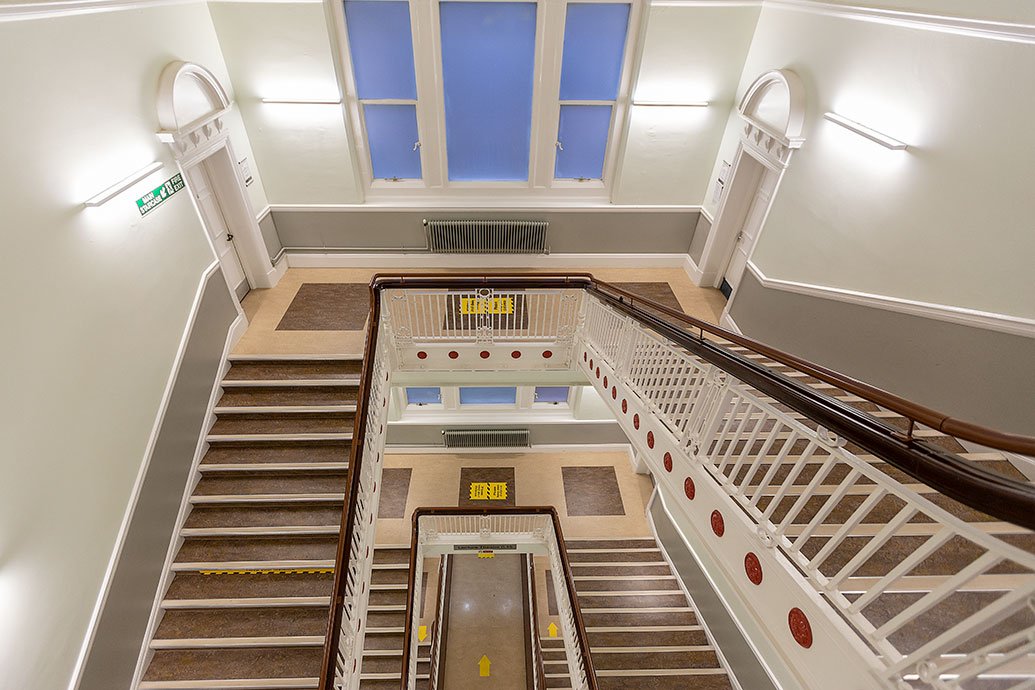

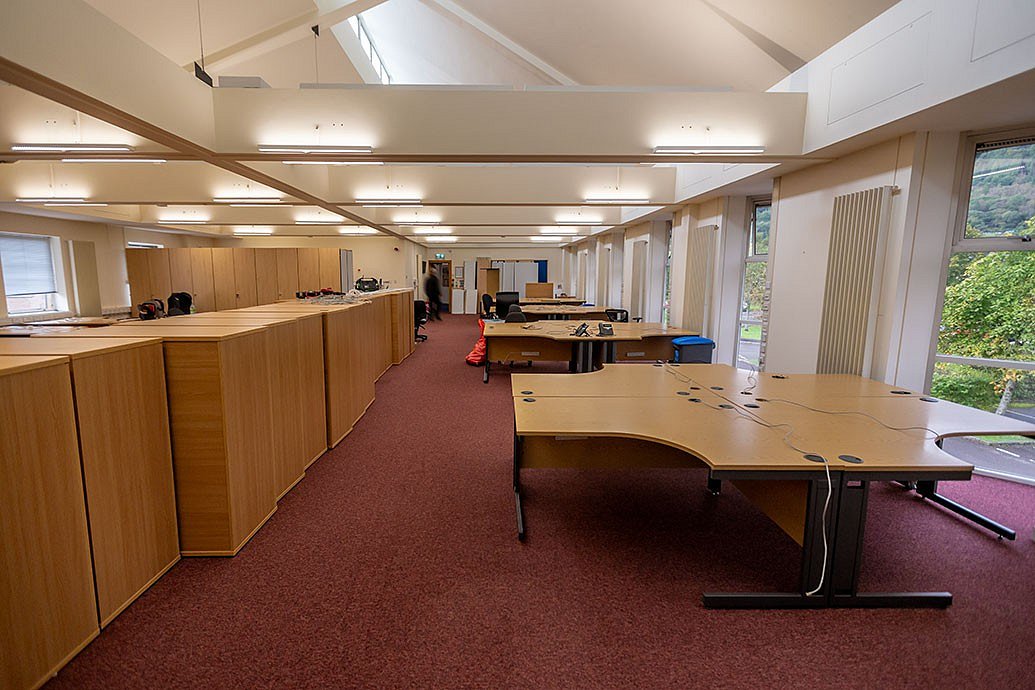

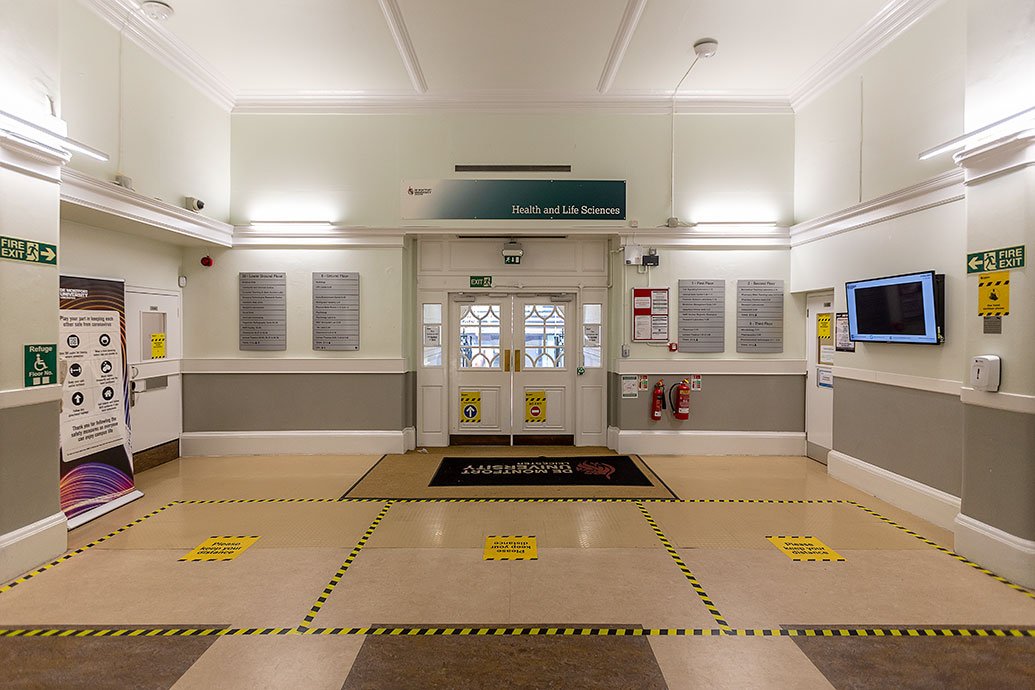

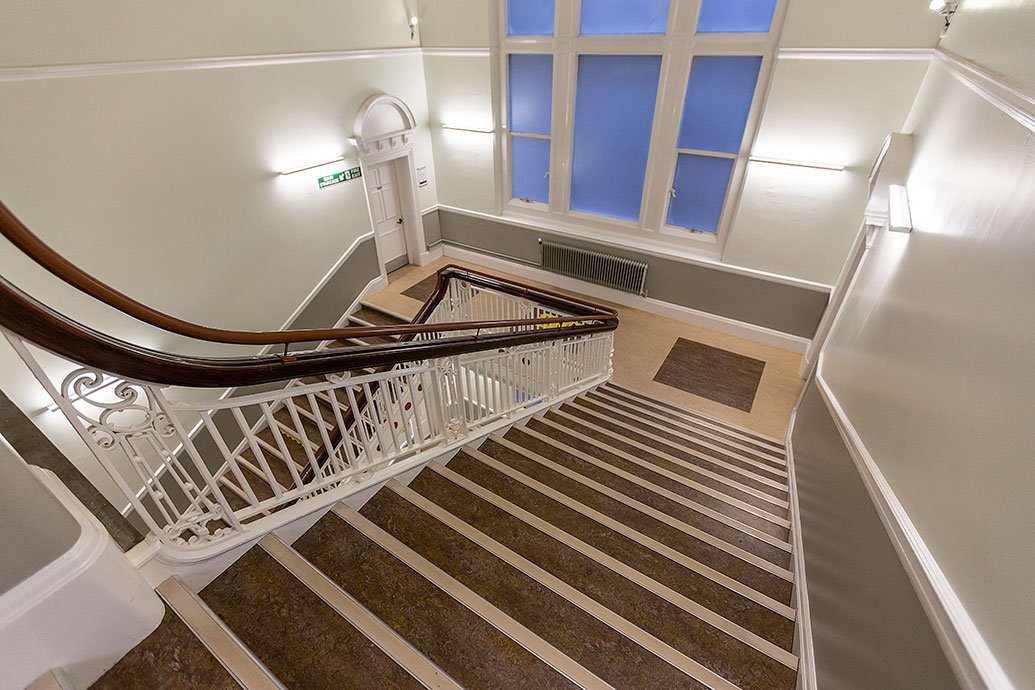

PLANUM in action

Technical

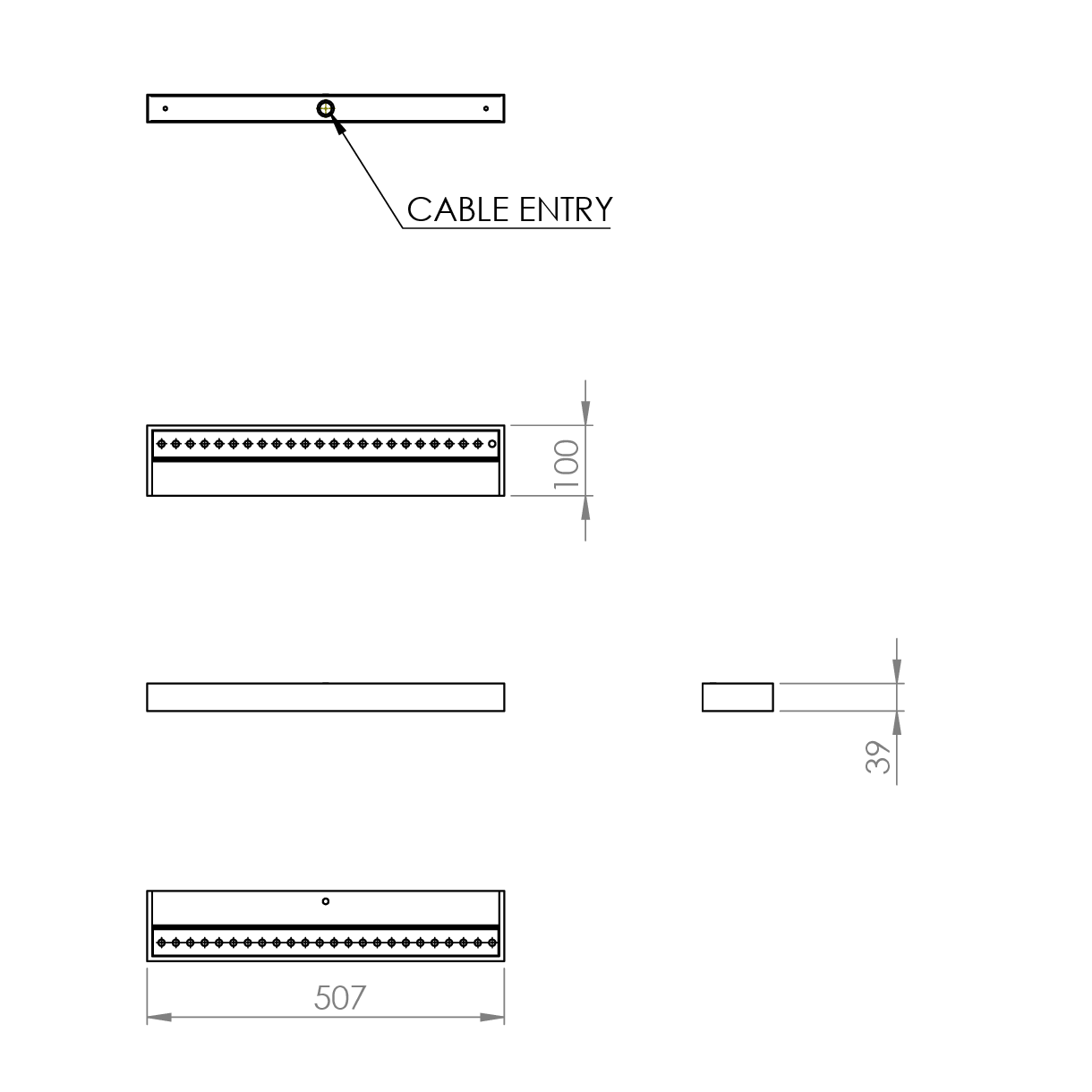

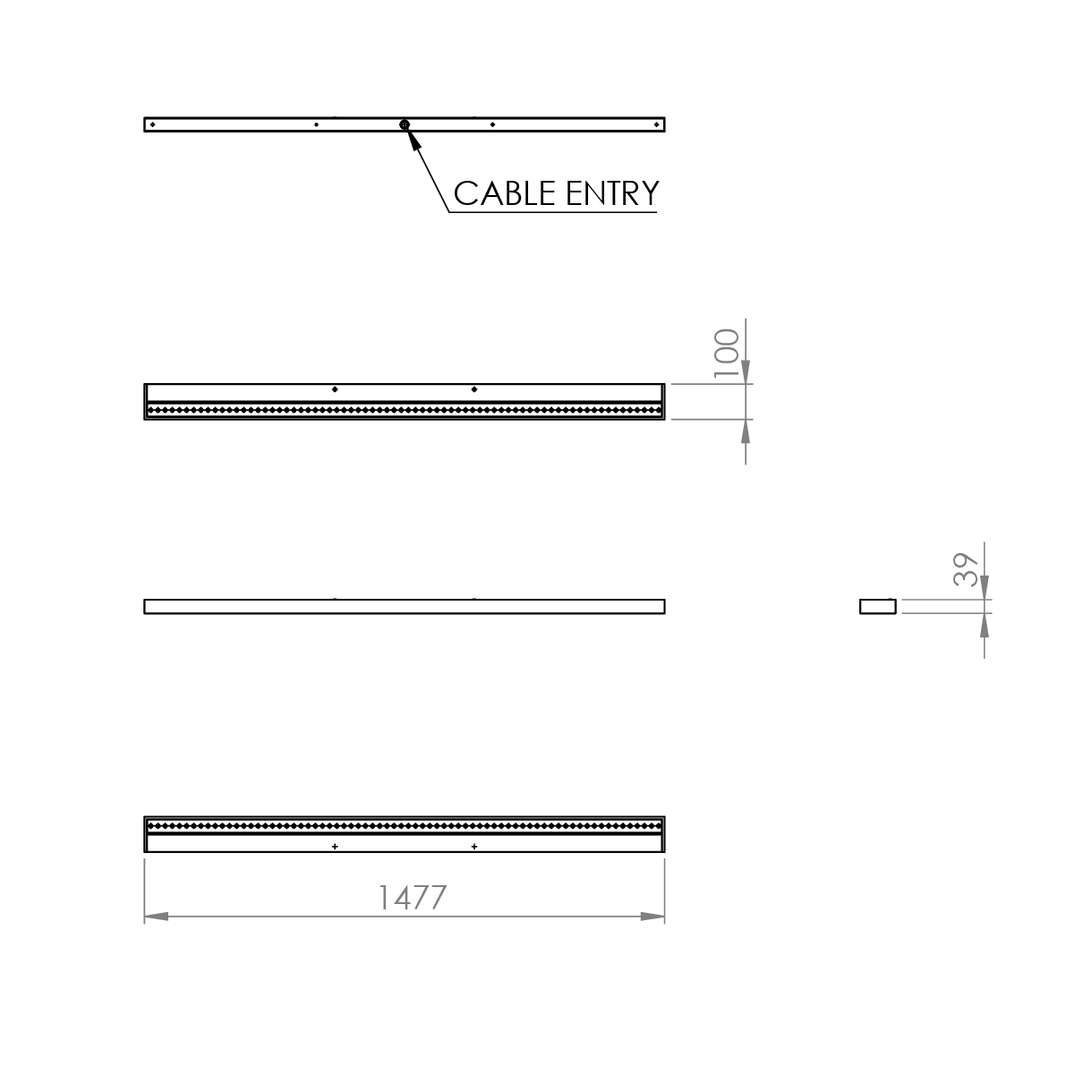

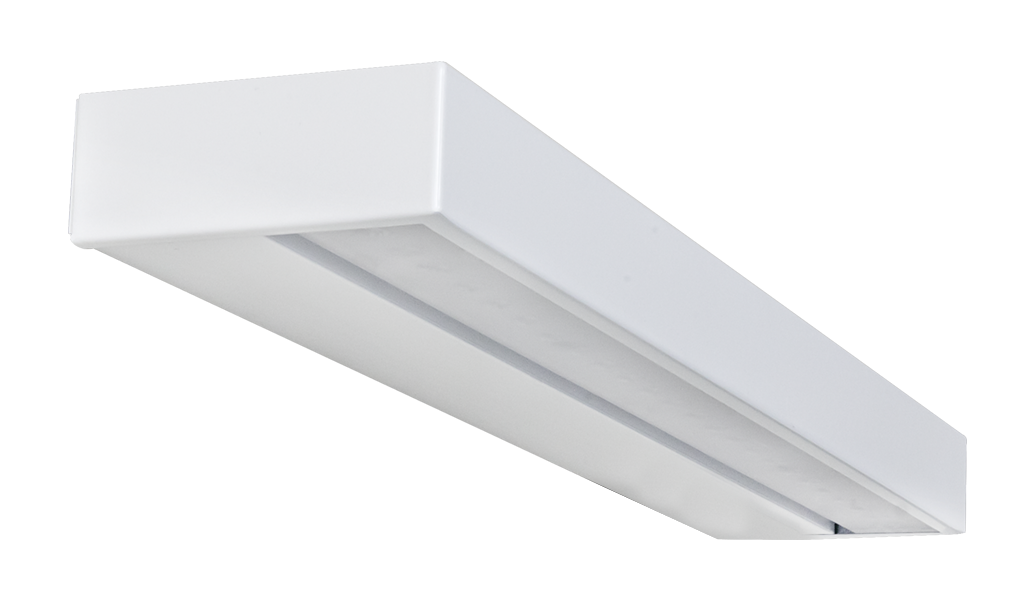

Planum 500mm

Planum 500mm

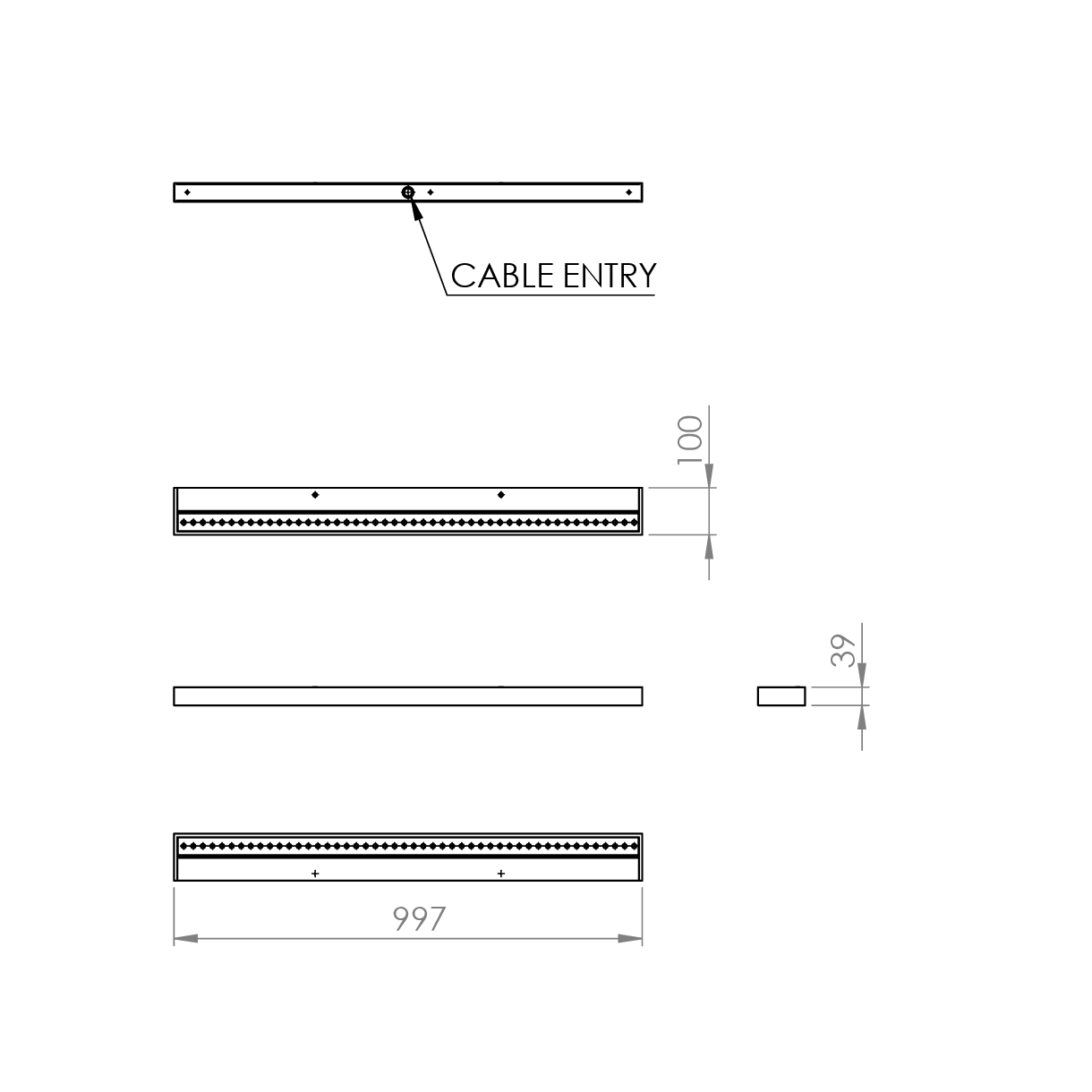

Planum 1000mm

Planum 1000mm

Planum 1500mm

Planum 1500mm

Ordering

Luminaires

Code Description Power Llm/W
PLM L24 Planum Bi-Directional, 500mm, 2,122llm, Colour 84 18.0W 118
PLM L30 Planum Bi-Directional, 500mm, 2,535llm, Colour 84 22.1W 115
PLM L48 Planum Bi-Directional, 1000mm, 3,894llm, Colour 84 31.5W 124
PLM L60 Planum Bi-Directional, 1000mm, 4,828llm, Colour 84 37.7W 128
PLM L72 Planum Bi-Directional, 1500mm, 5,802llm, Colour 84 44.5W 130
PLM L96 Planum Bi-Directional, 1500mm, 7,744llm, Colour 84 66.6W 116
PLMU L12 Planum Uplight, 500mm, 1,061llm, Colour 84 8.6W 123
PLMU L15 Planum Uplight, 500mm, 1,268llm, Colour 84 10.5W 121
PLMU L24 Planum Uplight, 1000mm, 1,948llm, Colour 84 15.3W 127
PLMU L30 Planum Uplight, 1000mm, 2,414llm, Colour 84 19.1W 126
PLMU L36 Planum Uplight, 1500mm, 2,901llm, Colour 84 22.0W 132
PLMU L48 Planum Uplight, 1500mm, 3,870llm, Colour 84 28.5W 136
PLMD L12 Planum Downlight, 500mm, 1,061llm, Colour 84 8.6W 123
PLMD L15 Planum Downlight, 500mm, 1,268llm, Colour 84 10.5W 121
PLMD L24 Planum Downlight, 1000mm, 1,948llm, Colour 84 15.3W 127
PLMD L30 Planum Downlight, 1000mm, 2,414llm, Colour 84 19.1W 126
PLMD L36 Planum Downlight, 1500mm, 2,901llm, Colour 84 22.0W 132
PLMD L48 Planum Downlight, 1500mm, 3,870llm, Colour 84 28.5W 136

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RAS sensors can not be offered in PLM and PLMD L12 and L15 variants

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
BL Black Finish
GY Grey Finish
LSF Low Smoke Zero Halogen
