OPUS WALLPACK
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The Opus Wallpack combines a modern and minimalist design with a durable and robust construction providing both IP65 ingress protection and IK10 impact resistance. With a lensed optical design the Opus Wallpack is designed to maximise spacings between luminaires whilst minimising light pollution. With less than 2.5 percent upward light distribution the Opus Wallpack is suitable for use in a wide range of Environmental Zones where control of nuisance glare is critical.
The Opus Wallpack comes with two lens variants, a broad asymmetric distribution allowing maximum luminaire spacing in walkways alongside buildings, and an open area version with greater forward throw suited to car parks and loading bay applications.
The Opus Wallpack is manufactured with a high pressure die cast aluminium housing and injection moulded polycarbonate cover, powder painted with a salt spray tested external paint finish in either RAL 9006 grey or matt black. With a wide range of options available, the Opus Wallpack can be specified in numerous different lumen outputs up to 5000 lumens, two lens option, lithium emergency and dimming variants and a variety of controls including microwave presence detection, integral photocell for dusk to dawn operation and wireless connectivity for use with our Reacta-Link Wireless system.
This performance and flexibility combines with simplistic and flexible installation with options for side and rear cable entry, and conduit and BESA box installation. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
OPUS WALLPACK complies with:
UKCA | CE | IP65 | IK10 | TM21: L90>80K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education | Exterior | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Parking / Exterior | Retail | Transport
Specification
Construction
- Housing: High pressure die cast aluminium

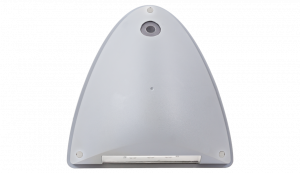

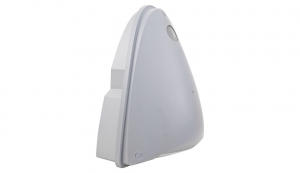

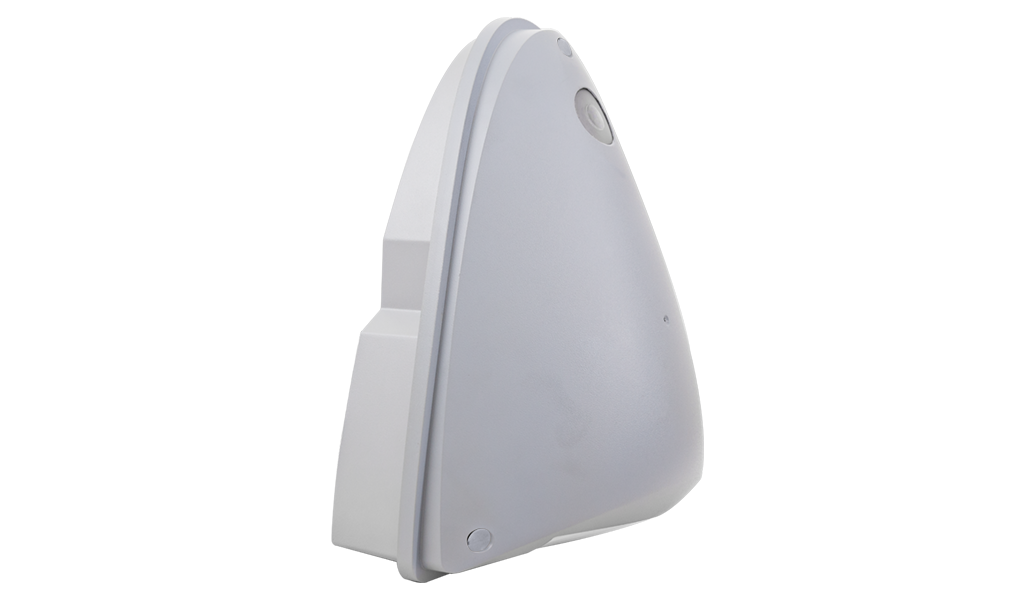

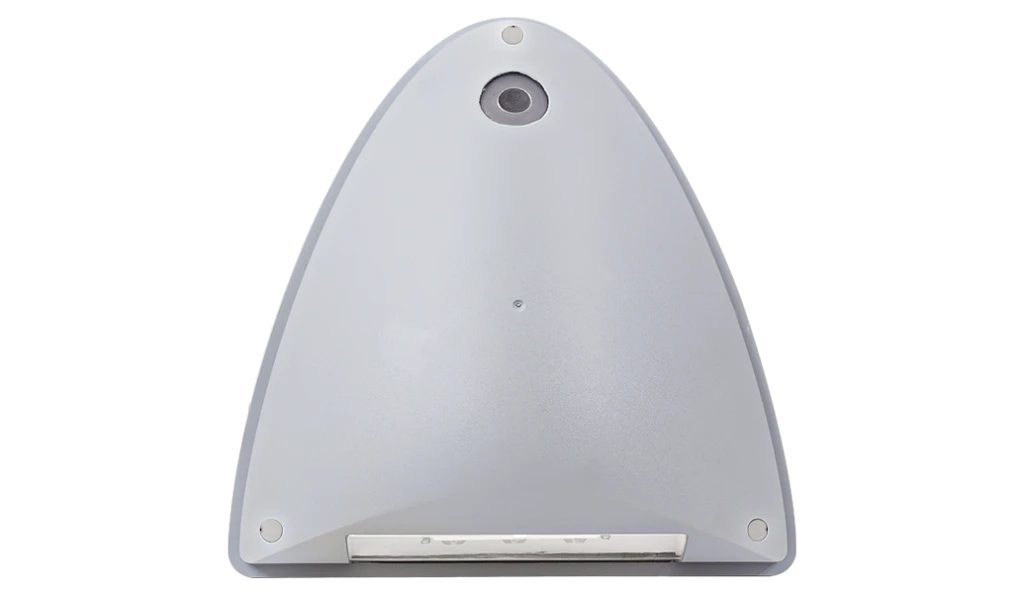

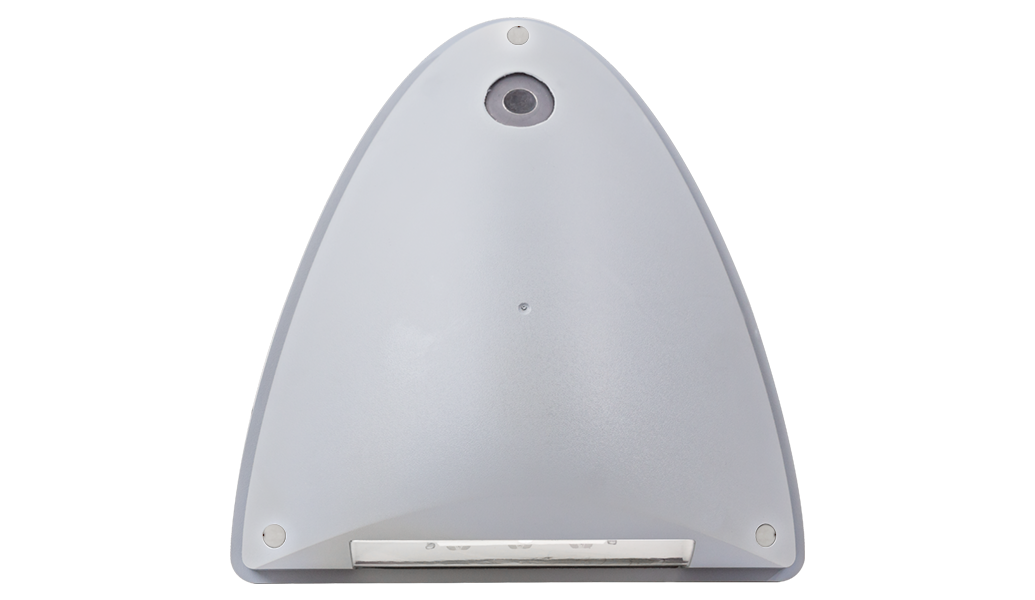

- Finish: Polyester powder painted RAL 9006 matt grey

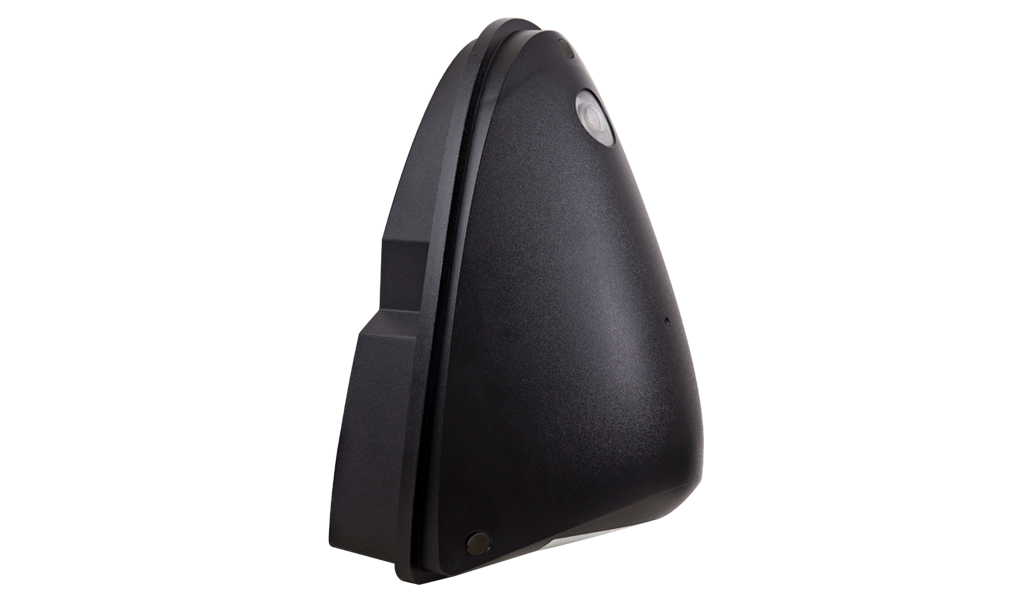

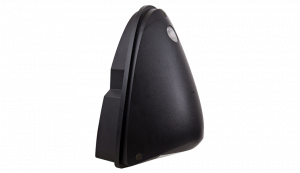

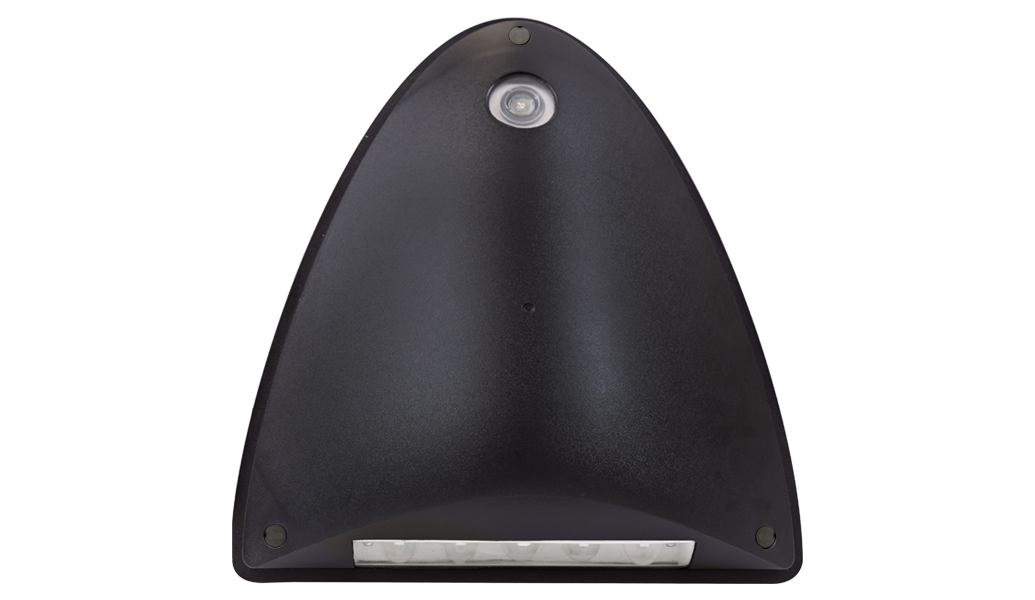

- Finish: Polyester powder painted RAL 9005 matt black
- Diffuser: Injection moulded clear polycarbonate
- Lens: Injection moulded polycarbonate lens
- IK10
- IP65
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90 at >80,000 Operating Hours
- Up to 140 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional Integral R25 microwave presence and bright out sensor
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral photocell
Installation
- Suitable for conduit installation
- Suitable for external surface installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs
- Available in grey or black finishes

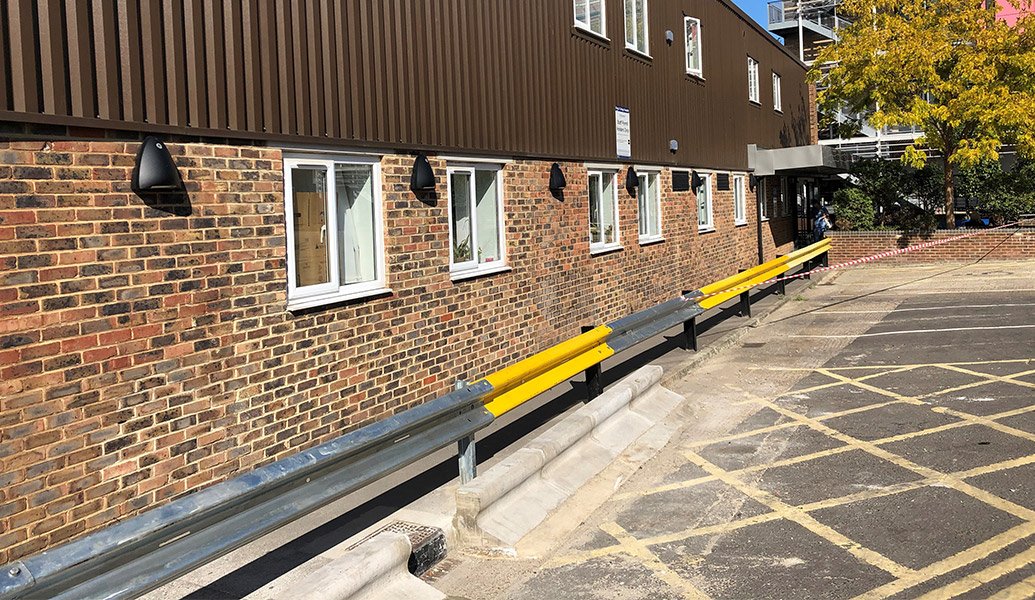

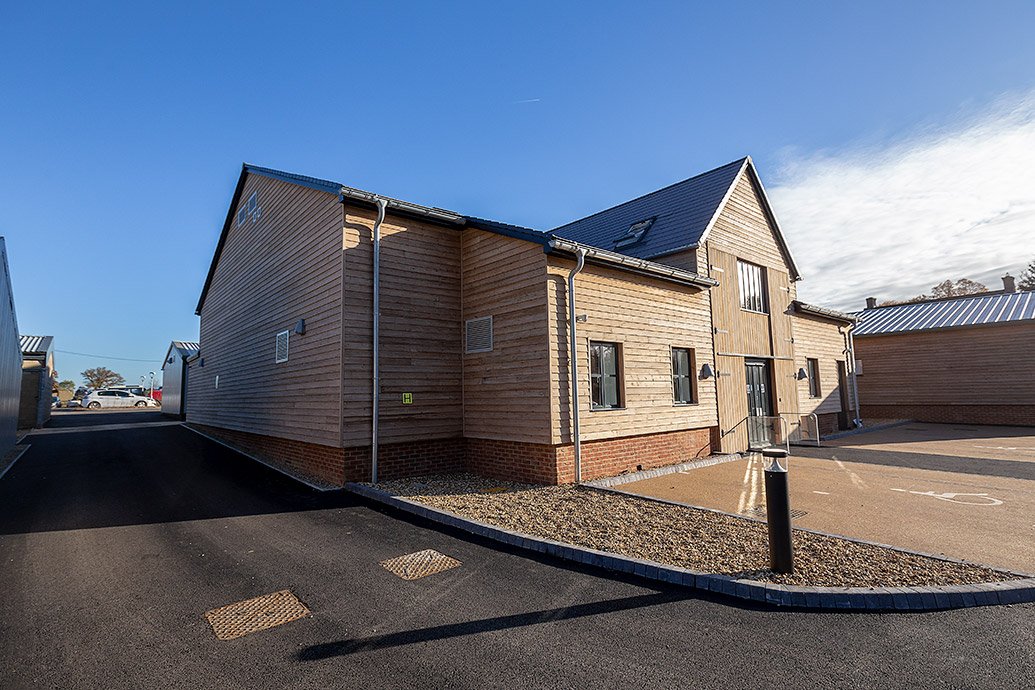

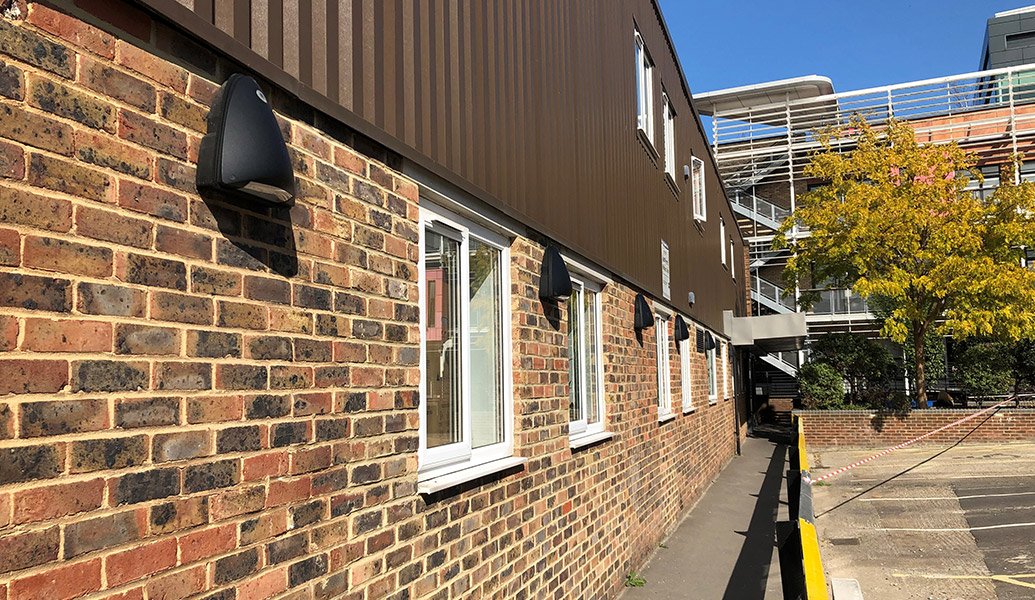

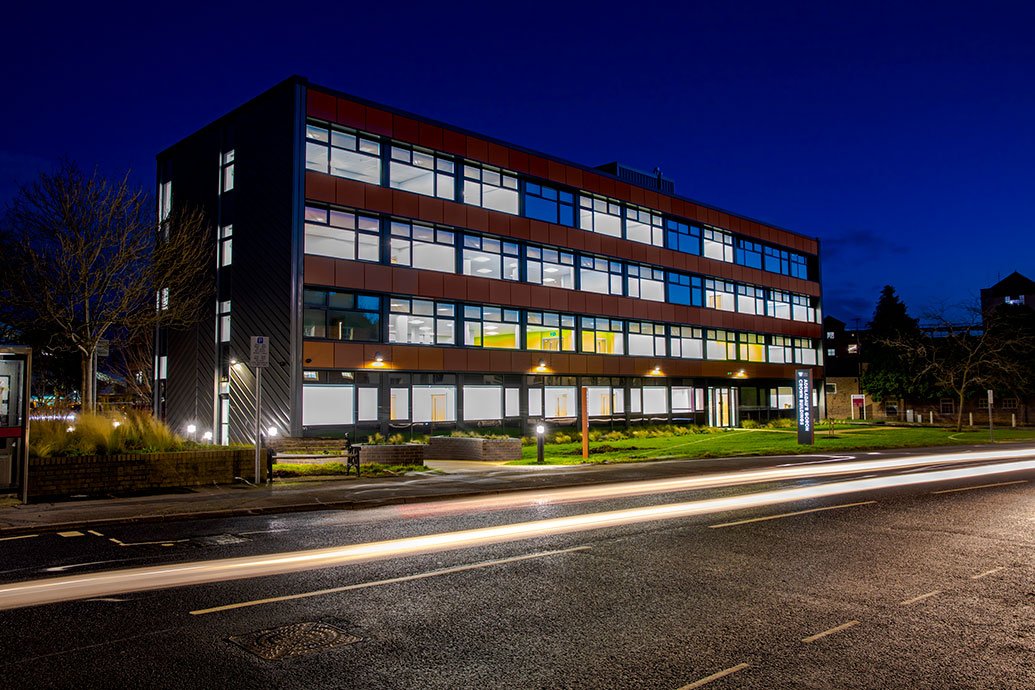

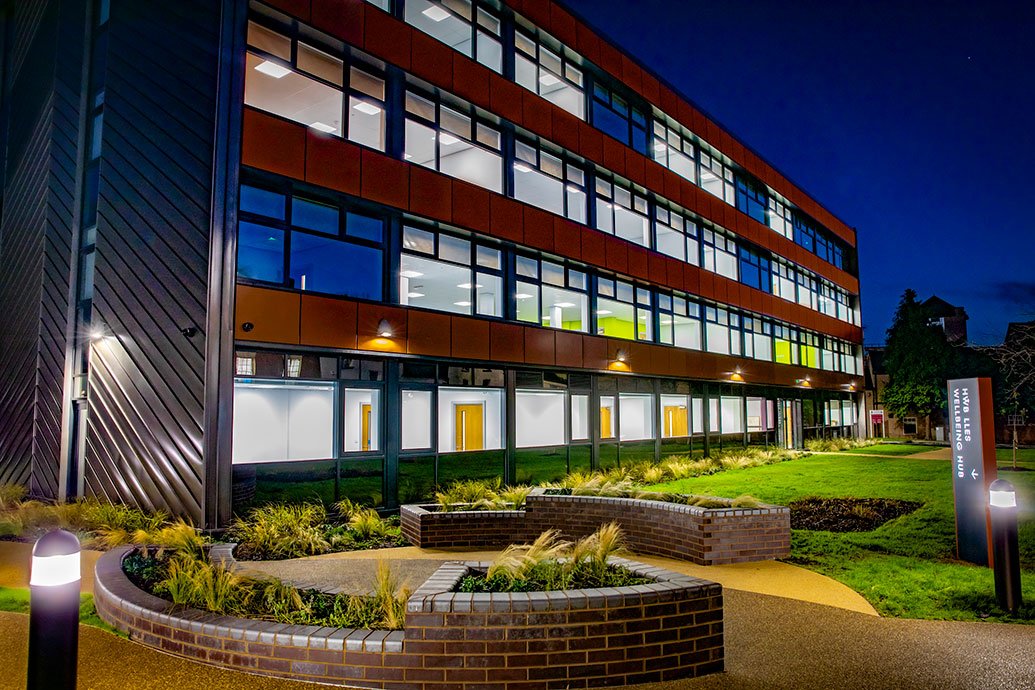

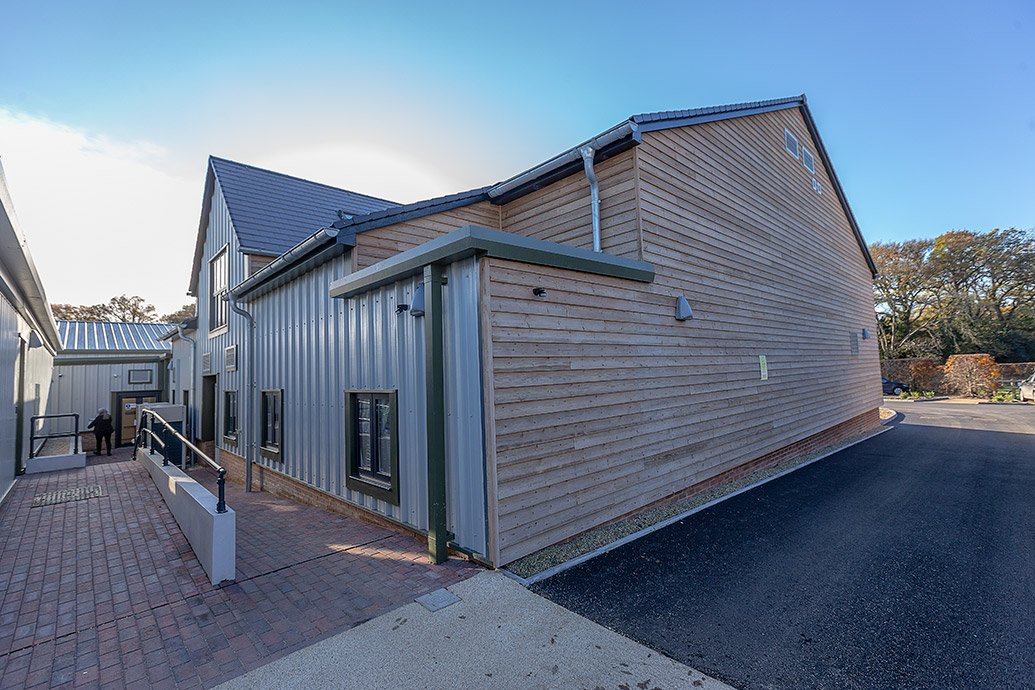

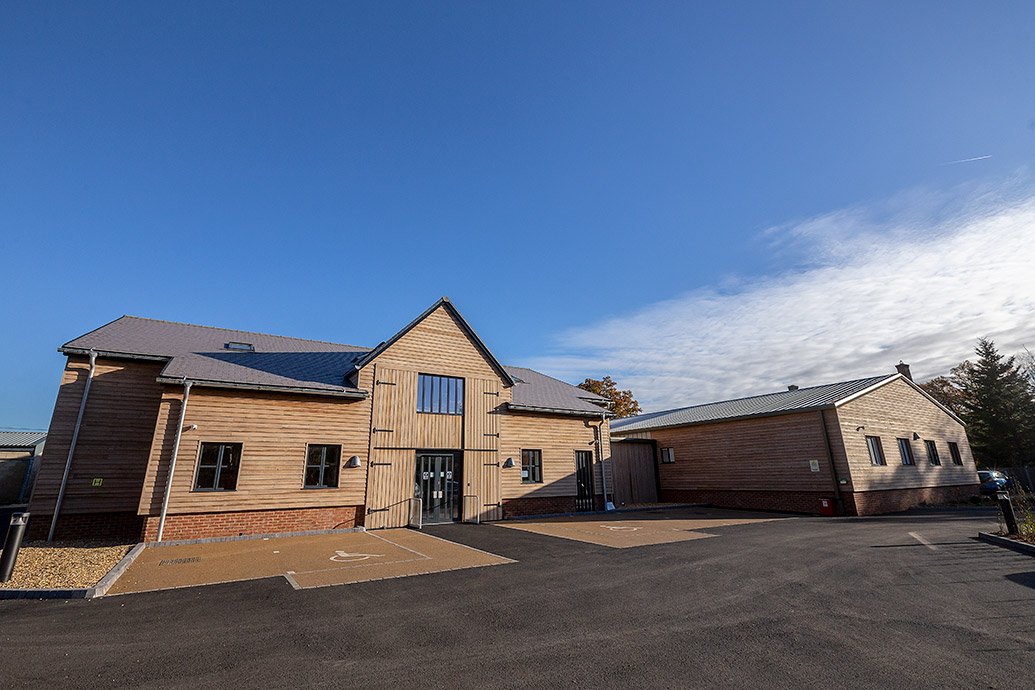

OPUS WALLPACK in action

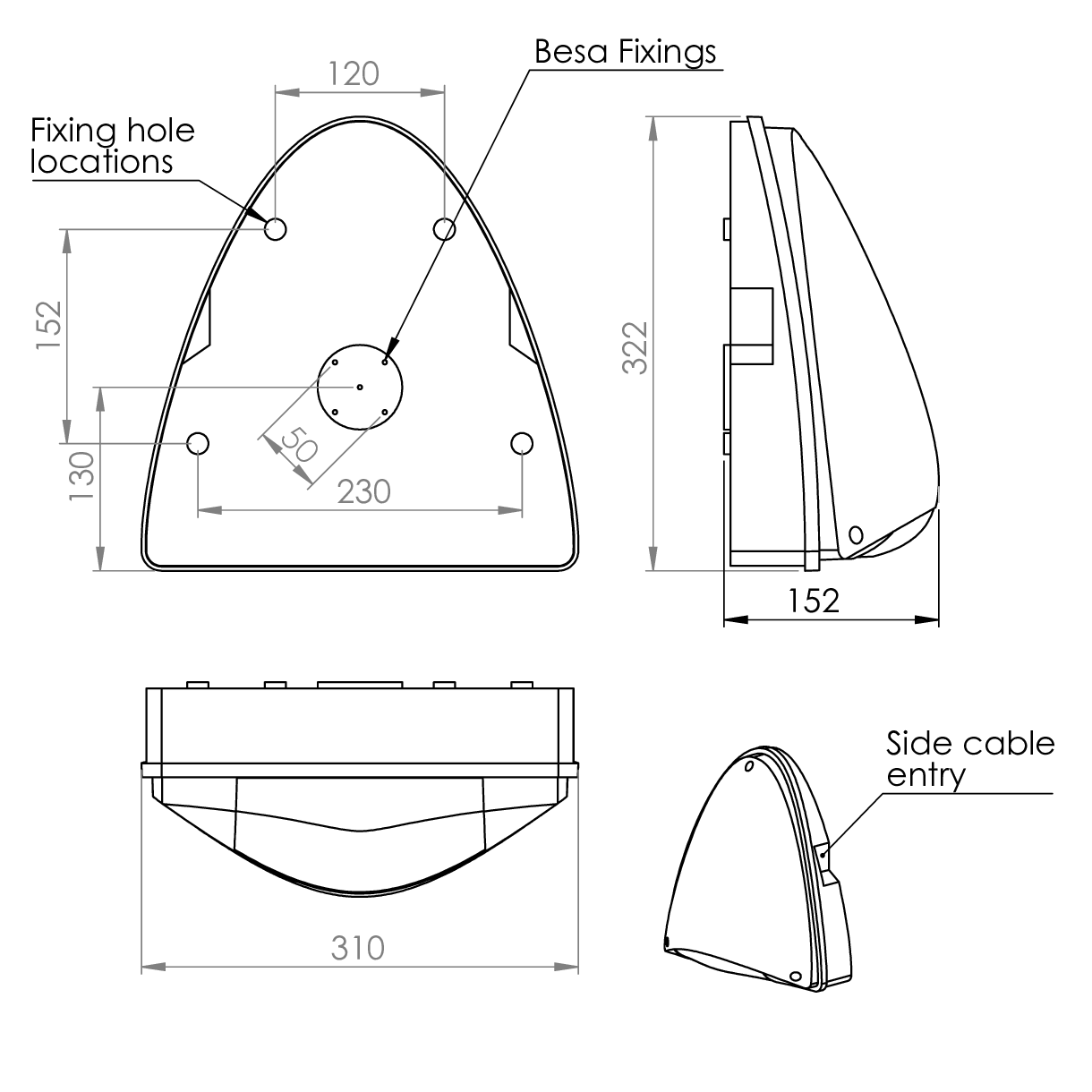

Technical
Opus Wallpack
Ordering
Luminaires
|
||||||||||||||||||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
Control
| Code | Description |
|---|---|
| R25E | Reacta 25, Presence & Bright Out, On / Off, 2.5-4M |
| R25C* | Reacta 25, Presence & Bright Out, Bi-Level Dimming, 2.5-4M |
| PH | Photocell |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RLM | Reacta-Link, Wireless, Presence & Bright Out, 2.5-4M |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RCMC* | Reacta-Control, Presence & Bright Out, Bi-level Dimming, 2.5-4M |
| RCME | Reacta-Control, Presence & Bright Out, On / Off, 2.5-4M |
| Please click here for full details on our wireless controls. | |
| *Bi-Level Dimming will only dim the luminaire to 10% during absence and brightout, it will not turn the luminaire off. | |
| All R25C, RCMC, R25E & RCME sensors require the integral photocell also to ensure dusk to dawn operation | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
Miscellaneous
| Code | Description |
|---|---|
| C** | C727, C73 |
| BL | Black Finish |
| TRS | Tamper Resistant Screws |
| TRS INSTALL KIT | Tamper Resistant Compatible Screwdriver Heads |
| LSF | Low Smoke Zero Halogen |
