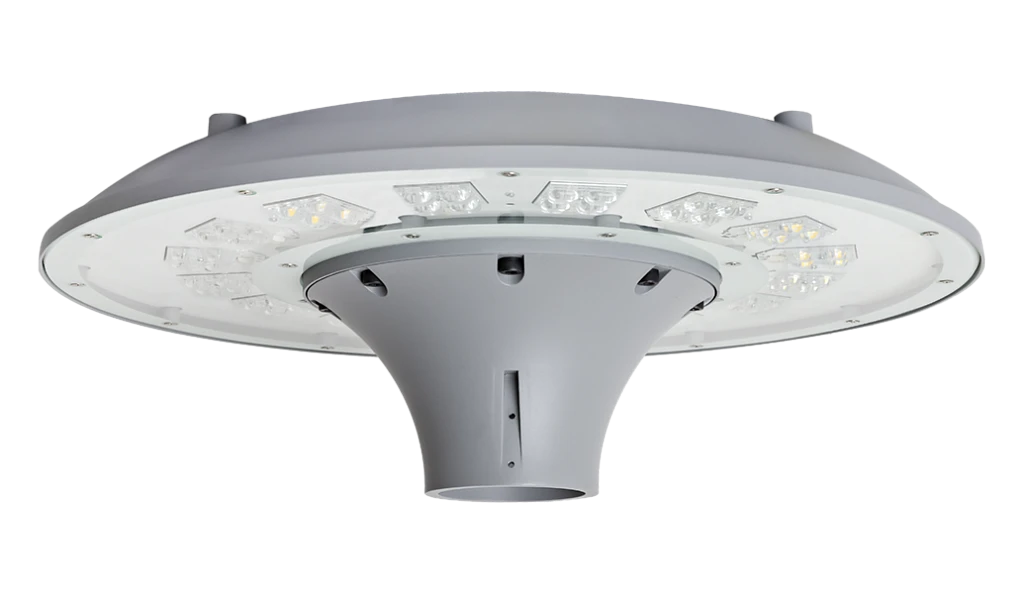

Opus 360 High Output

Introduction

The Opus 360 High Output offers excellent efficiency combined with high lumen outputs and lensed optical control making it ideal for effective illumination of large open areas. Offering up to 60,000lm output with efficiency of 147llm/w the Opus 360 High Output provides an extremely cost effective solution for car parks and other external spaces whilst minimising operating costs for both maintenance and power consumption.

With both symmetric and asymmetric variants providing solutions for both central columns and perimeters, and a range of lumen outputs to suit most column heights and spaces each Opus 360 installation can be tailored to ensure a minimum of light spill into adjacent properties whilst maintaining excellent lux levels and uniformity with minimal power consumption. With optional NEMA socket and photocell variants the luminaire can be supplied with a range of controls from basic photocell through to wireless connectivity.

The Opus 360 High Output is supplied with a 90-101mm base mount spigot, comes complete with a 10M prewired cable for rapid installation and is manufactured with a die cast aluminium housing with matt grey weather resistant paint finish and toughened glass cover ensuring excellent longevity in the field. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

OPUS 360 HIGH OUTPUT complies with:

UKCA | CE | IP65 | TM21: L90>80K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Commercial / Offices | Education | Exterior | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Parking / Exterior | Retail | Transport

Specification

Construction

  • Housing: High pressure die cast aluminium
  • Finish: Polyester powder painted RAL 9006 matt grey, marine grade salt spray tested
  • Diffuser: 5mm toughened glass
  • Diffuser: Injection moulded clear polycarbonate
  • IP65

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90 at >80,000 Operating Hours
  • Up to 153 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral photocell

Installation

  • Suitable for column installation, please specify spigot size required.
  • Supplied with 10M prewired lead

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs

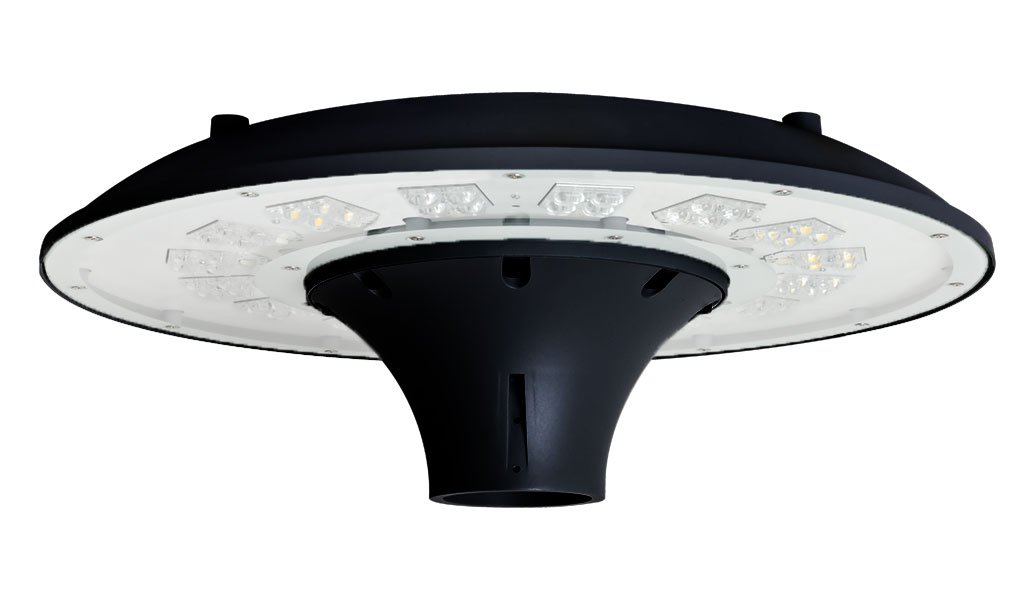

  • Available in grey or black finishes
5 year extended warranty available on most products.
Arrow right

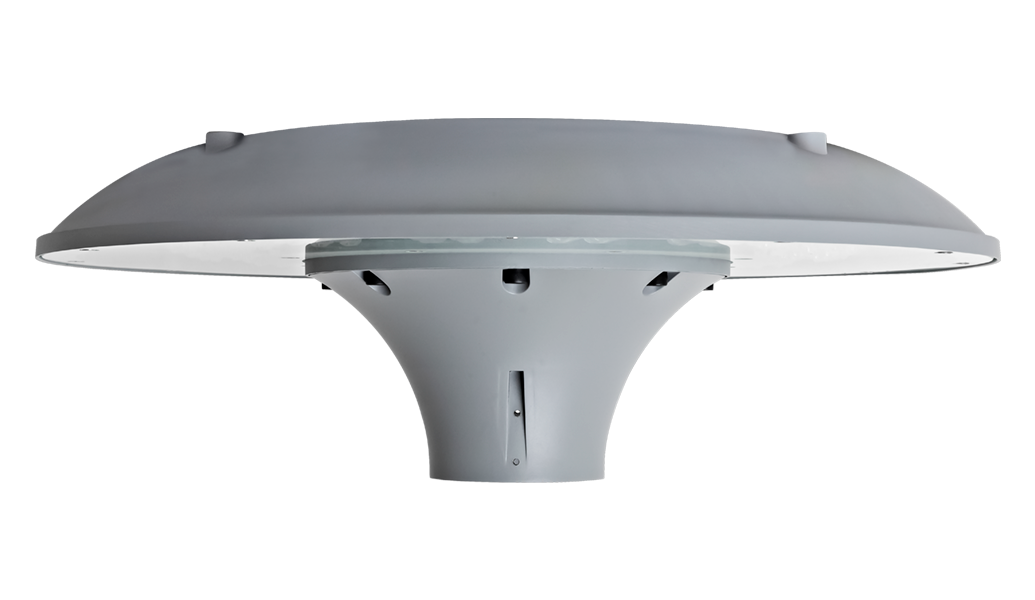

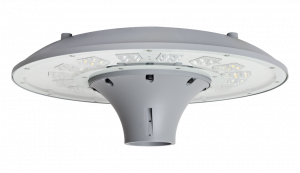

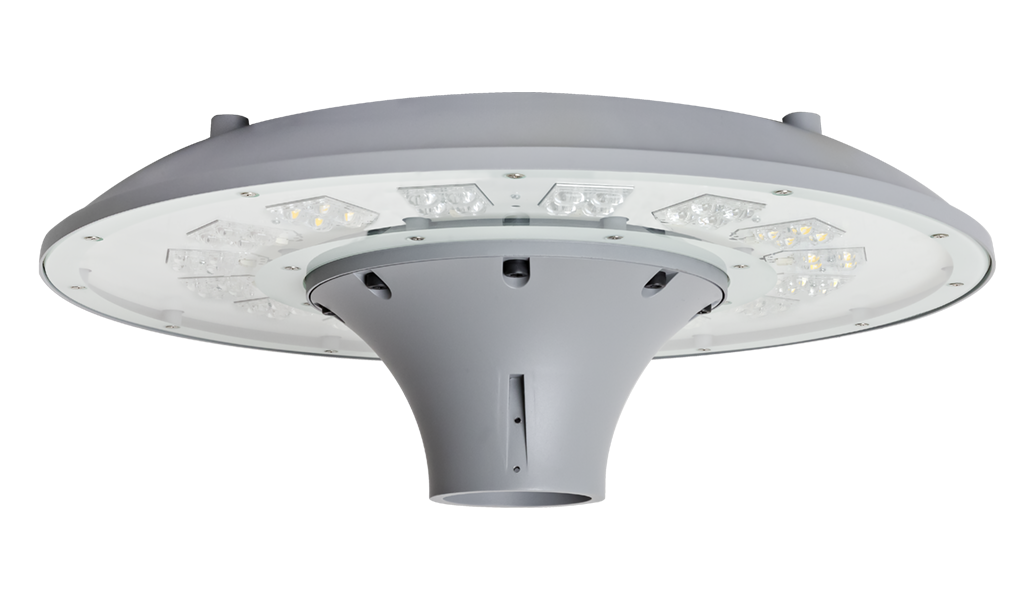

Product Images

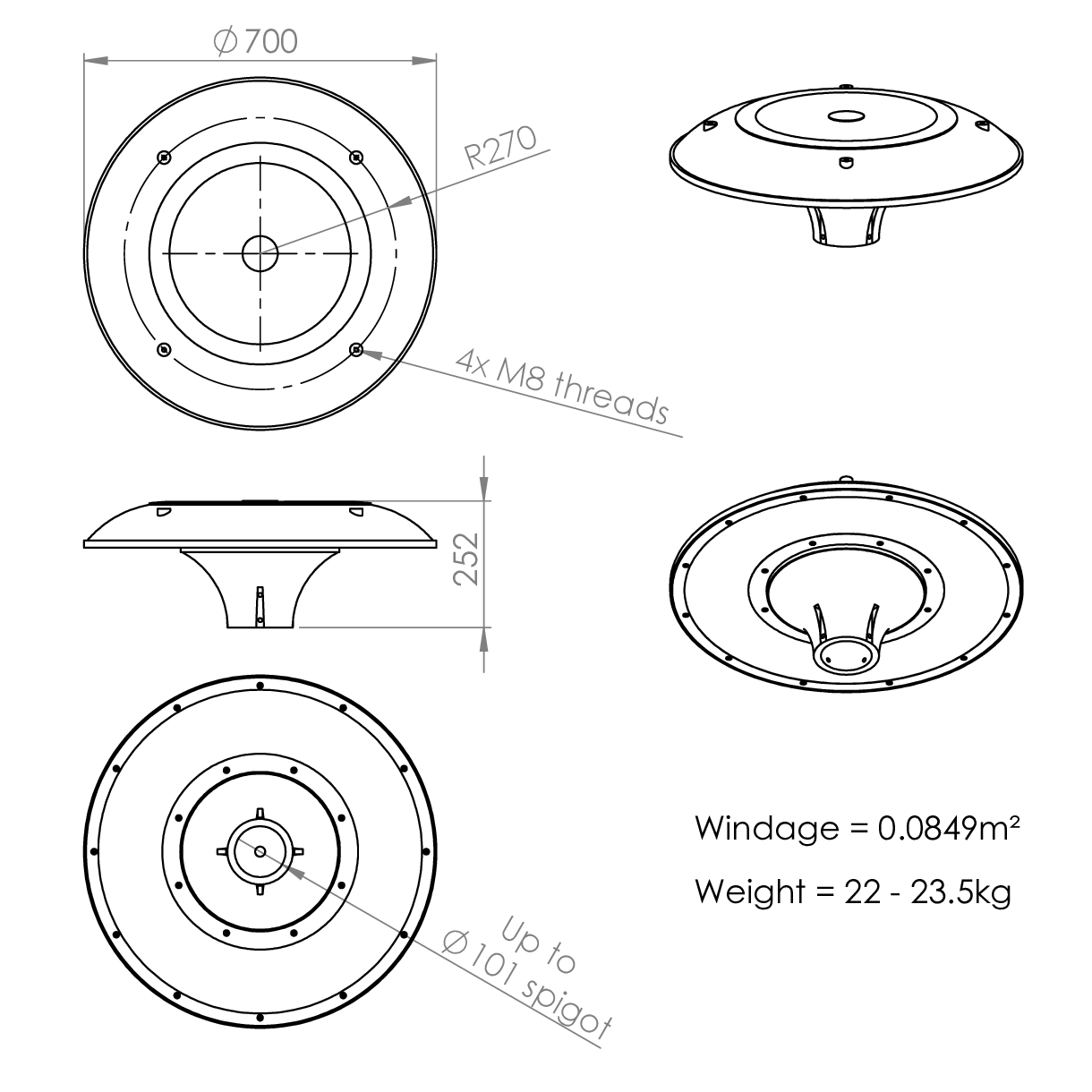

Technical

Opus 360 High Output

Opus 360 High Output

Ordering

Luminaires

Code Description Power Llm/W
OPU36HO L300 S90 Opus 360 HO, 26,070llm, 90-101mm Spigot, Colour 74 170.2W 153
OPU36HO L400 S90 Opus 360 HO, 34,766llm, 90-101mm Spigot, Colour 74 238.0W 146
OPU36HO L600 S90 Opus 360 HO, 52,140llm, 90-101mm Spigot, Colour 74 349.2W 149
OPU36HO L150 S90 OA Opus 360 HO OA, 12,489llm, Open Area, 90-101mm Spigot, Colour 74 79.4W 157
OPU36HO L200 S90 OA Opus 360 HO OA, 16,653llm, Open Area, 90-101mm Spigot, Colour 74 111.2W 148
OPU36HO L300 S90 OA Opus 360 HO OA, 24,978llm, Open Area, 90-101mm Spigot, Colour 74 162.7W 154
OPU36HO L150 S90 AS Opus 360 HO, 12,120llm, Asymmetric, 90-101mm Spigot, Colour 74 85.1W 142
OPU36HO L200 S90 AS Opus 360 HO, 16,174llm, Asymmetric, 90-101mm Spigot, Colour 74 116.6W 138
OPU36HO L300 S90 AS Opus 360 HO, 24,240llm, Asymmetric, 90-101mm Spigot, Colour 74 175.0W 138

Control

Code Description
NEM NEMA Socket
PH Photocell

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering
Emergency only available in L300 and below

Miscellaneous

Code Description
C** C727*, C73
BL Black Finish
LSF Low Smoke Zero Halogen
* Not available in L600

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
