OPUS 3
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

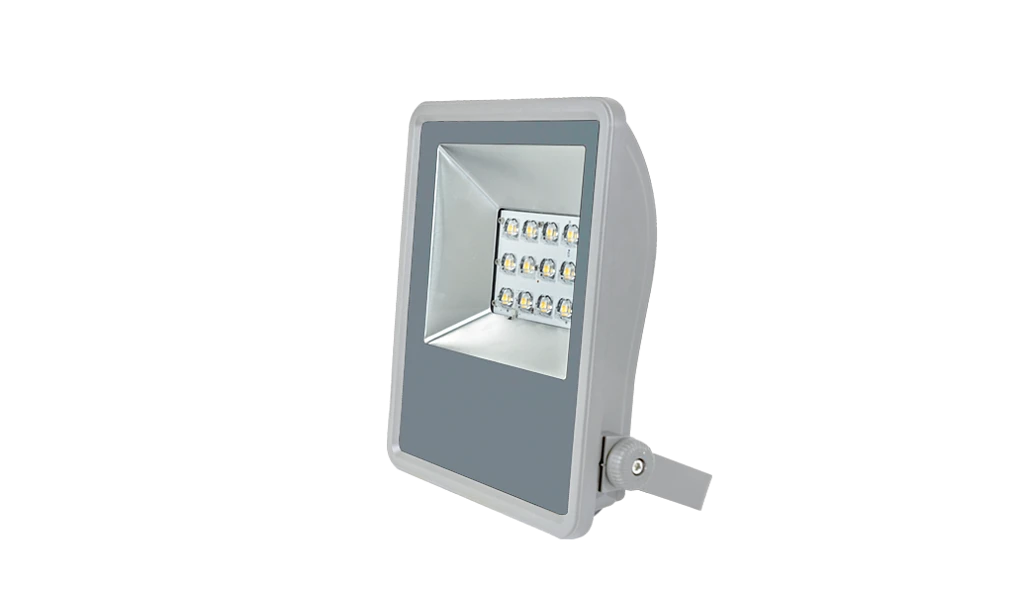

The Opus 3 is a versatile flood light range available in four housing sizes and a range of outputs from 1,100 to 35,000 lumens for use in a wide range of applications, both internal and external. The luminaire is available with an optional asymmetric lens aiding distribution and minimising upward light helping to avoid light pollution.
The Opus 3 is manufactured with a high pressure die cast aluminium housing and toughened glass contrasting dark grey surround allowing it to blend into most applications with a modern and appealing aesthetic. The housing is finished in a matt grey durable marine grade paint finish suitable for coastal applications. The housing is supplied complete with a saddle bracket for ease of installation along with angle indicator. This range is also available with a range of dimming variants including analogue and DALI. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
OPUS 3 complies with:
UKCA | CE | IP65 | TM21: L90>80K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education | Exterior | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Parking / Exterior | Retail | Transport | Warehousing
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Manufactured with a marine grade paint finish to ensure durability in harsh environments.
- Diffuser: 5mm toughened glass
- IP65
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90 at >80,000 Operating Hours
- Up to 162 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
Installation
- Suitable for external surface installation
- Supplied with saddle bracket and complete with built in angle indicator.
- Please use standalone photocell where dusk to dawn operation is required.
- Products listed as suitable for 40°C ambient temperatures can be used in swimming pool applications.
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
Emergency
- Available with optional standard and self test integral emergency with lithium batteries for extended warranty and lifetime.

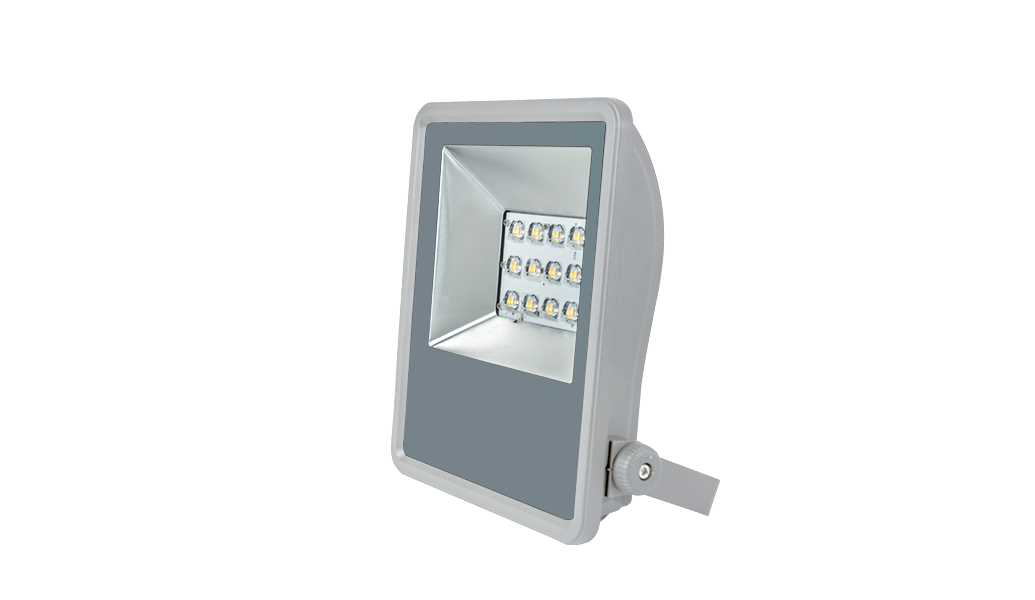

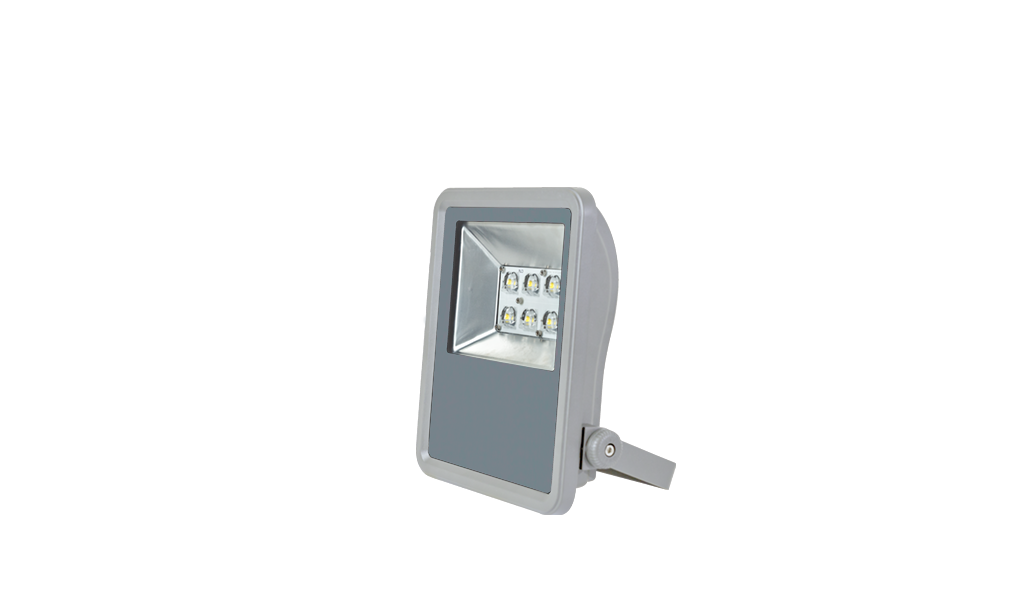

Product Images

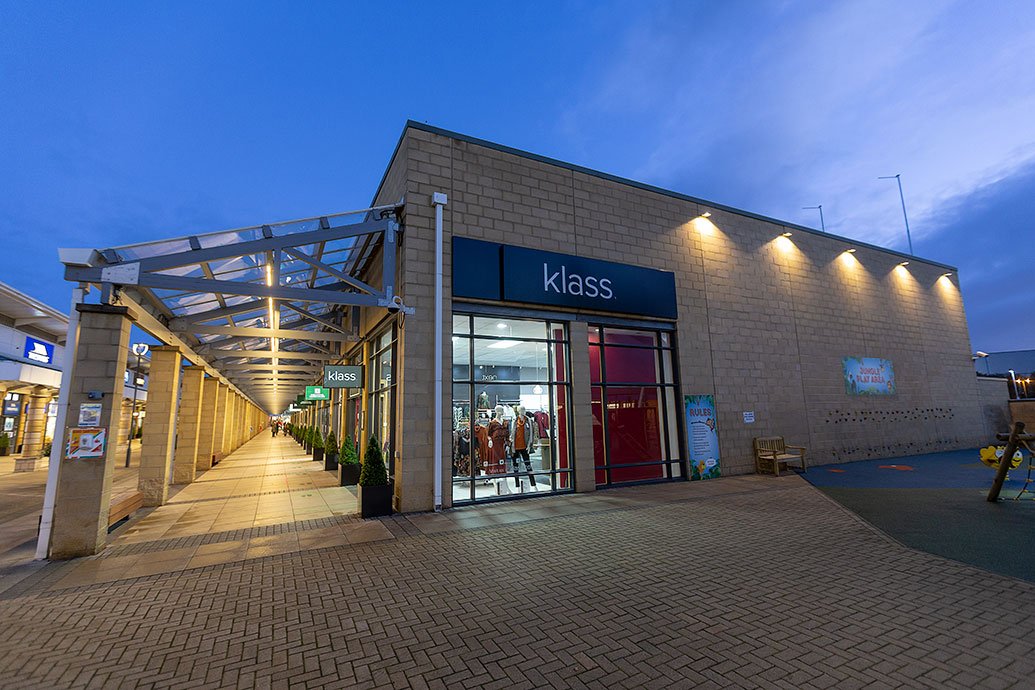

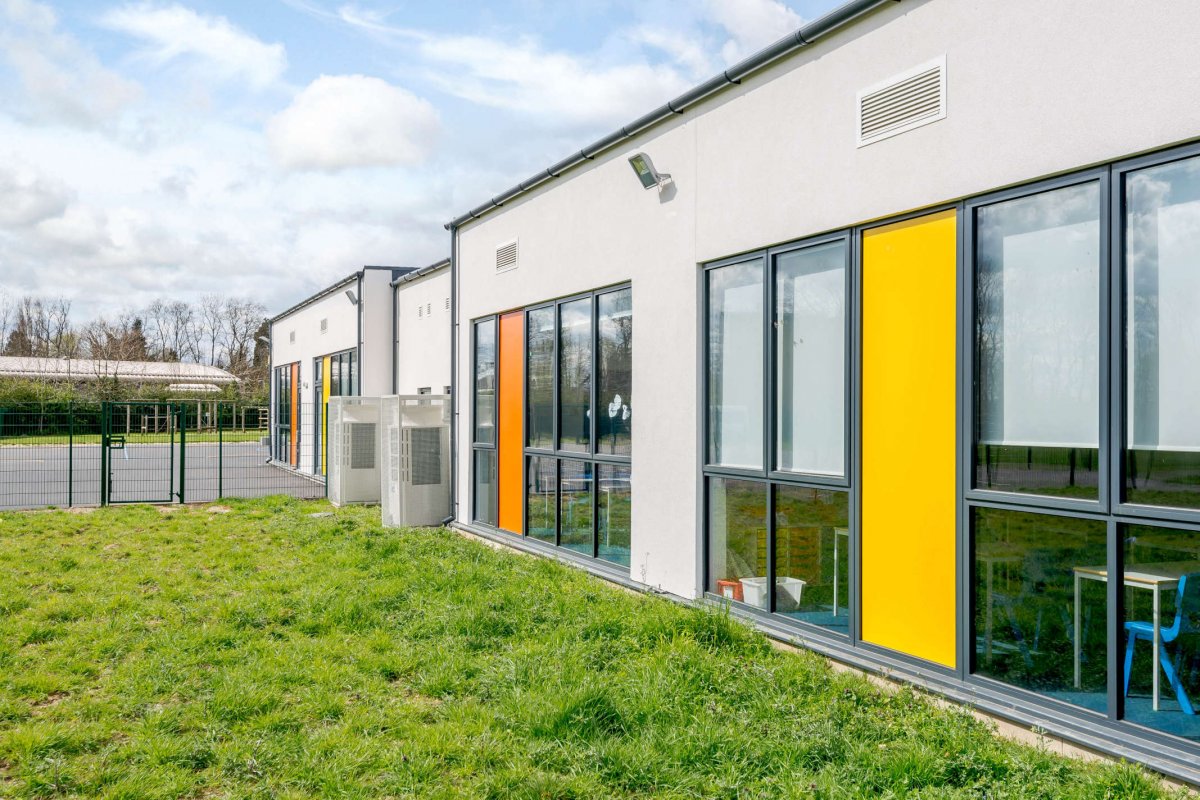

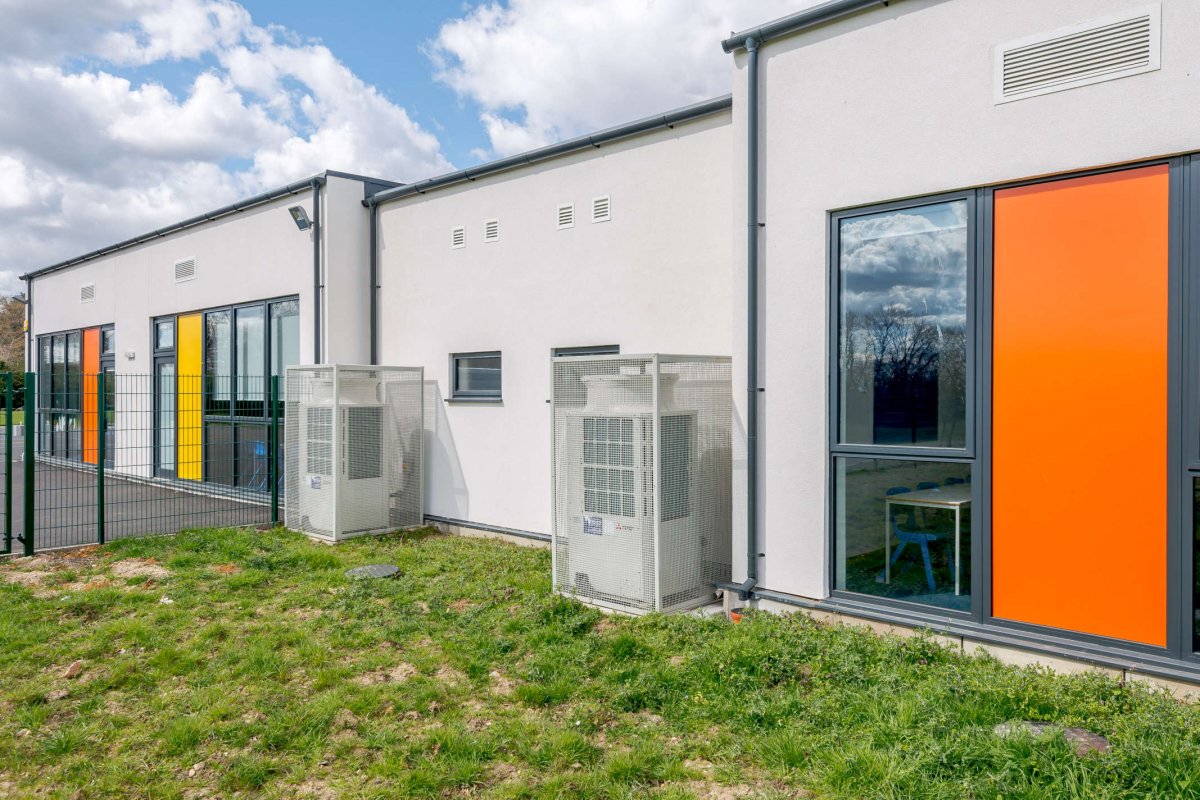

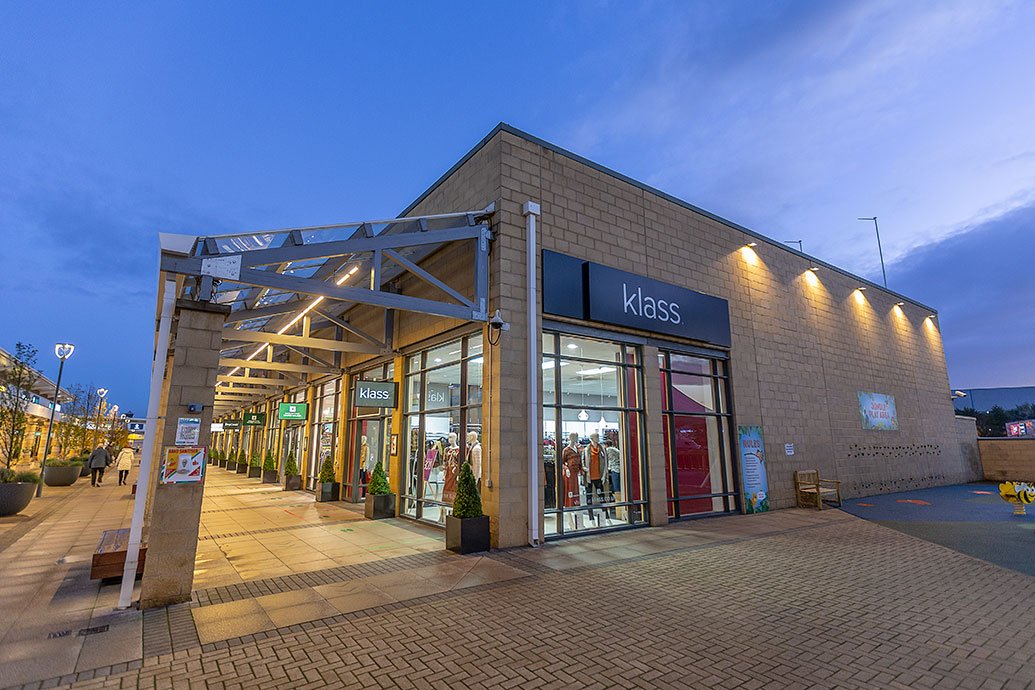

OPUS 3 in action

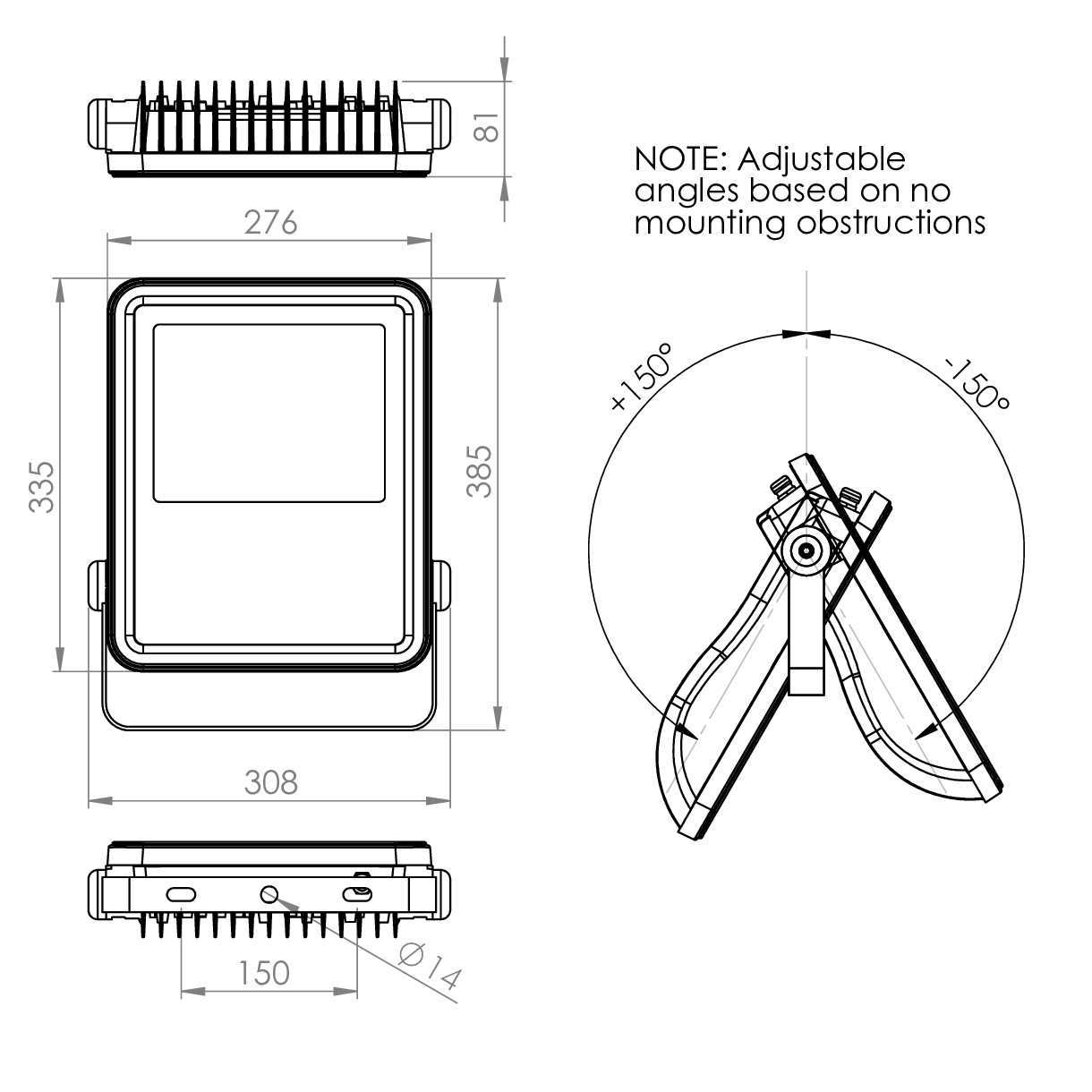

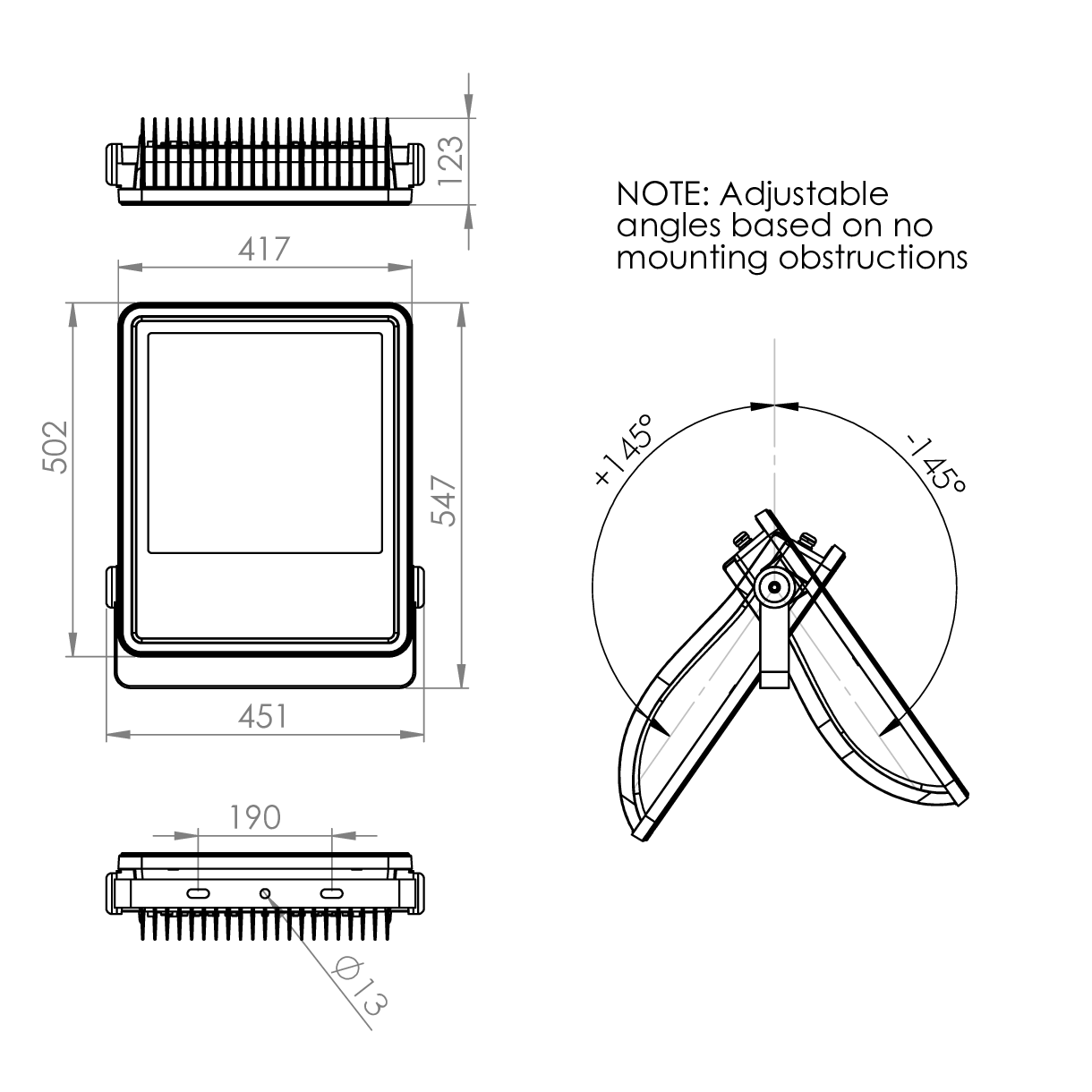

Technical

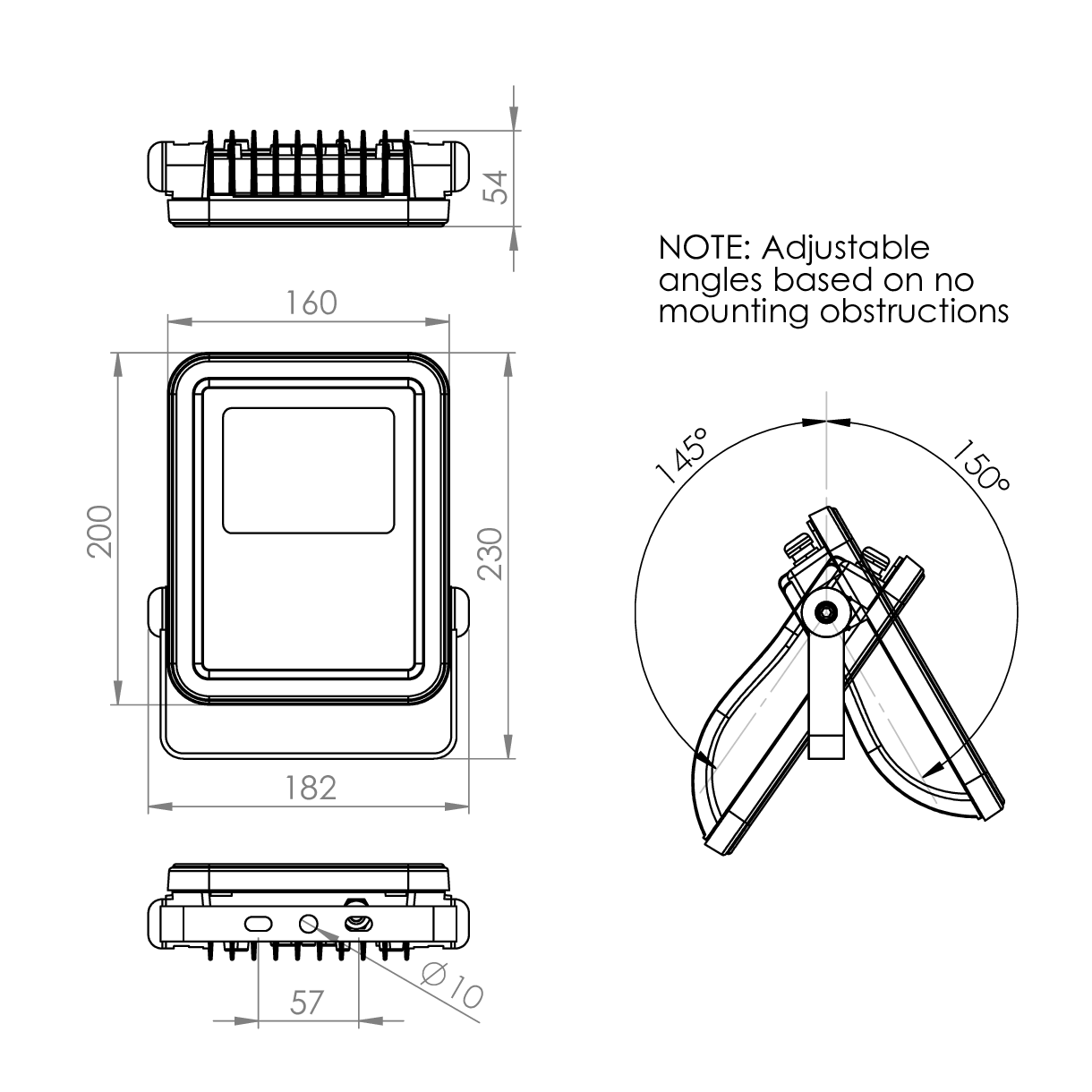

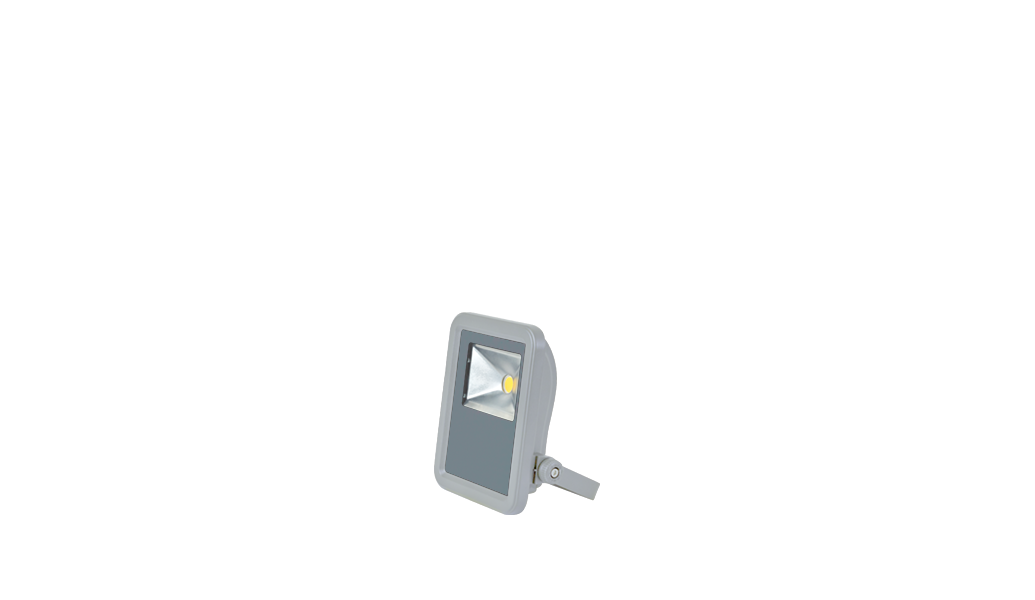

Opus 3 Small

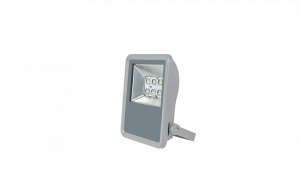

Opus 3 Medium

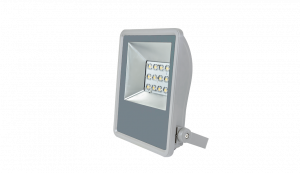

Opus 3 Large

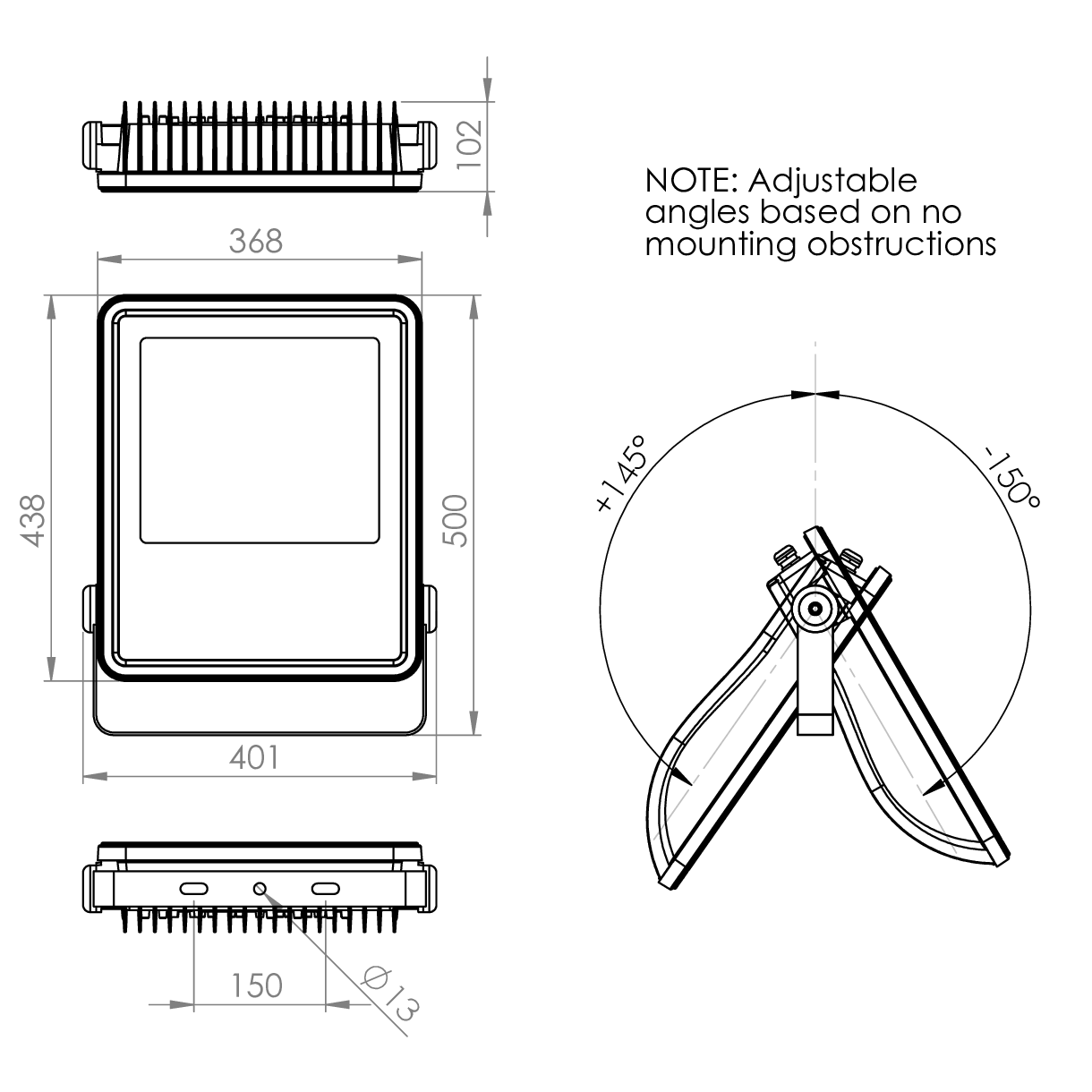

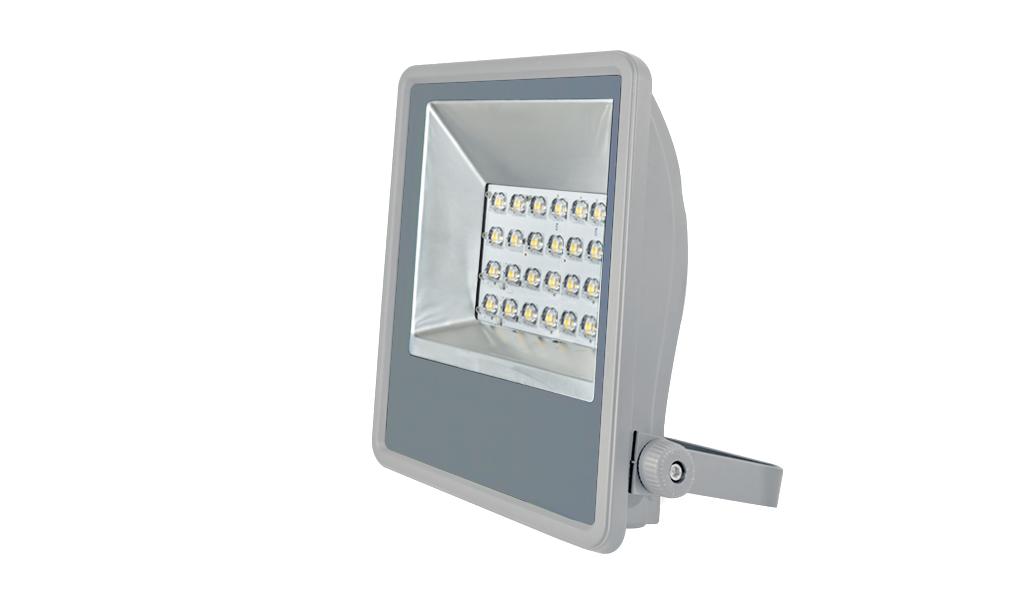

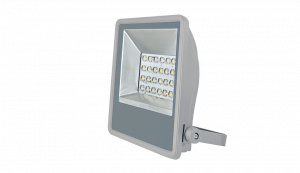

Opus 3 X-Large

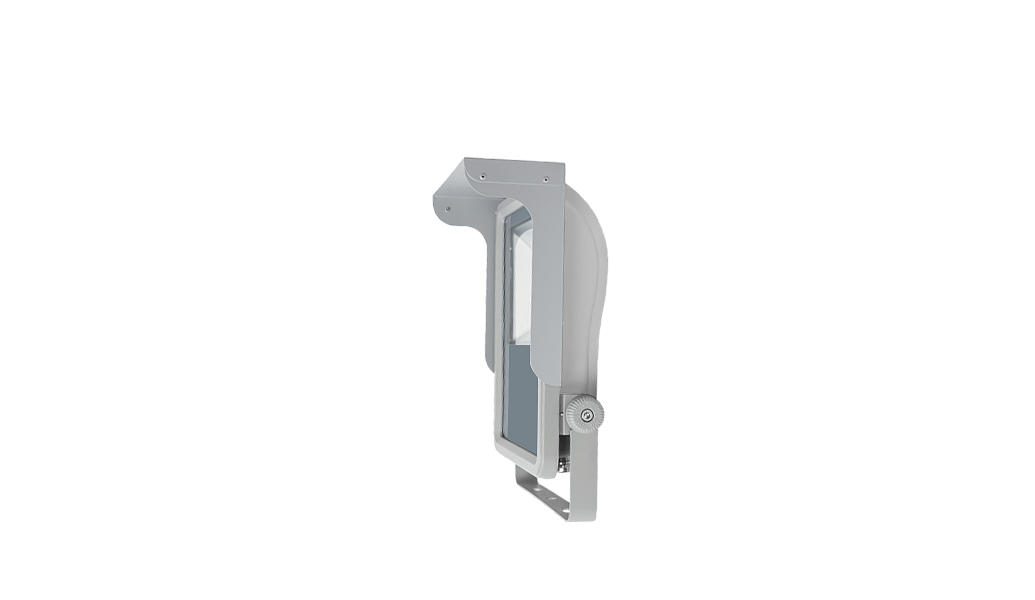

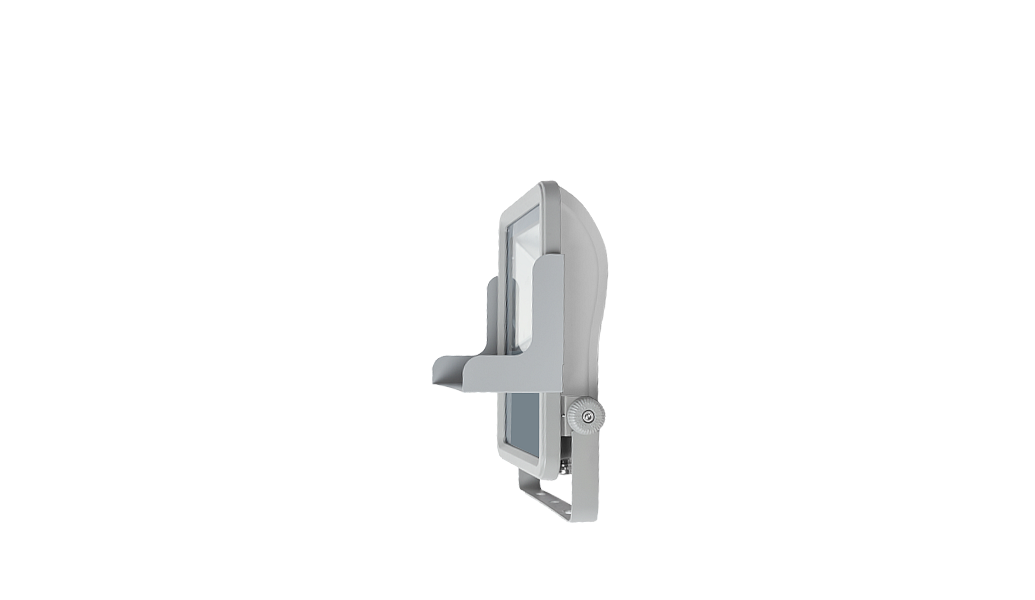

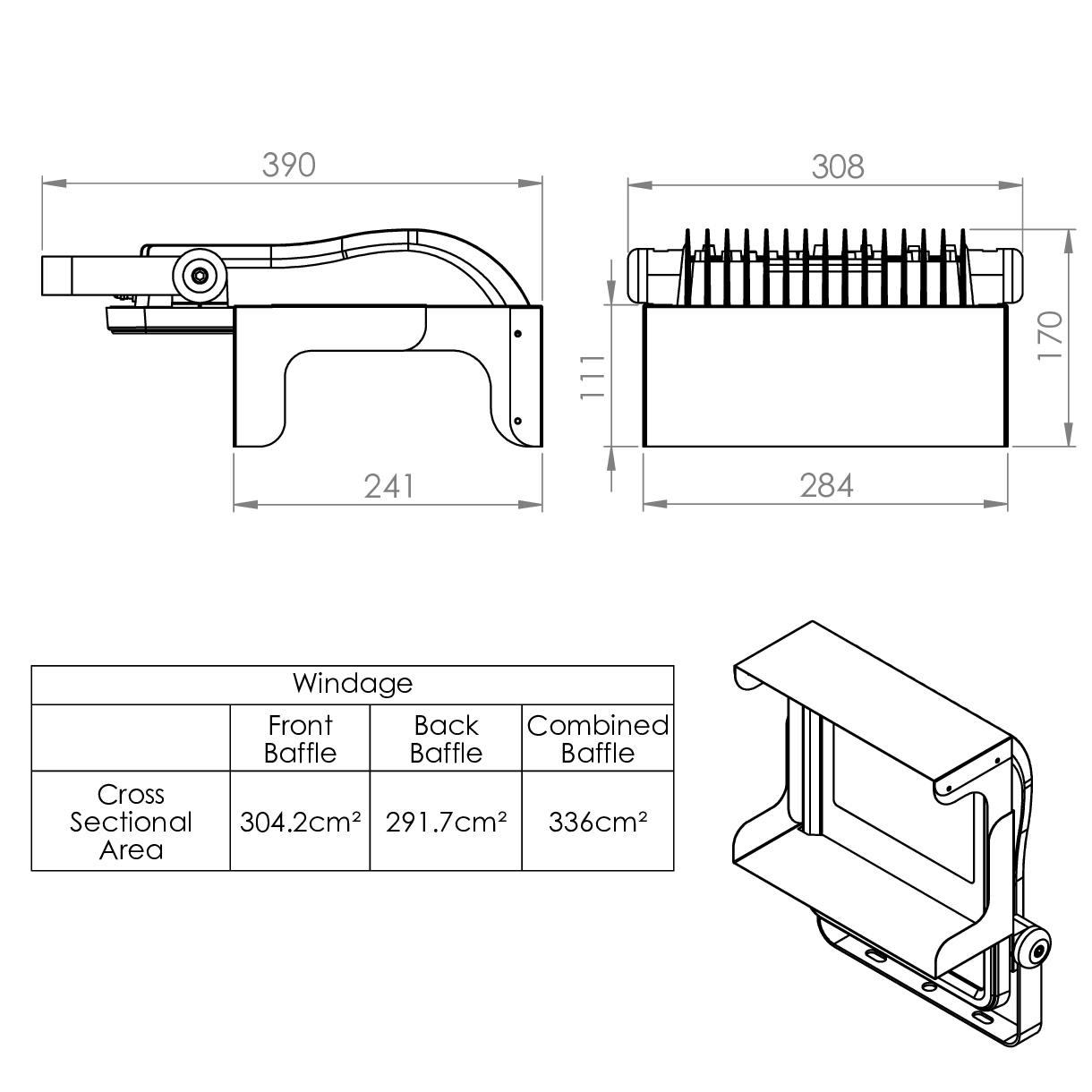

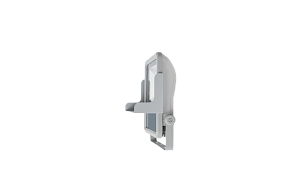

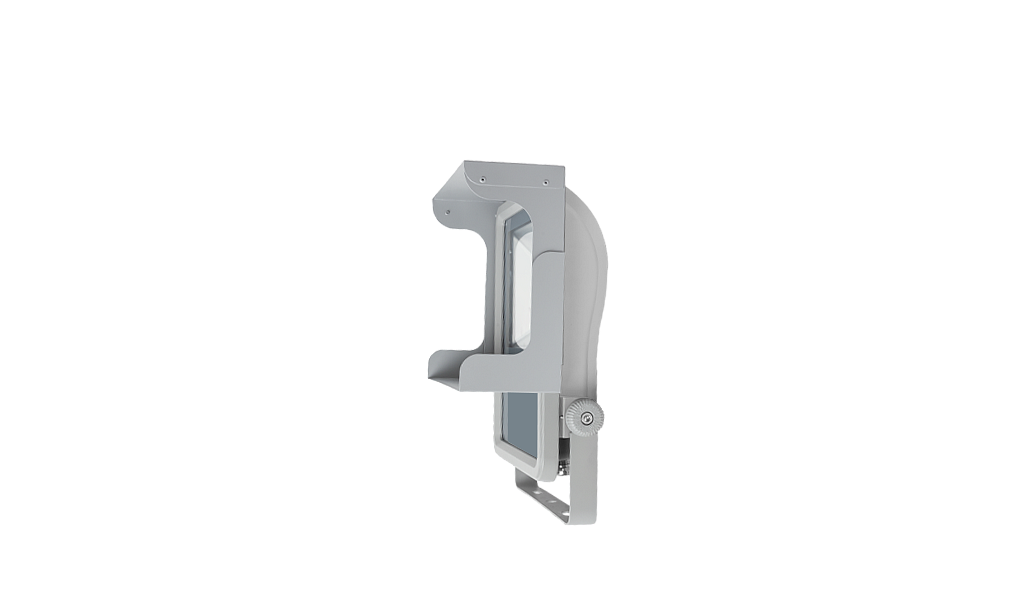

Opus 3 Medium with Baffle

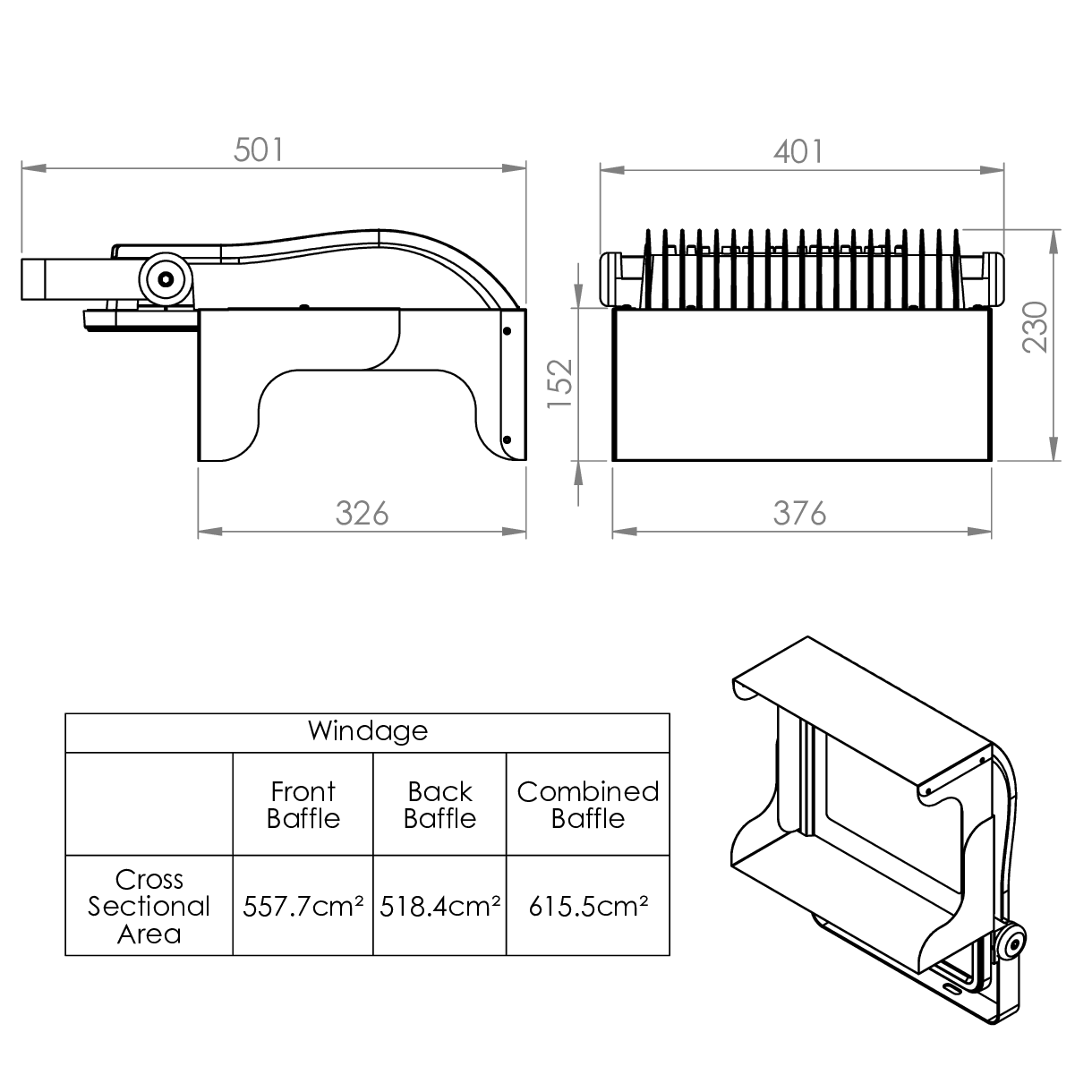

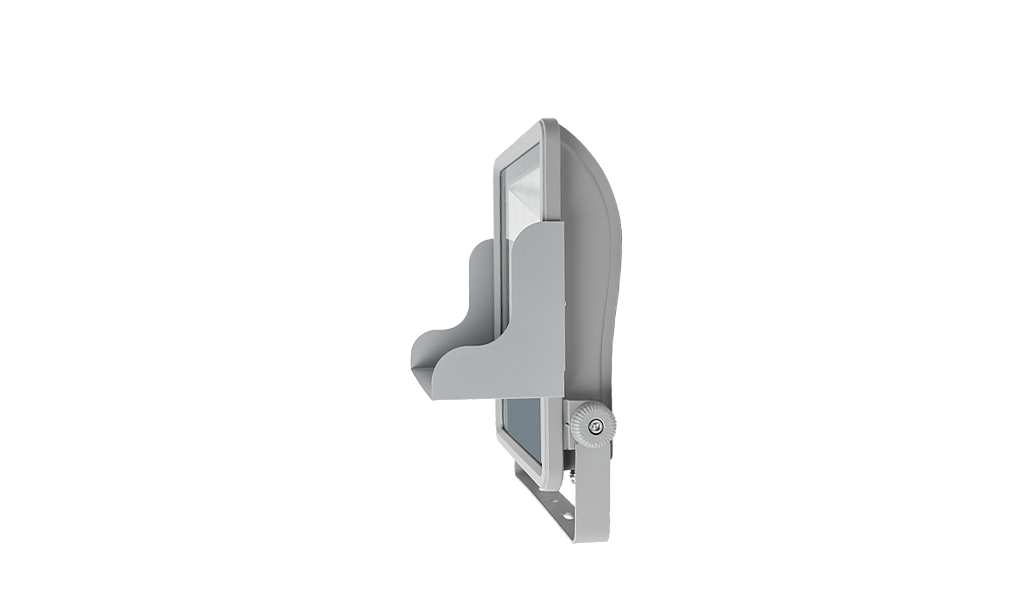

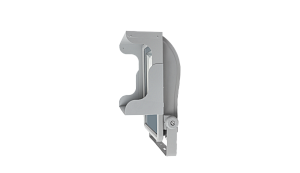

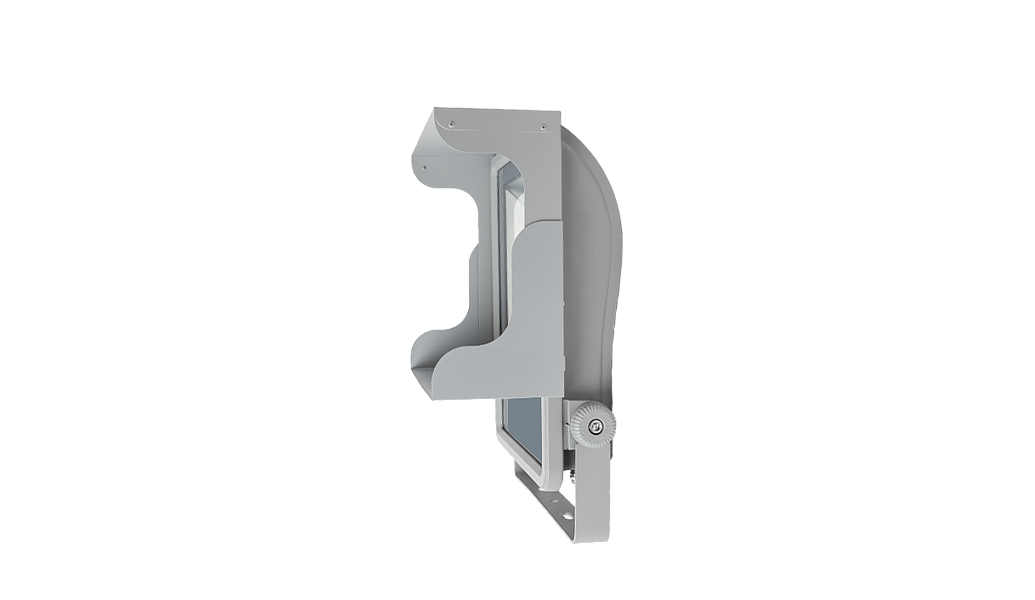

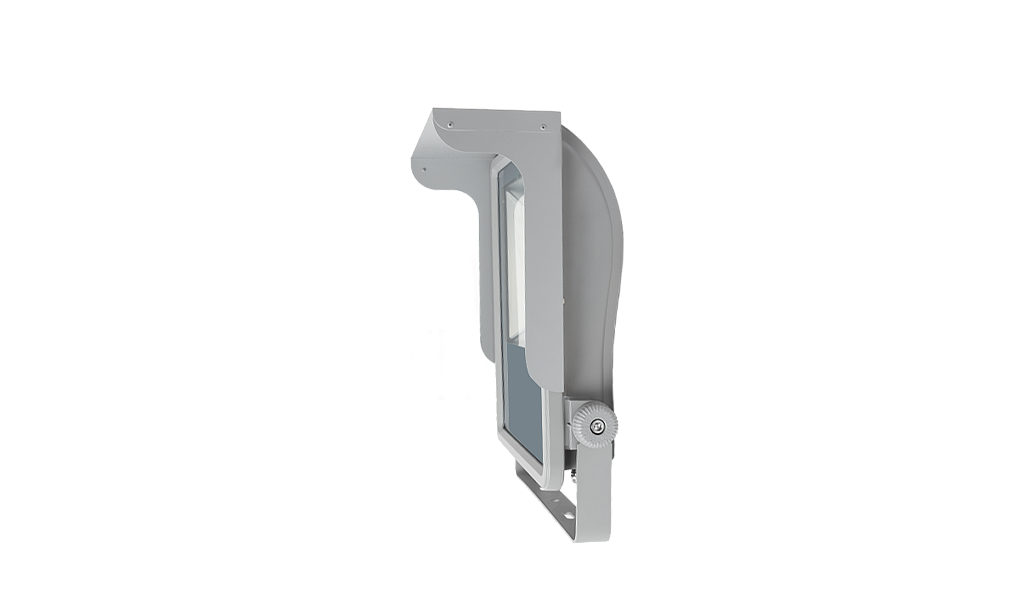

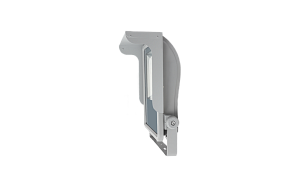

Opus 3 Large with Baffle

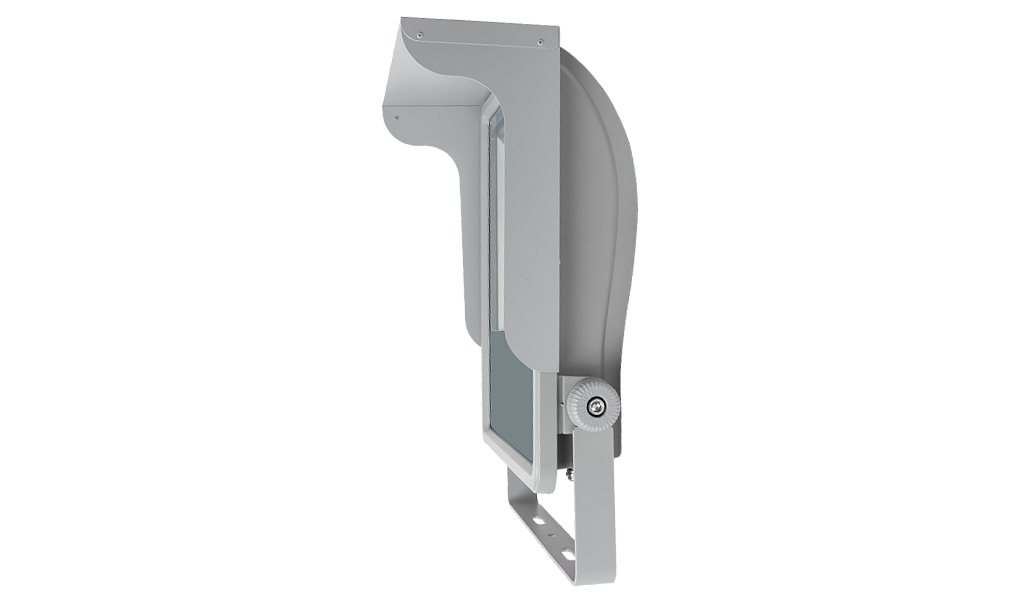

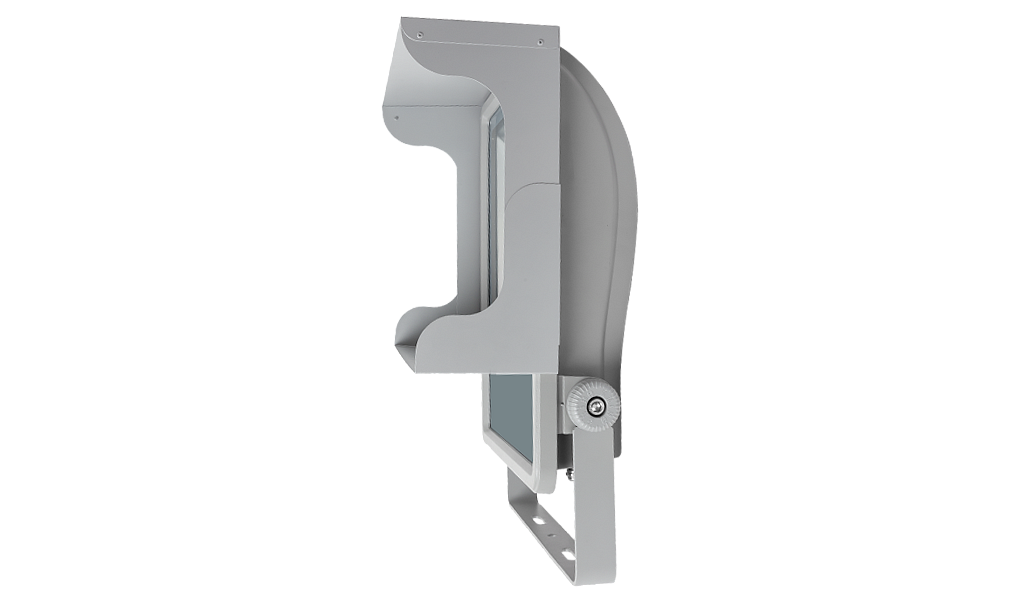

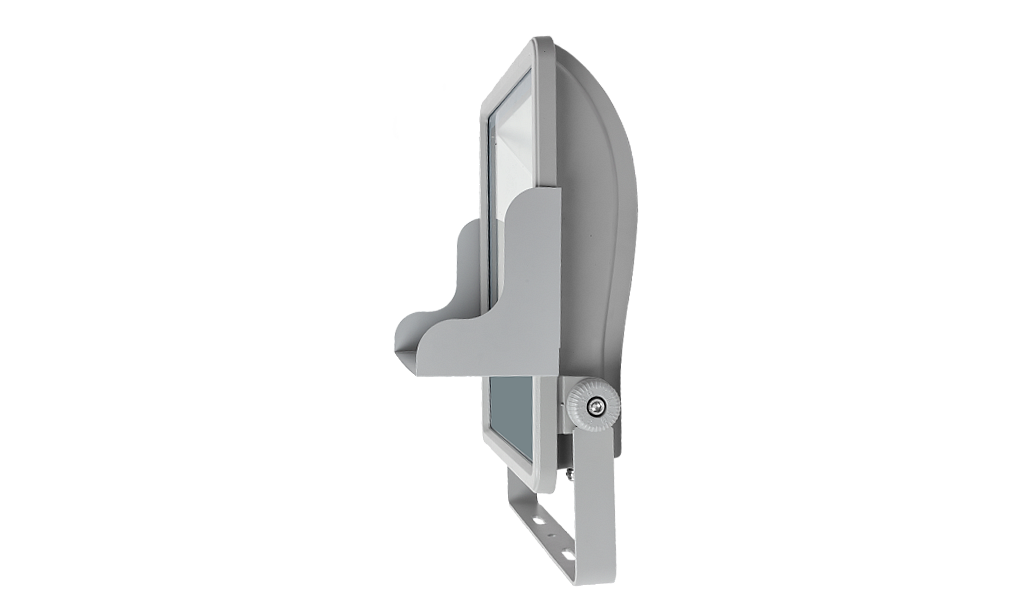

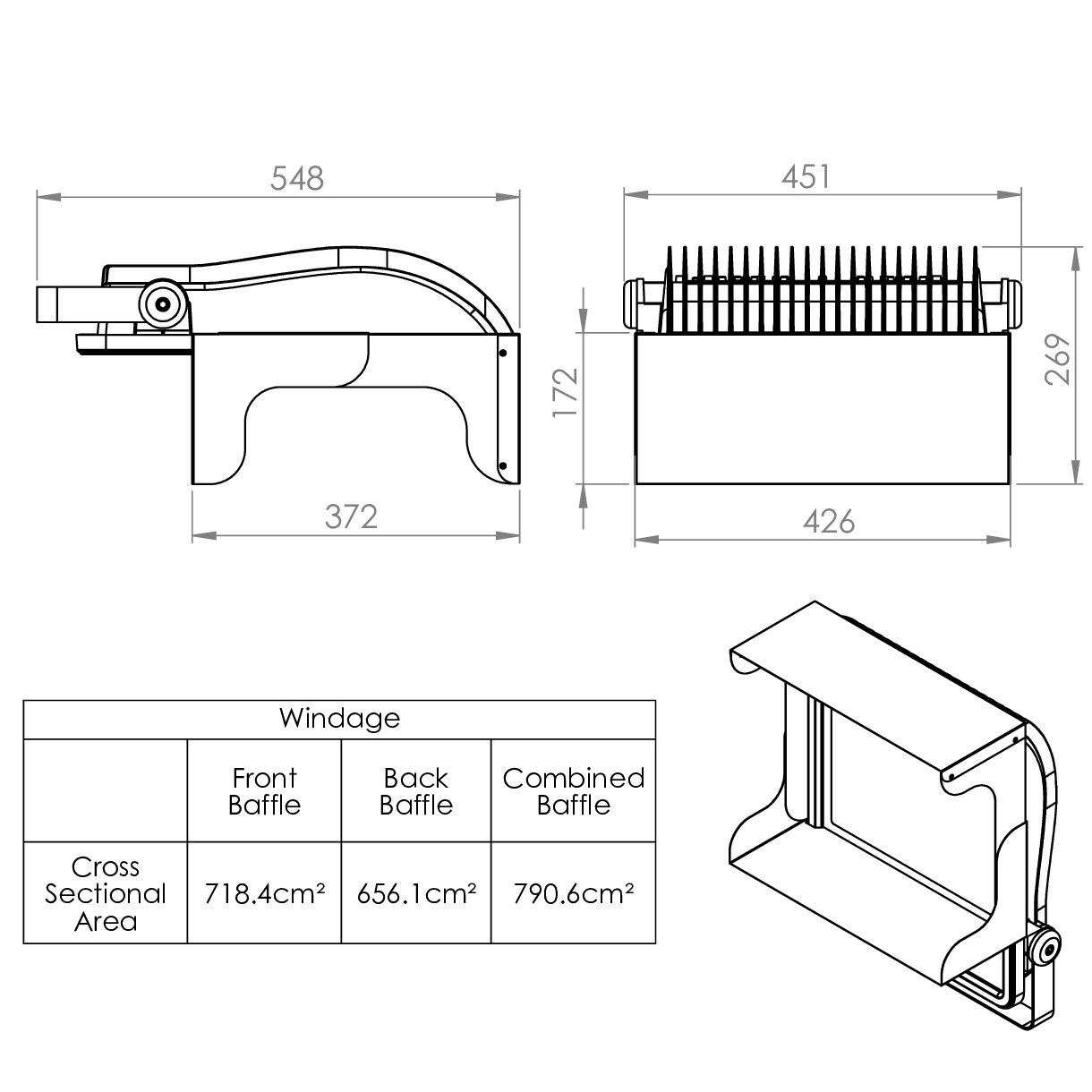

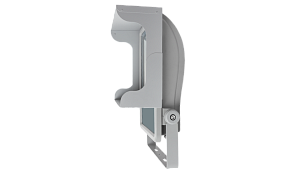

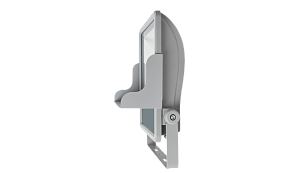

Opus 3 X-Large with Baffle
Ordering
Luminaires
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
| The Opus 3 XL L288 and L350 use two drivers per luminaire requiring two addresses on the DALI network. | |
| Dimming only available in the medium, large and extra large housing versions. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| Emergency is only available in Opus3 XL L200 variants | |
Miscellaneous
| Code | Description |
|---|---|
| C** | C727*, C73 |
| LSF | Low Smoke Zero Halogen |
| OPU3M BAFFLE REAR GY | Opus 3 Medium Baffle, Rear, Grey |
| OPU3M BAFFLE FRONT GY | Opus 3 Medium Baffle, Front, Grey |

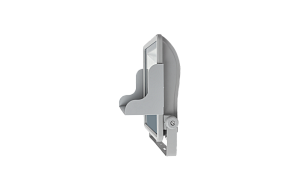

| OPU3L BAFFLE REAR GY | Opus 3 Large Baffle, Rear, Grey |
| OPU3L BAFFLE FRONT GY | Opus 3 Large Baffle, Front, Grey |
| OPU3XL BAFFLE REAR GY | Opus 3 XL Baffle, Rear, Grey |
| OPU3XL BAFFLE FRONT GY | Opus 3 XL Baffle, Front, Grey |
| Front and Rear Baffles can be combined on a luminaire if required | |
| *Not available in OPU3S | |
