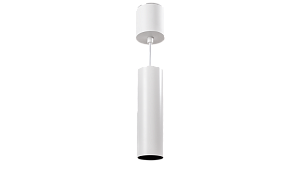

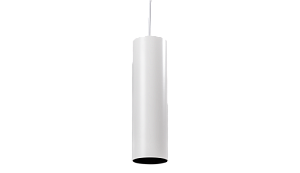

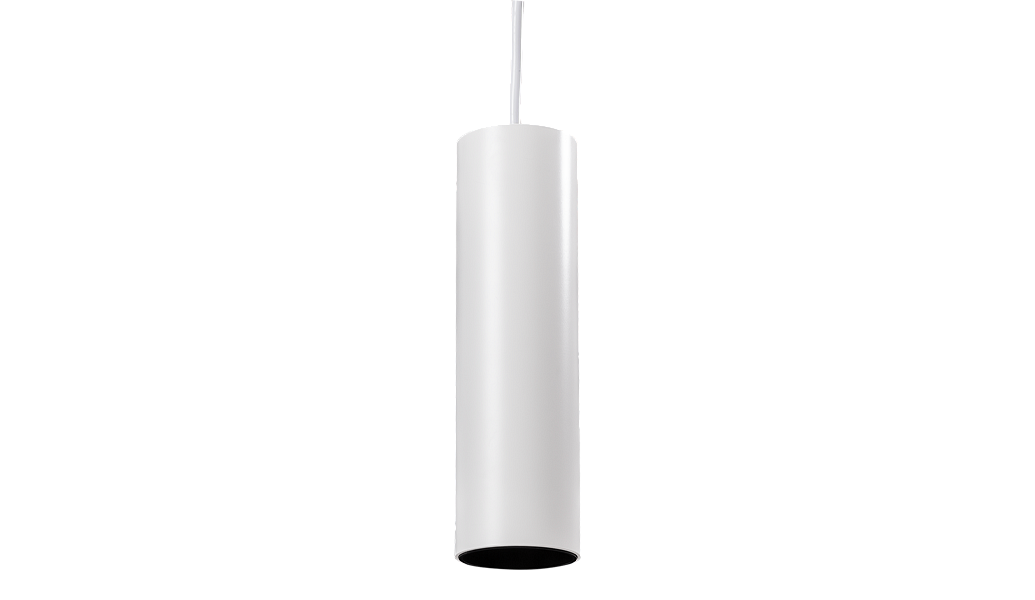

Nova White

Introduction

Our decorative pendants consist of five unique ranges each designed to align with specific architectural themes. The cylindrical Nova and the spherical Fino offer a modern and minimalist appearance, the Dene and Bebo have a traditional domed and coppered reflector with industrial themes while the Stix can be grouped into clusters to create dramatic architectural features.

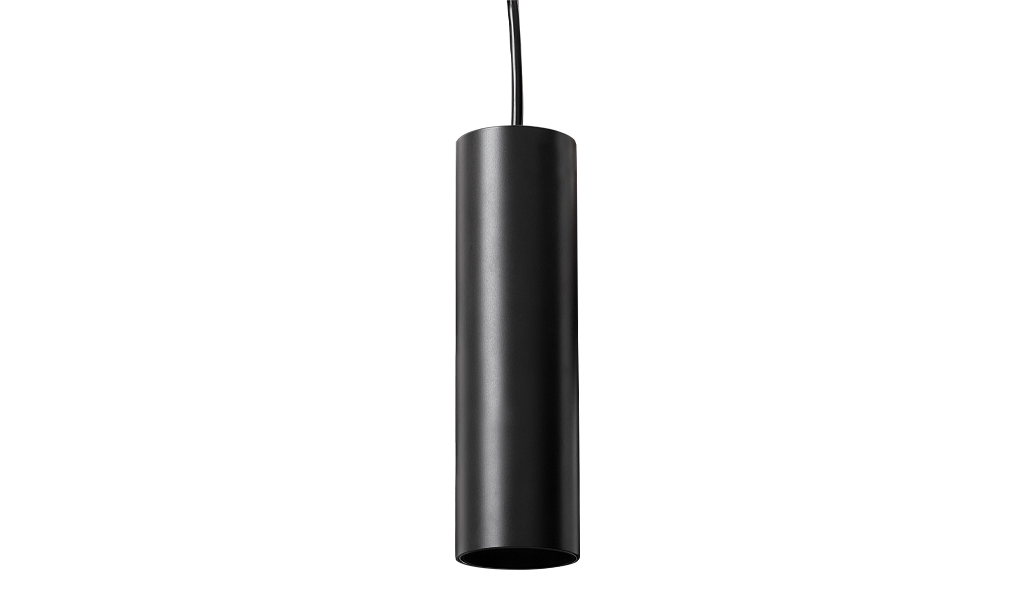

 The Nova, Dene and Bebo are offered with either black or white housings, the Dene and Bebo include coppered internal reflectors whilst the Nova utilises a lensed optic with black collar. All five ranges are supplied complete with ceiling roses and integrated drivers, and are also available with optional Global track adaptors where needed for installation with three circuit track systems. All five variants in our decorative pendant range are supplied with CRI90 LEDs as standard for excellent colour rendering in retail and hospitality applications and can be supplied in either 3000 Kelvin for warm and inviting spaces or 4000 Kelvin for a bright, white clean atmosphere. This breadth of offer ensures that our decorative pendant range can be used in hotels, bars and restaurants, receptions and office break out spaces to create inviting and contemporary spaces with visual interest and atmosphere for customers and employees alike.

NOVA complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

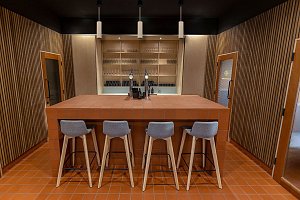

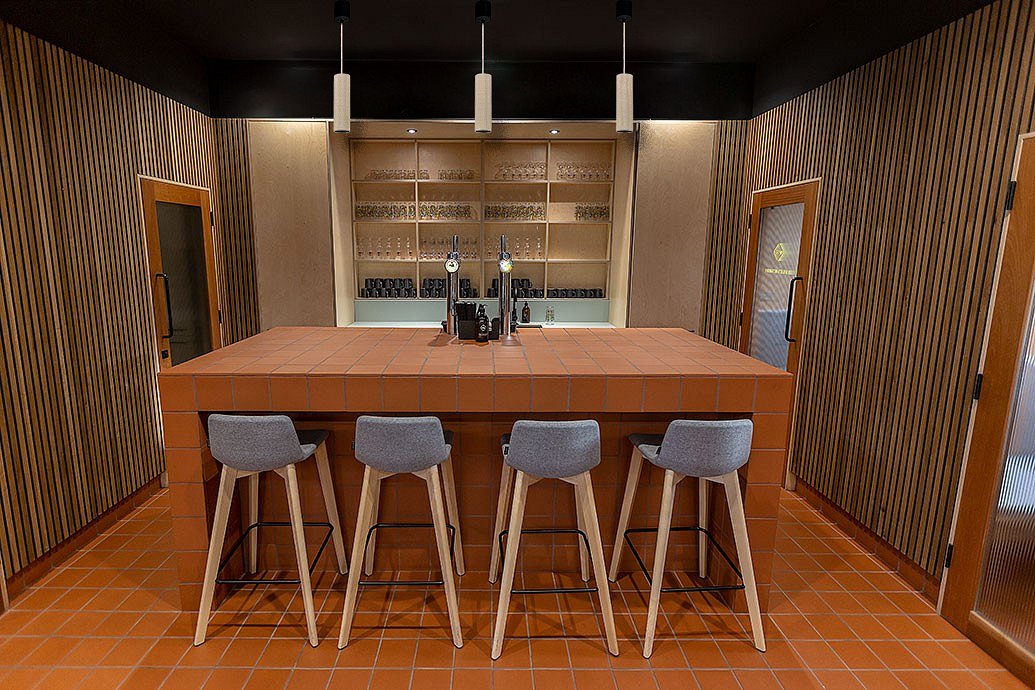

Canteen | Commercial / Offices | Education | Hotel / Leisure | Retail

Specification

Construction

  • Housing: High pressure die cast aluminium
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Finish: Polyester powder painted RAL 9005 matt black
  • Lens: Injection moulded PMMA lens
  • Reflector: Coppered
  • 30° Beam angle

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.

Installation

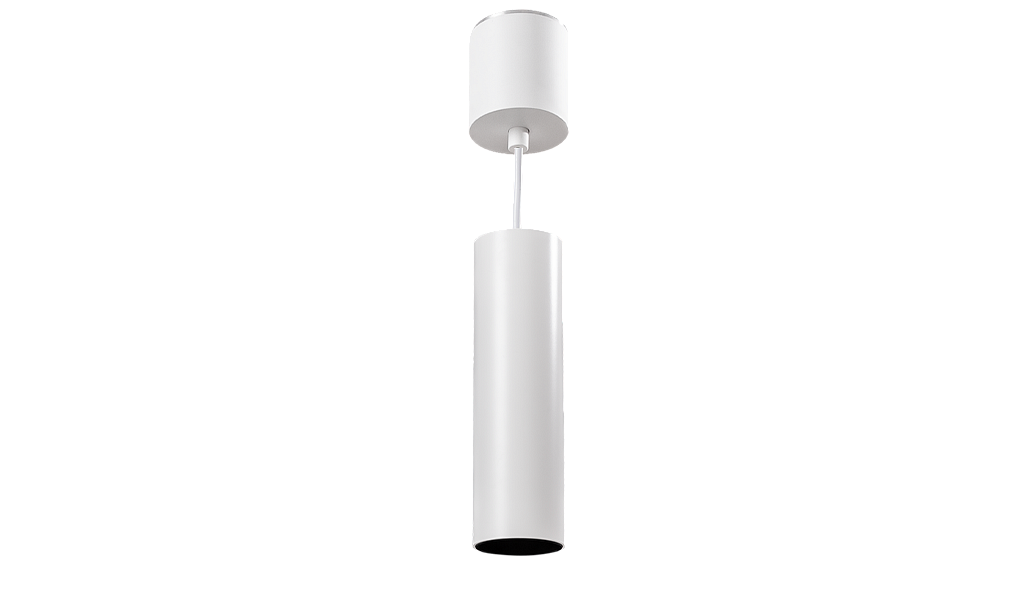

  • Supplied with ceiling rose for solid ceiling installation
  • Available with optional Global track adaptor for 3 circuit track installation

Variations

  • Available with a wide range of colour temperatures and renderings
5 year extended warranty available on most products.
Arrow right

Technical

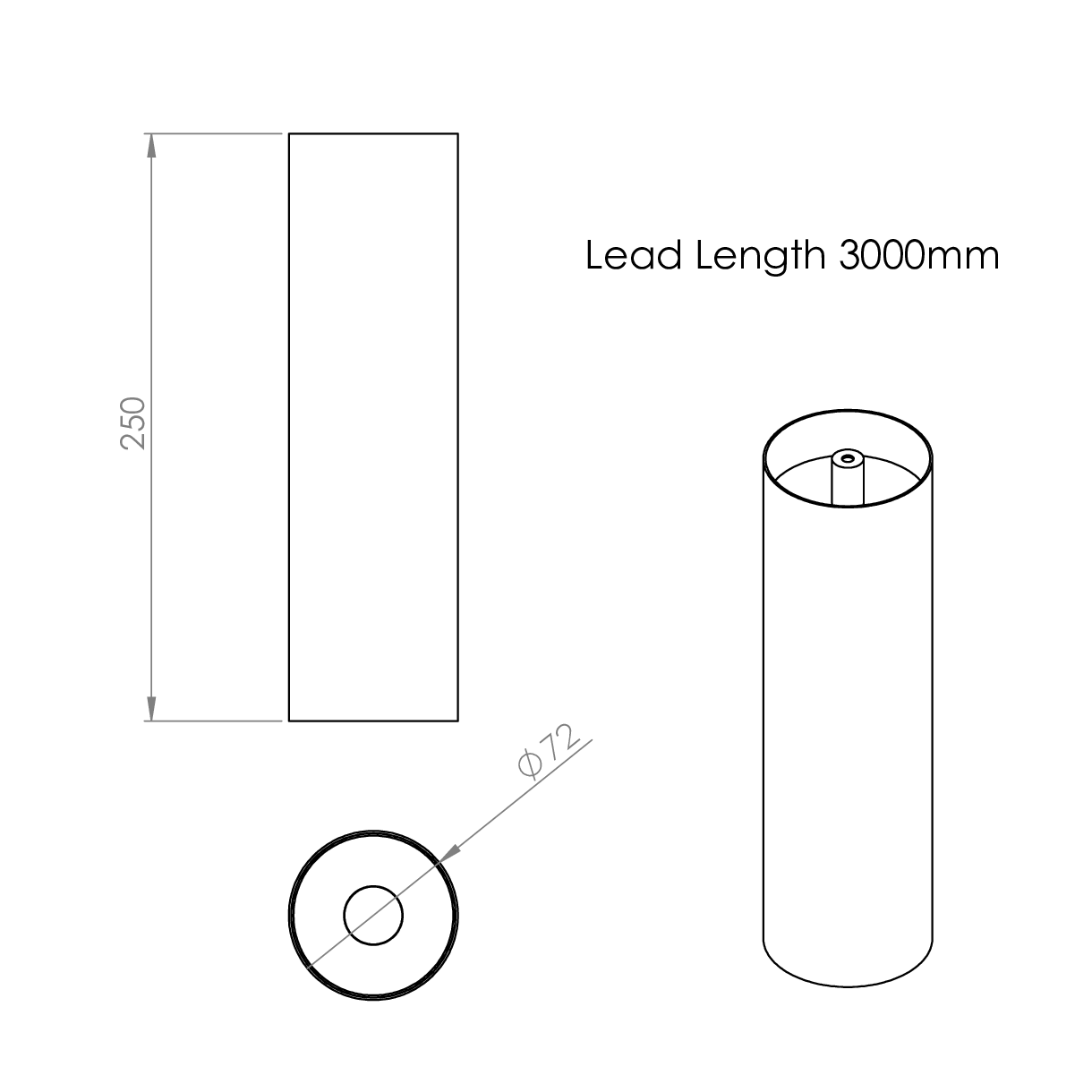

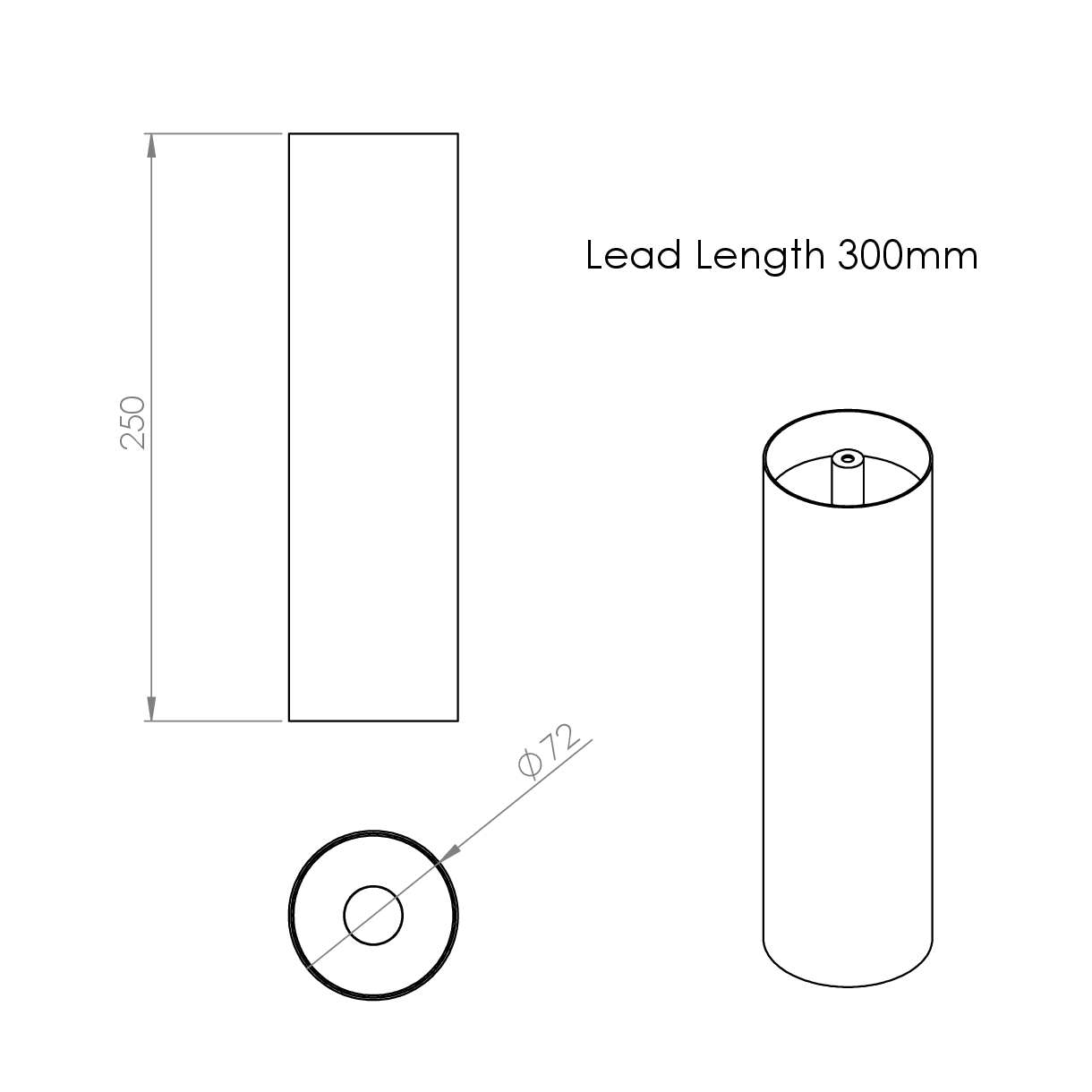

Nova

Nova

Ceiling Rose

Ceiling Rose

Ordering

Luminaires

Code Description Power Llm/W
NOV L16 BL C93 Nova, 1,788llm, 30°, Black, Colour 93 22.0W 81
NOV L16 BL C94 Nova, 1,788llm, 30°, Black, Colour 94 22.0W 81
NOV L16 C93 Nova, 1,788llm, 30°, White, Colour 93 22.0W 81
NOV L16 C94 Nova, 1,788llm, 30°, White, Colour 94 22.0W 81

Miscellaneous

Code Description
GB Global Adaptor Fixed output
A GB Global Adaptor DALI
