Introduction

The MOD UGR is a traditional flat panel luminaire with a microprism diffuser offering glare compliance to BSEN 12646 in all lumen outputs ensuring its suitability for use in applications such as offices and academia. The MOD UGR uses backlit technology ensuring superb efficiency as well as benefitting LED lifetime by using a high chip count run at low output to minimise operating temperature. The MOD UGR is available in a wide range of sizes and lumen outputs, as well as lay in and pull up variants to suit all common ceiling types. Surface versions are available for solid ceilings in the surface section of our website. This versatility is further complimented with optional dimming control gear, integral lithium emergency and integral sensors providing presence detection, daylight regulation and wireless linking. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

MOD UGR complies with:

UKCA | CE | IP40 | IP44 | IK08 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE | TP(a)

Recommended applications:

Education | Office

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Diffuser: Combined 2mm high transmission opal polycarbonate TP(a) rated and 2mm microprism anti glare PMMA
  • IK08
  • IP40
  • IP44

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 118 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • HFR 1-10V analogue dimming
  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional White tunable
  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for plasterboard installation when purchased with the appropriate plasterboard kit
  • Alugrid 08 and 16 compatible options available. Please see miscellaneous ordering codes.
  • Suitable for lay in installation in exposed T ceiling grids and pull up installation in SAS120, Armstrong Orcal 1800 and Burgess Clip-in ceiling, please specify lay in or pull up accordingly. Alugrid compatible variants available.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
5 year extended warranty available on most products.
Arrow right

Product Images

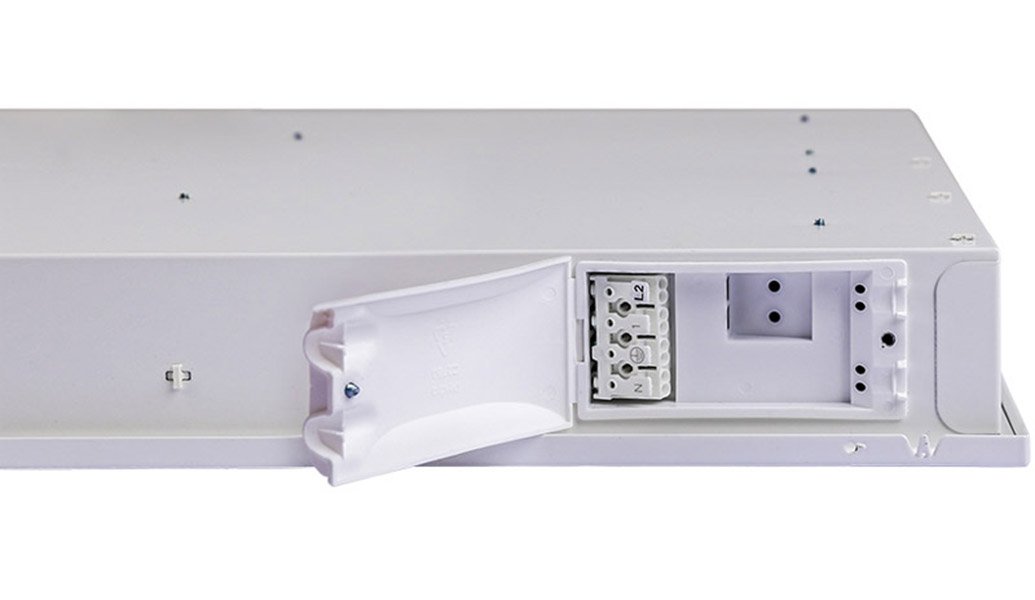

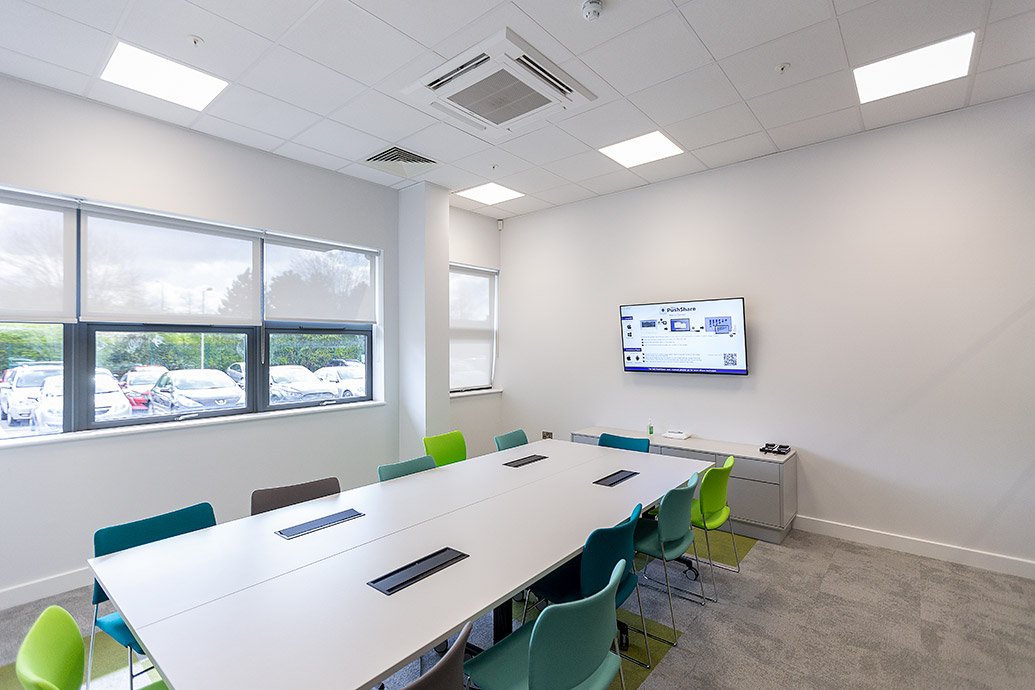

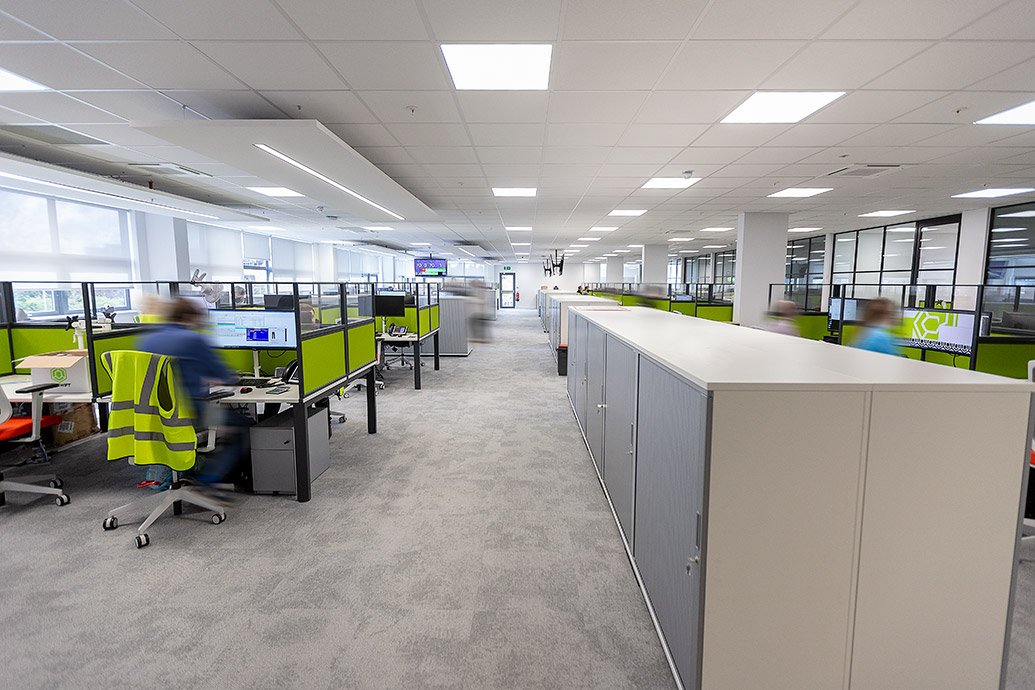

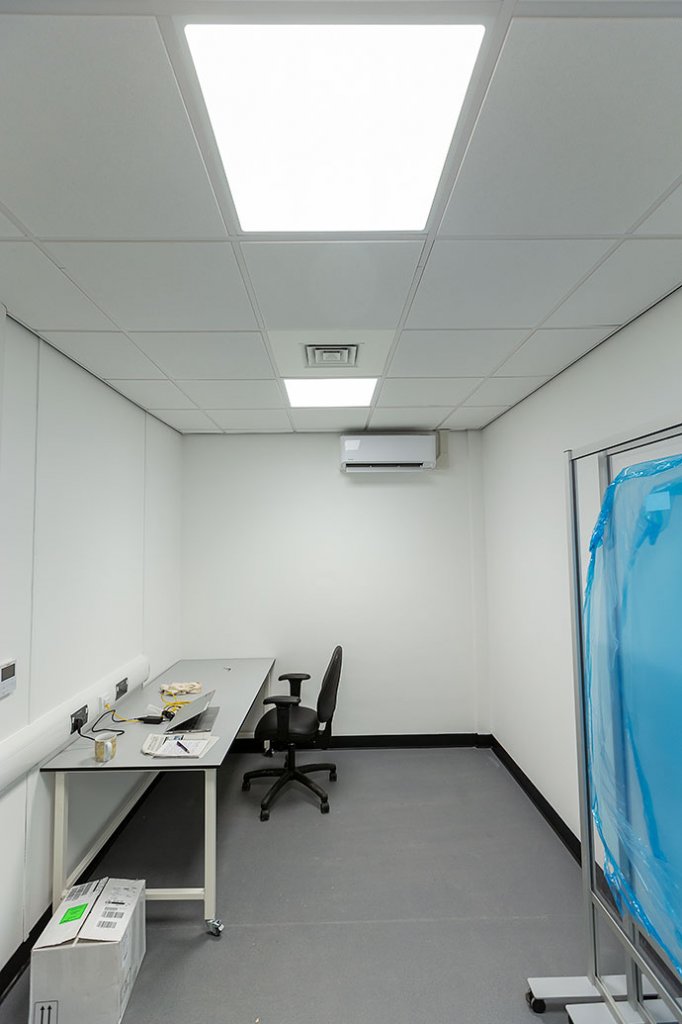

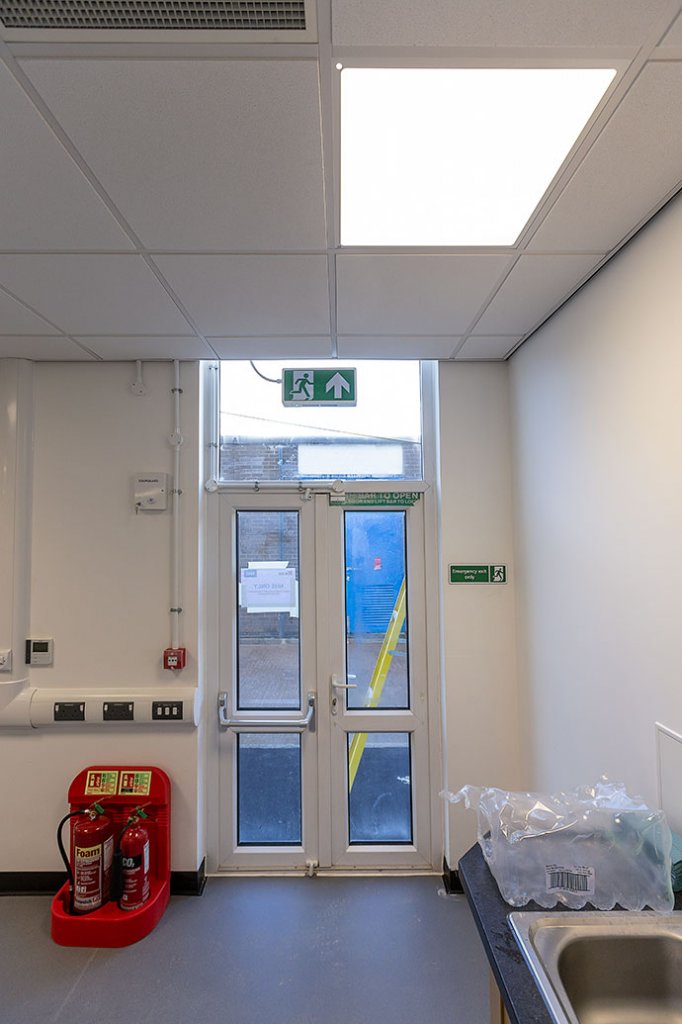

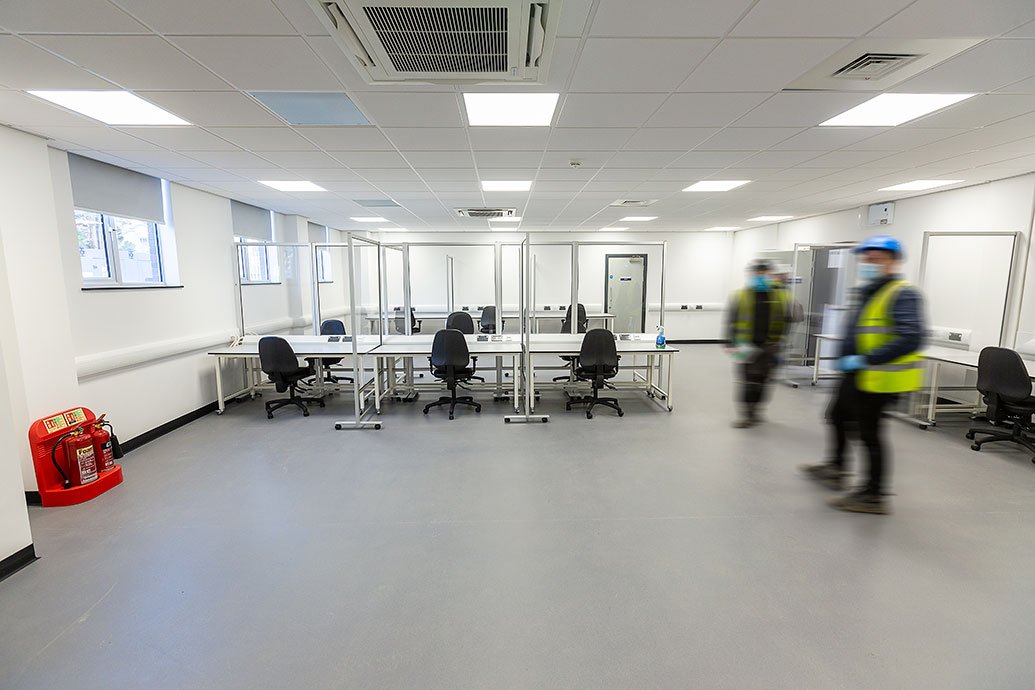

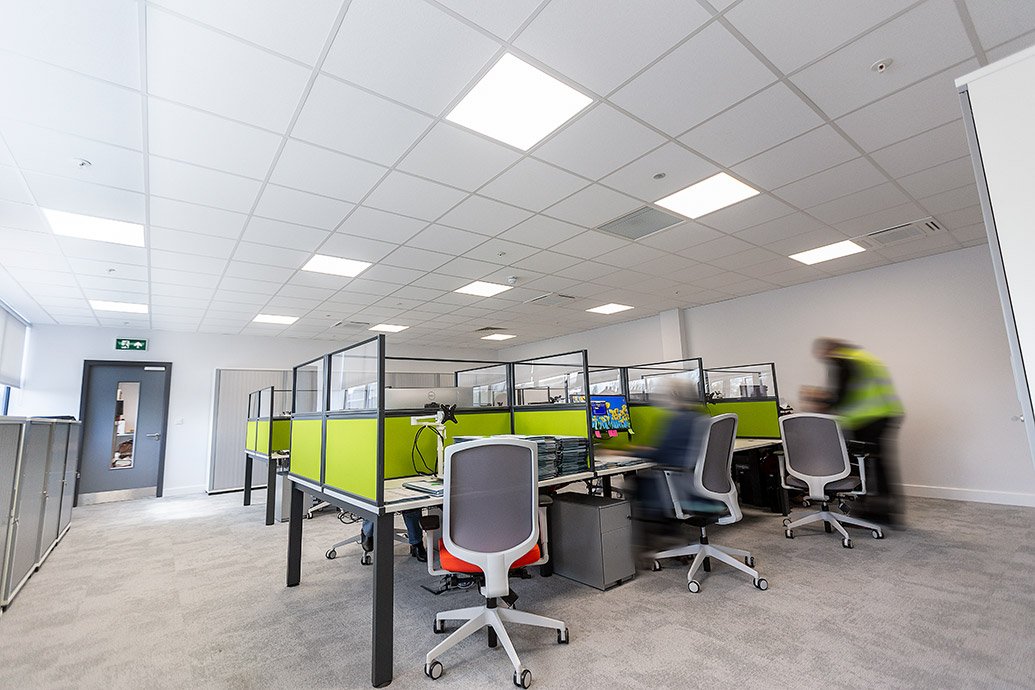

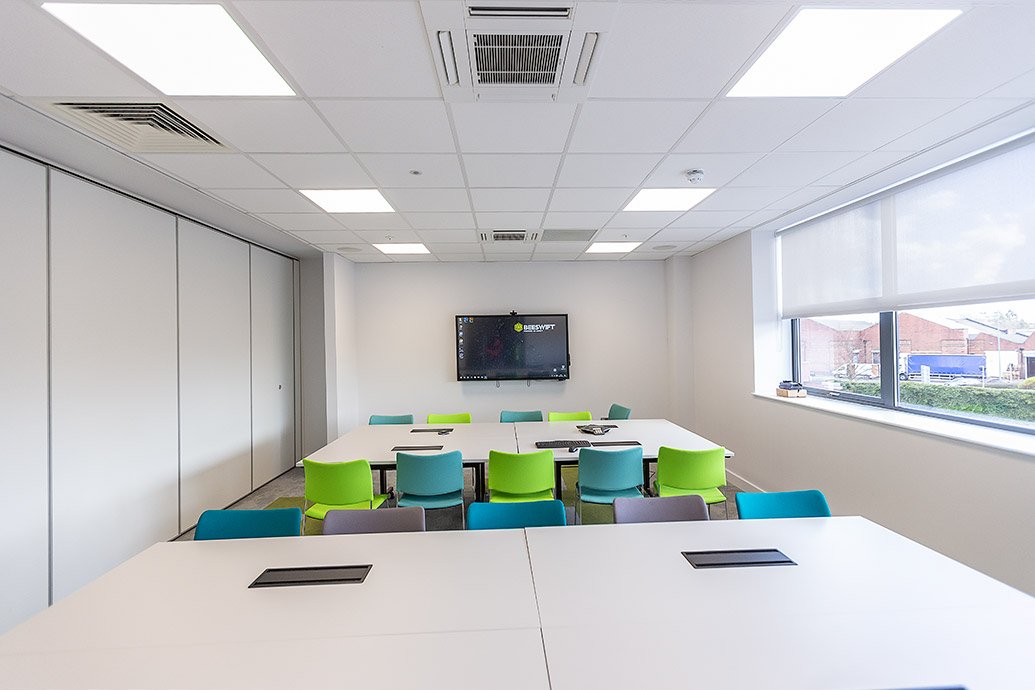

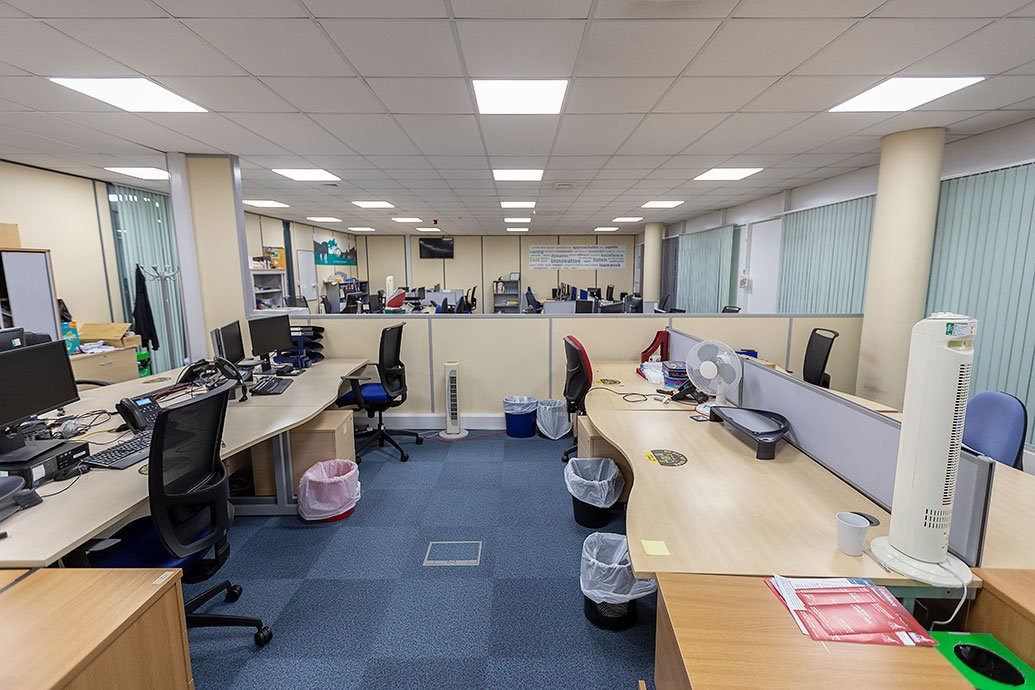

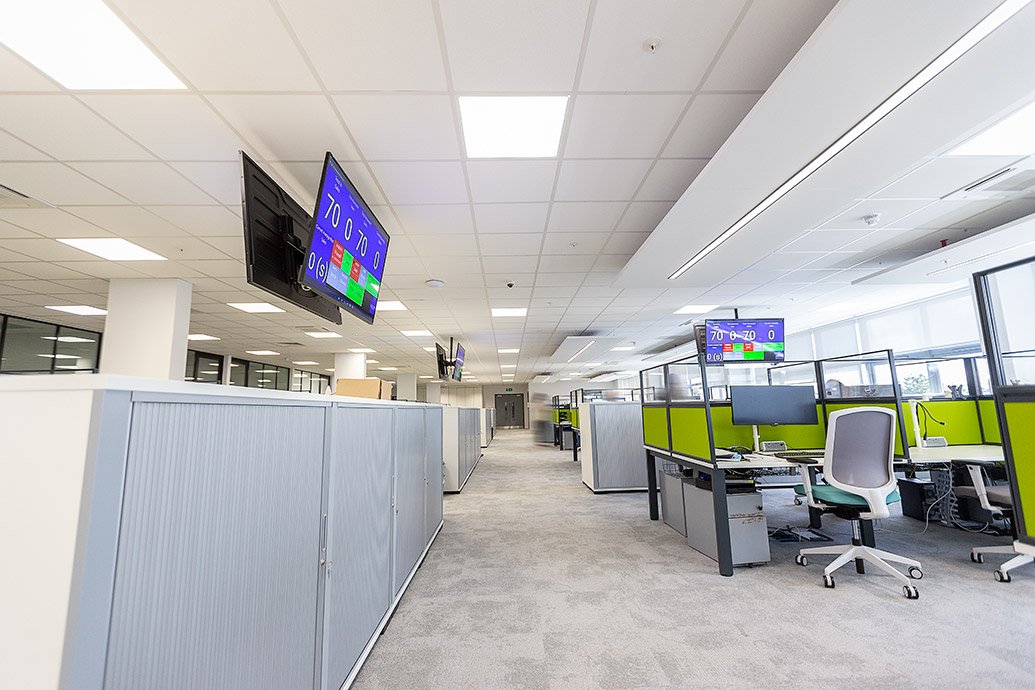

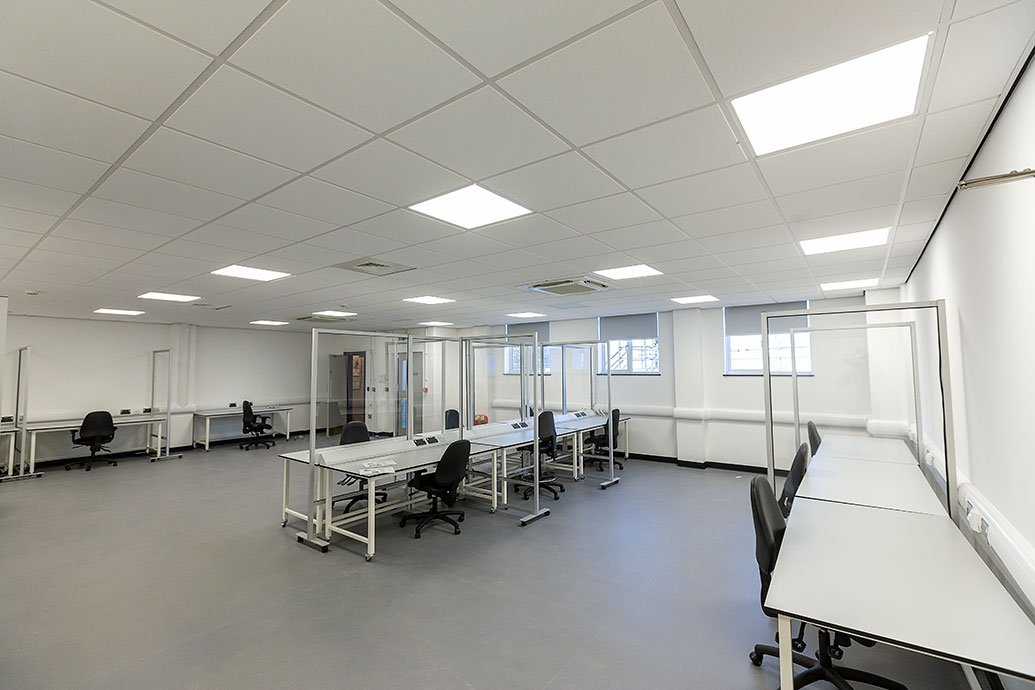

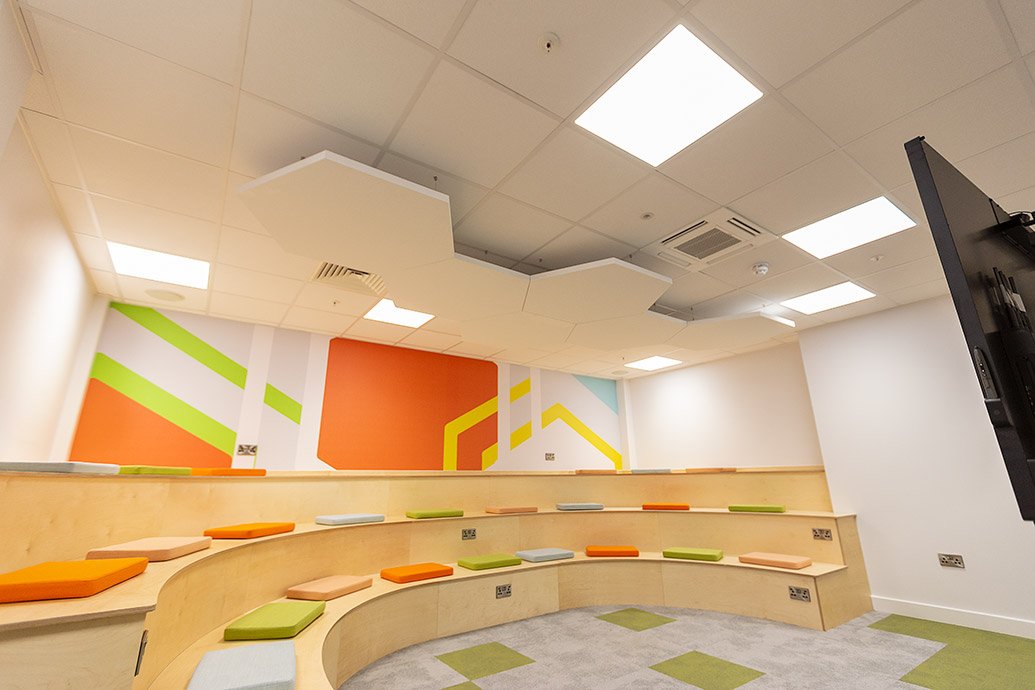

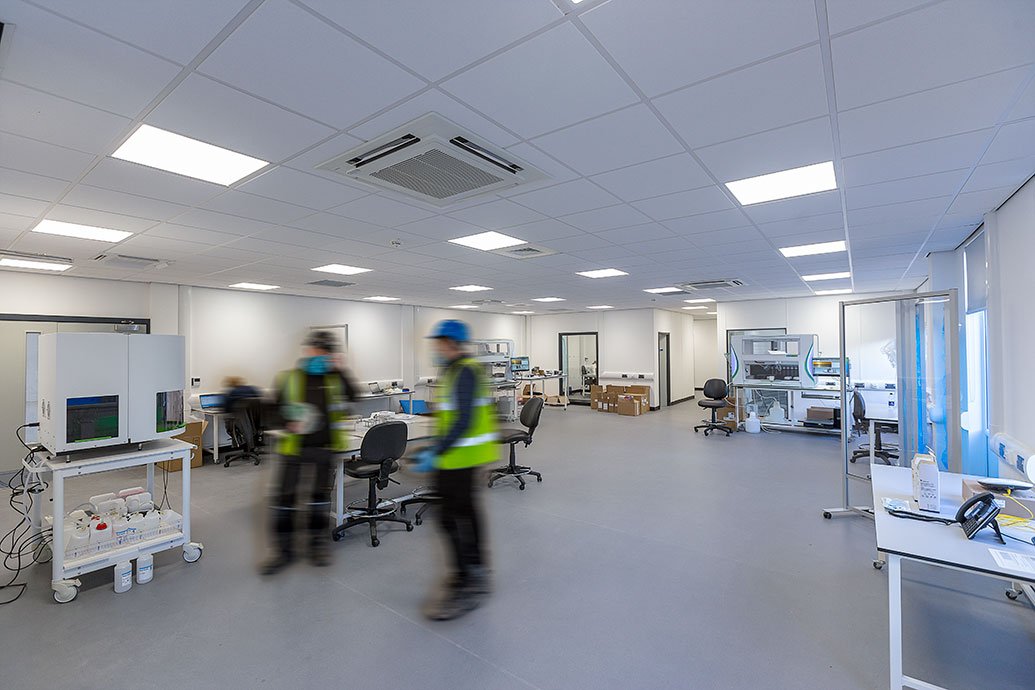

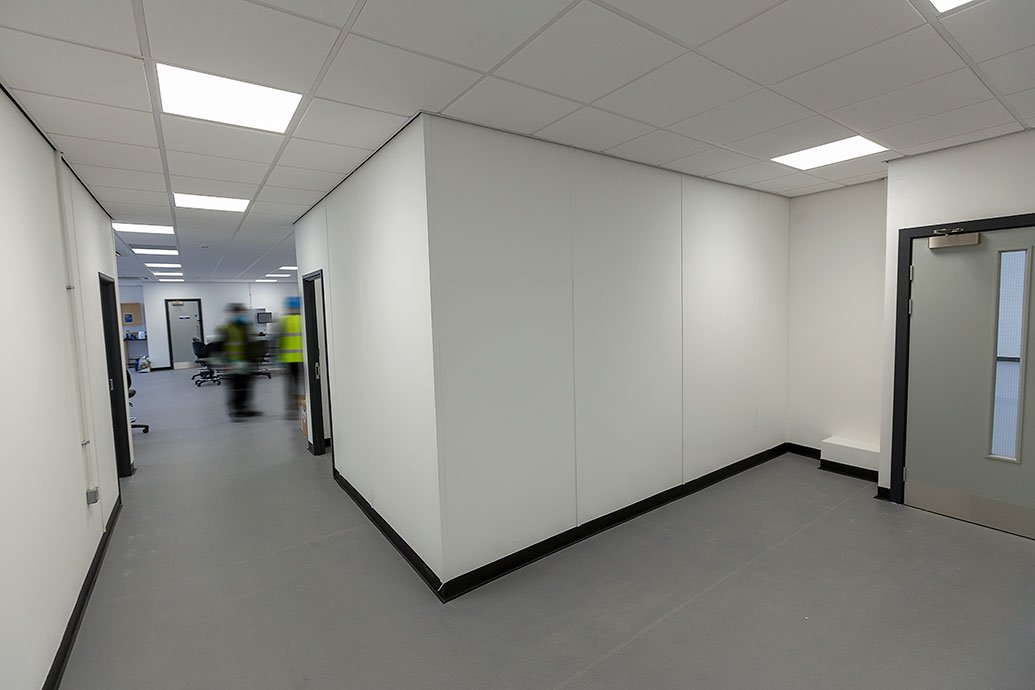

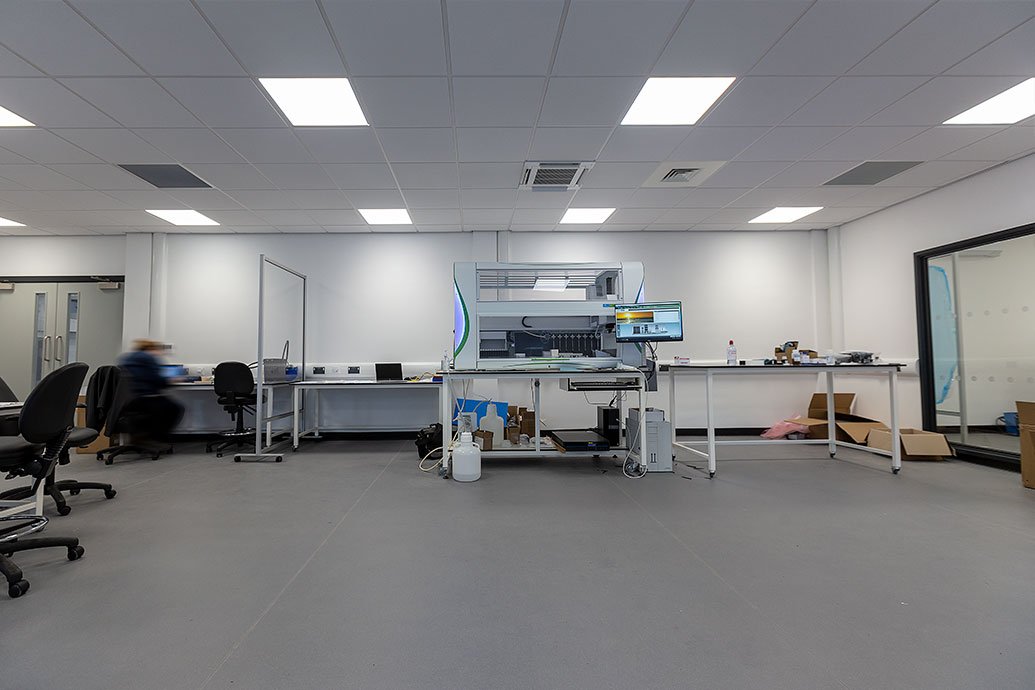

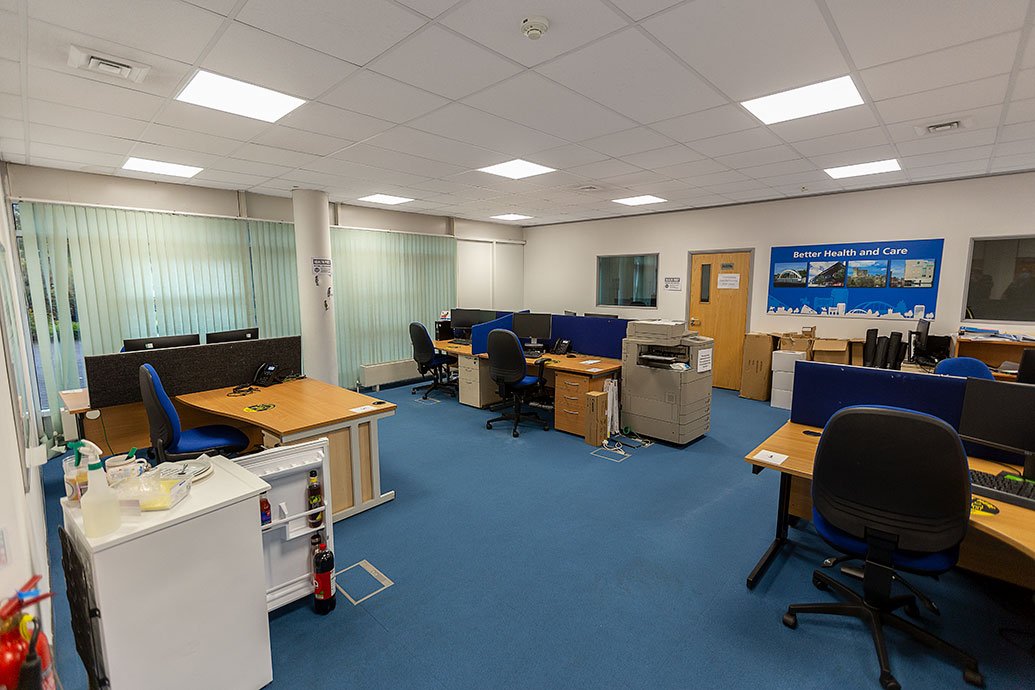

MOD UGR in action

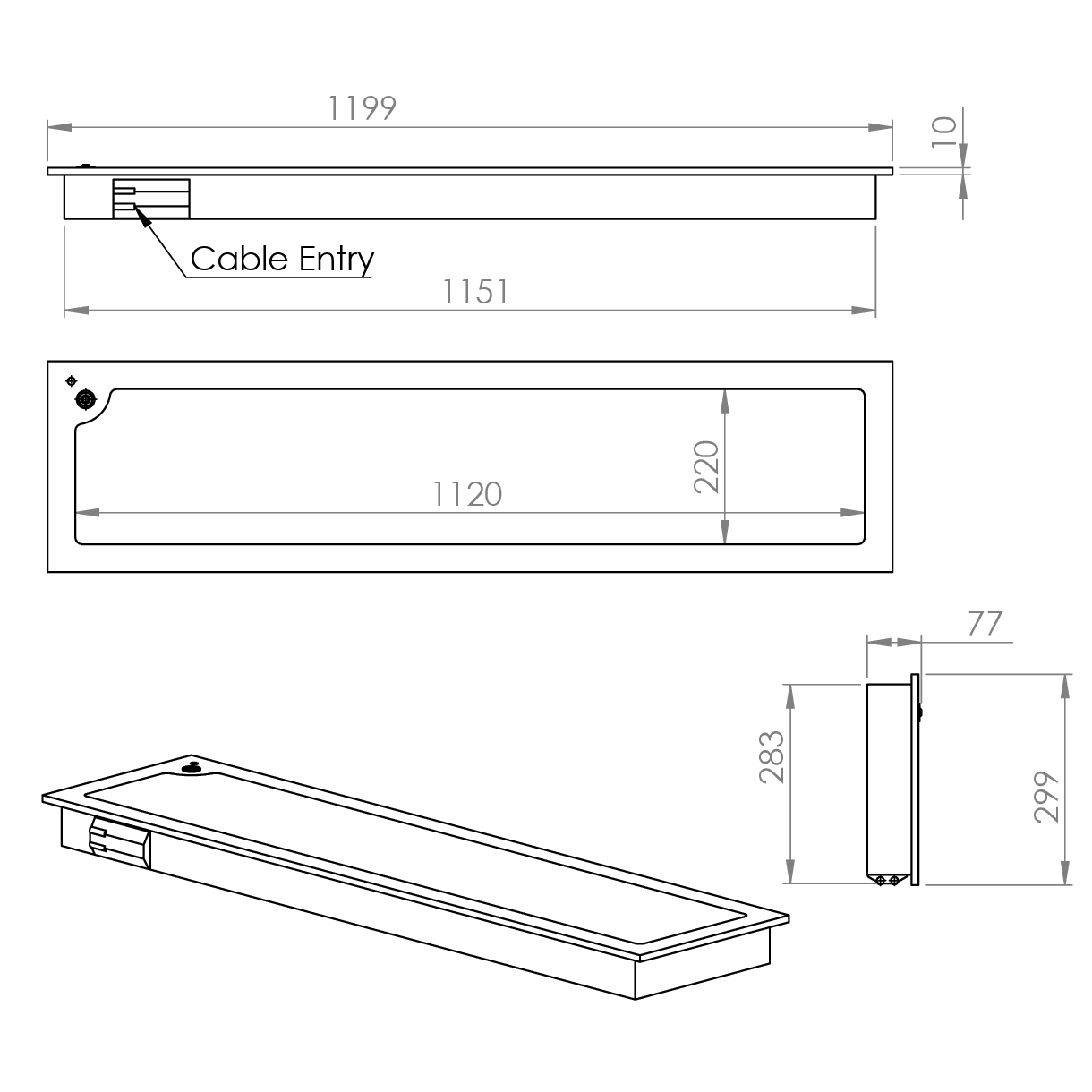

Technical

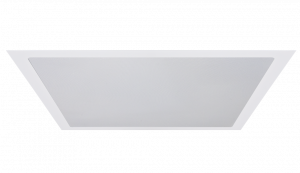

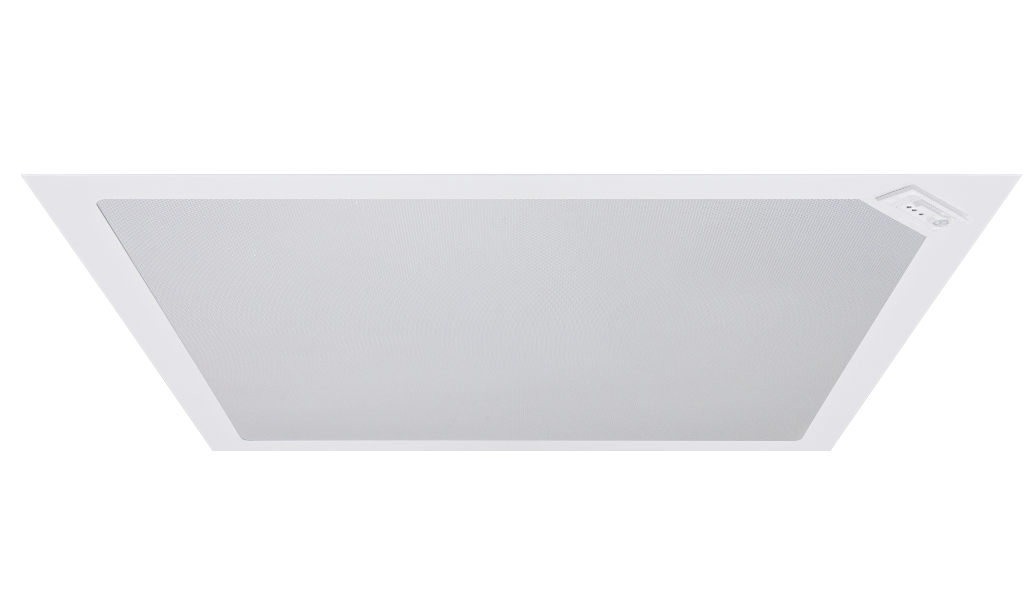

MOD UGR Lay-In 600x600

MOD UGR Lay-In 600x600

MOD UGR Pull-Up 600x600

MOD UGR Pull-Up 600x600

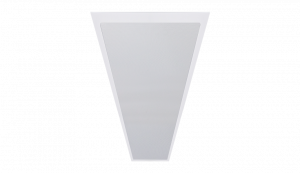

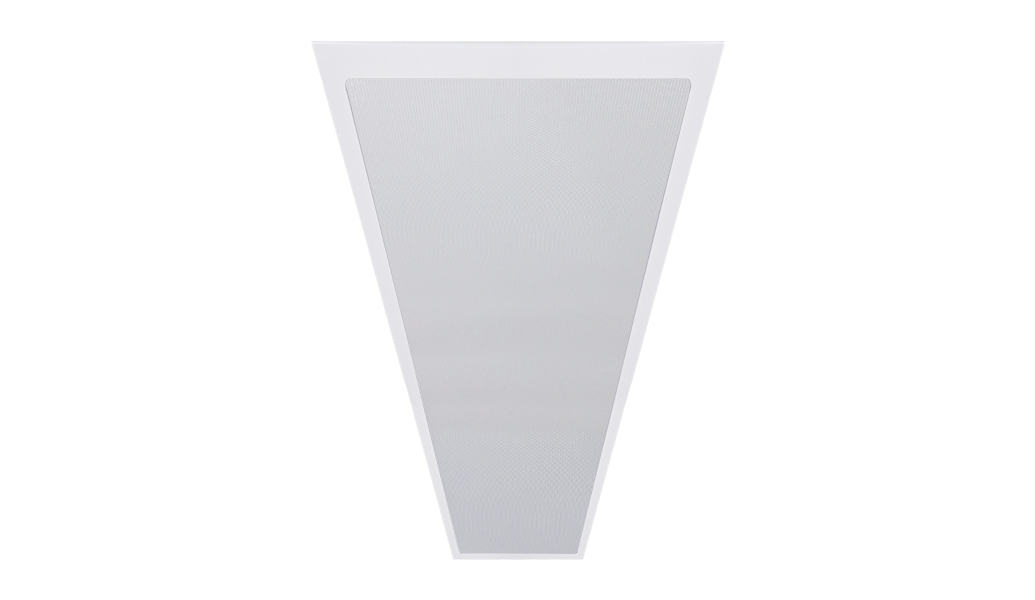

MOD UGR Lay-In 1200x300

MOD UGR Lay-In 1200x300

MOD UGR Pull-Up 1200x300

MOD UGR Pull-Up 1200x300

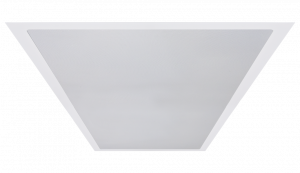

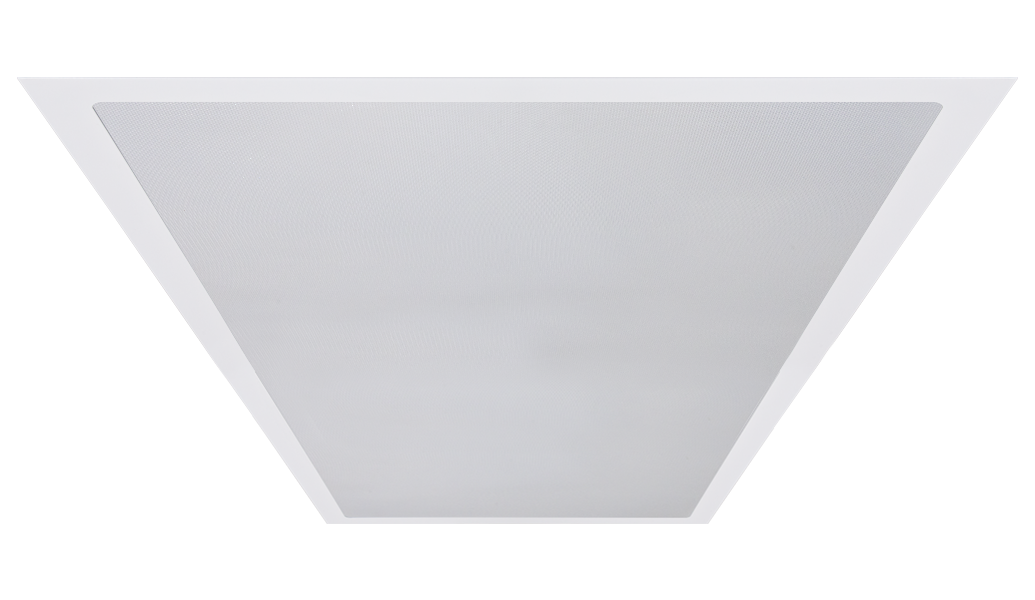

MOD UGR Lay-In 1200x600

MOD UGR Lay-In 1200x600

MOD UGR Pull-Up 1200x600

MOD UGR Pull-Up 1200x600

Ordering

Luminaires

Lay In
Code Description Power Llm/W
MODRU L29 MOD UGR, Lay-In, 600x600, 1,894llm, Colour 84 17.1W 110
MODRU L35 MOD UGR, Lay-In, 600x600, 2,286llm, Colour 84 21.6W 105
MODRU L45 MOD UGR, Lay-In, 600x600, 2,939llm, Colour 84 26.5W 110
MODRU L55 MOD UGR, Lay-In, 600x600, 3,592llm, Colour 84 33.1W 108
MODRU L68 MOD UGR, Lay-In, 600x600, 4,440llm, Colour 84 39.9W 111
MODRU L76 MOD UGR, Lay-In, 600x600, 4,963llm, Colour 84 45.1W 110
MODRU 55 L29 MOD UGR, Lay-In, 500x500, 1,894llm, Colour 84 17.1W 110
MODRU 55 L35 MOD UGR, Lay-In, 500x500, 2,286llm, Colour 84 21.6W 105
MODRU 55 L45 MOD UGR, Lay-In, 500x500, 2,939llm, Colour 84 26.5W 110
MODRU 55 L55 MOD UGR, Lay-In, 500x500, 3,592llm, Colour 84 33.1W 108
MODRU 55 L68 MOD UGR, Lay-In, 500x500, 4,440llm, Colour 84 39.9W 111
MODRU 55 L76 MOD UGR, Lay-In, 500x500, 4,963llm, Colour 84 45.1W 110
MODRU 123 L35 MOD UGR, Lay-In, 1200x300, 2,284llm, Colour 84 21.6W 105
MODRU 123 L45 MOD UGR, Lay-In, 1200x300, 2,939llm, Colour 84 26.5W 110
MODRU 123 L55 MOD UGR, Lay-In, 1200x300, 3,586llm, Colour 84 33.1W 108
MODRU 123 L68 MOD UGR, Lay-In, 1200x300, 4,434llm, Colour 84 39.9W 111
MODRU 123 L76 MOD UGR, Lay-In, 1200x300, 4,955llm, Colour 84 45.1W 110
MODRU 126 L58 MOD UGR, Lay-In, 1200x600, 3,787llm, Colour 84 31.9W 118
MODRU 126 L70 MOD UGR, Lay-In, 1200x600, 4,571llm, Colour 84 38.6W 118
MODRU 126 L90 MOD UGR, Lay-In, 1200x600, 5,877llm, Colour 84 50.2W 117
MODRU 126 L136 MOD UGR, Lay-In, 1200x600, 8,881llm, Colour 84 80.4W 110
MODRU 126 L152 MOD UGR, Lay-In, 1200x600, 9,926llm, Colour 84 87.1W 113
For Alugrid compatible versions please specify lay-in luminaire with correct ALU suffix shown in miscellaneous ordering codes
Pull Up
Code Description Power Llm/W
MODPU L29 MOD UGR, Pull-Up, 600x600, 1,894llm, Colour 84 17.1W 110
MODPU L35 MOD UGR, Pull-Up, 600x600, 2,286llm, Colour 84 21.6W 105
MODPU L45 MOD UGR, Pull-Up, 600x600, 2,939llm, Colour 84 26.5W 110
MODPU L55 MOD UGR, Pull-Up, 600x600, 3,592llm, Colour 84 33.1W 108
MODPU L68 MOD UGR, Pull-Up, 600x600, 4,440llm, Colour 84 39.9W 111
MODPU L76 MOD UGR, Pull-Up, 600x600, 4,963llm, Colour 84 45.1W 110
MODPU 55 L29 MOD UGR, Pull-Up, 500x500, 1,894llm, Colour 84 17.1W 110
MODPU 55 L35 MOD UGR, Pull-Up, 500x500, 2,286llm, Colour 84 21.6W 105
MODPU 55 L45 MOD UGR, Pull-Up, 500x500, 2,939llm, Colour 84 26.5W 110
MODPU 55 L55 MOD UGR, Pull-Up, 500x500, 3,592llm, Colour 84 33.1W 108
MODPU 55 L68 MOD UGR, Pull-Up, 500x500, 4,440llm, Colour 84 39.9W 111
MODPU 55 L76 MOD UGR, Pull-Up, 500x500, 4,963llm, Colour 84 45.1W 110
MODPU 123 L35 MOD UGR, Pull-Up, 1200x300, 2,284llm, Colour 84 21.6W 105
MODPU 123 L45 MOD UGR, Pull-Up, 1200x300, 2,939llm, Colour 84 26.5W 110
MODPU 126 L58 MOD UGR, Pull-Up, 1200x600, 3,787llm, Colour 84 31.9W 118
MODPU 126 L70 MOD UGR, Pull-Up, 1200x600, 4,571llm, Colour 84 38.6W 118
MODPU 126 L90 MOD UGR, Pull-Up, 1200x600, 5,877llm, Colour 84 50.2W 117
MODPU 126 L136 MOD UGR, Pull-Up, 1200x600, 8,881llm, Colour 84 80.4W 110
MODPU 126 L152 MOD UGR, Pull-Up, 1200x600, 9,926llm, Colour 84 87.1W 113
For plasterboard ceilings please specify lay-in luminaire and appropriate plasterboard kit.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor
WT White Tunable (Lumen Outputs Vary from Standard)
Please click here for full details on our white tunable offer.

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please click here for full details on our wireless controls.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
4PM 4 Pole Panel Mount
6PM 6 Pole Panel Mount
IP44 IP44 Below the Ceiling Only
PBK 123 1200x300 Plasterboard Kit
PBK 126 1200x600 Plasterboard Kit
PBK 66 600x600 Plasterboard Kit

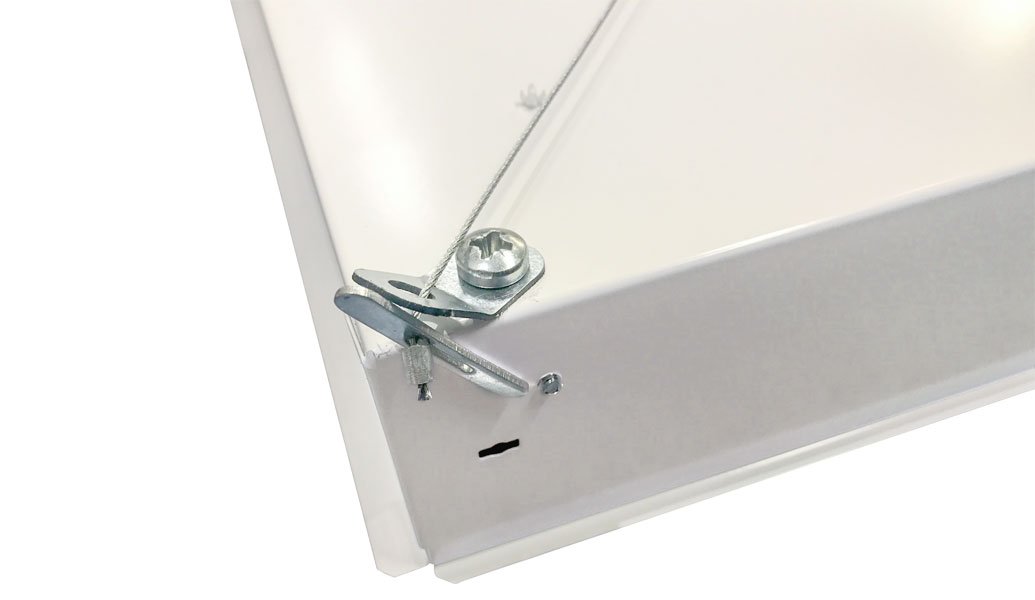

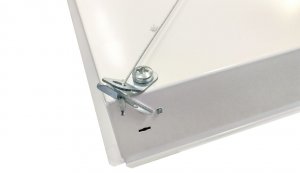

RECESSED TETHER KIT TWIN Secondary fix twin drop.
ALU16 Alugrid 15/16 Ceiling Compatible
ALU08 Alugrid 15/08 Ceiling Compatible
LSF Low Smoke Zero Halogen

Downloads

Installation Guide Lay In (Download PDF) Installation Guide Pull Up (Download PDF) Tether Kit (Download PDF) Plasterboard Kit Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
