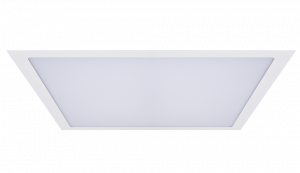

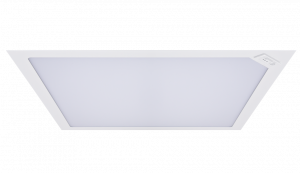

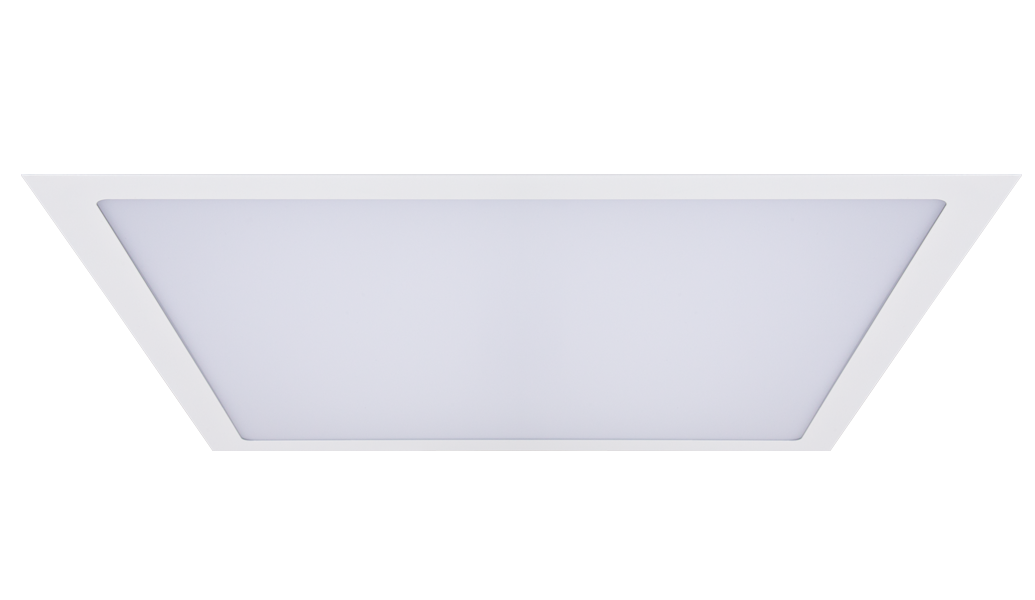

MOD Slim 600x600

Introduction

The Mod Slim is a traditional flat panel luminaire with a uniformly lit diffuser, using backlit technology ensuring superb efficiency as well as benefitting LED lifetime by using a high chip count run at low output to minimise operating temperature.

The Mod Slim is available in a wide range of sizes and lumen outputs, as well as lay in and pull up variants to suit all common ceiling types. Surface versions are available for solid ceilings in the surface section of our website. This versatility is further complimented with optional dimming control gear, integral lithium emergency and integral sensors providing presence detection, daylight regulation and wireless linking. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

With multiple variants compatible with the glare requirements of BSEN 12464 the Mod Slim can be used in applications such as offices and schools, but is also suitable for a wide range of installations from ancillary and circulation areas through to retail applications.

MOD SLIM complies with:

UKCA | CE | IP40 | IP44 | IK08 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE | TP(a)

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Office | Retail | Transport | Warehousing

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
  • IK08
  • IP40
  • IP44

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 145 luminaire lumens per circuit Watt.
  • Multiple lumen outputs are compliant with BSEN 12464 3000 candela glare requirements and therefore suitable for applications with monitors in use. A range of higher lumen output glare compliant products are offered under our MOD LED Office range where required.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • HFR 1-10V analogue dimming
  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional White tunable

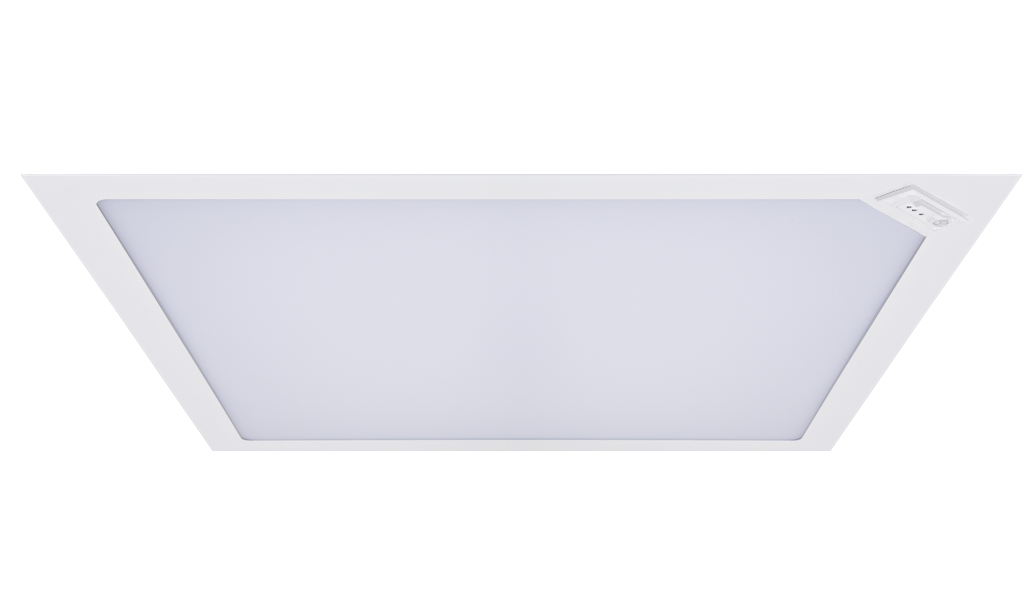

  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for plasterboard installation when purchased with the appropriate plasterboard kit
  • Alugrid 08 and 16 compatible options available. Please see miscellaneous ordering codes.
  • Suitable for lay in installation in exposed T ceiling grids and pull up installation in SAS120, Armstrong Orcal 1800 and Burgess Clip-in ceiling, please specify lay in or pull up accordingly.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
  • Available with optional night light
5 year extended warranty available on most products.
Arrow right

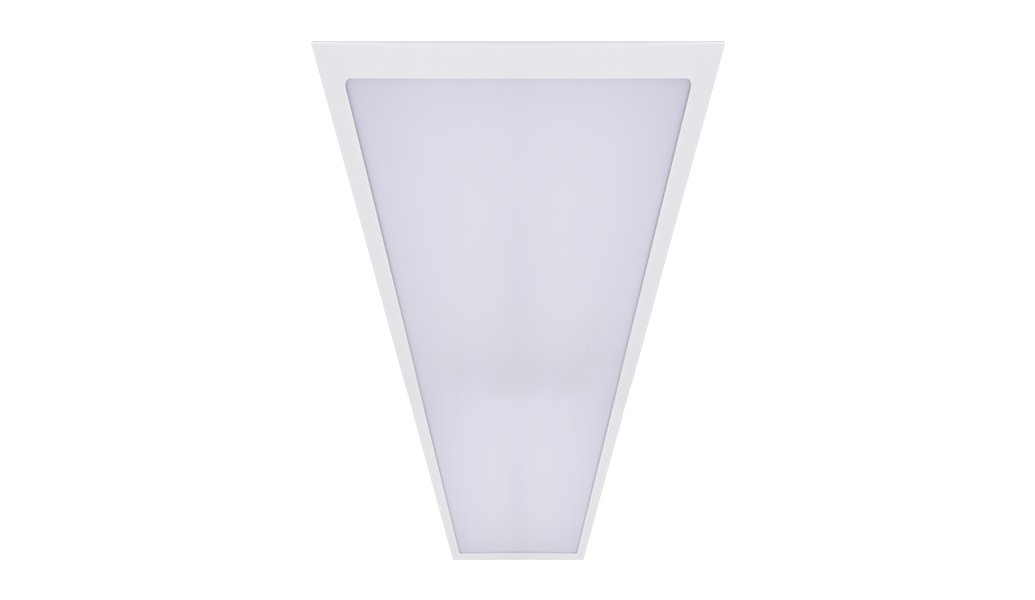

Product Images

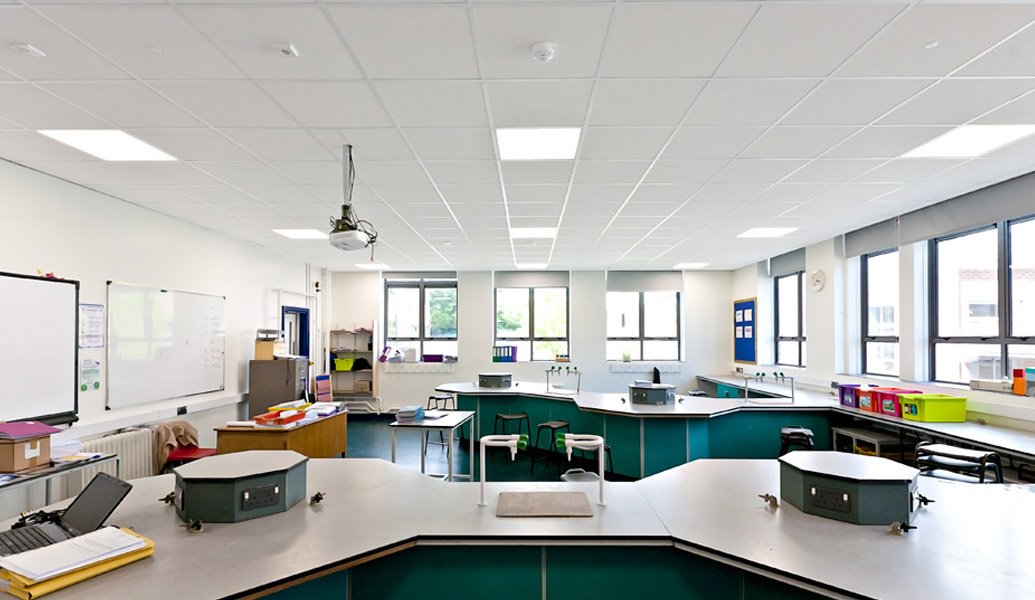

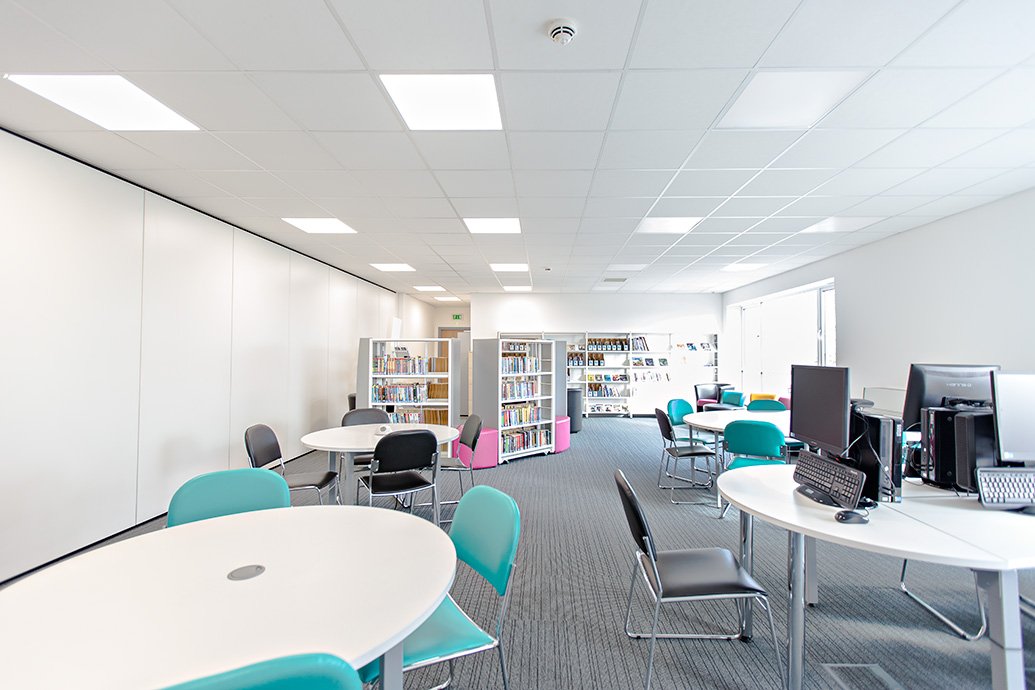

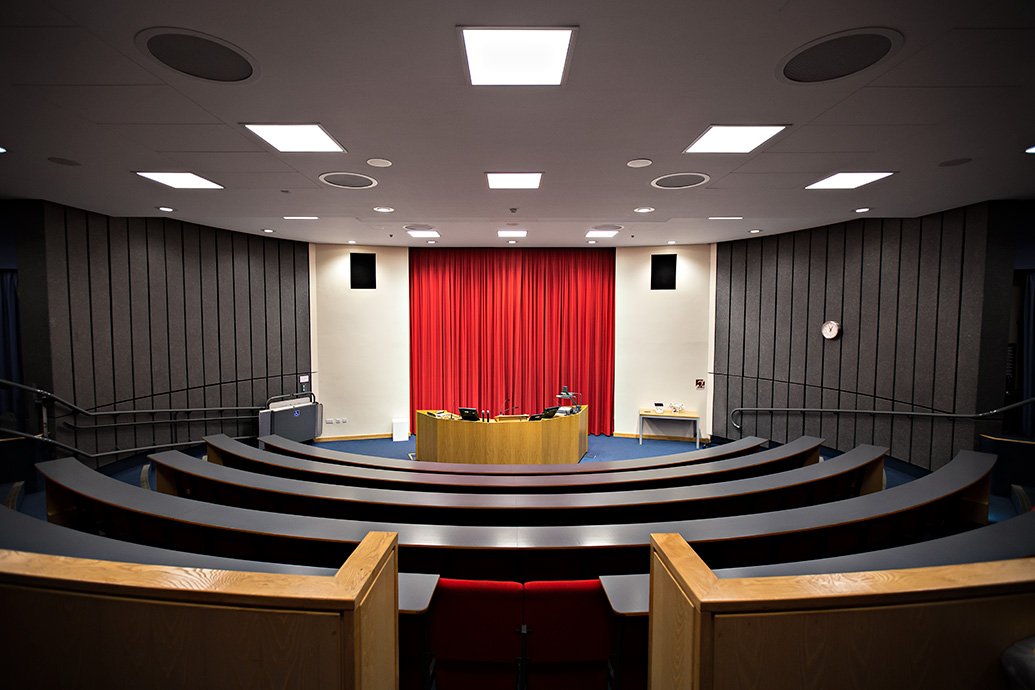

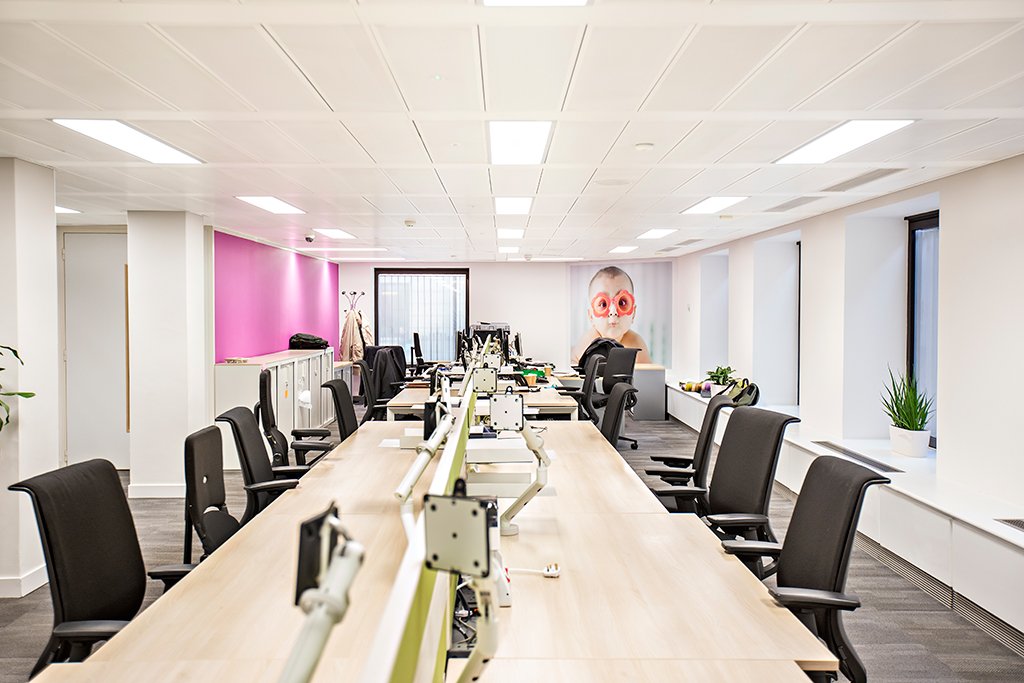

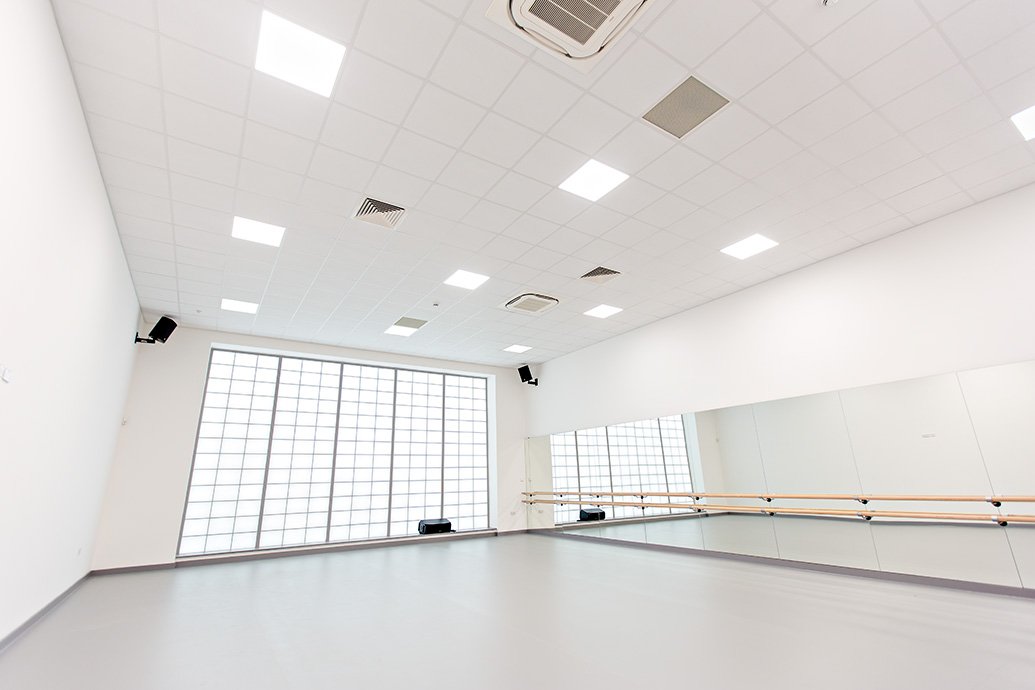

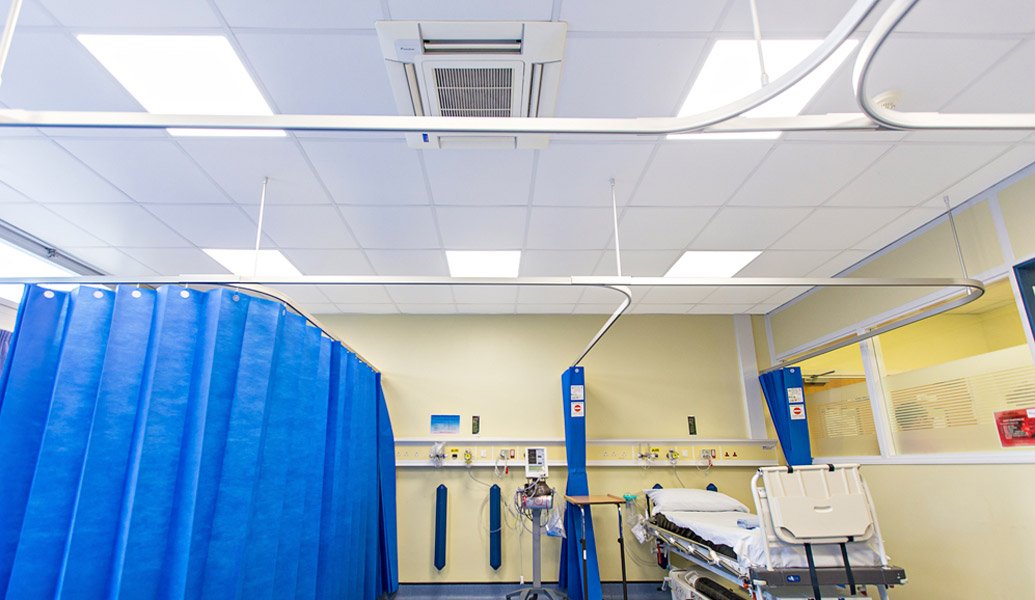

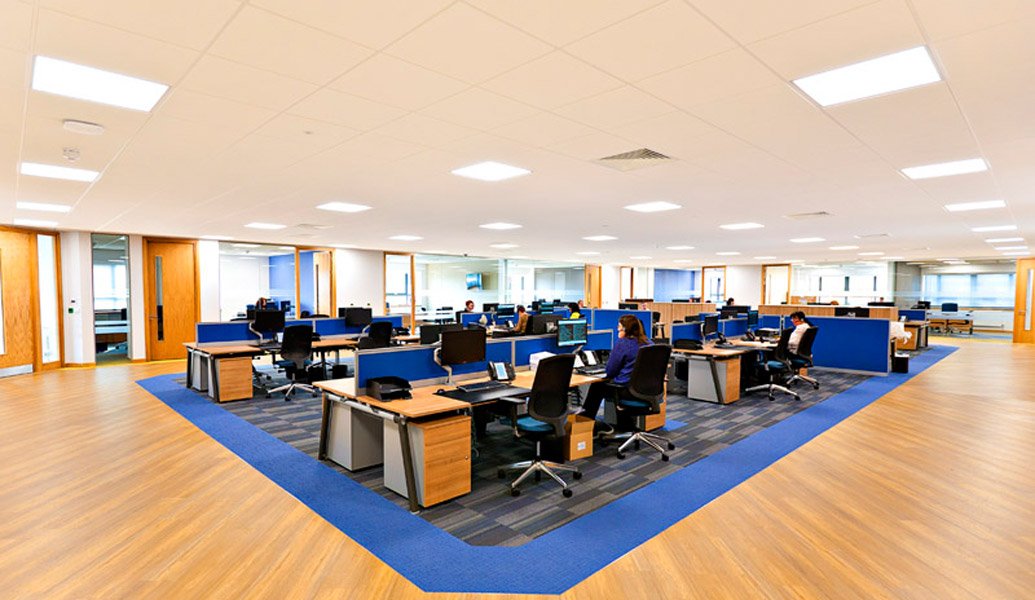

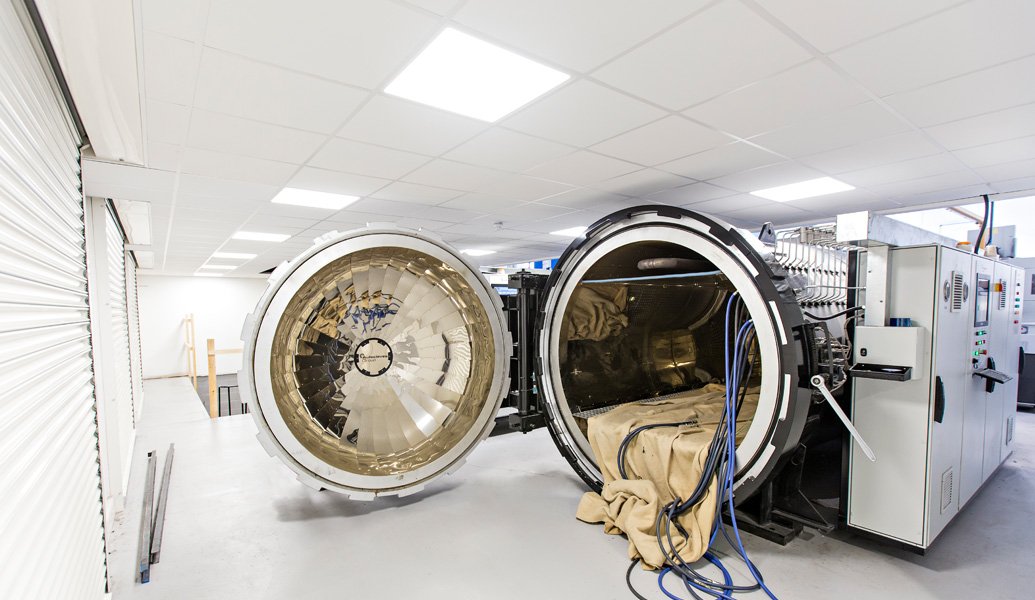

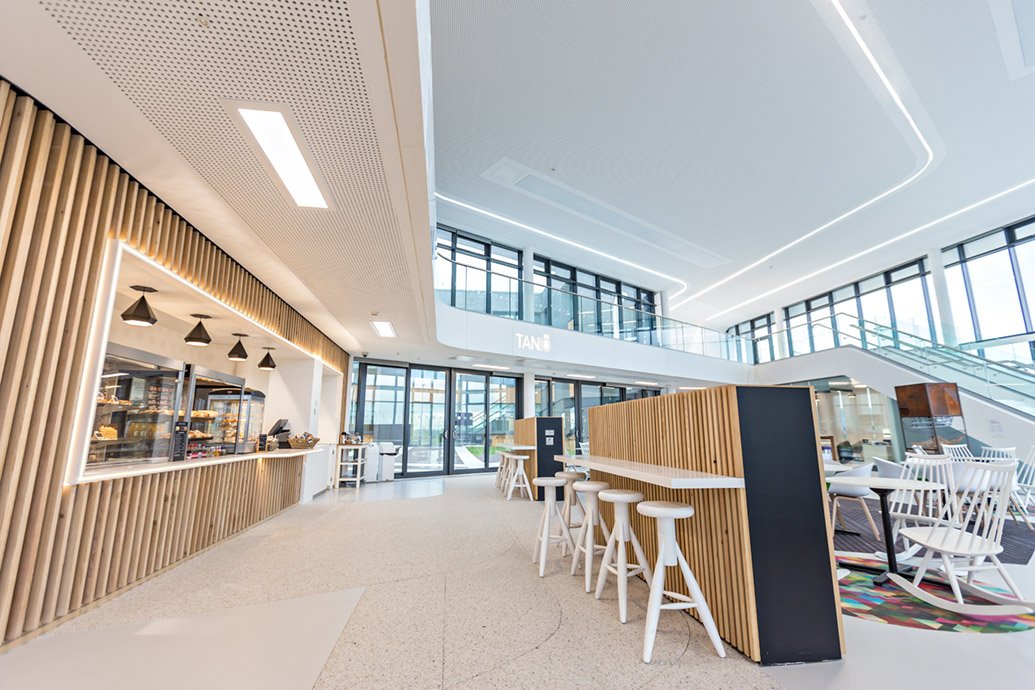

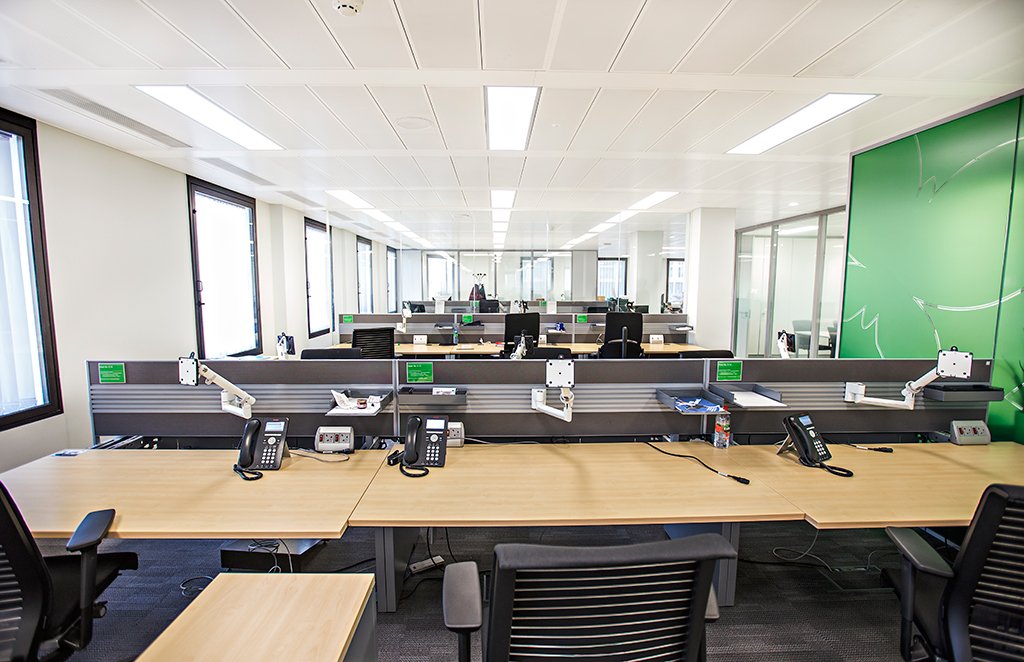

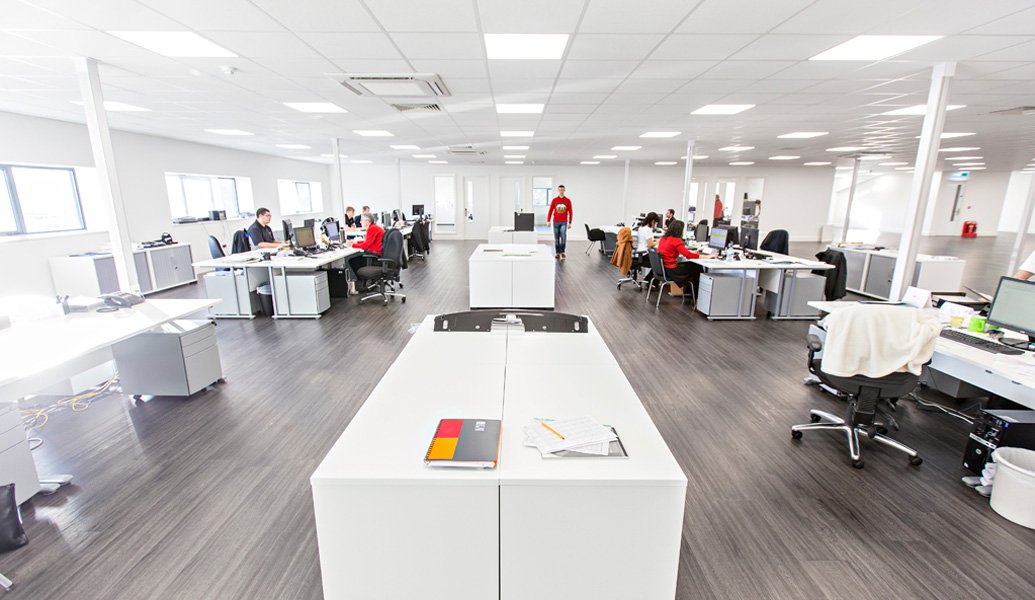

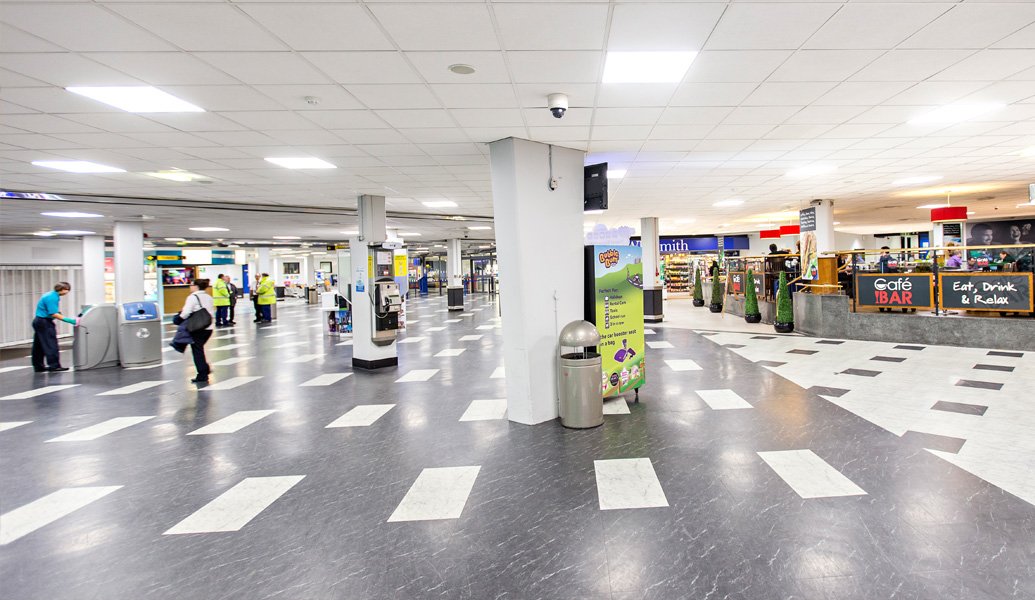

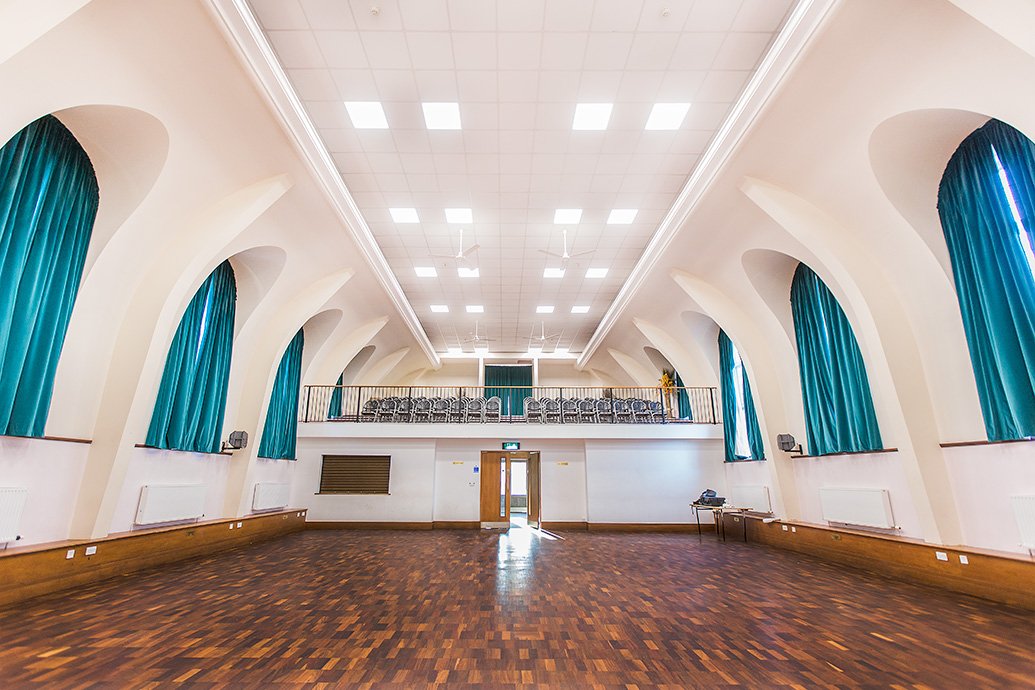

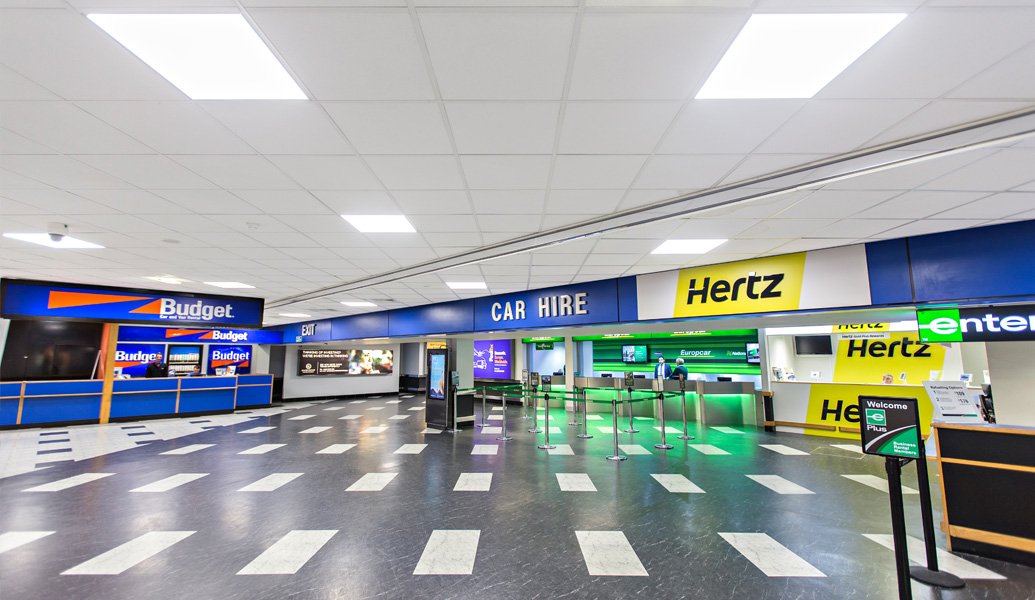

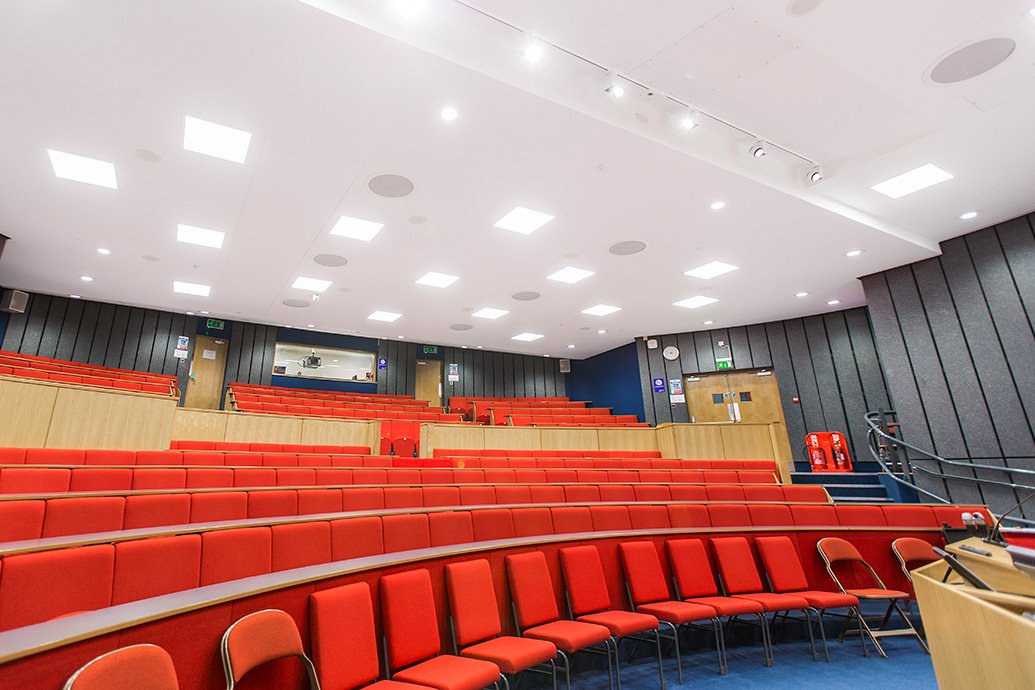

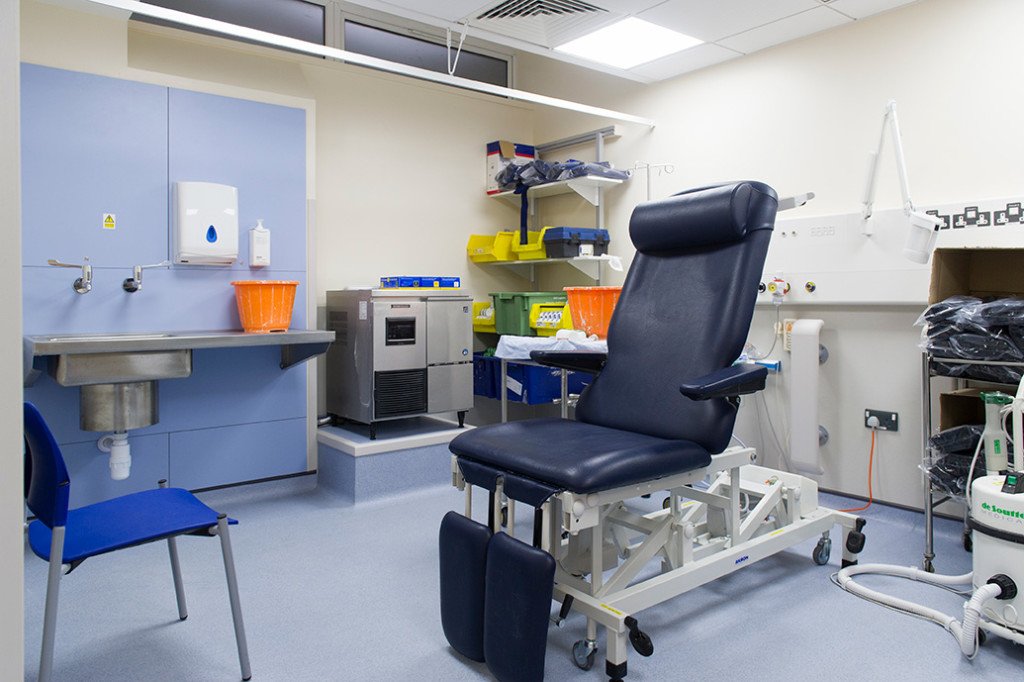

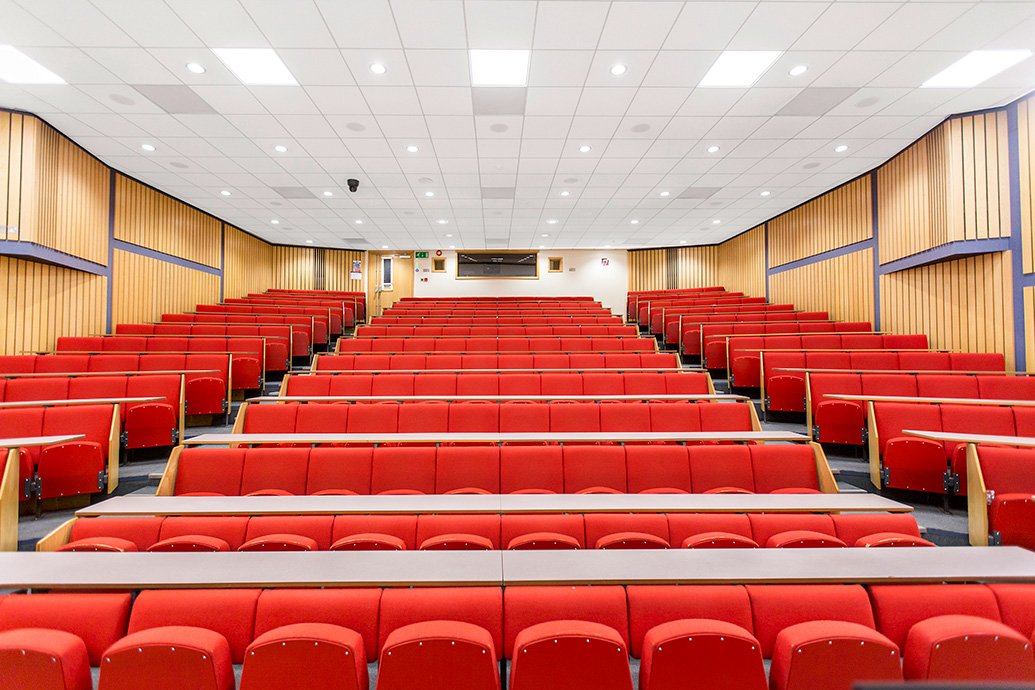

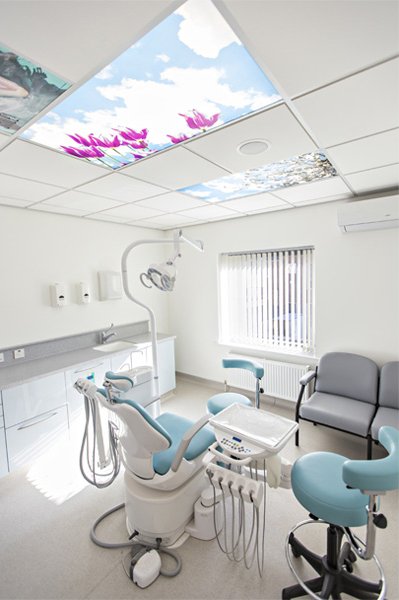

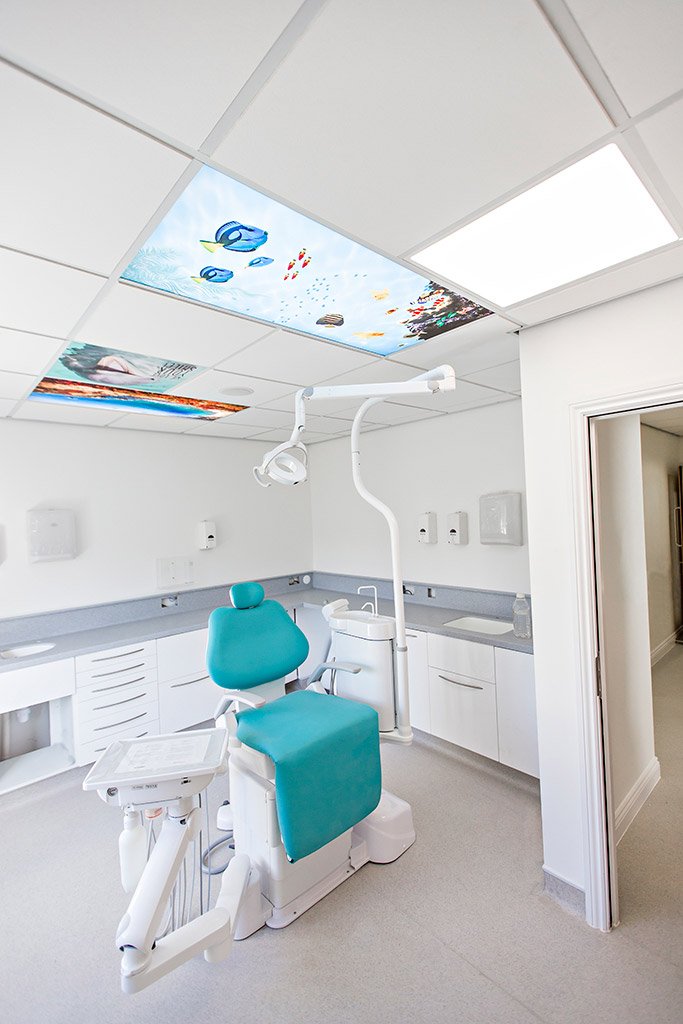

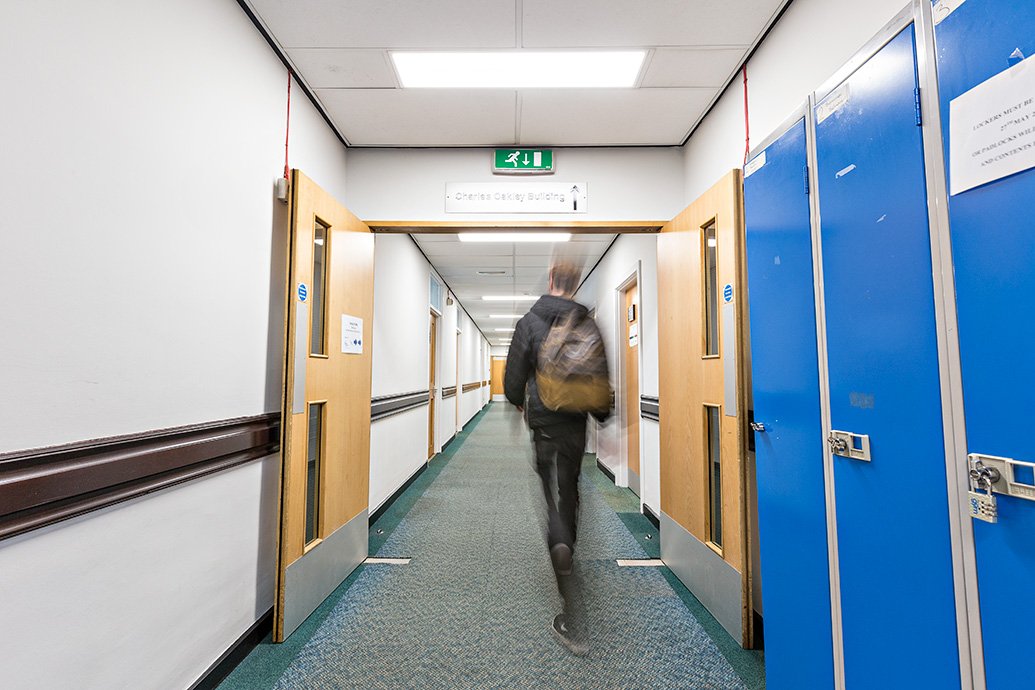

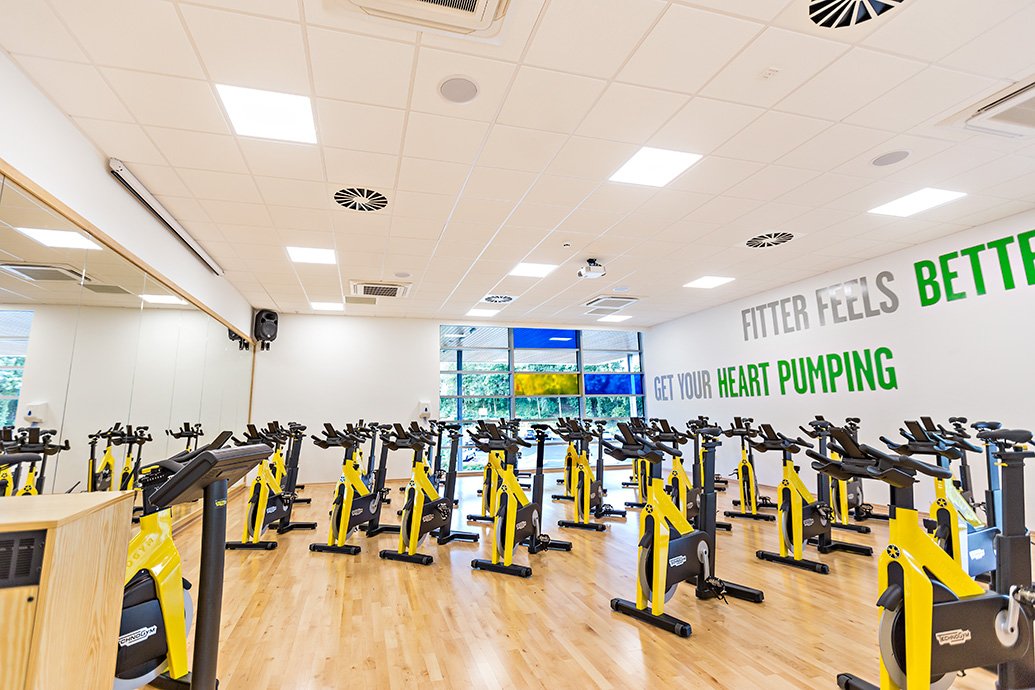

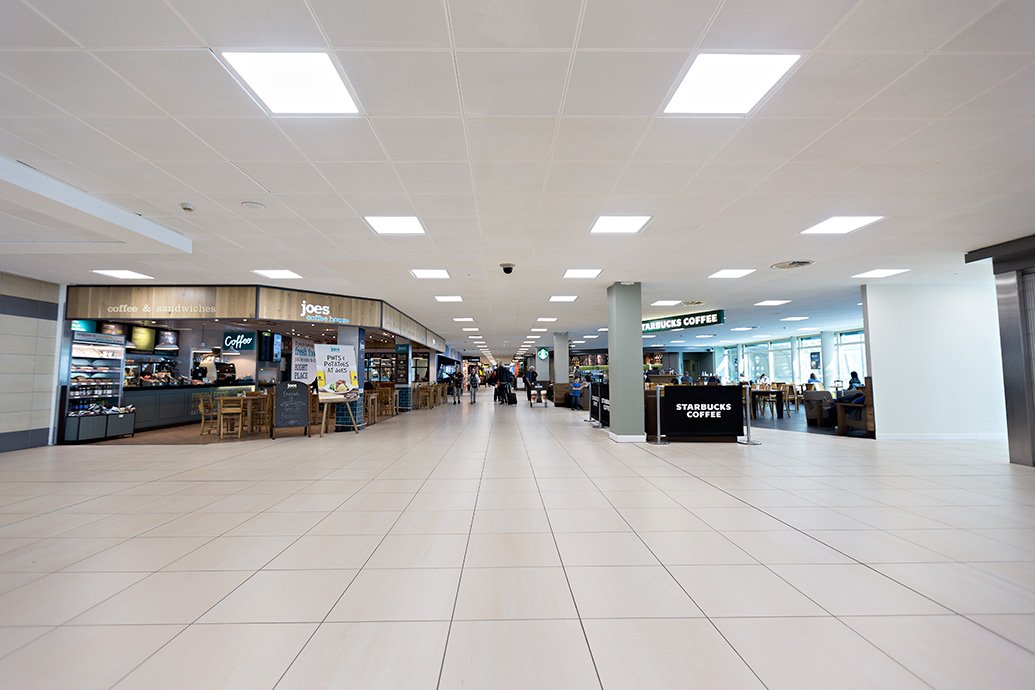

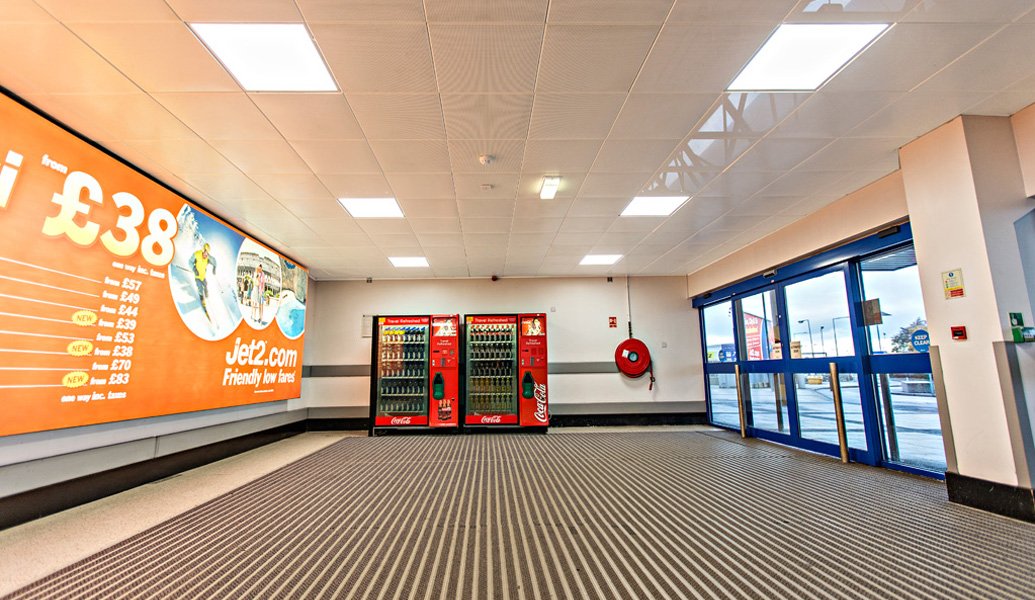

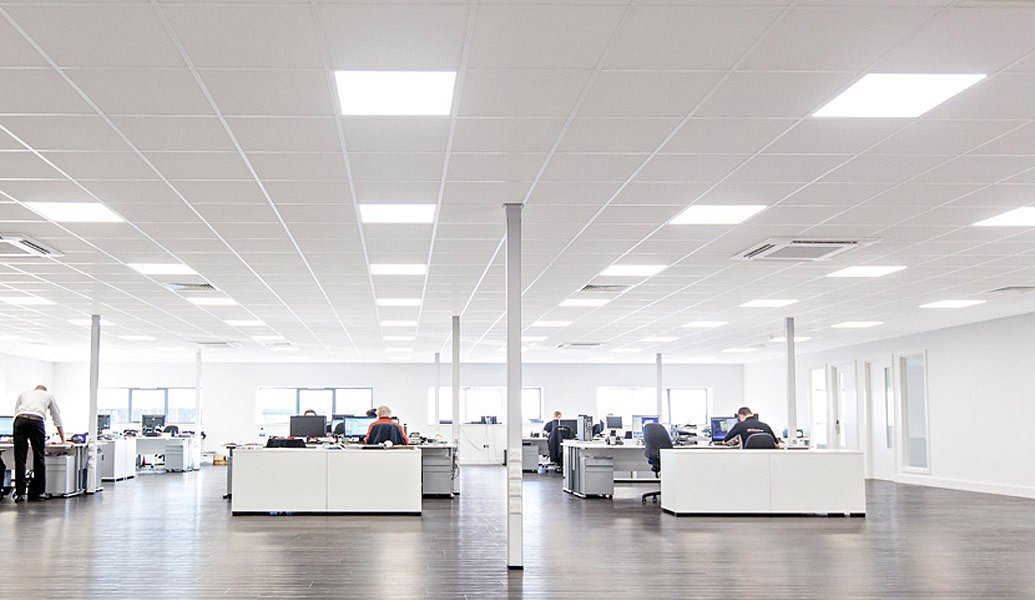

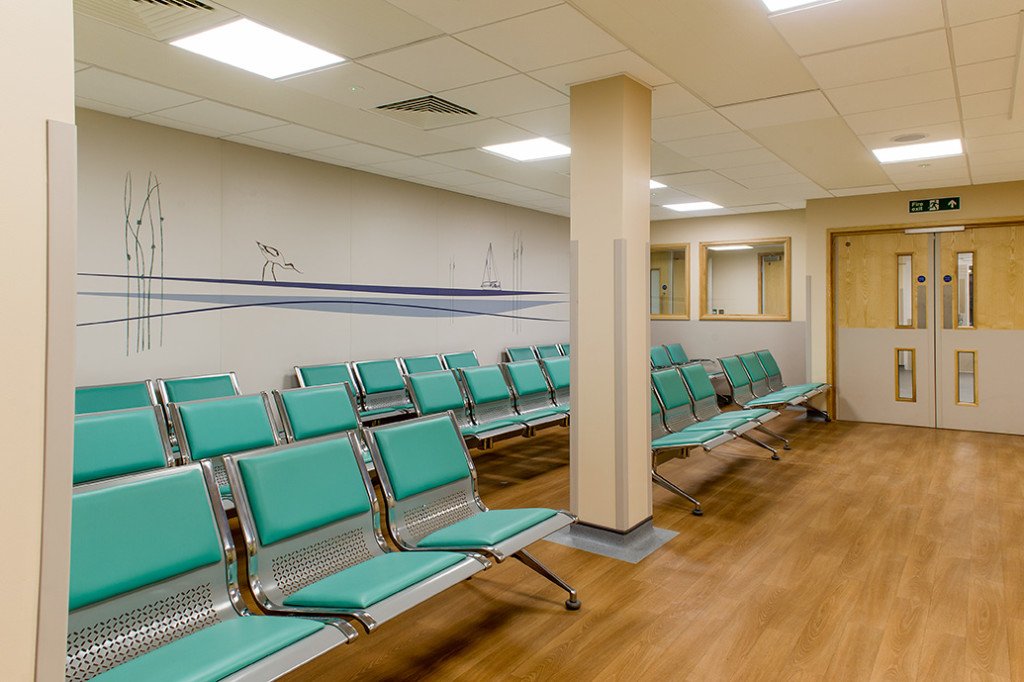

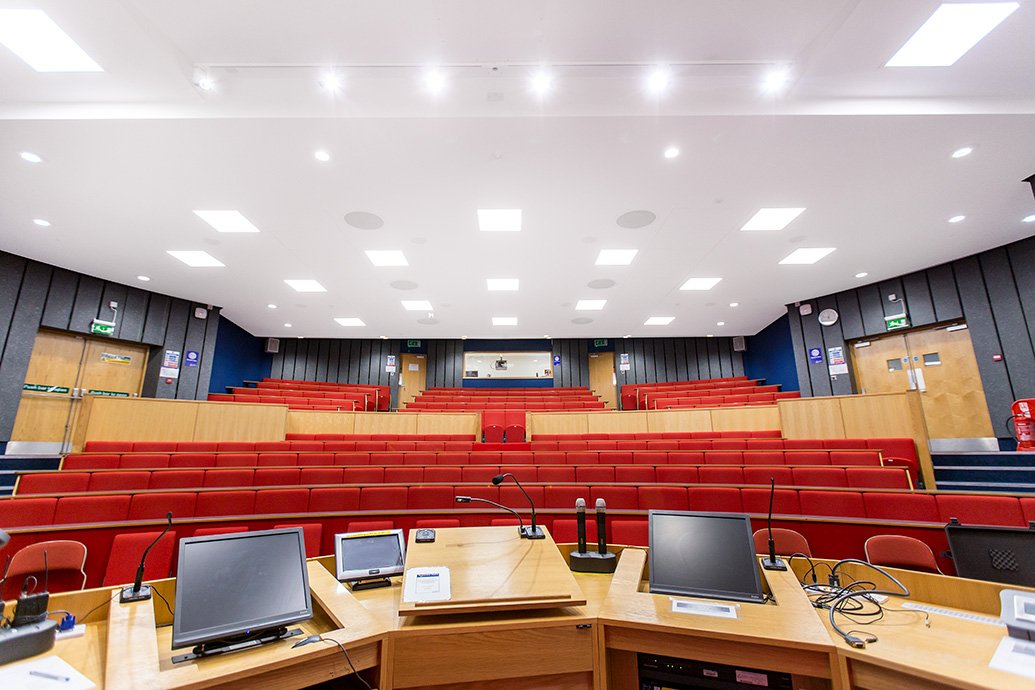

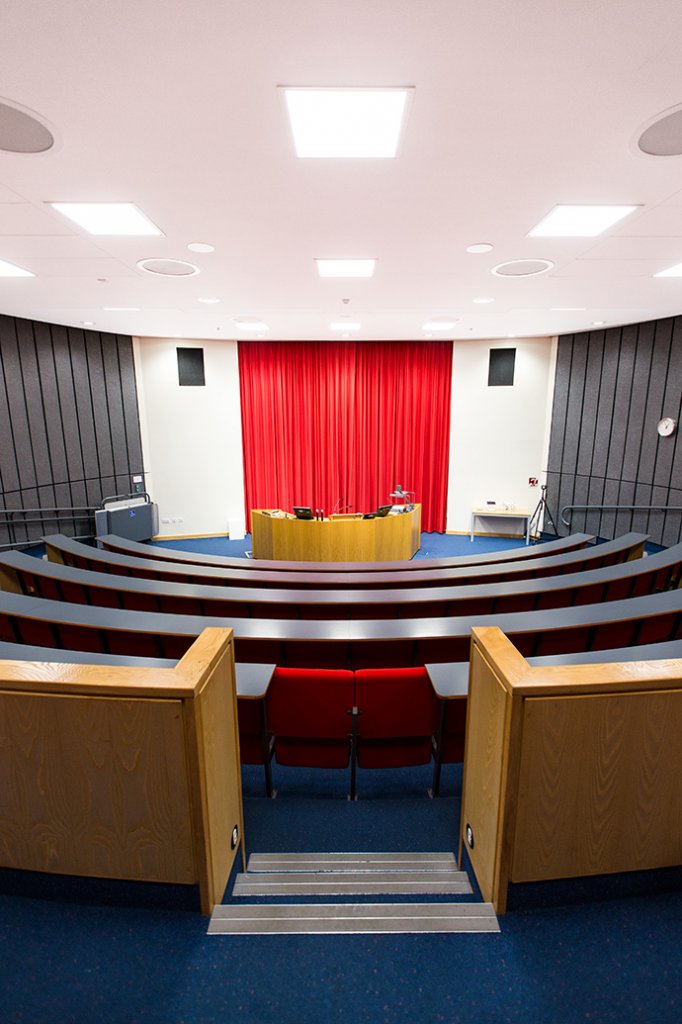

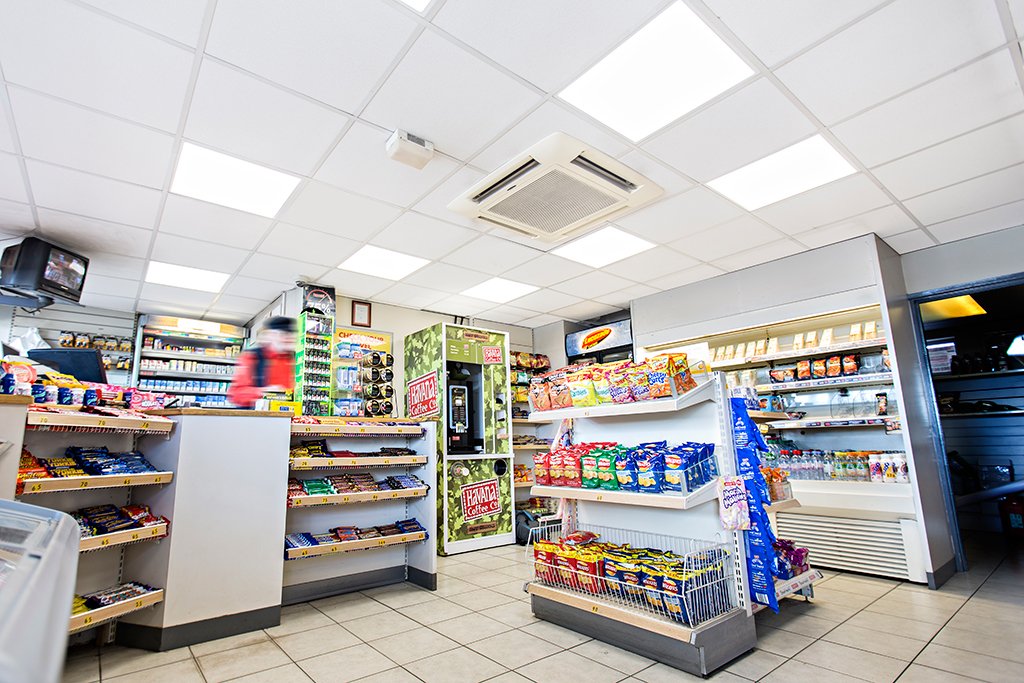

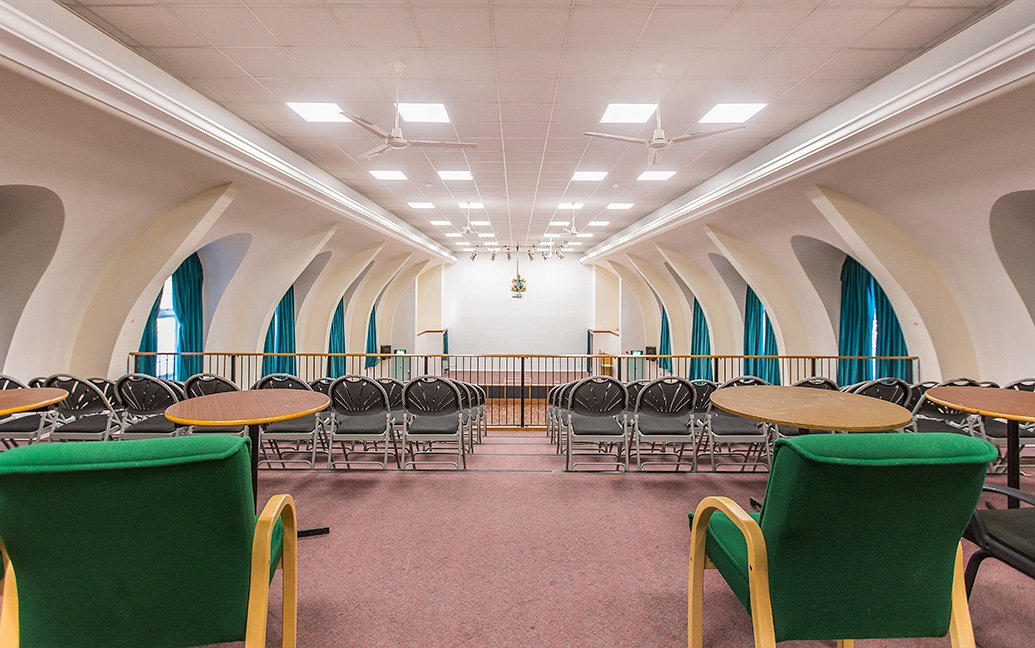

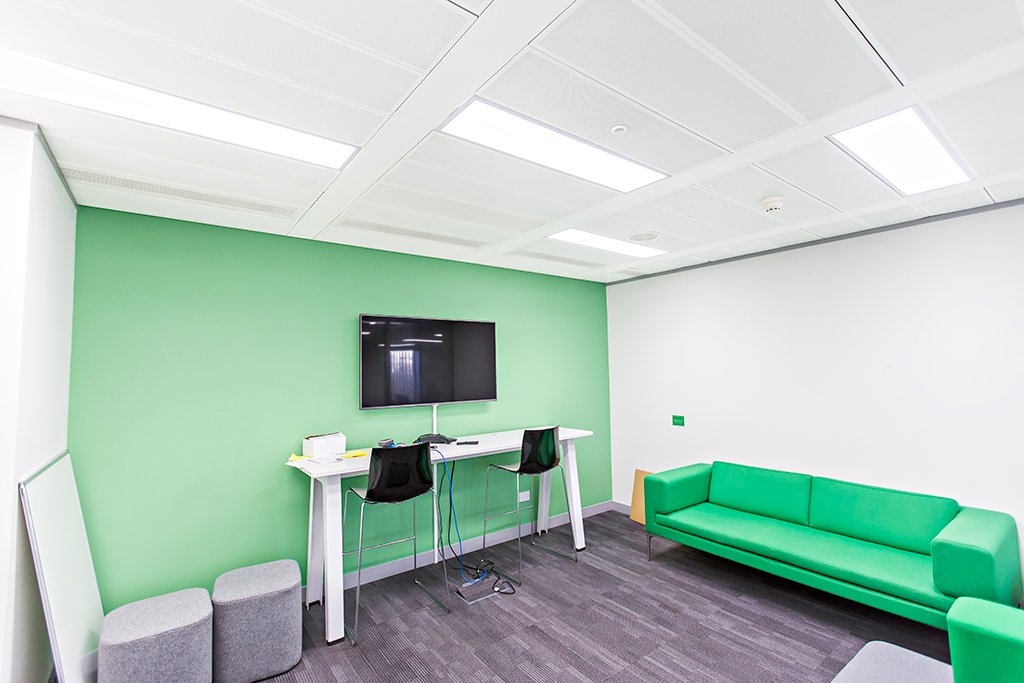

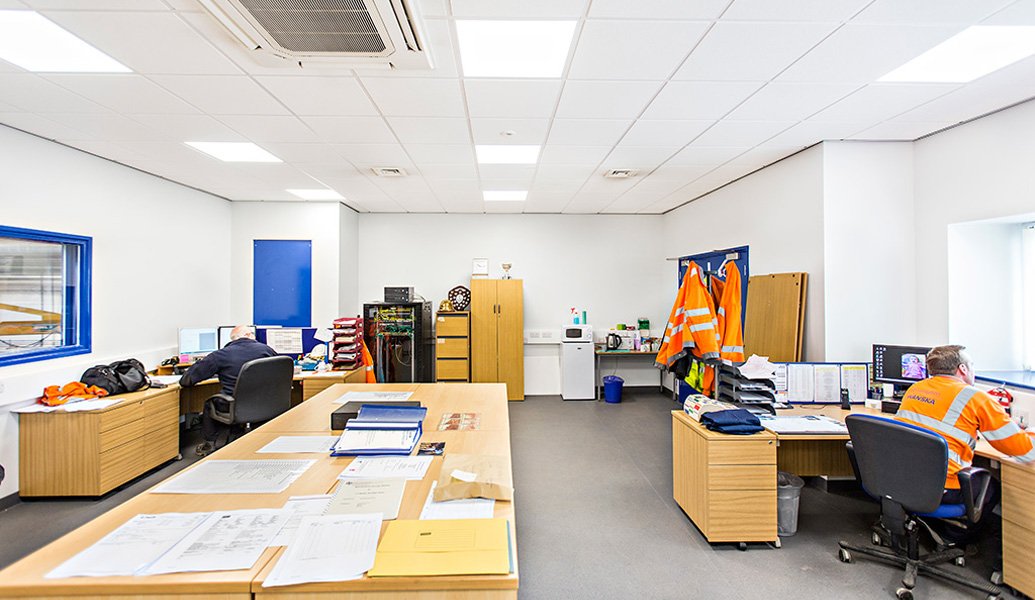

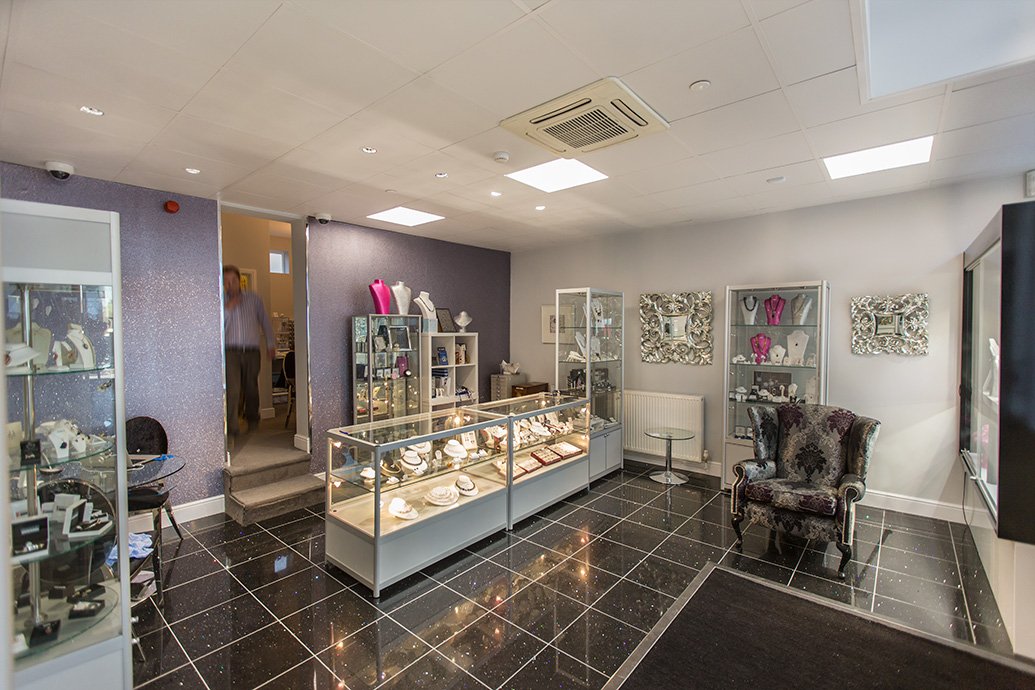

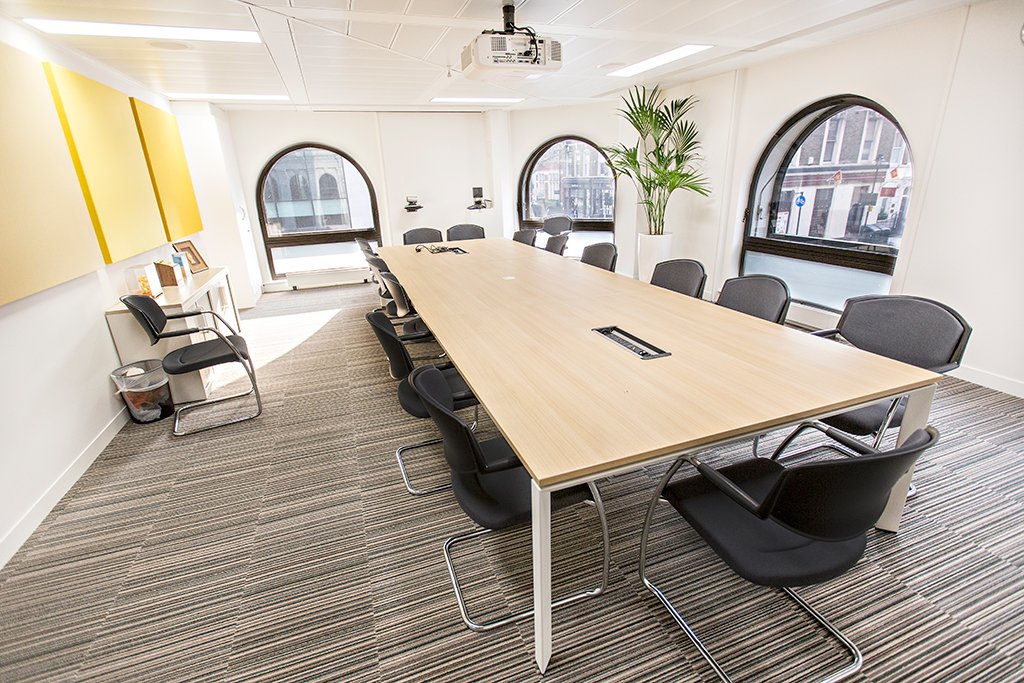

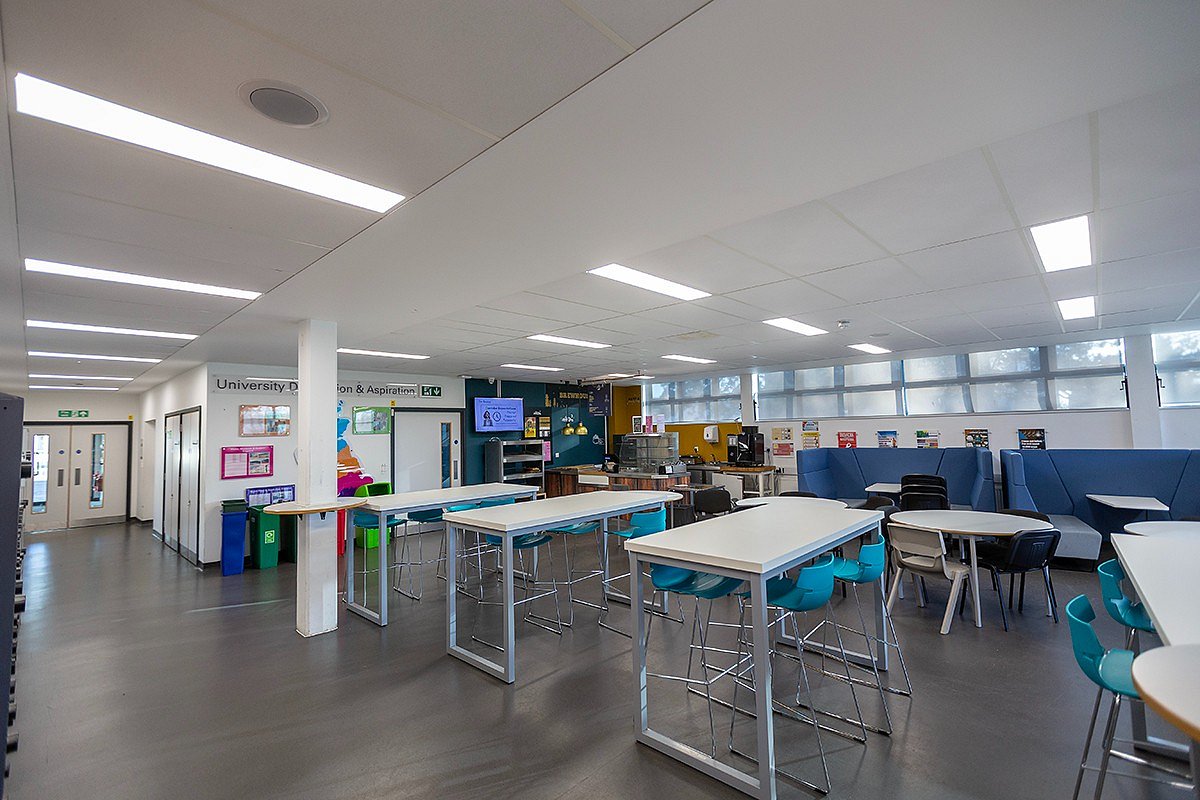

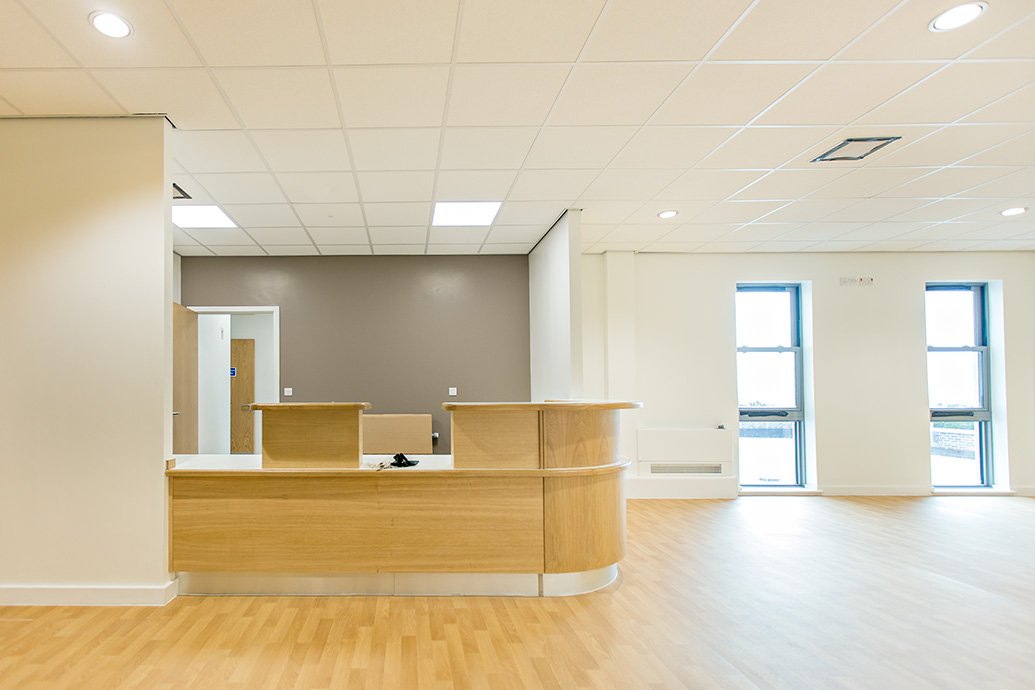

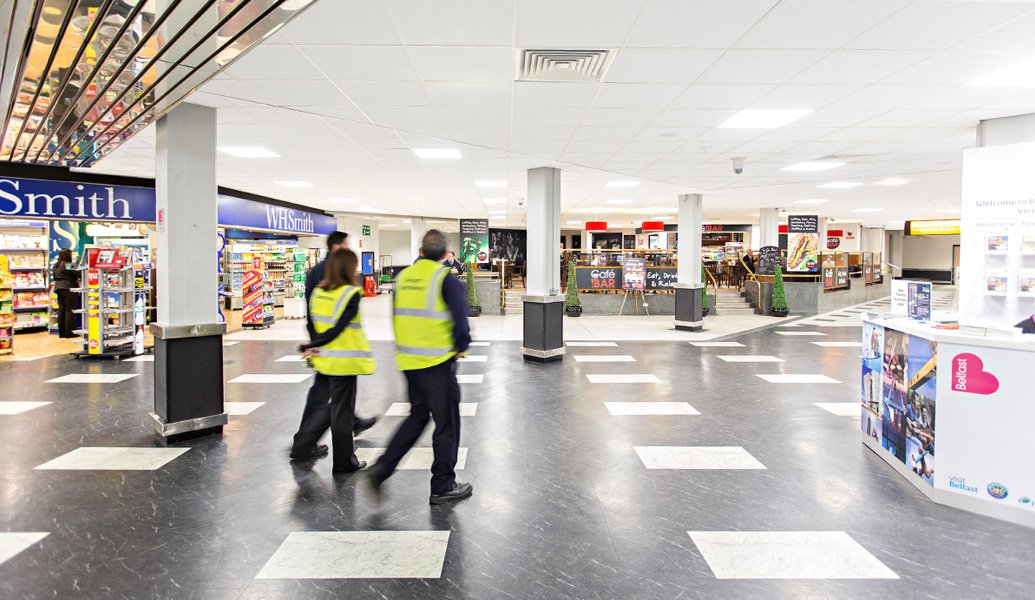

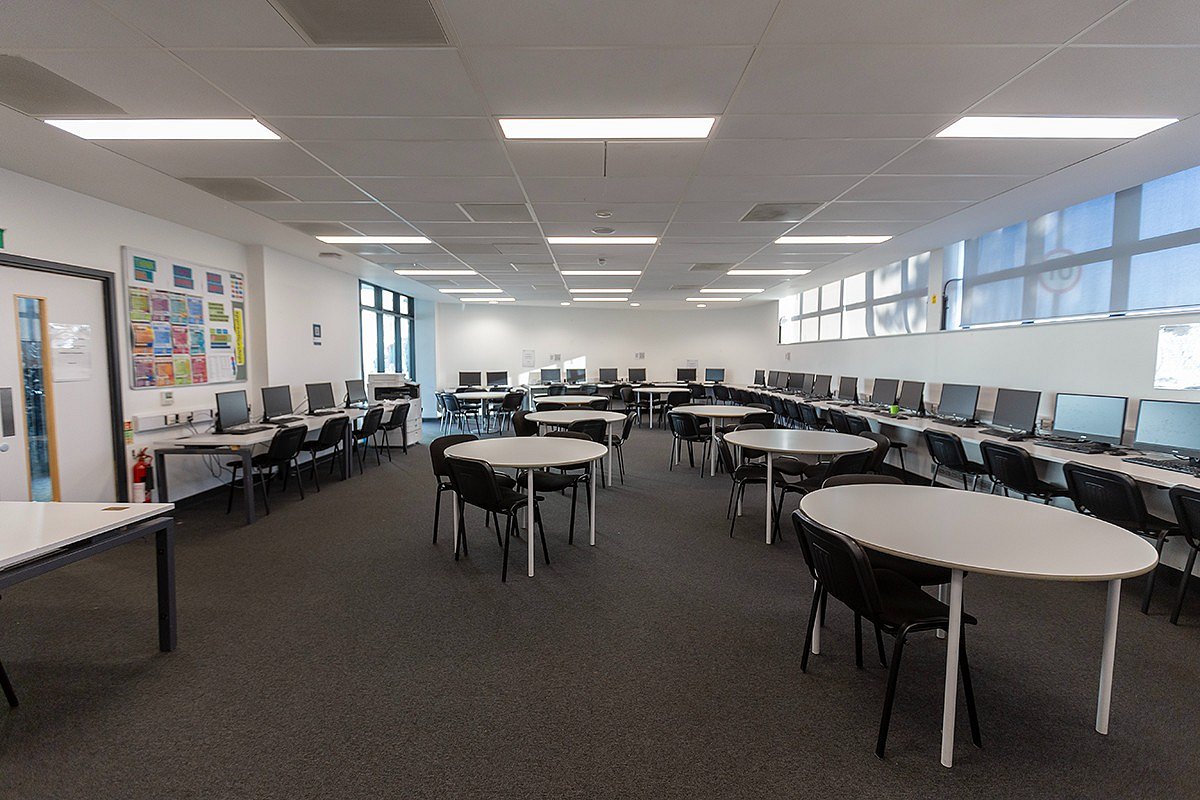

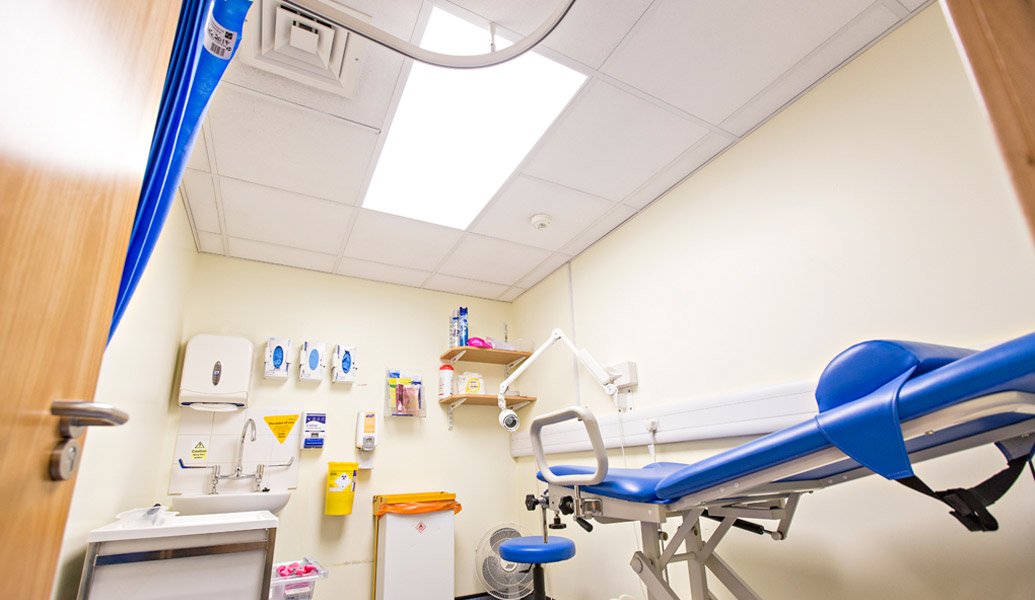

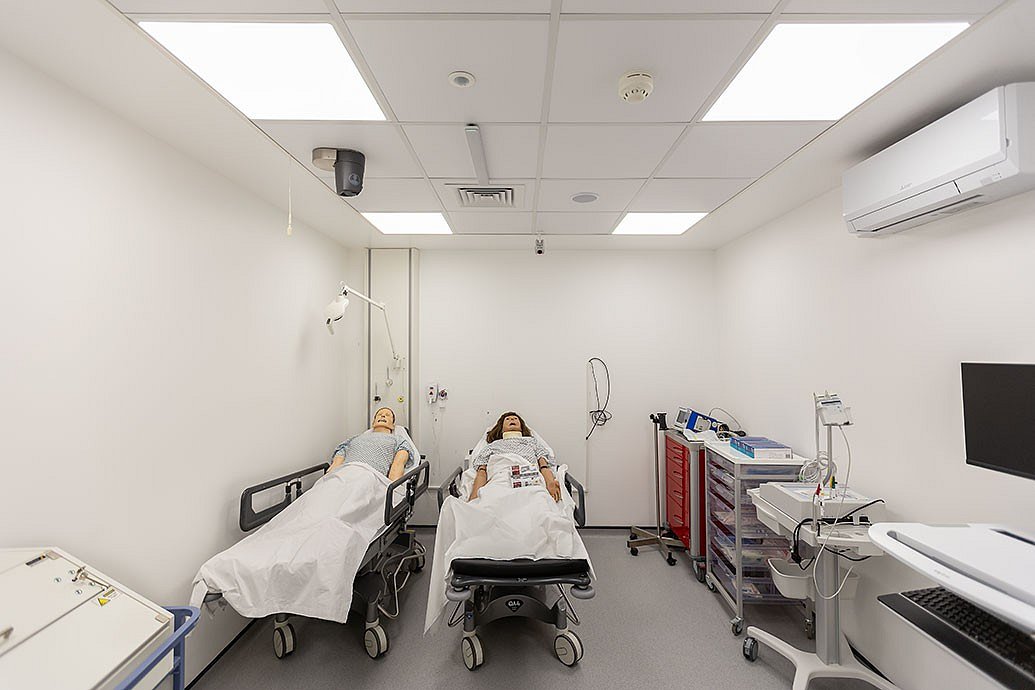

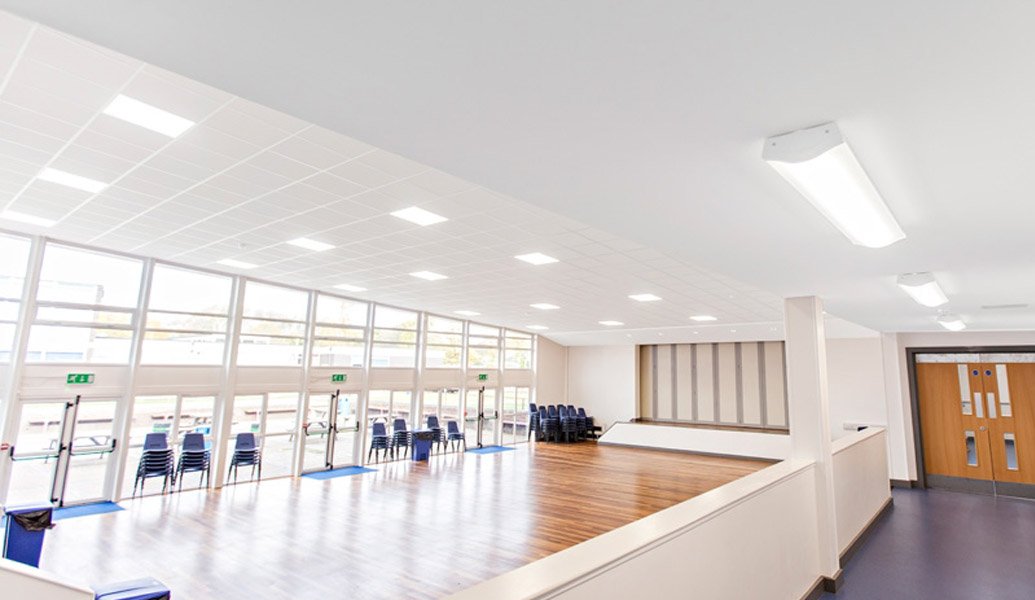

MOD SLIM in action

Technical

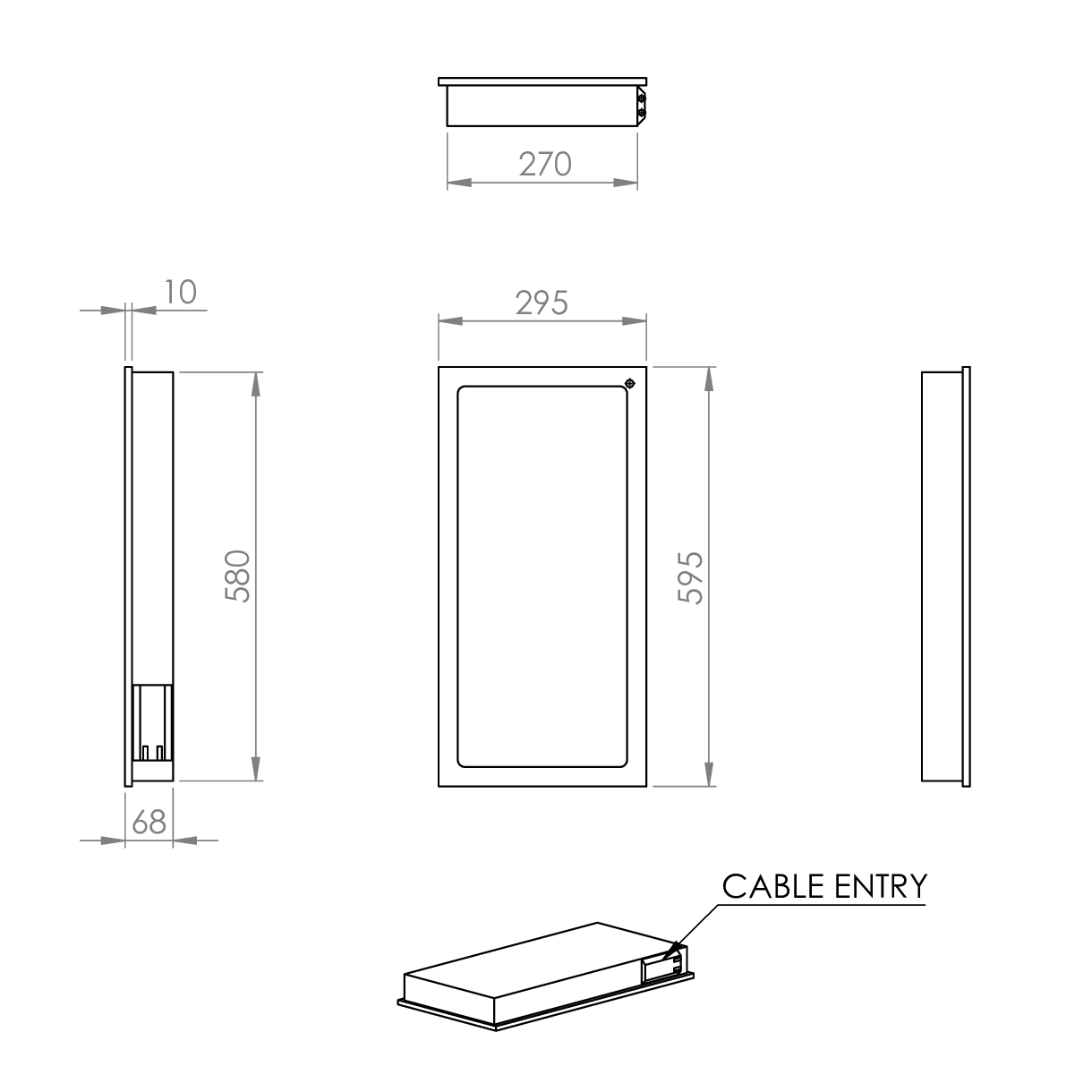

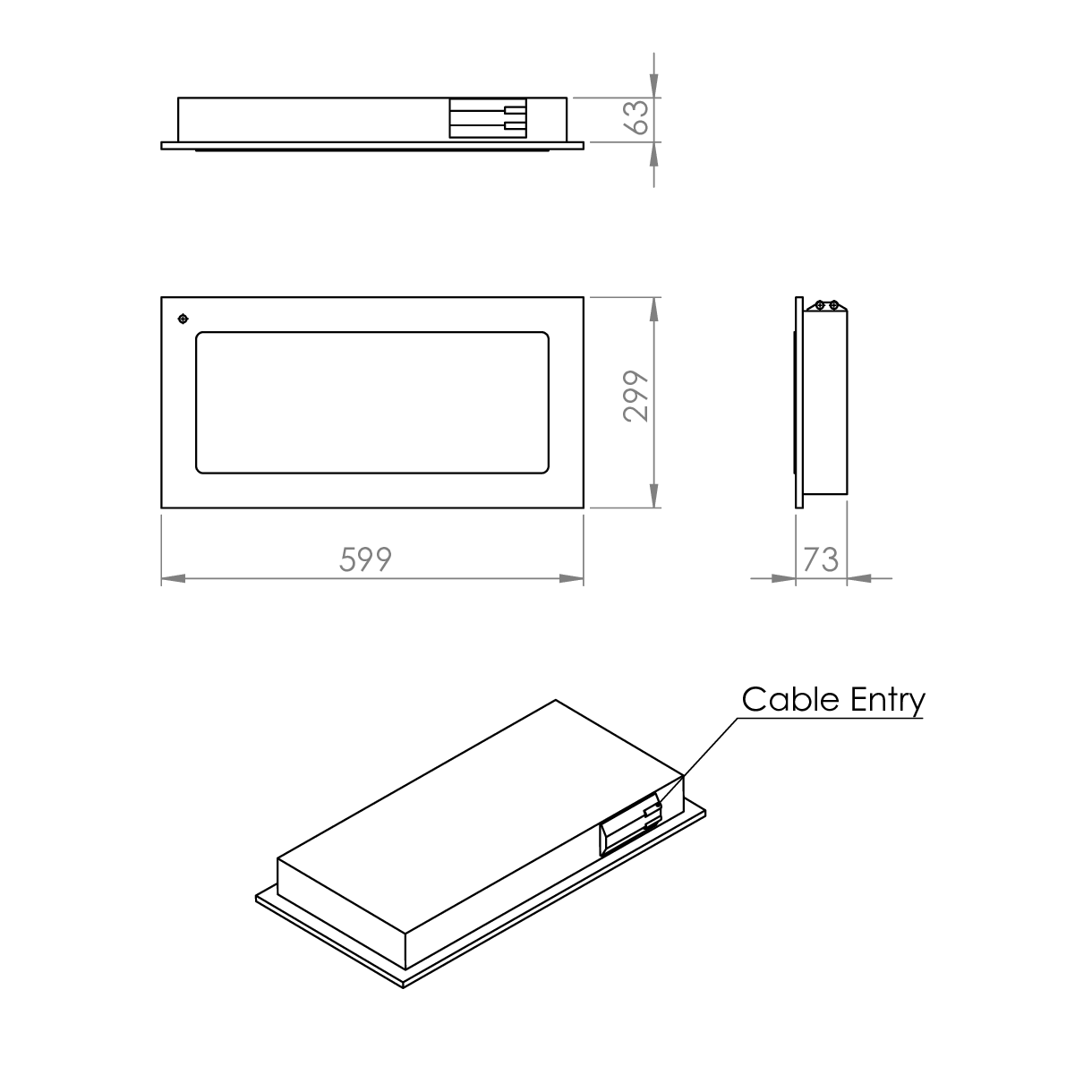

MOD Slim Lay-In 600x300

MOD Slim Lay-In 600x300

MOD Slim Pull-Up 600x300

MOD Slim Pull-Up 600x300

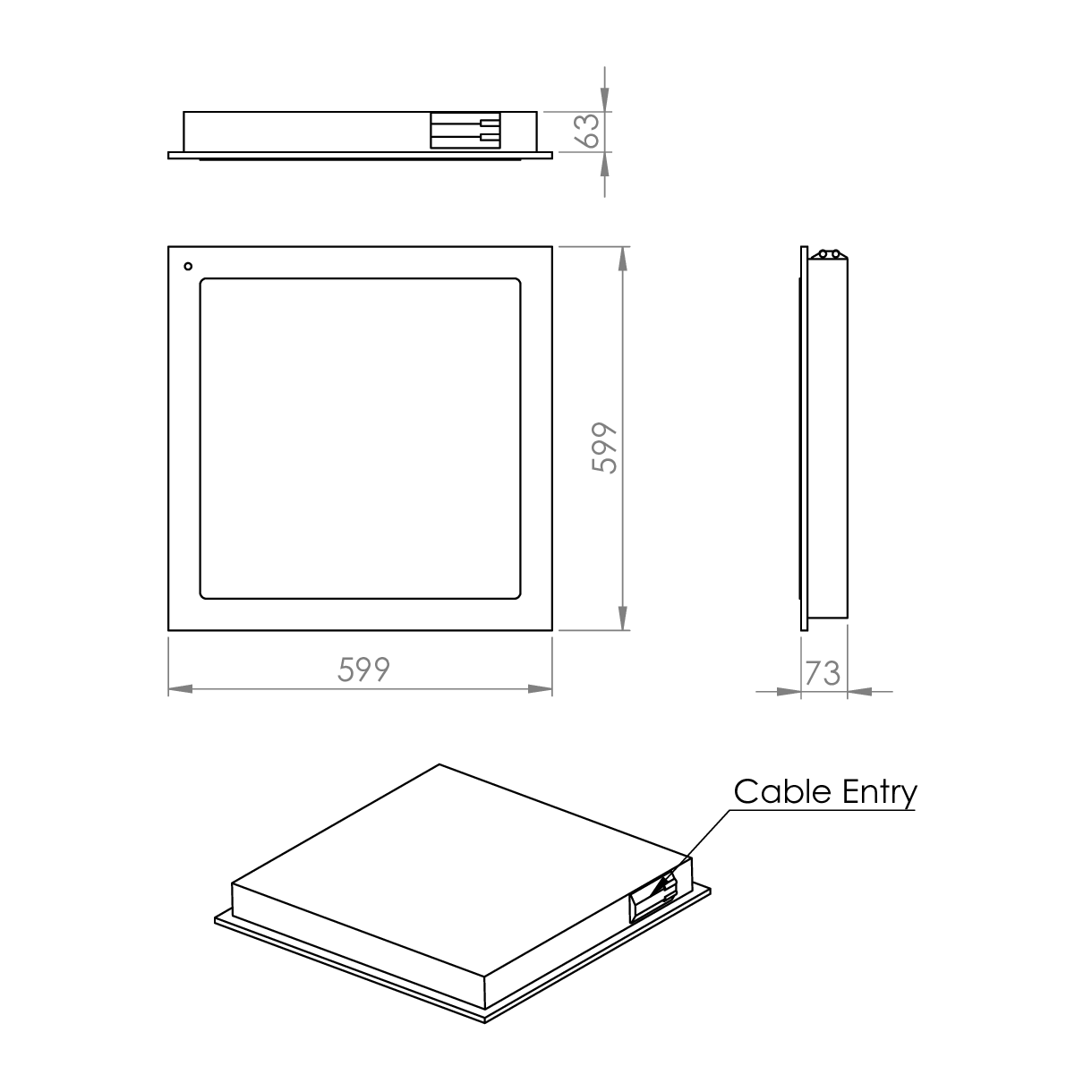

MOD Slim Lay-In 600x600

MOD Slim Lay-In 600x600

MOD Slim Pull-Up 600x600

MOD Slim Pull-Up 600x600

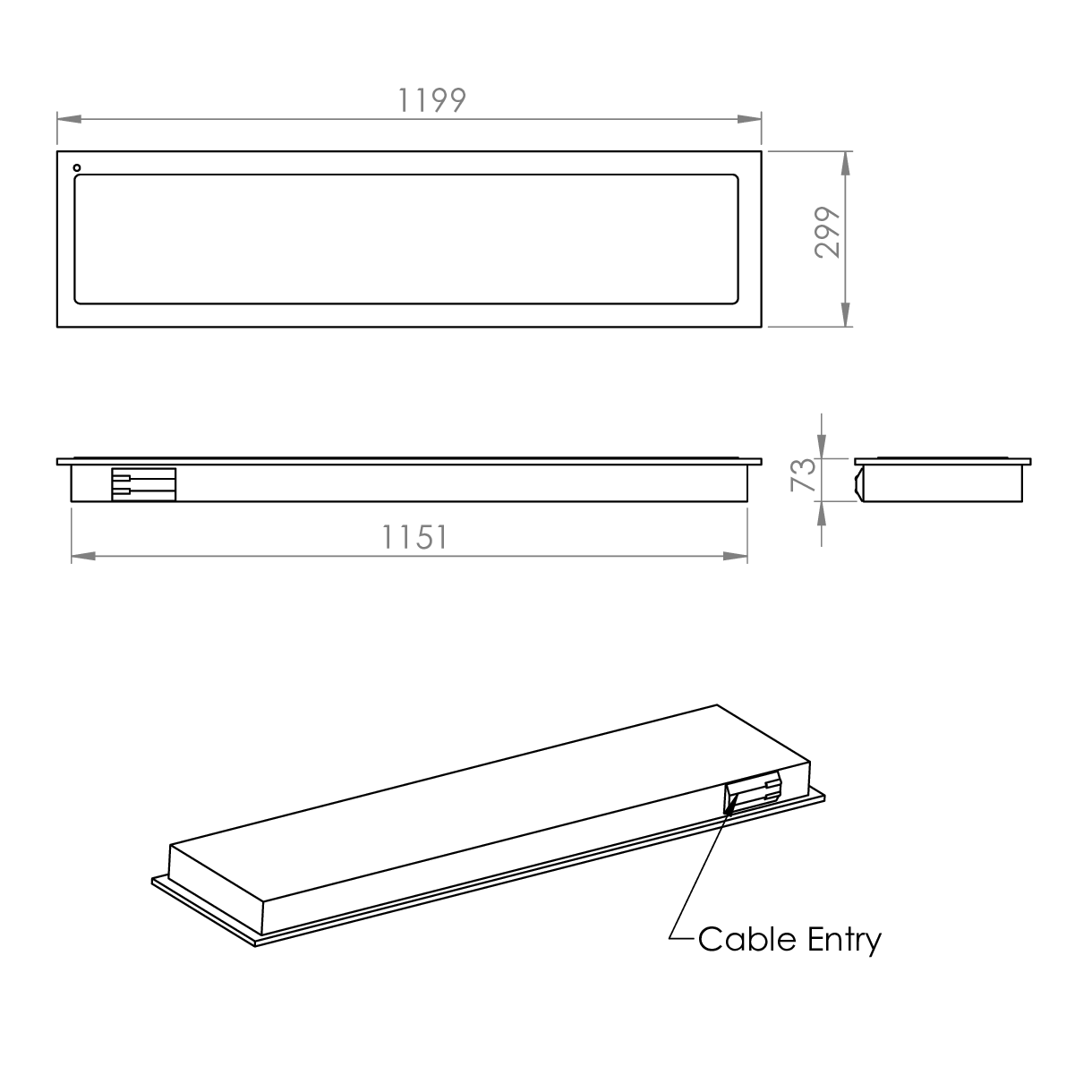

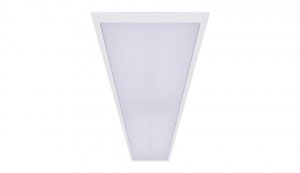

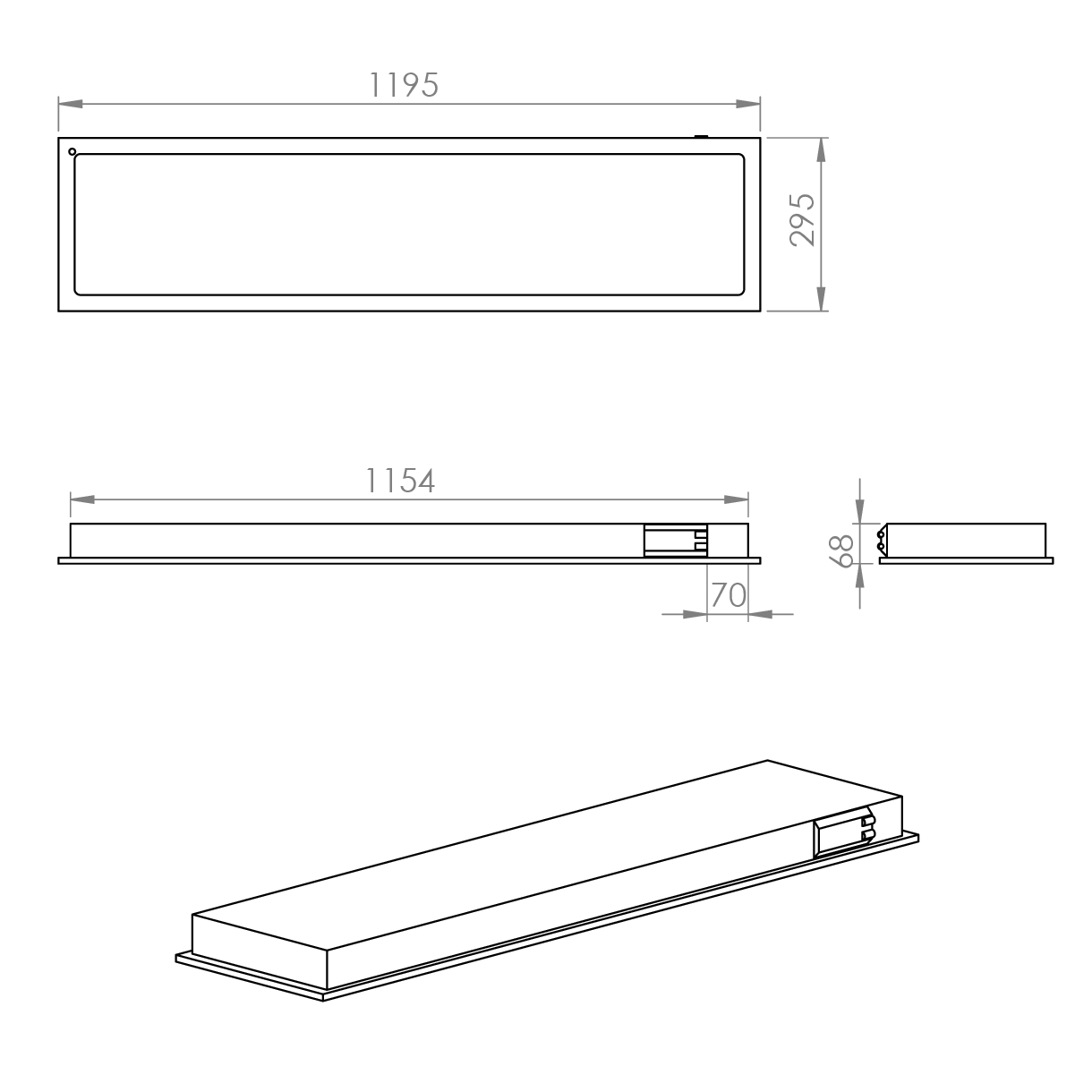

MOD Slim Lay-In 1200x300

MOD Slim Lay-In 1200x300

MOD Slim Pull-Up 1200x300

MOD Slim Pull-Up 1200x300

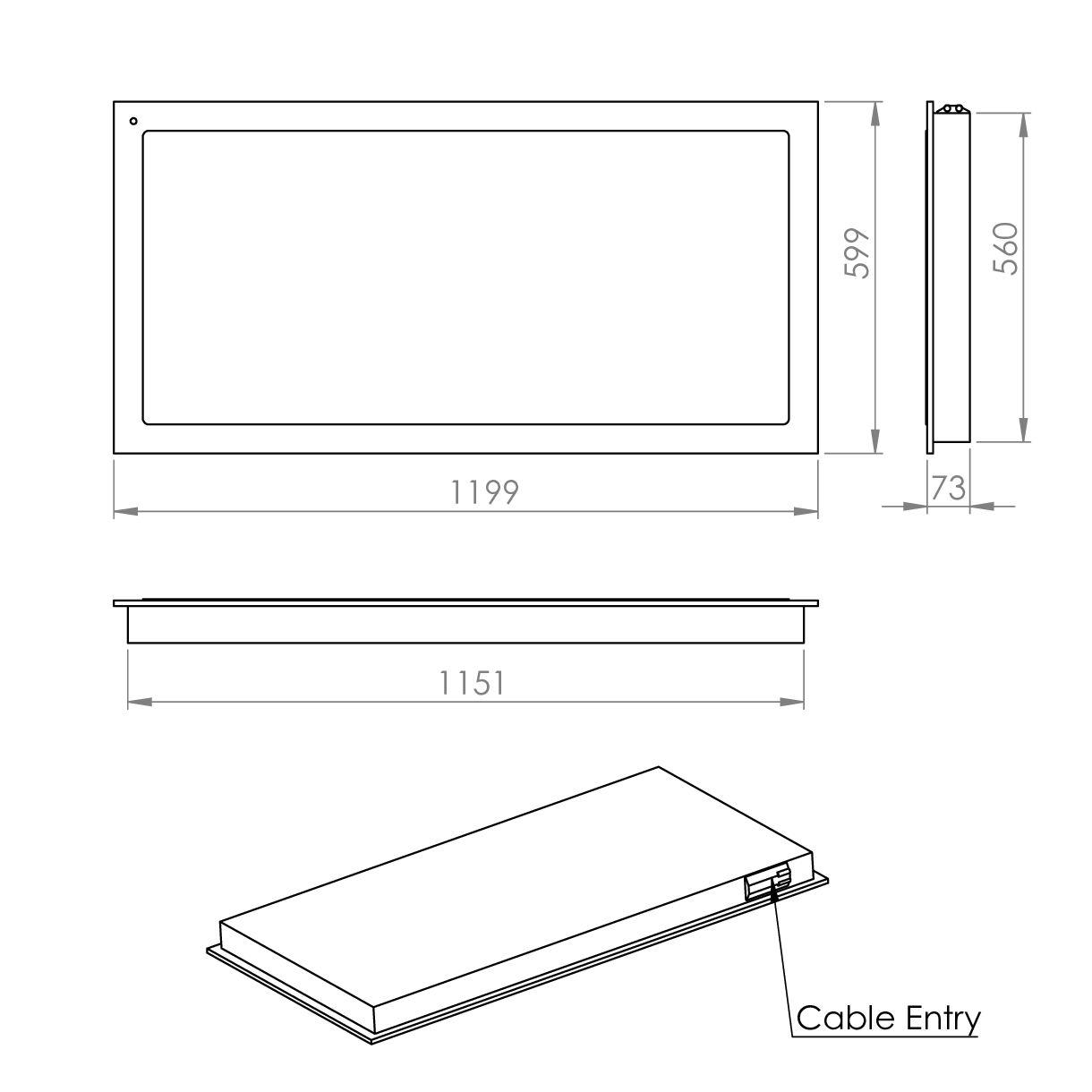

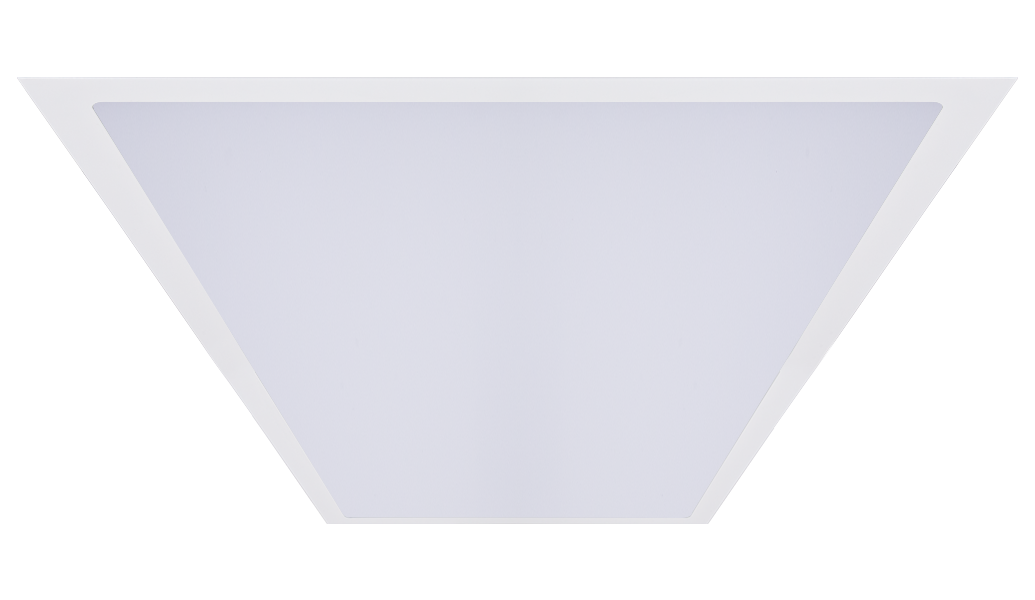

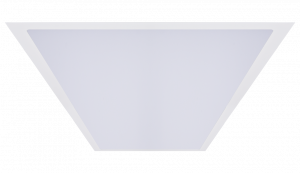

MOD Slim Lay-In 1200x600

MOD Slim Lay-In 1200x600

MOD Slim Pull-Up 1200x600

MOD Slim Pull-Up 1200x600

Ordering

Luminaires

Lay In
Code Description Power Llm/W
MODRS 63 L08 MOD Slim, Lay-In, 600x300, 571llm, Colour 84* 6.6W 87
MODRS 63 L14 MOD Slim, Lay-In, 600x300, 940llm, Colour 84* 10.0W 94
MODRS 63 L17 MOD Slim, Lay-In, 600x300, 1,141llm, Colour 84* 11.6W 98
MODRS 63 L22 MOD Slim, Lay-In, 600x300, 1,477llm, Colour 84 14.3W 103
MODRS 63 L34 MOD Slim, Lay-In, 600x300, 2,283llm, Colour 84 21.0W 109
MODRS L17 MOD Slim, Lay-In, 600x600, 1,317llm, Colour 84* 10.6W 124
MODRS L22 MOD Slim, Lay-In, 600x600, 1,705llm, Colour 84* 13.3W 128
MODRS L29 MOD Slim, Lay-In, 600x600, 2,248llm, Colour 84* 17.1W 131
MODRS L35 MOD Slim, Lay-In, 600x600, 2,718llm, Colour 84* 21.6W 125
MODRS L45 MOD Slim, Lay-In, 600x600, 3,484llm, Colour 84 26.5W 131
MODRS L55 MOD Slim, Lay-In, 600x600, 4,257llm, Colour 84 33.1W 129
MODRS L68 MOD Slim, Lay-In, 600x600, 5,252llm, Colour 84 39.9W 132
MODRS L76 MOD Slim, Lay-In, 600x600, 5,890llm, Colour 84 42.1W 140
MODRS 123 L17 MOD Slim, Lay-In, 1200x300, 1,173llm, Colour 84* 10.6W 111
MODRS 123 L22 MOD Slim, Lay-In, 1200x300, 1,531llm, Colour 84* 13.3W 115
MODRS 123 L29 MOD Slim, Lay-In, 1200x300, 2,018llm, Colour 84* 17.1W 118
MODRS 123 L35 MOD Slim, Lay-In, 1200x300, 2,436llm, Colour 84* 21.6W 113
MODRS 123 L45 MOD Slim, Lay-In, 1200x300, 3,134llm, Colour 84 26.5W 118
MODRS 123 L55 MOD Slim, Lay-In, 1200x300, 3,828llm, Colour 84 33.1W 116
MODRS 123 L68 MOD Slim, Lay-In, 1200x300, 4,739llm, Colour 84 39.9W 119
MODRS 123 L76 MOD Slim, Lay-In, 1200x300, 5,290llm, Colour 84 42.1W 126
MODRS 126 L58 MOD Slim, Lay-In, 1200x600, 4,648llm, Colour 84 31.9W 146
MODRS 126 L70 MOD Slim, Lay-In, 1200x600, 5,532llm, Colour 84 38.6W 143
MODRS 126 L90 MOD Slim, Lay-In, 1200x600, 7,268llm, Colour 84 50.2W 145
MODRS 126 L136 MOD Slim, Lay-In, 1200x600, 10,904llm, Colour 84 80.4W 136
MODRS 126 L152 MOD Slim, Lay-In, 1200x600, 12,160llm, Colour 84 87.1W 140
For Alugrid compatible versions please specify lay-in luminaire with correct ALU suffix shown in miscellaneous ordering codes

For plasterboard ceilings please specify lay-in luminaire and appropriate plasterboard kit.

Pull Up
Code Description Power Llm/W
MODPS 63 L08 MOD Slim, Pull-Up, 600x300, 571llm, Colour 84* 6.6W 87
MODPS 63 L14 MOD Slim, Pull-Up, 600x300, 940llm, Colour 84* 10.0W 94
MODPS 63 L17 MOD Slim, Pull-Up, 600x300, 1,141llm, Colour 84* 11.6W 98
MODPS 63 L22 MOD Slim, Pull-Up, 600x300, 1,477llm, Colour 84 14.3W 103
MODPS 63 L34 MOD Slim, Pull-Up, 600x300, 2,283llm, Colour 84 21.0W 109
MODPS L17 MOD Slim, Pull-Up, 600x600, 1,317llm, Colour 84* 10.6W 124
MODPS L22 MOD Slim, Pull-Up, 600x600, 1,705llm, Colour 84* 13.3W 128
MODPS L29 MOD Slim, Pull-Up, 600x600, 2,248llm, Colour 84* 17.1W 131
MODPS L35 MOD Slim, Pull-Up, 600x600, 2,718llm, Colour 84* 21.6W 125
MODPS L45 MOD Slim, Pull-Up, 600x600, 3,484llm, Colour 84 26.5W 131
MODPS L55 MOD Slim, Pull-Up, 600x600, 4,257llm, Colour 84 33.1W 129
MODPS L68 MOD Slim, Pull-Up, 600x600, 5,252llm, Colour 84 39.9W 132
MODPS L76 MOD Slim, Pull-Up, 600x600, 5,890llm, Colour 84 42.1W 140
MODPS 123 L17 MOD Slim, Pull-Up, 1200x300, 1,173llm, Colour 84* 10.6W 111
MODPS 123 L22 MOD Slim, Pull-Up, 1200x300, 1,531llm, Colour 84* 13.3W 115
MODPS 123 L29 MOD Slim, Pull-Up, 1200x300, 2,018llm, Colour 84* 17.1W 118
MODPS 123 L35 MOD Slim, Pull-Up, 1200x300, 2,436llm, Colour 84* 21.6W 113
MODPS 123 L45 MOD Slim, Pull-Up, 1200x300, 3,134llm, Colour 84 26.5W 118
MODPS 123 L55 MOD Slim, Pull-Up, 1200x300, 3,828llm, Colour 84 33.1W 116
MODPS 123 L68 MOD Slim, Pull-Up, 1200x300, 4,739llm, Colour 84 39.9W 119
MODPS 123 L76 MOD Slim, Pull-Up, 1200x300, 5,290llm, Colour 84 42.1W 126
MODPS 126 L58 MOD Slim, Pull-Up, 1200x600, 4,648llm, Colour 84 31.9W 146
MODPS 126 L70 MOD Slim, Pull-Up, 1200x600, 5,532llm, Colour 84 38.6W 143
MODPS 126 L90 MOD Slim, Pull-Up, 1200x600, 7,268llm, Colour 84 50.2W 145
MODPS 126 L136 MOD Slim, Pull-Up, 1200x600, 10,904llm, Colour 84 80.4W 136
MODPS 126 L152 MOD Slim, Pull-Up, 1200x600, 12,160llm, Colour 84 87.1W 140
*BSEN 12464 compliant options. Please see the MOD Office and MOD UGR for a wider range of glare compliant luminaires.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor
WT White Tunable (Lumen Outputs Vary from Standard)
Please click here for full details on our white tunable offer.
HFR not available in L17 or L22 versions.

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please click here for full details on our wireless controls.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
4PM 4 Pole Panel Mount
6PM 6 Pole Panel Mount
IP44 IP44 Below the Ceiling Only
PBK 123 1200x300 Plasterboard Kit
PBK 126 1200x600 Plasterboard Kit
PBK 66 600x600 Plasterboard Kit
NL Night Light (Non Emergency Variants Only)

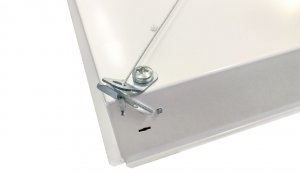

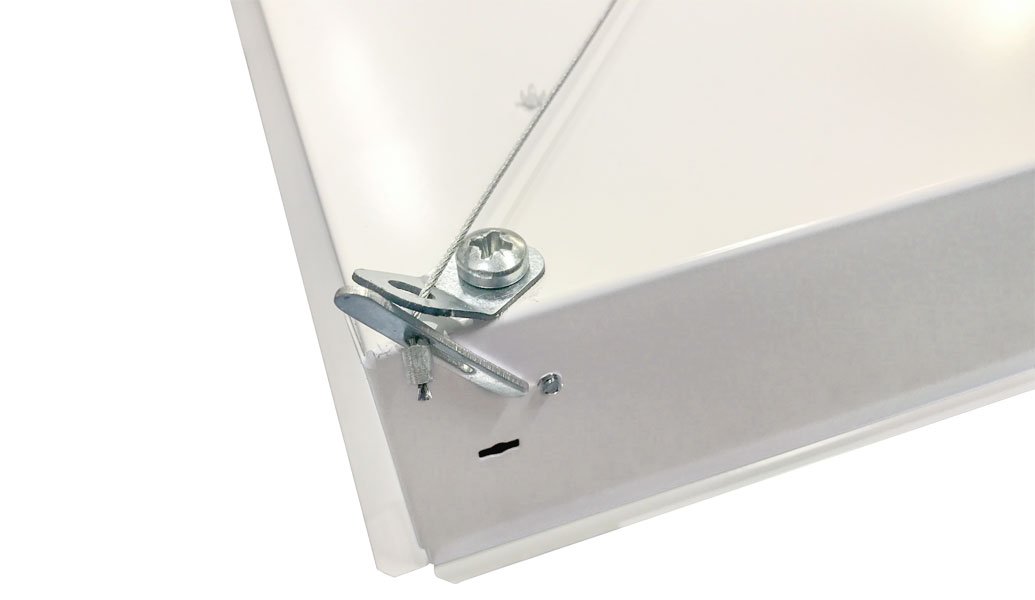

RECESSED TETHER KIT TWIN Secondary fix twin drop.
ALU16 Alugrid 15/16 Ceiling Compatible
ALU08 Alugrid 15/08 Ceiling Compatible
LSF Low Smoke Zero Halogen

Downloads

Installation Guide Lay In (Download PDF) Installation Guide Pull Up (Download PDF) Tether Kit (Download PDF) Plasterboard Kit Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
