MOD Asymmetric 1200

Introduction

The MOD Asymmetric has been developed primarily for use in hospital corridors which must be effectively lit whilst minimising glare for patients, however is also ideal for any application where a wall wash effect is required to highlight displays, such as retail or educational establishments.

The MOD Asymmetric is available in 1200 and 600mm variants, two lumen outputs and all common dimming variants. Where emergency illumination is required we recommend the use of our LED4 standalone emergency range to be used in conjunction with these. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

MOD ASYMMETRIC complies with:

UKCA | CE | IP40 | IP44 | IK08 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE | TP(a)

Recommended applications:

Education | Healthcare / Social Housing | Retail

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Diffuser: Combined 2mm micro film directional diffuser with internal polycarbonate lens
  • IK08
  • IP40
  • IP44

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 95 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • HFR 1-10V analogue dimming
  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for lay-in installation in exposed T ceilings
  • Suitable for plasterboard installation when purchased with the appropriate plasterboard kit

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
  • Available with optional night light
5 year extended warranty available on most products.
Arrow right

Product Images

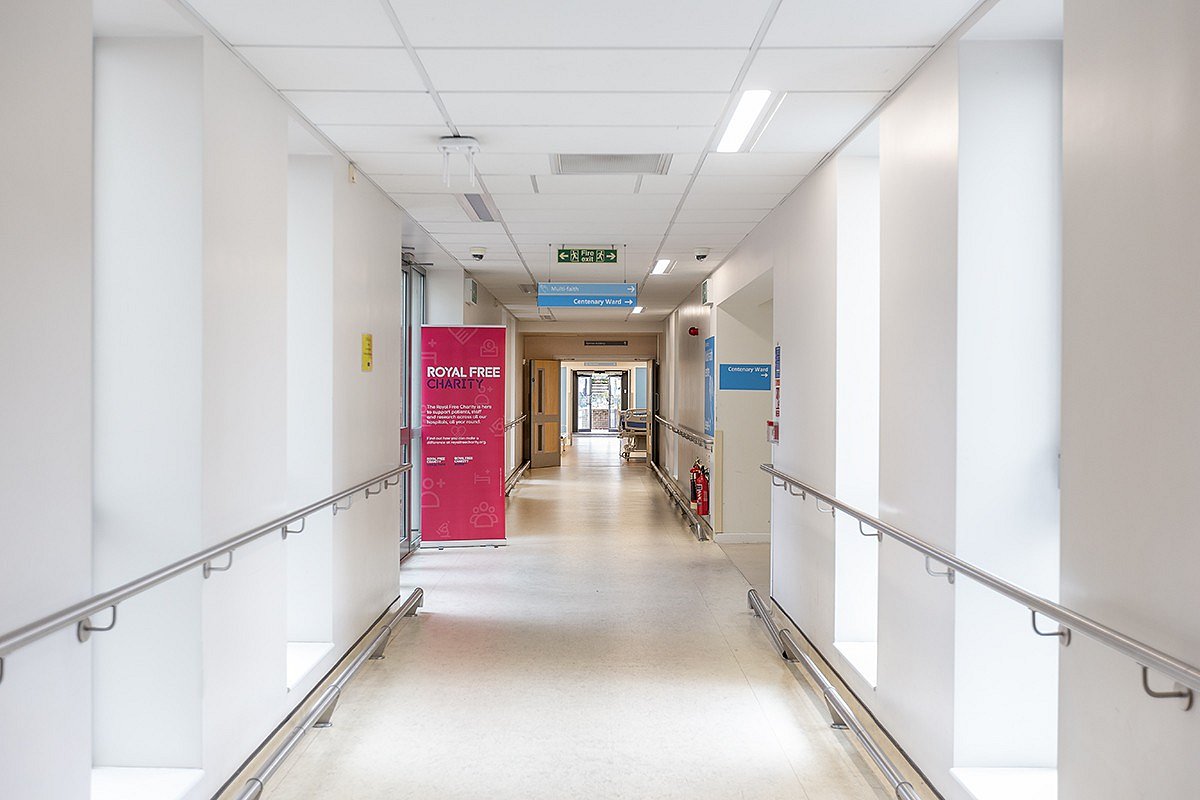

MOD ASYMMETRIC in action

Technical

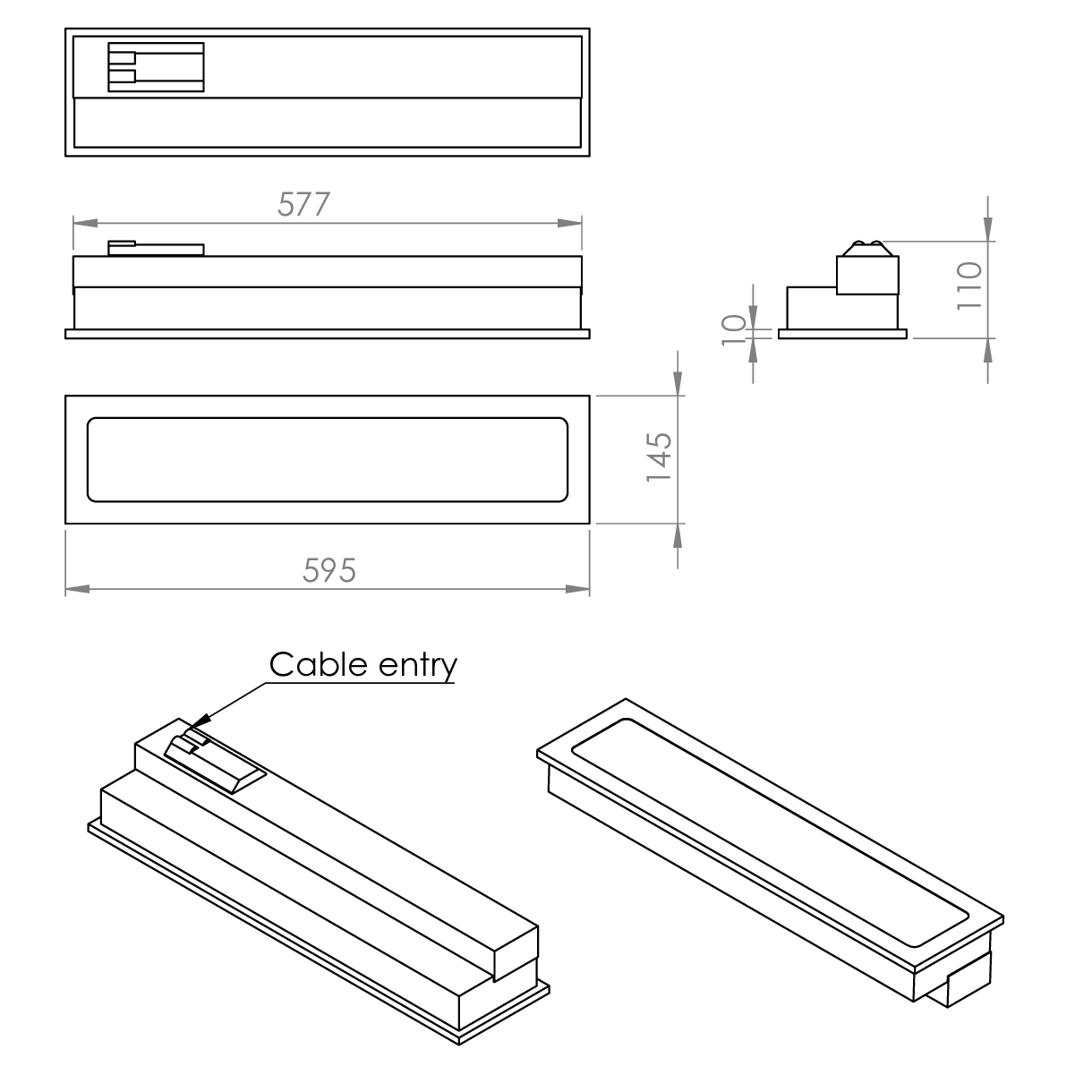

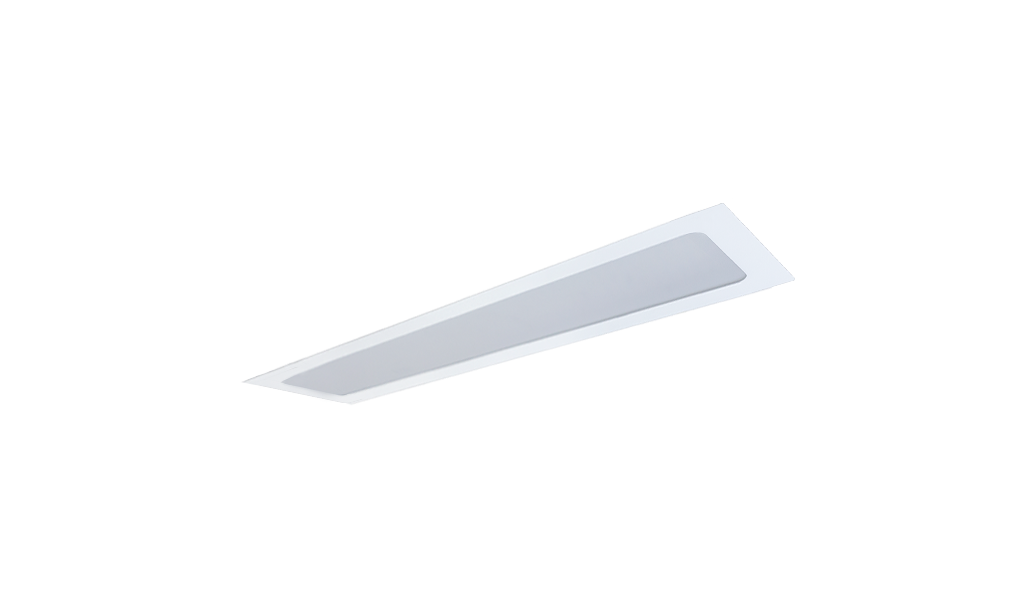

MOD Asymmetric 600x150

MOD Asymmetric 600x150

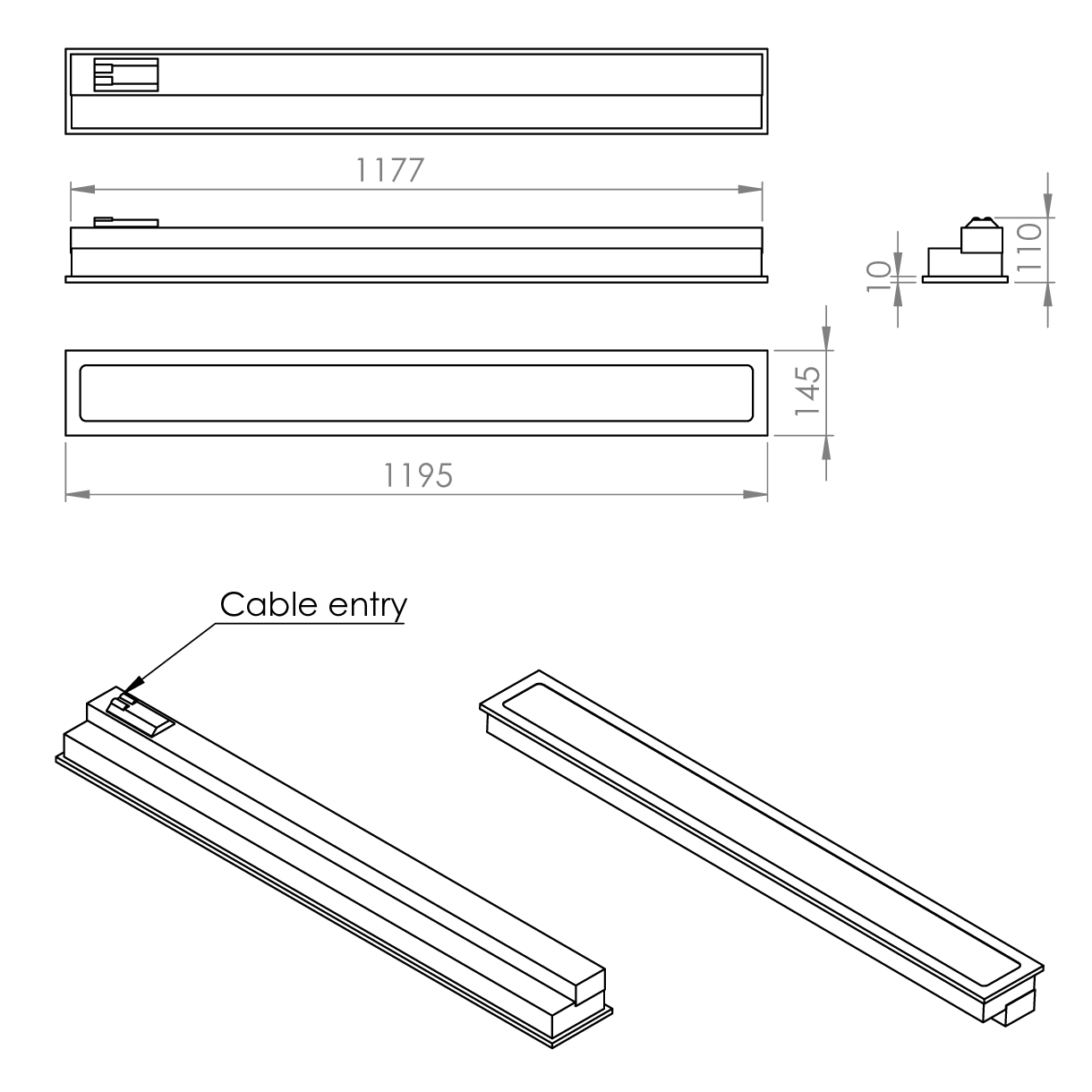

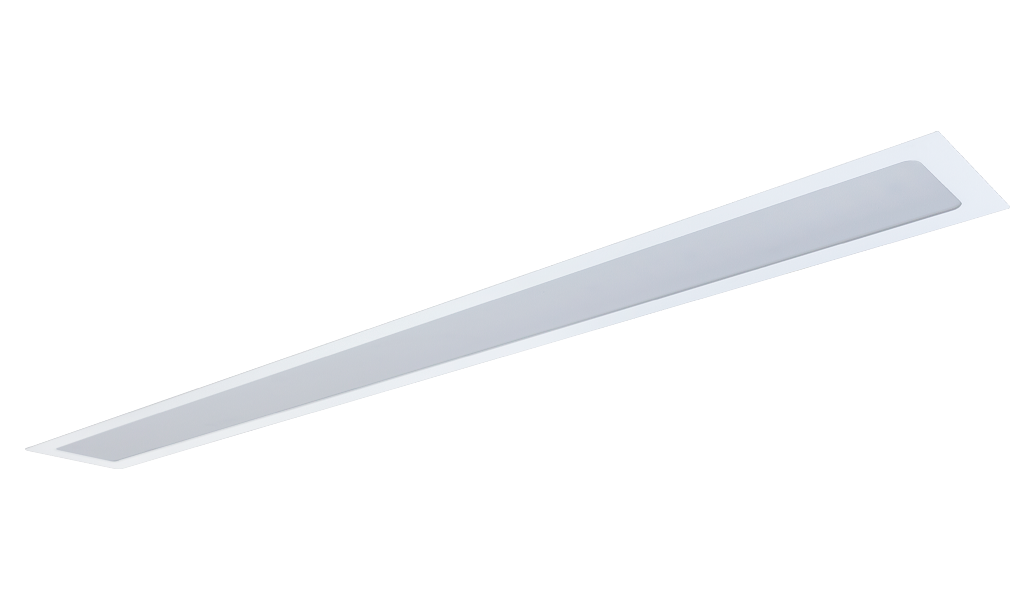

MOD Asymmetric 1200x150

MOD Asymmetric 1200x150

Ordering

Luminaires

Code Description Power Llm/W
MODRAS 61 L17 MOD Asymmetric, 600x150, 1,149llm, Lay-In, Colour 84 12.1W 95
MODRAS 61 L22 MOD Asymmetric, 600x150, 1,487llm, Lay-In, Colour 84 15.6W 95
MODRAS 121 L35 MOD Asymmetric, 1200x150, 2,367llm, Lay-In, Colour 84 23.0W 103
MODRAS 121 L45 MOD Asymmetric, 1200x150, 3,042llm, Lay-In, Colour 84 29.6W 103

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
4PM 4 Pole Panel Mount
6PM 6 Pole Panel Mount
IP44 IP44 Below the Ceiling Only
MODRS TETHER KIT Secondary Fix Kit Single Drop
MODRS TETHER KIT TWIN Secondary Fix Kit Twin Drop
NL Night Light (Non Emergency Variants Only)
LSF Low Smoke Zero Halogen
MODRAS L PBK600 600x150 Plasterboard Kit.
MODRAS L PBK1200 1200x150 Plasterboard Kit.
