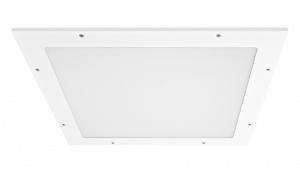

MOD SECURE
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The MOD Secure has been tested and certified to comply with the requirements of the Department of Health Environmental Design Guide, Adult Medium Secure Services, for use in secure applications where care must be taken to ensure that vulnerable patients are at minimal risk of harm.
The MOD Secure is manufactured with a robust 1.5mm steel housing and frame powder painted white, and is supplied complete with a 6mm thick opal polycarbonate diffuser ensuring it can withstand attack from a wide range of implements without compromising the integrity of the luminaire or posing a risk to patients. When installed with anti pick mastic the MOD Secure complies with ligature resistant requirements and is also rated to IK10 and IP40.
The MOD Secure has been designed to ensure that alongside the critical safety requirements it is also able to provide a pleasant atmosphere for patient recovery with a wide range of optional lumen outputs, colour temperatures, dimming options and integral lithium emergency. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
MOD SECURE complies with:
UKCA | CE | IP40 | IK10 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Healthcare / Social Housing
Specification
Construction
- Housing: 1.5mm CR4 steel
- Housing: Compliant with the requirements of the Department of Health Environmental Design Guide, Adult Medium Secure Services.
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Diffuser: 6mm layered high transmission opal and clear polycarbonate TP(a) rated
- IK10
- IP40
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 125 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- HFR 1-10V analogue dimming
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional White tunable
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for plasterboard installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available with optional night light

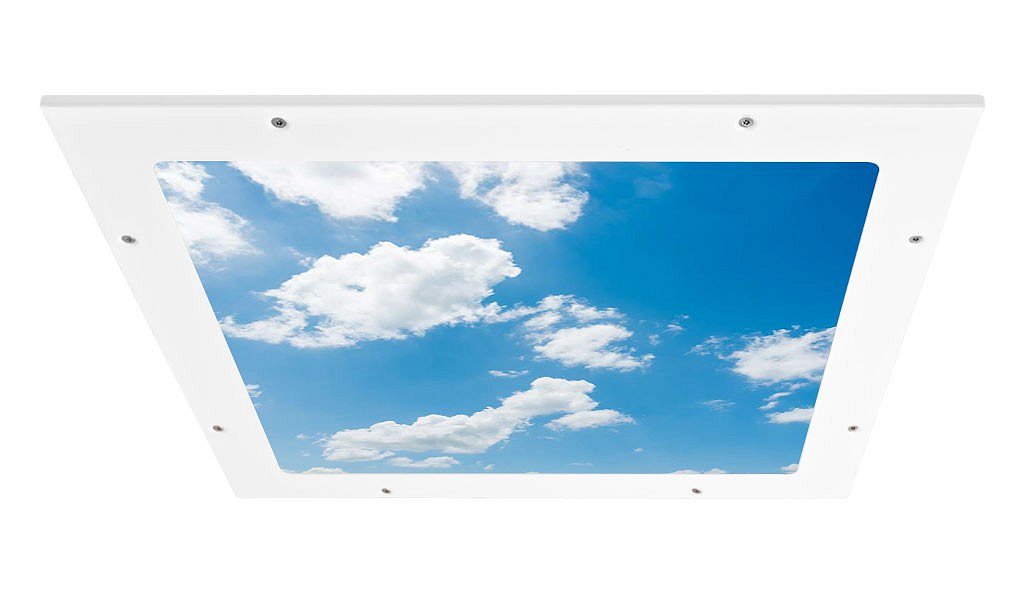

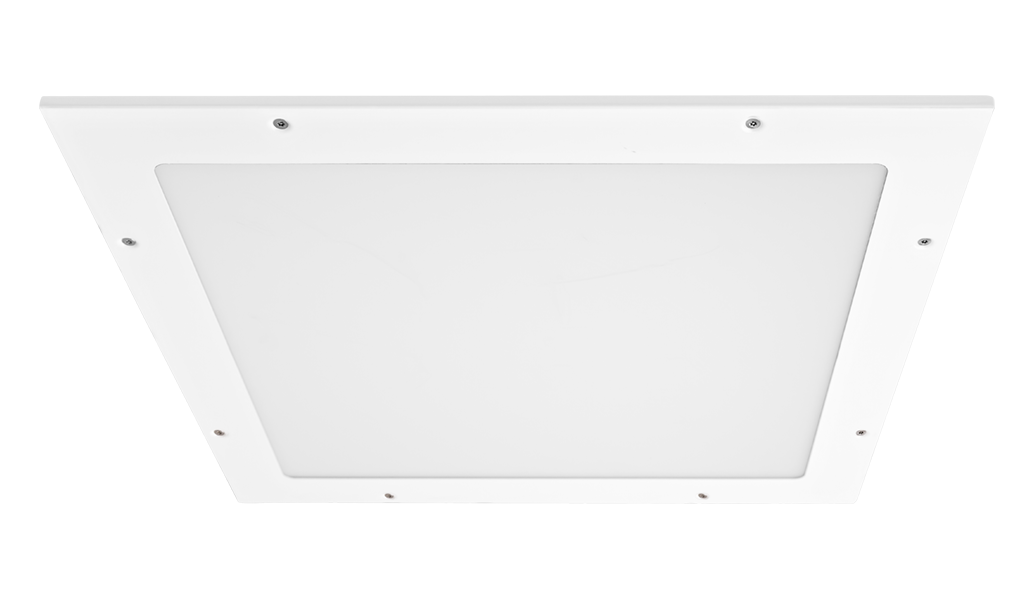

Product Images

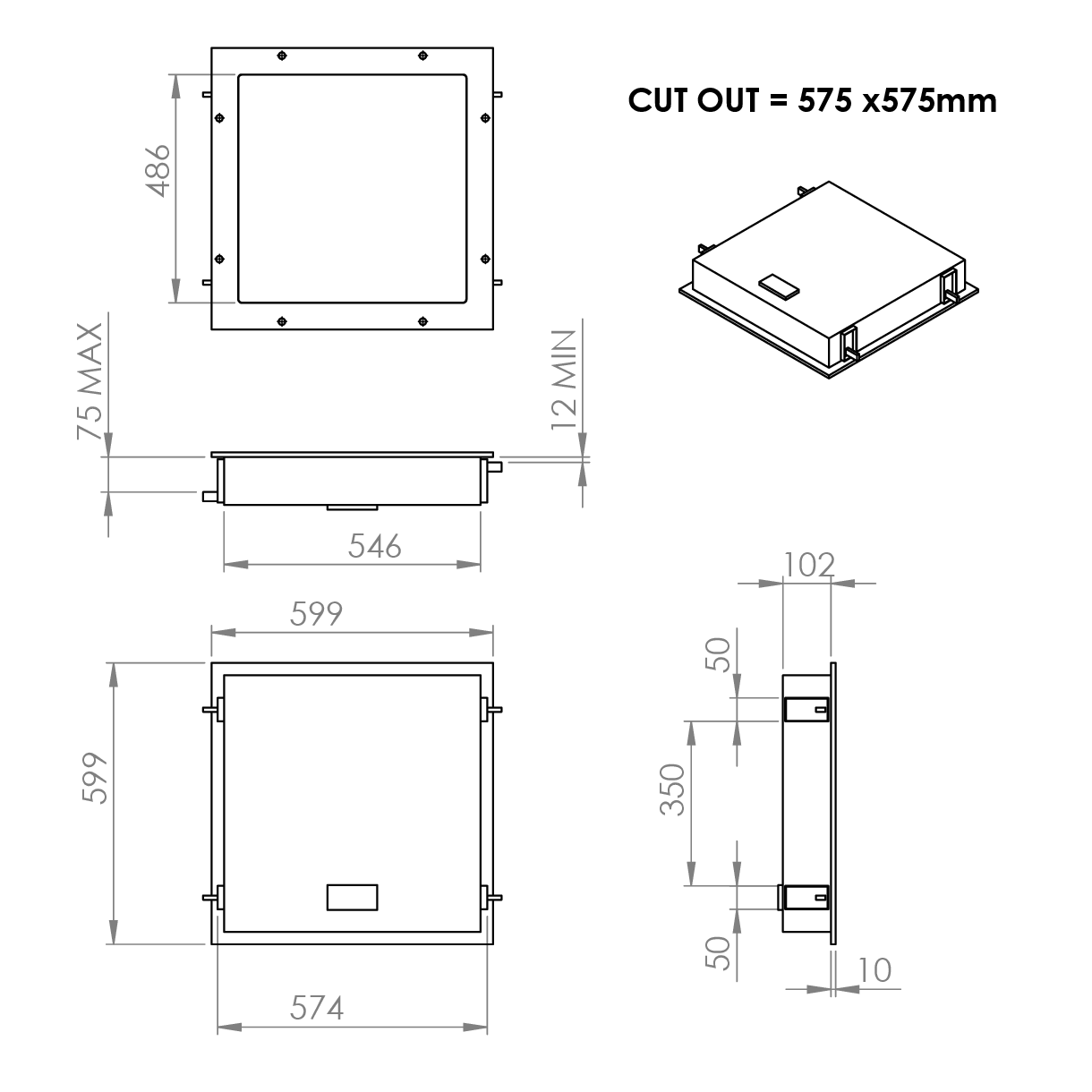

Technical
MOD Secure
Ordering
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
| WT | White Tunable (Lumen Outputs Vary from Standard) |
| Please click here for full details on our white tunable offer. | |
Control
| Code | Description |
|---|---|
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| NL | Night Light (Non Emergency Variants Only) |
| TRS INSTALL KIT | Tamper Resistant Compatible Screwdriver Heads |
| LSF | Low Smoke Zero Halogen |
