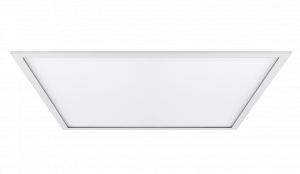

MOD EDGE UGR
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

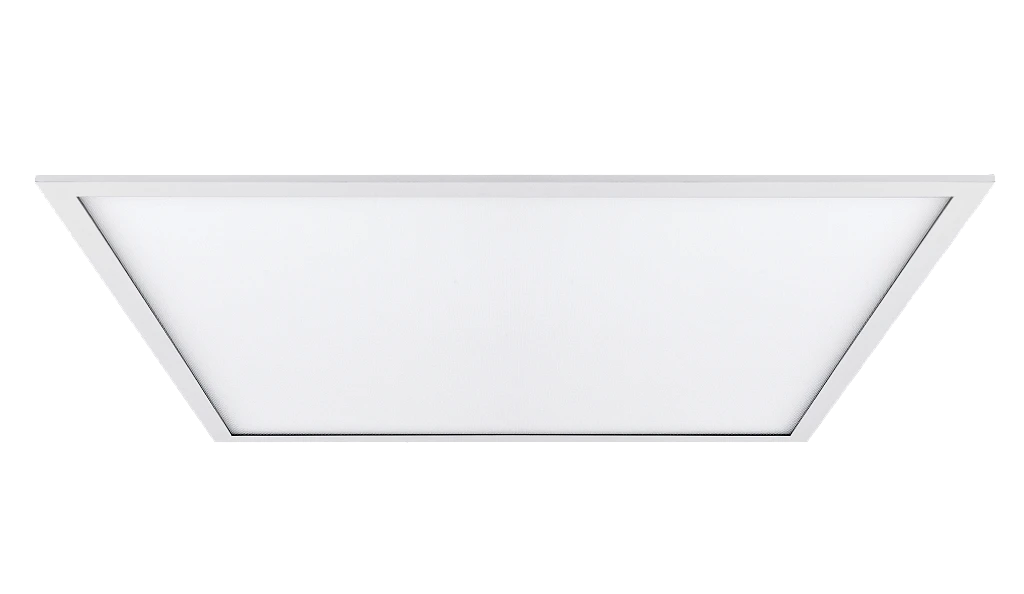

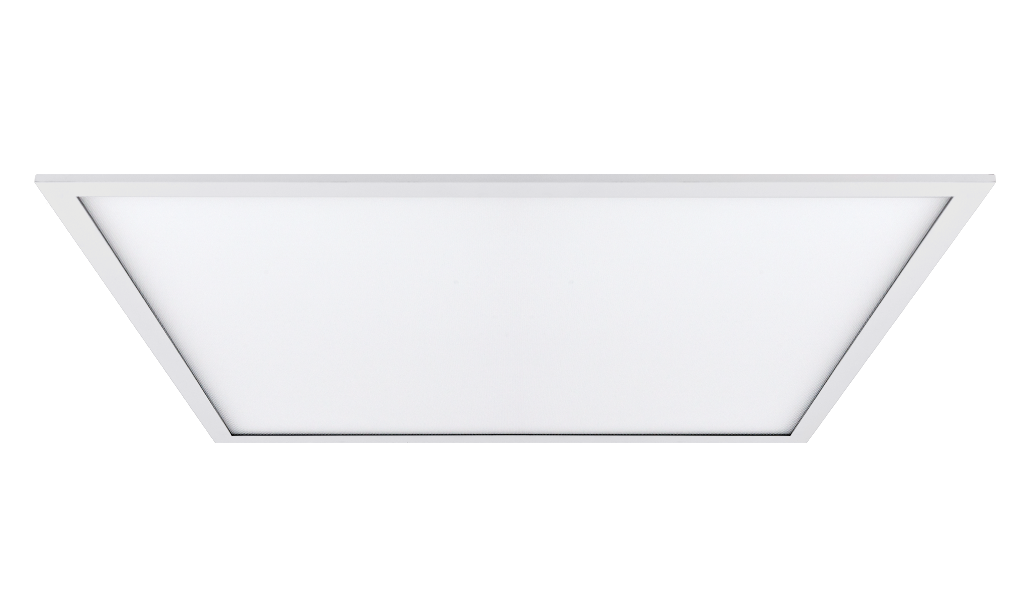

The MOD Edge UGR compliments our recessed modular range with an edge lit modular luminaire with a housing depth of just 8.5mm, ideal for applications where ceiling void depth is limited and a minimum of space is available to lift and tilt luminaires into position.
The MOD Edge UGR is manufactured with a TP(a) compliant microprism diffuser providing peace of mind that safety regulations are adhered to whilst allowing installation in applications where glare compliance to both BSEN12464 and UGR 19 are required. The MOD Edge UGR ensures compliance is complimented with flexibility with a wide range of lumen outputs, dimming and lithium emergency options.
MOD EDGE UGR complies with:
UKCA | CE | IP20 | TP(a)
Recommended applications:
Canteen | Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Office | Retail | Transport | Warehousing
Specification
Construction
- Housing: Extruded aluminium
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Diffuser: Combined 2mm high transmission opal polycarbonate TP(a) rated and 2mm microprism anti glare PMMA
- IP20
- Edge lit construction allows the MOD Edge to offer the slimmest housing in our range.
Performance
- Part L2 compliant
- BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
- 3SDCM Three step Macadams ellipse
- TM21: L70 at 50,000 hours
- Up to 117 luminaire lumens per circuit Watt.
Environmental
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
Installation
- Suitable for lay-in installation in exposed T ceilings
Variations
- Available in a range of lumen outputs
Product Images

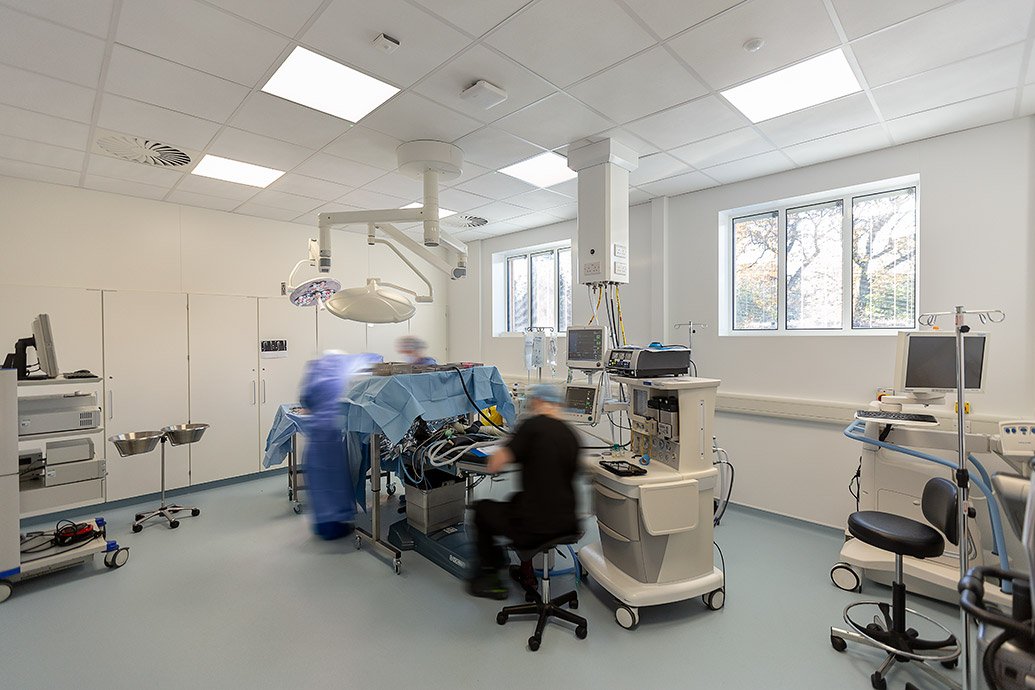

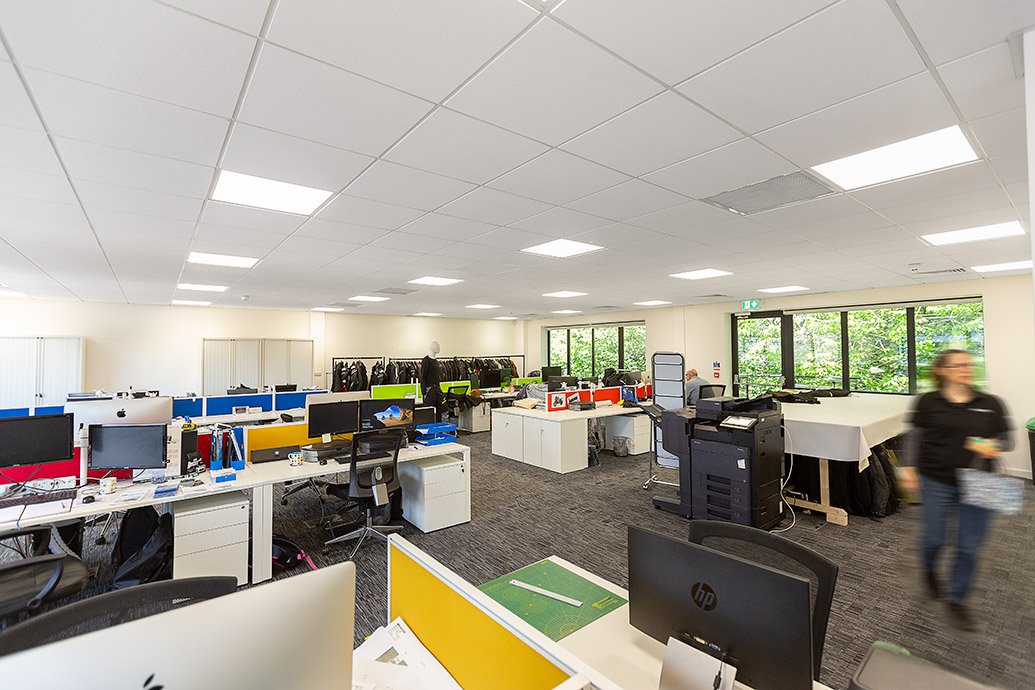

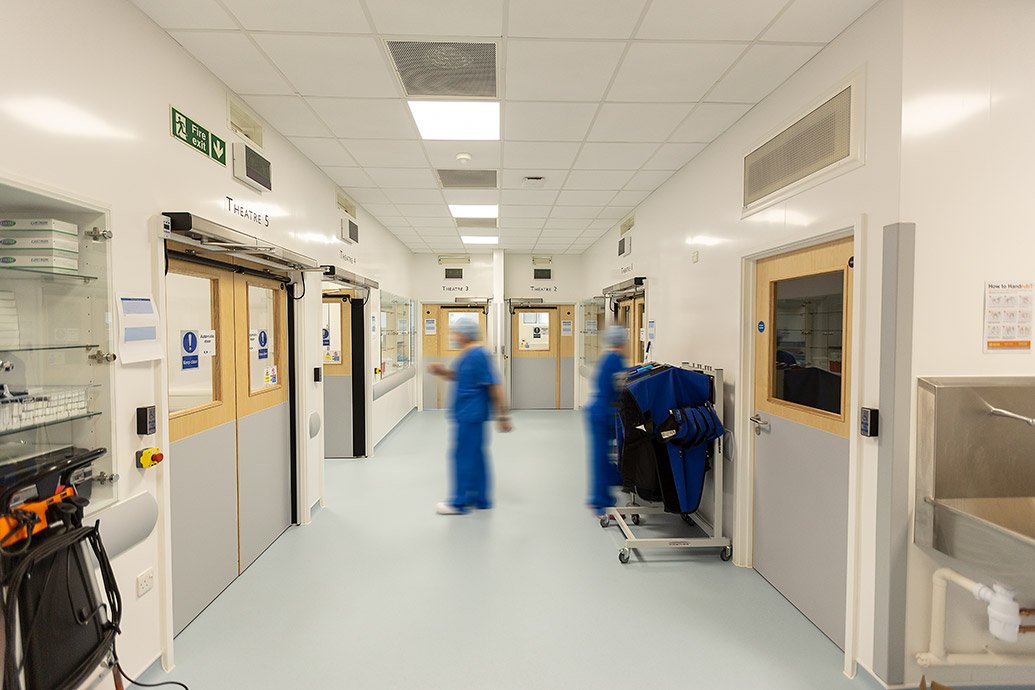

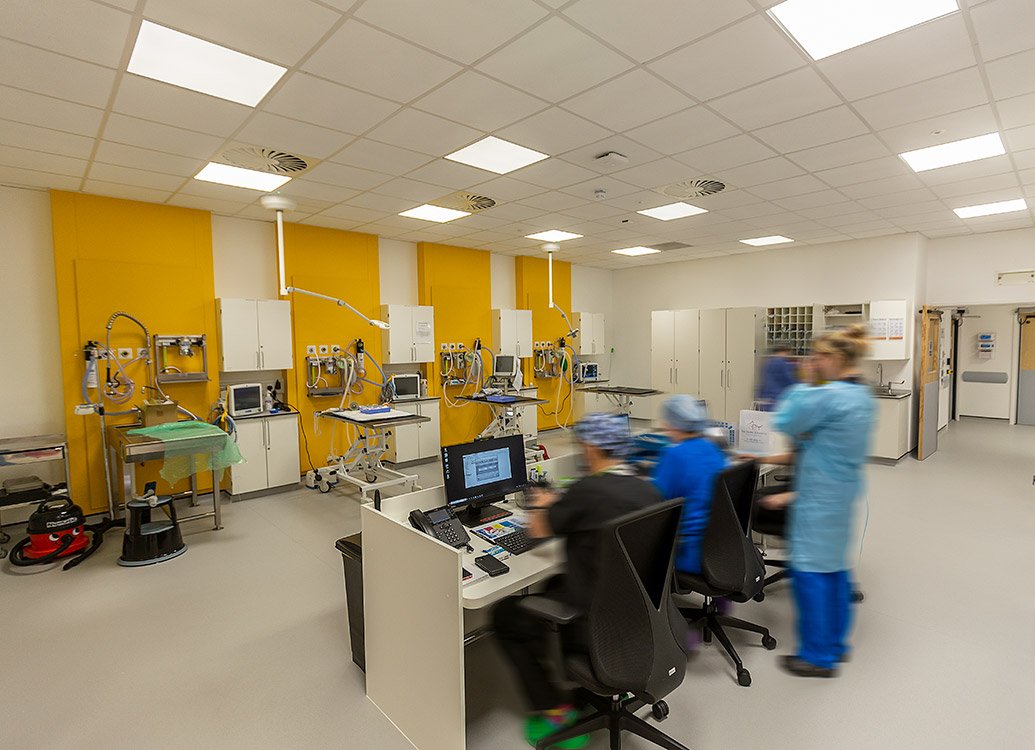

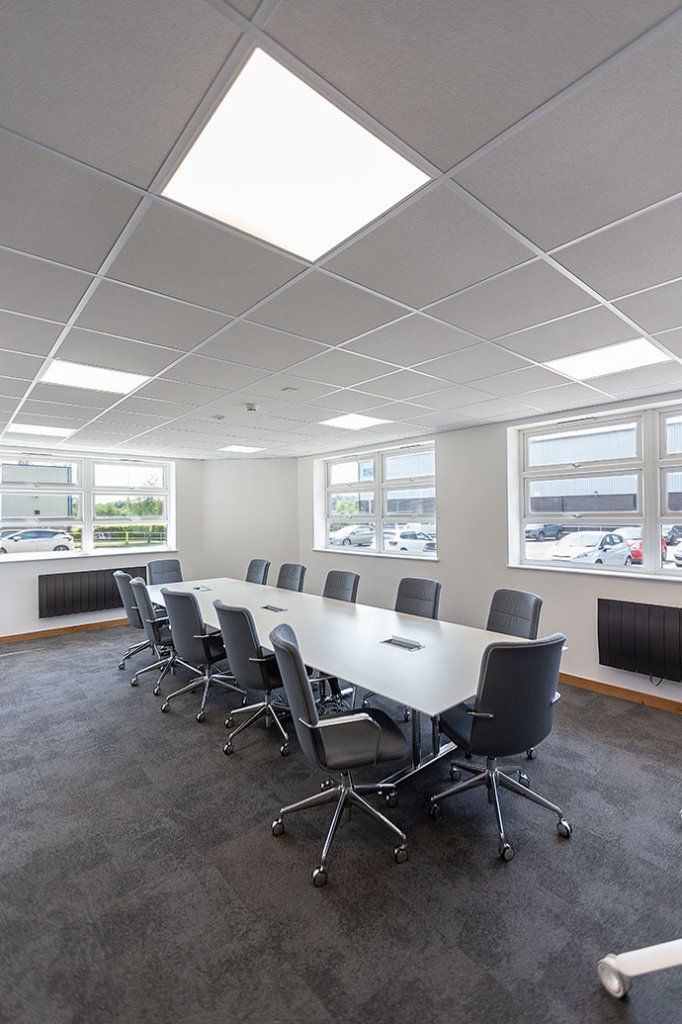

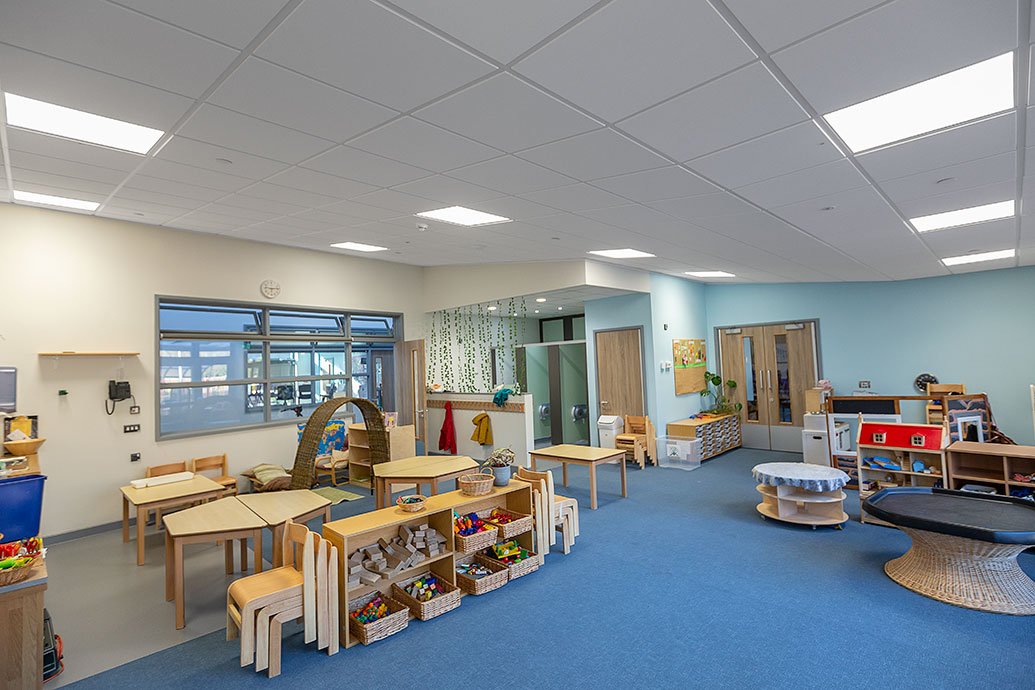

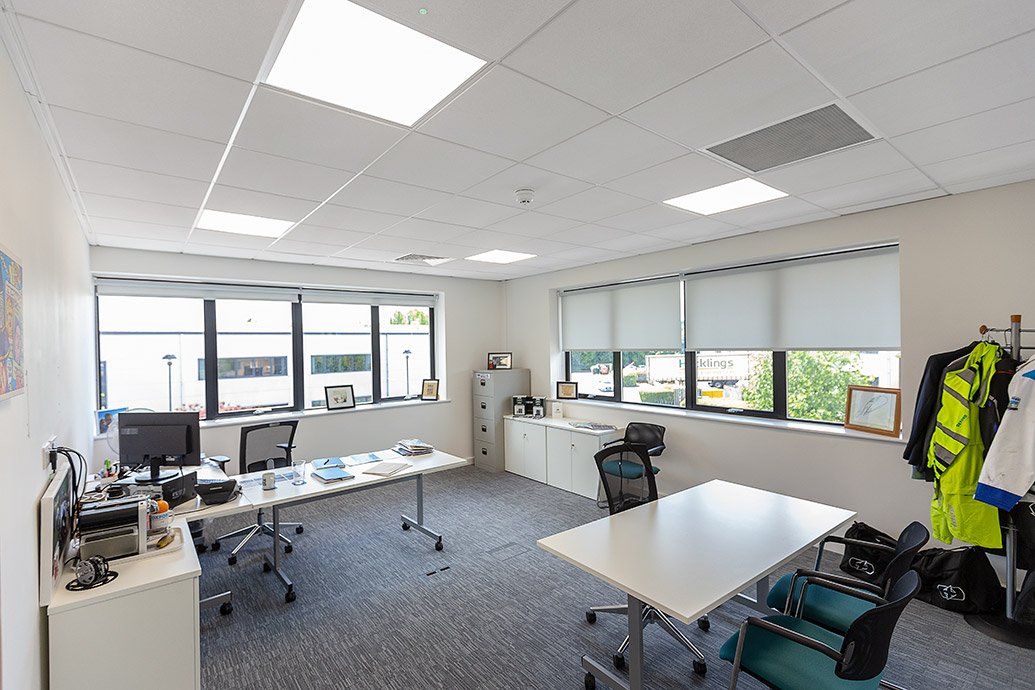

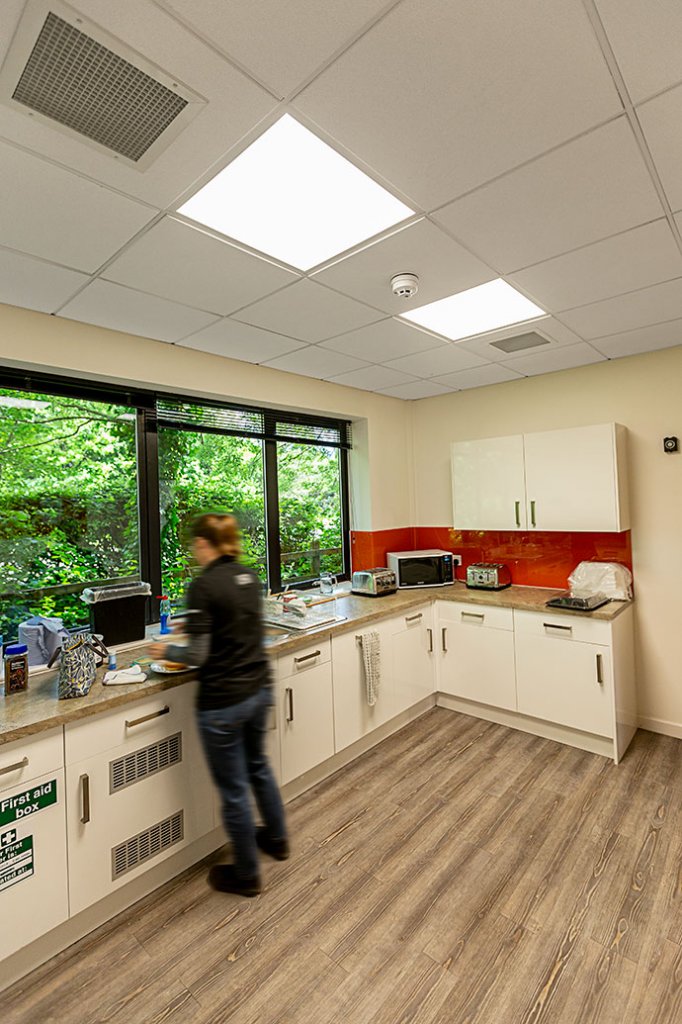

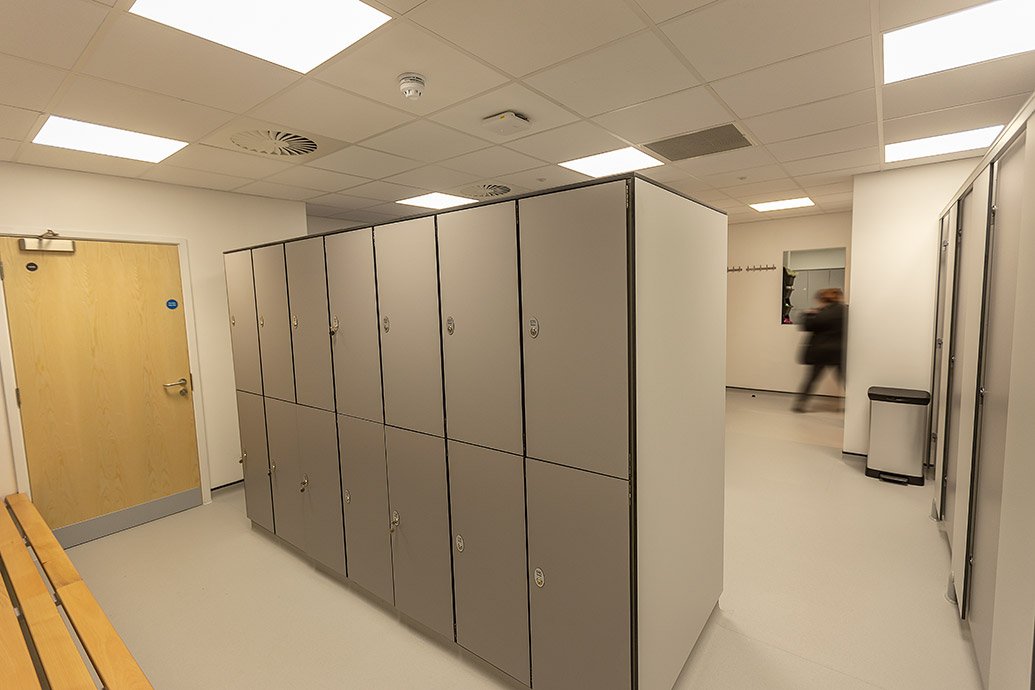

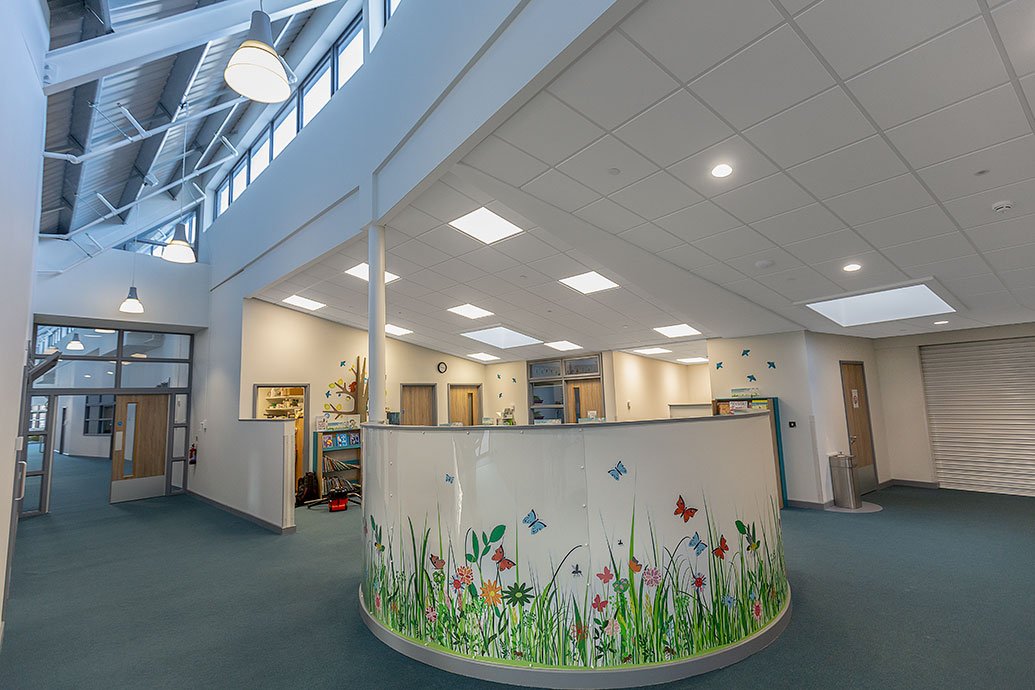

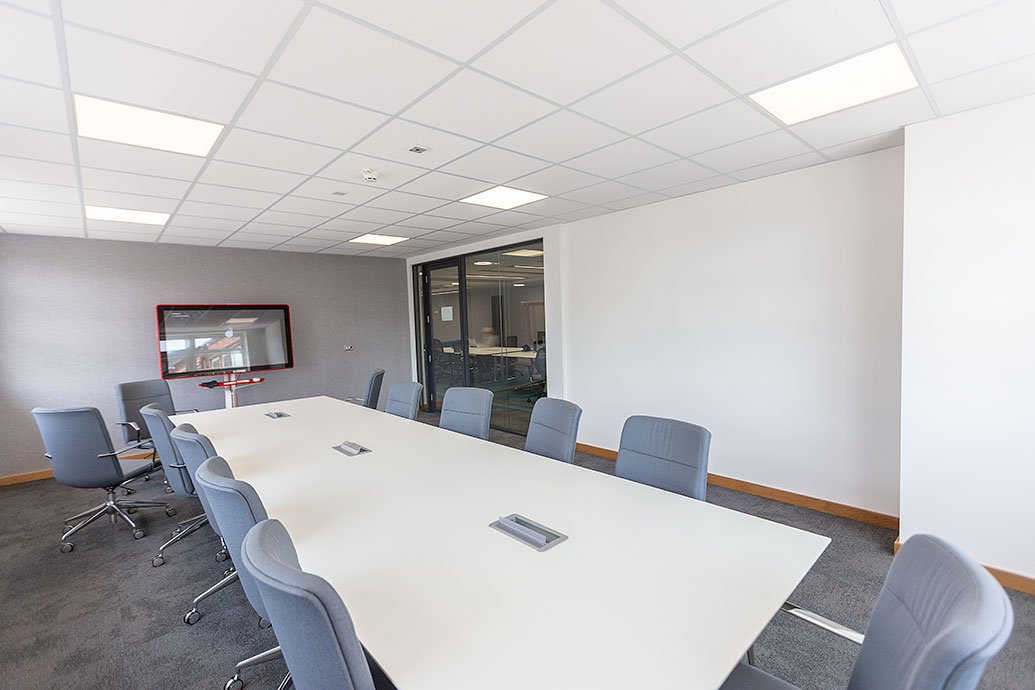

MOD EDGE UGR in action
Technical

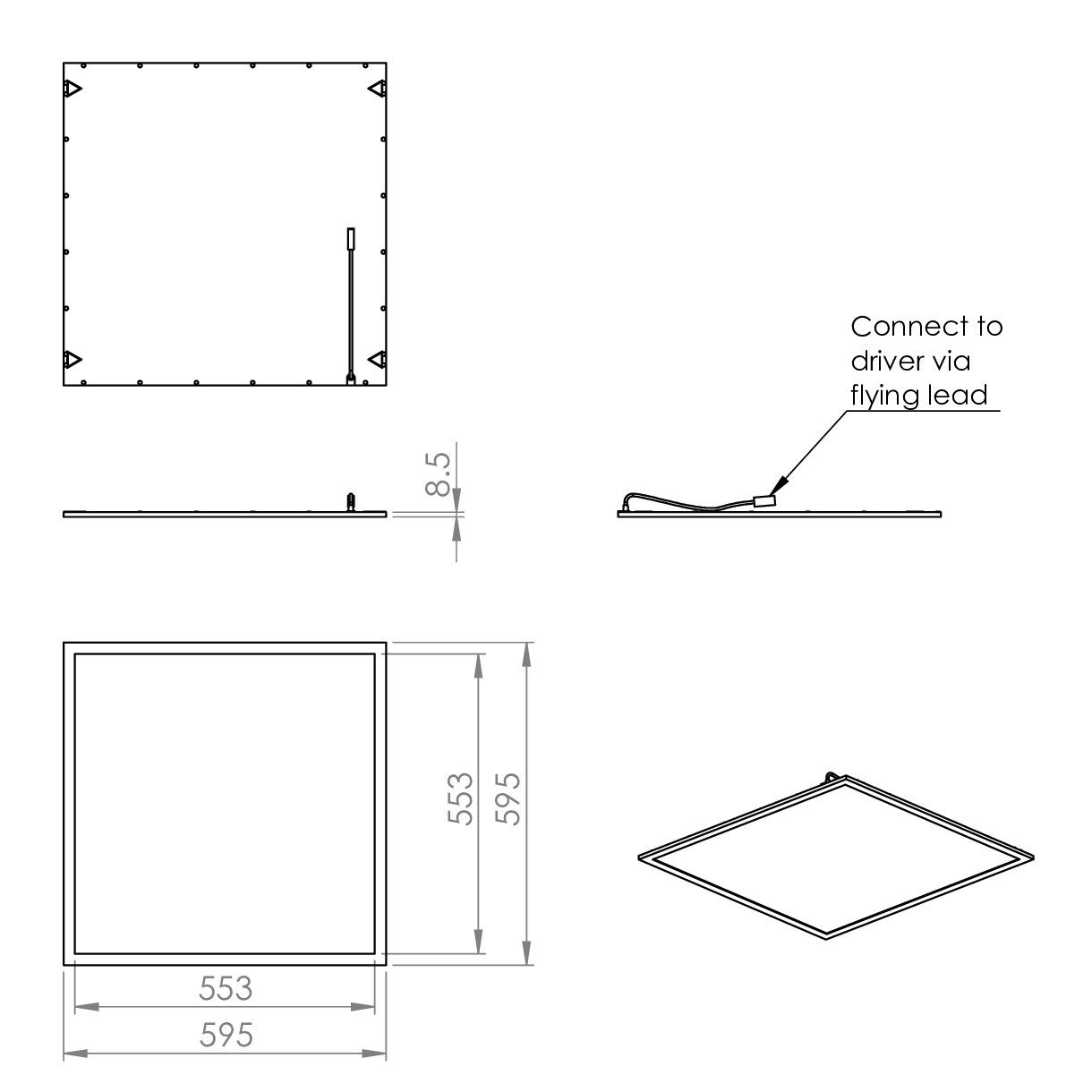

MOD Edge UGR
Emergency Gear Package
Ordering
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
Miscellaneous
| Code | Description |
|---|---|
| C827/65 | Manual Colour Switch 2700k / 4000k / 6500k |
