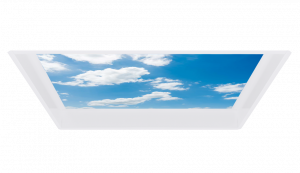

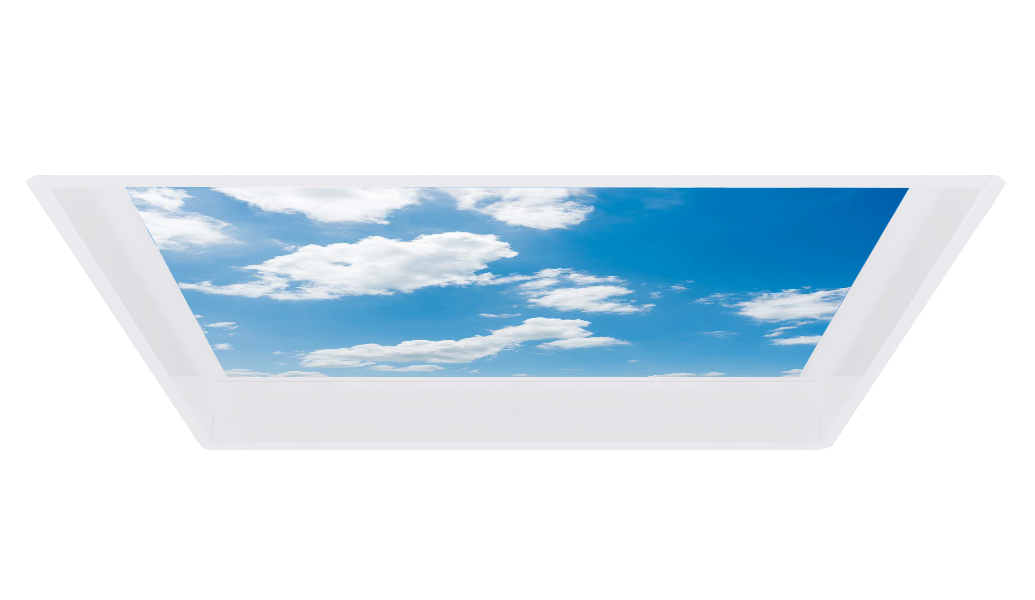

Mod Caelus Skylight

Introduction

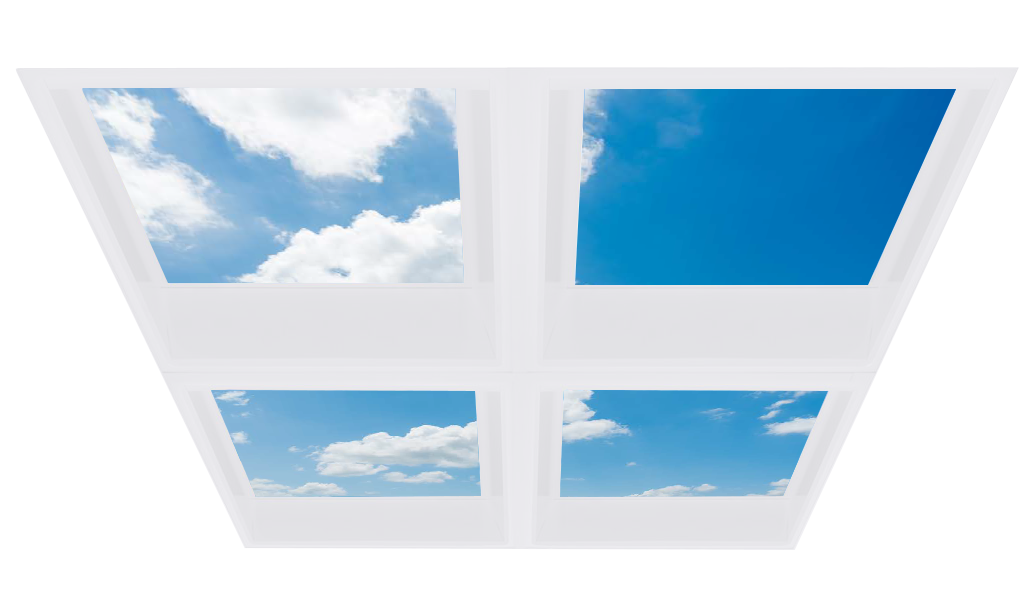

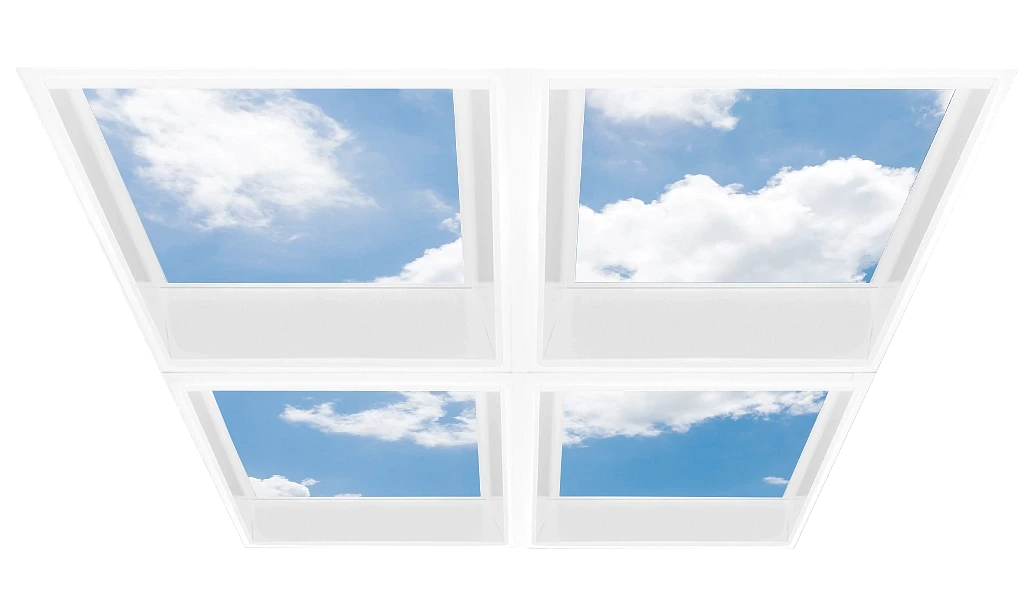

In health care and educational establishments decorative lighting effects can have a significant impact on the well being of patients and pupils. The Mod Caelus range is available with a range of graphic designs including clouds, blossom and trees allowing the simulation of skylights and other decorative features that can be especially effective in large buildings where it may not be possible to incorporate windows in internal rooms. The MOD Caelus Skylight includes an upstand frame to recess the luminaire into the void giving an authentic skylight appearance. Images can be divided over multiple luminaires to create larger panoramic images with greater visual impact.

The Mod Caelus Skylight is available in 600x600 sizes, a wide range of lumen outputs, dimming options and is also compatible with a range of wireless control systems. These provide localised grouping and control as well as allowing centralised reporting of energy consumption and failures. IP44 options are also available where a greater level of protection is required.

MOD CAELUS SKYLIGHT complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | TP(a)

Recommended applications:

Education | Healthcare / Social Housing

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Diffuser: Combined 2mm high transmission opal polycarbonate TP(a) rated and 2mm microprism anti glare PMMA
  • IP20
  • Supplied with frame to recess luminaire into the void.

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Not available with emergency

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for lay-in installation in exposed T ceilings

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
  • Available with a range of images including clouds, trees and blossom, custom images are available on request.
5 year extended warranty available on most products.
Arrow right

Product Images

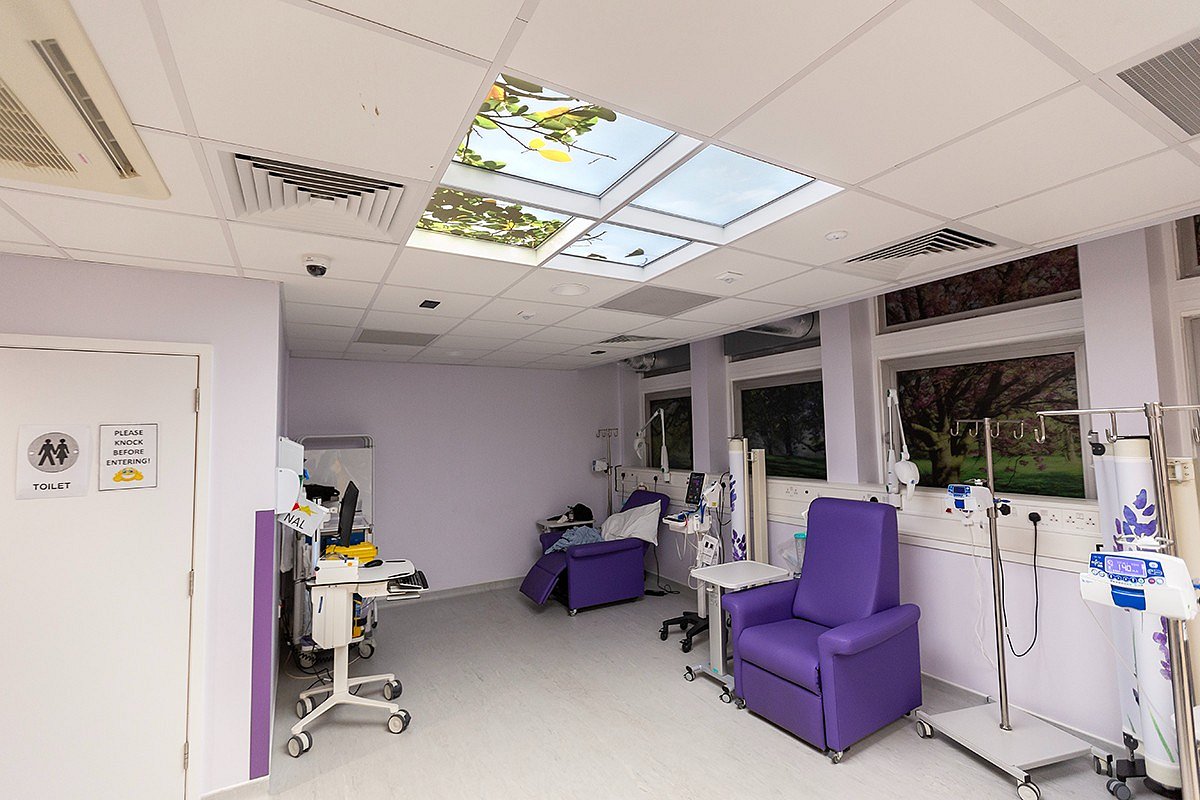

MOD CAELUS SKYLIGHT in action

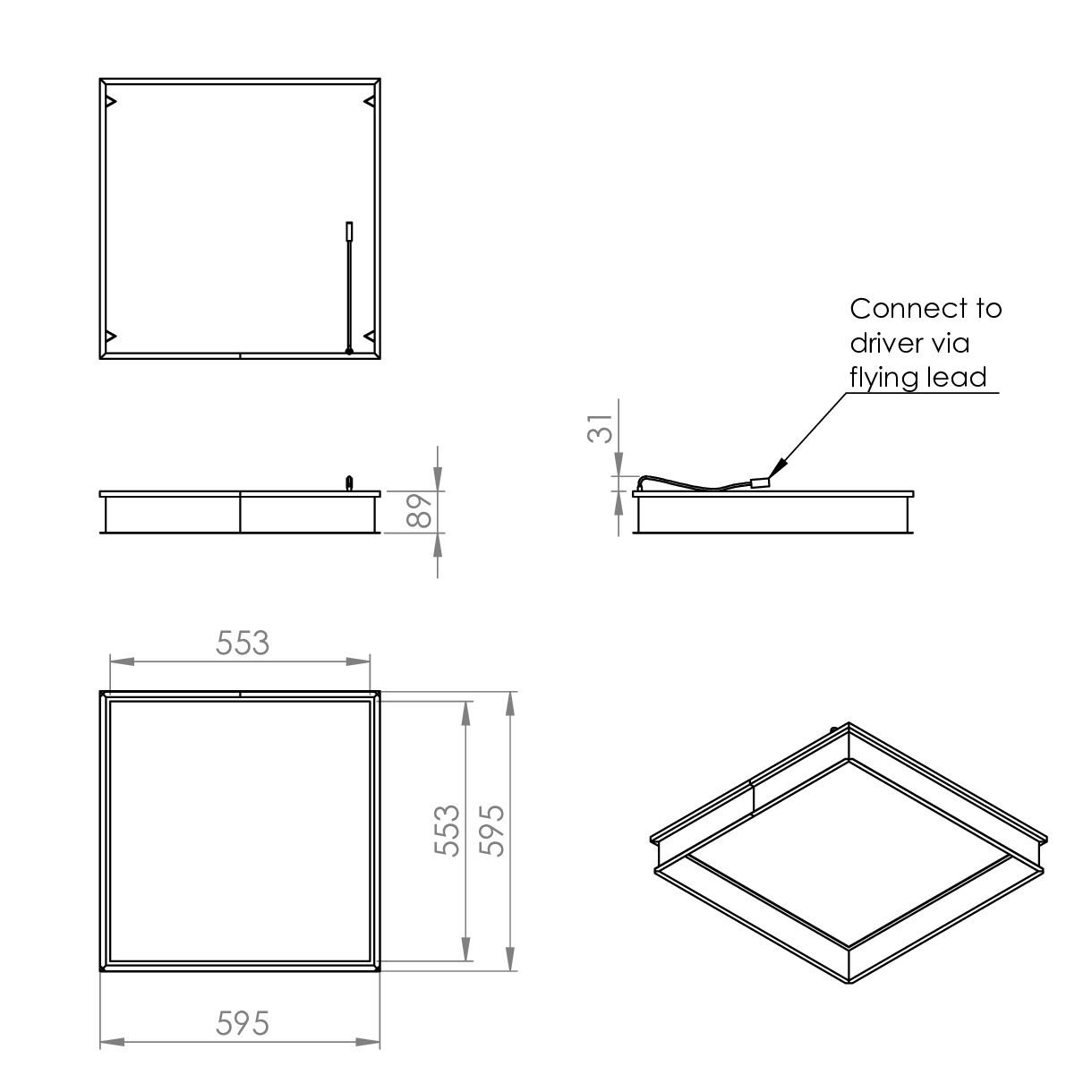

Technical

Mod Caelus Skylight

Mod Caelus Skylight

Ordering

Luminaires

Code Description Power
MCASR L30 CL1205 Mod Caelus Skylight, 600x600, Lay-In, 1,727llm, Cloud Image, Colour 84 25.6W
MCASR L35 CL1205 Mod Caelus Skylight, 600x600, Lay-In, 2,014llm, Cloud Image, Colour 84 29.5W
MCASR L40 CL1205 Mod Caelus Skylight, 600x600, Lay-In, 2,303llm, Cloud Image, Colour 84 36.3W
MCASR L35 2X2 CL12072 Mod Caelus Skylight, 600x600, Lay-In, 2,014llm, 4X 600x600 luminaires Cloud, Colour 84 29.5W
MCASR L30 TR12051 Mod Caelus Skylight, 600x600, Lay-In, 1,727llm, Tree Image, Colour 84 25.6W
MCASR L35 TR12051 Mod Caelus Skylight, 600x600, Lay-In, 2,014llm, Tree Image, Colour 84 29.5W
MCASR L40 TR12051 Mod Caelus Skylight, 600x600, Lay-In, 2,303llm, Tree Image, Colour 84 36.3W
MCASR L35 2X2 TR12074 Mod Caelus Skylight, 600x600, Lay-In, 2,014llm, 4X 600x600 luminaires Tree, Colour 84 29.5W
MCASR L30 BM12071 Mod Caelus Skylight, 600x600, Lay-In, 1,727llm, Blossom Image, Colour 84 25.6W
MCASR L35 BM 12071 Mod Caelus Skylight, 600x600, Lay-In, 2,014llm, Blossom Image, Colour 84 29.5W
MCASR L40 BM 12071 Mod Caelus Skylight, 600x600, Lay-In, 2,303llm, Blossom Image, Colour 84 36.3W
MCASR L35 2X2 BM12041 Mod Caelus Skylight, 600x600, Lay-In, 2,014llm, 4X 600x600 luminaires Blossom, Colour 84 29.5W
Custom images and other panorama sizes are available on request.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire
RC Reacta-Control, Wireless Enabled Luminaire

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
