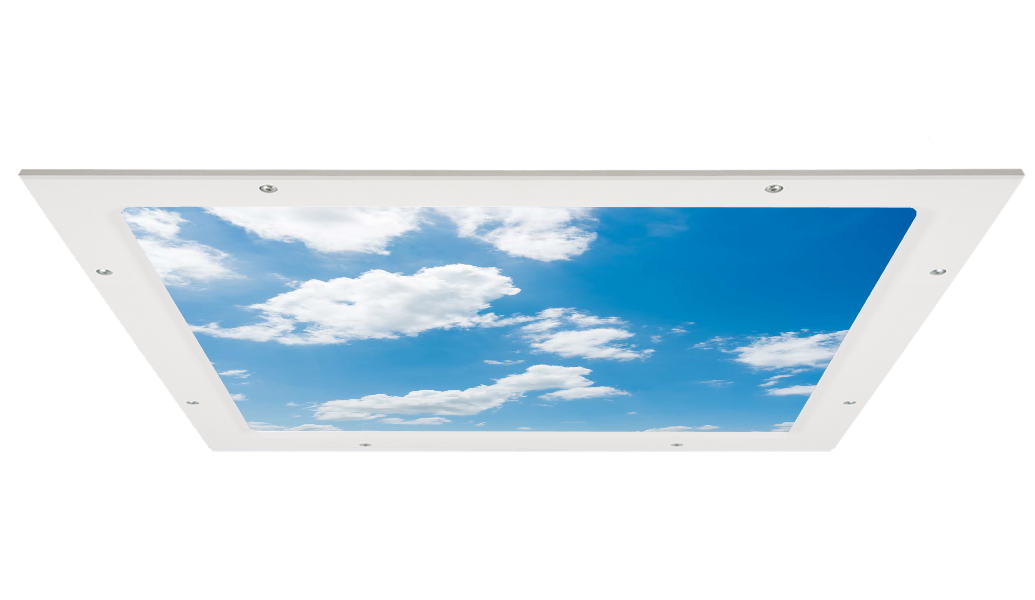

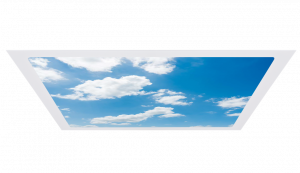

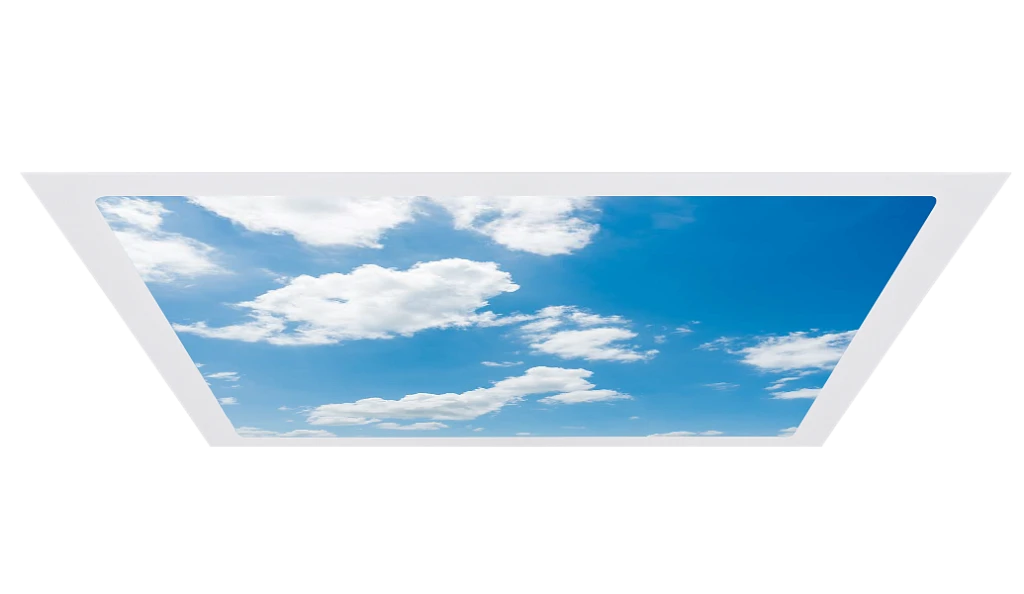

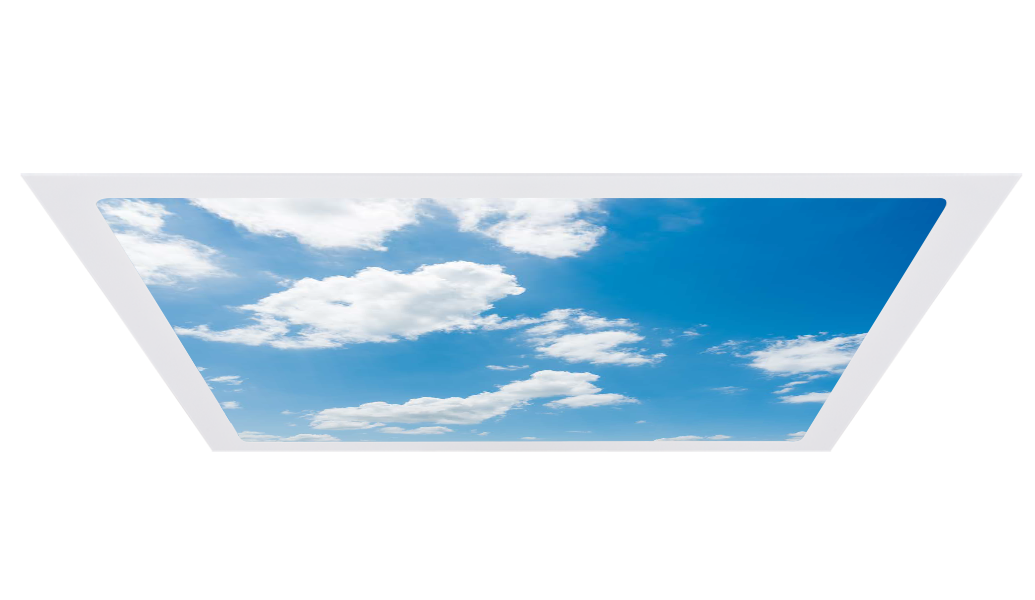

MOD Caelus Cloud

Introduction

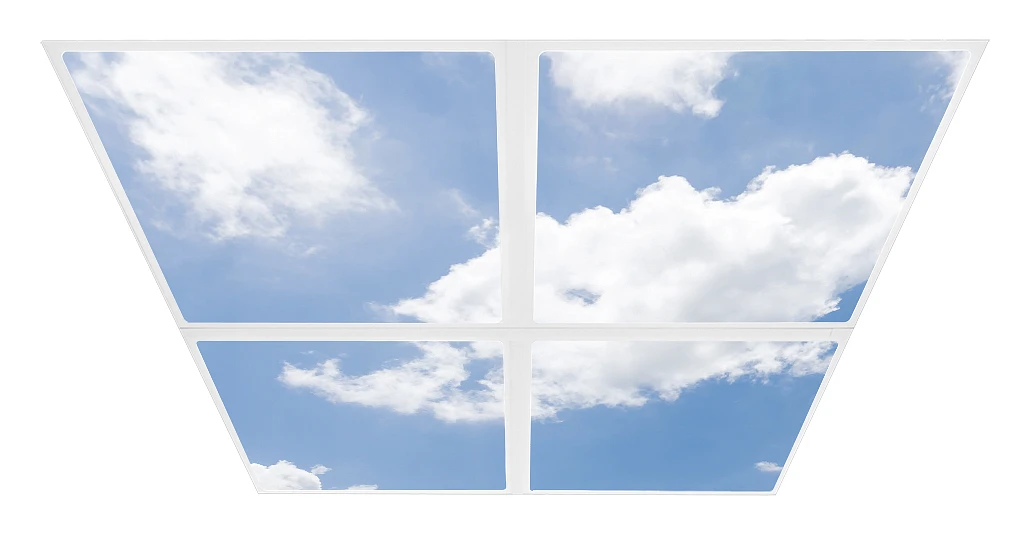

In health care and educational establishments decorative lighting effects can have a significant impact on the well being of patients and pupils. The Mod Caelus range is available with a range of graphic designs including clouds, blossom and trees allowing the simulation of skylights and other decorative features that can be especially effective in large buildings where it may not be possible to incorporate windows in internal rooms. Images can be divided over multiple luminaires to create larger panoramic images with greater visual impact.

The MOD Caelus is available in 600x600 and 1200x600 sizes, a wide range of lumen outputs, dimming options including white tunable and is also compatible with a range of wireless control systems. These provide localised grouping and control as well as allowing centralised reporting of energy consumption and failures. IP44 options are also available where a greater level of protection is required.

MOD CAELUS complies with:

UKCA | CE | IP40 | IP44 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE | TP(a)

Recommended applications:

Education | Healthcare / Social Housing

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
  • IK08
  • IP40

Performance

  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Not available with emergency

Control

  • HFR 1-10V analogue dimming
  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional White tunable
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for plasterboard installation when purchased with the appropriate plasterboard kit
  • Suitable for lay in installation in exposed T ceiling grids and pull up installation in SAS120, Armstrong Orcal 1800 and Burgess Clip-in ceiling, please specify lay in or pull up accordingly. Alugrid compatible variants available.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available with a range of images including clouds, trees and blossom, custom images are available on request.
5 year extended warranty available on most products.
Arrow right

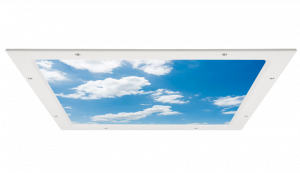

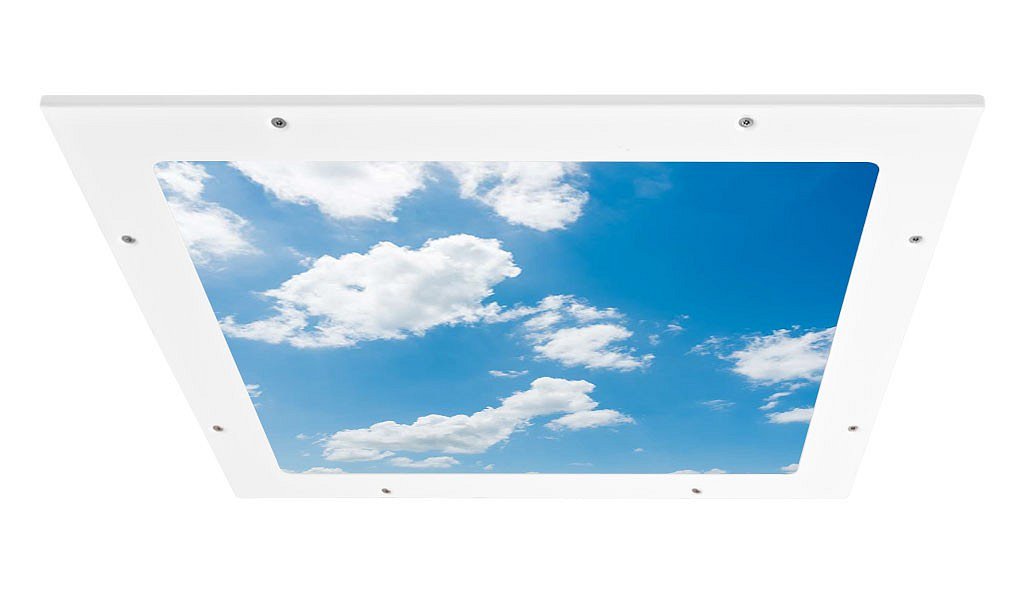

Product Images

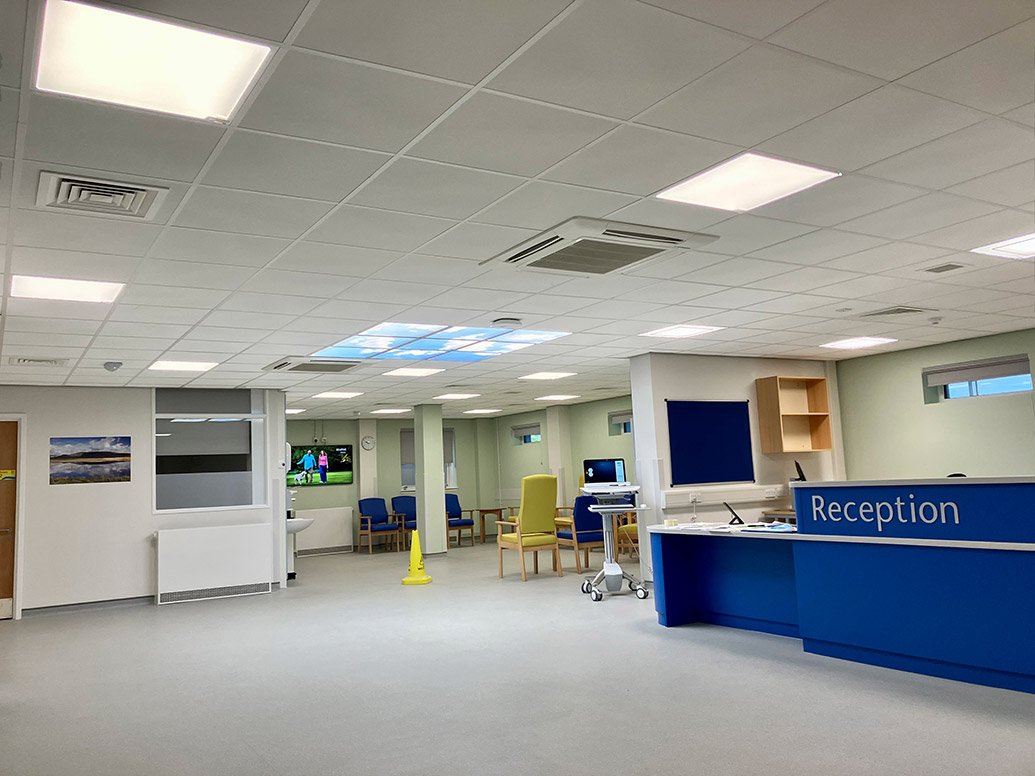

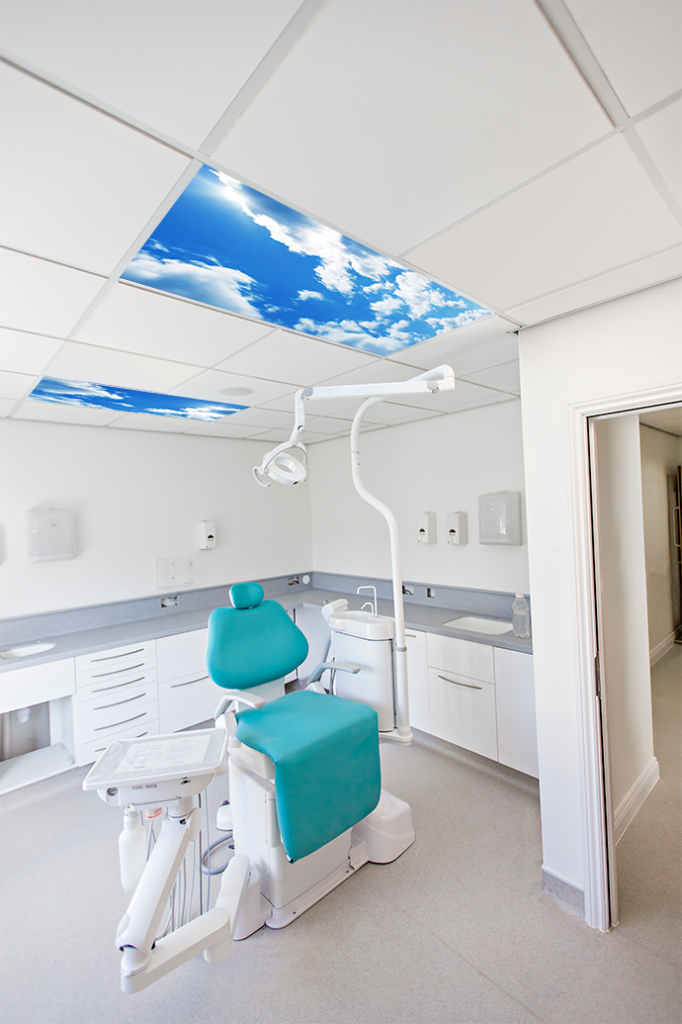

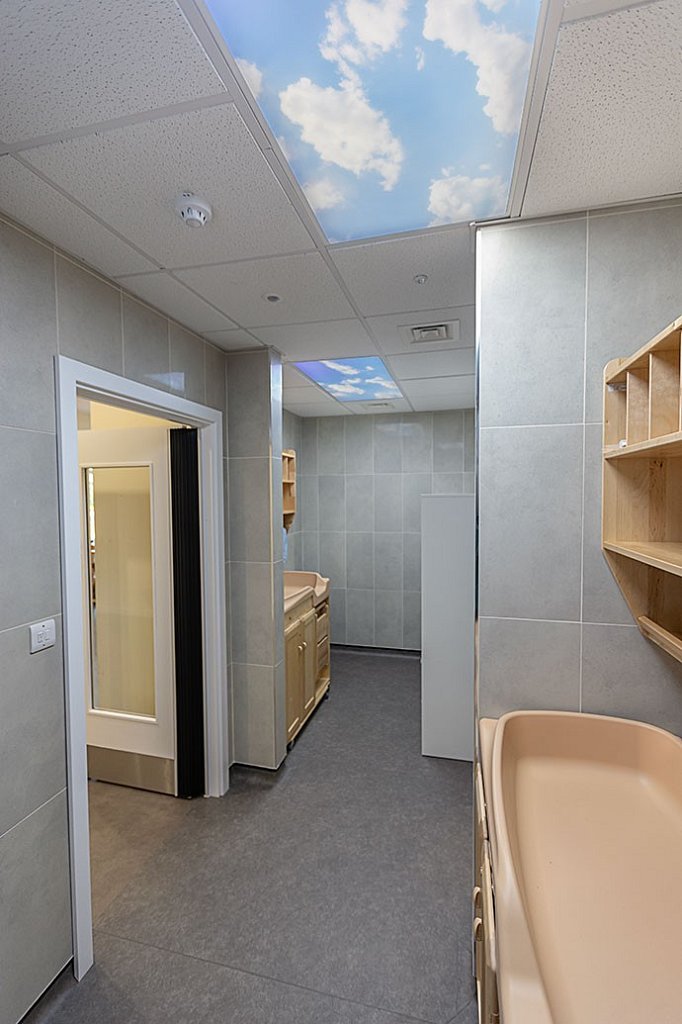

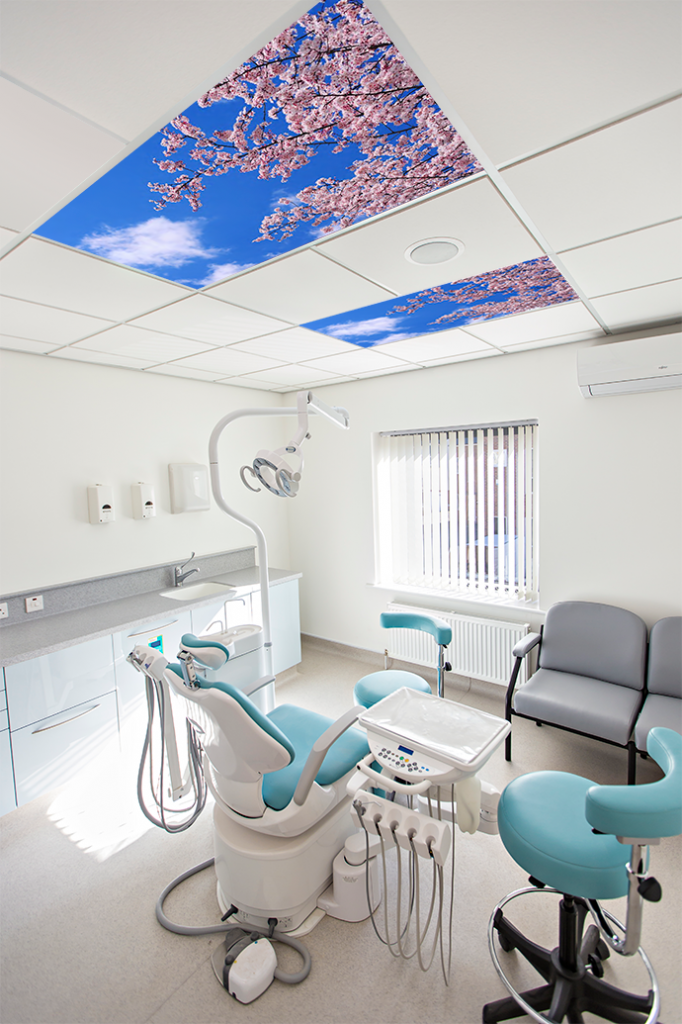

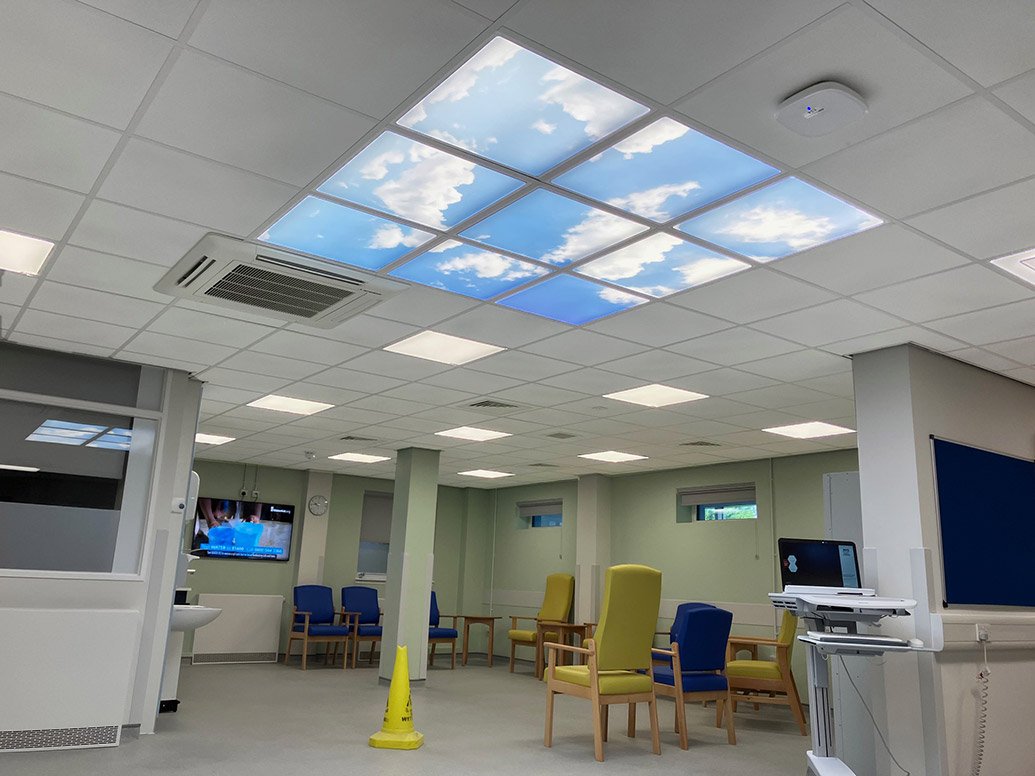

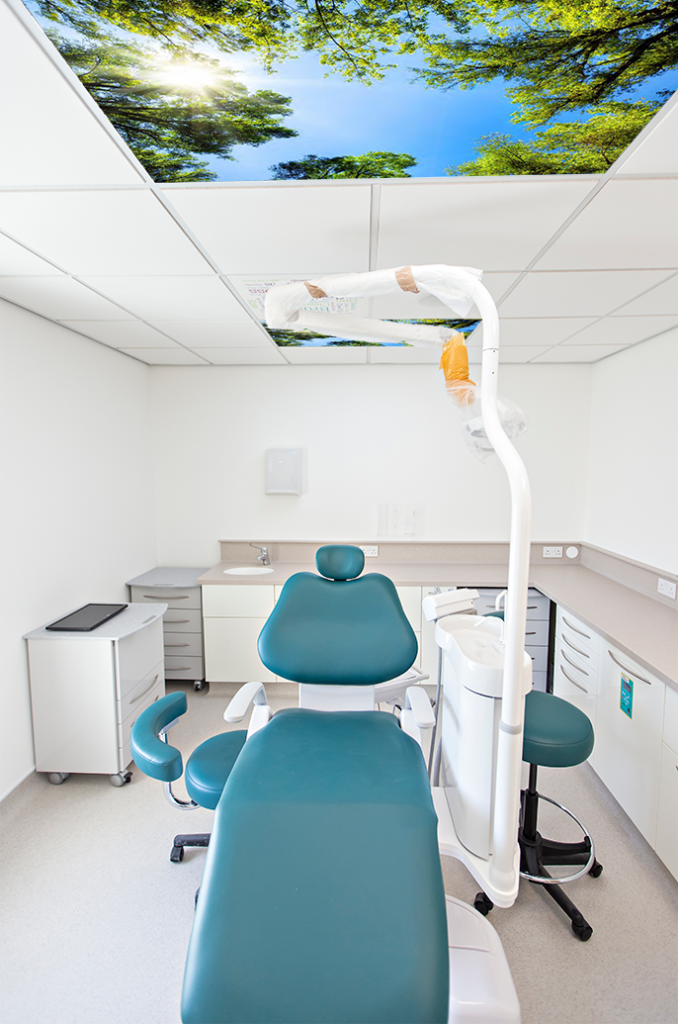

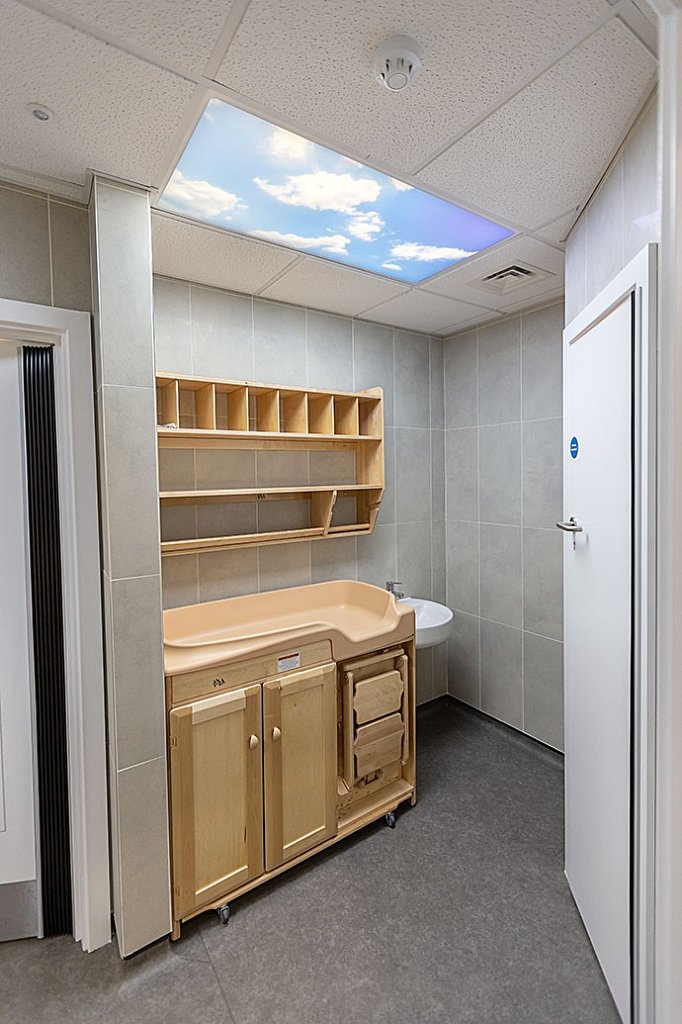

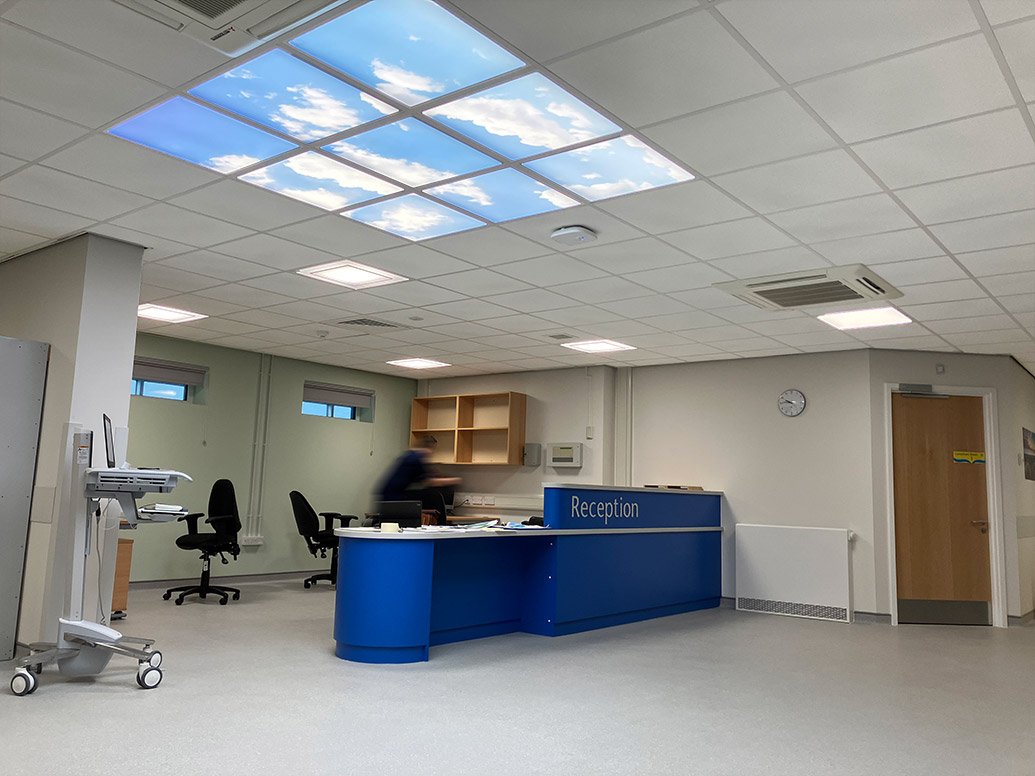

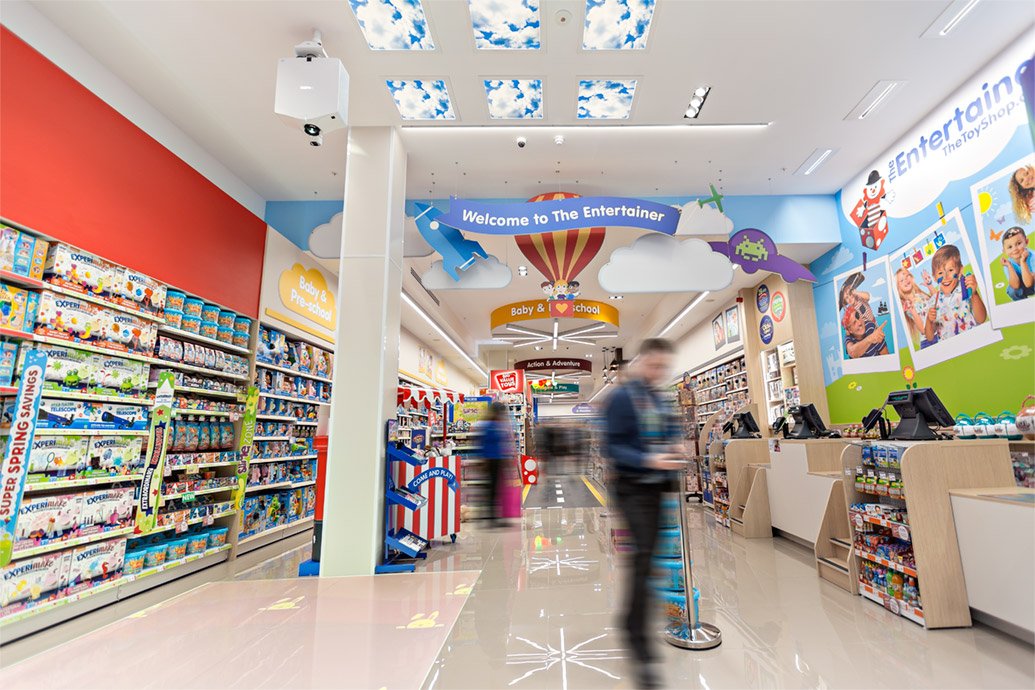

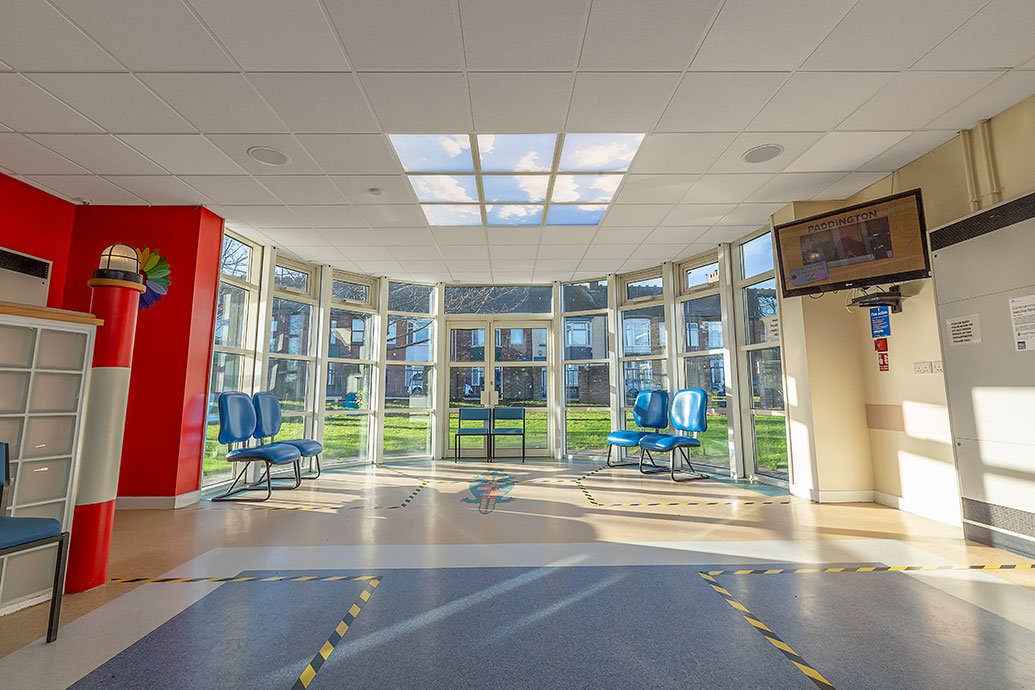

MOD CAELUS in action

Technical

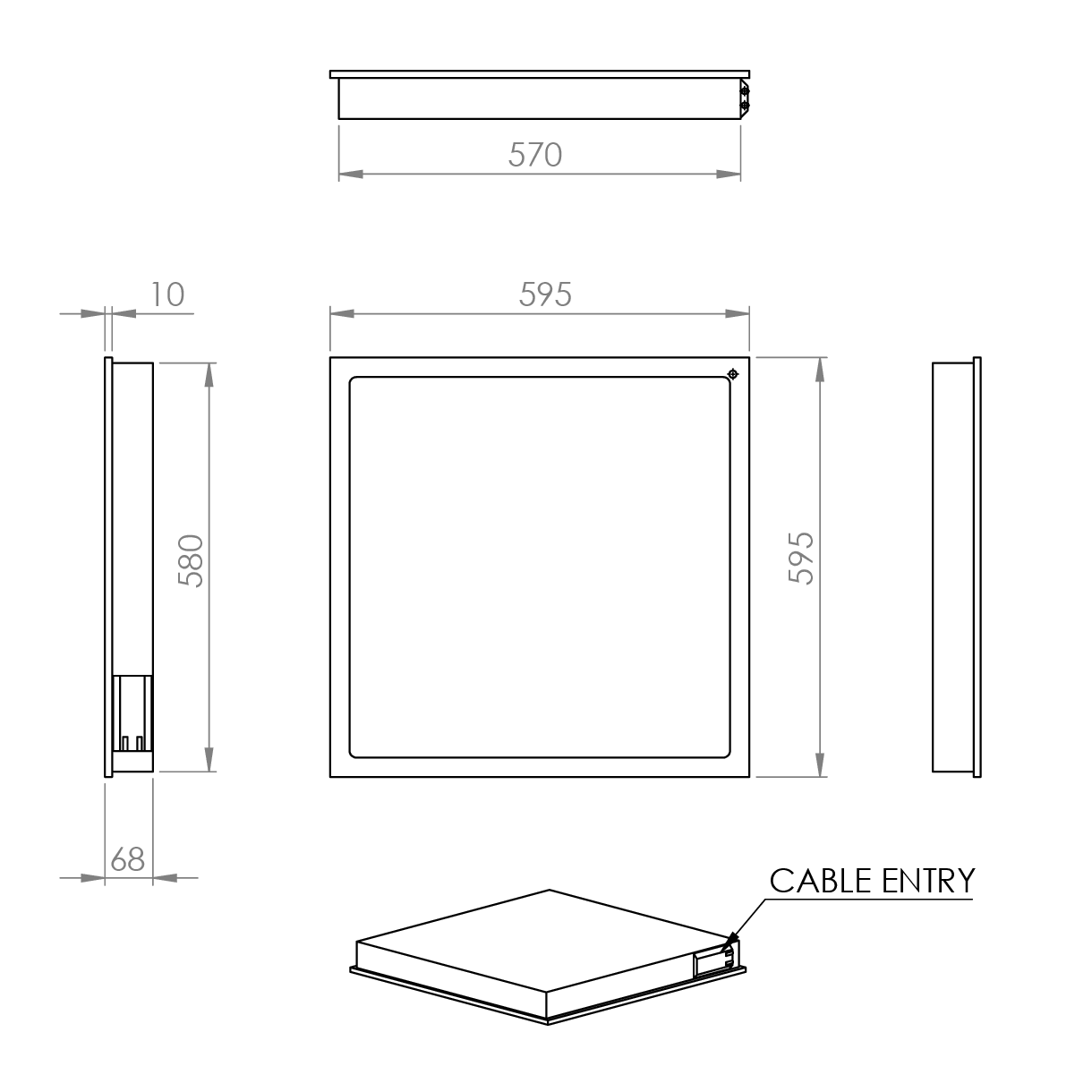

MOD Caelus 600x600

MOD Caelus 600x600

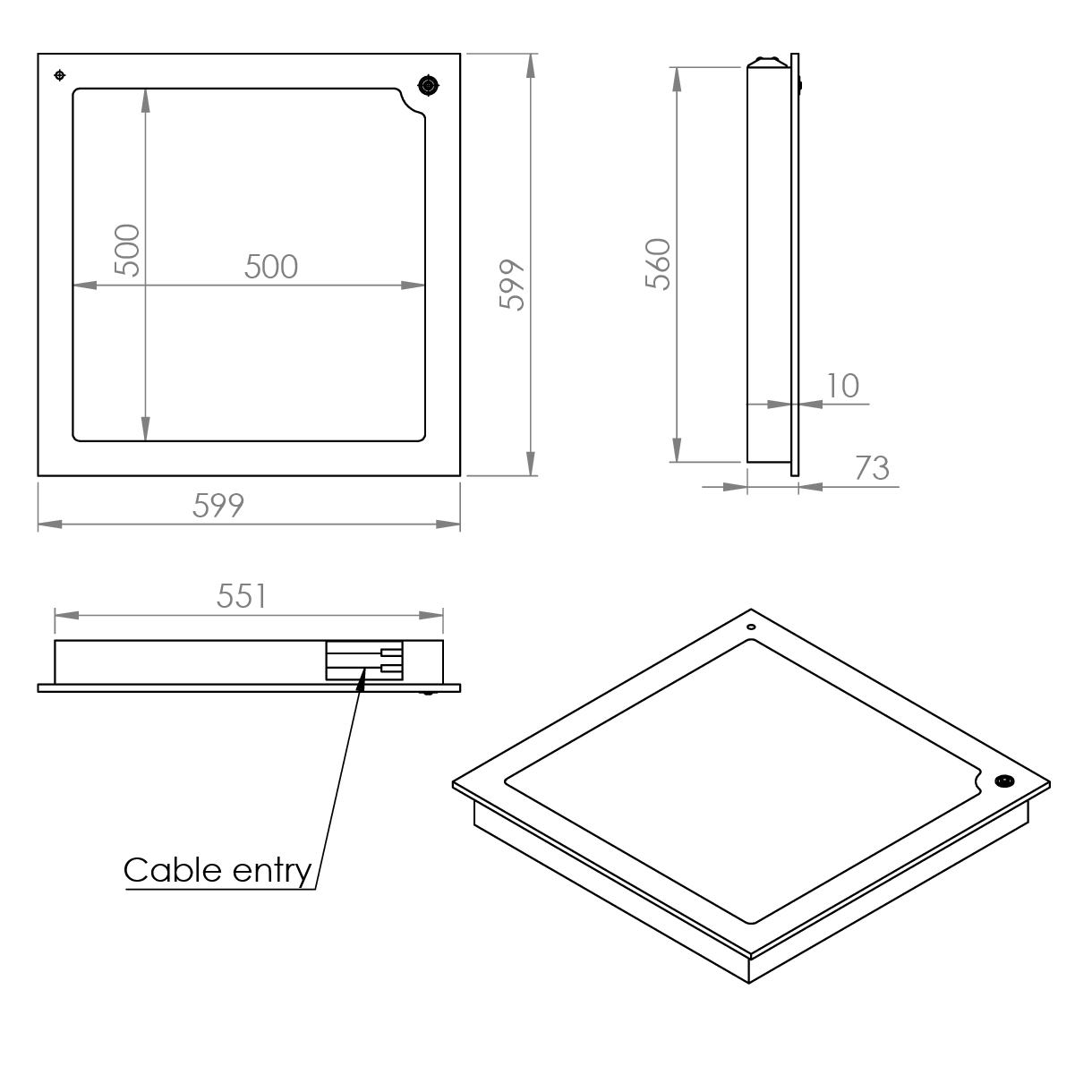

MOD Caelus Pull-Up 600x600

MOD Caelus Pull-Up 600x600

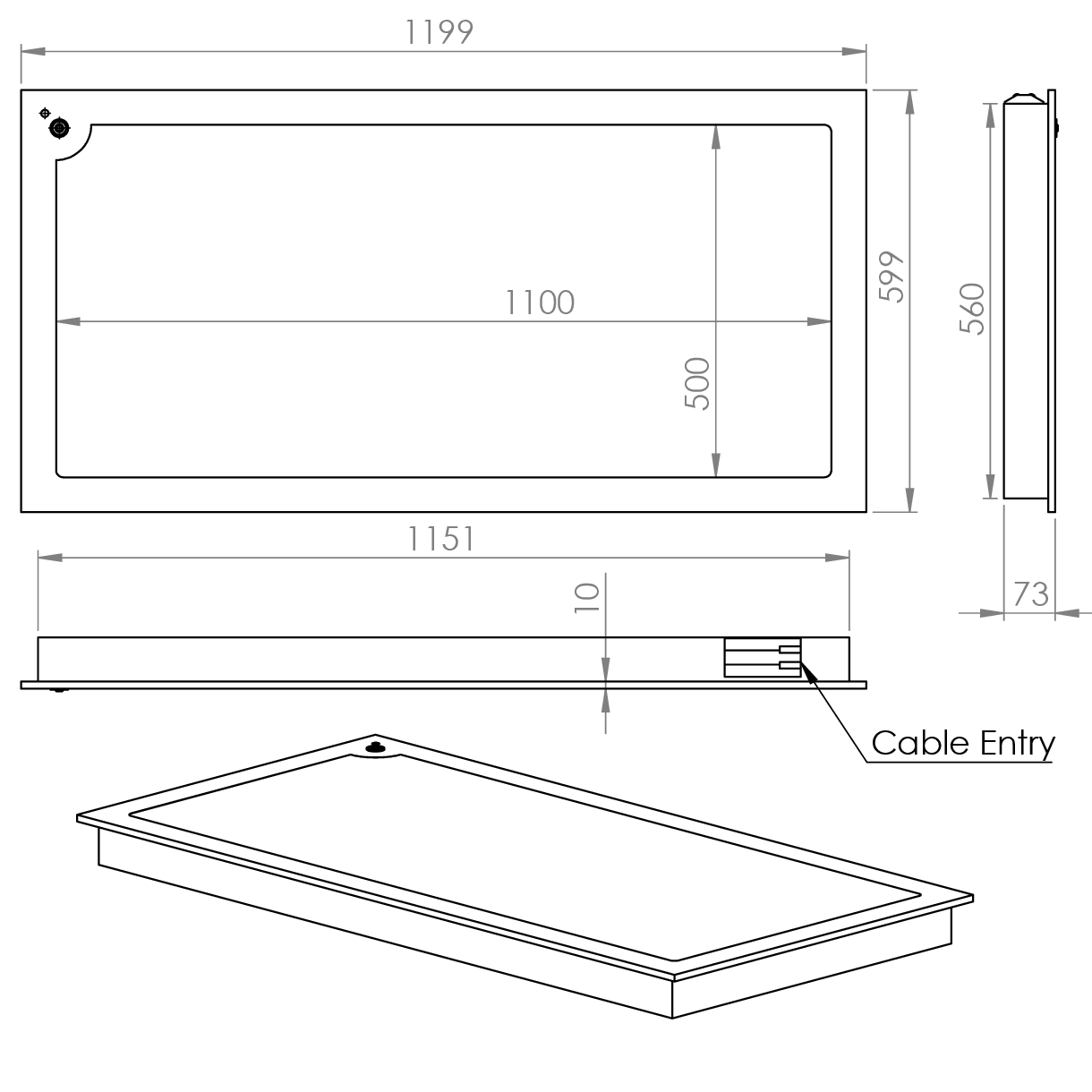

MOD Caelus Lay-In 1200x600

MOD Caelus Lay-In 1200x600

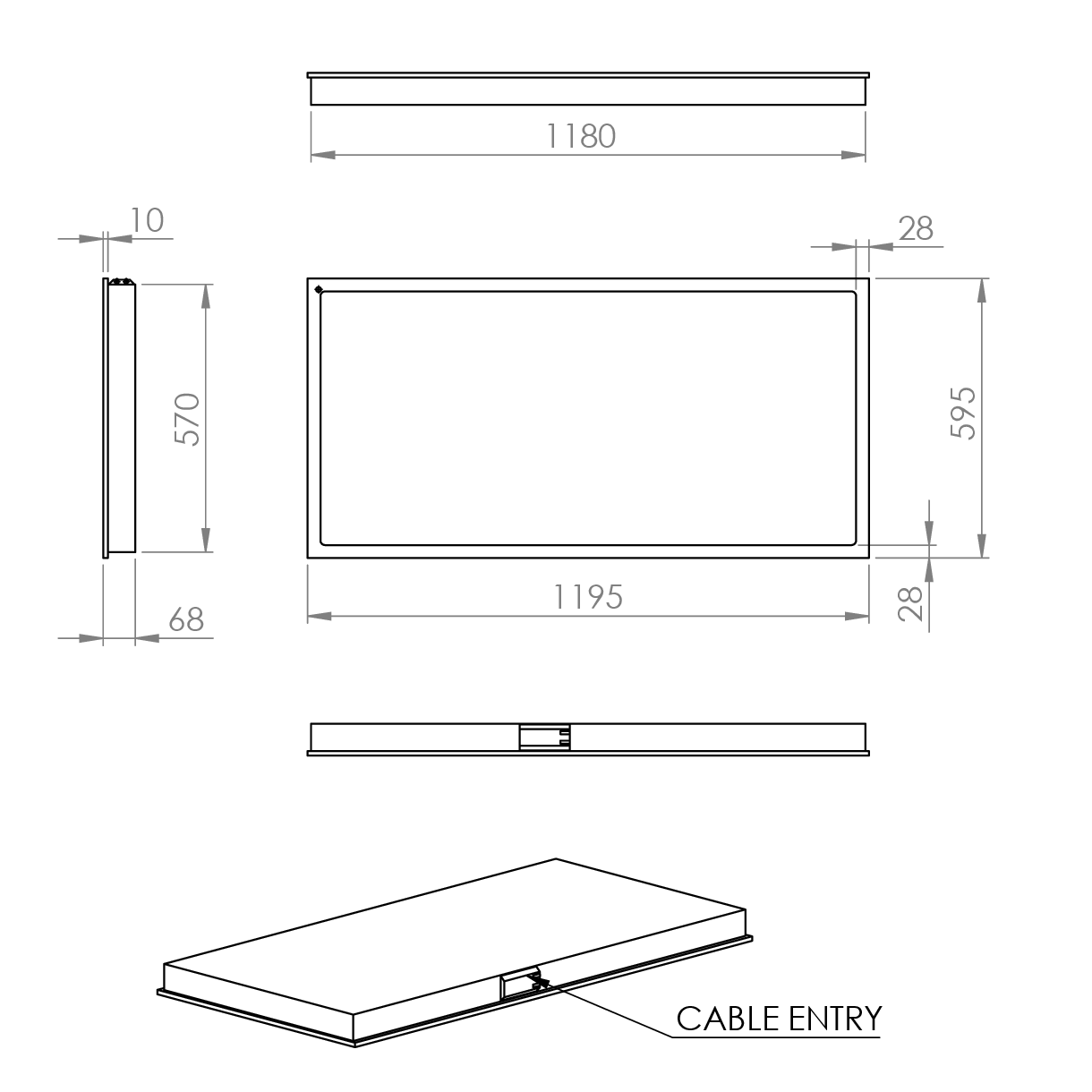

MOD Caelus Pull-Up 1200x600

MOD Caelus Pull-Up 1200x600

Ordering

Luminaires

Code Description Power Llm/W
MCAR L35 CL1205 Mod Caelus, 600x600, Lay-In, 1,060llm, Cloud Image, Colour 84 21.6W 49
MCAR L45 CL1205 Mod Caelus, 600x600, Lay-In, 1,354llm, Cloud Image, Colour 84 26.5W 51
MCAR 126 L70 CL1208 Mod Caelus, 1200x600, Lay-In, 2,107llm, Cloud Image, Colour 84 38.6W 54
MCAR 126 L90 CL1208 Mod Caelus, 1200x600, Lay-In, 2,709llm, Cloud Image, Colour 84 50.2W 53

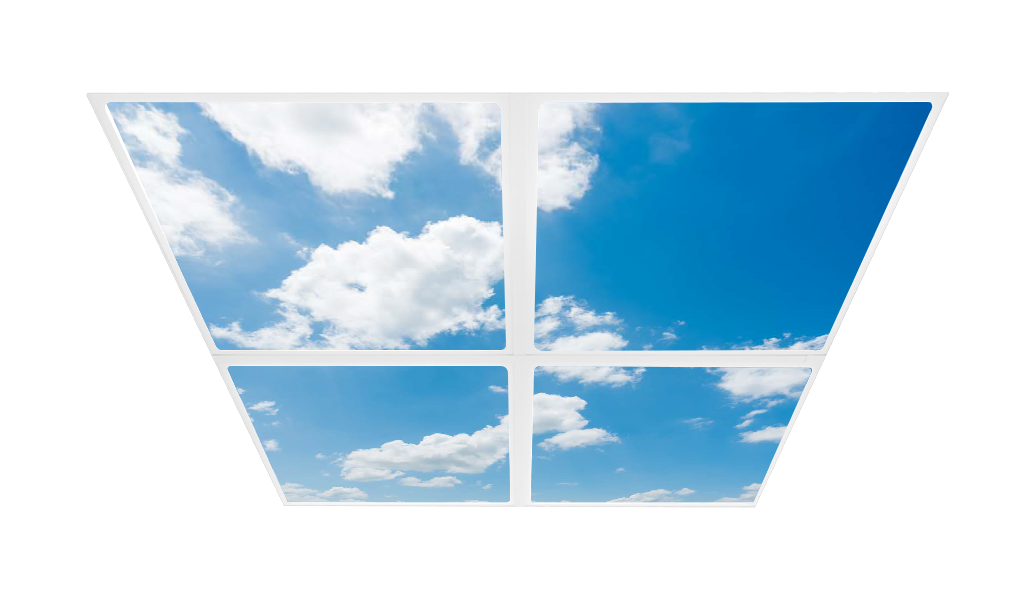

MCAR L35 2X2 CL12072 Mod Caelus, 600x600, Lay-In, 1,060llm, 4X 600x600 luminaires Cloud, Colour 84 21.6W 49
MCAP L35 CL1205 Mod Caelus, 600x600, Pull-Up, 1,060llm, Cloud Image, Colour 84 21.6W 49
MCAP L45 CL1205 Mod Caelus, 600x600, Pull-Up, 1,354llm, Cloud Image, Colour 84 26.5W 51
MCAP 126 L70 CL1208 Mod Caelus, 1200x600, Pull-Up, 2,107llm, Cloud Image, Colour 84 38.6W 54
MCAP 126 L90 CL1208 Mod Caelus, 1200x600, Pull-Up, 2,709llm, Cloud Image, Colour 84 50.2W 53
MCAR L35 TR12051 Mod Caelus, 600x600, Lay-In, 1,060llm, Tree Image, Colour 84 21.6W 49
MCAR L45 TR12051 Mod Caelus, 600x600, Lay-In, 1,354llm, Tree Image, Colour 84 26.5W 51
MCAR 126 L70 TR12081 Mod Caelus, 1200x600, Lay-In, 2,107llm, Tree Image, Colour 84 38.6W 54
MCAR 126 L90 TR12081 Mod Caelus, 1200x600, Lay-In, 2,709llm, Tree Image, Colour 84 50.2W 53
MCAR L35 2X2 TR12074 Mod Caelus, 600x600, Lay-In, 1,060llm, 4X 600x600 luminaires Tree, Colour 84 21.6W 49
MCAP L35 TR12051 Mod Caelus, 600x600, Pull-Up, 1,060llm, Tree Image, Colour 84 21.6W 49
MCAP L45 TR12051 Mod Caelus, 600x600, Pull-Up, 1,354llm, Tree Image, Colour 84 26.5W 51
MCAP 126 L70 TR12081 Mod Caelus, 1200x600, Pull-Up, 2,107llm, Tree Image, Colour 84 38.6W 54
MCAP 126 L90 TR12081 Mod Caelus, 1200x600, Pull-Up, 2,709llm, Tree Image, Colour 84 50.2W 53
MCAR L35 BM12071 Mod Caelus, 600x600, Lay-In, 1,060llm, Blossom Image, Colour 84 21.6W 49
MCAR L45 BM12071 Mod Caelus, 600x600, Lay-In, 1,354llm, Blossom Image, Colour 84 26.5W 51
MCAR 126 L70 BM12079 Mod Caelus, 1200x600, Lay-In, 2,107llm, Blossom Image, Colour 84 38.6W 54
MCAR 126 L90 BM12079 Mod Caelus, 1200x600, Lay-In, 2,709llm, Blossom Image, Colour 84 50.2W 53
MCAR L35 2X2 BM12041 Mod Caelus, 600x600, Lay-In, 1,060llm, 4X 600x600 luminaires Blossom, Colour 84 21.6W 49
MCAP L35 BM12071 Mod Caelus, 600x600, Pull-Up, 1,060llm, Blossom Image, Colour 84 21.6W 49
MCAP L45 BM12071 Mod Caelus, 600x600, Pull-Up, 1,354llm, Blossom Image, Colour 84 26.5W 51
MCAP 126 L70 BM12079 Mod Caelus, 1200x600, Pull-Up, 2,107llm, Blossom Image, Colour 84 38.6W 54
MCAP 126 L90 BM12079 Mod Caelus, 1200x600, Pull-Up, 2,709llm, Blossom Image, Colour 84 50.2W 53
Pull-Up variants of the MOD Caelus are not suitable for array installations

Custom images and other panorama sizes are available on request.

For plasterboard ceilings please specify lay-in luminaire and appropriate plasterboard kit.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor
WT White Tunable (Lumen Outputs Vary from Standard)
Please click here for full details on our white tunable offer.

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire
RC Reacta-Control, Wireless Enabled Luminaire

Miscellaneous

Code Description
4PM 4 Pole Panel Mount
6PM 6 Pole Panel Mount
IP44 IP44 Below the Ceiling Only
PBK 123 1200x300 Plasterboard Kit
PBK 126 1200x600 Plasterboard Kit
PBK 66 600x600 Plasterboard Kit
RECESSED TETHER KIT TWIN Secondary fix twin drop.
LSF Low Smoke Zero Halogen
C** Select Colour Temperature and Rendering; C83, C84, C85, C865

Downloads

Installation guide (Download PDF) Tether Kit (Download PDF) Plasterboard Kit Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
