LEDEX RECESSED MODULAR
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The LEDEX Recessed Modular offers an efficient yet cost effective 600X600 recessed solution. The LEDEX Recessed Modular is suitable for lay in installation in exposed T ceilings with 3500 lumen output, whilst the diffuser is TP(a) rated to ensure compliance with building regulations. The LED4 emergency range can be used alongside where required to ensure compliance with emergency lighting regulations and is available in both recessed and surface variants with three lens options for open area, escape route and spot lenses where higher emergency lux levels are required.
LEDEX RECESSED MODULAR complies with:
UKCA | CE | IP20
Recommended applications:
Canteen | Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Office | Retail | Transport | Warehousing
Specification
Construction
- Housing: Extruded aluminium
- Finish: Matt white
- Diffuser: Combined 2mm high transmission opal polycarbonate TP(a) rated and 2mm microprism anti glare PMMA
- IP20
Performance
- Part L2 compliant
- BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
- Up to 108 luminaire lumens per circuit Watt.
Environmental
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- Fixed output only.
Installation
- Suitable for lay-in installation in exposed T ceilings

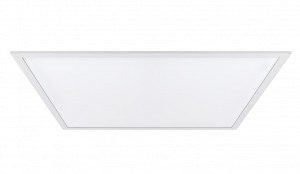

Product Images

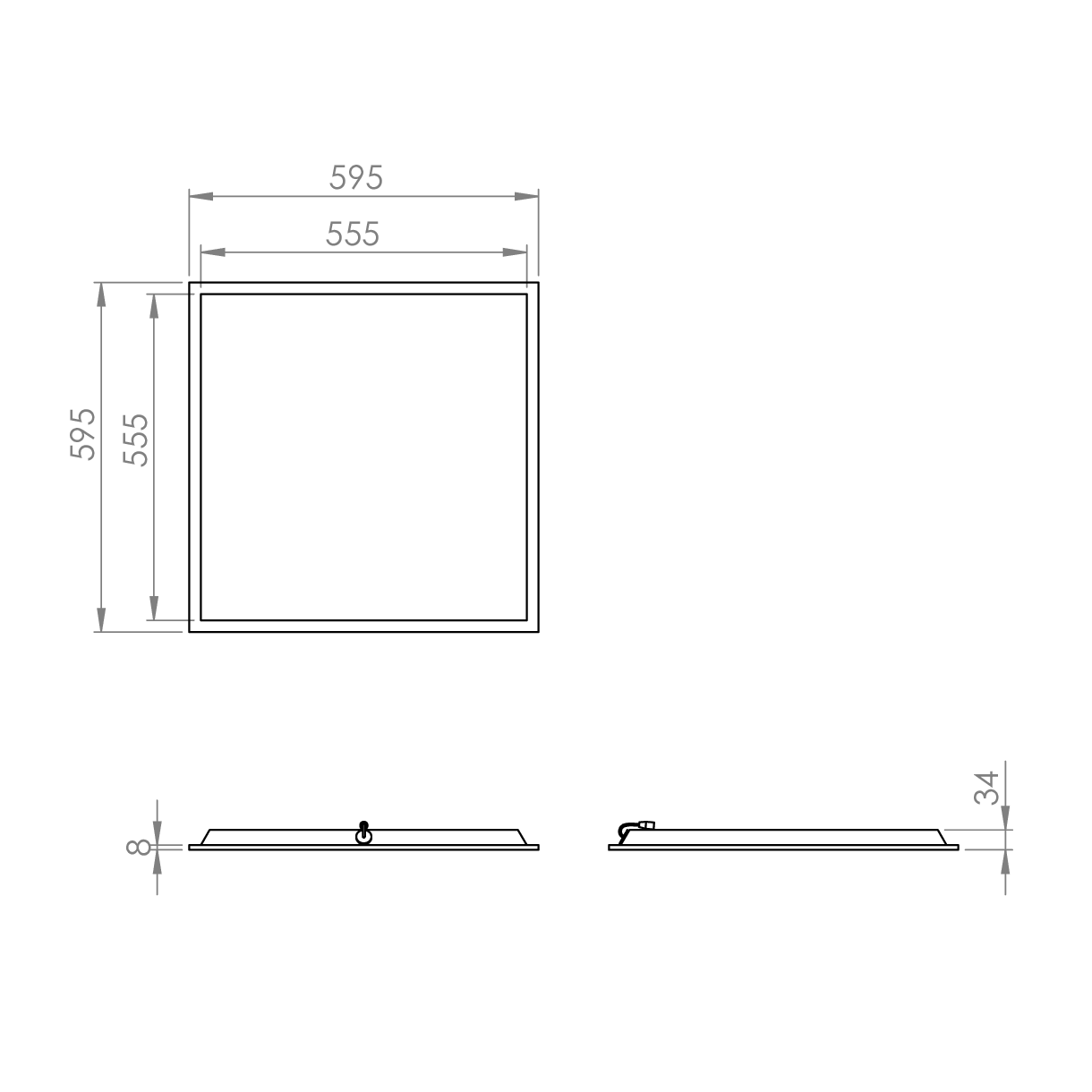

Technical
LED Recessed Modular
Ordering
Luminaires
|
||||||||||||
Downloads
Find out more about
LEDEX RECESSED MODULAR
For Sales and Technical Enquires call 01747 858100
Submit enquiry
