Introduction

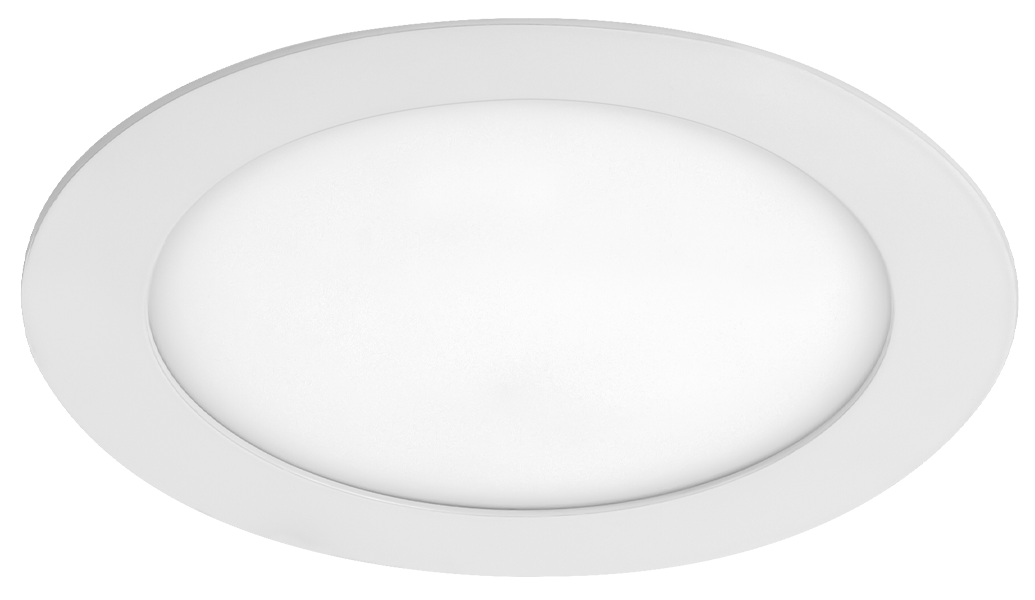

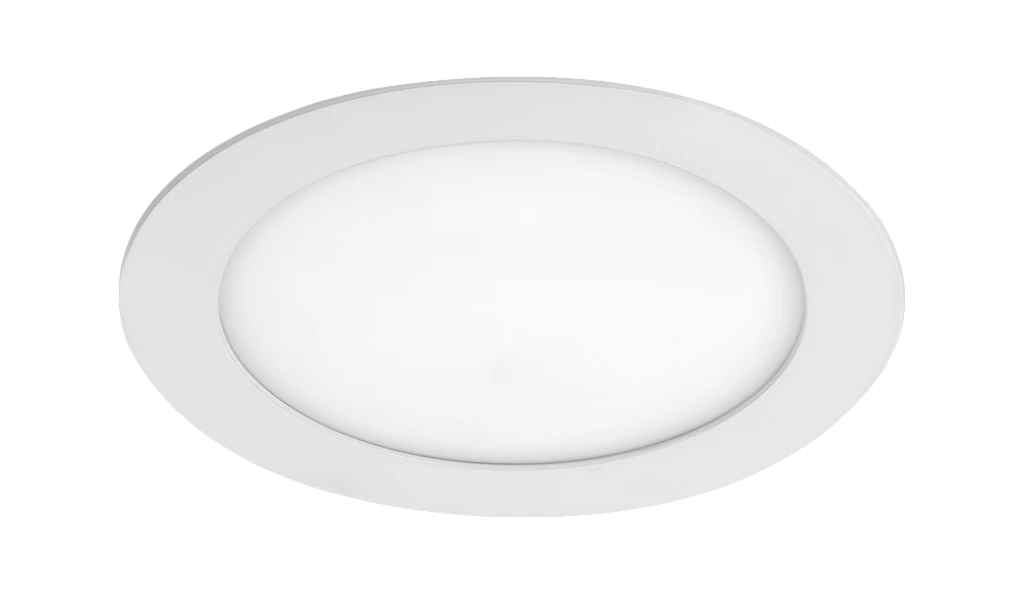

The LEDEX Downlight is available in two sizes and lumen outputs, 940lm or 2000lm. Side mounted spring clips allow for quick installation in plasterboard or mineral fibre ceiling tiles whilst all luminaires offer both 3000 kelvin or 4000 kelvin colour temperatures which are easily adjusted via a switch on the driver lead. The LED4 emergency range can be used alongside where required to ensure compliance with emergency lighting regulations and is available in both recessed and surface variants with three lens options for open area, escape route and spot lenses where higher emergency lux levels are required.
LEDEX DOWNLIGHTS complies with:
UKCA | CE | IP20
Recommended applications:
Canteen | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Retail | Toilet | Transport | Warehousing
Specification
Construction
- Housing: Extruded aluminium
- Finish: Matt white
- Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
- IP20
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- Fixed output only.
Installation
- Suitable for plasterboard installation
- Suitable for mineral fibre ceiling tile installation
Variations
- Available in a range of lumen outputs
Performance
- Up to 103 luminaire lumens per circuit Watt.
Product Images
Technical

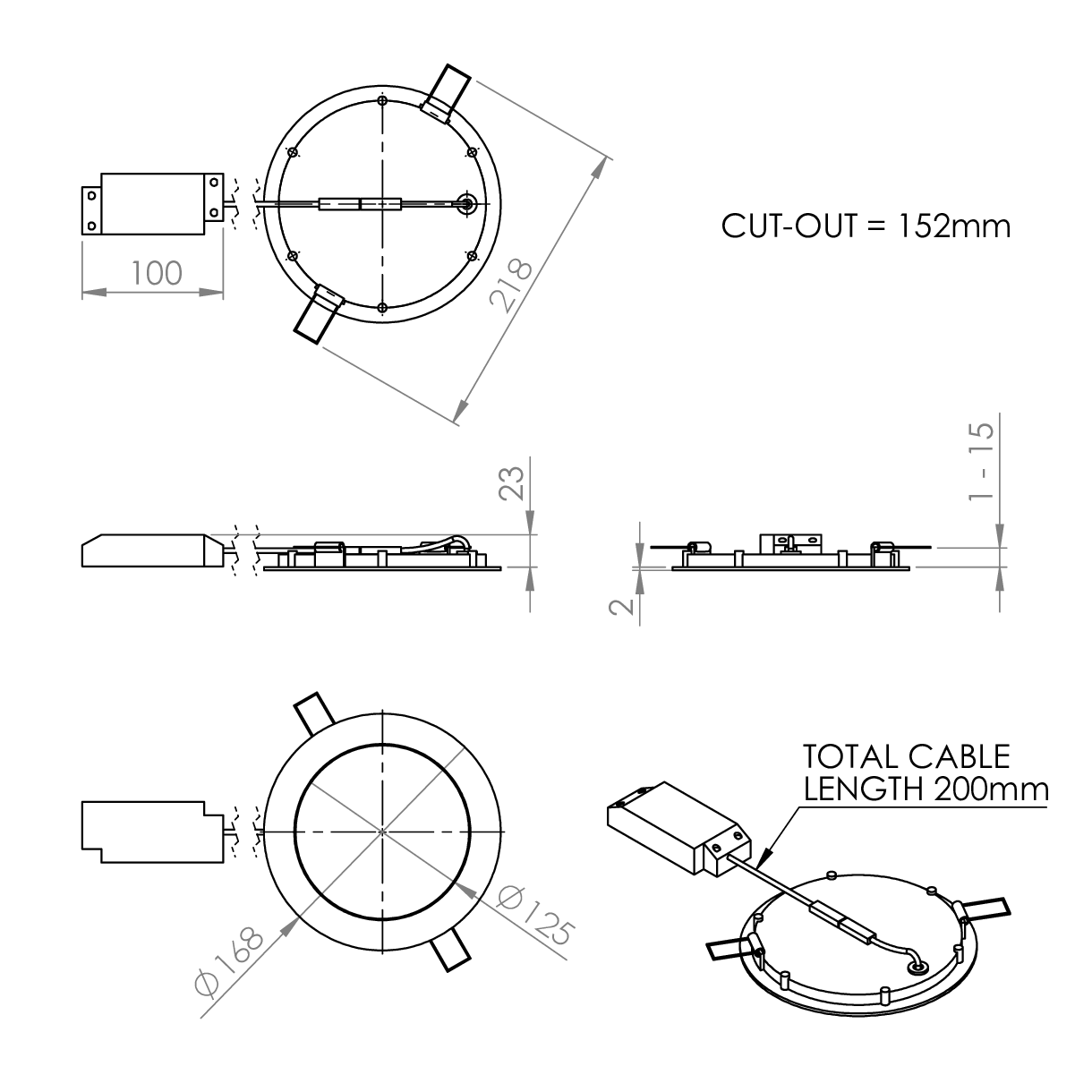

LEDex Downlight - Small

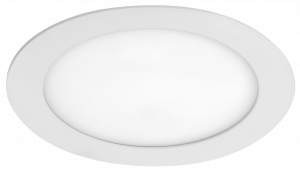

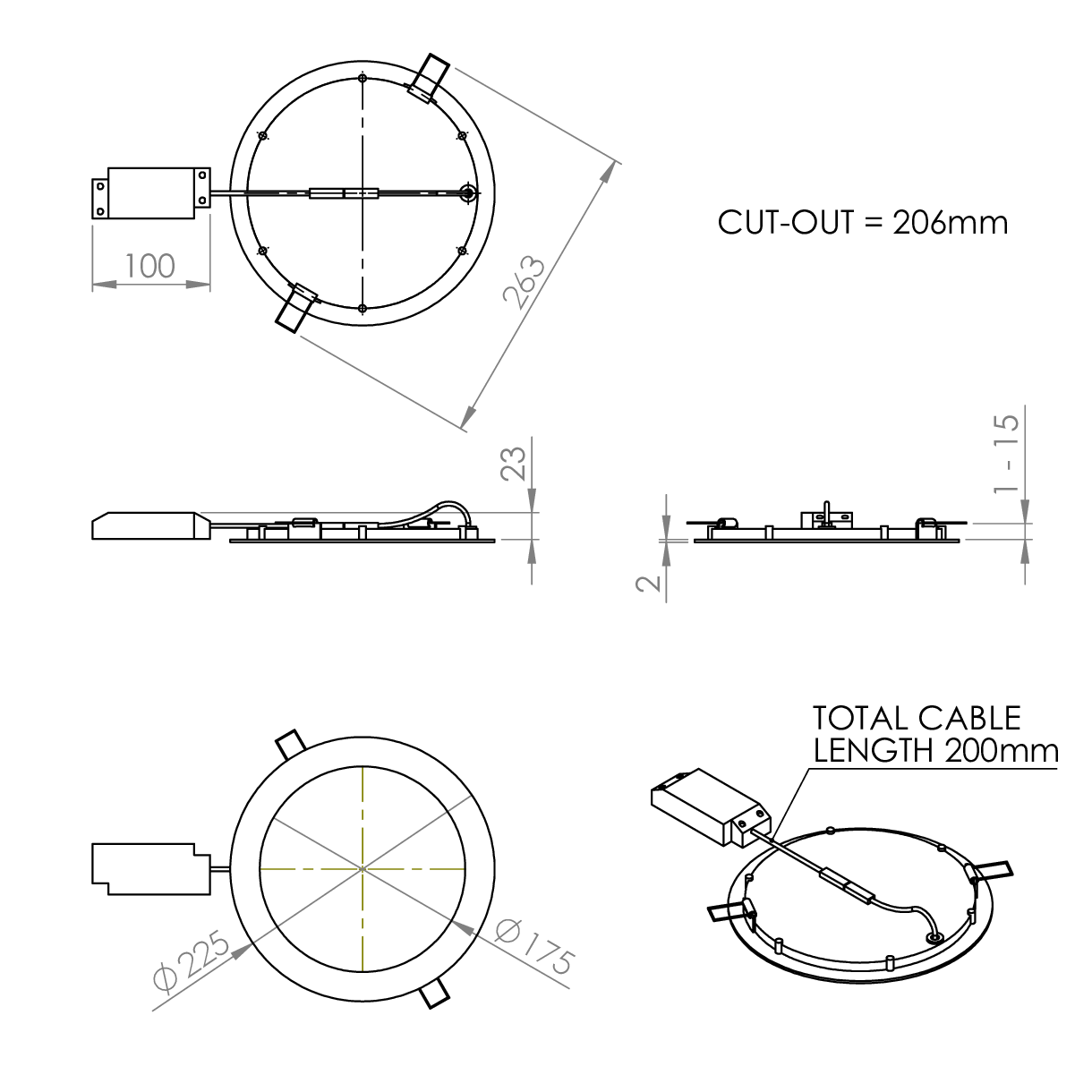

LEDex Downlight - Large
