LEDEX BATTEN
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

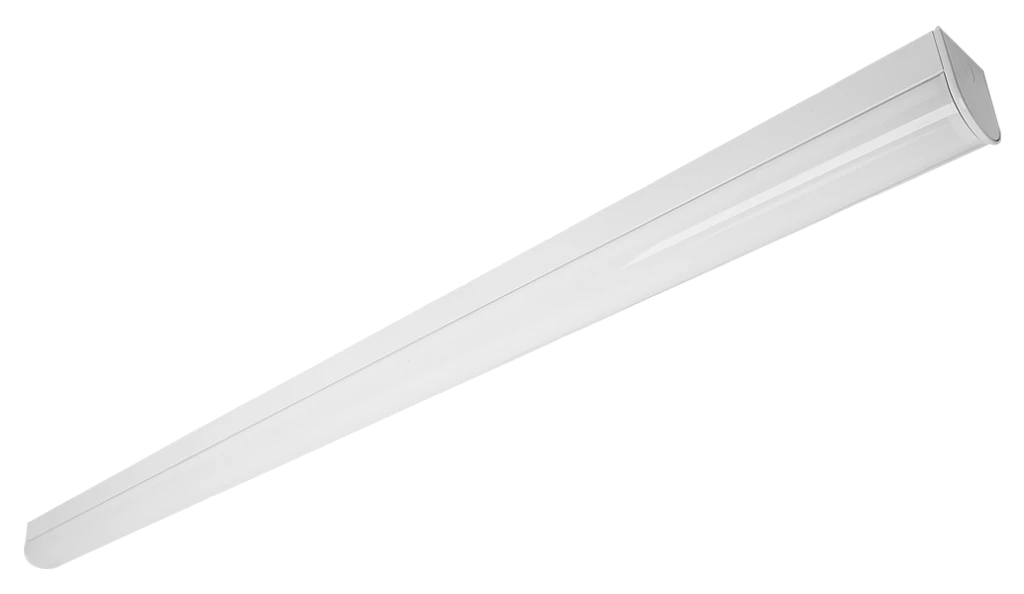

The LEDEX 1500mm batten is available in either 4500 lumen or 6300 lumen outputs in 4000 kelvin, CRI 80.The spring clip retained gear tray allows for quick and simple installation whilst the polycarbonate diffuser offers protection against light impacts. The LED4 emergency range can be used alongside where required to ensure compliance with emergency lighting regulations and is available in both recessed and surface variants with three lens options for open area, escape route and spot lenses where higher emergency lux levels are required.
LEDEX BATTEN complies with:
UKCA | CE | IP20
Recommended applications:
Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Retail | Stairwell | Store Room | Transport | Warehousing
Specification
Construction
- Housing: Precoat steel white
- Finish: Matt white
- Endcaps: Injection moulded polycarbonate
- Diffuser: 2mm extruded high transmission opal polycarbonate
- IP20
Environmental
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- Fixed output only.
Installation
- Suitable for surface installation
Variations
- Available in a range of lumen outputs
Performance
- Up to 127 luminaire lumens per circuit Watt.
