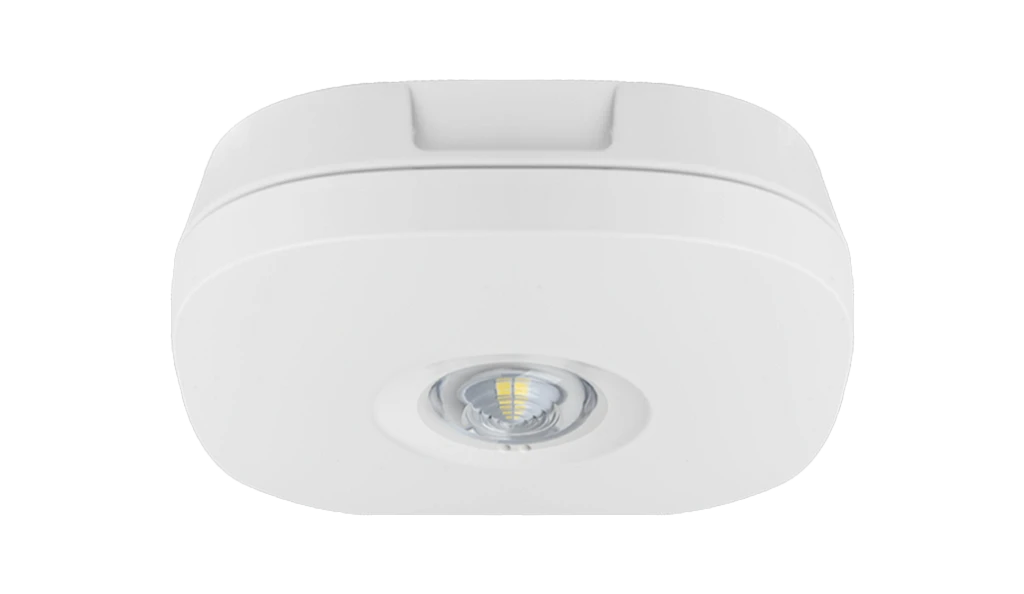

LED4S
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The LED4 Surface compliments our LED4 recessed emergency range with a variant suitable for areas where ceiling void limitations or solid ceilings make recessed installation impossible. the LED4S incorporates a Lithium battery, giving extended lifetime and warranty over traditional Ni-Cad and Ni-Mh batteries.
Designed to complement mains operated luminaires, the LED4S is a standalone non maintained emergency luminaire and is available in standard, self test and autotest emergency variants. The LED4 Wireless offers Reacta-Link compatibility with automated emergency testing and reporting of test results substantially reducing the cost of maintaining your emergency installation. All luminaires are supplied complete with a range of easily changed lenses for open area, escape route and spot applications ensuring that a single luminaire can be installed across any project and the lenses changed as and when required to provide the required light distribution.
LED4S complies with:
UKCA | CE | IP20
Recommended applications:
Canteen | Commercial / Offices | Corridor | Education | Food Production | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Kitchen | Office | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing
Specification
Construction
- Housing: Injection moulded polycarbonate
- Finish: Matt black
- Finish: Matt white
- Lens: Injection moulded PMMA lens
- IP20
Environmental
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
Installation
- Suitable for conduit installation
- Suitable for surface installation
Variations

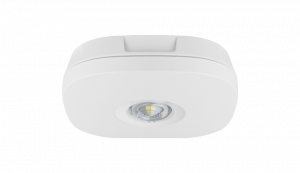

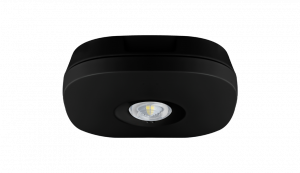

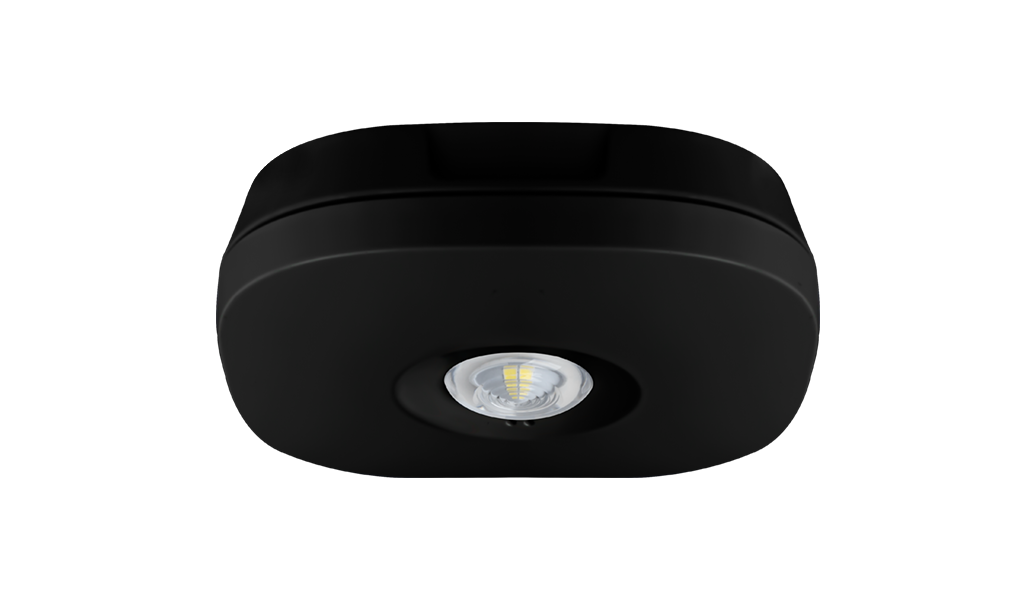

- Available in white or black finishes
- Supplied with three lens variants, open area, escape route and spot

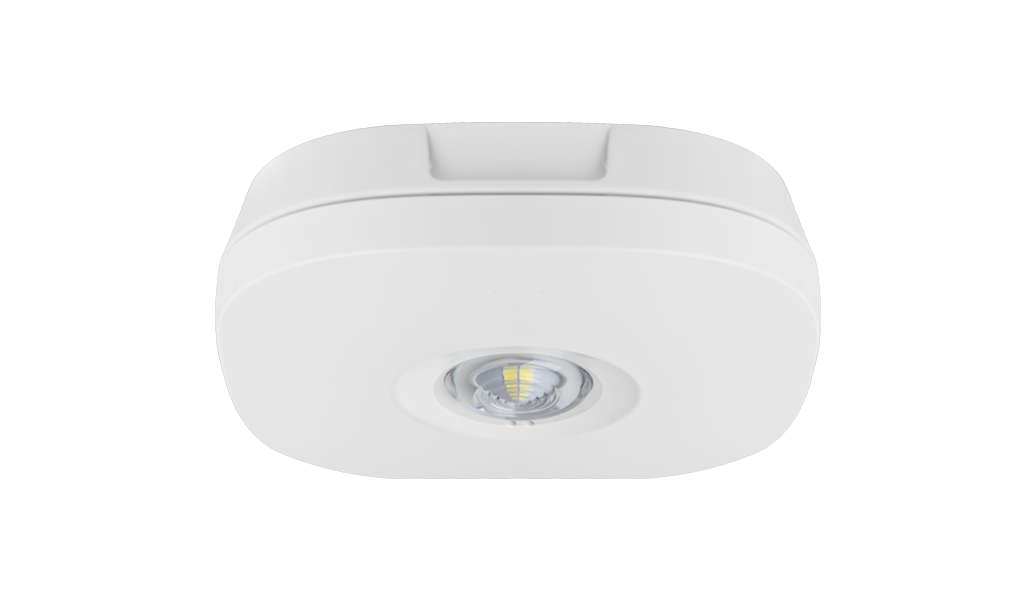

Product Images
Ordering
Luminaires
|
|||||||||||||||
Miscellaneous
| Code | Description |
|---|---|
| BL | Black Finish |

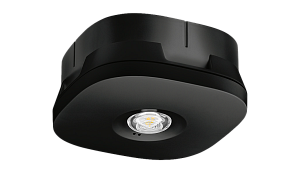

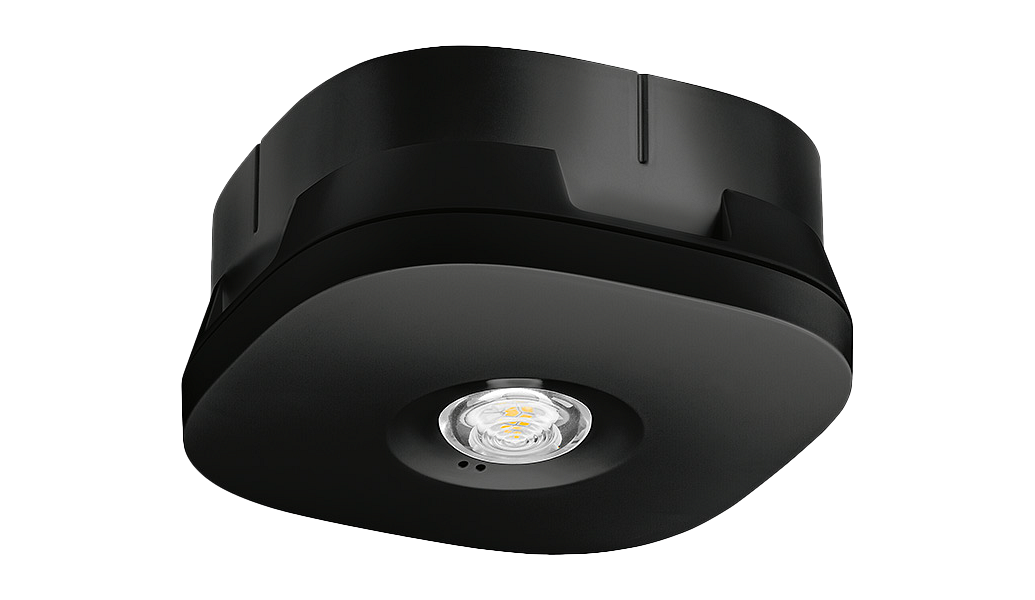

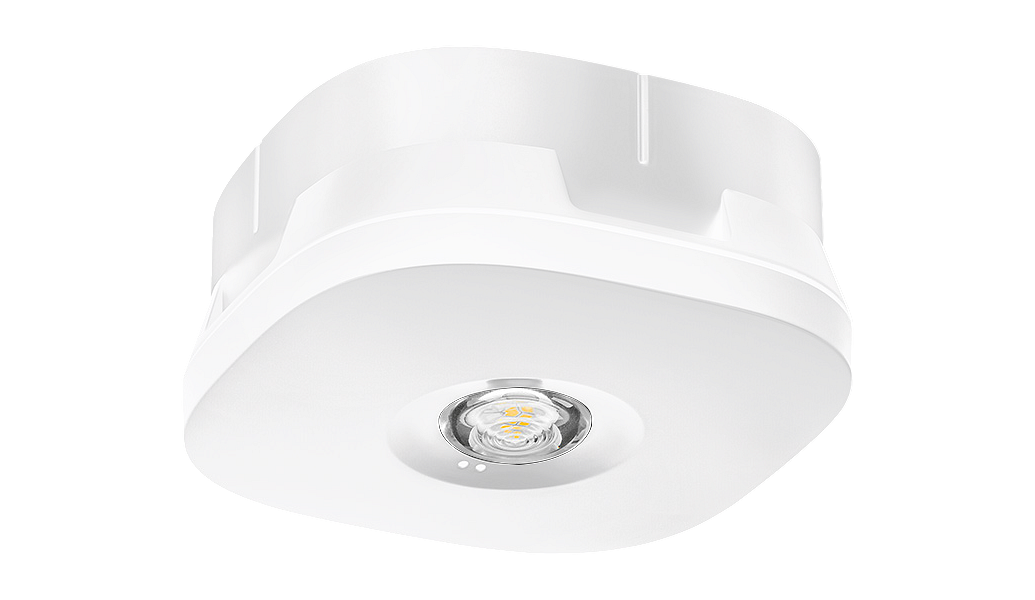

| CON | Conduit Mount Version |
