LED4

Introduction

The LED4 incorporates lithium batteries for extended warranty and lifetime compared to traditional Ni-Cad and Ni-Mh battery chemistries. Designed to complement mains operated luminaires, the LED4 is a standalone non maintained emergency luminaire and is available in standard, self test and autotest emergency variants ensuring compatibility with a range of systems allowing you to reduce ongoing testing costs. All luminaires are supplied complete with a range of easily changed lenses for open area, escape route and spot applications ensuring that a single luminaire can be installed across any project and the lenses changed as and when required to provide the necessary light distribution.

Reacta-Link compatible versions of the LED4 are available offering automated testing and wireless reporting of test results and failures through our Reacta-Link system substantially reducing the ongoing maintenance costs of your emergency installation.

LED4 complies with:

UKCA | CE | IP20

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Food Production | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Kitchen | Office | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: Injection moulded polycarbonate
  • Finish: Matt black
  • Finish: Matt white
  • Lens: Injection moulded PMMA lens
  • IP20

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.

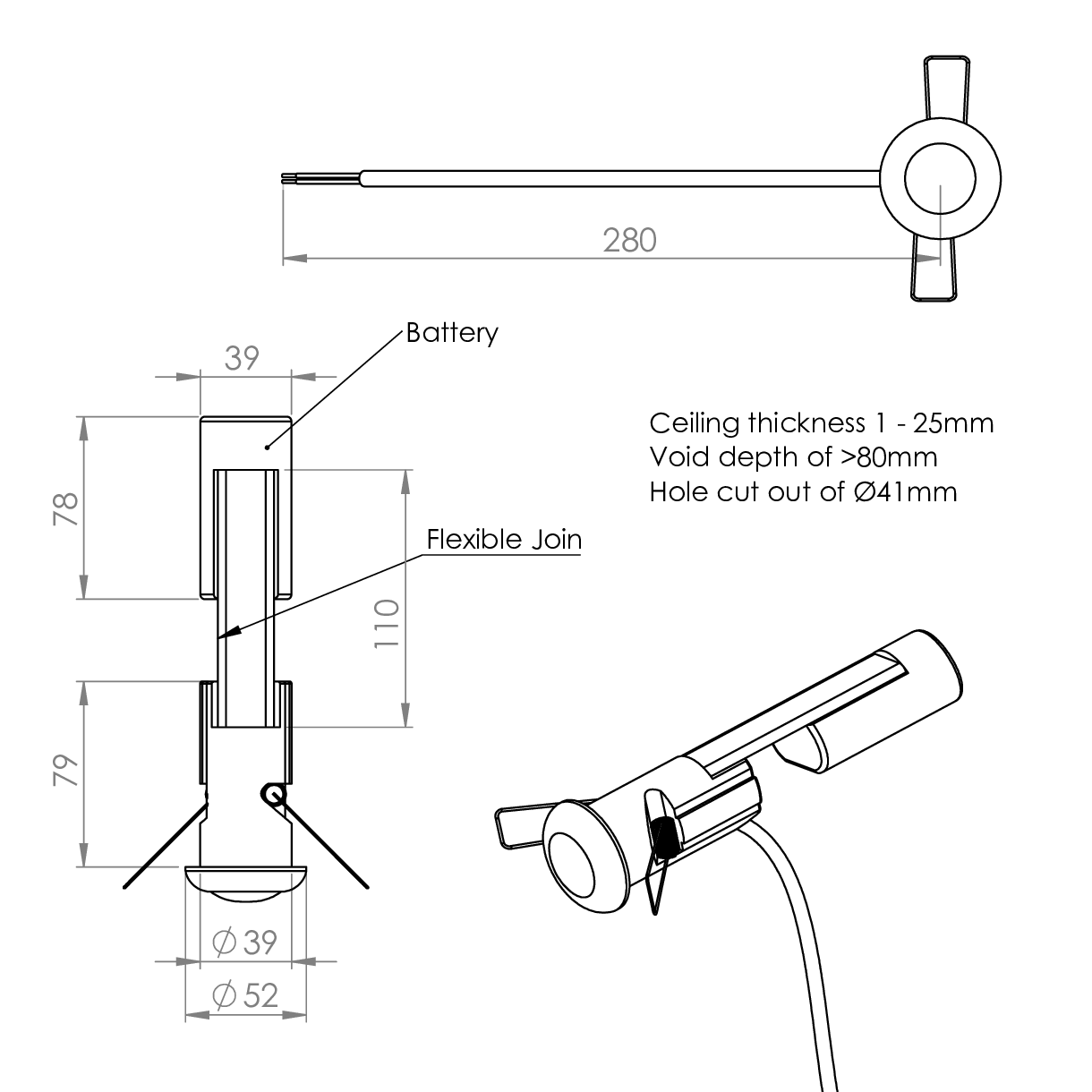

Installation

  • Suitable for plasterboard installation
  • Suitable for mineral fibre ceiling tile installation

Variations

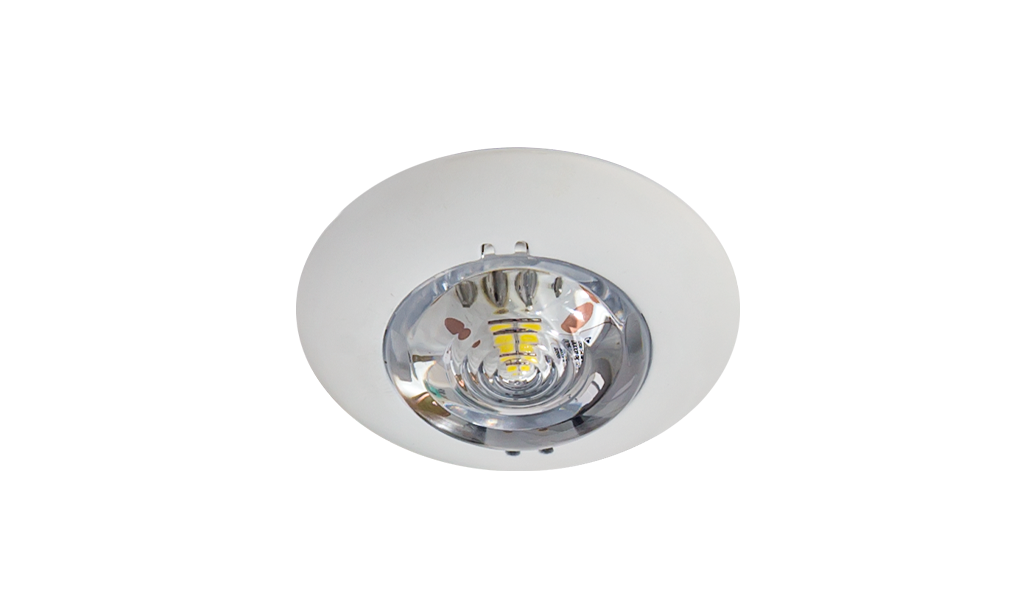

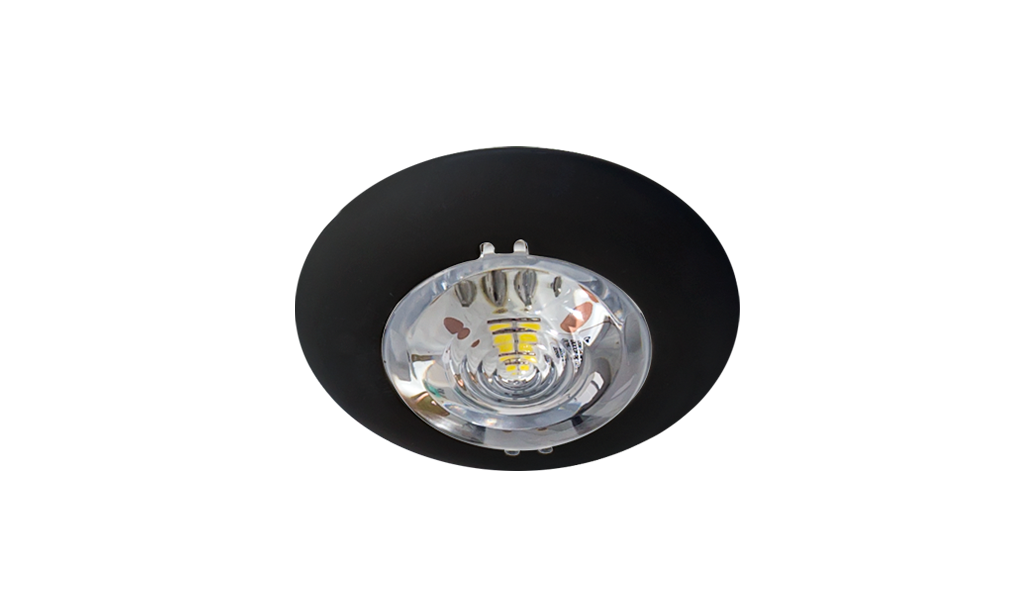

  • Available in white or black finishes

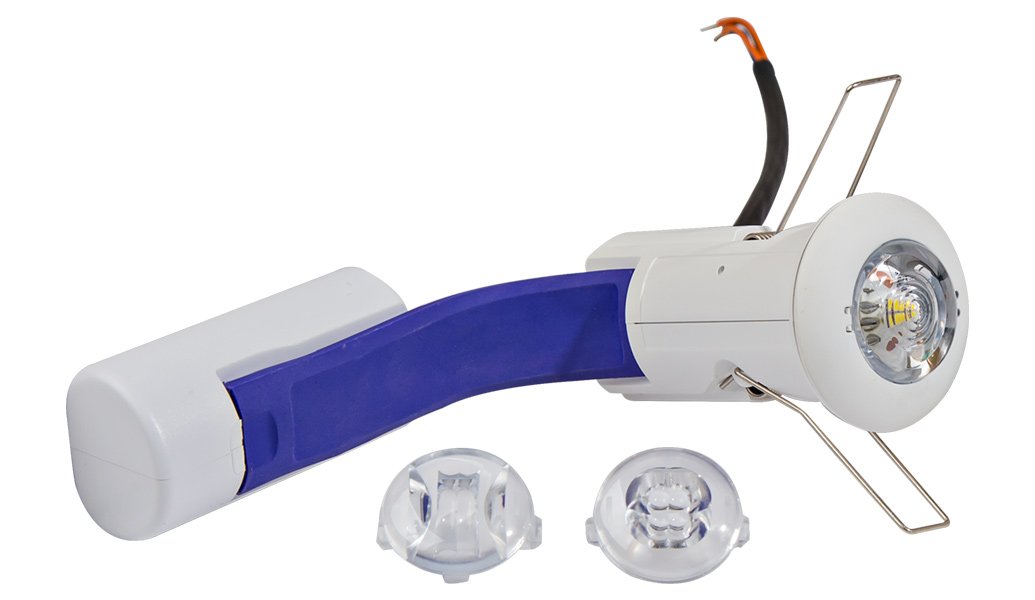

  • Supplied with three lens variants, open area, escape route and spot
5 year extended warranty available on most products.
Arrow right

Technical

LED4

LED4

Ordering

Luminaires

Code Description Power
LED4R NM3 LE3 LED4, 217llm, Lithium Non-Maintained, Standard Emergency 3 Hour 2.0W
LED4R NM3 LS3 LED4, 217llm, Lithium Non-Maintained, Self Test Emergency 3 Hour 2.0W
LED4R NM3 LA3 LED4, 217llm, Lithium Non-Maintained, Auto Test Emergency 3 Hour 2.0W
Lumen outputs based on Open Area lens

All products are supplied with a 5 year battery warranty

Miscellaneous

Code Description
BL Black Finish
