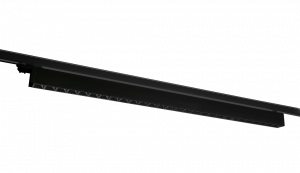

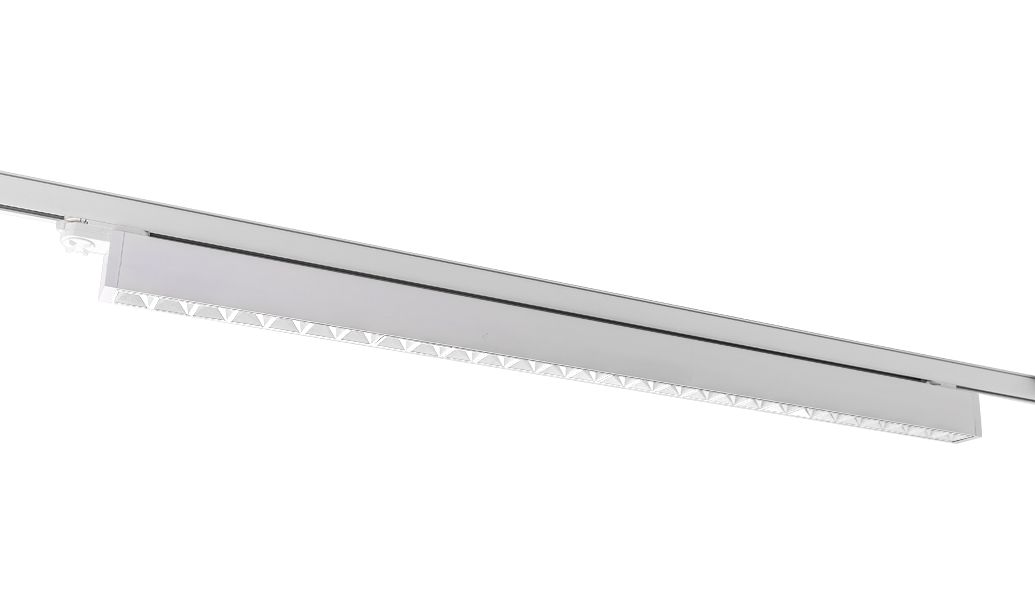

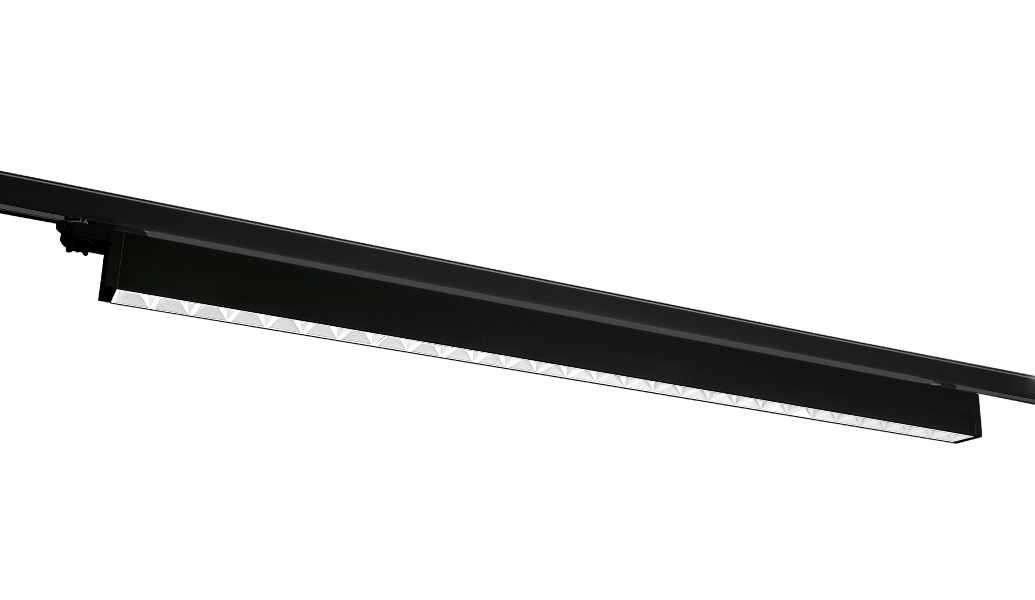

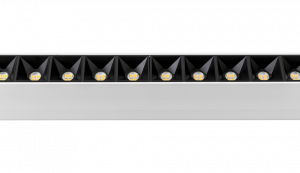

Ineal Cellular White Housing Black Cells

Introduction

The Ineal 46 family of linear products has been created to offer retailers a discreet low profile solution for their ambient store lighting. Designed to mount directly onto three circuit or DALI lighting track the high quality extruded aluminium body measures just 46mm in width and is offered in matt black or white as standard. This version comes with the choice of a black, white or copper injection moulded cellular baffle with a custom lens optic which provides maximum efficiency, consistent optical performance and an excellent glare control of UGR 16. The flexibility of the track adaptor allows you to re-position the fittings quickly and simply should there be any changes to the store layout further down the line. This unique product range is also available with integral emergency and offered in a wide range of lumen outputs across three luminaire lengths.

We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

INEAL 46 CELLULAR complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Accent Lighting | Display Lighting | Retail

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Finish: Polyester powder painted RAL 9005 matt black
  • Endcaps: Injection moulded polycarbonate
  • Lens: Injection moulded PMMA 80° with baffle in RAL9005 matt black, RAL 9016 matt white or copper
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 169 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional DALI dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for three circuit track installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white or black finishes
5 year extended warranty available on most products.
Arrow right

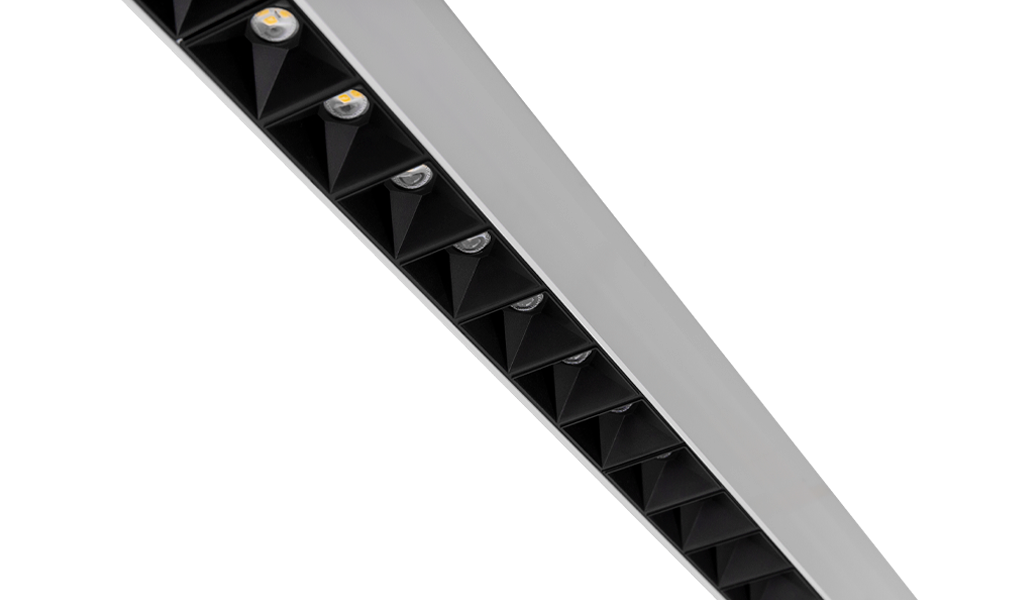

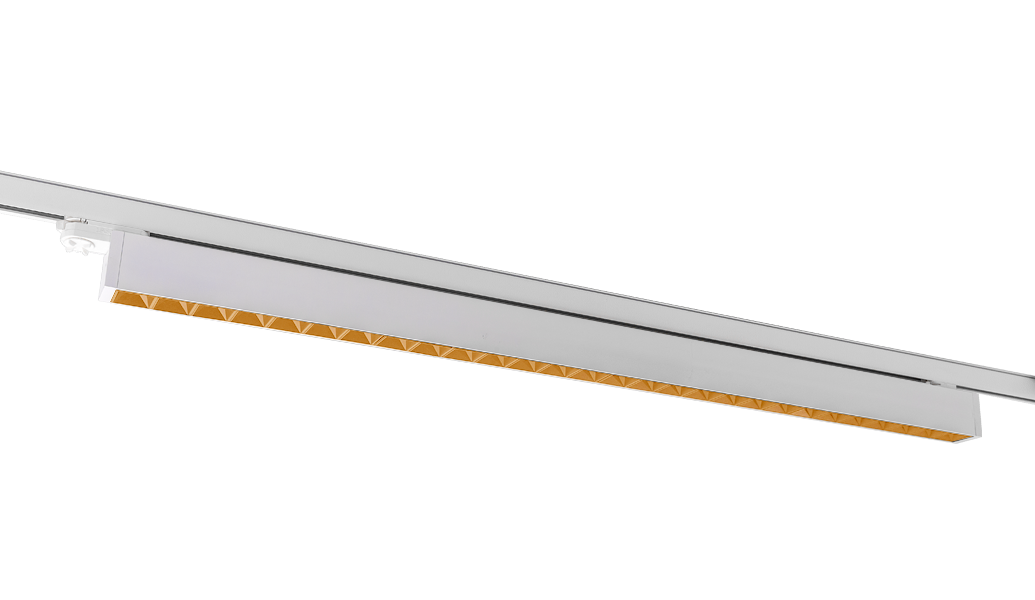

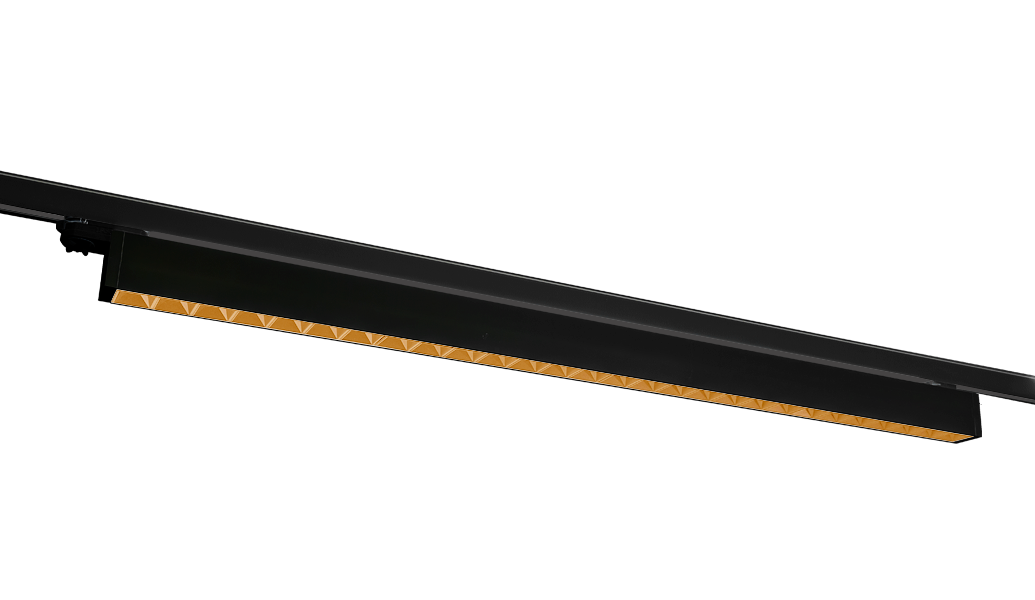

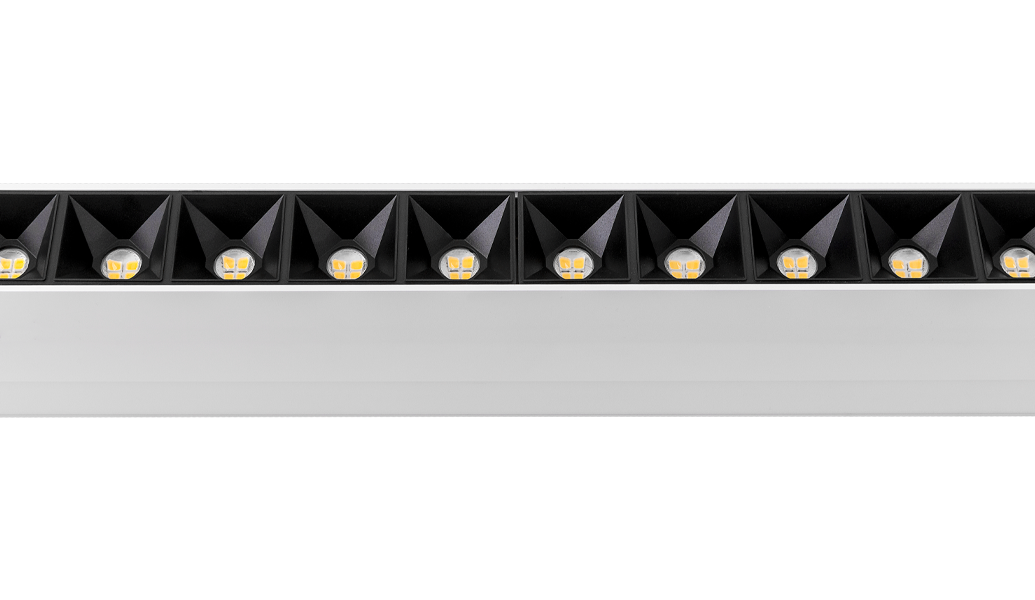

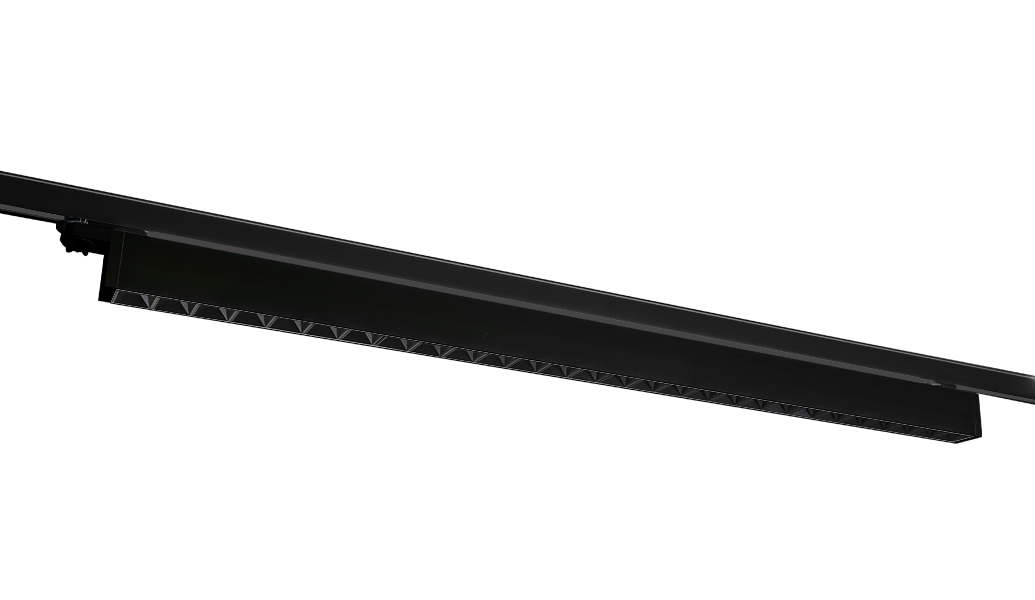

Product Images

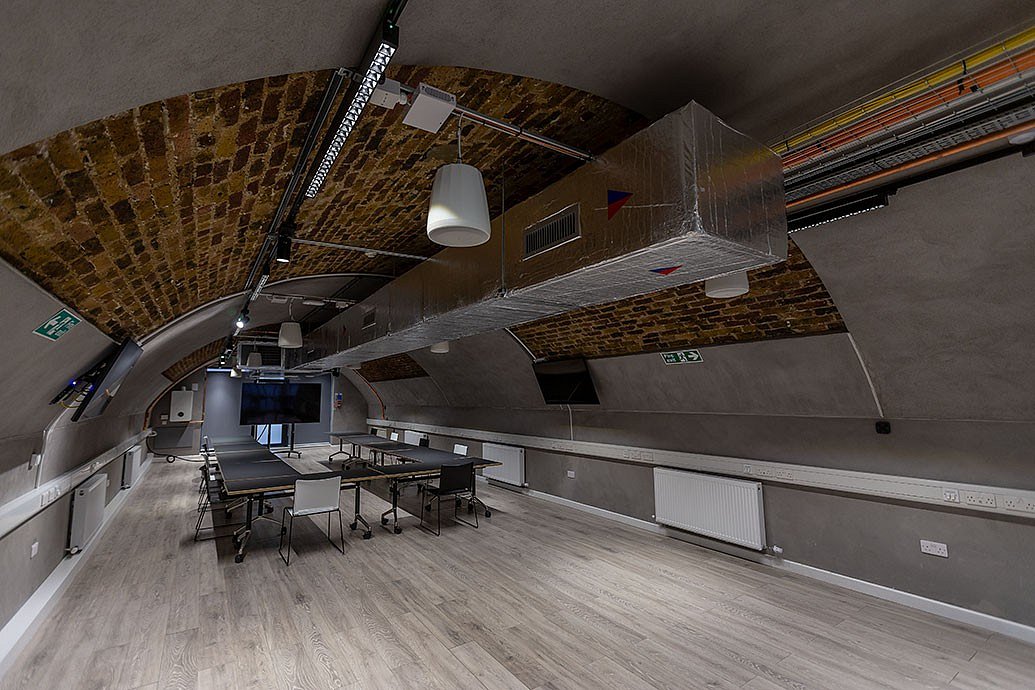

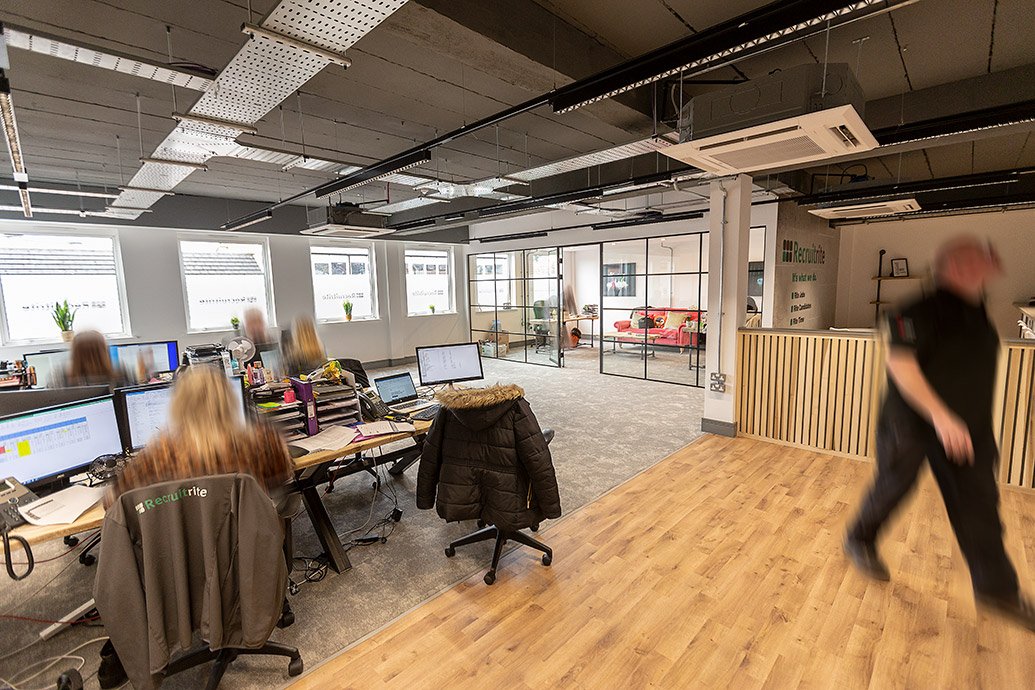

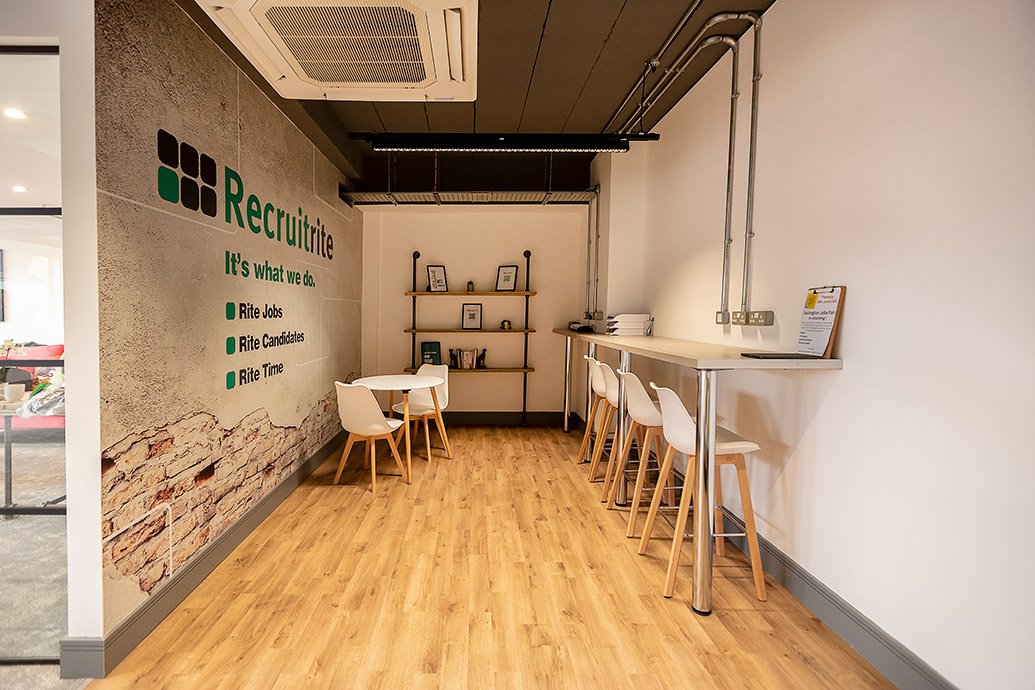

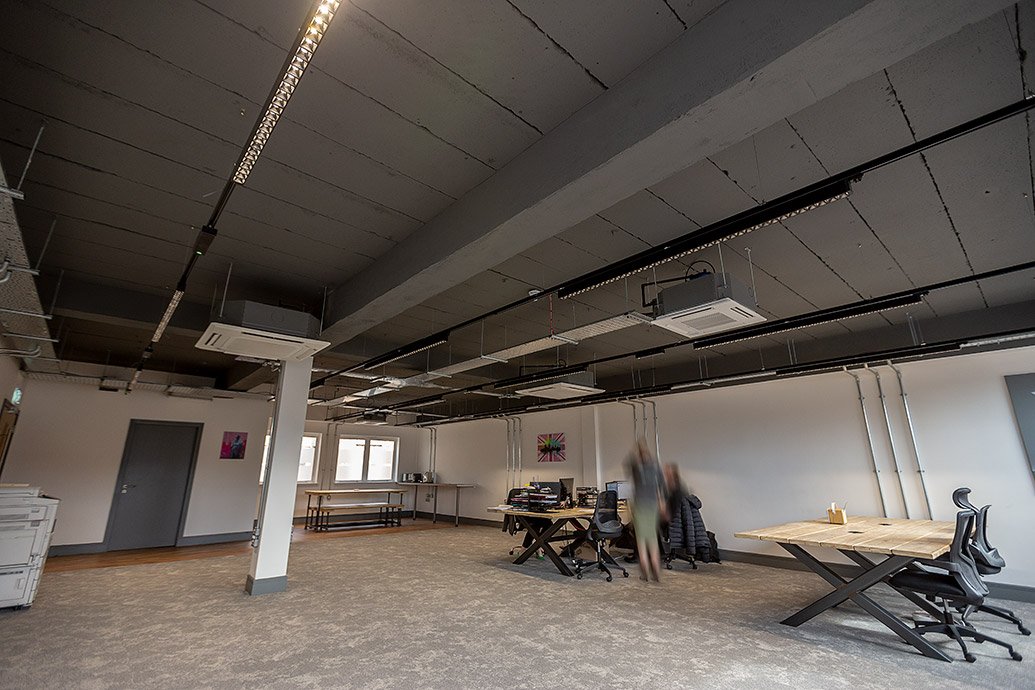

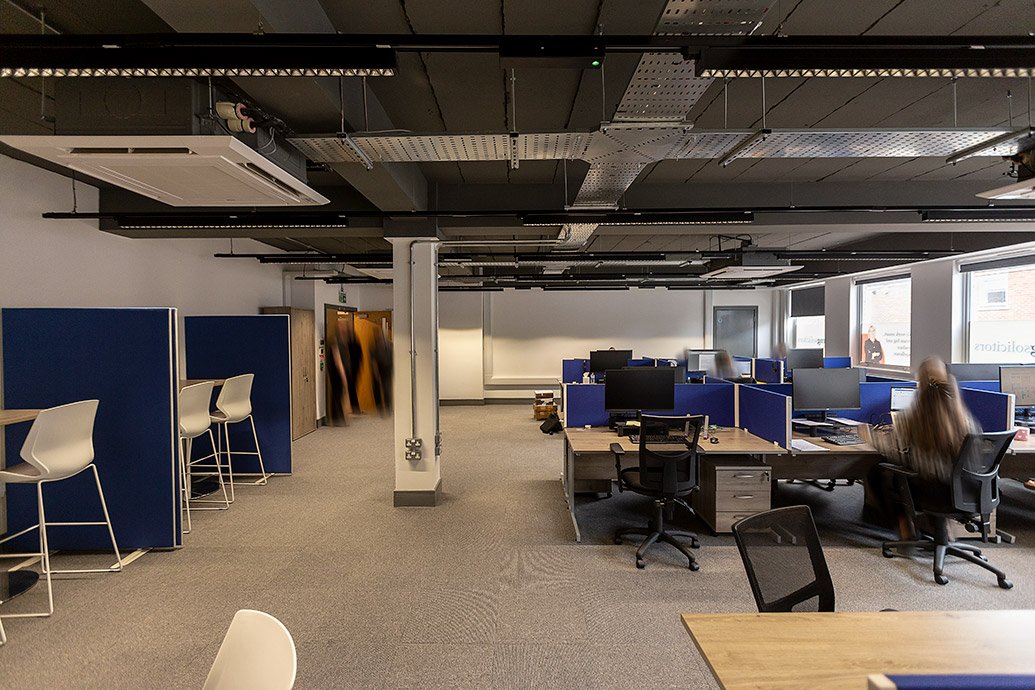

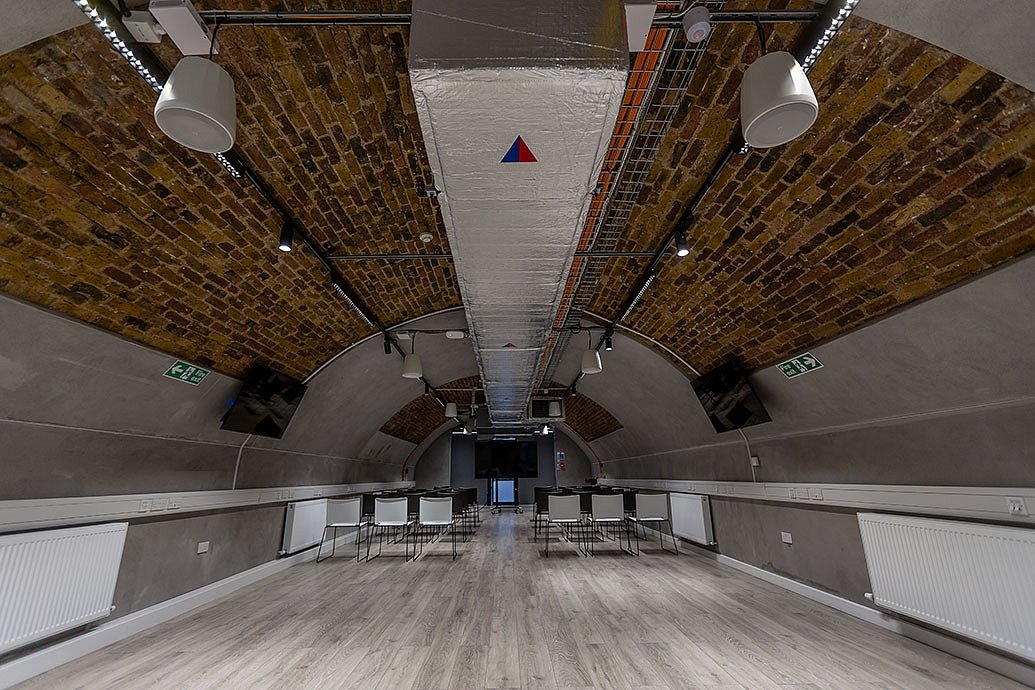

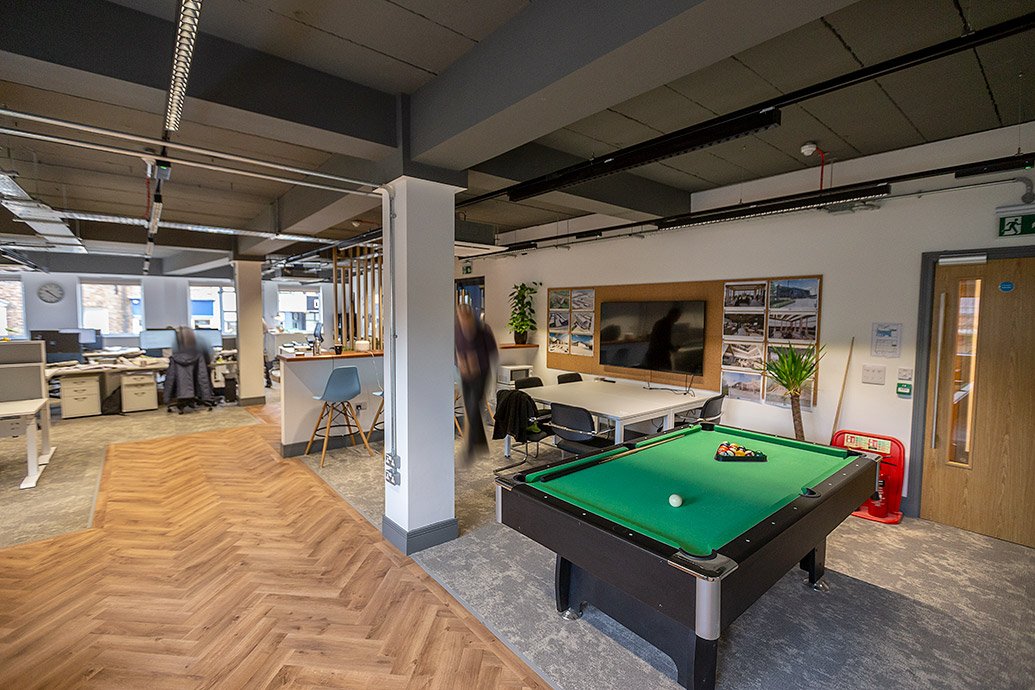

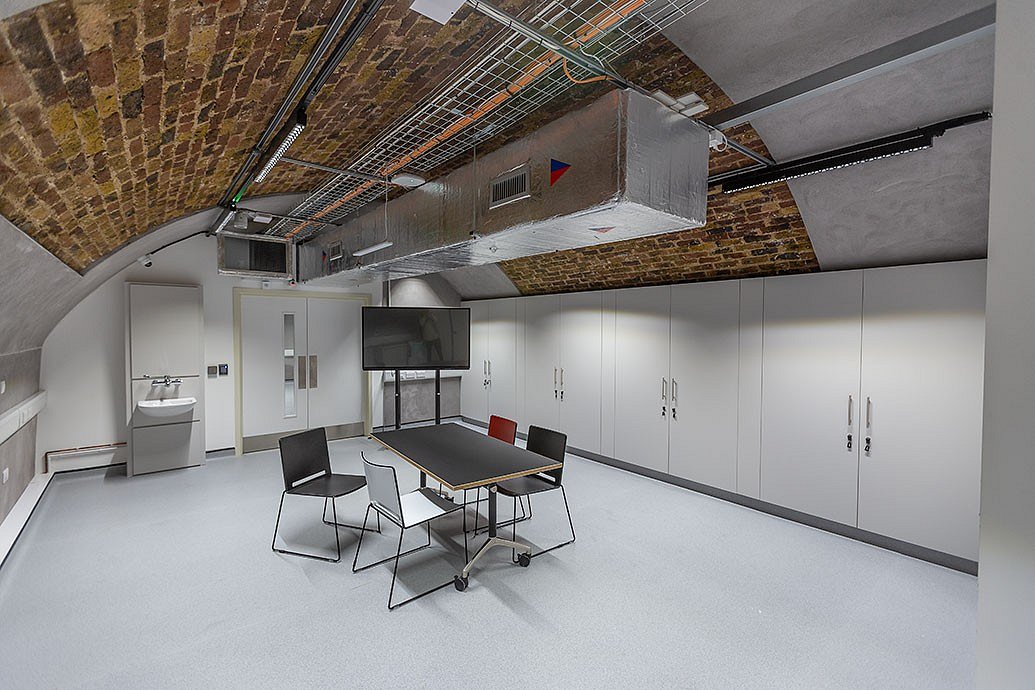

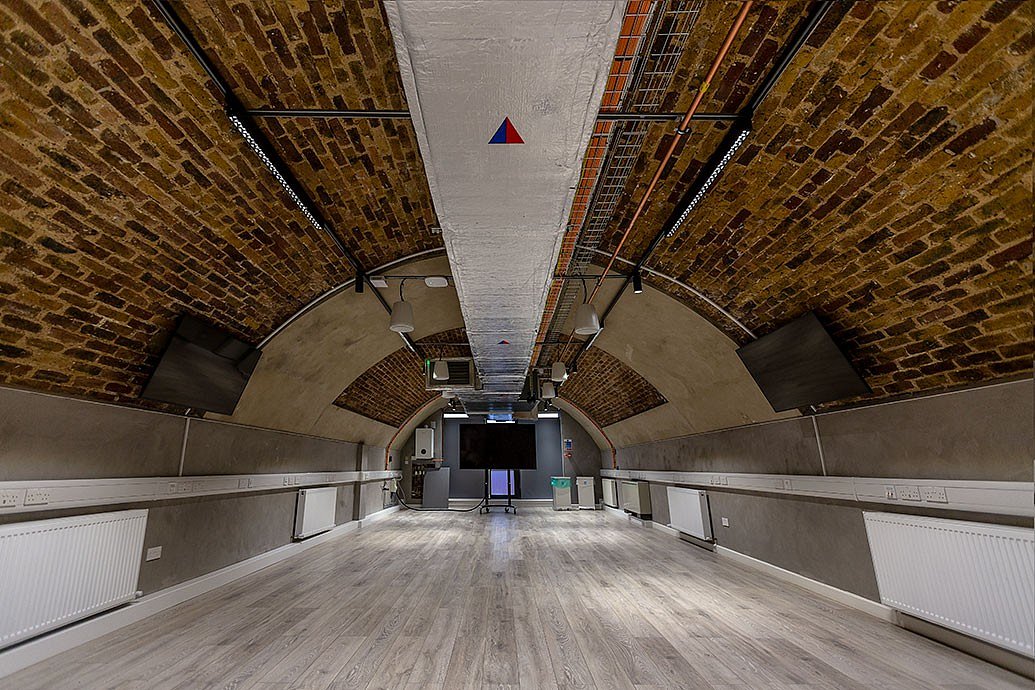

INEAL 46 CELLULAR in action

Technical

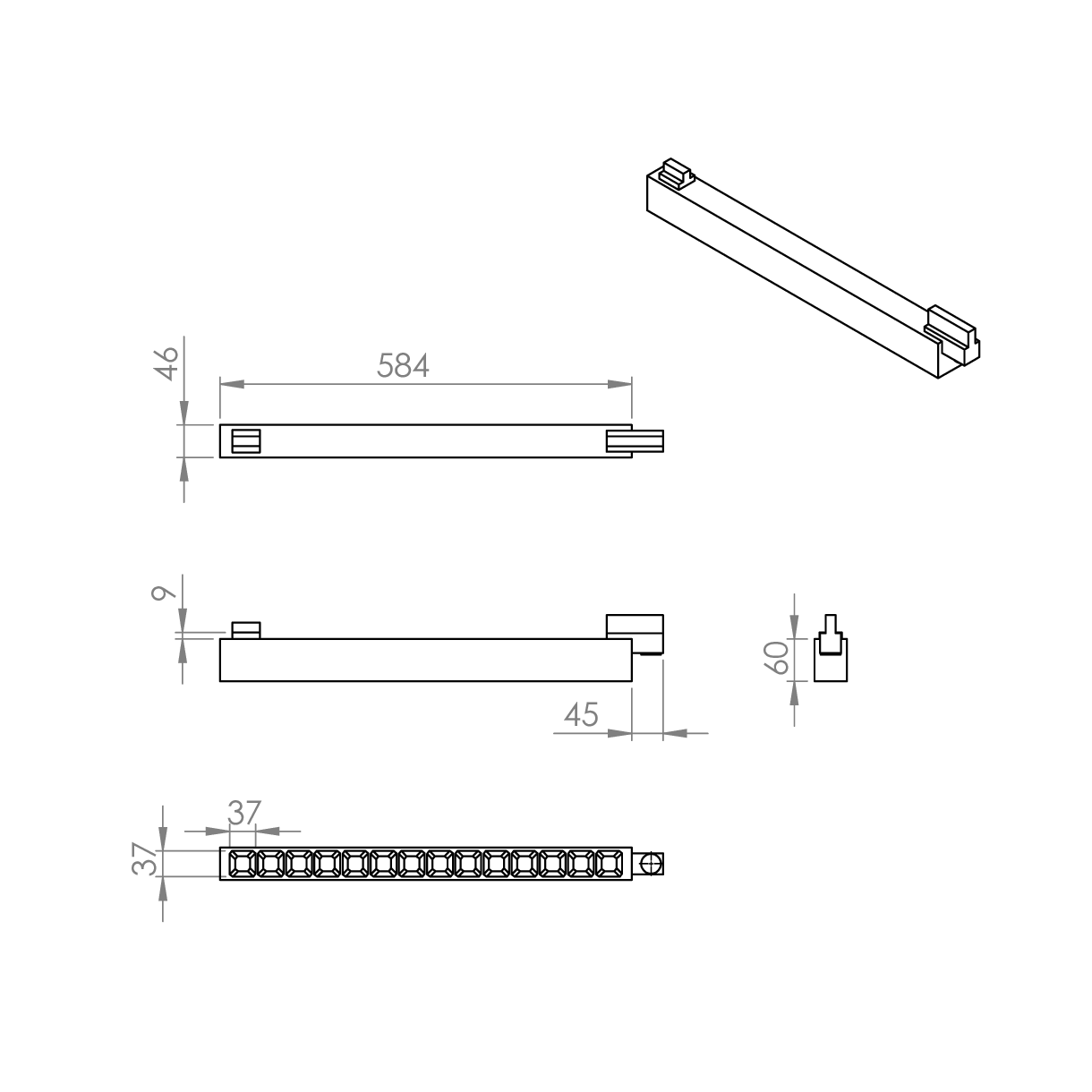

Ineal 46 Cellular 584mm

Ineal 46 Cellular 584mm

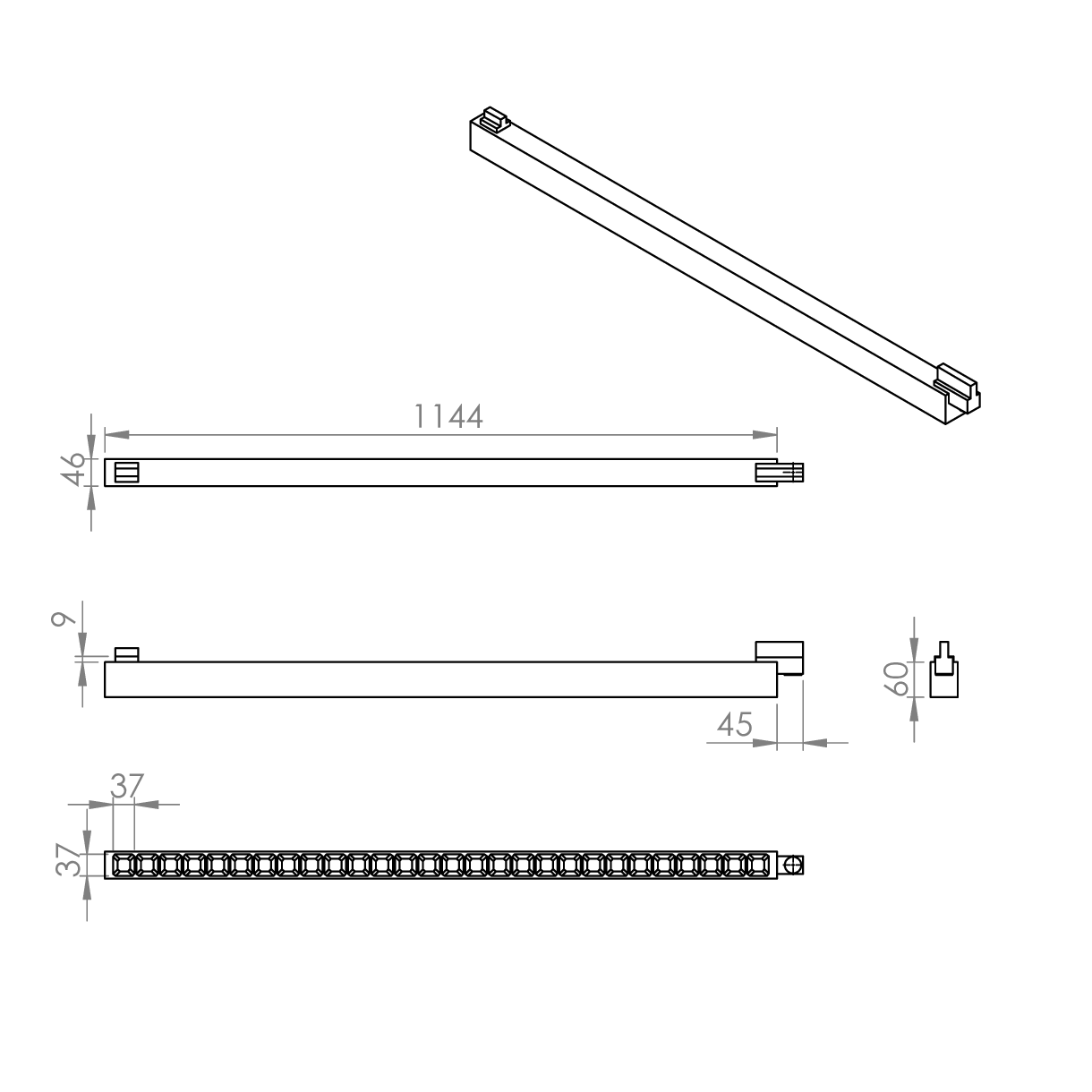

Ineal 46 Cellular 1144mm

Ineal 46 Cellular 1144mm

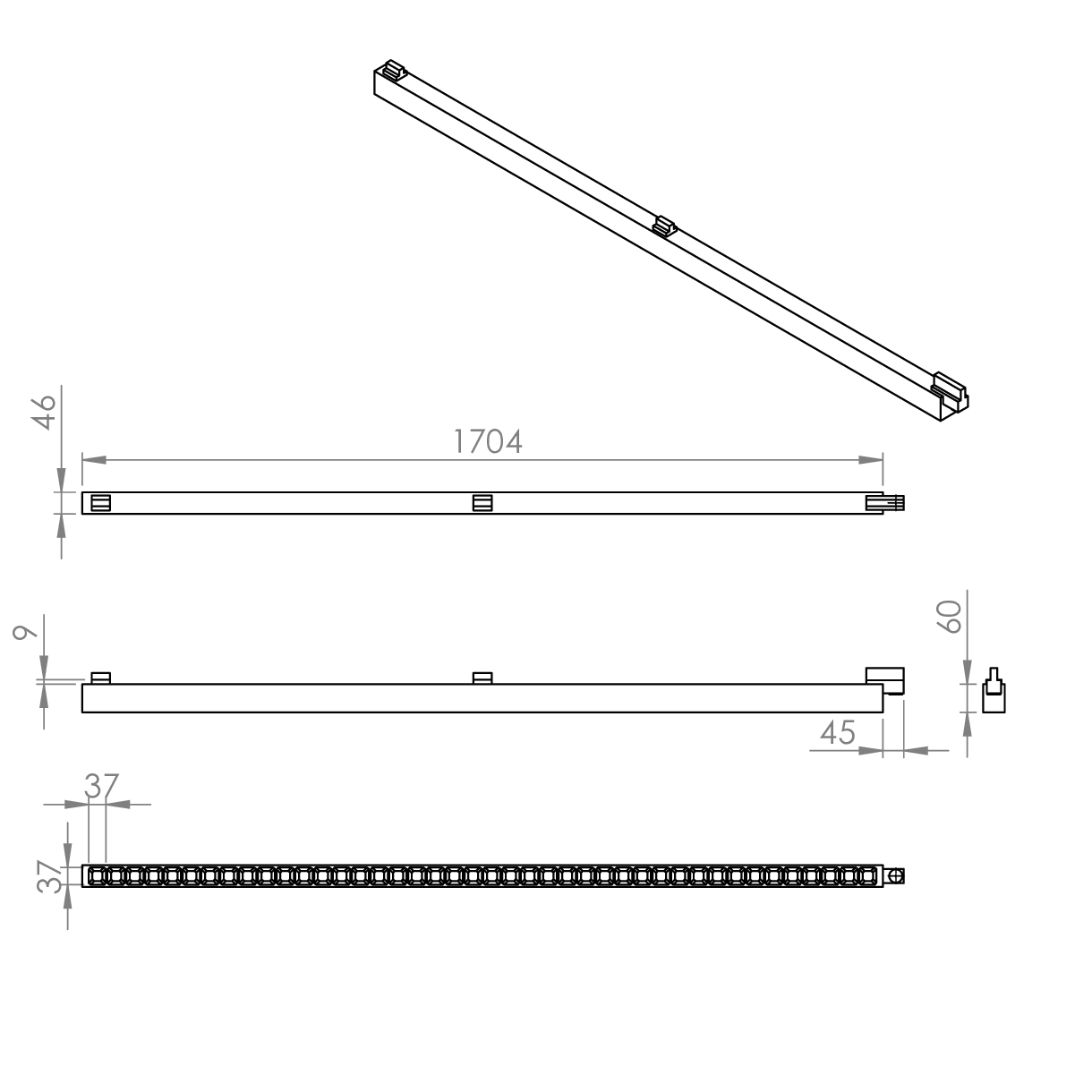

Ineal 46 Cellular 1704mm

Ineal 46 Cellular 1704mm

Track Polarity

Track Polarity

Ordering

Luminaires

Code Description Power Llm/W
INEC L22 GB ** Ineal 46, 584mm, 1,973llm, 14 Cell, Colour 84, Global 13.9W 141
INEC L26 GB ** Ineal 46, 1,144mm, 2,332llm, 28 Cell, Colour 84, Global 16.0W 145
INEC L38 GB ** Ineal 46, 1,144mm, 3,408llm, 28 Cell, Colour 84, Global 22.3W 152
INEC L45 GB ** Ineal 46, 1,704mm, 4,036llm, 42 Cell, Colour 84, Global 24.8W 162
INEC L65 GB ** Ineal 46, 1,704mm, 5,830llm, 42 Cell, Colour 84, Global 34.4W 169
INEC L90 GB ** Ineal 46, 1,704mm, 8,073llm, 42 Cell, Colour 84, Global 47.7W 169
** Select housing and baffle colour from Options

Optic

Code Description
WW White Housing / White Baffle
WB White Housing / Black Baffle
WC White Housing / Copper Baffle
BB Black Housing / Black Baffle
BW Black Housing / White Baffle
BC Black Housing / Copper Baffle

Dimming

Code Description
A DALI Digital Addressable Lighting Interface

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
Emergency only available in DALI variants of 1144 and 1704mm length

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
