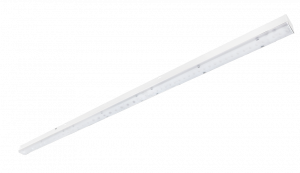

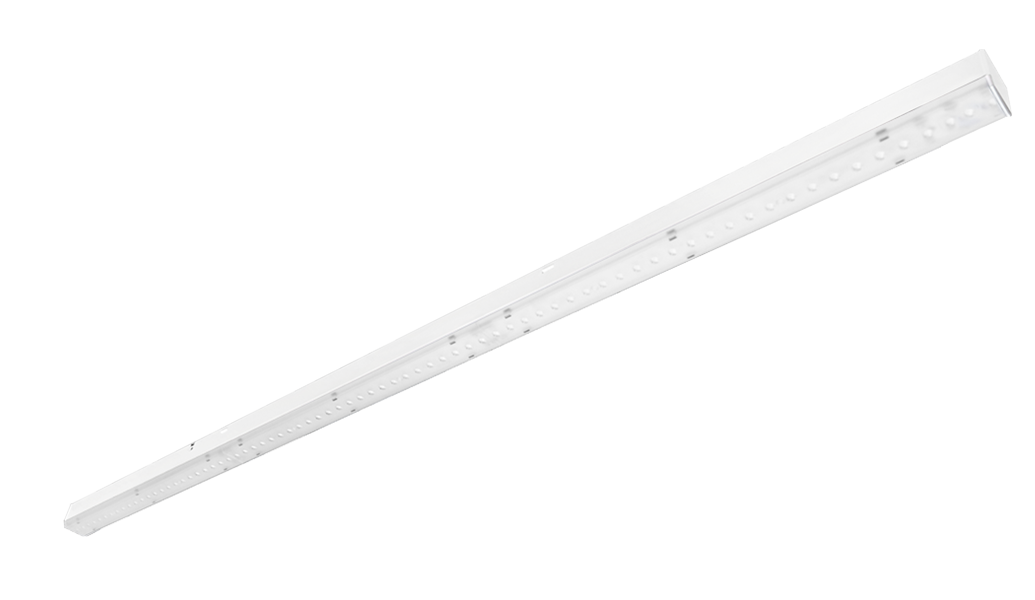

In-Line Opal

Introduction

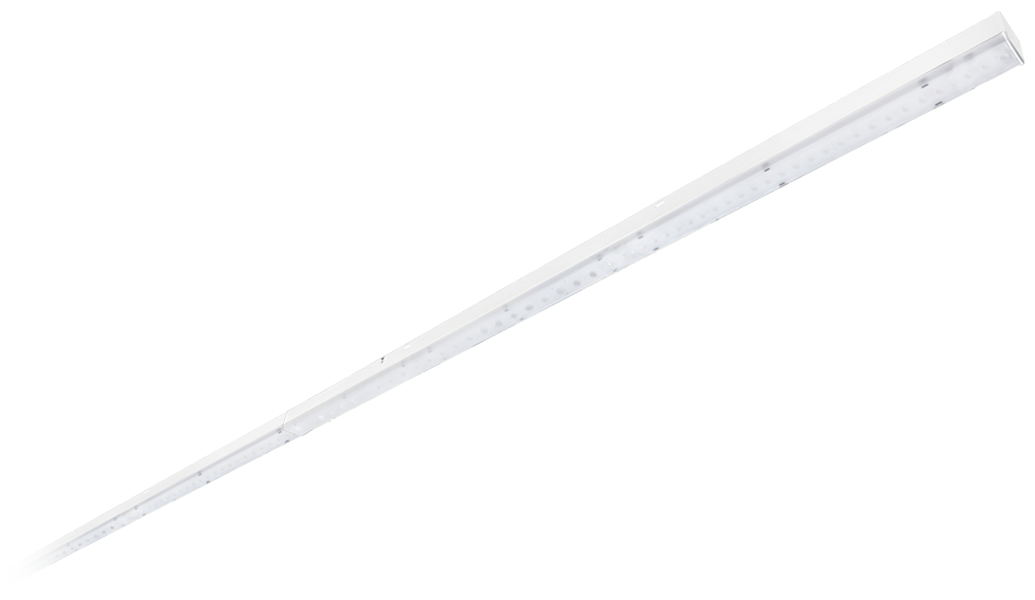

The In-Line is a continuous run LED lighting system that has been designed for retailers that are looking to illuminate their space as discreetly and simply as possible. Manufactured from robust formed steel the sleek 3m long sections are joined via integrated splice brackets which help to maintain system rigidity and alignment. Designed for rapid installation each section is supplied fully assembled out of the box with a pre-fitted wiring loom for quick electrical connection. The injection moulded custom lens optic directs the light to where it is needed whilst the soft sparkle from the visible LED's create an enchanting atmosphere for your customers to explore. Available in a range of lumen outputs and with optional integral lithium emergency this cost effective system offers excellent efficiency with complete optical control.

We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

IN-LINE complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Retail

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Endcaps: Injection moulded polycarbonate
  • Lens: Injection moulded polycarbonate lens
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 160 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations

Installation

  • Suitable for suspended installation
  • Supplied with 4 or 6 pole 1.5mm loom
  • This system is not suitable for mounting directly to the ceiling, it must be suspended.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
5 year extended warranty available on most products.
Arrow right

Product Images

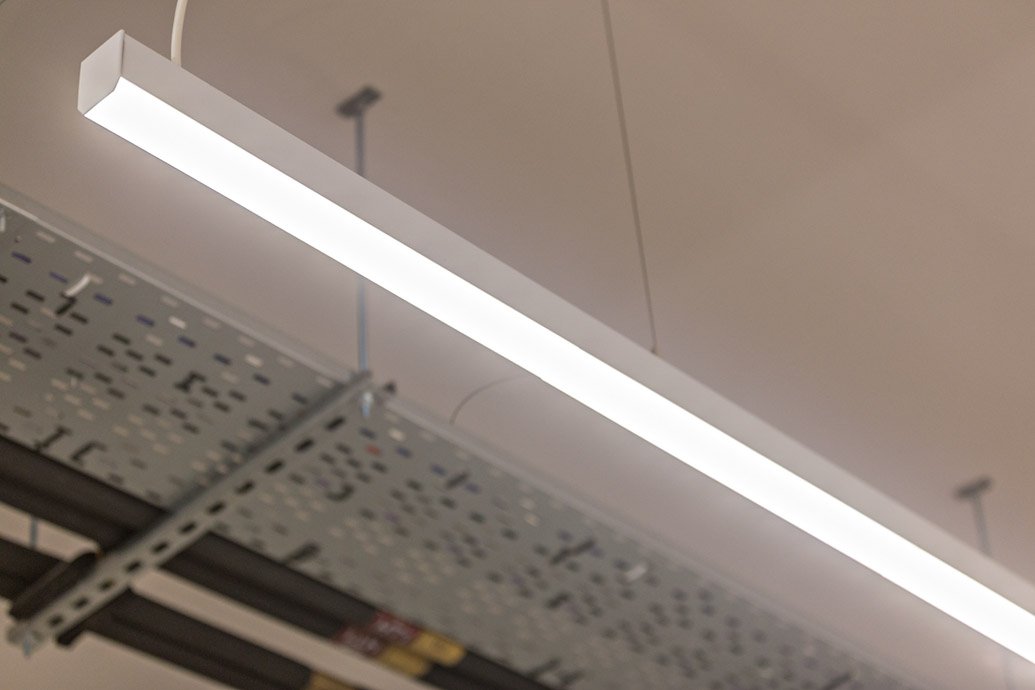

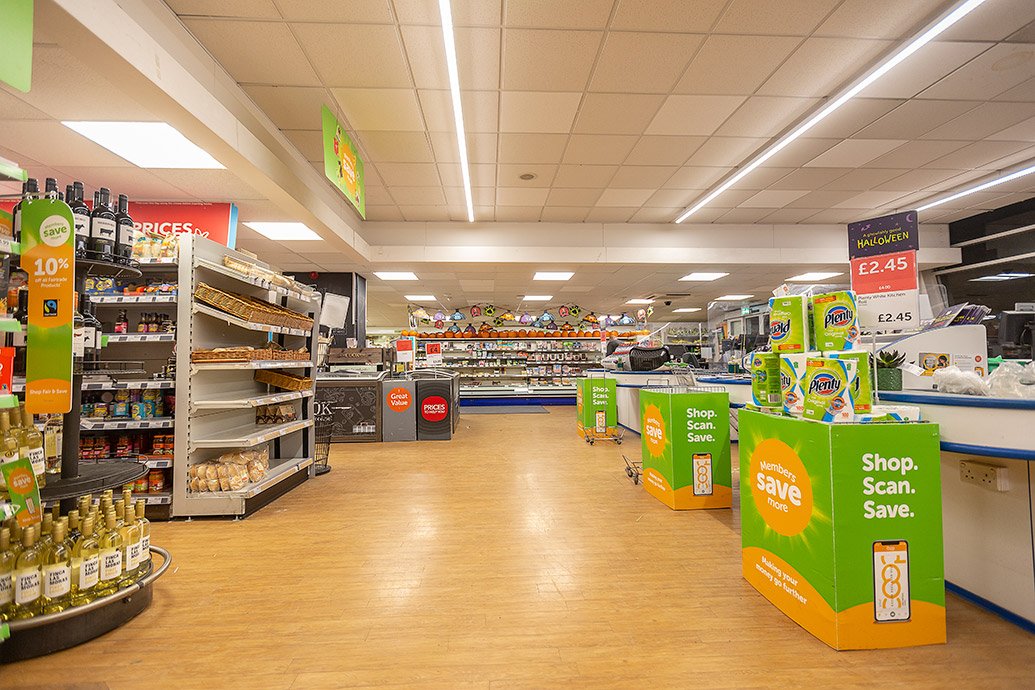

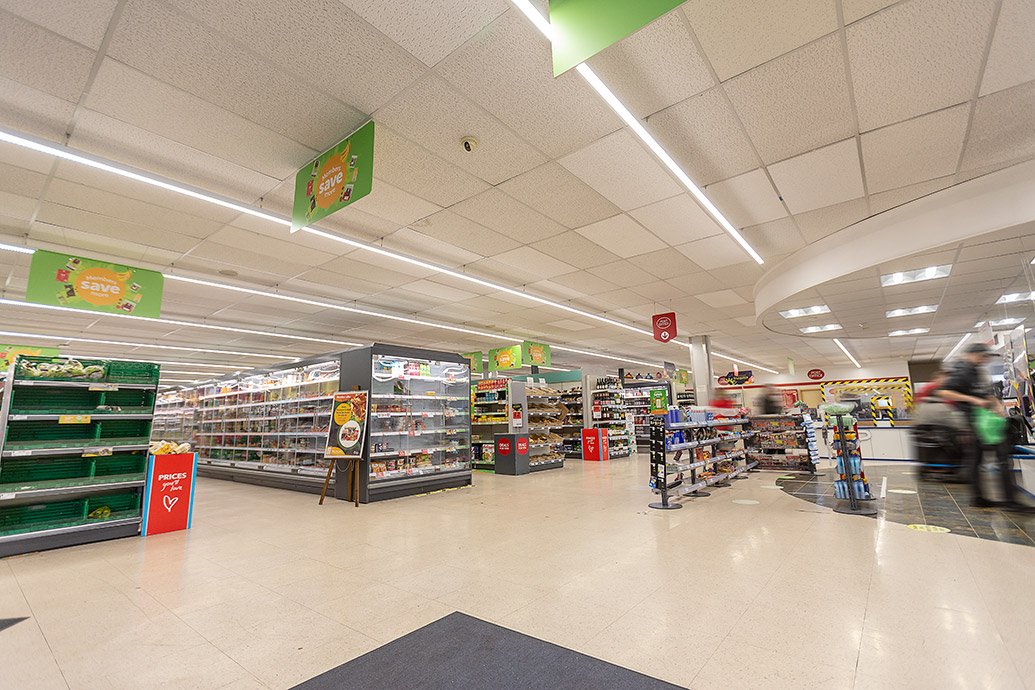

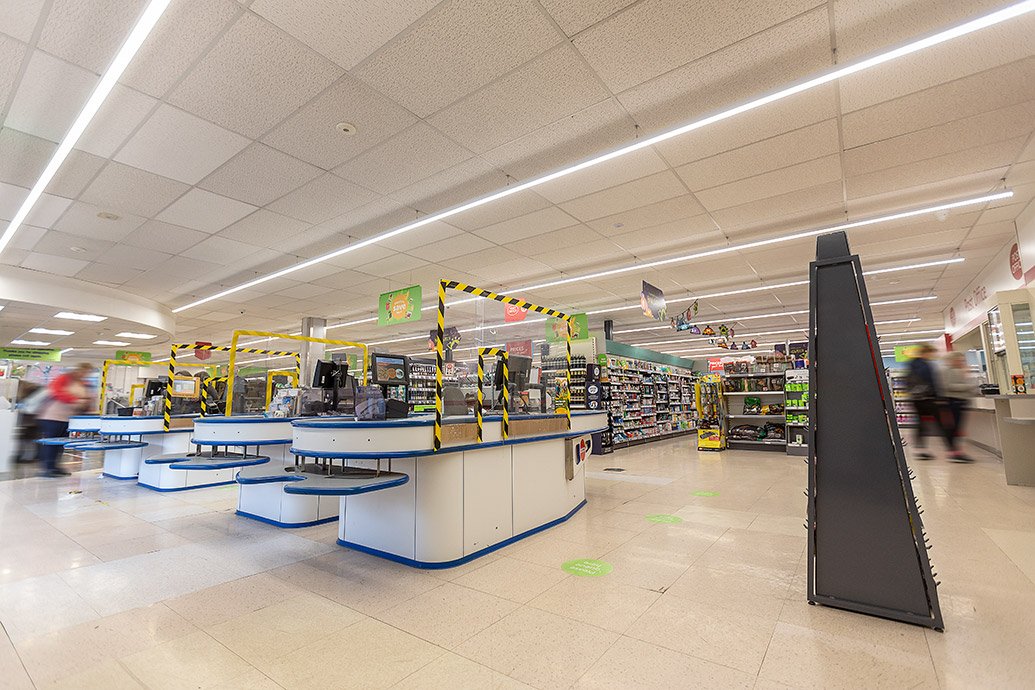

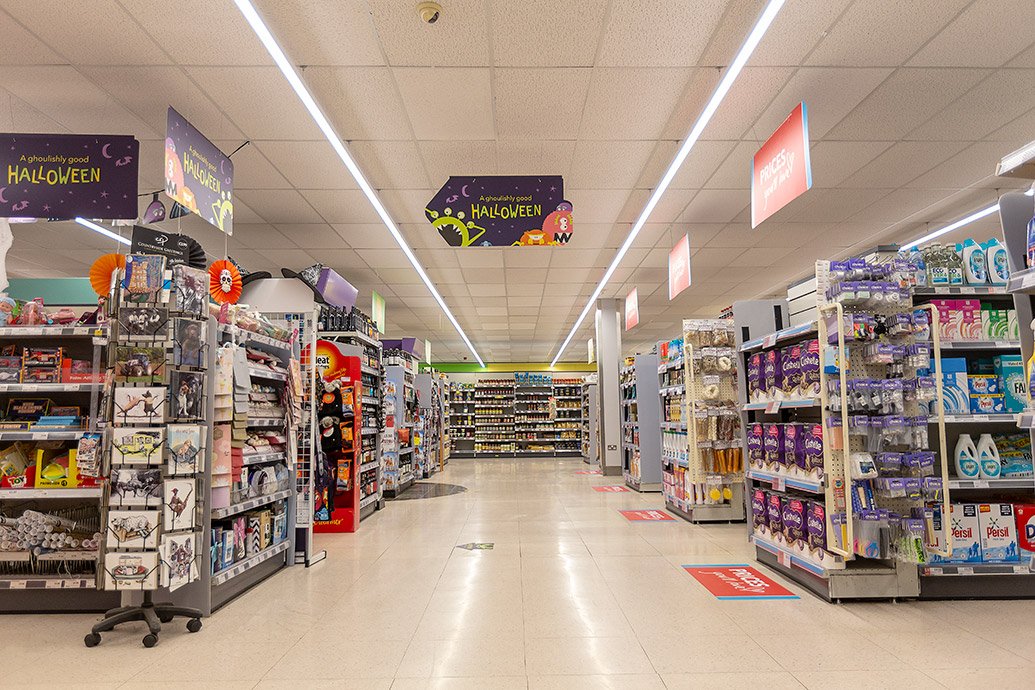

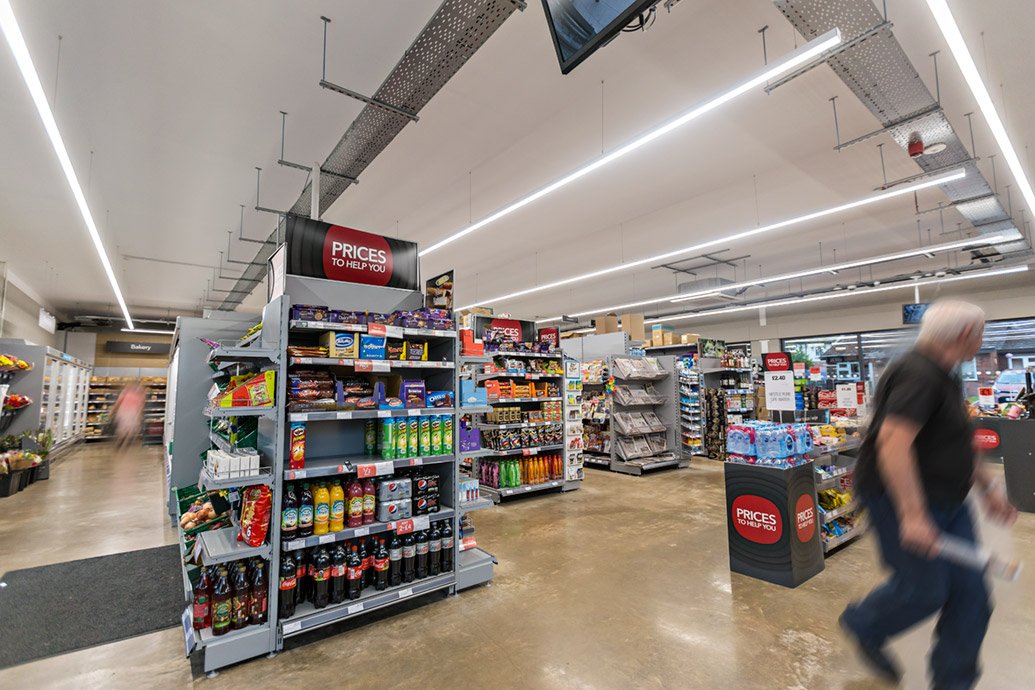

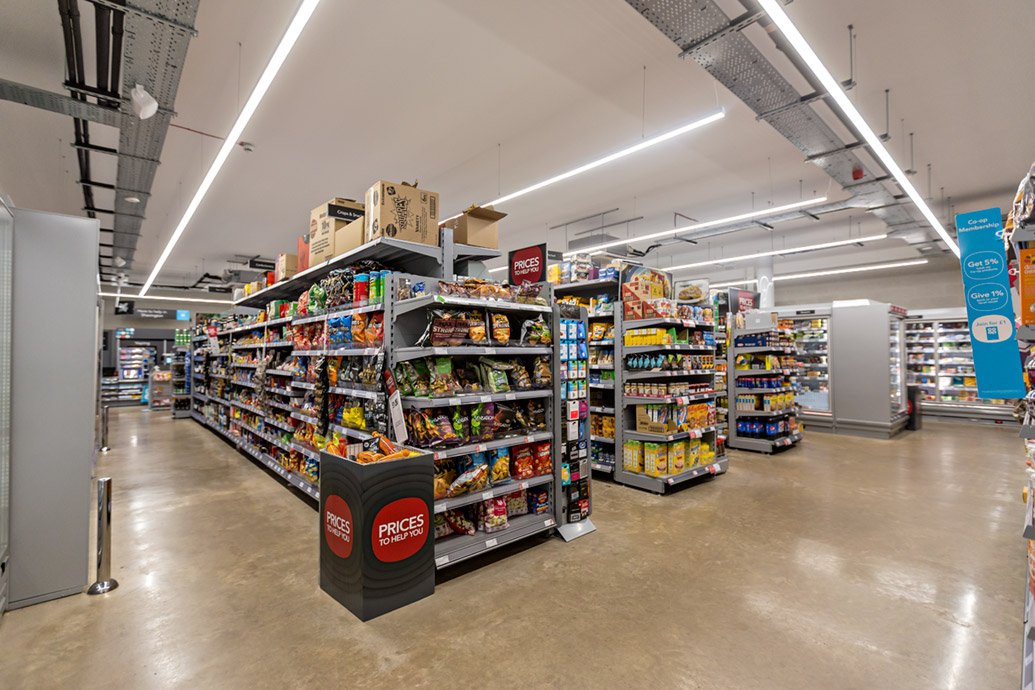

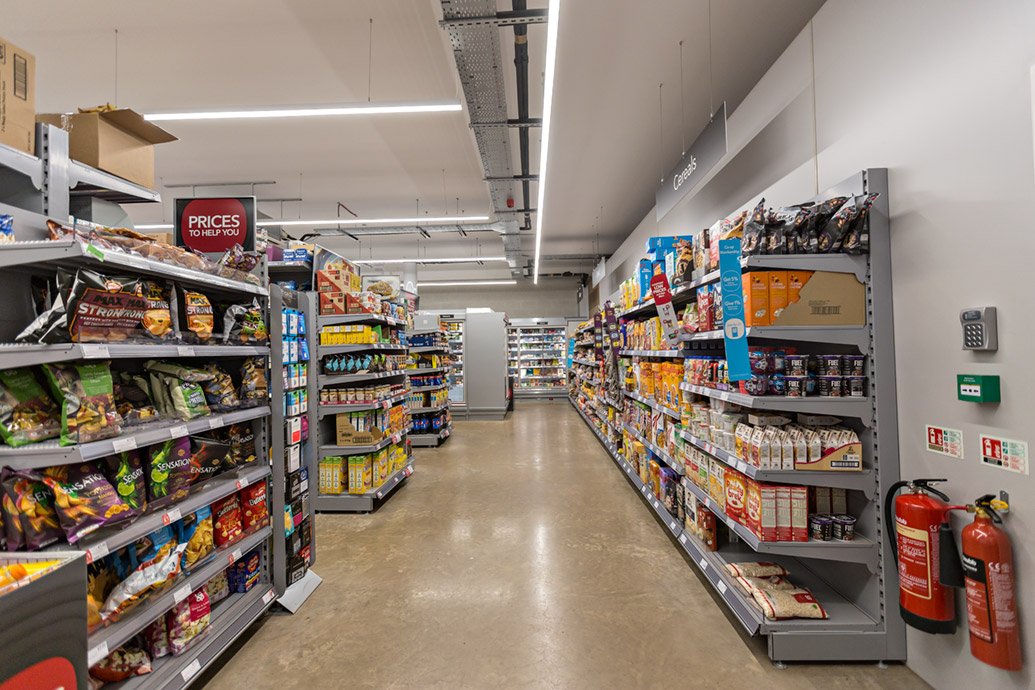

IN-LINE in action

Technical

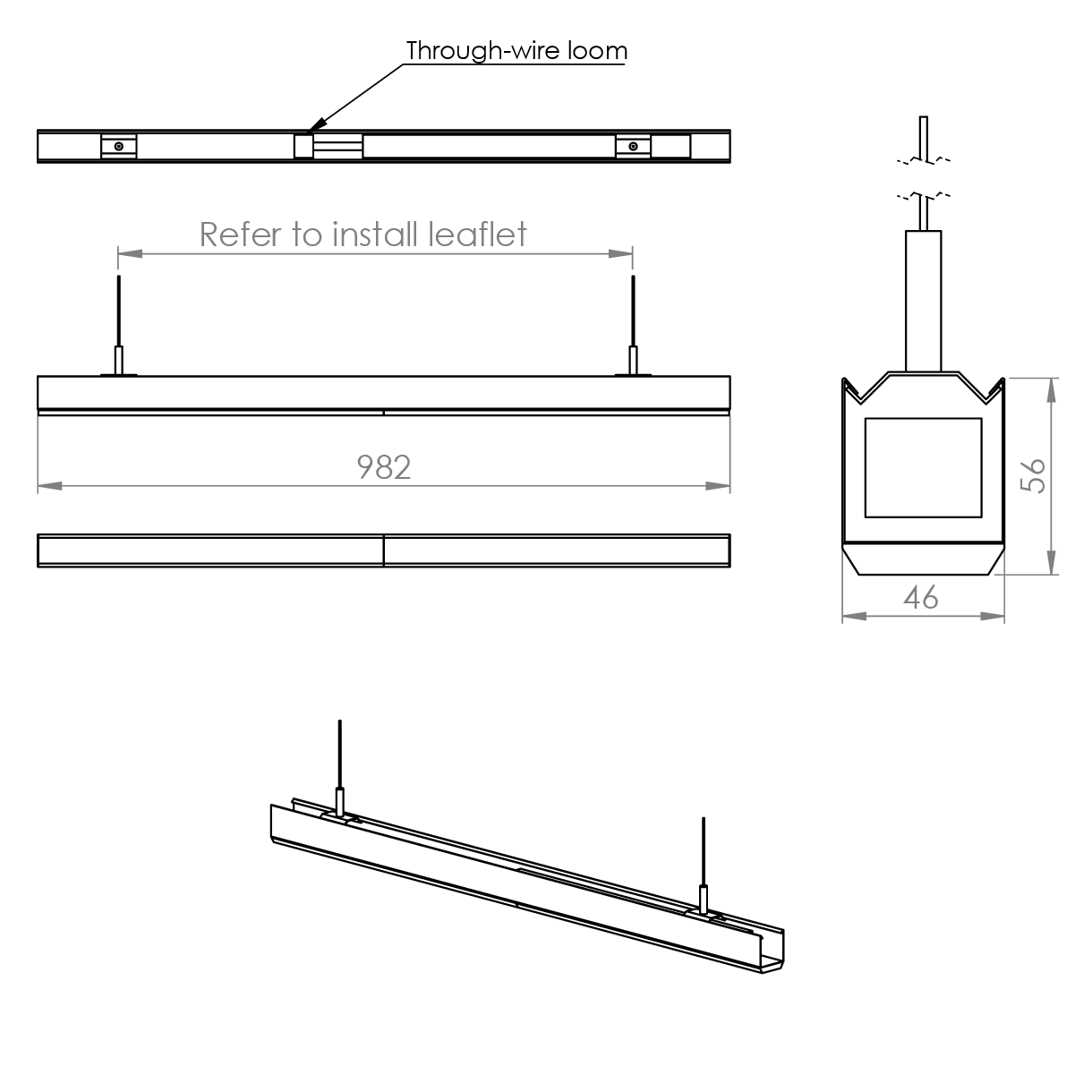

In-Line 982mm

In-Line 982mm

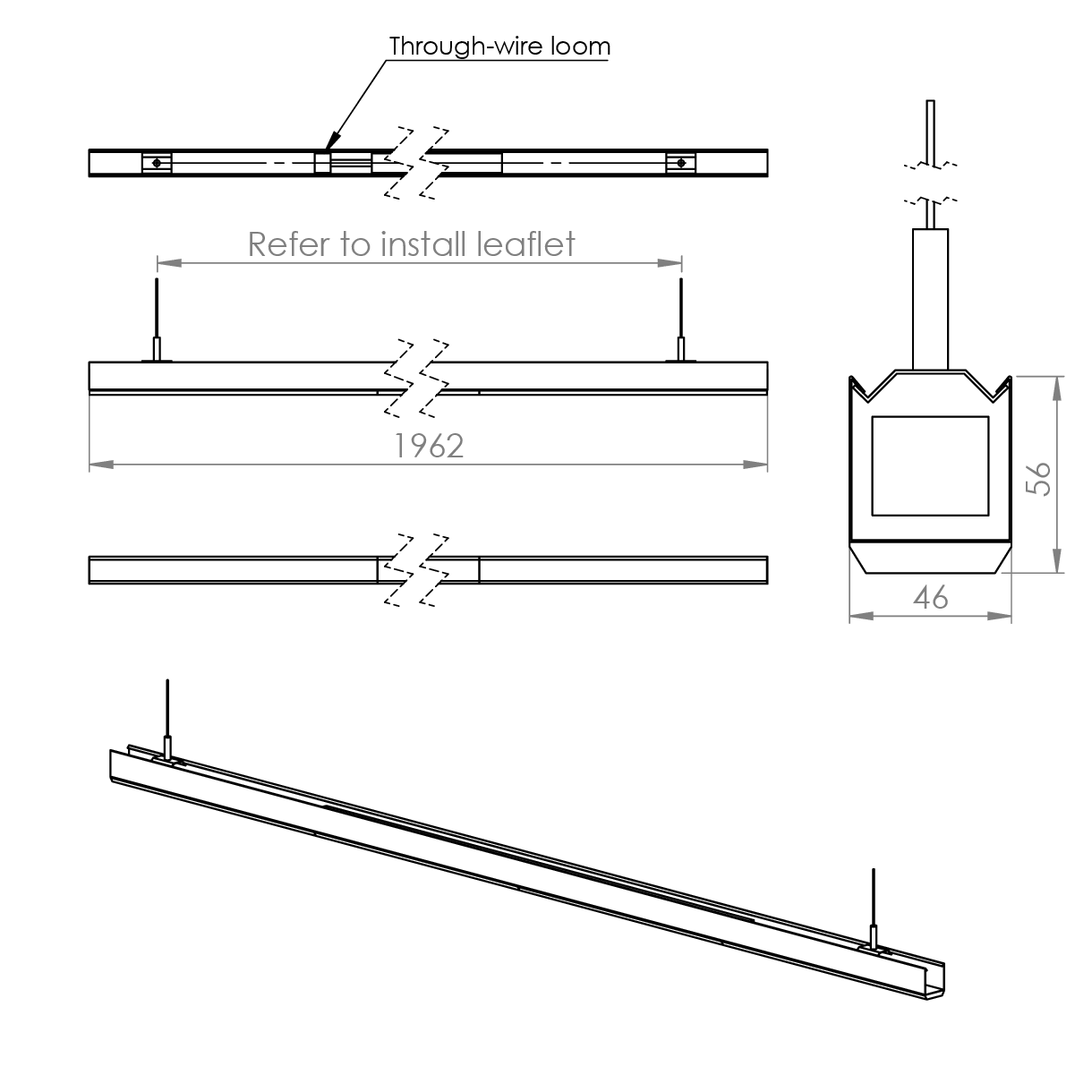

In-Line 1962mm

In-Line 1962mm

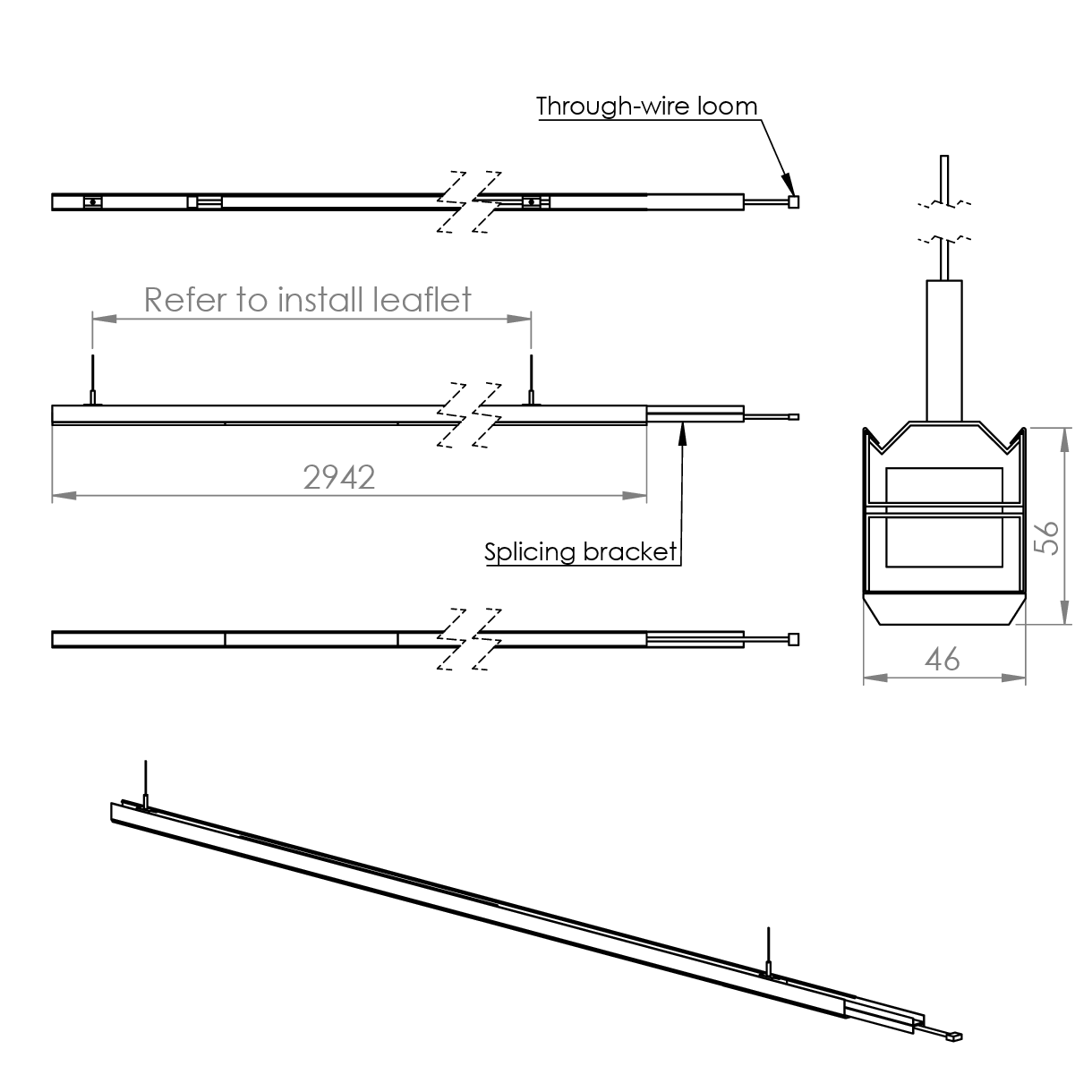

In-Line 2942mm

In-Line 2942mm

Ordering

Luminaires

End of Run
Code Description Power Llm/W
IL2 1L30 4ER OA In-Line, 2,568llm, 1000mm, Opal Lens Optic, 4 Pole Loom 18.2W 141
IL2 1L40 4ER OA In-Line, 3,426llm, 1000mm, Opal Lens Optic, 4 Pole Loom 25.6W 134
IL2 2L60 4ER OA In-Line, 5,136llm, 2000mm, Opal Lens Optic, 4 Pole Loom 34.1W 151
IL2 2L80 4ER OA In-Line, 6,848llm, 2000mm, Opal Lens Optic, 4 Pole Loom 47.8W 143

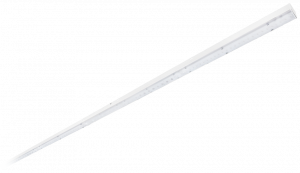

Continuous Run
Code Description Power Llm/W
IL2 3L90 4TW OA In-Line, 7,704llm, 3000mm, Opal Lens Optic, 4 Pole Loom 50.1W 154
IL2 3L120 4TW OA In-Line, 10,272llm, 3000mm, Opal Lens Optic, 4 Pole Loom 70.9W 145

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
Not available on 1000mm variants.

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen
6TW 6 Pole 1.5mm² Wiring Loom c/w Male/Female Connectors
6ER 6 Pole 1.5mm² Wiring Loom c/w Male Connector
IL2 4P 5M START 4 Pole 5m Starter Lead
SUSP IL2 3M 24T X1 Suspension In-Line 3m, 25mm Exposed Tee, One Drop, White
SUSP IL2 5M 24T X1 Suspension In-Line 5m, 25mm Exposed Tee, One Drop, White
SUSP IL2 3M BF X1 Suspension In-Line 3m, Barrel Fix, One Drop, White
SUSP IL2 5M BF X1 Suspension In-Line 5m, Barrel Fix, One Drop, White
SUSP IL2 5M LO X1 Suspension In-Line 5m, Loop Over, One Drop, White
IL2 6P 5M START 6 Pole 5m Starter Lead
IL2 ENDCAP KIT Pair of Finishing Endcaps

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
