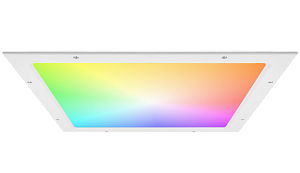

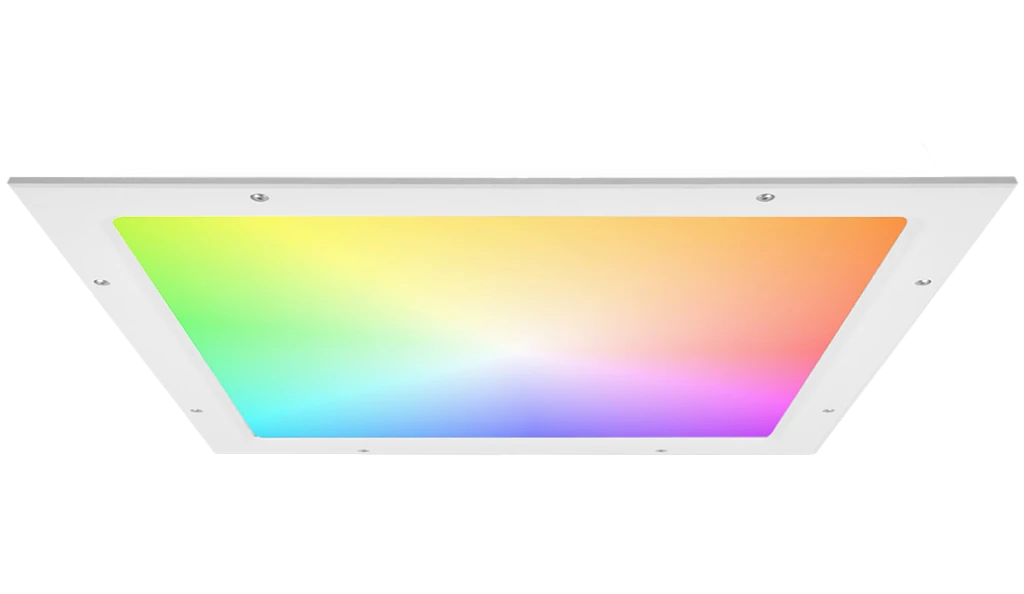

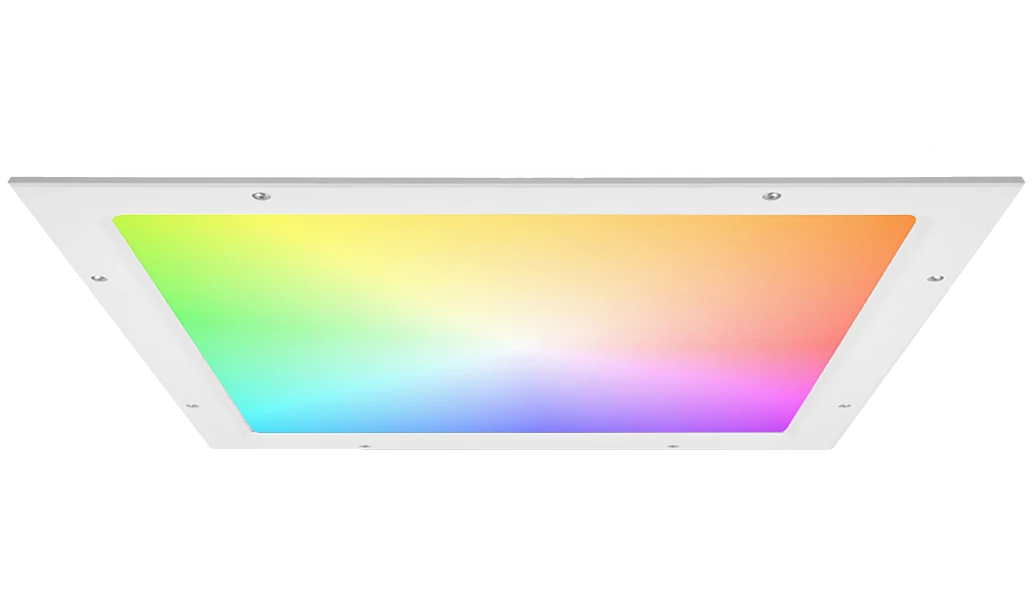

IMPR RGBW
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The Impervia RGBW provides a colour changing solution where protection from ingress of dirt, dust and water is needed. With a steel housing and ABS injection moulded frame with thermally cured liquid poured gaskets the Impervia RGBW offers both IP65 rating and IK10 impact protection. When installed the double gasketed frame also forms an IP65 seal to the ceiling surface. The polycarbonate diffuser ensures both high transmission and uniform lit appearance whilst offering TP(a) rating ensure suitability for use in a wide range of applications.
With an individual DALI driver per channel the Impervia RGBW can quickly and easily be adjusted to any colour requirement and is suitable for pull up installation in exposed T and concealed grid ceilings.
IMPR RGBW complies with:
UKCA | CE | IP65 | IK10 | TP(a)
Recommended applications:
Education | Food Production | Healthcare / Social Housing
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
- IK10
- IP65
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
- RGBW Colour Changing
Installation
- Suitable for lay-in installation in exposed T ceilings
- Suitable for pull-up installation in concealed grid ceilings
- Suitable for plasterboard installation
Variations
- Available in a range of housing sizes and lumen outputs
Performance
- Circuit Wattage: Red 20.87W, Green 30.69W, Blue 28.61W
- Luminaire Lumens: Red 771llm, Green 1,540llm, Blue 764llm
Product Images

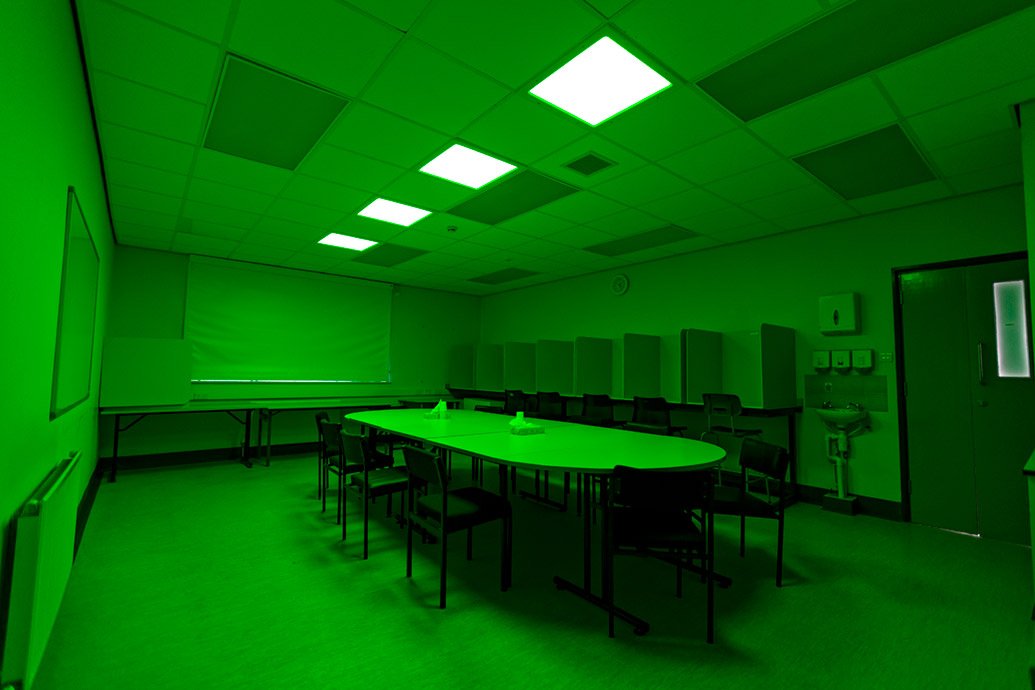

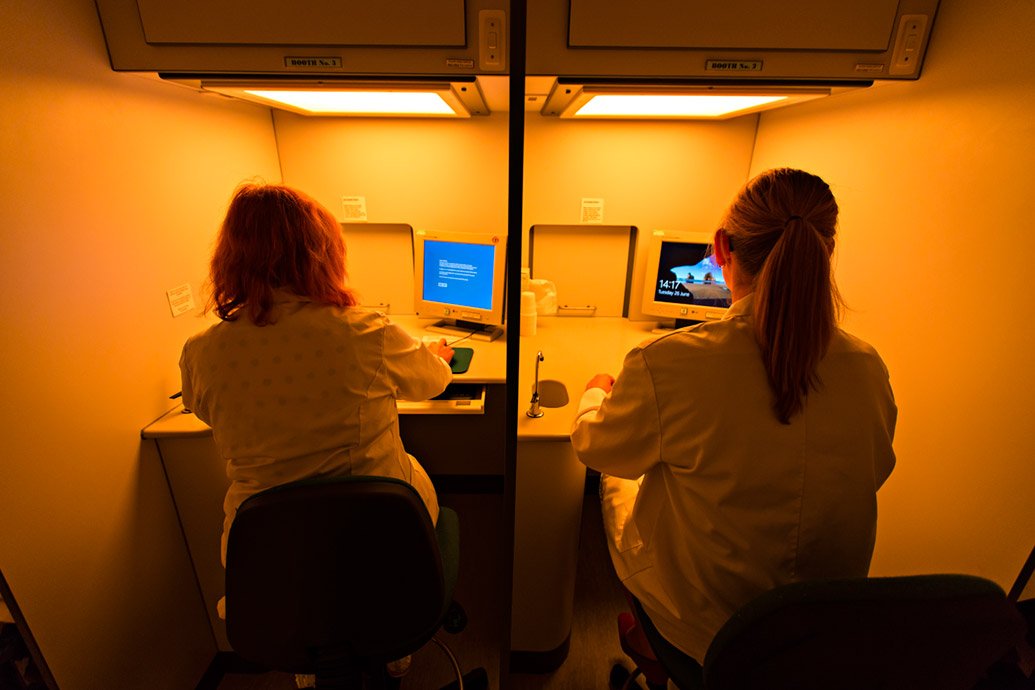

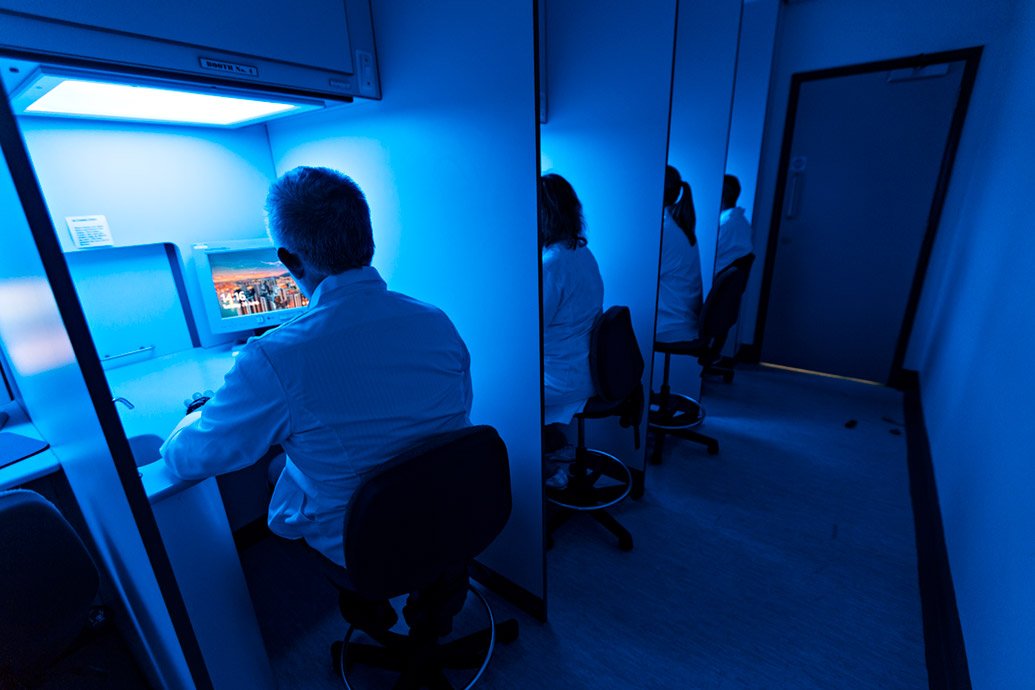

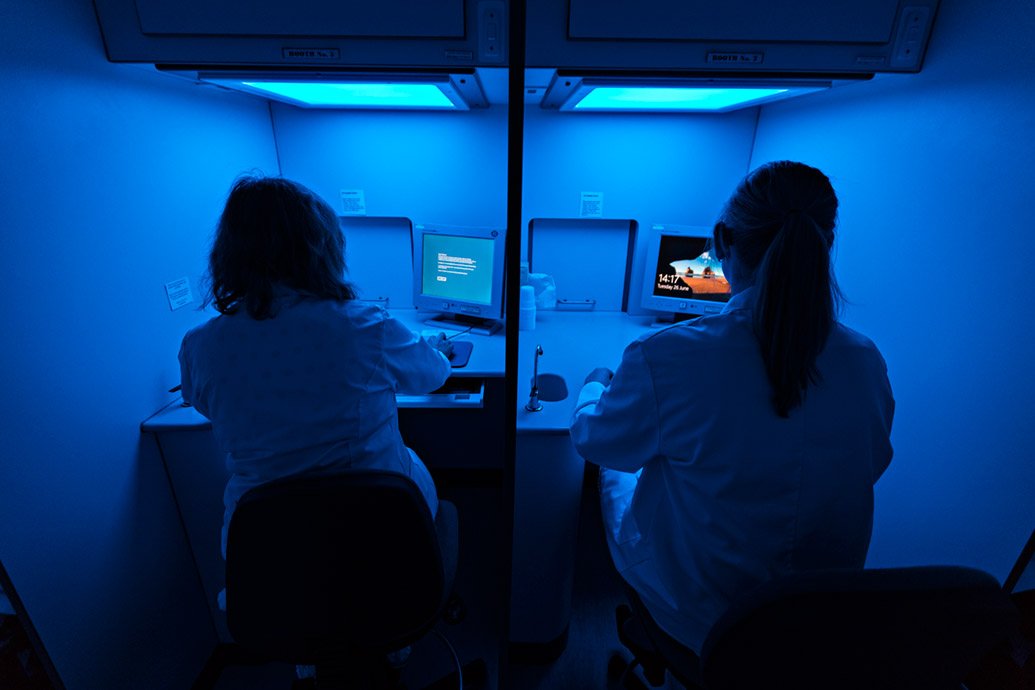

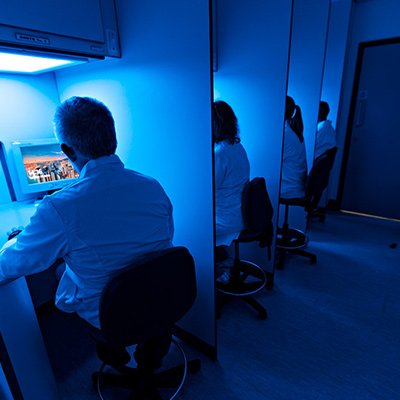

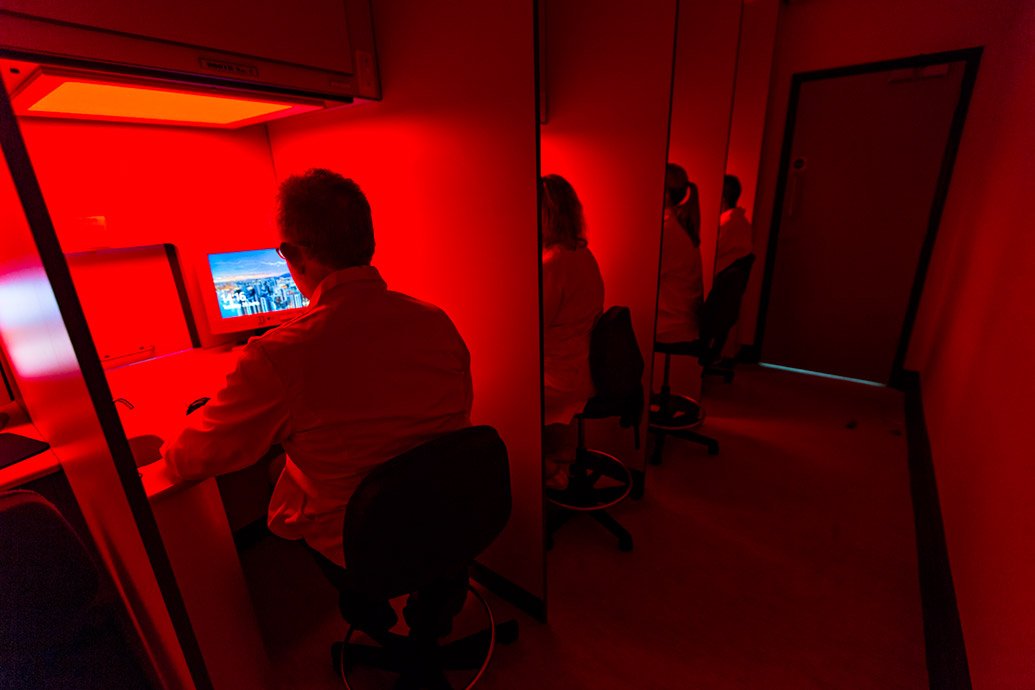

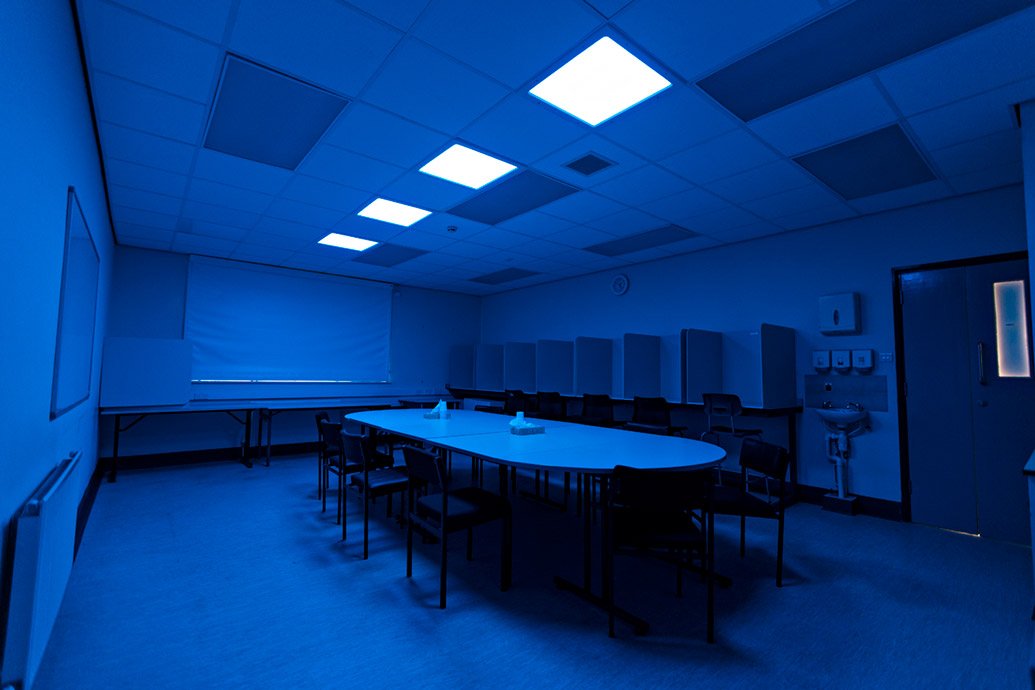

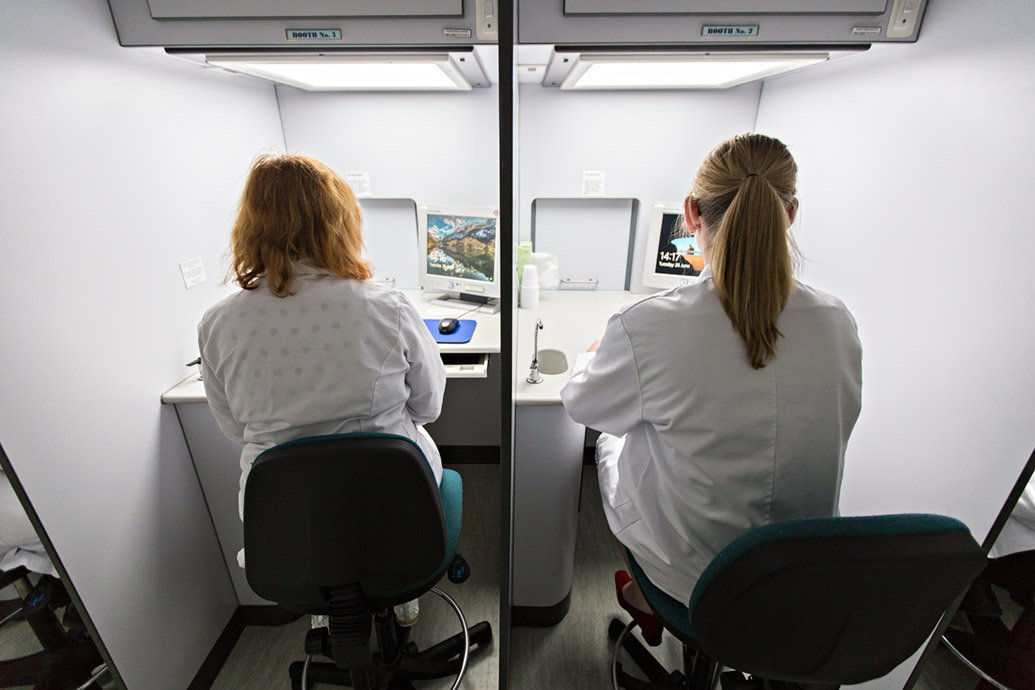

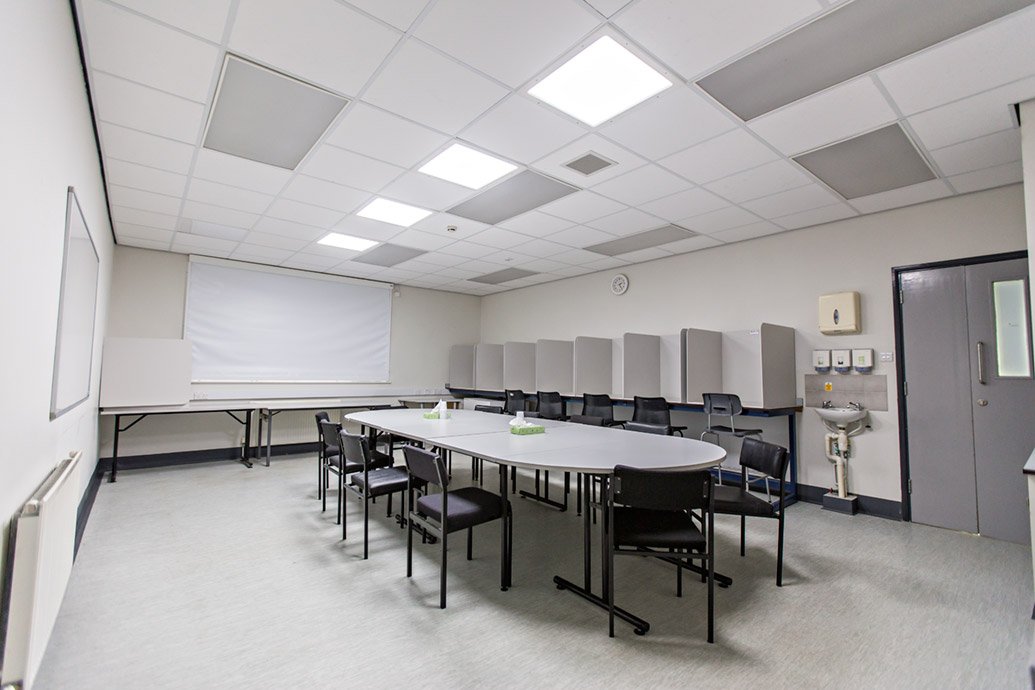

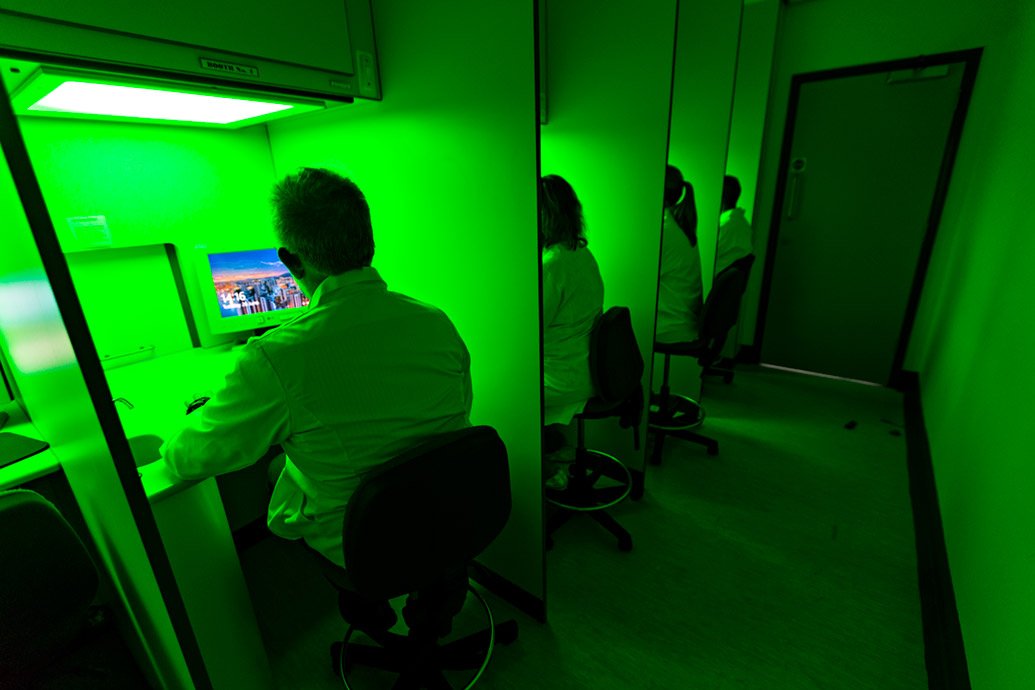

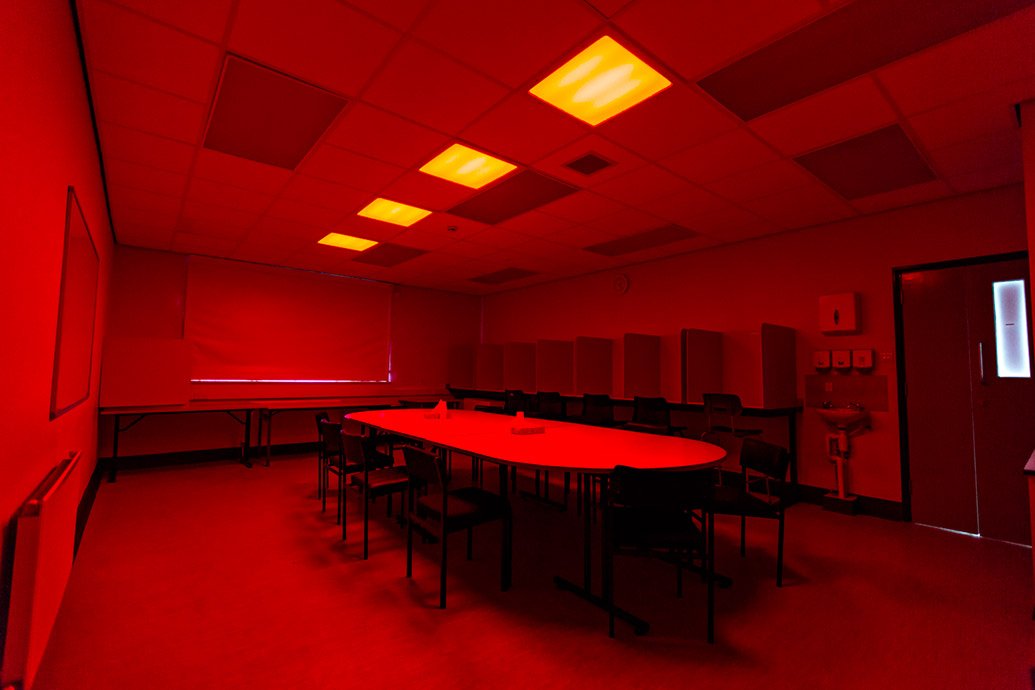

IMPR RGBW in action

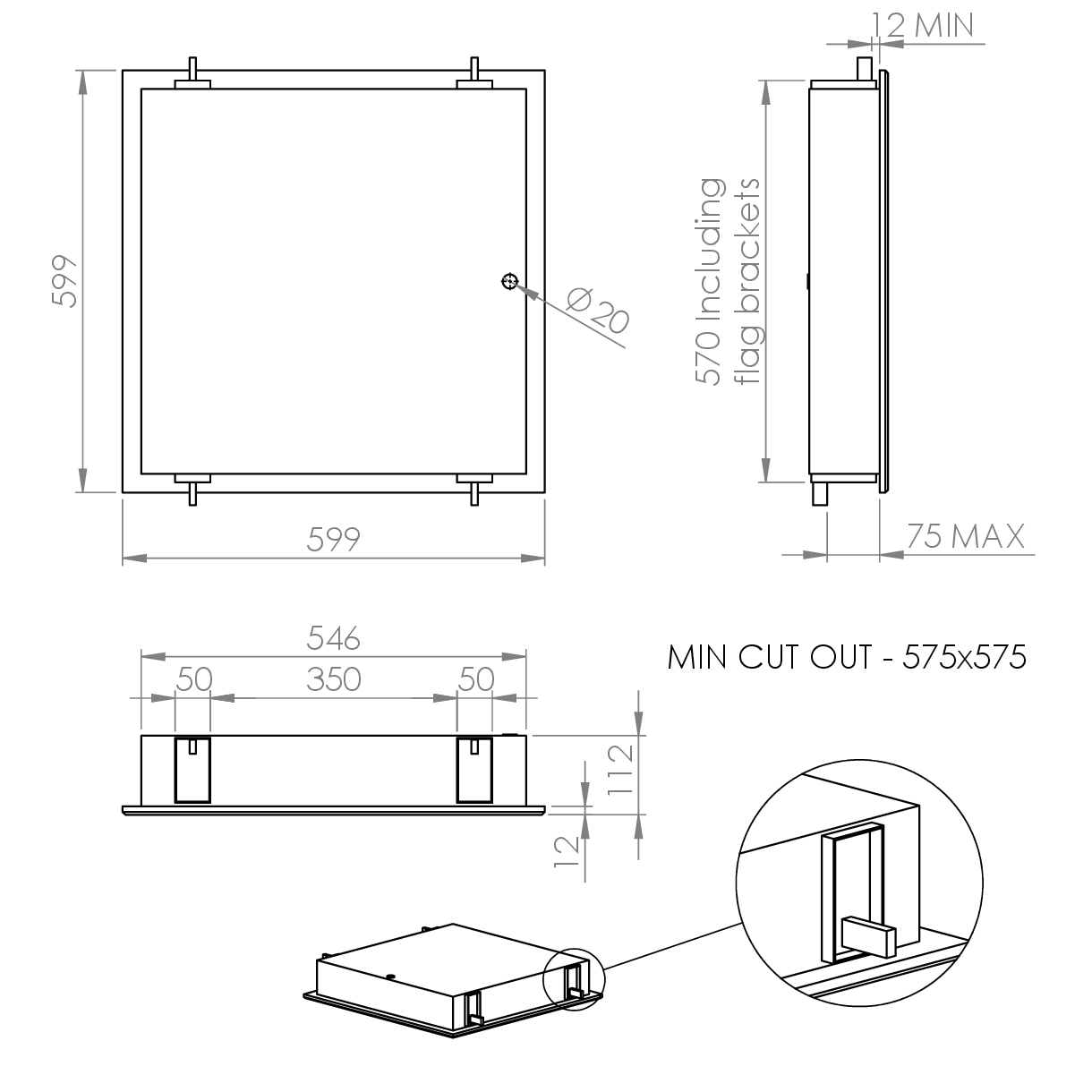

Technical
IMPR RGBW
Ordering
Luminaires
|
||||||||||||
Control
| Code | Description |
|---|---|
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
Miscellaneous
| Code | Description |
|---|---|
| LSF | Low Smoke Zero Halogen |
| SP | Spring T Ceiling Kit, 600x600 Variants Only. |
| C83 and C865 options available on request. | |
| Please note RGB and W channels must be operated separately. | |
