HELIOS
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The Helios family of products that has been specifically engineered to offer retailers an effective track mounted solution for lighting their internal store perimeters. Manufactured with a die cast aluminium housing with an injection moulded front cover this unique product combines outstanding performance with cutting edge design to deliver a product that is functional, powerful and attractive. Utilising a small number of bespoke high output LED chips that are coupled with custom elliptical lens optics the Helios offers superb uniformity at very wide spacings. The Helios is available in two body sizes and multiple lumen outputs as well as a range of colours.
HELIOS complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Accent Lighting | Display Lighting | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Finish: Polyester powder painted RAL 9005 matt black
- Lens: Injection moulded polycarbonate lens
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 118 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- Optional DALI dimming
Installation
- Suitable for three circuit track installation
- Saddle bracket allows the fitting head to be both pivoted and rotated to the angle required.
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
- Available in white or black finishes

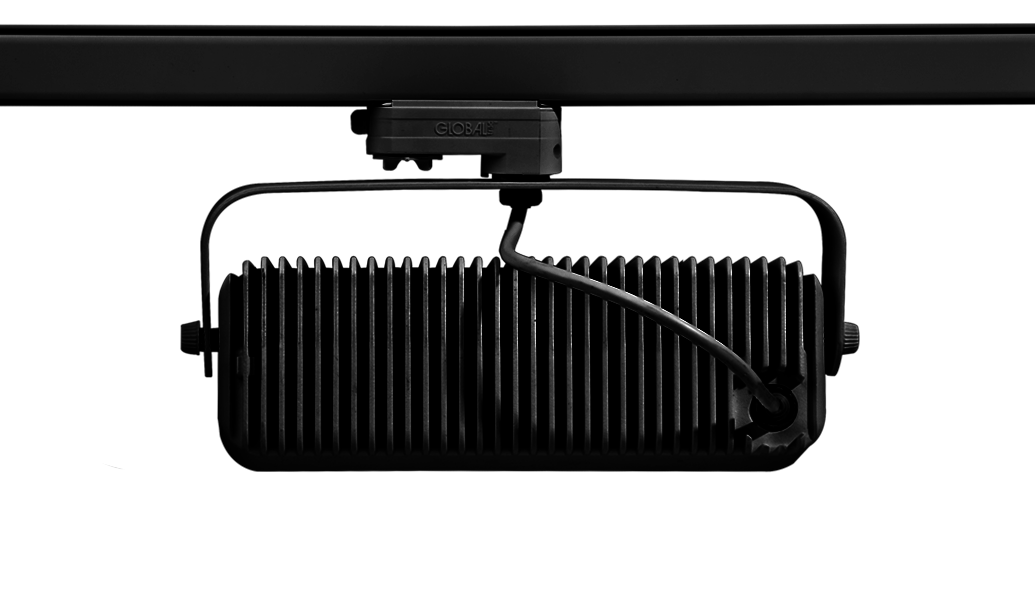

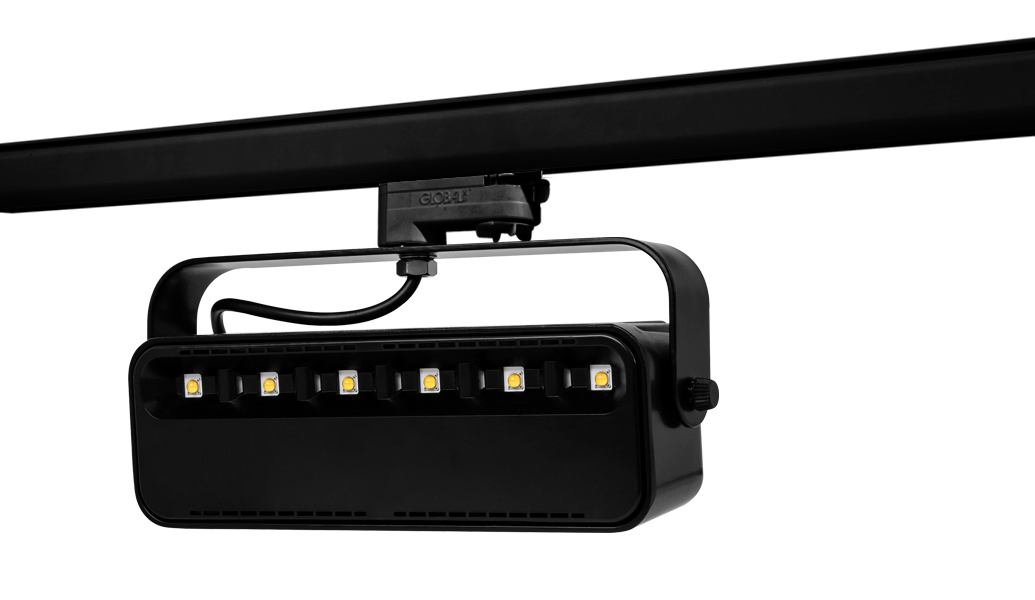

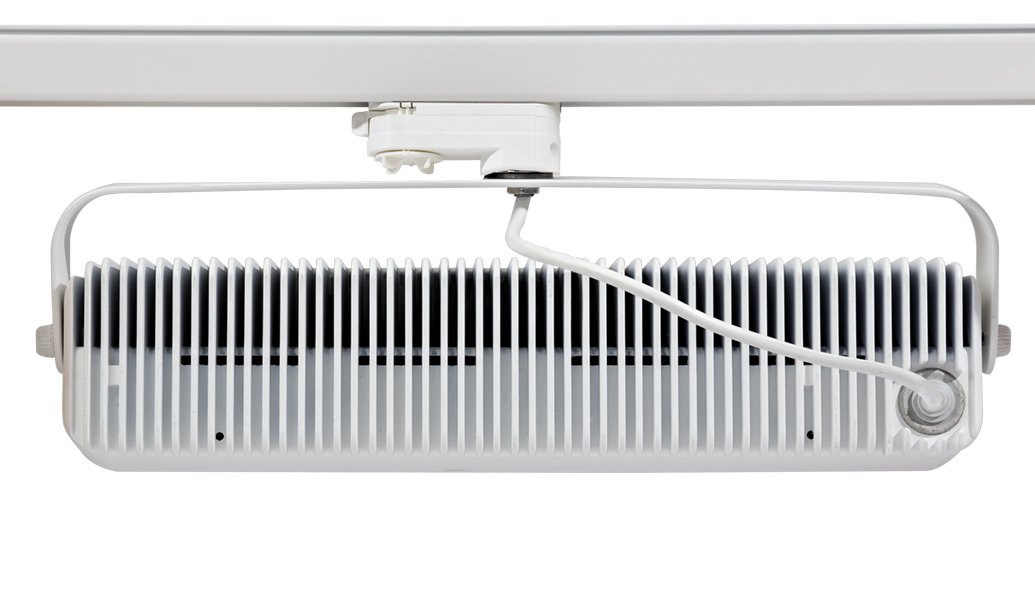

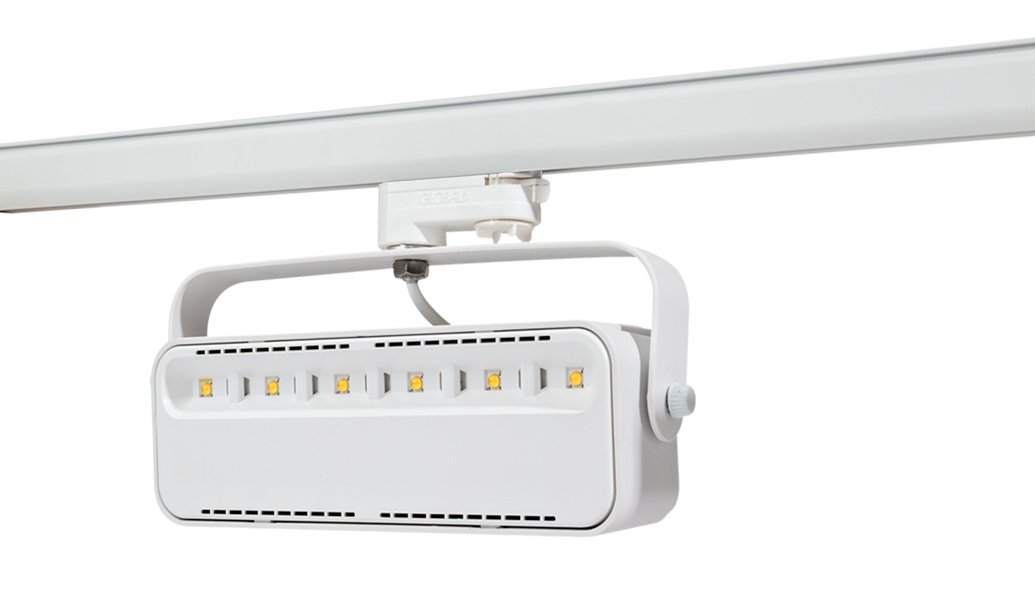

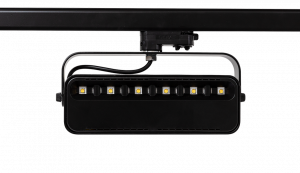

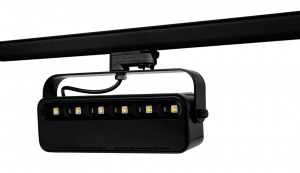

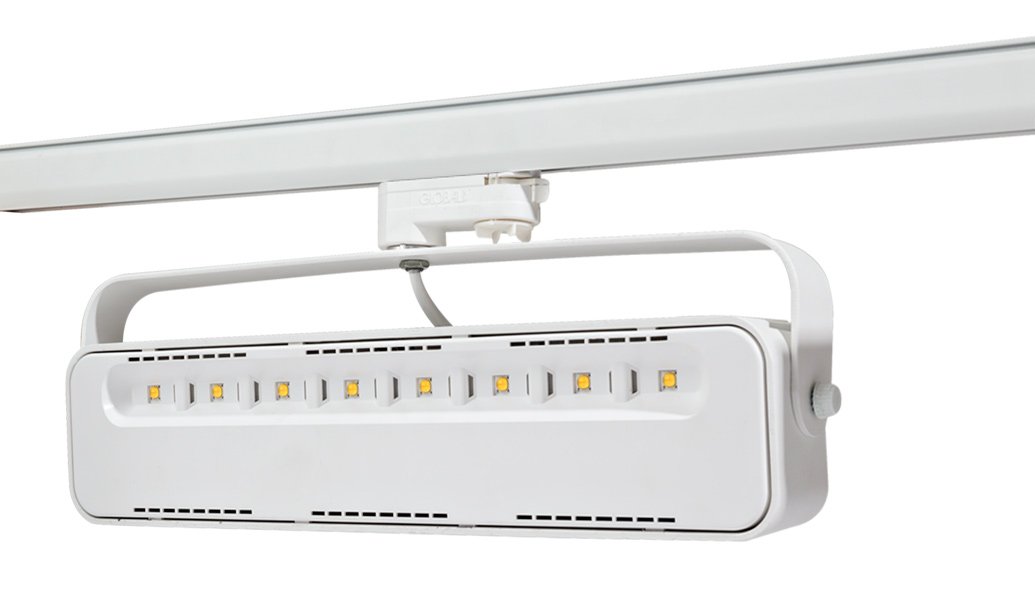

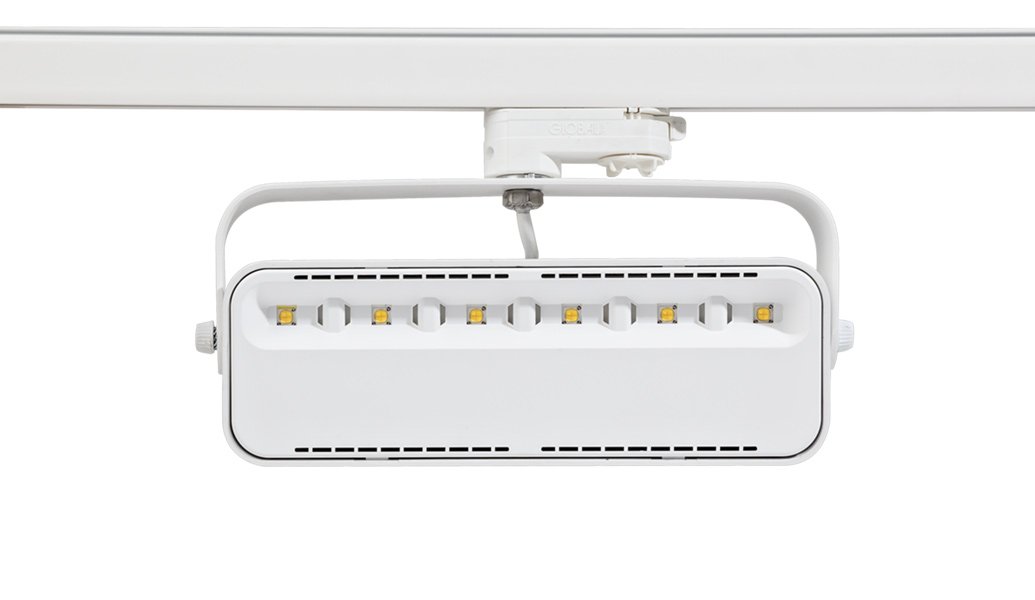

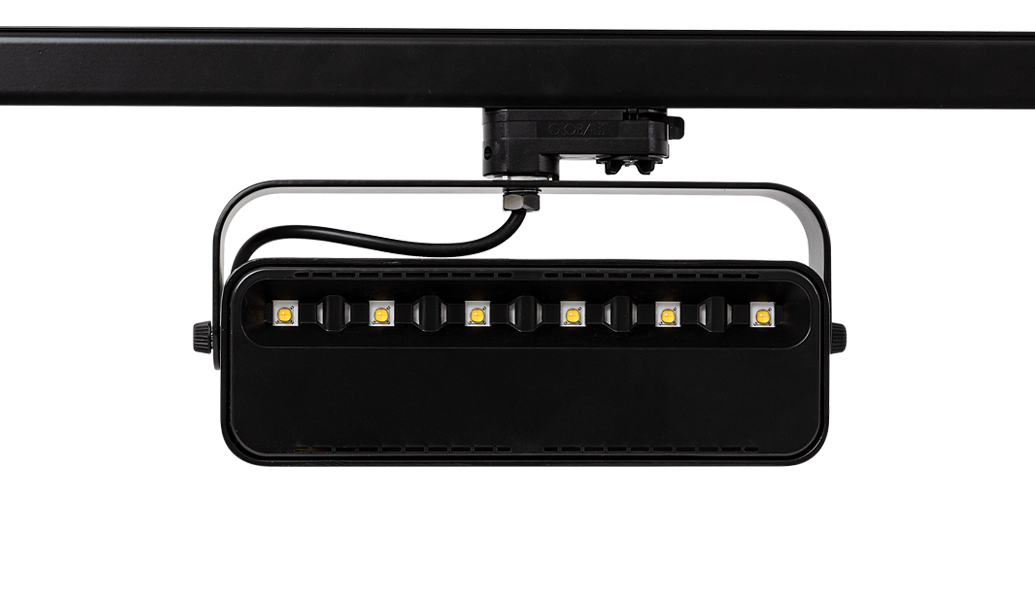

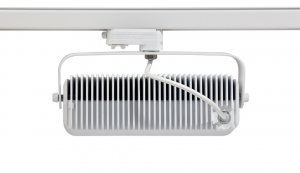

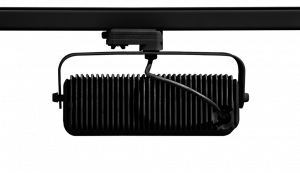

Product Images

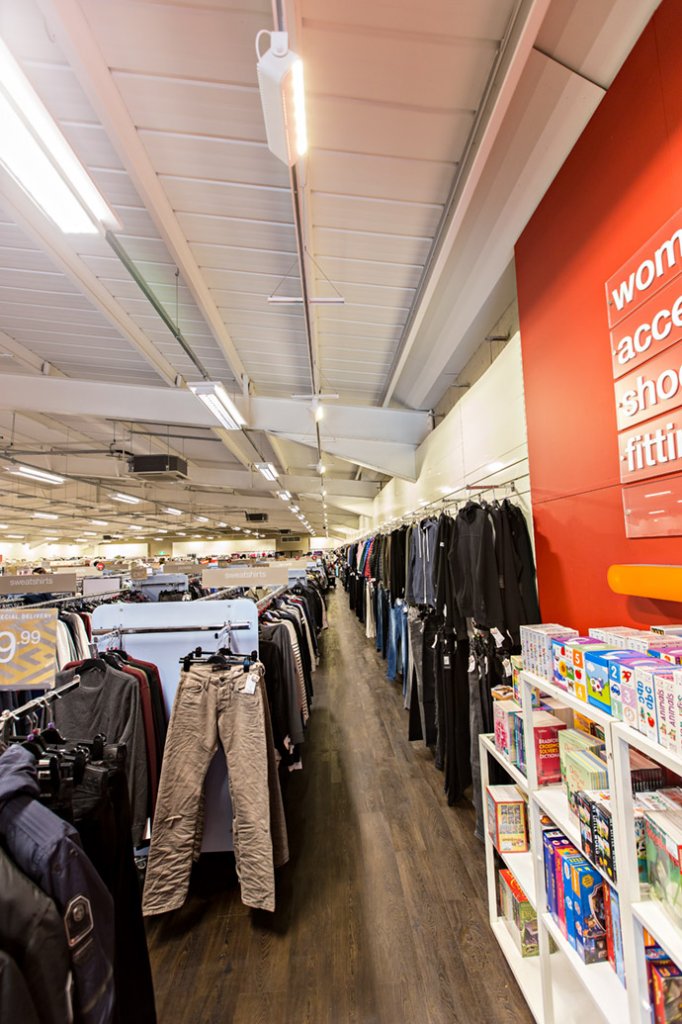

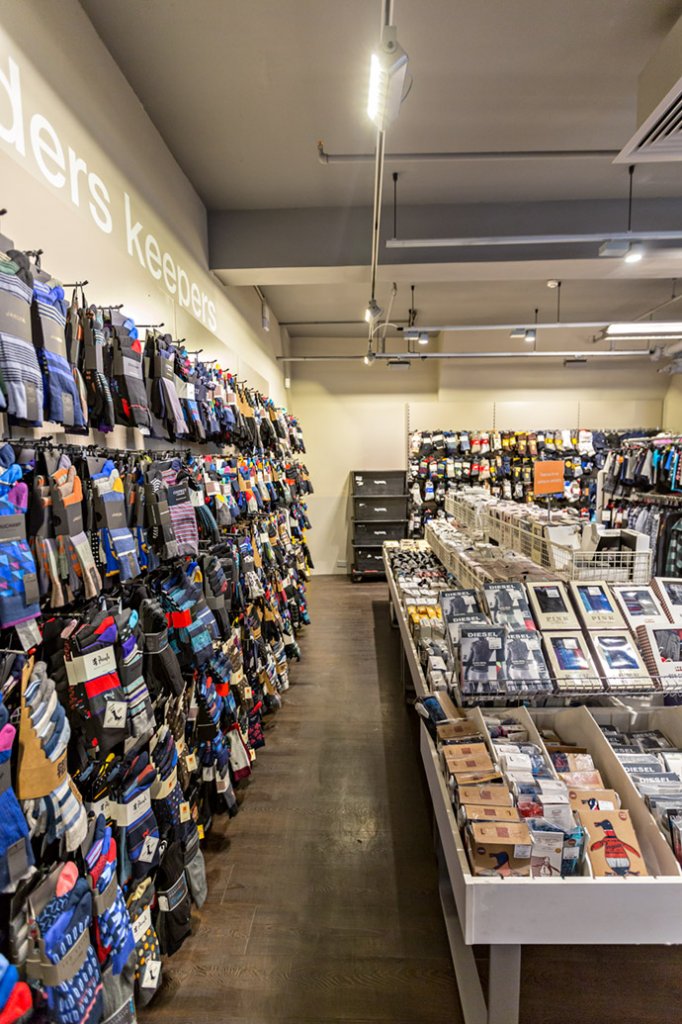

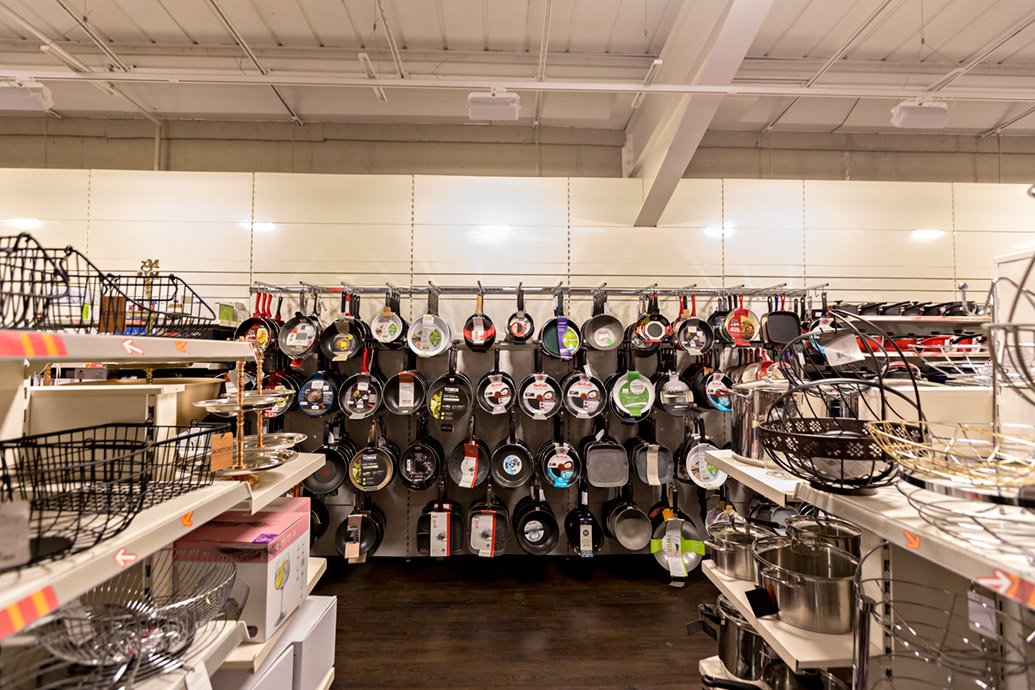

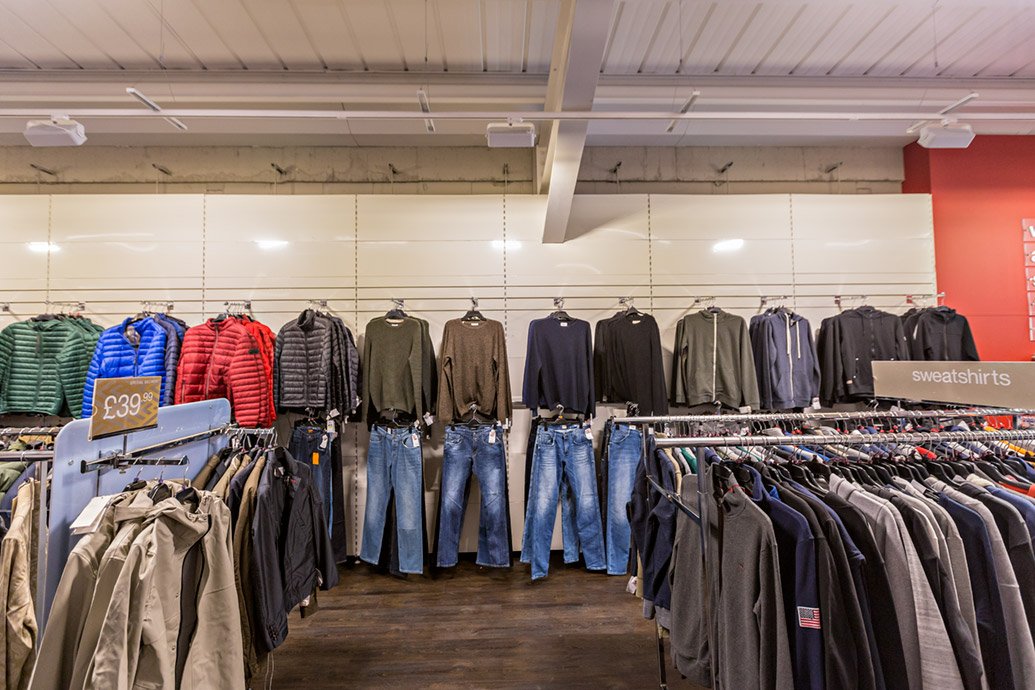

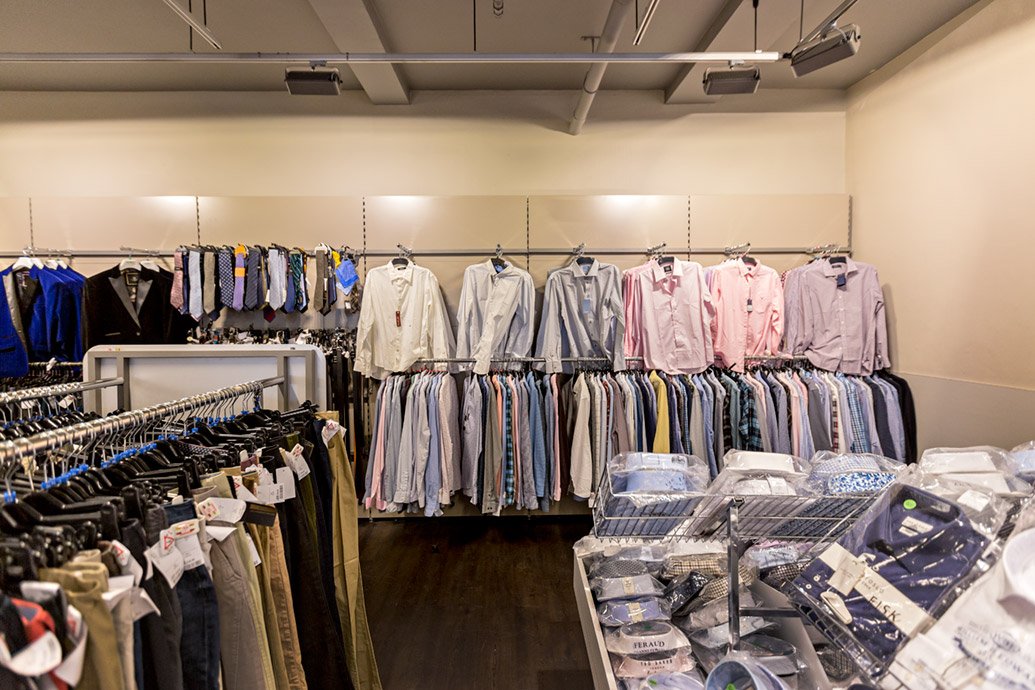

HELIOS in action
Technical
Helios 6
Helios 8
Track Configuration
Track Dimensions and Loadings
Track Polarity
Ordering
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C83, C85, C865, C93, C94 |
| BL | Black Finish |
| LSF | Low Smoke Zero Halogen |
Downloads
