Introduction

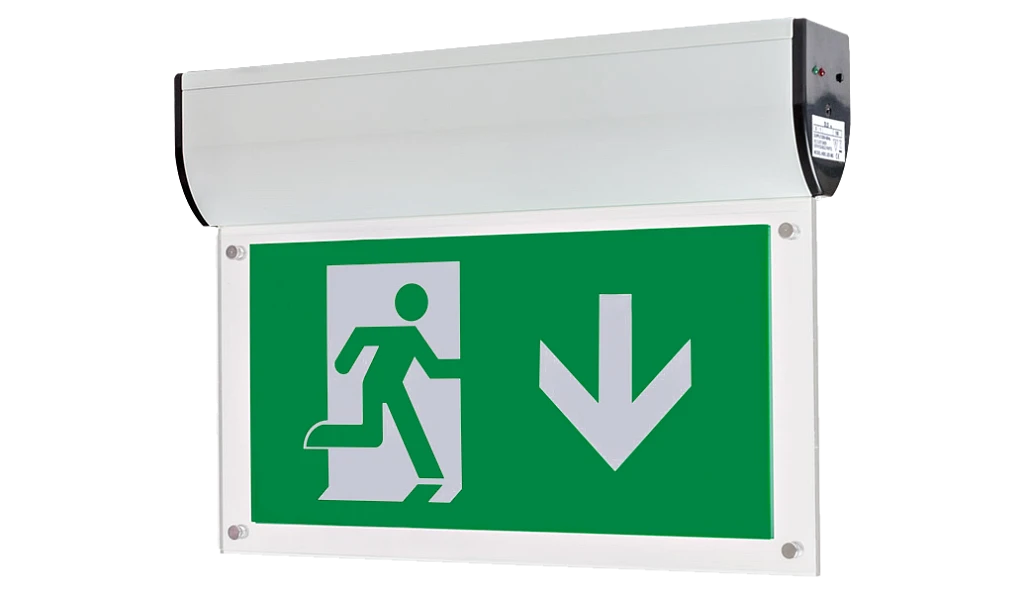

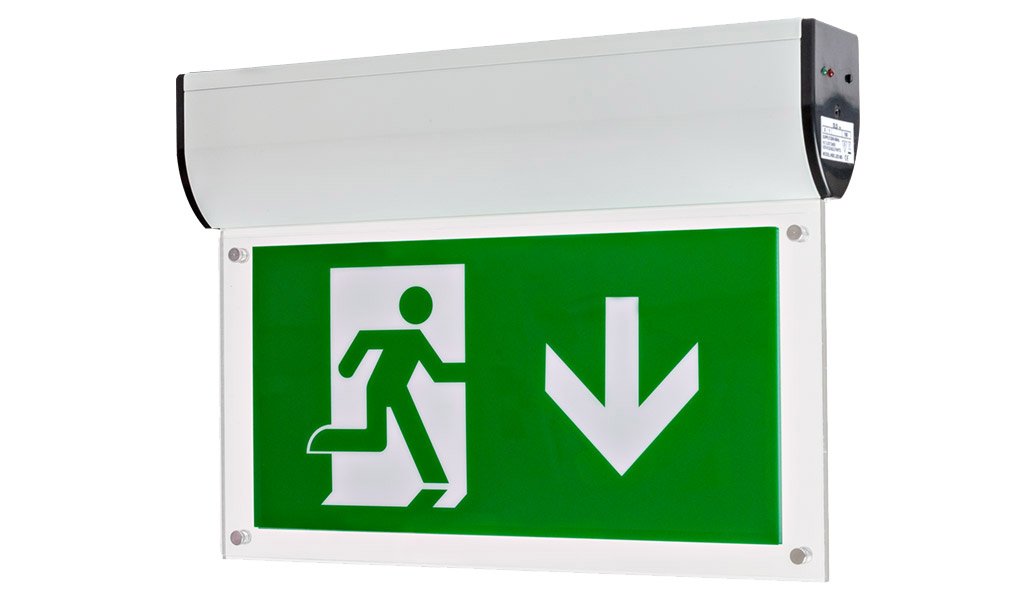

The HBE is a decorative hanging blade exit sign available with a range of installation kits enabling suspended, surface or wall mounted installation. With lithium autotest and central battery options the HBE is compatible with a wide range of emergency systems whilst our HBE Wireless offers full compatibility with Reacta-Link providing automated emergency testing and central reporting of failures substantially reducing the lifetime operating cost of your emergency installation.

HBE complies with:

UKCA | CE | IP20

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Food Production | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Kitchen | Office | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Matt white
  • Endcaps: Injection moulded polycarbonate
  • ISO 7010 or Euro Norm Legends with all directional arrow options.
  • IP20

Environmental

  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Installation

  • Suitable for suspended installation

Emergency

  • Available with standard, self test or autotest emergency.
5 year extended warranty available on most products.
Arrow right

Product Images

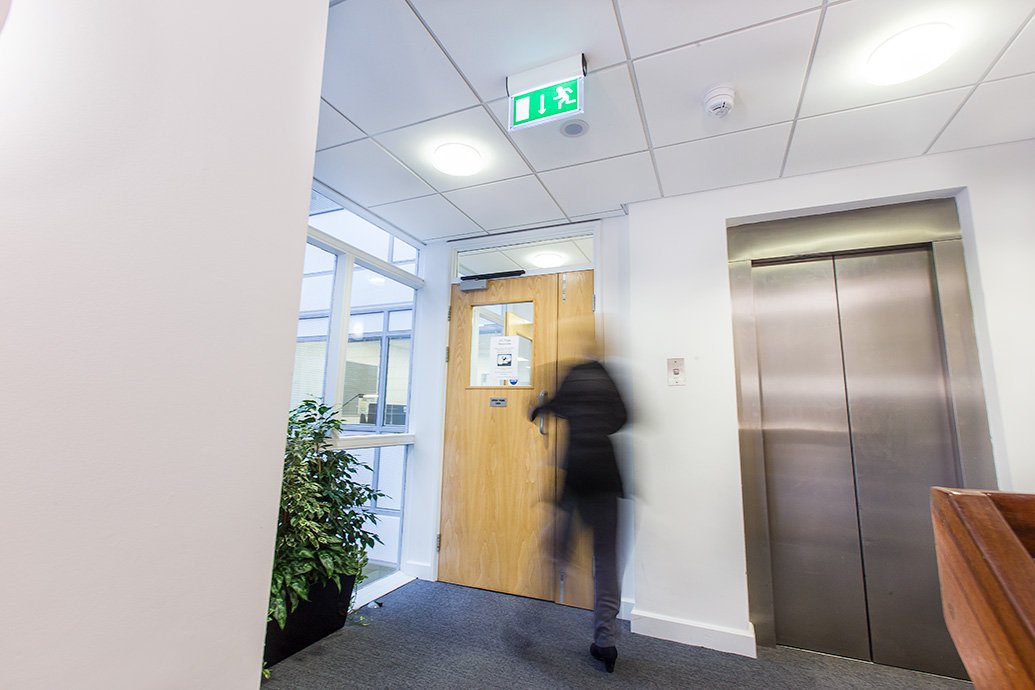

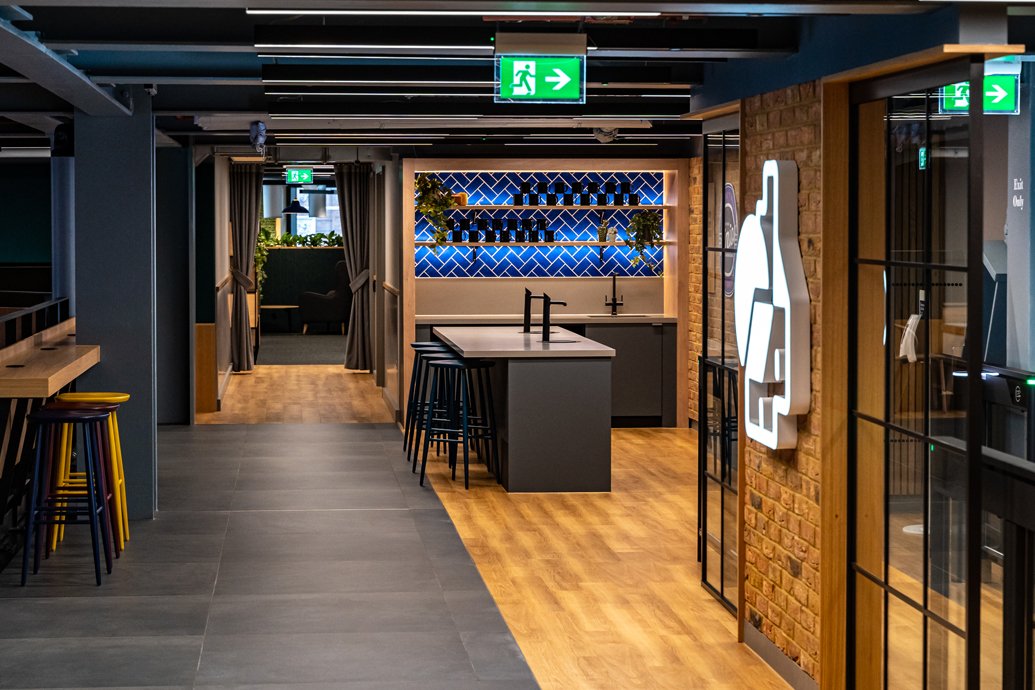

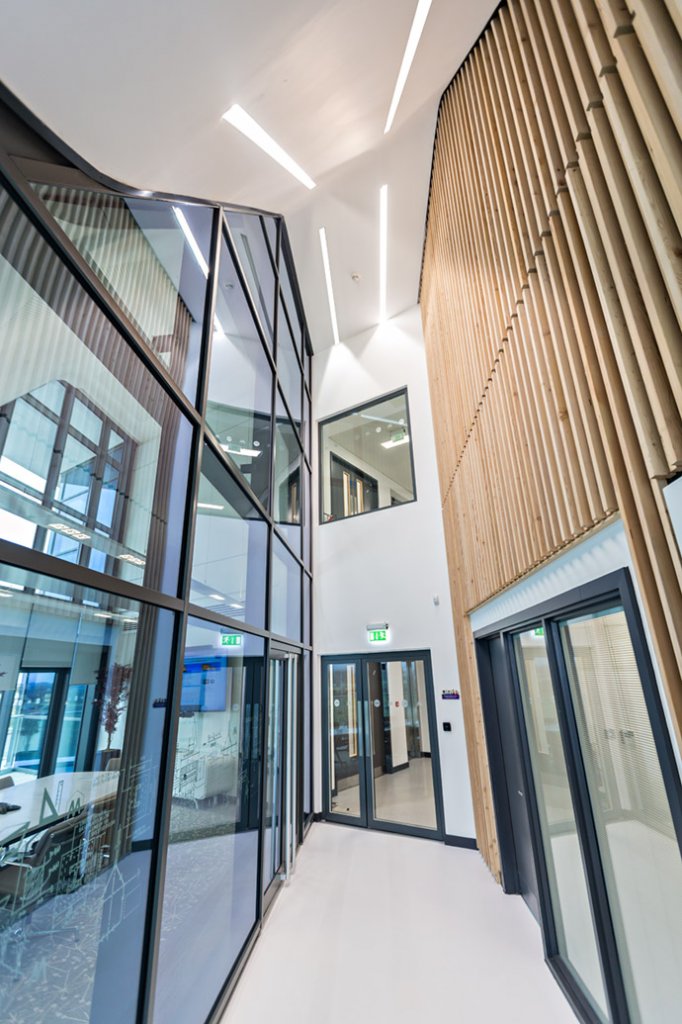

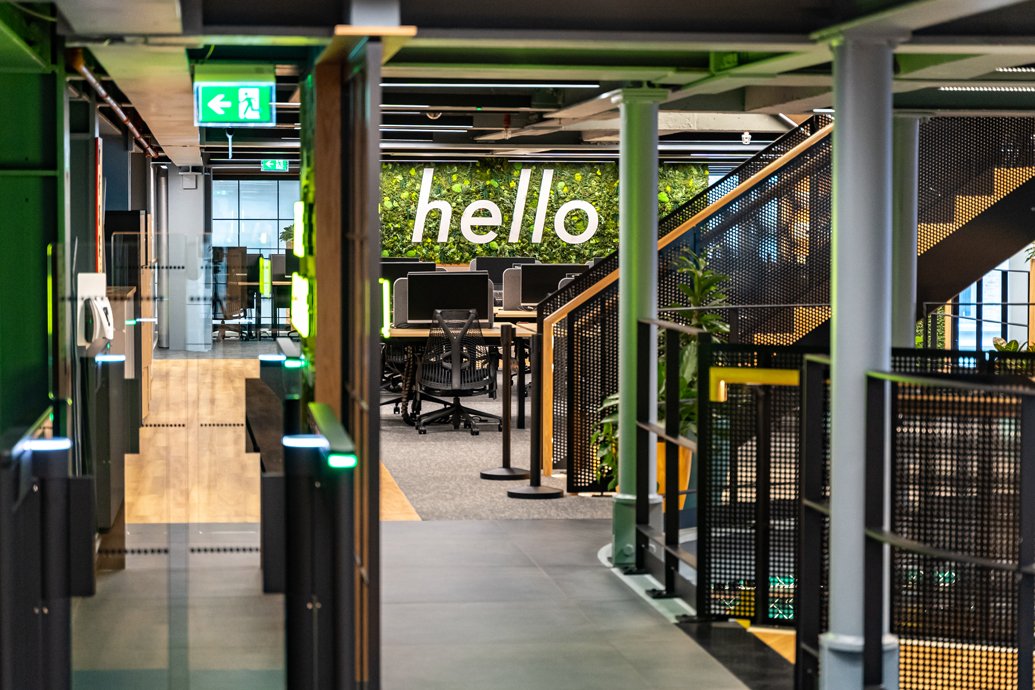

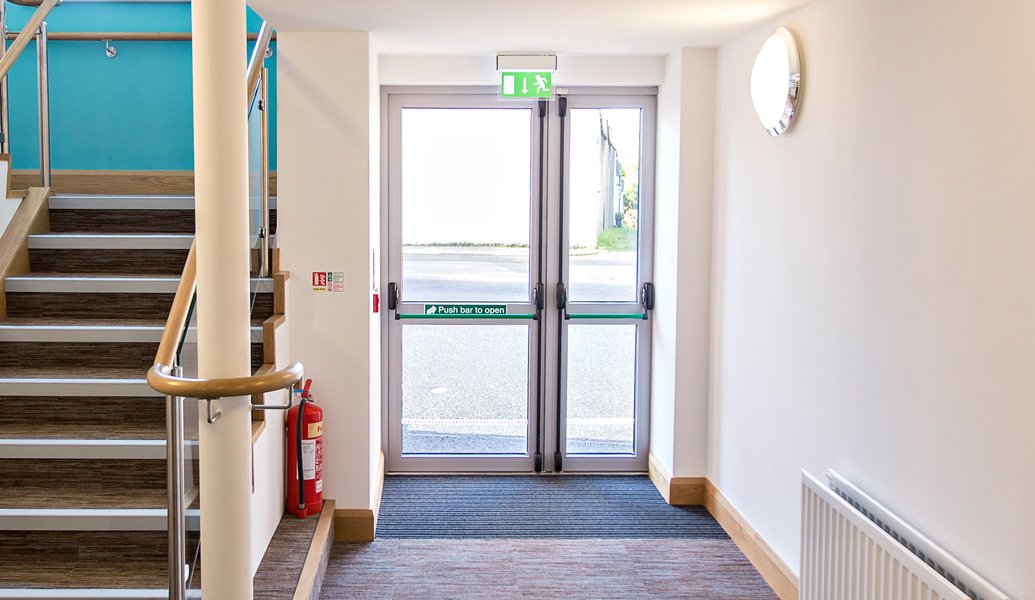

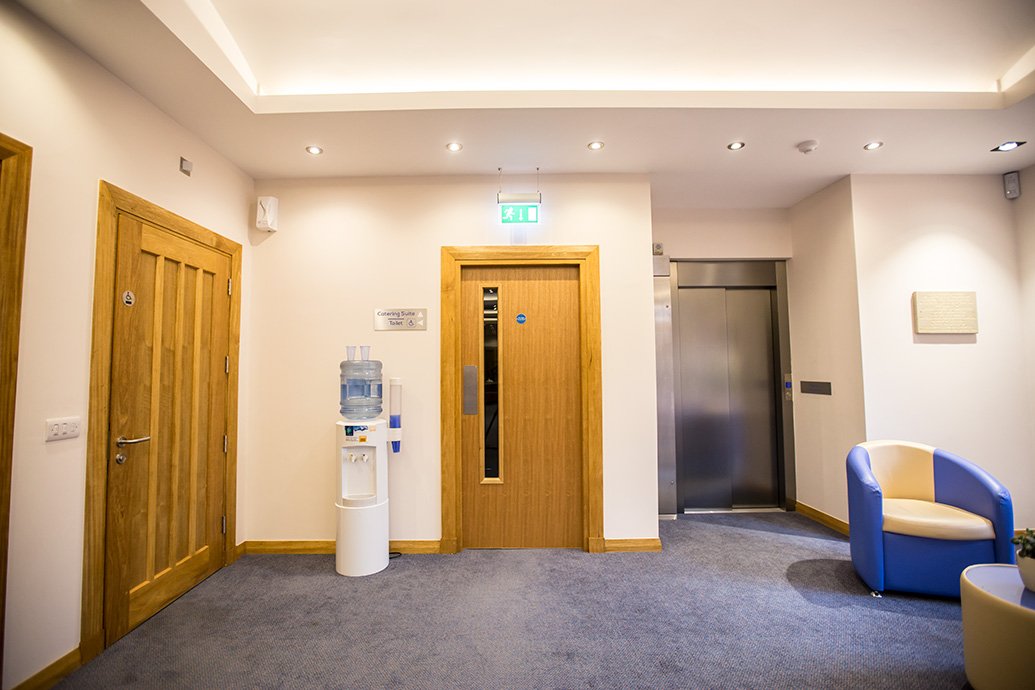

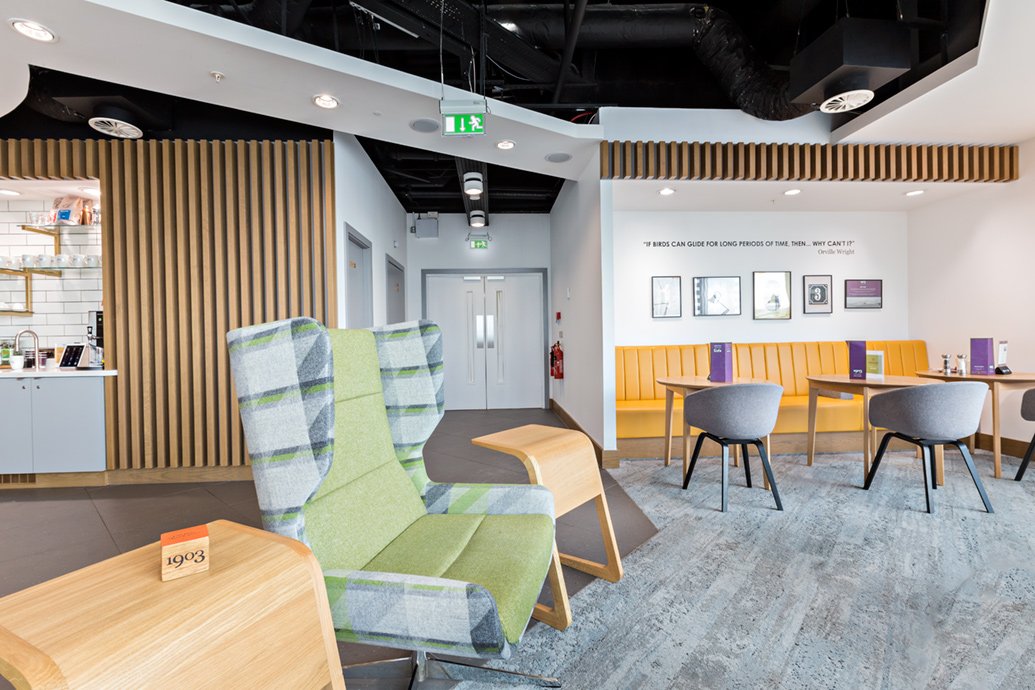

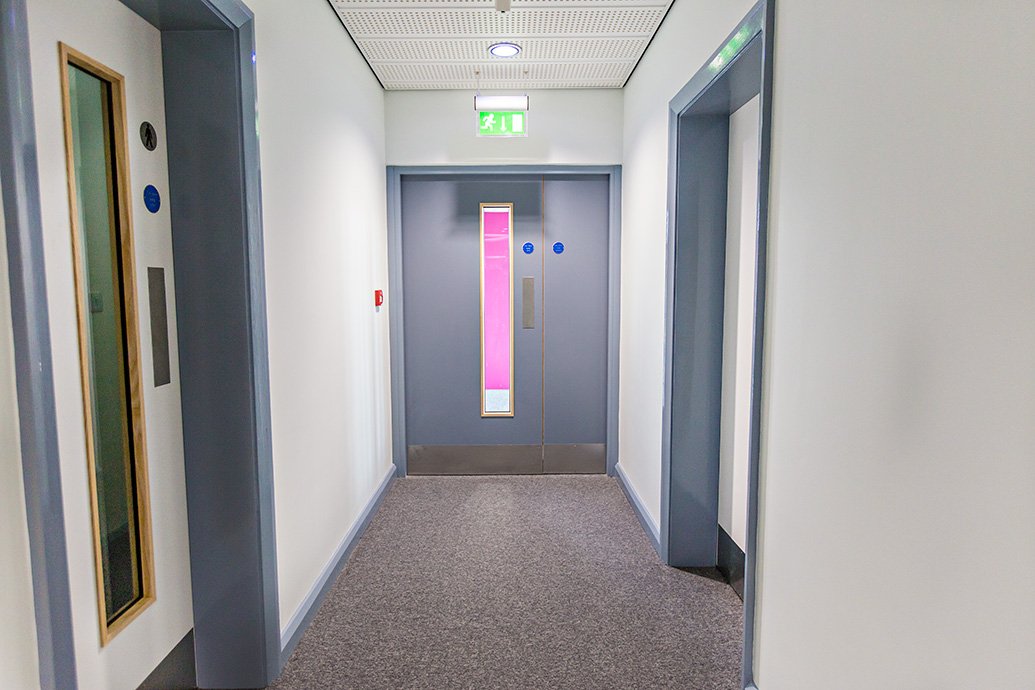

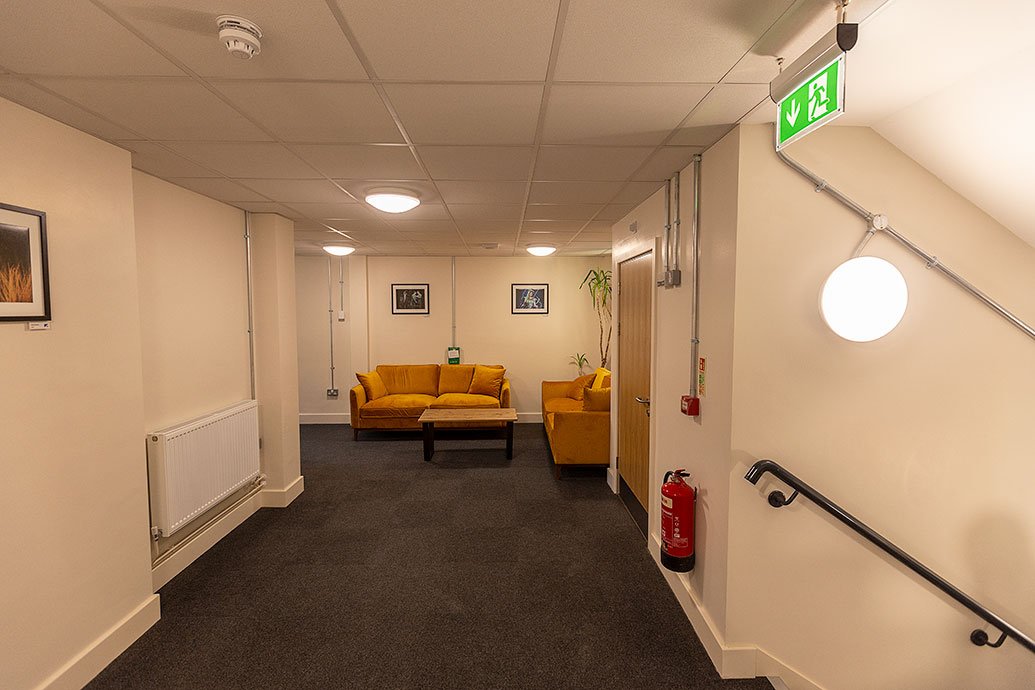

HBE in action

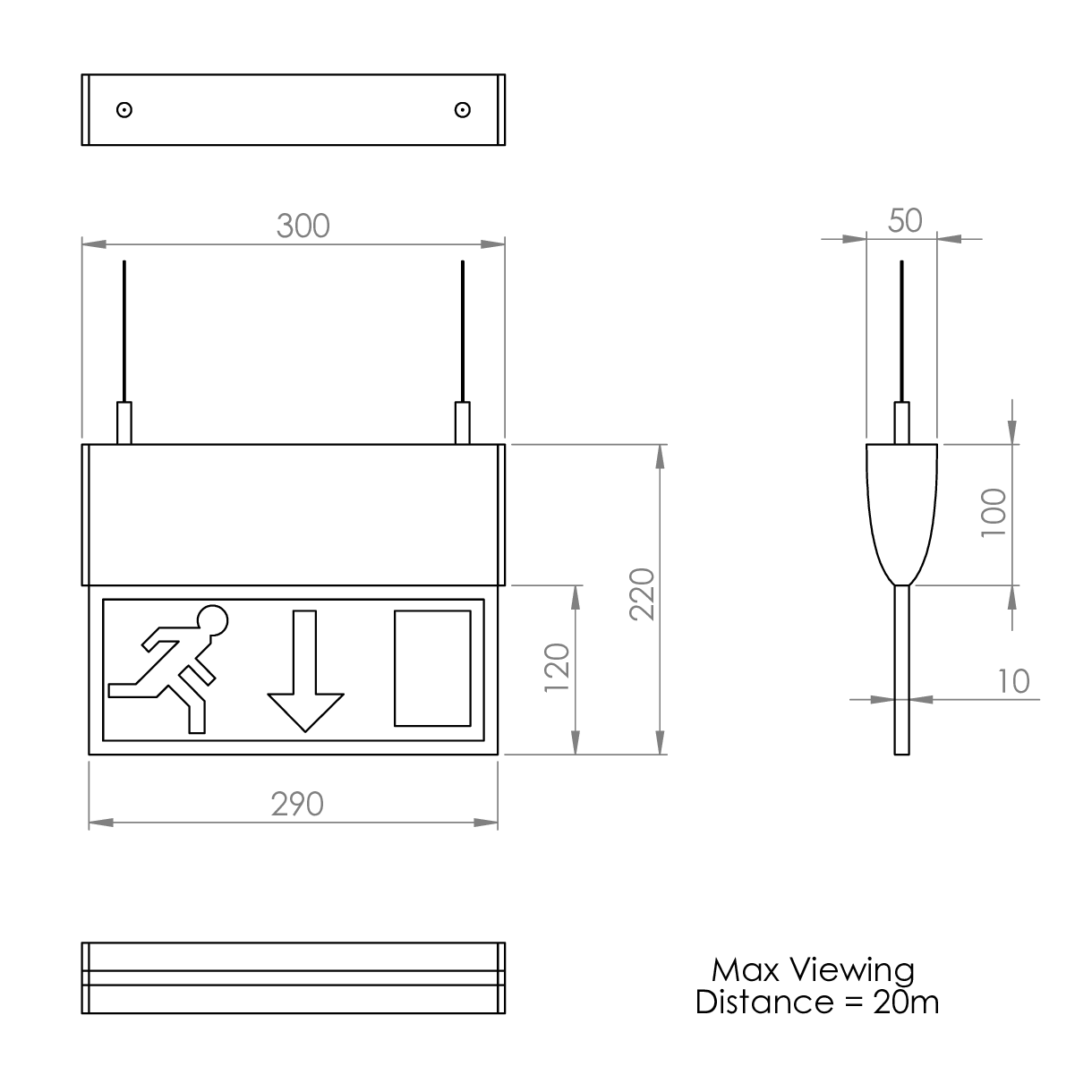

Technical

HBE

HBE

Ordering

Luminaires

Code Description Power
HBE LED M3 LA3 HBE Suspended, Maintained, Lithium Autotest Emergency 3 Hour 4.0W
HBE LED M3 CB110 HBE Suspended, Maintained, 110v Central Battery 4.0W
HBE LED M3 CB230 HBE Suspended, Maintained, 230v Central Battery 4.0W
HBER LED M3 LA3 HBE Recessed, Maintained, Lithium Autotest Emergency 3 Hour 4.0W
HBER LED M3 CB110 HBE Recessed, Maintained, 110v Central Battery 4.0W
HBER LED M3 CB230 HBE Recessed, Maintained, 230v Central Battery 4.0W

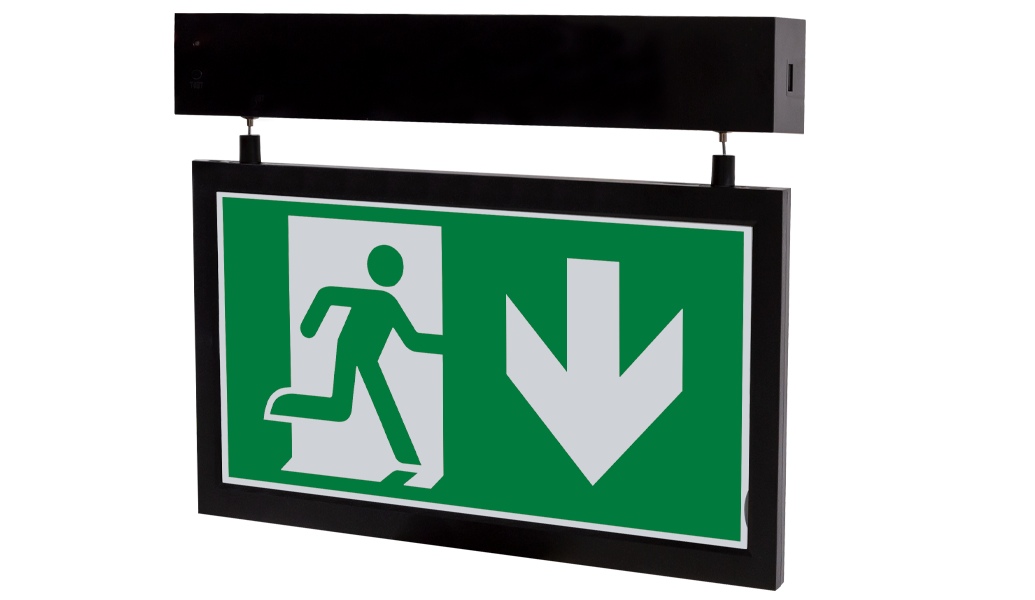

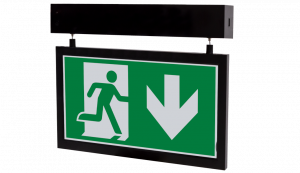

HBE LED M3 LA3 BL HBE Suspended, Maintained, Lithium Autotest Emergency 3 Hour, Black 3.1W
Please note that black and white products differ in design, please refer to images.

Black versions come complete with legends.

Miscellaneous

Code Description

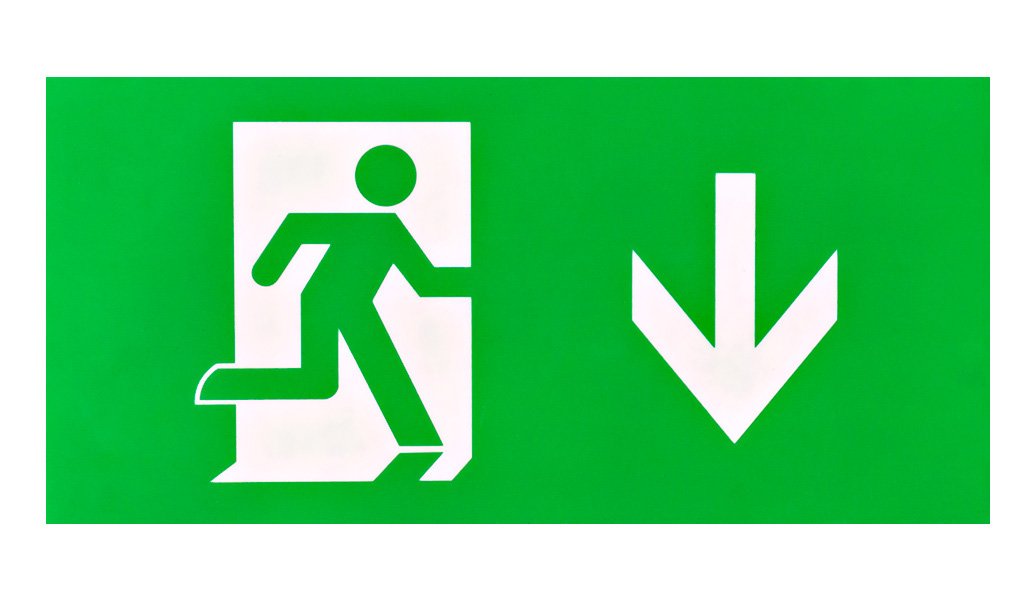

HBE DL ISO7010 HBE Legend Panel Arrow Down, ISO 7010 Format

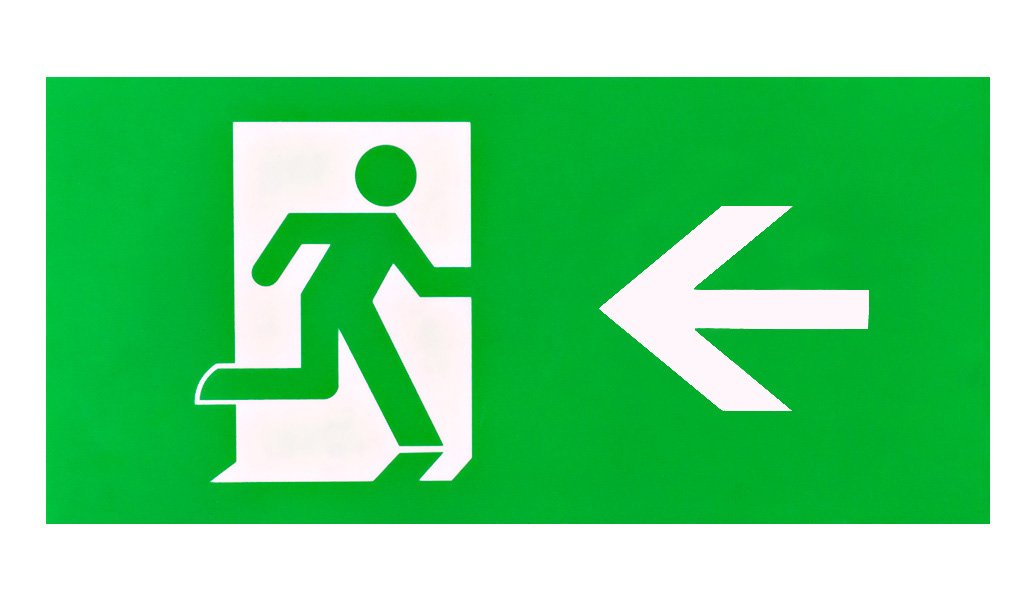

HBE LL ISO7010 HBE Legend Panel Arrow Left, ISO 7010 Format

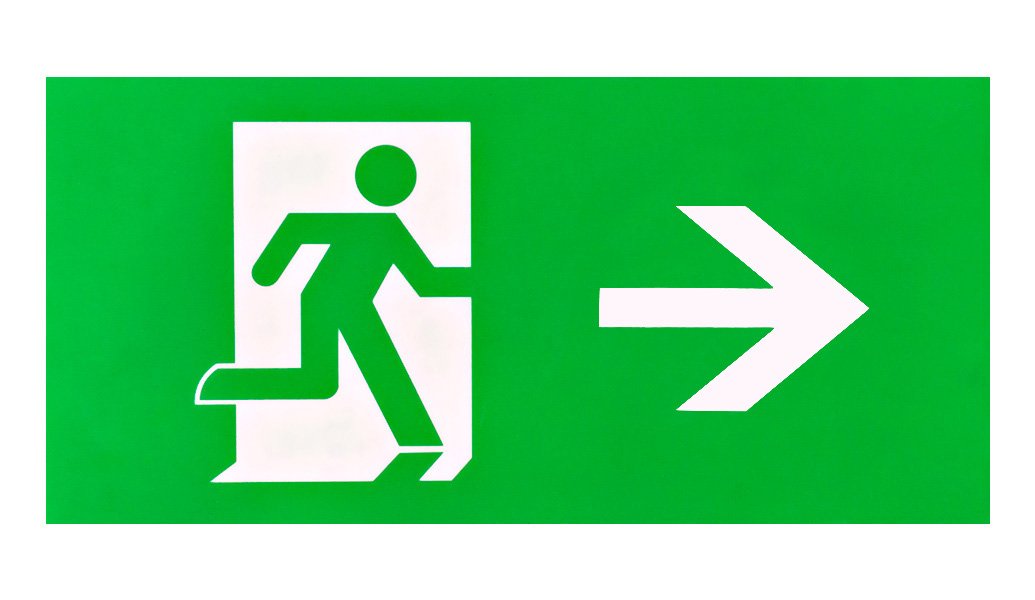

HBE RL ISO7010 HBE Legend Panel Arrow Right, ISO 7010 Format

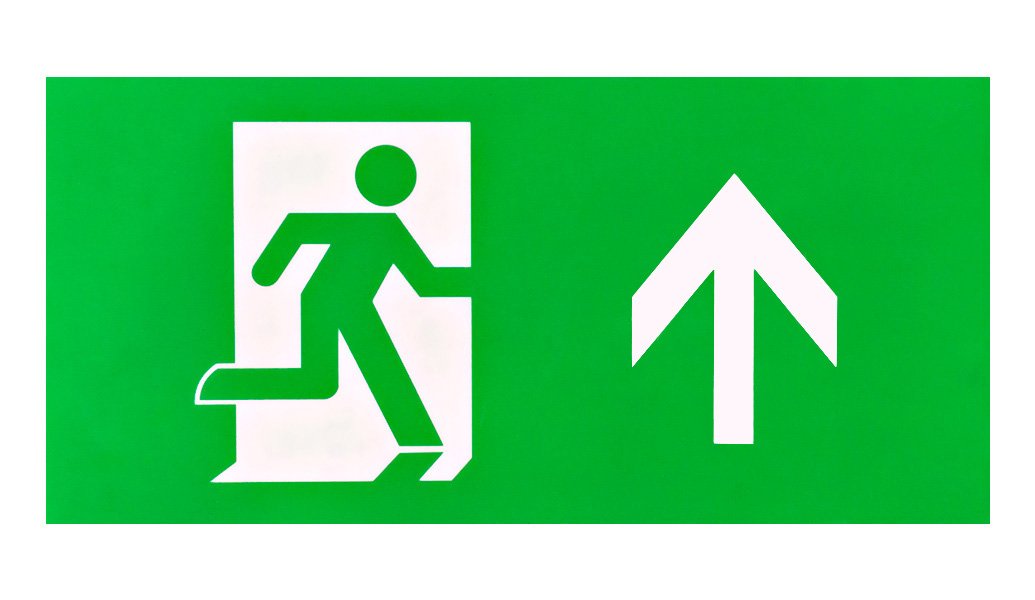

HBE UL ISO7010 HBE Legend Panel Up, ISO 7010 Format
HBE DSL ISO7010 HBE Double Sided Legend Panel Arrow Left/Right, ISO 7010 Format
HBE DDL ISO7010 HBE Double Sided Legend Panel Arrow Down, ISO 7010 Format
HBE DUL ISO7010 HBE Double Sided Legend Panel Up, ISO 7010 Format
HBE DL HBE Legend Panel Arrow Down, Euro Norm Format
HBE LL HBE Legend Panel Arrow Left, Euro Norm Format
HBE RL HBE Legend Panel Arrow Right, Euro Norm Format
HBE UL HBE Legend Panel Up, Euro Norm Format
HBE DSL HBE Double Sided Legend Panel Arrow Left/Right
HBE DDL HBE Double Sided Legend Panel Arrow Down
HBE DUL HBE Double Sided Legend Panel Up

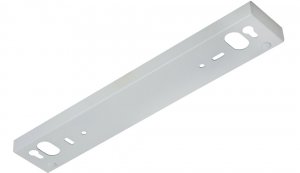

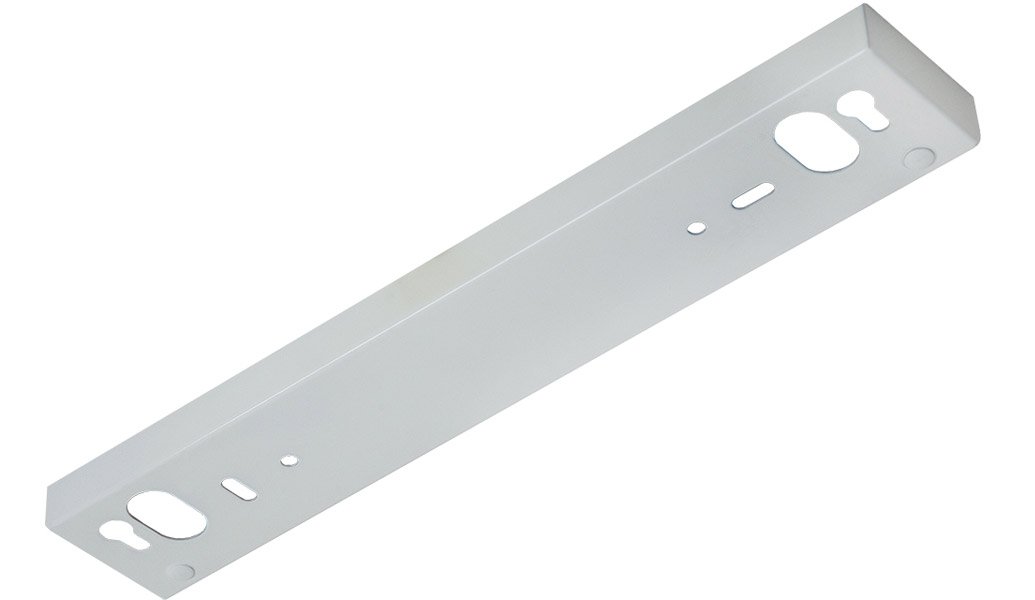

SLD/CBRK HBE Ceiling Mounting Kit*
SLD/CBRK SG HBE Ceiling Mounting Kit (Silver Grey)*

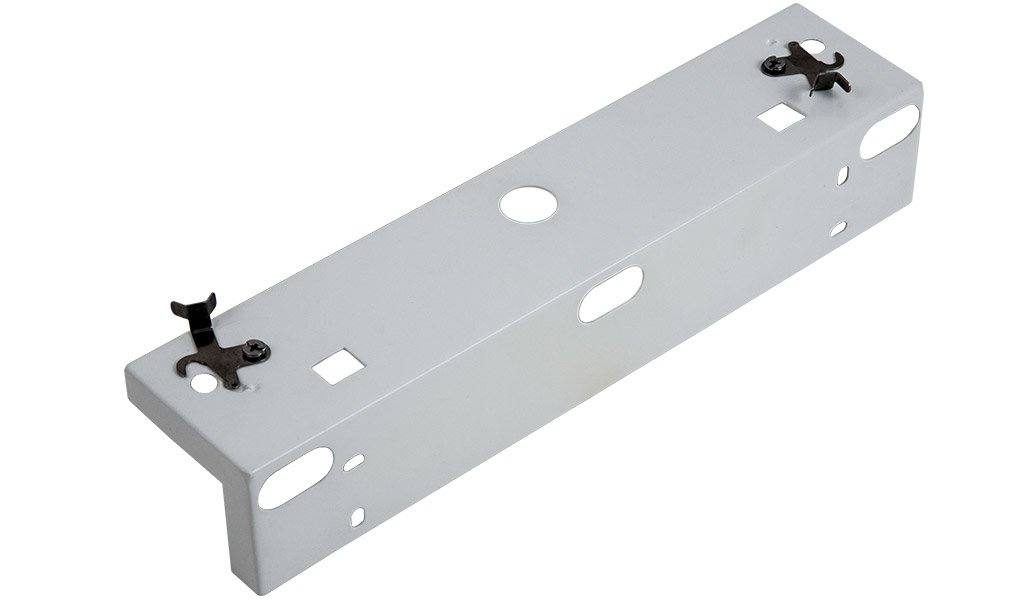

SLD/WBRK HBE Wall Mounting Kit
HBE LED 6M WIRE KIT HBE 6M Suspension Kit
*Not suitable for 240v central battery versions.

Downloads

Installation Guide (Download PDF) Installation Guide AT3 (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
