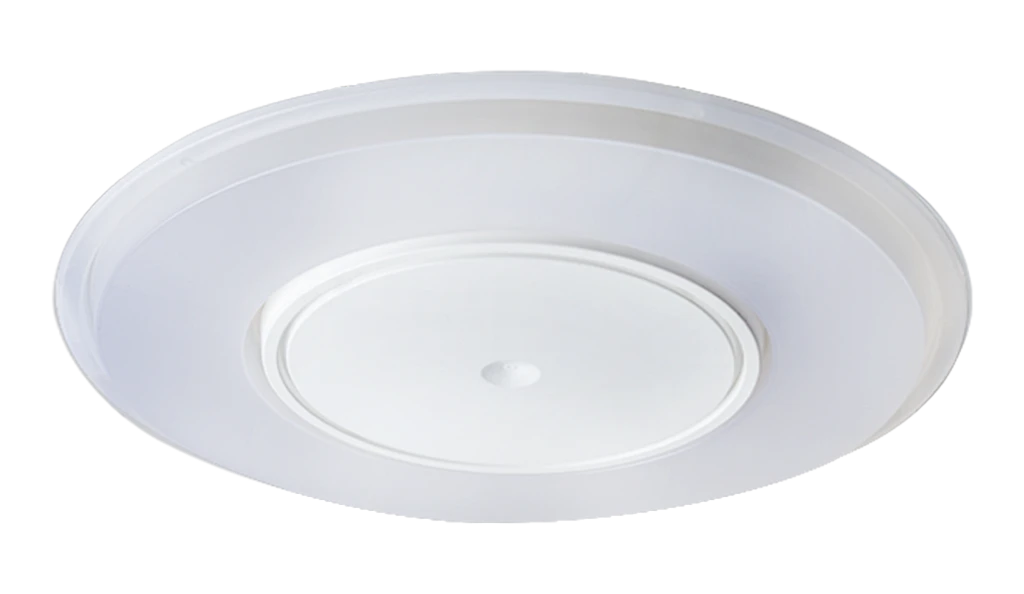

Halobay Surface

Introduction

The Halobay Surface offers a highly efficient yet architecturally pleasing solution for medium to high level installations. With a spun aluminium housing and dished high transmission opal diffuser the Halobay creates an attractive centre piece while providing excellent light levels and uniformity without compromising the aesthetic of your installation.

With three different lumen outputs, DALI, DSI, Switch Dim and Analogue dimming options as well as integral lithium emergency and two optic styles with an opal diffuser or lenses, the Halobay Surface can be easily configured to suit the requirements of your installation. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

HALOBAY SURFACE complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Commercial / Offices | Education | Industrial / Manufacturing | Retail

Specification

Construction

  • Housing: Spun aluminium
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Diffuser: Injection moulded high transmission opal polycarbonate
  • Diffuser: Injection moulded clear polycarbonate
  • Lens: Injection moulded polycarbonate lens
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 169 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for surface installation
  • Retrofit in existing luminaires

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
  • Opal diffuser variant provides broader light distribution.
  • Clear diffuser with lens variant minimises glare.
5 year extended warranty available on most products.
Arrow right

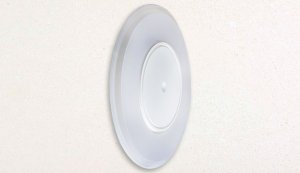

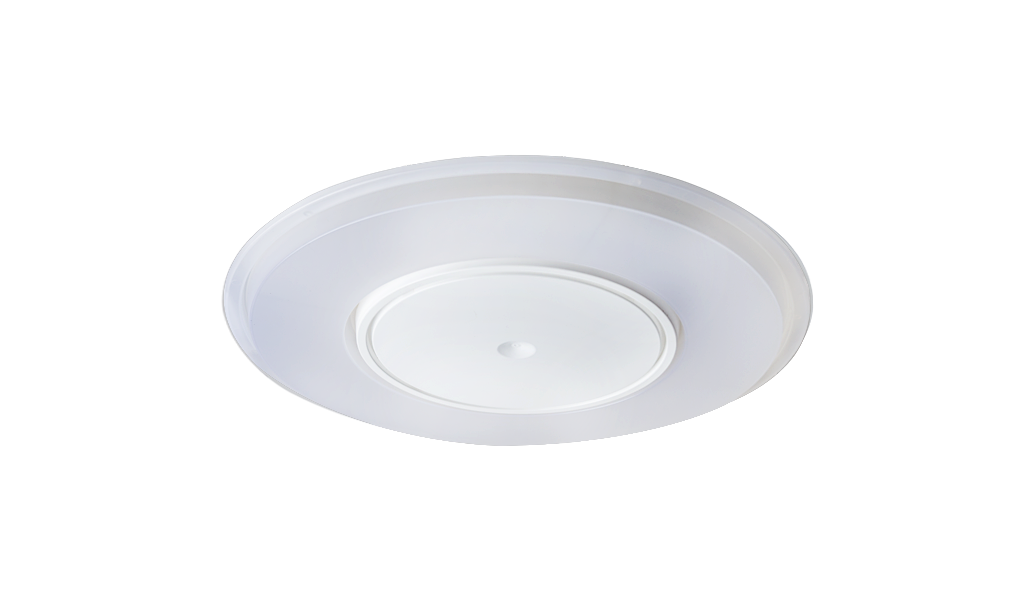

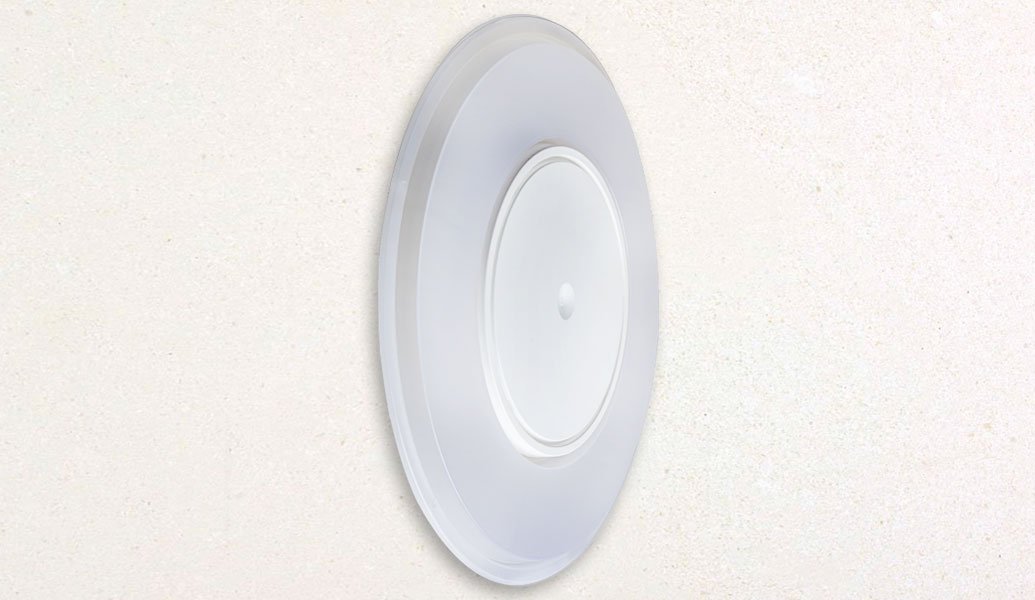

Product Images

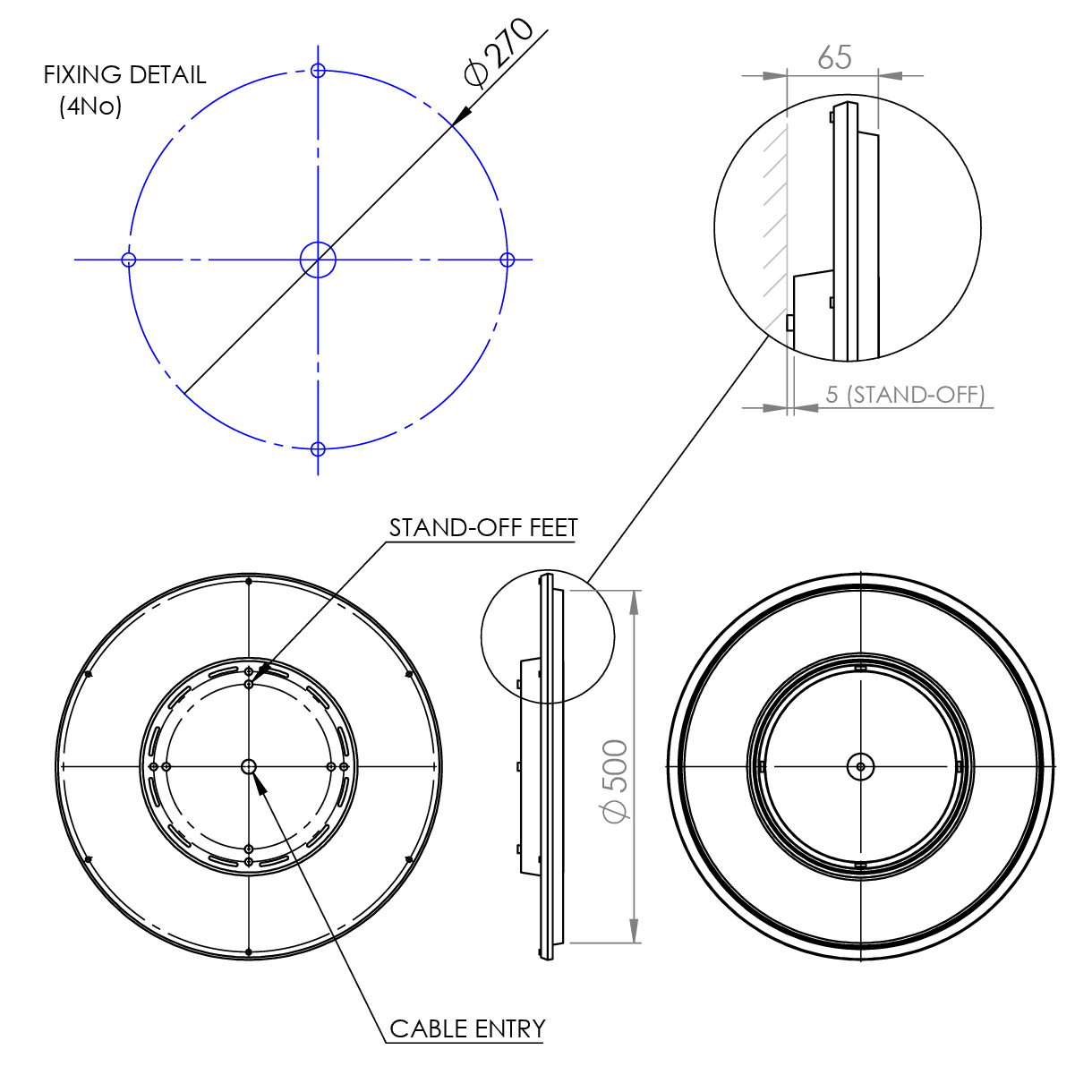

Technical

Halobay Surface

Halobay Surface

Ordering

Luminaires

Code Description Power Llm/W
HBYS L50 Halobay Surface, 4,600llm, Colour 84 29.9W 153
HBYS L50 CL Halobay Surface, 4,300llm, Clear diffuser with lens, Colour 84 29.9W 143
HBYS L80 Halobay Surface, 7,360llm, Colour 84 45.1W 163
HBYS L80 CL Halobay Surface, 6,880llm, Clear diffuser with lens, Colour 84 45.1W 152
HBYS L120 Halobay Surface, 11,064llm, Colour 84 65.1W 169
HBYS L120 CL Halobay Surface, 10,320llm, Clear diffuser with lens, Colour 84 65.1W 158

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
Please click here for full details on our wireless controls.
*Bi-Level Dimming will only dim the luminaire to 10% during absence and brightout, it will not turn the luminaire off.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
