HALOBAY SENSOR
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

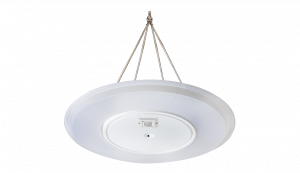

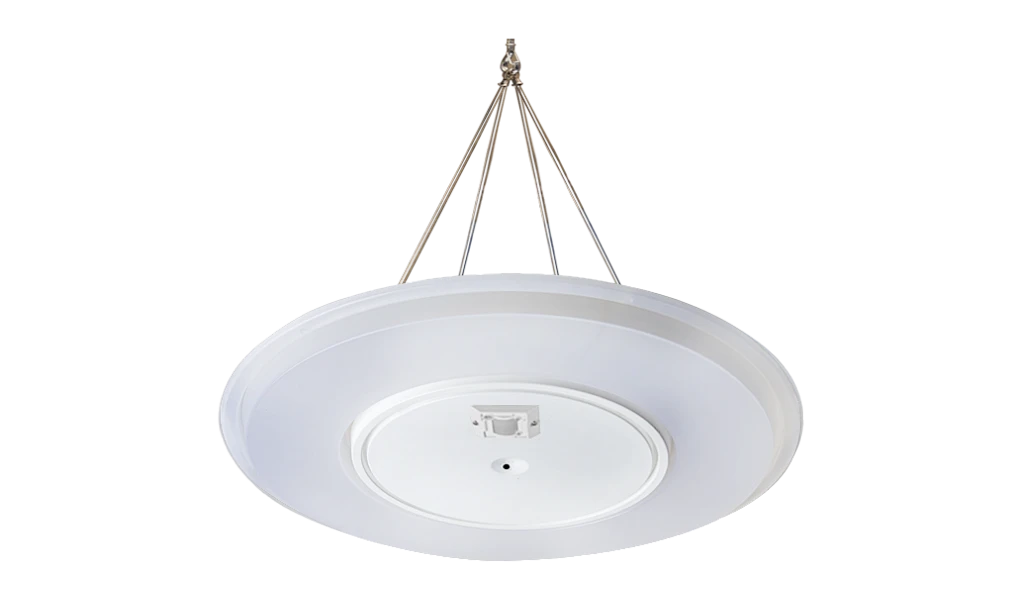

The Halobay Sensor offers a highly efficient yet architecturally pleasing solution for medium to high level installations for use in applications such as logistics and manufacturing. With a spun aluminium housing and dished diffuser the Halobay combines an attractive appearance with excellent efficiency and is available with both an opal diffuser or a lensed optic enabling the light distribution to be tailored to suit your installation. The Halobay is available with an integral Reacta 18 sensor providing daylight regulation and presence detection with remote control programming ensuring your installation is dimmed to low output during periods of absence and daylight providing excellent energy savings and return on investment.
With its circular balanced design and centralised control gear the Halobay Sensor is suitable for single point suspension ensuring that traditional HID Highbay luminaires can be quickly and easily replaced without the need to modify infrastructure, minimising the cost of installation, whilst the wide range of variants, three lumen outputs, DALI, DSI, Switch Dim and Analogue dimming options as well as integral lithium emergency ensure the Halobay Sensor can be configured to suit your requirements. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
HALOBAY SENSOR complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Industrial / Manufacturing | Warehousing
Specification
Construction
- Housing: Spun aluminium
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Diffuser: Injection moulded clear polycarbonate
- Lens: Injection moulded polycarbonate lens
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 169 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
- Ground level commissioning with REA-AP controller allows quick and simple setting and adjustment of sensors without the need for costly commissioning.
Installation
- Suitable for suspended installation
- Single point installation ensures it can be replaced one for one with traditional HID Highbay luminaires.
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs

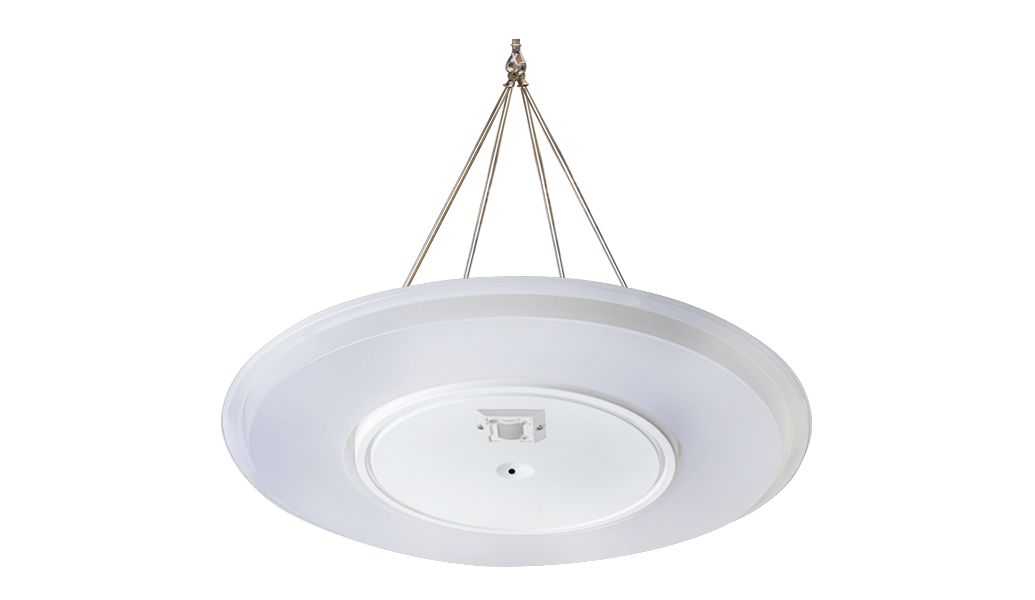

Product Images
Technical
Halobay Sensor
Ordering
Luminaires
|
||||||||||||||||||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
| Please click here for full details on our white tunable offer. | |
| The Halobay L180 and L260 use two drivers per luminaire requiring two addresses on the DALI network. | |
Control
| Code | Description |
|---|---|
| R18W | Reacta 18, Wide, Presence & Daylight, 7-18M |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RLS | Reacta-Link Wireless, Presence, 2.5M-5M |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| Sensor variants can only be used where luminaires will not be subject to air movement that may cause motion and false triggering. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
| Emergency is supplied in a remote pack for L260 variants, mounted on the rear of the luminaire. | |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| LSF | Low Smoke Zero Halogen |
