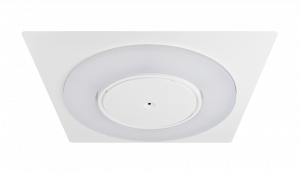

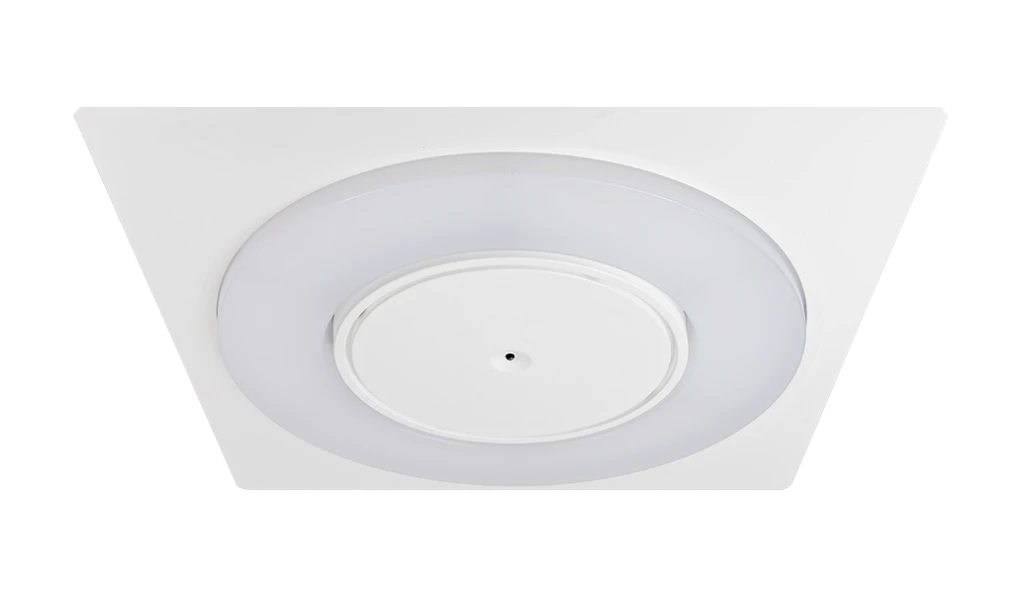

Halobay Recessed

Introduction

In high level recessed applications where luminaires must combine both an attractive appearance with powerful performance the Halobay recessed is the ideal solution. With a circular halo diffuser available in both opalised and lensed versions, the Halobay is capable of producing up to 26,000 lumens with two different beam angles. This powerful performance can be combined with a range of dimming and lithium emergency options and integral sensors. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

HALOBAY RECESSED complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Commercial / Offices | Education | Industrial / Manufacturing | Office | Retail

Specification

Construction

  • Housing: Spun aluminium
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Diffuser: Injection moulded high transmission opal polycarbonate
  • Diffuser: Injection moulded clear polycarbonate
  • Lens: Injection moulded polycarbonate lens
  • IP20
  • 600x600 white power painted mounting tile for lay in to exposed T ceiling systems.

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 169 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for lay-in installation in exposed T ceilings

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
  • Opal diffuser variant provides broader light distribution.
  • Clear diffuser with lens minimises glare.
5 year extended warranty available on most products.
Arrow right

Product Images

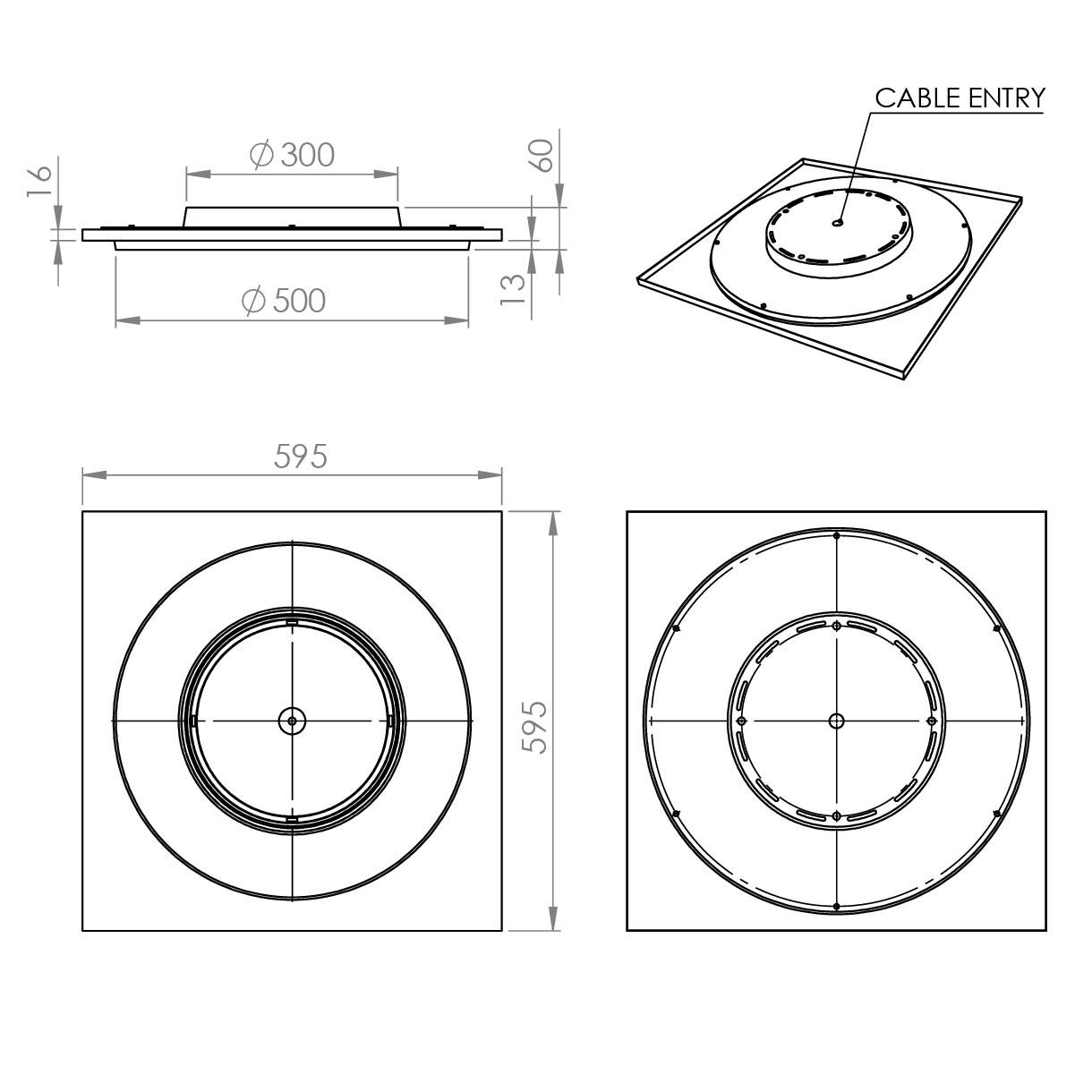

Technical

Halobay Recessed

Halobay Recessed

Ordering

Luminaires

Code Description Power Llm/W
HBYR L50 Halobay Recessed, 4,600llm, Colour 84 29.9W 153
HBYR L50 CL Halobay Recessed, 4,300llm, Clear diffuser with lens, Colour 84 29.9W 143
HBYR L80 Halobay Recessed, 7,360llm, Colour 84 45.1W 163
HBYR L80 CL Halobay Recessed, 6,880llm, Clear diffuser with lens, Colour 84 45.1W 152
HBYR L120 Halobay Recessed, 11,064llm, Colour 84 65.1W 169
HBYR L120 CL Halobay Recessed, 10,320llm, Clear diffuser with lens, Colour 84 65.1W 158
HBYR L180 Halobay Recessed, 16,362llm, Colour 84 102.1W 160
HBYR L180 CL Halobay Recessed, 15,414llm, Clear diffuser with lens, Colour 84 102.1W 150
HBYR L260 Halobay Recessed, 23,405llm, Colour 84 163.2W 143
HBYR L260 CL Halobay Recessed, 22,092llm, Clear diffuser with lens, Colour 84 163.2W 135

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor
Please click here for full details on our white tunable offer.

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
Please click here for full details on our wireless controls.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering
Emergency is supplied in a remote pack for L260 variants, mounted on the rear of the luminaire.

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
