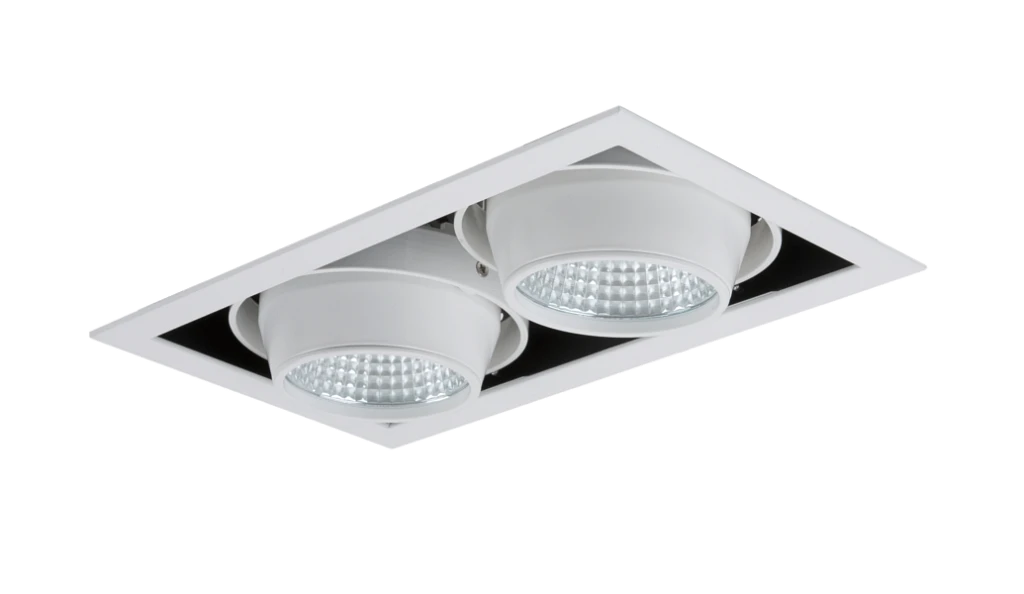

GYRO-LIGHT 2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

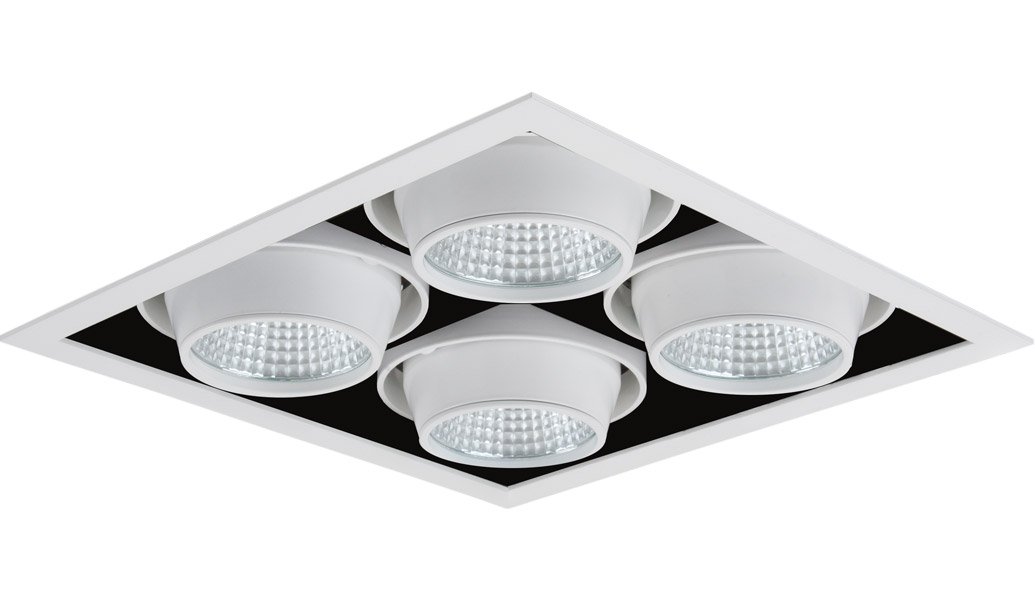

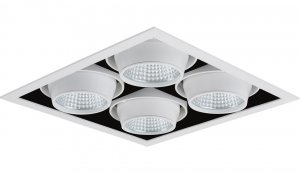

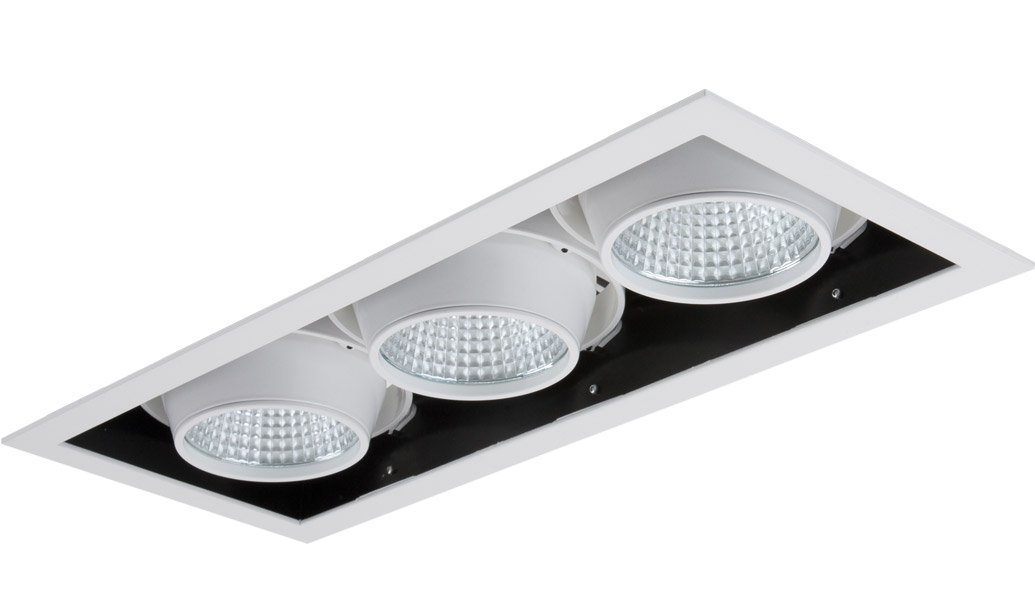

The Gyro-Light introduces a new aspect to our product range, allowing us to offer recessed gimbal luminaires individually or clustered, with each head being capable of pivoting and rotating allowing you to highlight displays effectively and consistently. With a black powder coated steel housing and high quality die cast aluminium heads this new range combines a pleasing aesthetic with a sturdy construction. Available in single, twin, triple and quadruple head configurations in a wide range of lumen outputs with 3000K or 4000K colour temperatures, the Gyro-Light is fast becoming the fitting of choice for retailers nationwide.
We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
GYRO-LIGHT 2 complies with:
UKCA | CE | IP20 | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education | Healthcare / Social Housing | Hotel / Leisure | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Finish: Polyester powder painted RAL 9005 matt black
- Reflector: Specular aluminium
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 121 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for plasterboard installation
- Suitable for mineral fibre ceiling tile installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
- Available in white or black finishes
Product Images

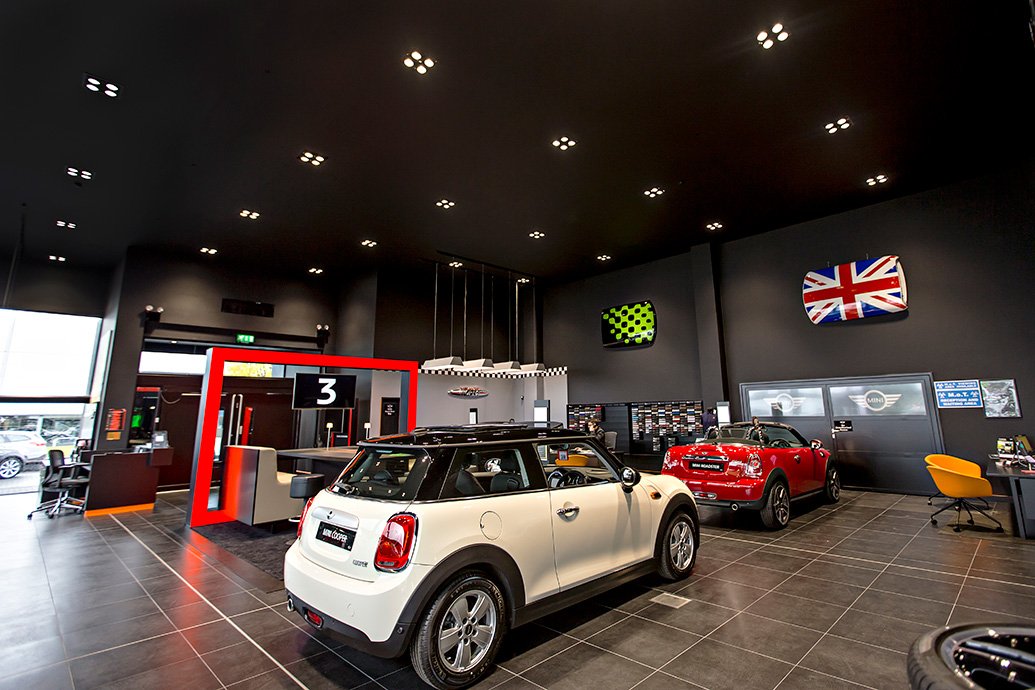

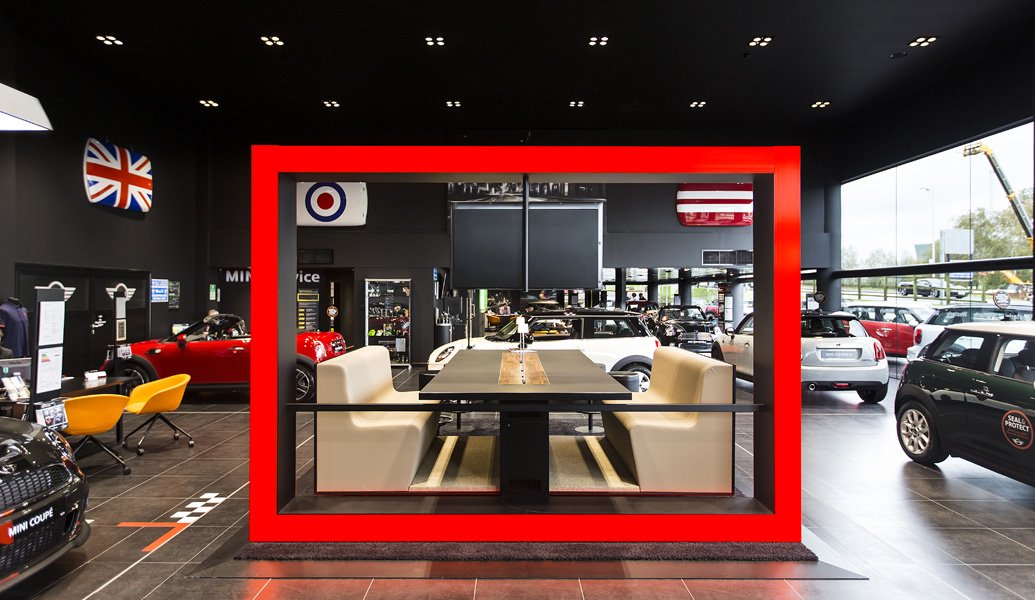

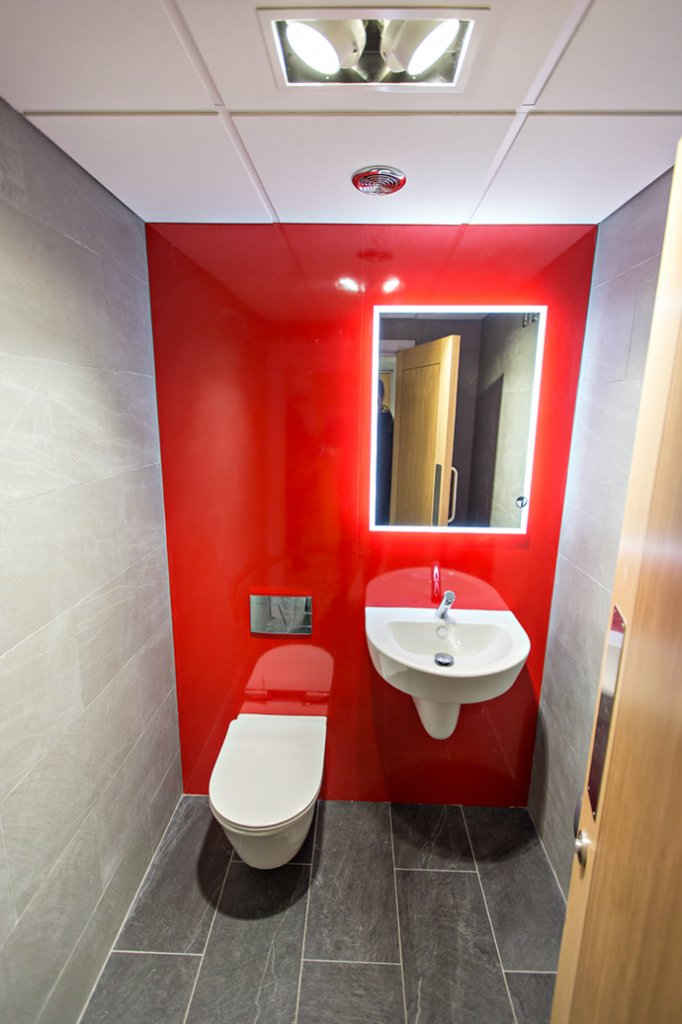

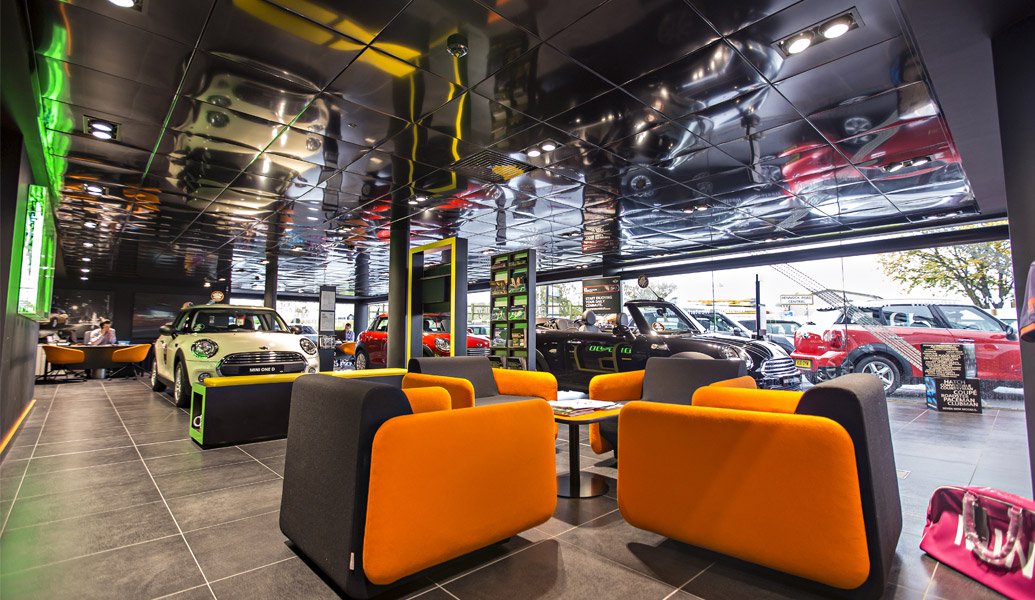

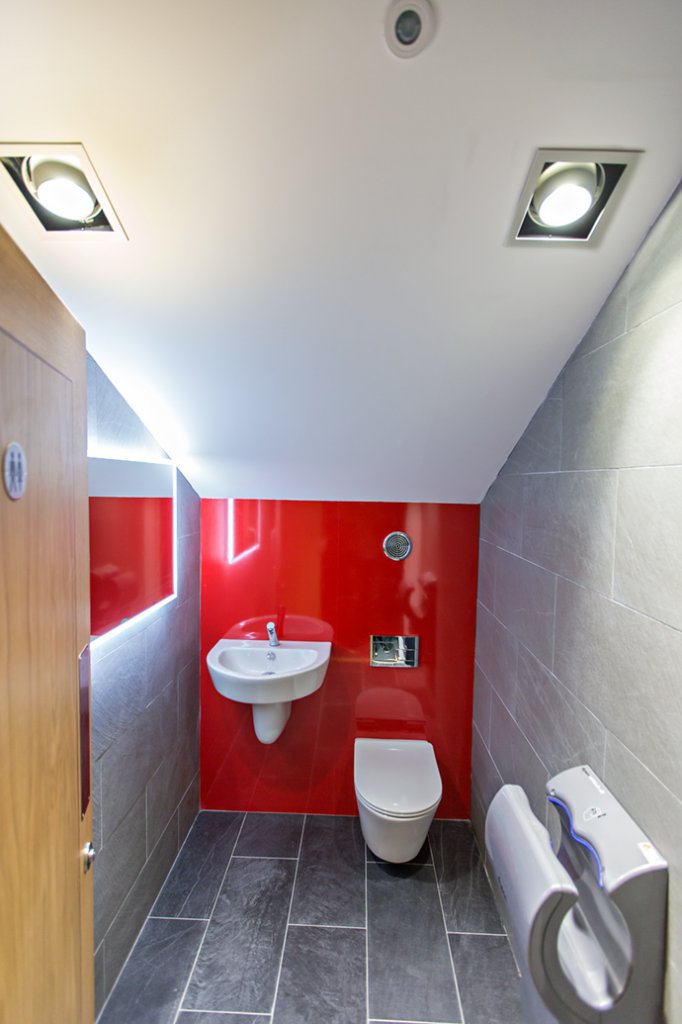

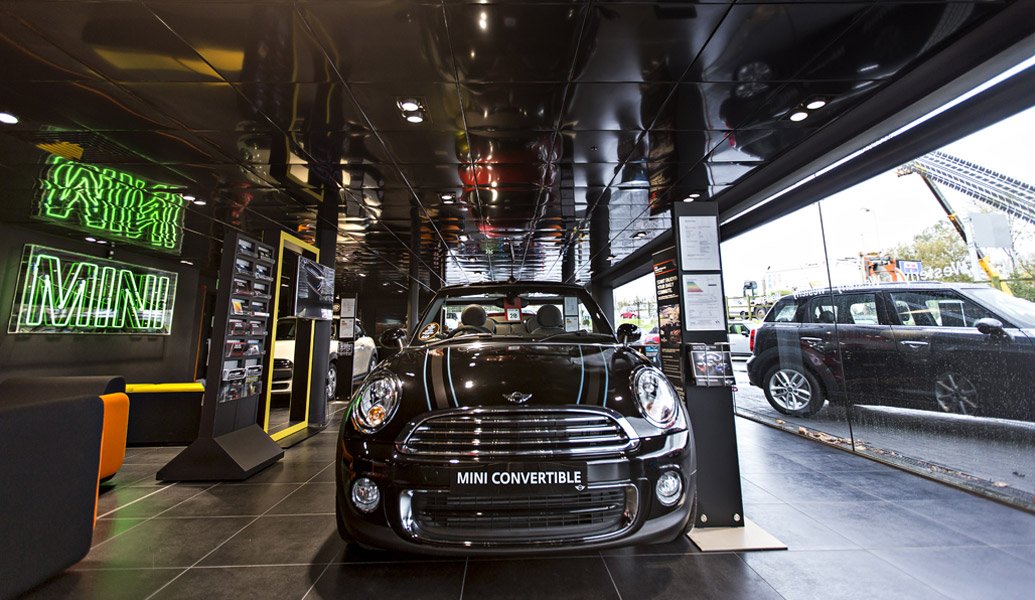

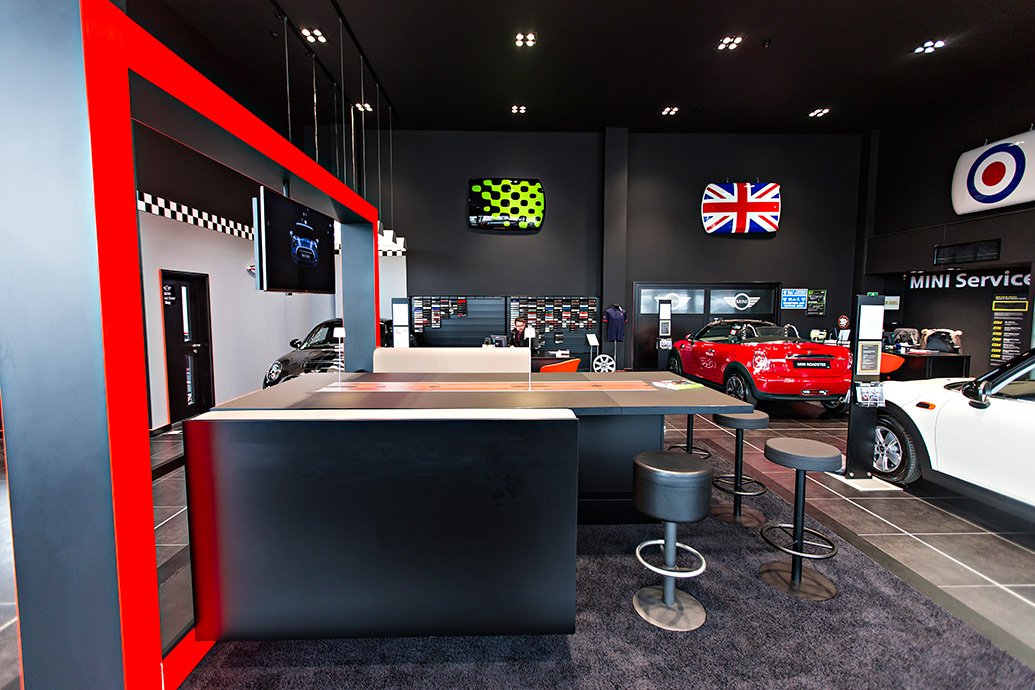

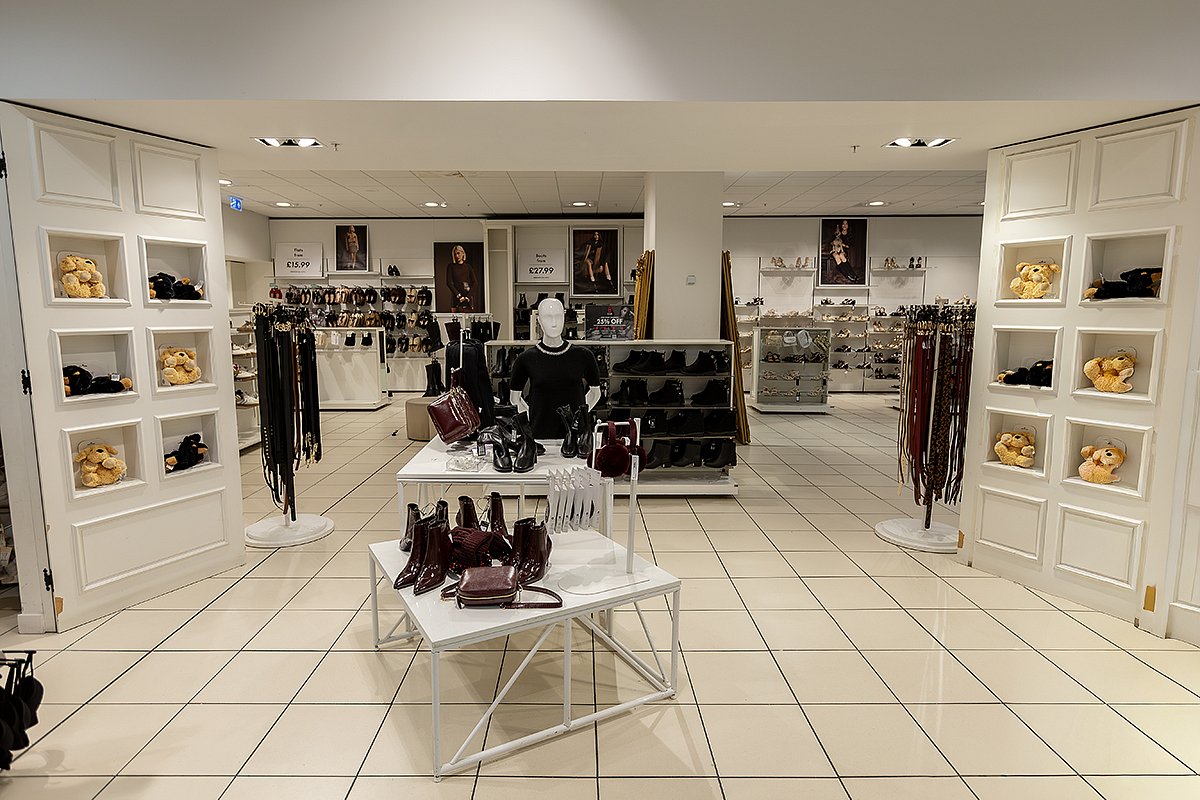

GYRO-LIGHT 2 in action
.jpg)
Technical

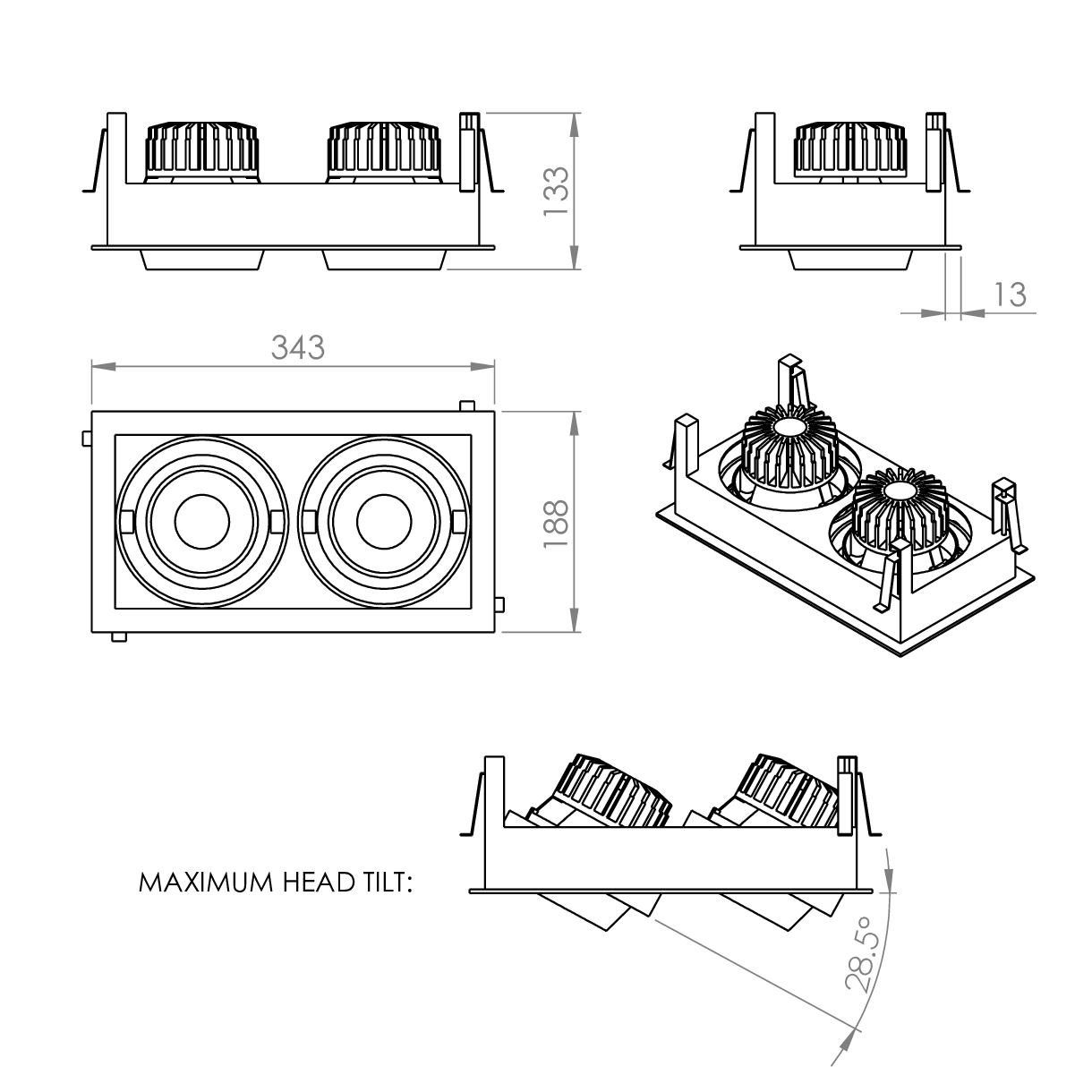

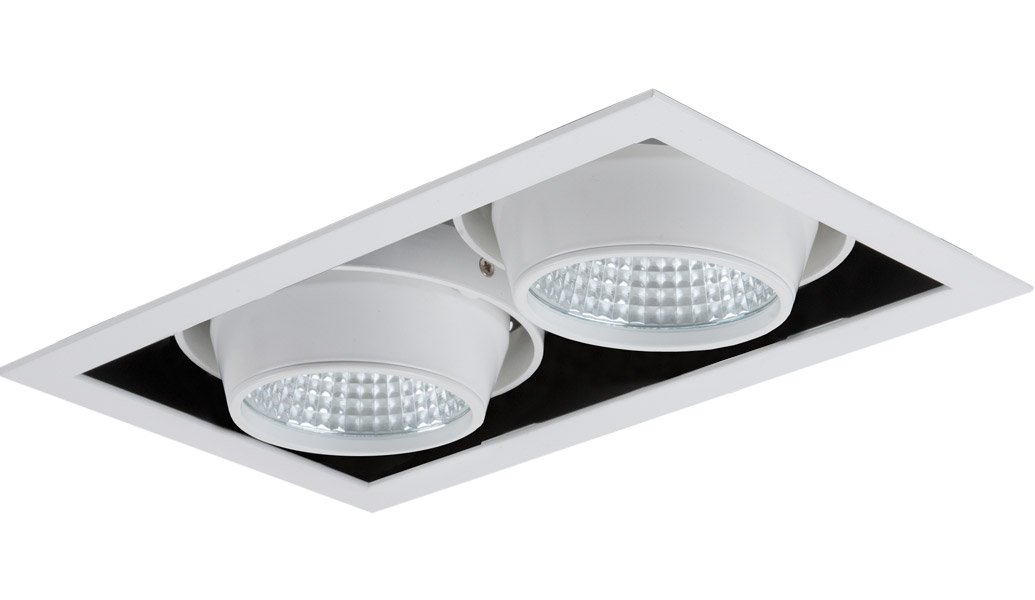

Gyro-Light Double
Ordering
Luminaires
| Twin Head | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| Luminaire supplied with single or twin drivers, please check with our technical department for number of DALI addresses required, or where individual switching is required. | |
Control
| Code | Description |
|---|---|
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RCSS | Reacta-Control Standalone Sensor, Presence & Daylight 2.5-4M, Use with RC Luminaires |
| RLS REMOTE SENSOR | Reacta-Link Standalone Sensor, Presence, 2.5-4M, Use with RLI Luminaires (sold separately) |
| RAD | Reacta-Air, Wireless Enabled Luminaire |
| RASS | Reacta-Air Standalone Sensor, Presence, 2.5-4M, Use with RAD Luminaires (sold separately) |
| RASSD | Reacta-Air Standalone Sensor, Presence & Daylight, 2.5-4M, Use with RAD Luminaires (sold separately) |
| *Sensor supplied with luminaire for installation in adjacent ceiling tile. | |
| Please click here for full details on our wireless controls. | |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C83, C93, C94 |
| BL | Black Finish |
| 4PM | 4 Pole Panel Mount |
| 6PM | 6 Pole Panel Mount |
| INFILL | Infill Rings to Suit Over Size Ceiling Cut Out, Please Specify Size when Ordering. |
| LSF | Low Smoke Zero Halogen |
