GLIDE RGBW

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.

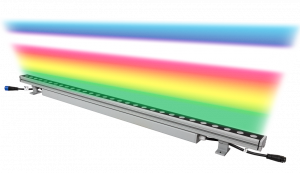

Glide RGBW 1190mm

Introduction

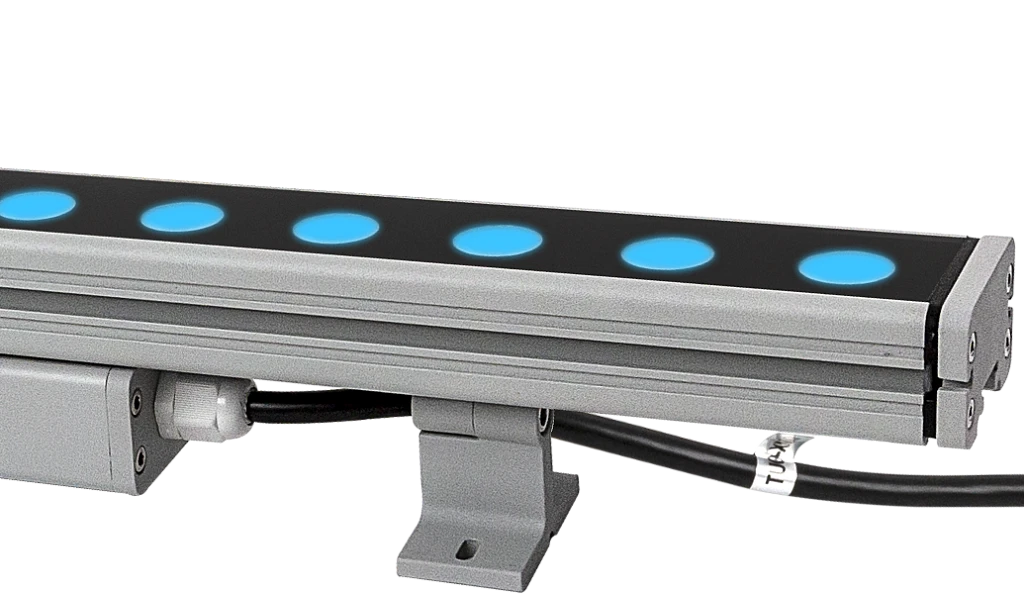

The Glide RGBW combines colour changing and wall grazing lensed optics with high lumen outputs. With a weather resistant RAL 9006 grey paint finish, fully potted construction, extruded aluminium housing and toughened glass cover with IP66 rating the Glide RGBW is suitable for both internal and external applications yet maintains a discreet and compact design. With 20° and 50° beam angles available as standard the Glide RGBW is ideal for wall grazing applications, however a wide range of alternative beam angles are available on request. The Glide RGBW is supplied complete with IP66 rated plug and socket connectors allowing for quick and simple installation as well as optional wall brackets. Where required to suit your architectural theme the Glide RGBW can be specified in custom housing colours.

GLIDE RGBW complies with:

UKCA | CE | IP66 | IK08 | 230V

Recommended applications:

Façade Lighting | Hotel / Leisure | Parking / Exterior | Retail | Shop Front

Specification

Construction

  • Housing: Extruded aluminium
  • Toughened glass cover
  • IK08
  • IP66 housing and electrical connectors

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Installation

  • Supplied complete with angle adjustable mounting brackets
  • Supplied with prewired leads for rapid low cost installation

Variations

  • Available in a range of lumen outputs and lens options offering multiple beam angles
  • RAL9006 Grey as standard, other colours available on request

Performance

  • Red / Blue / Green / White chip sets with DMX control allowing precise colour control
  • 50,000 operating hours
5 year extended warranty available on most products.
Arrow right

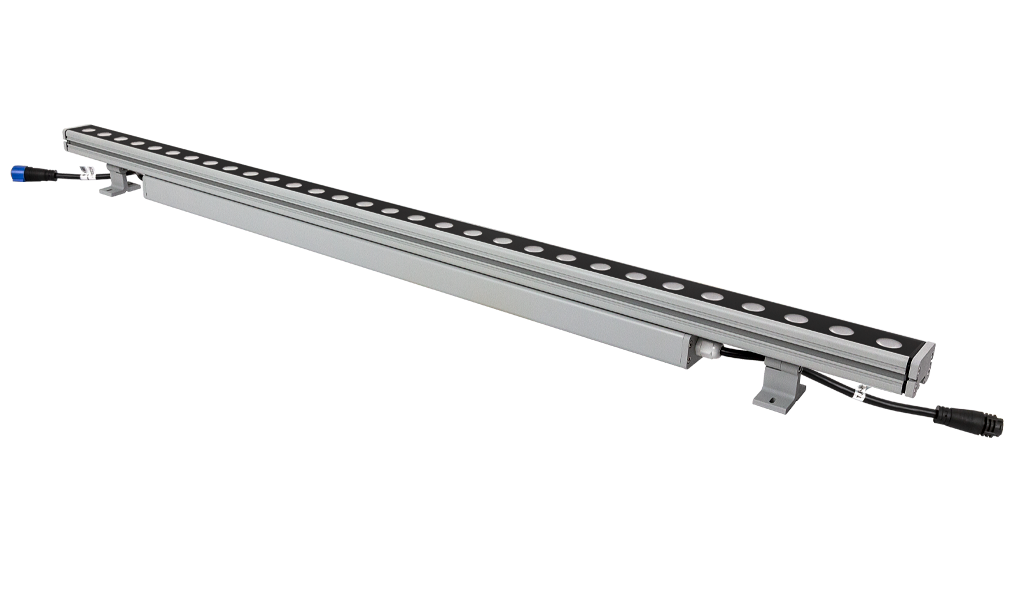

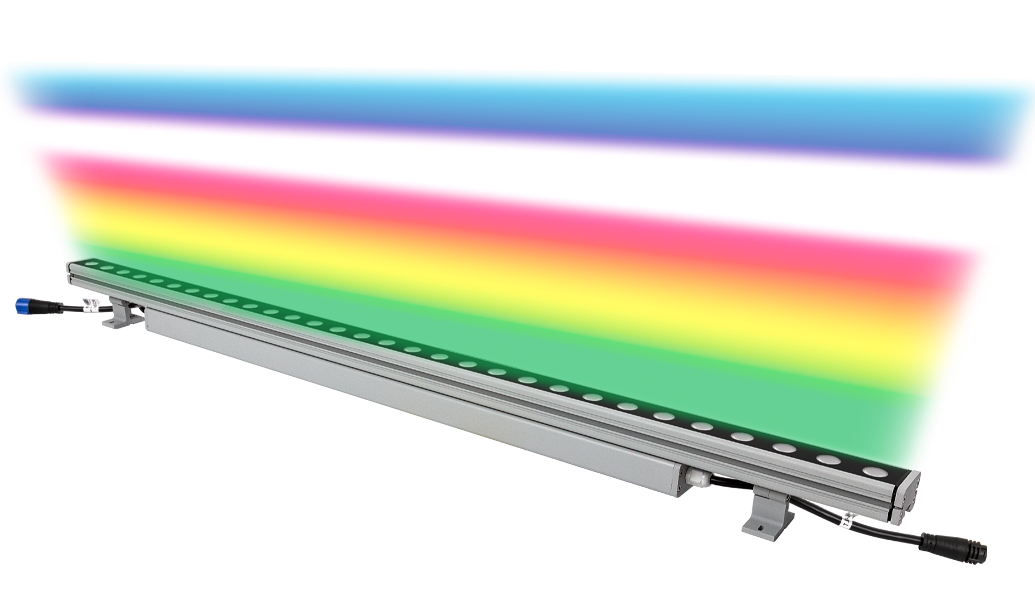

Product Images

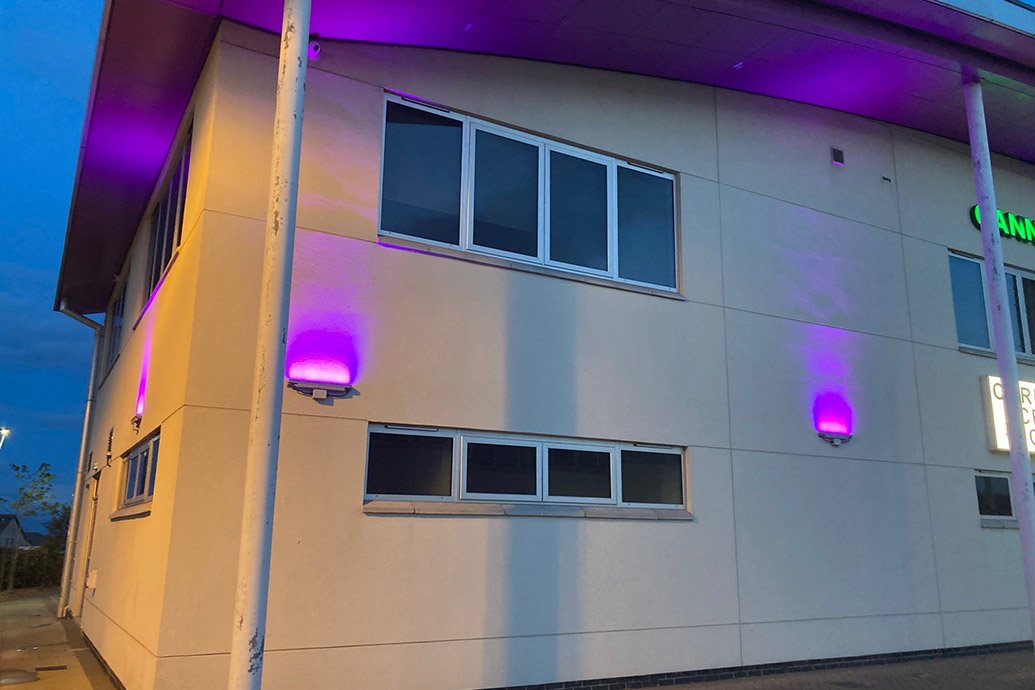

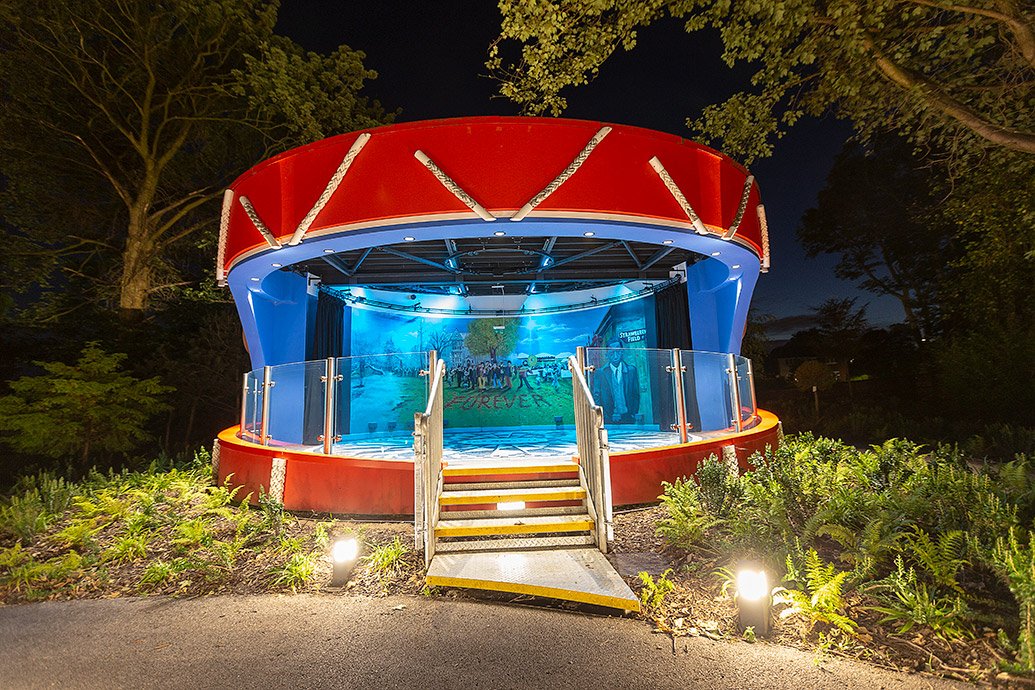

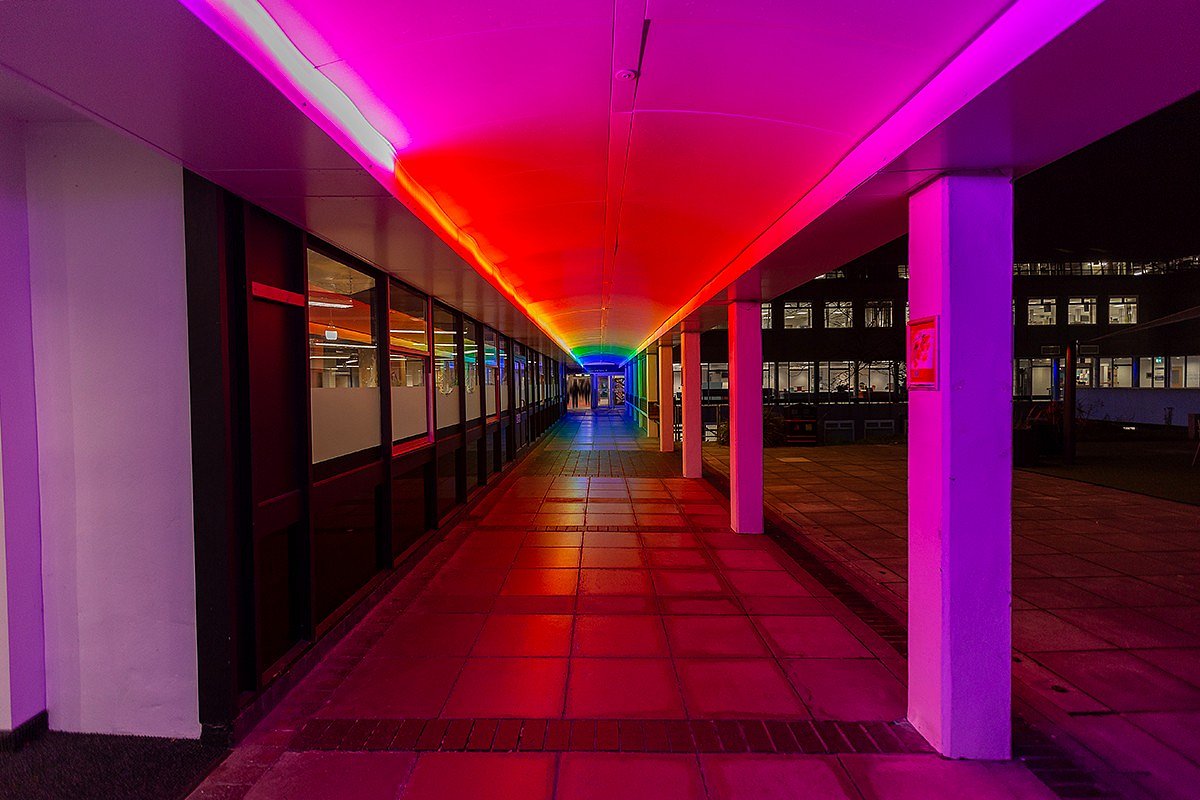

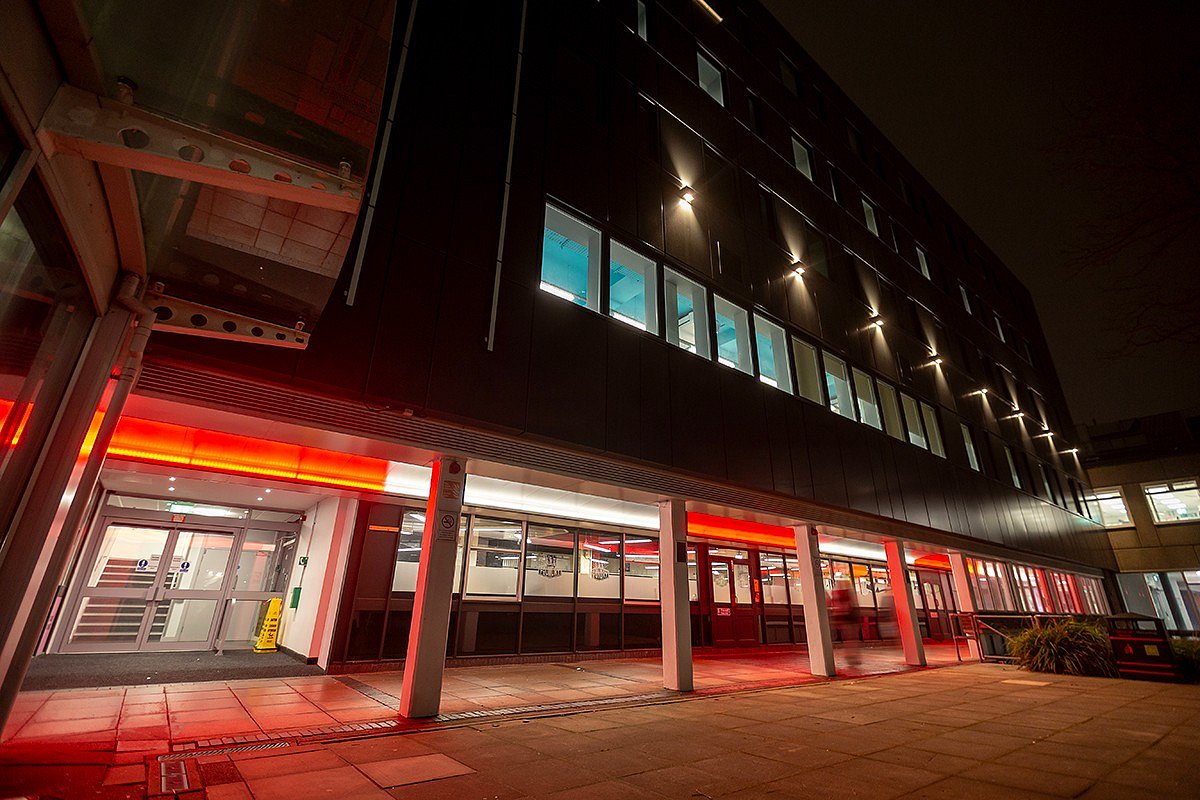

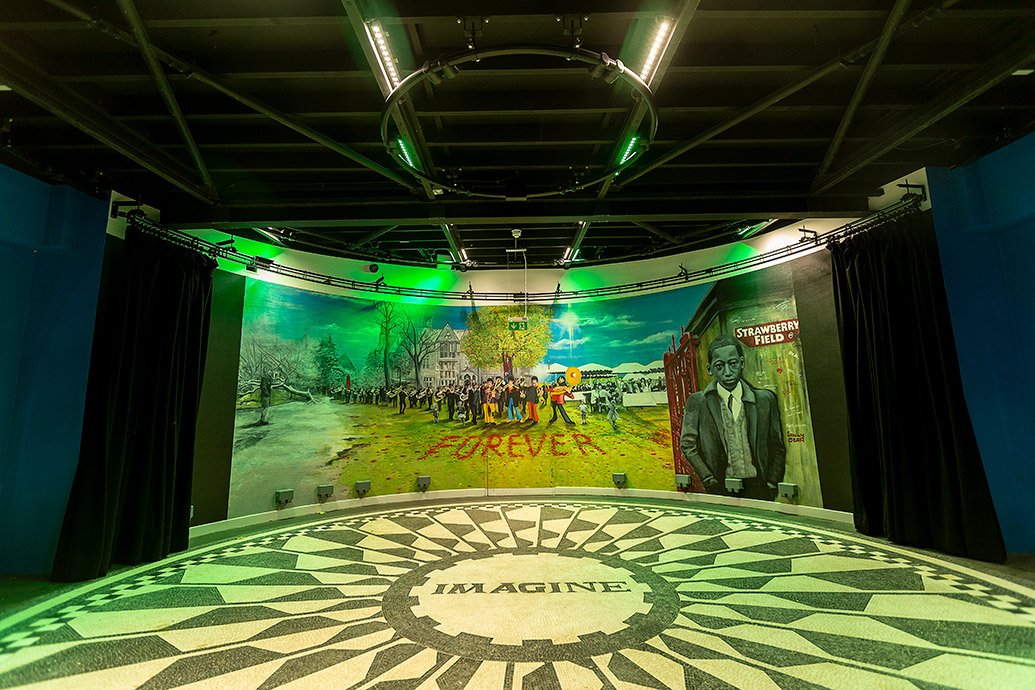

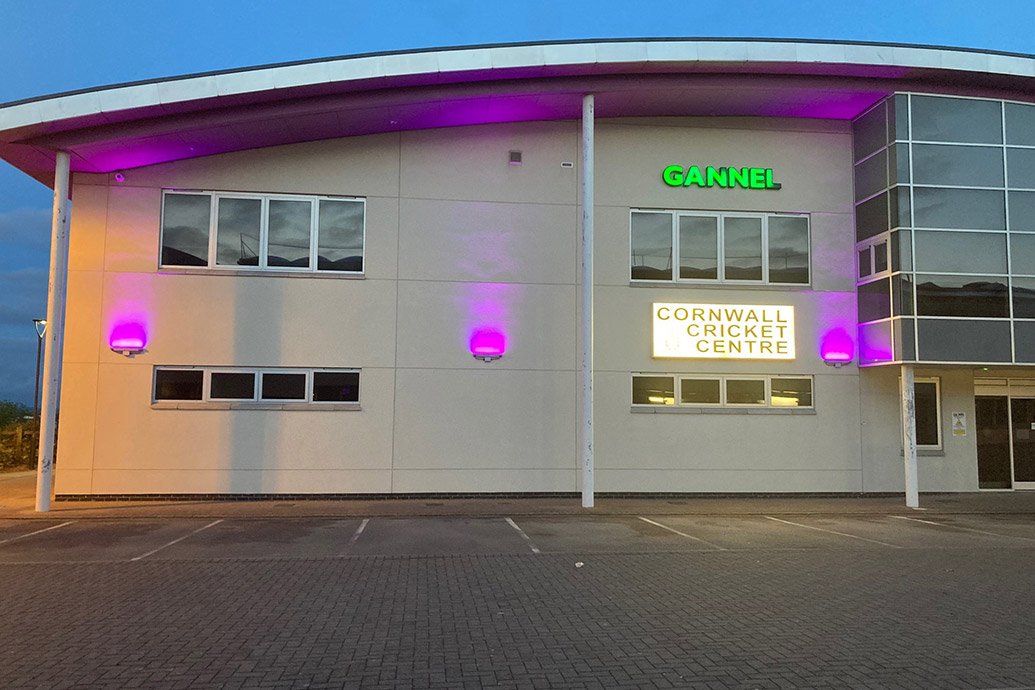

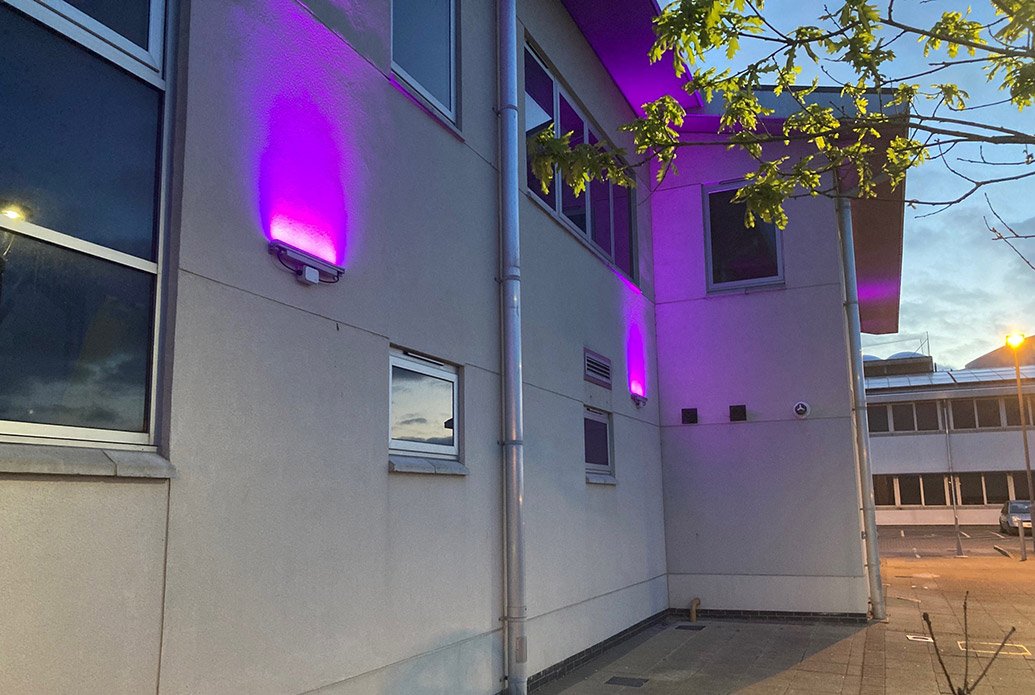

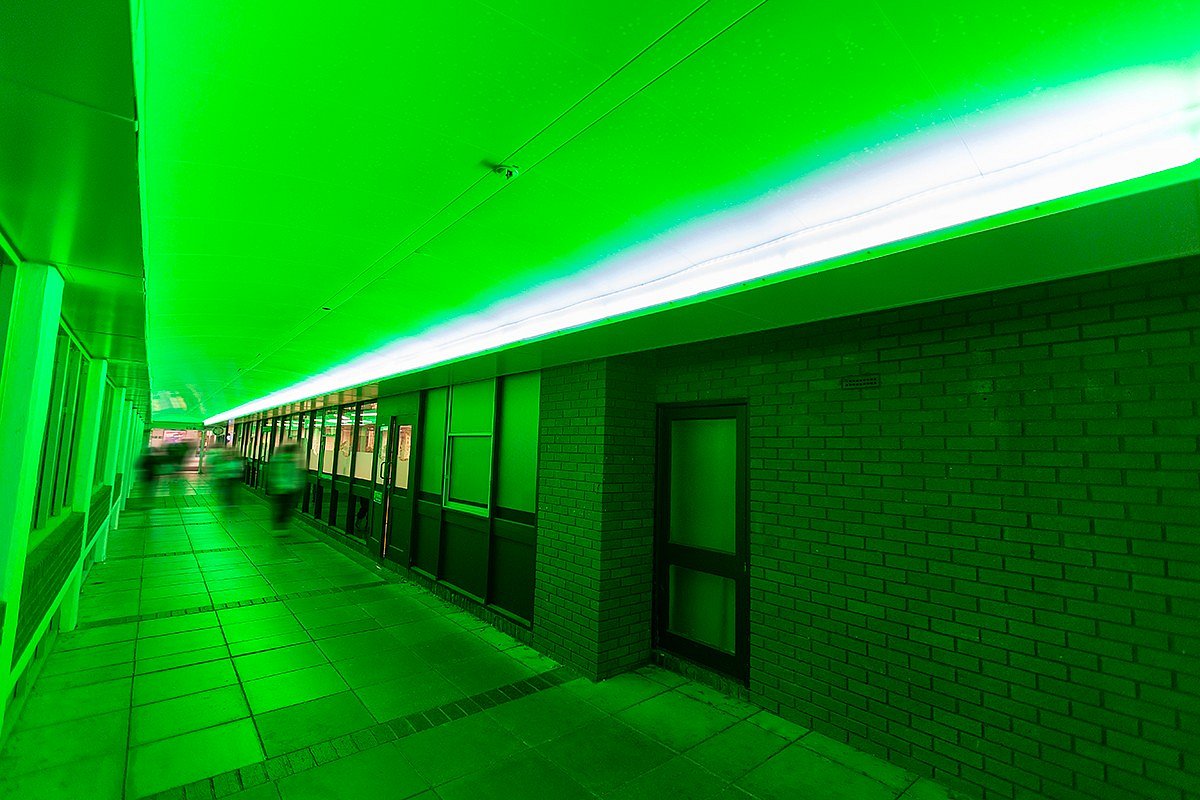

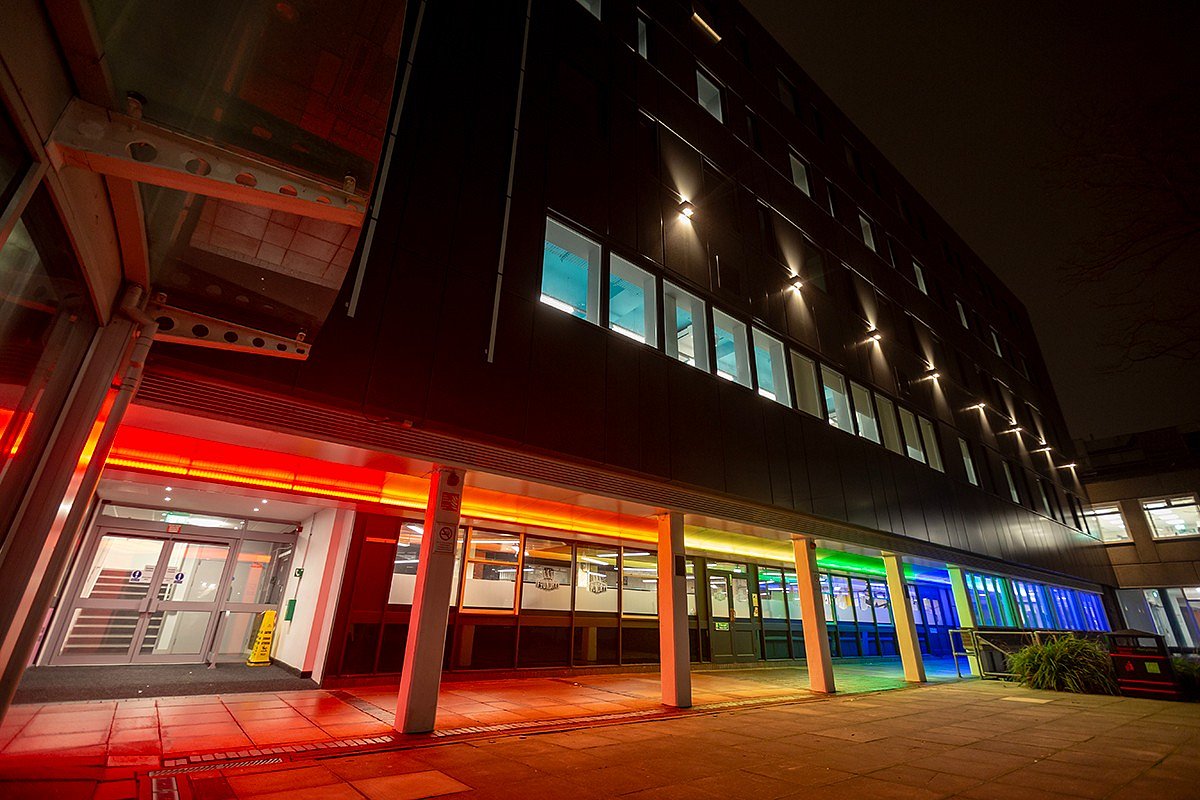

GLIDE RGBW in action

Technical

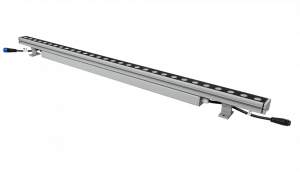

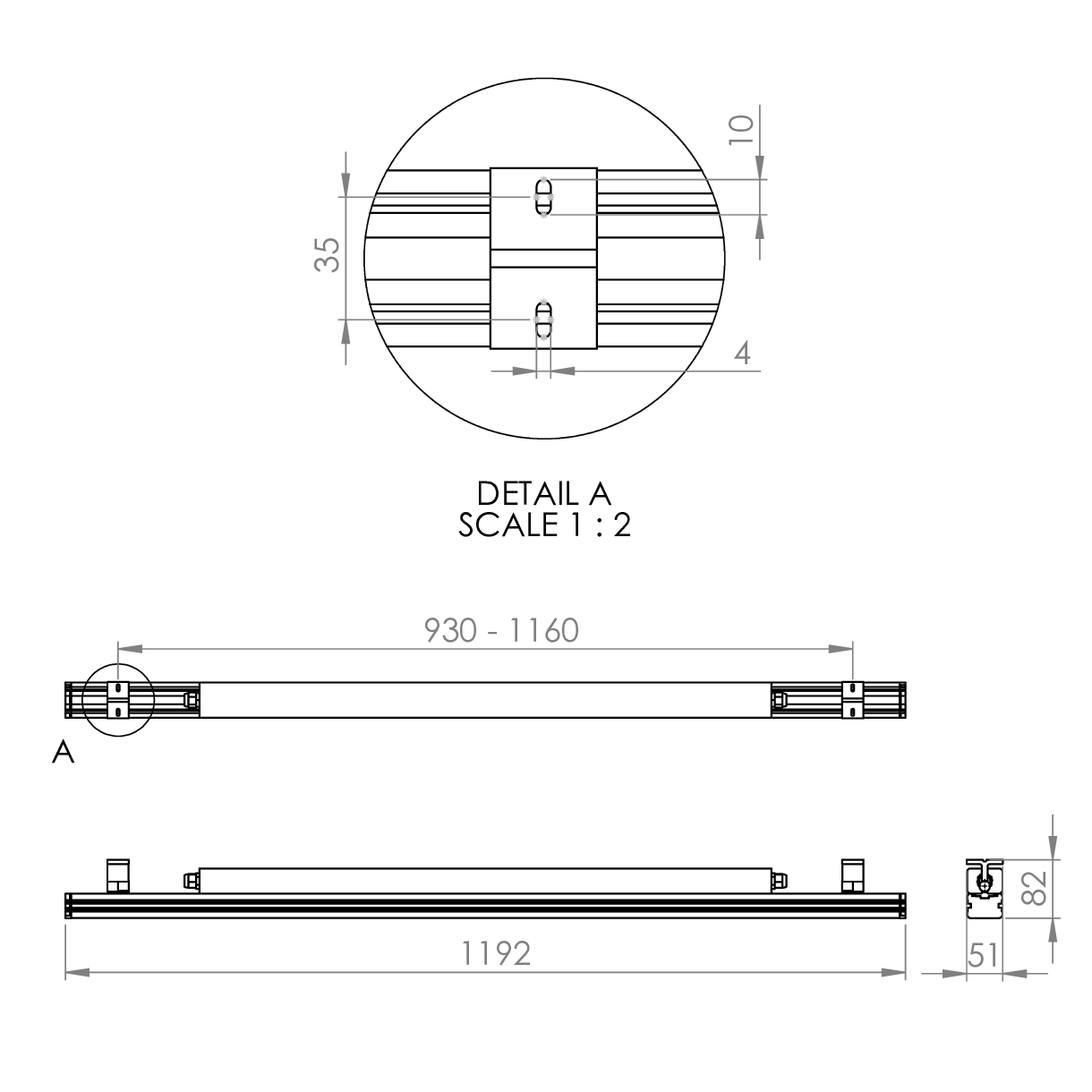

Glide RGBW 1190mm

Glide RGBW 1190mm

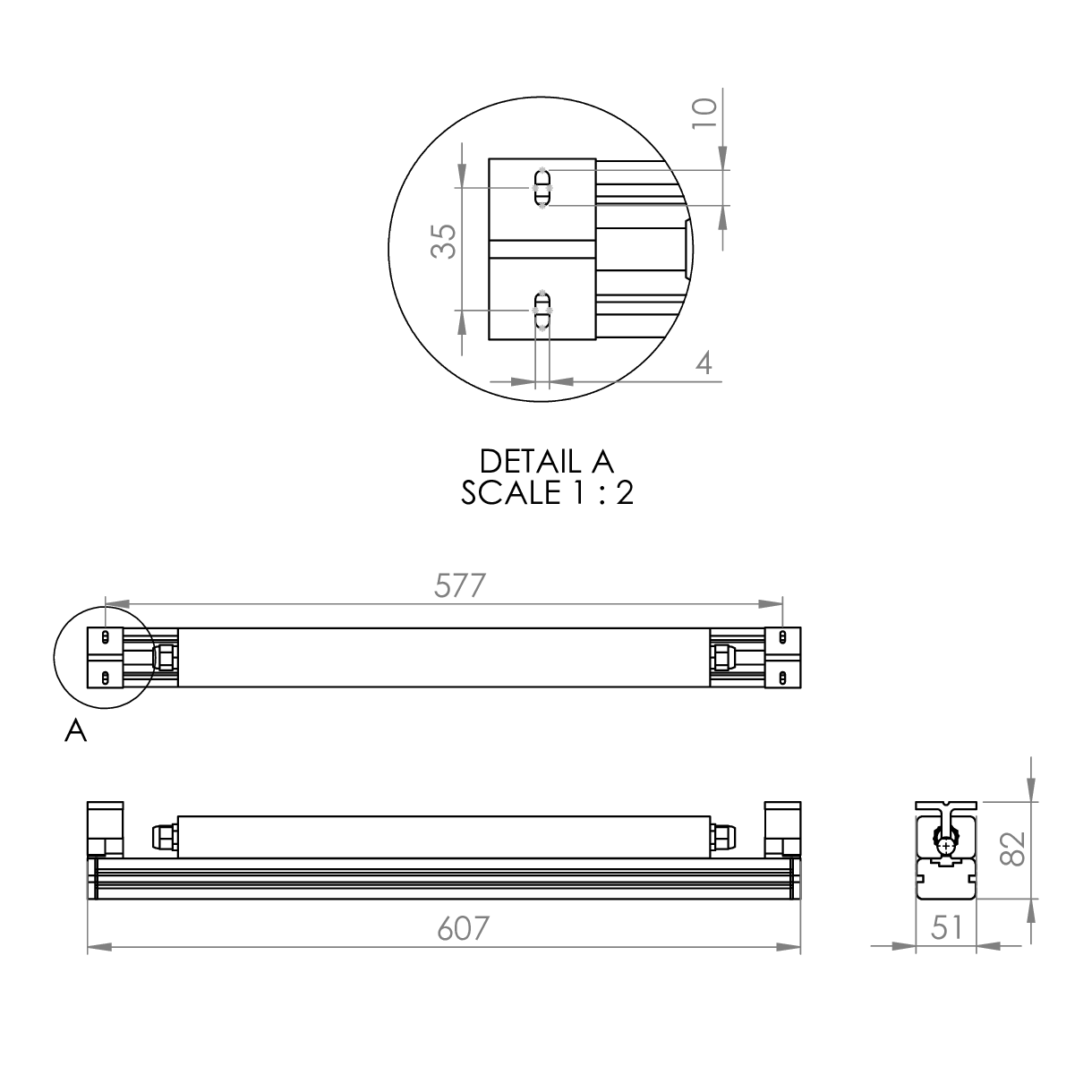

Glide RGBW 605mm

Glide RGBW 605mm

Ordering

Luminaires

Code Description Power Luminous Flux
GERGBW L27 5050 Glide RGBW, 605mm, 50x50°, IP66 34.2W 189lm Red, 385lm Green, 111lm Blue, 329lm White, 1,014llm RGBW
GERGBW L27 2020 Glide RGBW, 605mm, 20x20°, IP66 34.2W 222lm Red, 452lm Green, 131lm Blue, 373lm White, 1,178llm RGBW
GERGBW L54 5050 Glide RGBW, 1190mm, 50x50°, IP66 60.0W 368lm Red, 764lm Green, 226lm Blue, 646lm White, 2,004llm RGBW
GERGBW L54 2020 Glide RGBW, 1190mm, 20x20°, IP66 60.0W 466lm Red, 947lm Green, 255lm Blue, 811lm White, 2,479llm RGBW

Miscellaneous

Code Description
GLIDE WB Glide Wall Bracket, 350mm - 410mm

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
