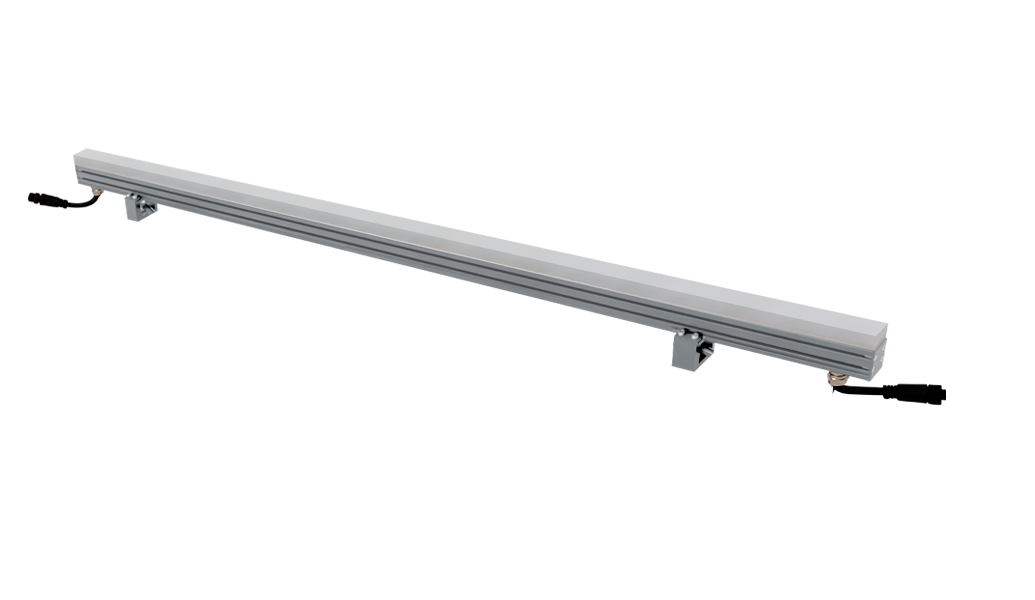

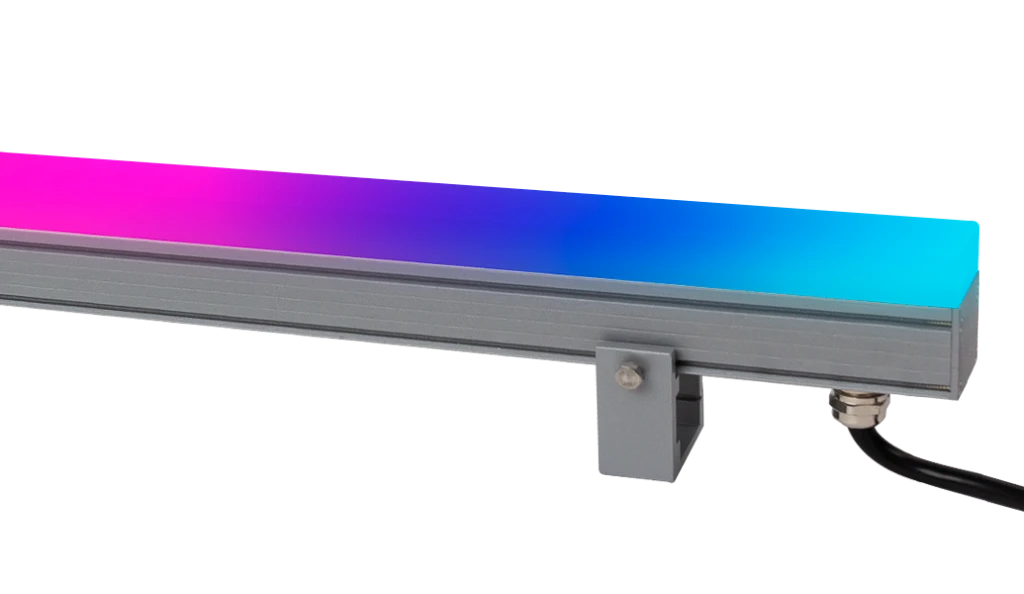

Glide Pixel RGBW 1000mm

Introduction

With 10 pixels per metre, the Glide Pixel RGBW and Glide Pixel White are IP66 rated direct view fixtures designed for both indoor and outdoor architectural façade and accent applications. They are particularly effective when seamless strips of light with individually controllable sections are required with RGBW colour change, static white or static colour effects. The acrylic diffuser ensures a dot-less effect with no visibility of individual LED sources, whilst the RAL 9006 grey paint finish and compact design ensure a discrete appearance that compliments a wide range of architectural styles.

GLIDE PIXEL complies with:

UKCA | CE | IP66 | 24V

Recommended applications:

Façade Lighting | Hotel / Leisure | Parking / Exterior | Retail | Shop Front

Specification

Construction

  • IP66 housing and electrical connectors
  • Extruded aluminium cover with acrylic diffuser

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Installation

  • Supplied with prewired leads for rapid low cost installation

Variations

  • RAL9006 Grey as standard, other colours available on request
  • 500mm and 1000mm lengths
  • White available in C84 as standard, other colour temperatures available as special order
  • RGBW option available

Performance

  • 50,000 operating hours
5 year extended warranty available on most products.
Arrow right

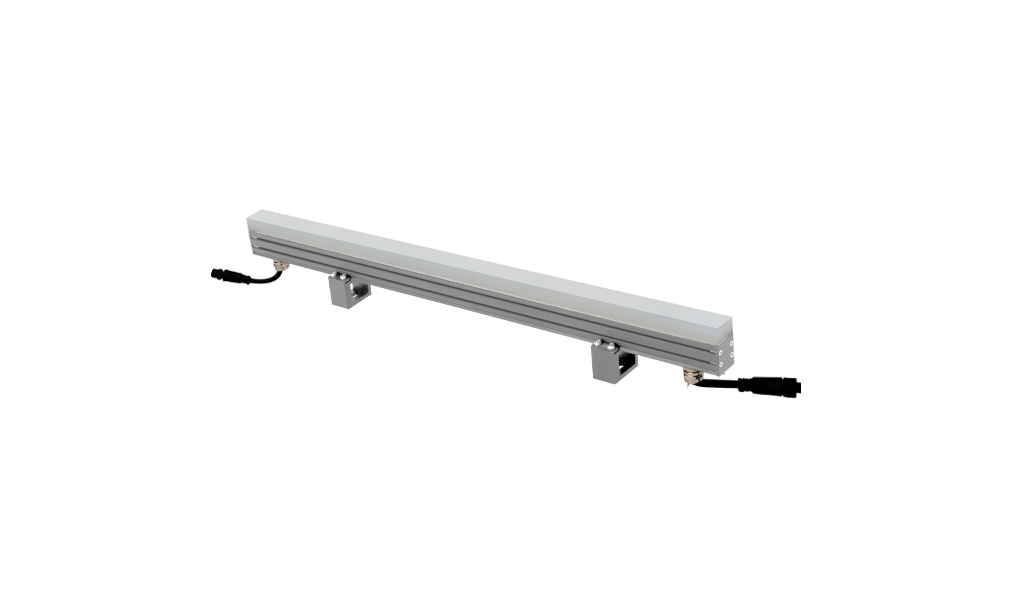

Product Images

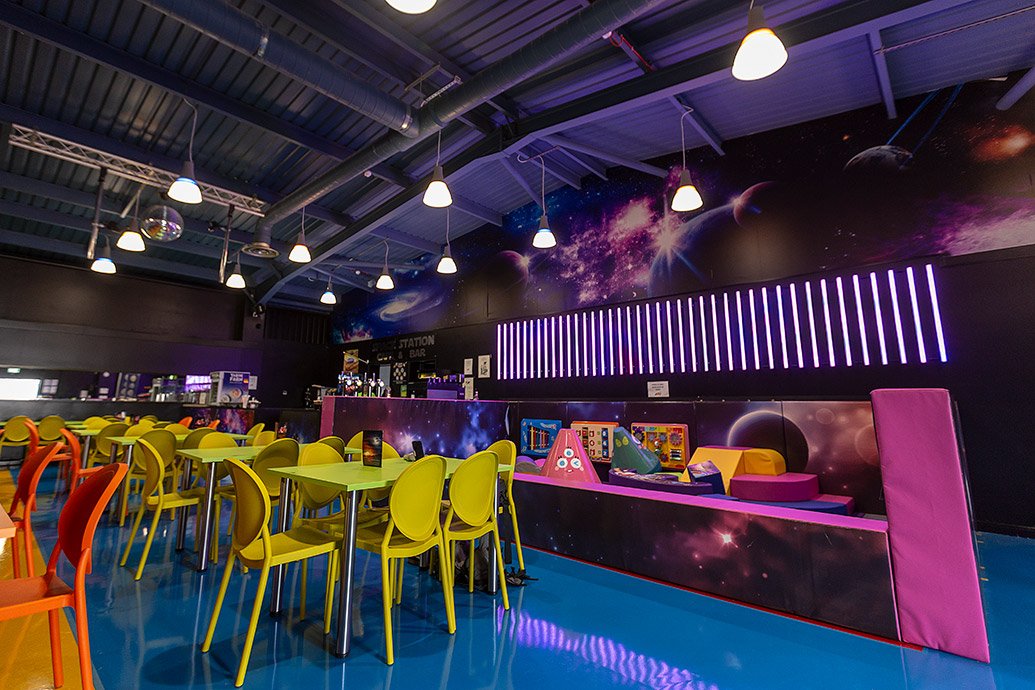

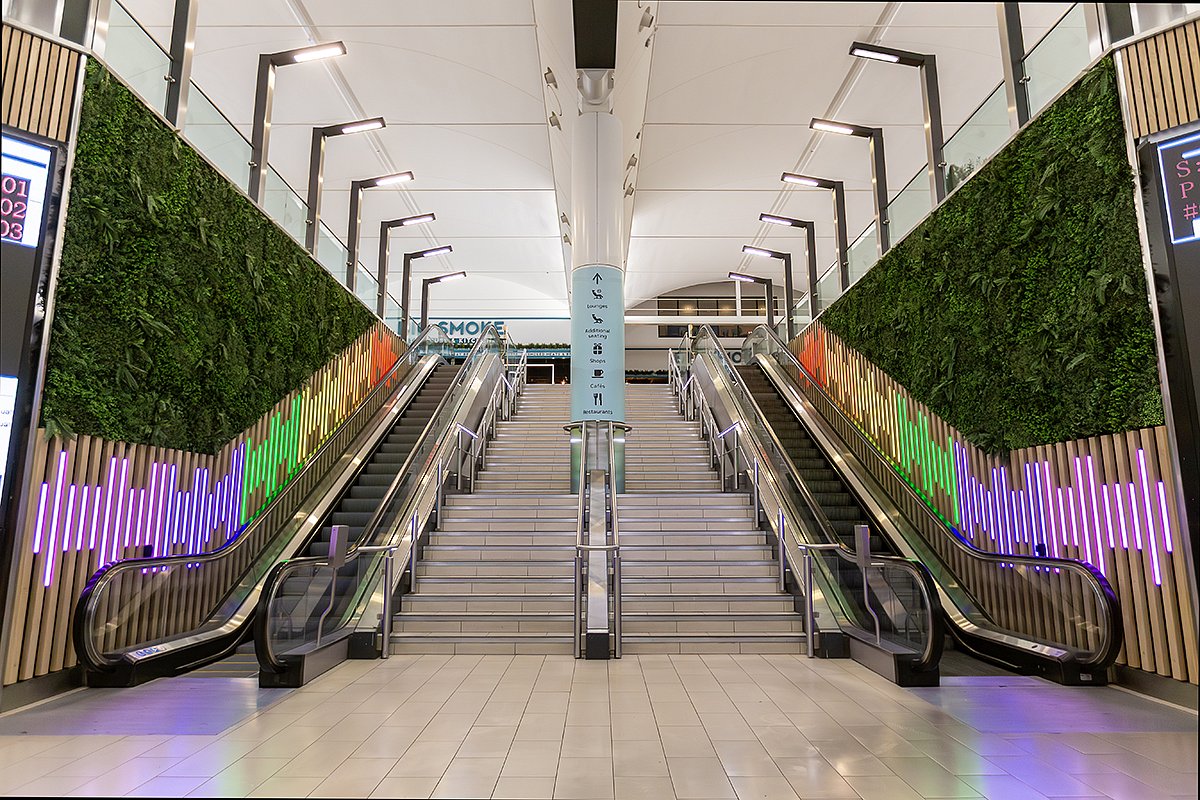

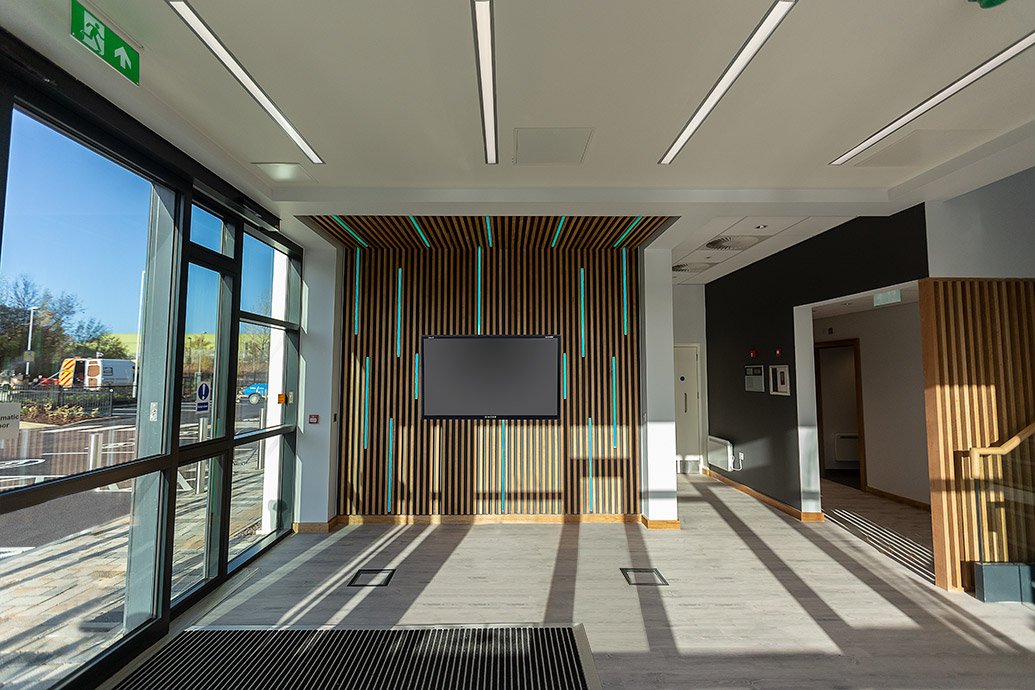

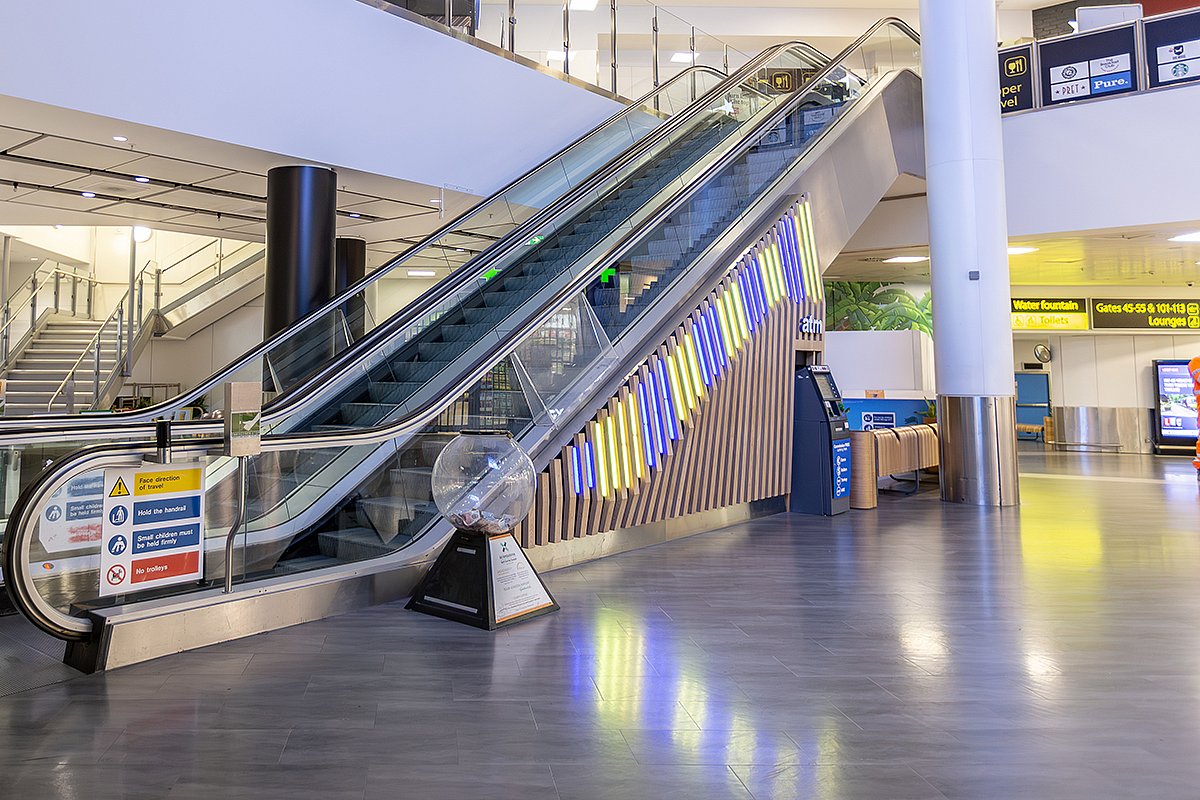

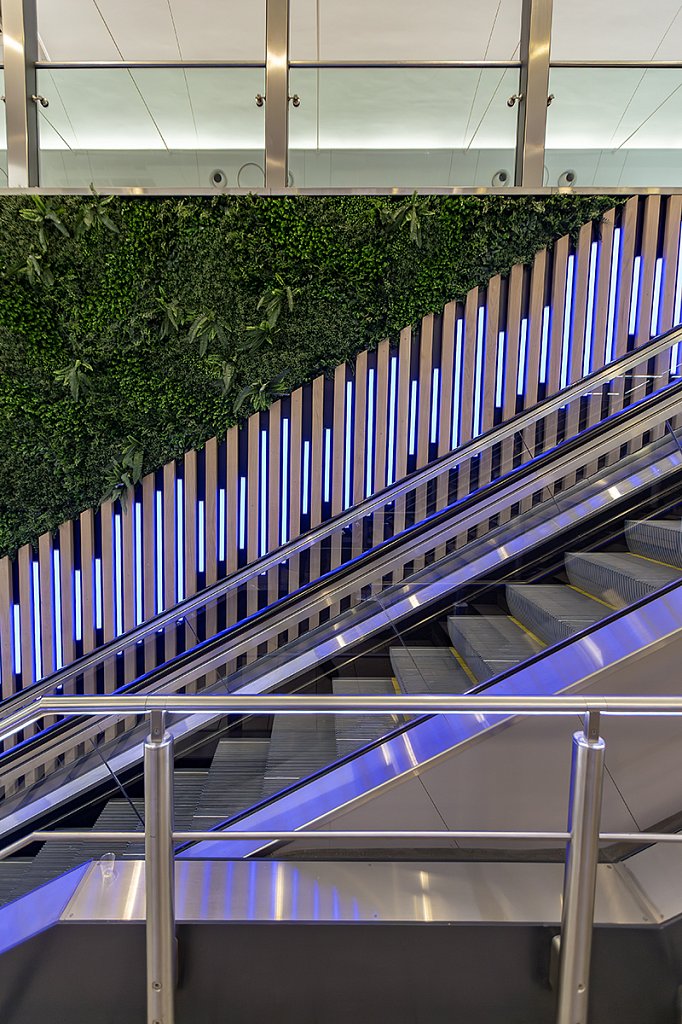

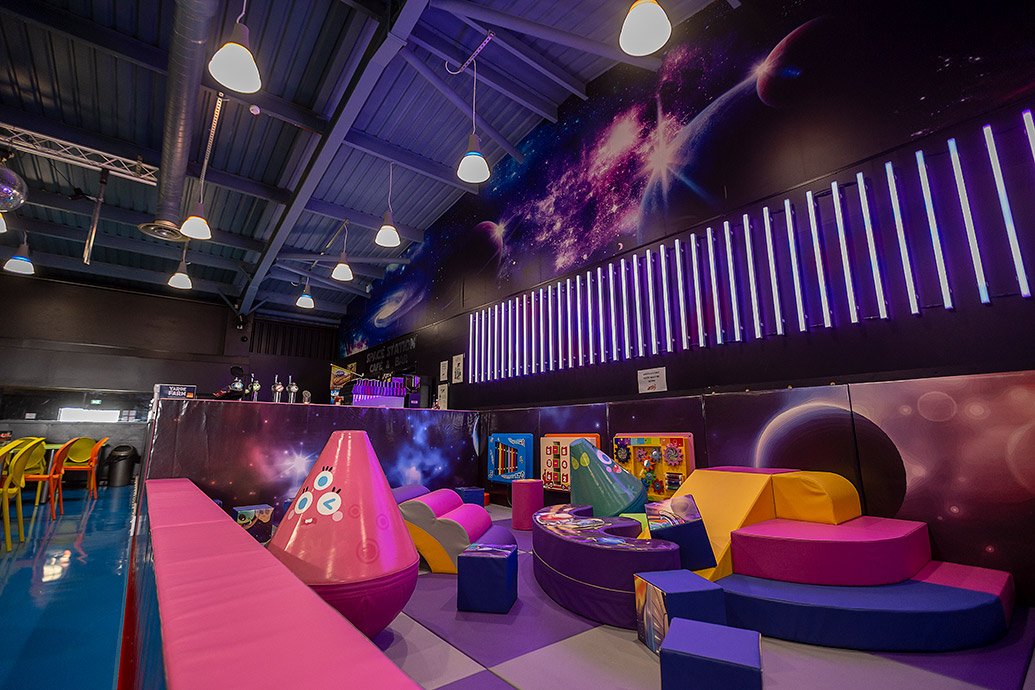

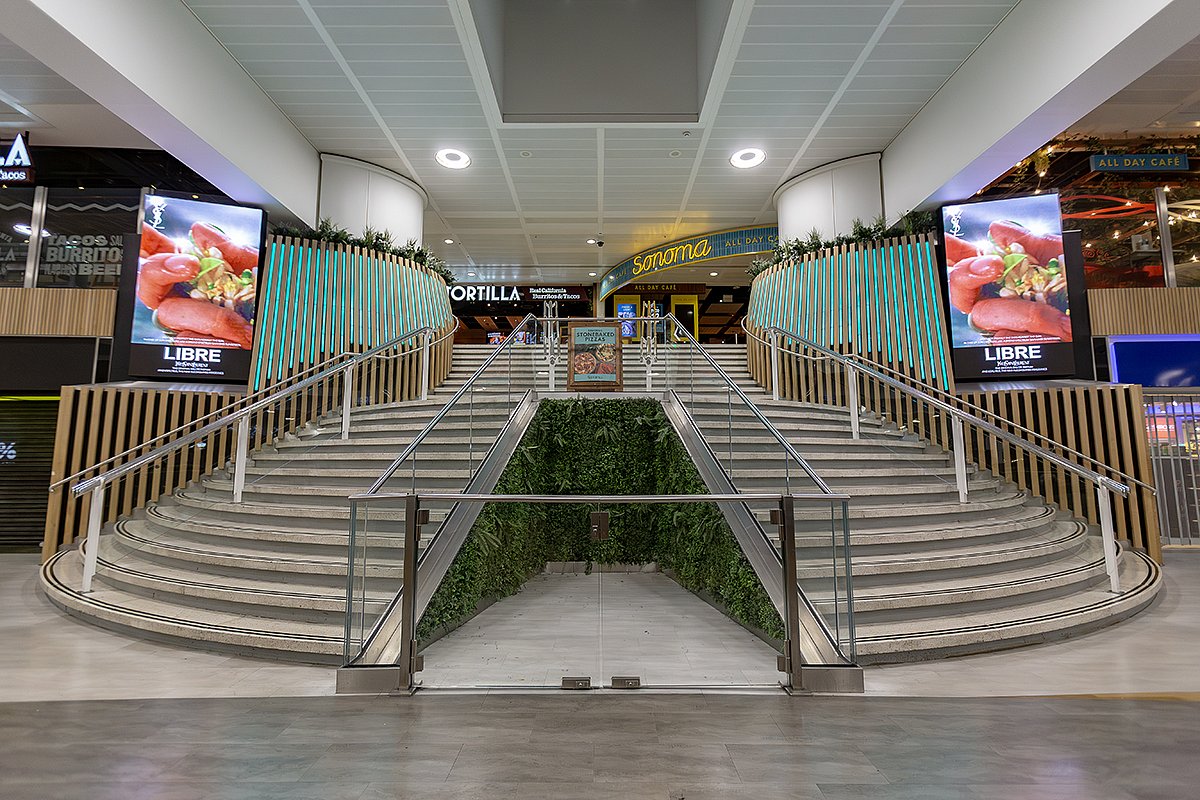

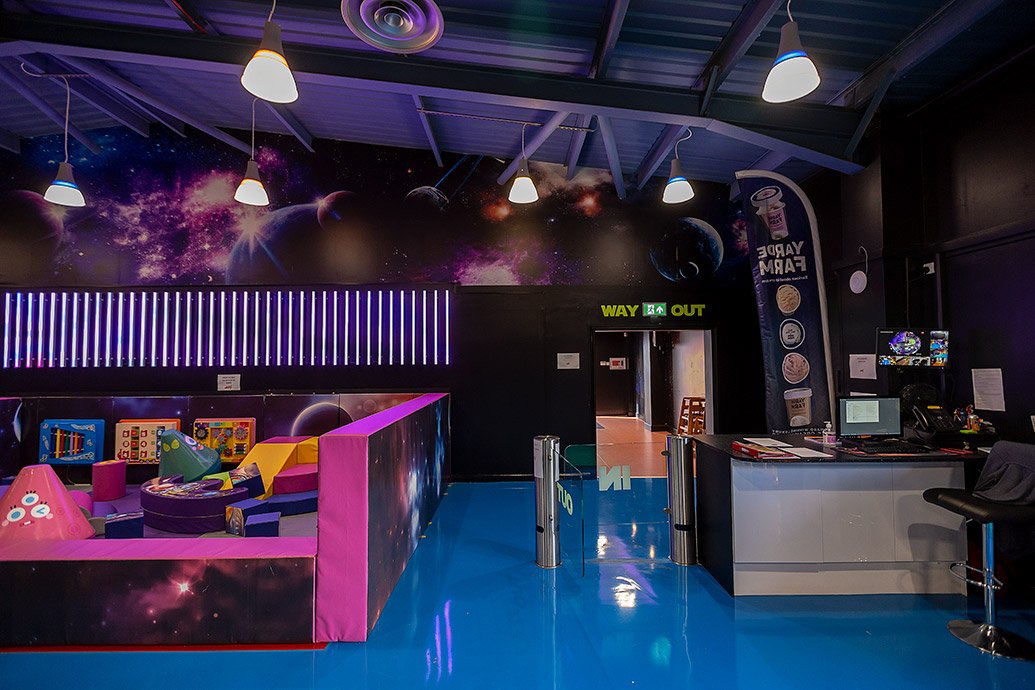

GLIDE PIXEL in action

Technical

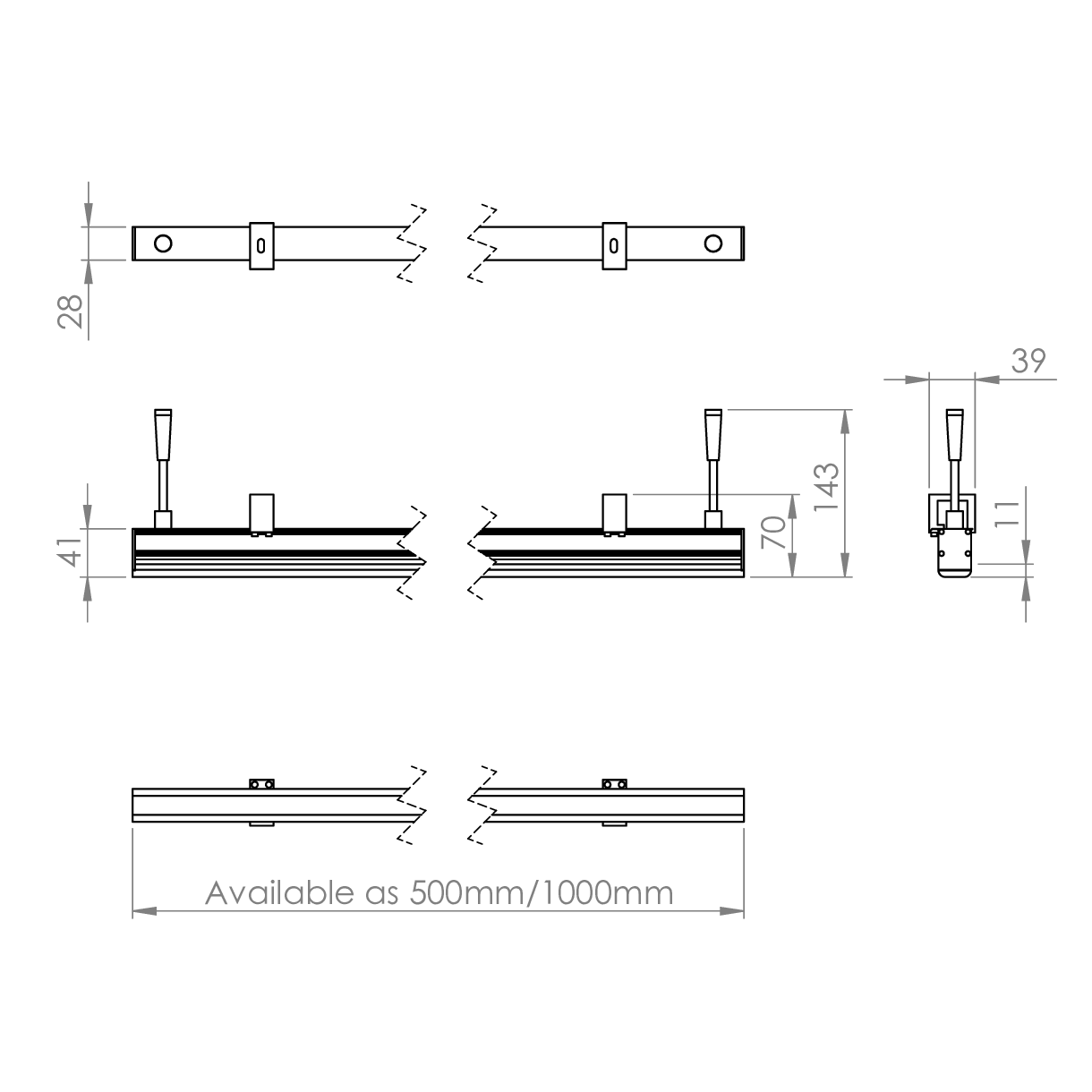

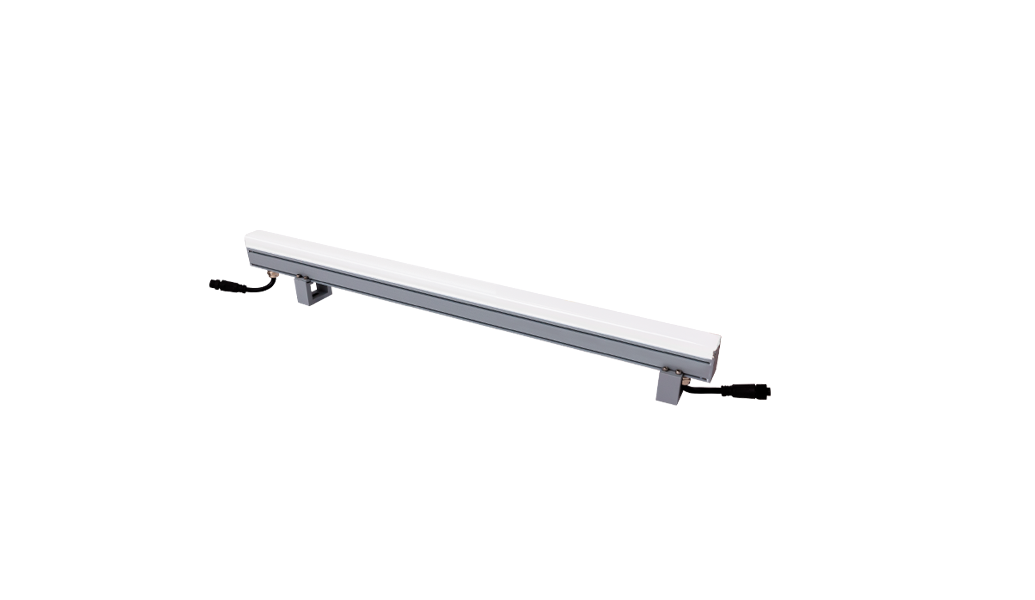

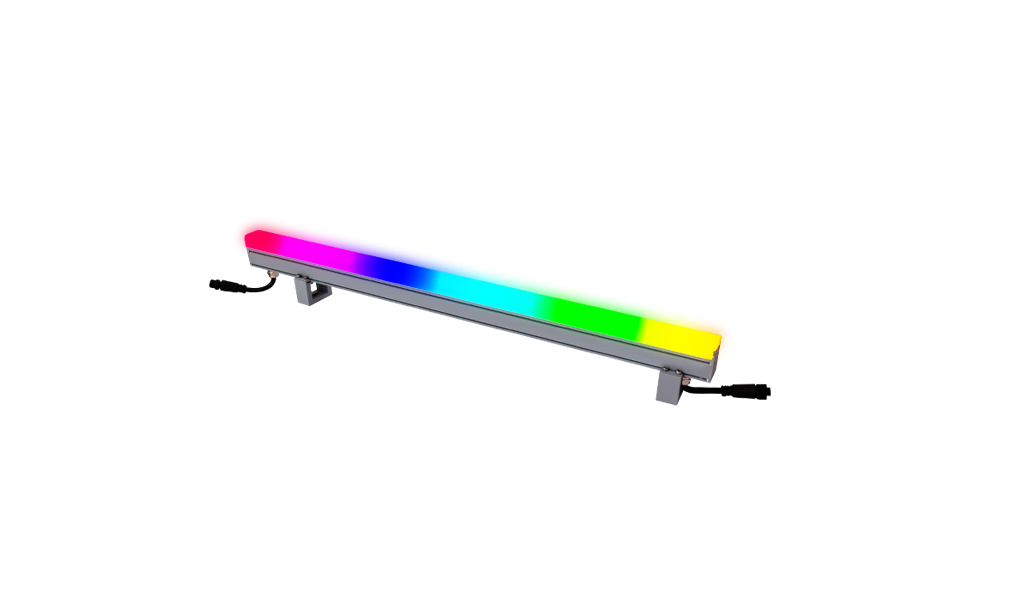

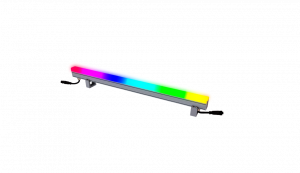

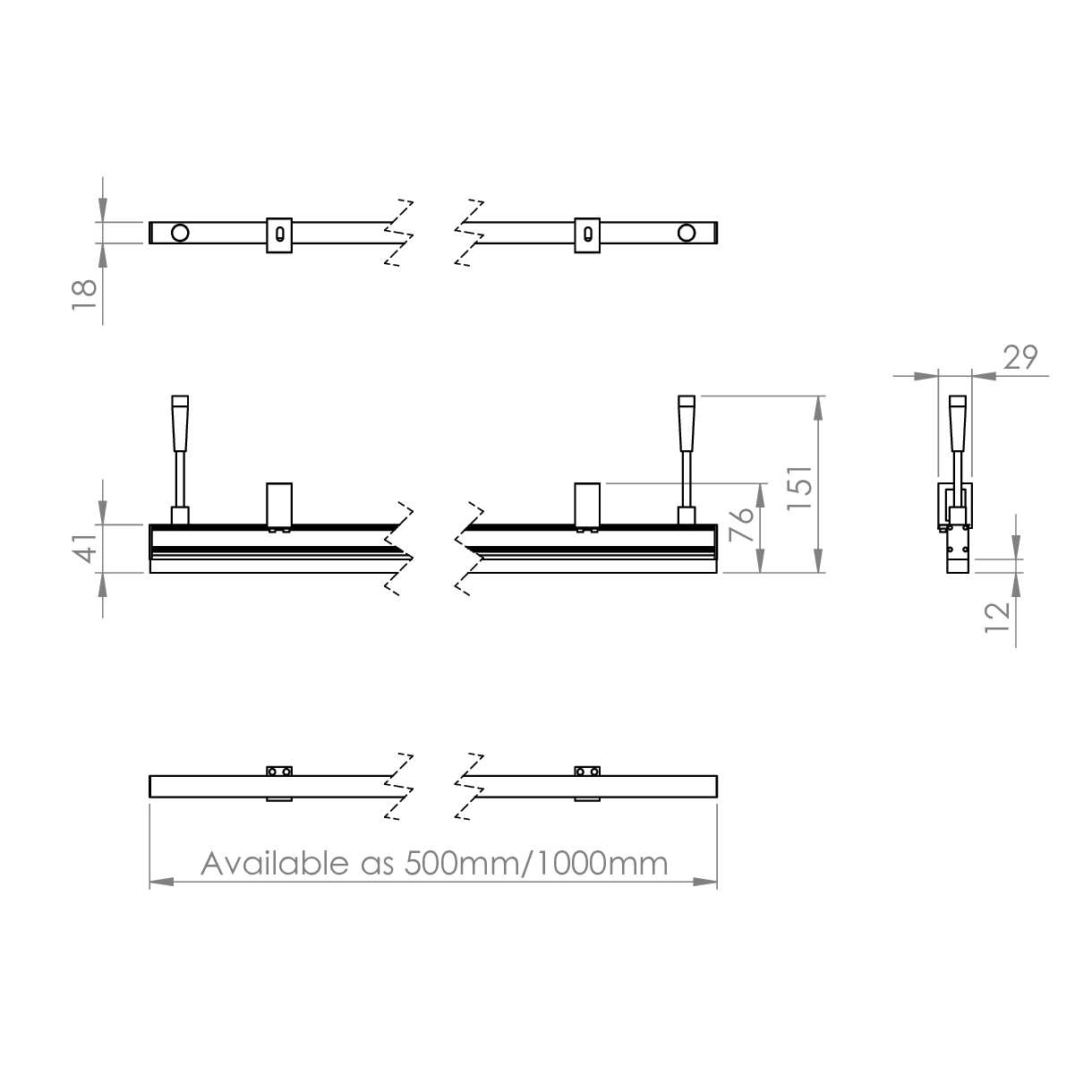

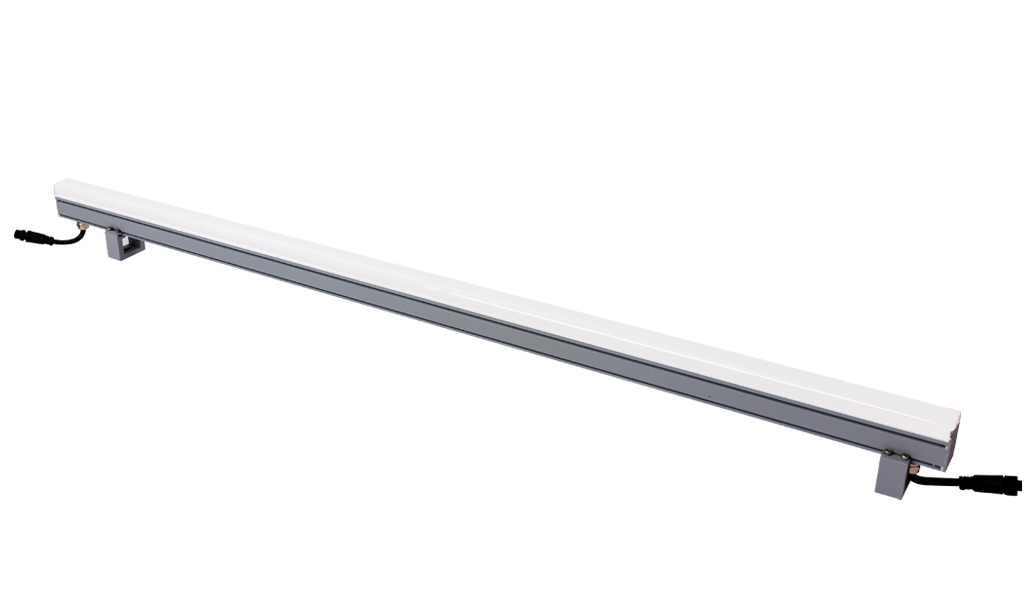

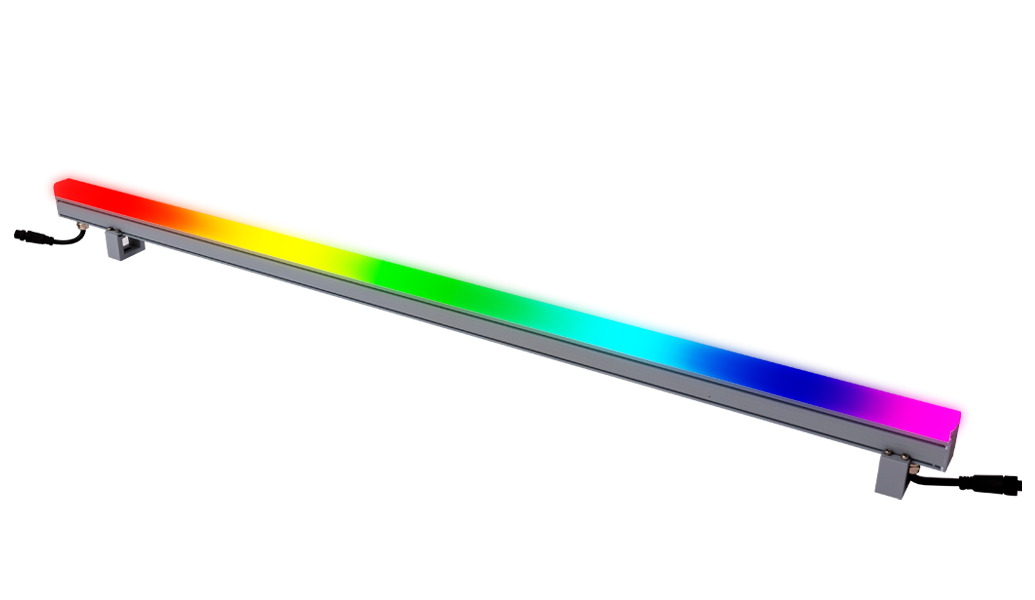

Glide Pixel RGBW 500mm and 1000mm

Glide Pixel RGBW 500mm and 1000mm

Glide Pixel White 500mm and 1000mm

Glide Pixel White 500mm and 1000mm

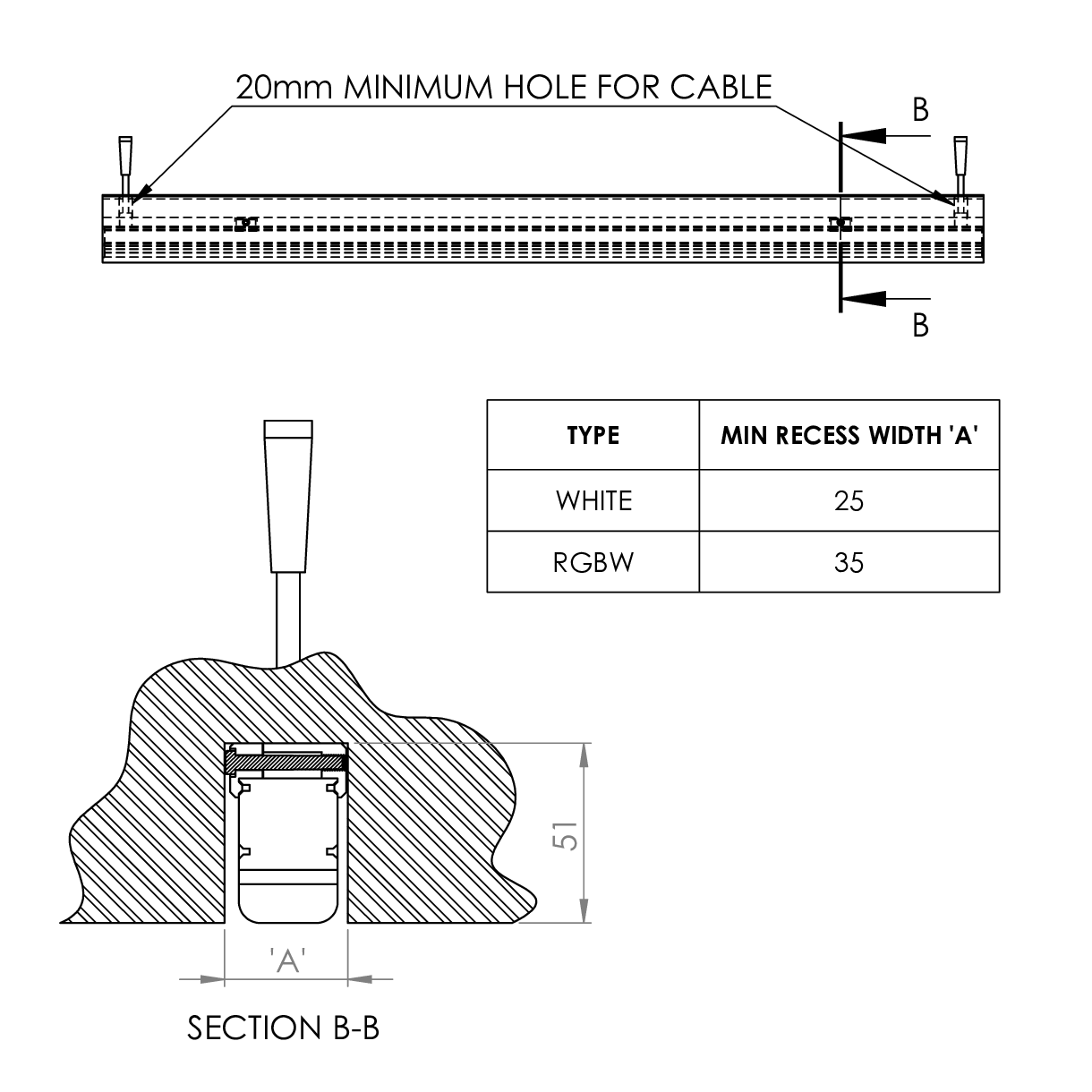

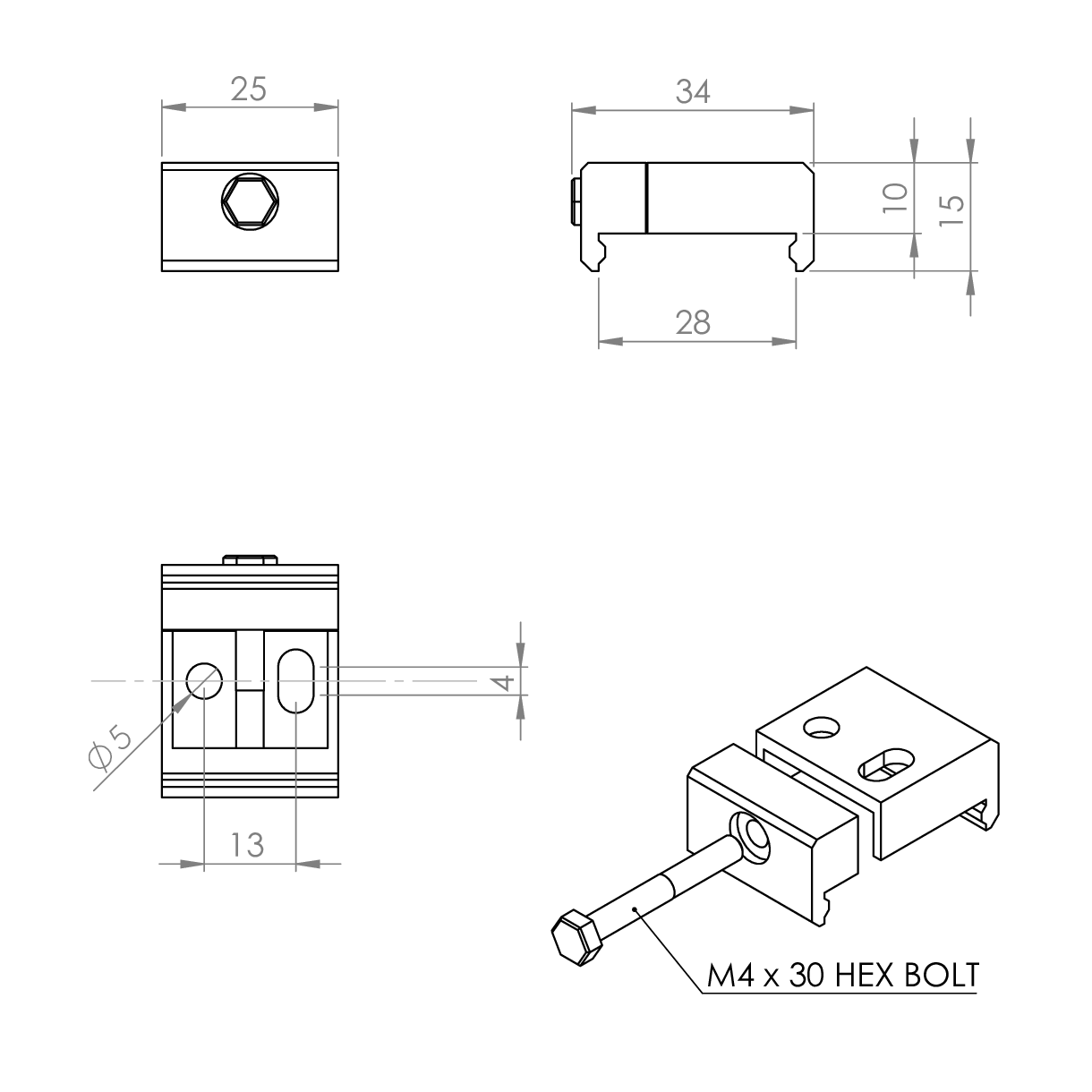

Glide Pixel Shallow Mounting Clip

Glide Pixel Shallow Mounting Clip

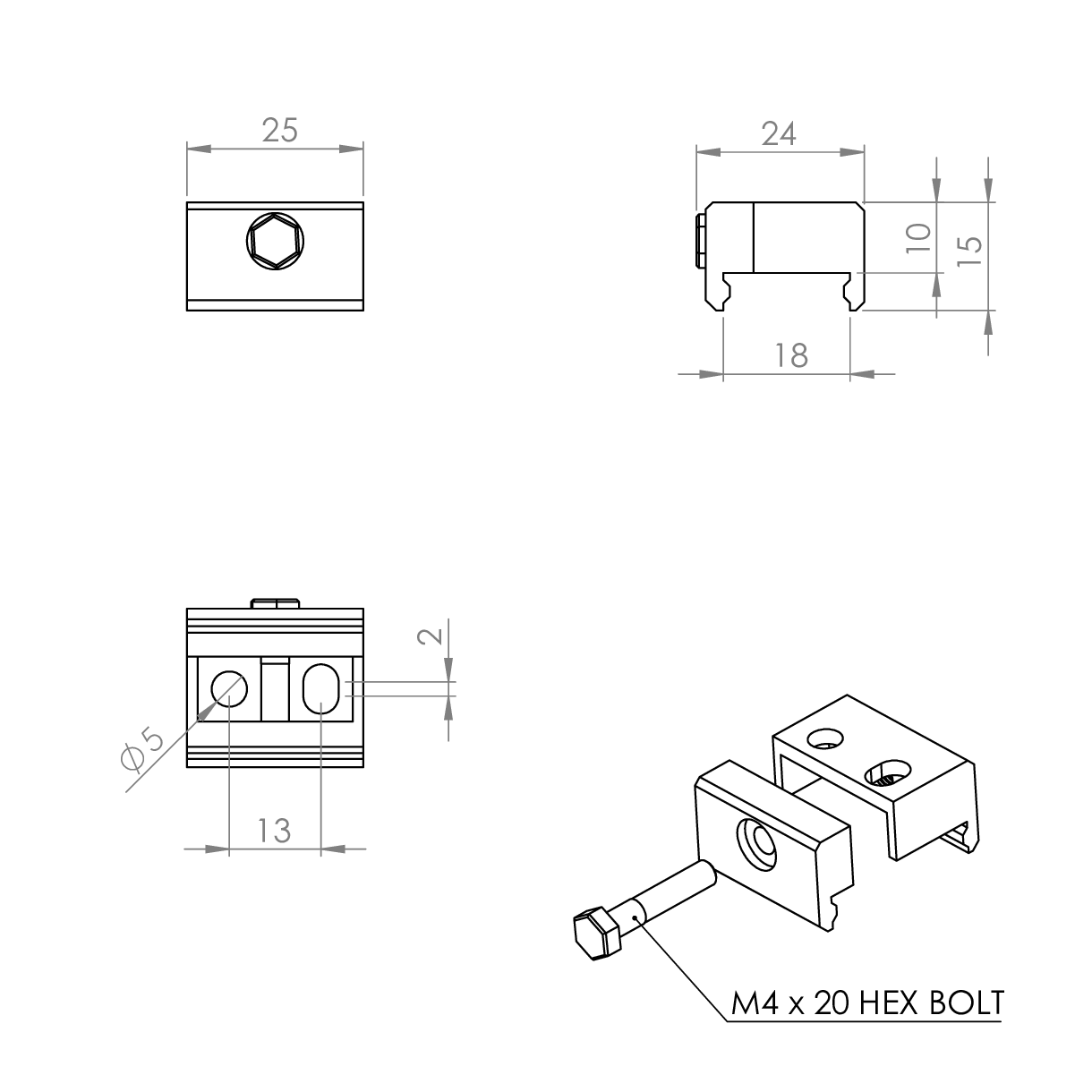

GPX 28 SHA BRKT (Glide Pixel RGBW)

GPX 28 SHA BRKT (Glide Pixel RGBW)

GPX 18 SHA BRKT (Glide Pixel WHITE)

GPX 18 SHA BRKT (Glide Pixel WHITE)

Ordering

Luminaires

Code Description Total Wattage Wattage per Channel Llm/W Luminous Flux
GPX 6 110 C84 GY Glide Pixel White, 500mm, 110°, IP66, 24V Grey RAL 9006, Colour 84 6.0W 1.5W 33 539llm
GPX 12 110 C84 GY Glide Pixel White, 1000mm, 110°, IP66, 24V, Grey RAL 9006, Colour 84 12.0W 3.0W 39 1087llm
GPX 6 110 RGBW GY Glide Pixel RGBW, 500mm, 196llm, 110°, IP66, 24V, DMX, Grey RAL 9006, RGBW 6.0W 1.5W 33 13lm Red, 42lm Green, 7lm Blue, 134lm White, 196llm RGBW
GPX 12 110 RGBW GY Glide Pixel RGBW, 1000mm, 475llm, 110° IP66, 24V, DMX, Grey RAL 9006, RGBW 12.0W 3W 39 33lm Red, 105lm Green, 19lm Blue, 318lm White, 475llm RGBW

Downloads

Installation Guide (Download PDF) Slim mounting clip instructions (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
